ROD END LOAD CELL OPERATION MANUAL
1
TABLE OF CONTENTS
1.0 INTRODUCTION..................................................................................................................2
2.0 SAFETY PRECAUTIONS....................................................................................................2
3.0 OVERVIEW..........................................................................................................................2
3.1 Dimensions .......................................................................................................................................2
3.2 Optional Components .......................................................................................................................2
4.0 MECHANICAL INSTALLATION..........................................................................................2
5.0 ELECTRICAL INSTALLATION ...........................................................................................3
5.1 Electrical Drawing / Western Regional Std.......................................................................................3
5.2 Output Polarity ..................................................................................................................................3
5.3 Cable & Grounding Considerations ..................................................................................................3
6.0 CALIBRATION.....................................................................................................................3
6.1 Calibration Certificate Description.....................................................................................................3
6.1.1 Measured Output.....................................................................................................................4
6.1.2 Hysteresis................................................................................................................................4
6.1.3 Best Fit Output........................................................................................................................4
6.1.4 Strain Gage Measurements .....................................................................................................4
6.1.5 Shunt Calibration Standard Resistor.......................................................................................4
6.1.6 Static Error Band (SEB)..........................................................................................................4
7.0 SHUNT CALIBRATION DESCRIPTION..............................................................................4
7.1 Resistor Value...................................................................................................................................4
7.2 Shunt Calibration Process.................................................................................................................4
7.3 Estimating Shunt Resistor for a Given Load.....................................................................................4
8.0 MAINTENANCE...................................................................................................................5
9.0 TROUBLE SHOOTING........................................................................................................5
9.1 Mechanical Trouble Shooting ...........................................................................................................5
9.2 Electrical Trouble Shooting...............................................................................................................5
10.0 CALIBRATION / REPAIR SERVICES...............................................................................5
10.1 RMA / Purchase Order....................................................................................................................5
11.0 WARRANTY ......................................................................................................................5

PCB Load & Torque, Inc. Toll-Free in USA 866-684-7107 716-684-0001 www.pcbloadtorque.com
ROD END LOAD CELL OPERATION MANUAL
2
1.0 INTRODUCTION
Rod end load cells manufactured by PCB Load & Torque, Inc.
are designed for integration into tension/compression
measurement applications such as process automation, quality
assurance, and production monitoring. Standard 3/4”-16 and
1”-14 male/female threads facilitate ease of installation.
The following document explains the characteristics and
installation of the rod end load cells.
2.0 SAFETY PRECAUTIONS
Failure of the load cell structure may cause personal injury
and equipment damage.
The load cell can withstand loads of at least 150% of the full-
scale capacity before any damage occurs to the sensing
element. Be sure that the load cell and any fixturing used is
properly designed, fabricated, and securely installed prior to
use.
3.0 OVERVIEW
Rod end load cells come in a variety of capacities to handle
loads ranging from 500 lbf to 20k lbf.
3.1 Dimensions
3.2 Optional Components
4.0 MECHANICAL INSTALLATION
Loads applied to rod end load cells must be even and centered.
Compensation linkages (e.g. rod end bearing, alignment
couplers) are recommended to help minimize load
misalignment. When installing fixtures, be sure to thread the
fixture to the load cell, and not the load cell to the fixture. If
alignment fixtures are not used, ensure loading surfaces are
flat and parallel, with loads applied in-line with the sensor.

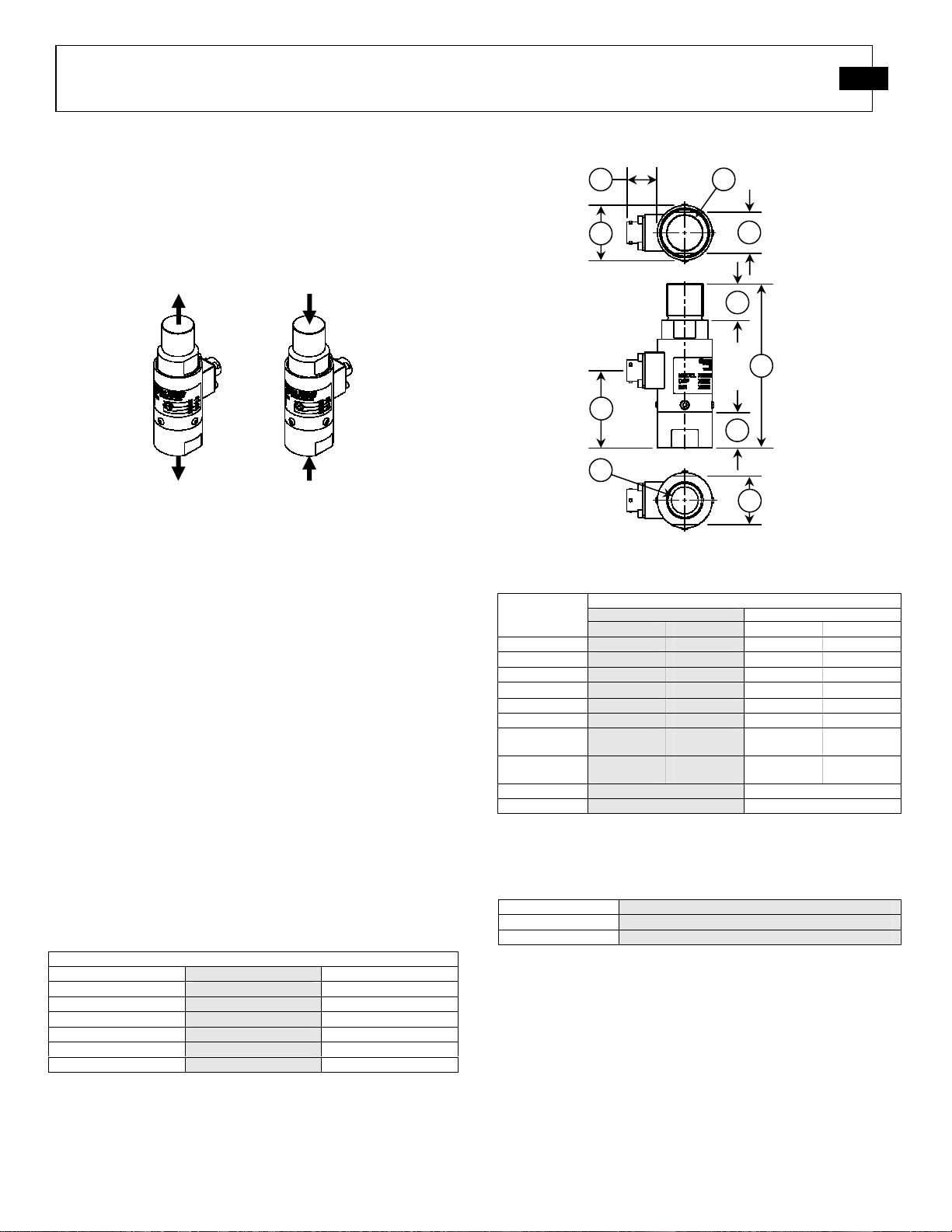

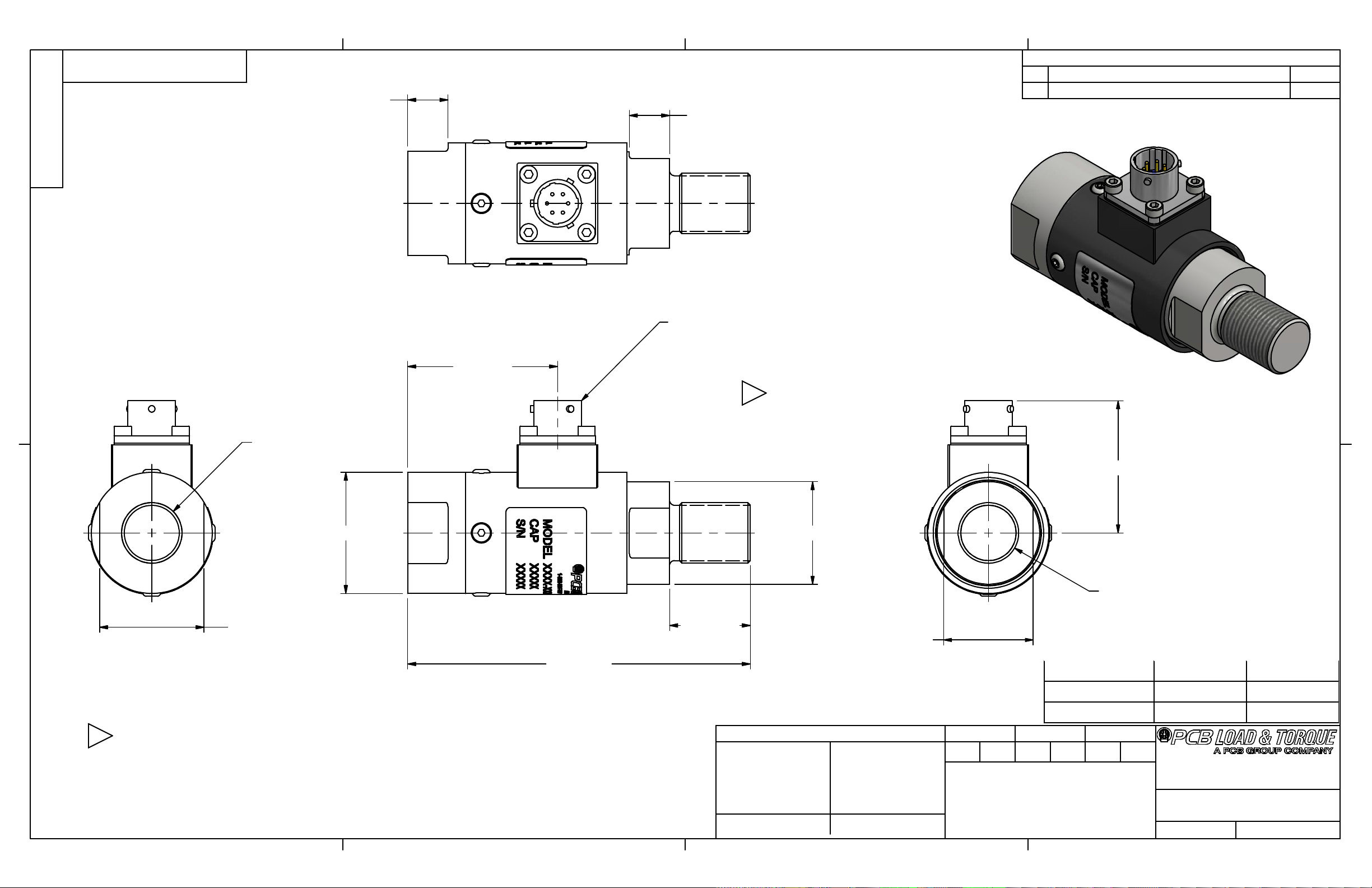

Figure 2 - Dimensions
Table 2 - Dimension Values
Table 1 - Full-Scale Capacities
Figure 1 - Rod End Load Cell Loads
Full-Scale Capacities
Model (lbf) (N)
1380-01A 500 2.22k
1380-02A 1k 4.45k
1380-03A 2k 8.90k
1381-01A 5k 22.24k
1381-02A 10k 44.48k
1381-04A 20k 88.96k
3
2
1
5
8
4
6 9
7
10
Tensile Load
Tensile Load
Compression Load
Compression Load
Series Number
1380 1381
Dimensions
(see Figure 2)
(in) (mm) (in) (mm)
1 4.25 107.9 4.50 114.3
2 1.00 25.4 1.00 25.4
3 0.72 18.3 0.97 24.6
4 ∅1.50 ∅38.1 ∅1.50 ∅38.1
5 1.86 47.3 2.12 53.8
6 0.83 21.1 0.83 21.1
7 1.31
Wrench Flat
33.3
Wrench Flat 1.31 Wrench Flat 33.3 Wrench Flat
8 1.13
Wrench Flat 28.6 Wrench Flat 1.13 Wrench Flat 28.6 Wrench Flat
9 3/4”-16 Tapped 1”-14 Tapped
10 3/4”-16 Tapped 1”-14 Tapped
Item Number Description
181-012A PT06A-10-6S (SR), Mating Connector
8311-01-10A Cable – Non-Coax, PT65 to Pigtail, 10 feet
Table 3 - Optional Components

PCB Load & Torque, Inc. Toll-Free in USA 866-684-7107 716-684-0001 www.pcbloadtorque.com
ROD END LOAD CELL OPERATION MANUAL
3
5.0 ELECTRICAL INSTALLATION
5.1 Electrical Drawing / Western Regional Std.
All load cells are wired following the Western Region
Standard. All models utilize strain gages configured into a
Wheatstone Bridge Circuit to produce the primary sensing
element. The four-arm Wheatstone bridge configuration is
shown below in Figure 3.
The gages are bonded to the load cell's structure.
Typically, a regulated DC or AC excitation is applied
between A and D of the bridge. When a force is applied to
the load cell, the Wheatstone bridge becomes unbalanced,
causing an output voltage between B and C, which is
proportional to the applied load. This configuration allows
for temperature and pressure compensation, as well as
cancellation of signals caused by forces not directly
applied to the axis of the applied load. Output is typically
expressed in units of mV/V of excitation.
5.2 Output Polarity
The following figure describes the output polarity.
5.3 Cable & Grounding Considerations
Proper grounding and shielding is required to prevent
electrical noise in strain gage load cell measuring systems.
The cable must be shielded twisted pairs with a drain wire.
Cable shields must be grounded only at one end, for example,
on the instrument or control system ground. The load cell
case is grounded by mechanical attachment to the structure to
which it is mounted.
The instrument or control system is grounded through its
power cord. Ground loops and measuring system wiring may
result in unstable or noisy signals.
A simple test with a voltmeter connected between the power
cord ground and the structure on which the load cell is
mounted can confirm that the structure has been properly
grounded. If the power cord ground and structure ground are
not at the same potential, it may be necessary to provide a
secure structure ground, perhaps by driving a copper rod and
attaching a ground strap.
6.0 CALIBRATION
Every rod end load cell manufactured by PCB Load & Torque,
Inc. has been fully calibrated per ISO/IEC 17025 procedures,
and meets all published specifications. Each load cell will
come with a calibration certificate designated with matching
model and serial numbers. PCB Load & Torque also offers
calibration services on an on-going basis.
6.1 Calibration Certificate Description
Calibration reports supplied with rod end load cells contain
valuable information to assist the customer in use of the
equipment. A separate calibration report is provided for
tension and compression calibrations. Calibration procedures,
equipment, and reports comply with ISO/IEC 17025.
Load Cell Receptacle: PT02E-10-6P
Mating Connector: PT02A-10-6S
PCB Load & Torque P/N: 181-012A
Table 4 - Electrical Connections
Figure 5 - Grounding
Test Rig Ground
Power Supply
Instrument Ground
Cable Shielding
Load Cell
C
A
D
B
- Signal White
- Excitation Black
+ Excitation Red
+ Signal Green
Figure 3 - Western Regional Strain Gage Committee Wiring Code
Figure 4 - Output Polarity
Tensile Load
= Positive
Tensile Load
= Positive
Compression Load
= Negative
Compression Load
= Negative

PCB Load & Torque, Inc. Toll-Free in USA 866-684-7107 716-684-0001 www.pcbloadtorque.com
ROD END LOAD CELL OPERATION MANUAL
4
6.1.1 Measured Output
The applied load starting at zero is measured in five
increments to full scale. Output (mV/V) is measured at each
increment. The straight-line from zero to the full scale
measurement is compared to the measured readings at each
increment to calculate the error at each load increment. The
deviations (% Full Scale) corresponding to non-linearity at
each measurement increment are then calculated.
6.1.2 Hysteresis
The difference between the ascending and descending
measured readings at 40% of full scale is used to calculate the
hysteresis value.
6.1.3 Best Fit Output
The best fit calibration second-order equation has been
calculated from the calibration data by the method of least
squares. Deviation between measured output and best-fit
output is calculated and displayed in the column next to the
best-fit output for each measurement increment. The
deviations (% Full Scale) of measured outputs from the
calculated best fit are tabulated for each measured reading.
6.1.4 Strain Gage Measurements
6.1.5 Shunt Calibration Standard Resistor
All rod end load cell calibrations use a 60K Ohm (0.1%)
precision resistor shunt calibration value that is supplied into
the calibration report.
6.1.6 Static Error Band (SEB)
The static error band (SEB) is determined by the maximum
deviations of the ascending and descending calibration points
from the best fit straight line through zero output. The SEB
includes the effects of nonlinearity, hysteresis, and non-return
to minimum load.
7.0 SHUNT CALIBRATION DESCRIPTION
Shunt calibration is used to simulate a known tension or
compression load on a load cell. The calibration certificate
will indicate which leg of the bridge to apply the shunt resistor
to for both tension and compression load simulation. Typically
tension is simulated by inserting the shunt resistor between the
+P and +S connector leads. Compression loading is simulated
by inserting the shunt resistor between the +S and –P
connector leads.
7.1 Resistor Value
Rod end load cells have a nominal 2.0 mV/V full scale output.
For a 350 ohm strain gage bridge the precision shunt resistor
is, 60,000 ohms ±0.1%, simulates an output of approximately
73% of the full scale output for the load cell. The calibration
values for each bridge are found on the calibration certificates
supplied with each load cell.
7.2 Shunt Calibration Process
To perform the shunt calibration, use the following procedure:
1. Stabilize all forces on the load cell. If possible,
remove all loads.
2. Set the load indicator display to read exactly 00.000.
3. Connect the shunt resistor to the terminals specified
in the calibration certificate, and adjust the span or
gain until the display reads the force value stated on
the certificate.
4. Repeat steps 1-3 to verify that a valid calibration
setting has been obtained.
5. If possible, apply a known load to the measurement
system to further verify that the calibration has been
accurately set up.
7.3 Estimating Shunt Resistor for a Given Load
The following formula can be used to estimate the
approximate value of shunt resistor required to simulate a
mechanical load.
R
cal
= (25 * R
b
) / (Output
FS
* L
cal
)
Where: R
cal
= Shunt Resistor (K ohms)
R
b
= Bridge Resistance (ohms)
Output
FS
= Full Scale output of the load cell (mV/V)
L
cal
= Load to be simulated, % of Load Cell Capacity
Bridge Resistance: 350 Ohm Nominal
Excitation: +P(A) to –P(D) Ohms
Signals: +S(B) to –S(C) Ohms
Leakage to Ground: > 5k GOhm
Bridge Unbalance: ±1.0% Full Scale
Output: 2.0 mV/V Nominal
Maximum Voltage: 20 VDC
Table 5 – Strain Gage Measurements

PCB Load & Torque, Inc. Toll-Free in USA 866-684-7107 716-684-0001 www.pcbloadtorque.com
ROD END LOAD CELL OPERATION MANUAL
5
8.0 MAINTENANCE
Routine maintenance of the rod end load cell should include
cleaning the electrical connectors, housings, and mounting
surfaces with solutions and techniques that will not harm the
physical material of construction. Make sure liquids are not
allowed to migrate into devices that are not hermetically
sealed. Such devices should only be wiped with a damp cloth,
and never be submerged or have liquids poured on them.
Never use a pressure washer on the load cells.
Yearly calibrations are recommended to ensure that the unit’s
outputs match the factory specifications.
9.0 TROUBLE SHOOTING
Proper performance of a load cell requires careful attention to
both electrical and mechanical aspects of the measurement
system. A basic understanding of the electrical and
mechanical installation requirements is recommended.
9.1 Mechanical Trouble Shooting
A mechanical checklist includes:
1. Check for proper installation of fixturing.
2. Check integrity of the fixturing.
9.2 Electrical Trouble Shooting
An electrical checklist should start with:
1. Check cables for proper wiring and make sure
connections are secure and proper.
2. Inspect for loose or dirty electrical connections.
3. Check for improper shield grounds.
4. Check for proper grounding of the structure that the
load cell is mounted on.
5. Check the signal conditioning electronics for proper
setup.
6. Check the insulation resistance of shielded
conductors for short circuits.
7. Check isolation resistance, load cell flexure to
conductors.
8. Check load cell bridge resistances, (A-D) excitation
and (B-C) the signal leads.
9. Check bridge balance.
10. Keep a record of your observations, correct problems,
or contact PCB factory for assistance.
10.0 CALIBRATION / REPAIR SERVICES
PCB Load & Torque offers calibration and repair services.
The PCB Calibration Laboratory in Farmington Hills,
Michigan is A2LA Accredited per ISO/IEC 17025.
Standard calibration certificates list five force points
ascending and one point descending. Additional data points
are available at extra cost upon request. A 60 K ohm (±0.1%)
shunt calibration resistor is supplied with each load cell
calibration.
Certificate information includes tabulated measurement
variable data zero balance, bridge input/output resistance,
computer nonlinearity and hysteresis, static error band (SEB)
calculations and entries abilities and traceability statements.
If an initial evaluation shows that a transducer requires repair,
PCB will provide the customer with an estimate prior to taking
any corrective action.
10.1 RMA / Purchase Order
Please request a return material authorization (RMA) before
sending a load cell back to the factory for any reason. For
calibration services, if possible, a copy of the purchase order
covering the requested services should be included with the
returned load cell.
11.0 WARRANTY
Standard warranty on rod end load cells covers parts and
workmanship. For full details, refer to the Warranty
Statement supplied with each load cell.
If the load cell is defective for reasons other than overloads,
return it to the factory for detailed evaluation. Factory
evaluation may show that the load cell is repairable or non-
repairable and if repair or replacement will be under warranty.
If not under warranty, the customer will be contacted with the
cost of repairs and recalibration. Once authorization to
proceed is received, a delivery date will be provided.
Manual Number: 50253
Manual Revision: A
Revision Date: 6/6/13
ECO Number: 41606

Model Number
1380-03A ROD END LOAD CELL Revision: D
ECN #: 43827
Performance ENGLISH SI
Measurement Range 2000 lbf 88 6 N [5]
Sensitivity(± 10 %) 2 mV/V 2 mV/V [6]
Non-Linearity ≤ 0.25 % FS ≤ 0.25 % FS
Hysteresis ≤ 0.15 % FS ≤ 0.15 % FS
Non-Repeatability ≤ 0.05 %RO ≤ 0.05 %RO
Resonant Frequency kHz kHz
Environmental
Overload Limit 3000 lbf 13 kN
Load Limit(Side Force, FX or FY) 800 lbf 355 N [3]
Load Limit(Bending Moment, MX or MY) 2500 inf-lb 282 Nm [3]
Load Limit(Axial Torque, MZ) 1250 inf-lb 141 Nm [3]
Temperature Range(Operating) -20 to +200 °F -28 to + 3 °C
Temperature Range(Compensated) +70 to +170 °F +21 to +77 °C
Temperature Effect on Output(Maximum) ± 0.01 %Reading/°F ± 0.018 %Reading/°C [4]
Temperature Effect on Zero Balance(Maximum) ± 0.005 %FS/°F ± 0.00 %FS/°C [4]
Electrical
Bridge Resistance 350 Ohm 350 Ohm [1]
Excitation Voltage(Recommended) 10 VDC 10 VDC [2]
Insulation Resistance >5x10 Ohm >5x10 Ohm
Zero Balance ≤ 1 % FS ≤ 1 % FS
Output Polarity Positive Positive
Output Polarity +Tension +Tension
Physical
Size (Diameter x Height) 1.50 in x 4.25 in 38.1 mm x 107. mm [7]
Weight 1.0 lb 454 g
Mounting Thread 3/4 - 16 Male No Metric Equivalent
Mounting Thread 3/4 - 16 Female No Metric Equivalent
Cover Material Anodized Aluminum Anodized Aluminum
Sensor Material Anodized Aluminum Anodized Aluminum
Sensing Element Strain Gage Strain Gage
Deflection at Full Scale Capacity 0.0005 in 0.013 mm
Electrical Connector PT02E-10-6P PT02E-10-6P
All specifications are at room temperature unless otherwise specified.
In the interest of constant product improvement, we reserve the right to change specifications without notice.
NOTES:
[1]Nominal.
[2]Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[3]Singularly applied, i.e. no other extraneous loads.
[4]Over compensated operating temperature range.
[5]FS - Full Scale.
[6]RO - Rated Output.
[7]See Outline Drawing 45488 for complete dimensions.
OPTIONAL ACCESSORIES:
Model 181-012A PT06A-10-6S(SR)
Model 8311-01-10A CABLE
PCB Load & Torque, Inc.
24350 Indoplex C rcle
Farm ngton H lls, MI 48335
UNITED STATES
Phone: [phone]
Fax: [phone]
E-Ma l: lt [e-mail]
Web s te:
http://www.pcbloadtorque.com
OPTIONAL VERSIONS
Optional versions have identical specifications and accessories as listed for the standard
model except where noted below. More than one option may be used.
Entered: AP Engineer: PE Sales: JC Approved: JSD Spec Number:
Date: 2/17/2015 Date: 2/17/2015 Date: 2/17/2015 Date: 2/17/2015 45843

M1380-XXA M20X1.5 - 6H M20X1.5 - 6g
1380-XXA 3/4-16UNF-2B 3/4-16UNF-2A
MODEL (SERIES) "A" THREAD "B" THREAD
1
1
2
2
3
3
4
4
A A
B B
DWG. NO.
SCALE: SHEET
DRAWN CHECKED ENGINEER
TITLE
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN MILLIMETERS
[ IN BRACKETS ]
ANGLES ` .5 DEGREES
24350 Indoplex Circle, Farmin ton Hills,MI 48335
[phone] E-MAIL: [e-mail]
DIMENSIONS IN INCHES
ANGLES ` .5 DEGREES
FILLETS AND RADII
.015 MAX
FILLETS AND RADII
0.38 MAX
OUTLINE DRAWING
45488
1 OF 1FULL
MODEL 1380-XXA SERIES
ROD END LOAD CELL
SD 05.11.10
DECIMALS XX ±.01
XXX ±.005
DECIMALS X ± 0.3
XX ± 0.13
45488
PCB Load & Torque Inc. claims proprietary ri hts in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others without
the written consent of PCB Load and Torque Inc.
REVISIONS
REV DESCRIPTION ECO
BADDED CHART FOR M1380 SERIES - 04.26.18, PTE 48167
1.64 [41.5]
4.25 [108.0]
1.00 [25.4]
1.27 [32.3]Ø1.50 [38.1]Ø
1.86 [47.2]
.50 [12.7]
.50 [12.7]
1.30 [32.9] FLATS
1.11 [28.2] FLATS
"A" THREAD x .88
PUSH/TURN RECEPTACLE
(BENDIX PT02E-10-6P OR EQUIV.)
WIRING CODE:
PIN A +EXC.
PIN B +SIG.
PIN C -SIG.
PIN D -EXC.
PIN E N/C
PIN F N/C
WIRING CODE FOR MODELS WITH "TEDS" OPTION
PIN A +EXC.
PIN B +SIG.
PIN C -SIG.
PIN D -EXC.
PIN E TEDS DATA
PIN F TEDS GRD
1
1
PTE 04.12.18 SD 05.11.10
"B" THREAD
