Peak NM60L User manual

NM60L NITROGEN GAS GENERATOR
USER MANUAL
UM-NM60L -19”Rack

NM60L- Nitrogen Gas Generator UM – NM60L
Contents
Document History
Page No
3
Warranty Statement 4
Safety Notice to Users 4
Declaration of Conformity 5
Air Connection 6
Principle of Operation 7
Commissioning 8
Maintenance Schedule 9
Technical Specifications 12
Pneumatic Diagram 13
Over Dimension
14
Maintenance Log 15
Notes 16
2

NM60L- Nitrogen Gas Generator UM – NM60L
History
Issue No Changed Initials Date
1 Document Created H.D 30/05/03
2 USA Technical support number updated FAD 10/11/04
3 Document Updated FAD 11/03/05
4 New Style Front Added FAD 08/04/05
5 Added Overall Dimension S.Khan 05/06/08
6 Updated Diagram S.Khan 05/05/10
7 Filter Info Update LC 01/05/13
3

NM60L- Nitrogen Gas Generator UM – NM60L
Warranties &
Liabilities
Warranties and Liabilities
1. The Company warrants that it has title to the Goods.
2. Subject to the provisions of this clause the Company warrants that the Goods shall comply in all material respects
with any specification referred to in the Order Confirmation (as the same may be amended) and shall, subject
thereto, be free from defects in material and workmanship for the lesser of a period of twelve months from the date
of delivery or thirteen months from the date of dispatch from the factory.
3. Save as provided in this clause and except where the Goods are sold to a person dealing as a consumer (within
the meaning of the Unfair Contract Terms Act 1977) all warranties, conditions or other terms implied by statute or
common law are hereby expressly excluded save to the extent they may not be lawfully excluded. When the
Goods are sold to a consumer within the meaning of the Unfair Contract Terms Act 1977 their statutory rights are
not affected by the provisions of this clause.
4. In the event of the Customer making a claim in respect of any defect in terms of clause 2 hereof the Customer
must:-
4.1. reasonably satisfy the Company that the Goods have been properly installed, commissioned, stored, serviced
and used and without prejudice to the generality of the foregoing that any defect is not the direct or indirect result
of lack of repair and/or servicing, incorrect repair and/or servicing, use of wrong materials and/or incorrect spare
parts; and
4.2.allow the company to inspect the Goods and/or any installation and any relevant packaging as and when
reasonably required by the Company.
5. Subject to the Company being notified of any defect as is referred to in sub-clause 2 hereof within a reasonable
time of it becoming apparent and subject always to the terms of sub-clause 4 hereof, the Company shall, in its
option, replace or repair the defective Goods or refund a proportionate part of the Price. The Company shall have
no further liability to the Customer (save as mentioned in sub-clause 6 hereof).
6. The Company shall be liable to indemnify the Customer in respect of any claim for death or personal injury to any
person in so far as such is attributable to the negligence or breach of duty of the Company or any failure by the
Company to comply with the provisions of sub-clause 2 hereof.
7. Save as provided in sub-clause 2 hereof the Company shall not be liable in respect of any claim by the Customer
for costs, damages, loss or expenses (whether direct, indirect, consequential or otherwise) or indemnity in any
respect howsoever arising including, but not by way of limitation, liability arising in negligence (other than pursuant
to clause 6 above) that may be suffered by the Customer or any third party.
SAFETY NOTICE TO USERS
These instructions must be read thoroughly and understood before installation and
operation of your Peak Scientific NM60L. Use of the Generator in a manner not
specified by Peak Scientific MAY impair the SAFETY provided by the equipment.
When handling, operating or carrying out any maintenance, personnel must employ
safe engineering practices and observe all relevant local health and safety
requirements and regulations. The attention of UK users is drawn to the Health and
Safety at Work Act 1974, and the Institute of Electrical Engineers regulations.
WARNING: Nitrogen is not a poisonous gas, but if the concentration in the
inhaled air becomes too high there will be a risk of asphyxiation.
4

NM60L- Nitrogen Gas Generator
Declaration of
Conform it
Declaration of Conformity
RoH S State < ment of Complj , ance
The E u ropean RoHS (Res t r i ction of Hazardous Substances) Directive 2002/9'5/EC aims to reduce the
use of ha zardou s materials w i t h i n a certain scope o f pr o d u cts - mostly e l e c t ri ca l and e l ectr o n i c.
Peak Scientific I nstruments Ltd h a s developed . a l l reasonable ' d u e dil l ige nc e ' cont r ol s , to en s u r e t hat
our products comply w ith the pri nc i p l e s , and r equ1 r e ments , of t h i s dire cti v e . S im il ar directives i n the
United Sta te s . .and China, f o r exam p le . have a l so been captured wi t hin t h is . p rog ramme .
Whe r e a s pecific cert i fiicate of compliance is require d, this can r equested on a product ser ial number
bas i s , from Peak Scientific I n st r u m e nts L td , by contacting us throug h i nfo@ p eakscie n t i fic.com.
W EEE Statement of • Comp l iance (W EE/ FjQ , I 1 16:X1U
T h e WEEE (Waste o f E l ectrical & El ectr on i c Equ i pment ) Directive 2002f9 6 } E C, issued by t h e European
U
n io n , a i ms to reduce the i mpact, . u pon the env ir ron ment, from disposal of ce rta i n types of equipment . I t
requires producers
to in, pleme n t c ontrols , to ensure that eq ; u i pm e n t that they produ ce , is correctly
dis p os ed · o f , following the end of i ts useful l i f e .
Peak Scientific l nst n r ments Ltd fully comp l i e s With it's o b l i gatio n s towards this im p or t an t legi s l ati on.
T h e s e ob l ig a t i ons refer to all el ectr i cal equipment that has been d i s p atc he d by us from I st J uly, 200 7 ,
wit h i n th e United K i ng do m . As part o f our C o m p l i a n ce t owar d s this, we have placed the manag e ment
o f it s d ispos a l with the B2B C om p l ianc . e · s·cheme. They can be con t a cte d directly on 0 1 691-676124, o r ·
by
visiting thei·r website on VN.w.b 2bcon-rp l i ance .org. u k.
Ken B rown
Q u ality Assurance Manager
5

NM60L- Nitrogen Gas Generator UM – NM60L
AIR CONNECTION
The Nitrogen Generator should be connected to a clean, dry, OIL - FREE
source of compressed air. A minimum pressure of 120 psig is required for
efficient operation of the Generator. Any doubts as to the suitability of your
compressed air supply should be referred to the factory for advice.
A MAXIMUM OIL VAPOUR CONTENT OF 5 mg per m^3 is PERMISSIBLE
Air Inlet and Nitrogen Outlet connections are at the rear of the generator in
the middle right side of the panel. The Air inlet connection is the left port. 3/8”
BSP female, outlet port is 1/4” BSP female. The generator is supplied with
two Breathing Air pre-filters and an Activated Carbon post filter, which are
fitted internally. The Breathing Air filters will drain moisture and are equipped
with automatic drains. This is connected to the 1/4” BSP Female port at the
bottom of the rear panel. Any bulk moisture in the inlet air will be trapped by
these filters and released through this drain port, which should be led to a
convenient place.
6

NM60L- Nitrogen Gas Generator UM – NM60L
Principle of Operation Principle of Operation
Peak Scientific Instruments Membrane Generators utilise Hollow Fibre Membrane Technology to
efficiently separate Nitrogen from other gases present in ambient air. The membrane operates on the
principle of selective permeation in that so-called “Fast” gases such as H2O, CO2 & Oxygen will
permeate through the membrane wall whilst so-called “Slow” gases will not and continue along the
membrane tube and are thus available for collection and use.
Air passes into the system via the Breathing Air Filter. This will prevent bulk moisture and
harmful contaminants from reaching the Membrane. The clean air then passes into the
Membranes where Oxygen, CO2 and Moisture are removed allowing High Purity Nitrogen to
pass through. The Output Flow is regulated for pressure and then passed through an Activated
Carbon Filter to ensure no carry-over of harmful contaminants
7

NM60L- Nitrogen Gas Generator UM – NM60L
Commissioning Commissioning
With the Generator installed as described earlier. Disconnect the Nitrogen Outlet
connection to allow the generator to vent to atmosphere until the unit is stabilized then
open the air supply. The Generator has been pre-set in the factory to give the specified
output flow-rate and pressure. Once the Membrane reaches the design pressure the
Generator will stabilise and produce pure Nitrogen. Maximum purity will be achieved
after around 1 hour. After this time the generator can be re-connected to the
application.
The design of the generator is that it will deliver up to rated output flow of Nitrogen at
100 psig. Should the demand for Nitrogen be less than the rated output flow, or indeed
should the demand stop the generator will continue to operate without any problems.
The generator is protected from over-pressure.
8

NM60L- Nitrogen Gas Generator UM – NM60L
Maintenance Schedule
WARNING: Servicing and/or repair of the Generator should only be undertaken by a
TECHNICALLY COMPETENT PERSON with the Generator in a safely isolated condition.
Due to the simplicity of the design and the small number of moving parts the NM Series Nitrogen
Generator will have a long and trouble free life. However as with all scientific and technical equipment it
should be regularly inspected and serviced as below
BA Inlet Filters Every 12 – months
RAC Filter Elements Every 12 - months
BA Inlet Filter Elements
These should be changed at 12 months intervals. In addition filter bowls should be cleaned and, the
operation of the auto-drains should be checked, if auto-drain requires replacing. Part # is (02-4485).
FAILURE TO FOLLOW THE PRESCRIBED MAINTENANCE PLAN WILL
INVALIDATE THE PRODUCT WARRANTY
The Air supply to the Generator MUST be turned OFF and the Generator MUST
be de-pressurised prior to attempting to remove ANY filter bowl. Failure to do
this may cause injury.
9

NM60L- Nitrogen Gas Generator UM – NM60L
Maintenance
Inlet Filter / Separator Elements
These should be changed at intervals as indicated below. In addition filter bowls
should be cleaned and, the operation of the auto-drains should be checked.
The Air supply to Generator MUST be turned OFF and the Generator MUST be
de-pressurised prior to attempting to remove ANY filter bowl. Failure to do
this may cause injury.
Inlet Breathing Air Filter / Separator Elements
The top Filter Element (00-4427) should be changed at 12-month intervals. The
bottom element should be changed at 12-month intervals. The Part Numbers are as
shown in the drawings below.
RAC Element
Prt. #
00-4427
Coalescing Element
Prt. #
00-4424
Auto Drain Prt #02-4485
10

NM60L- Nitrogen Gas Generator UM – NM60L
Maintenance
RAC Filter
The Element is as shown, and should be changed at 12-month intervals.
The Air supply to the Generator MUST be turned OFF and the Generator
MUST be de-pressurised prior to attempting to remove ANY filter bowl.
Failure to do this may cause injury.
R A C E le m e n t
P rt. # 0 0 - 4 4 2 5
The filter housing is removed by un-screwing in a counter clockwise direction
IMPORTANT!!! Ensure that the system is NOT under pressure before attempting to remove
the bowl and that the air supply is shut-off.
11

NM60L- Nitrogen Gas Generator UM – NM60L
Technical Data
General Details
Minimum Operating Ambient Temperature 5 oC (41 oF)
Maximum Operating Ambient Conditions 30 oC (86 oF) 70% RH(max)
Inlet Conditions (Free of oil and bulk moisture)
Minimum Air Inlet Pressure 120 psig (8.27 Barg)
Maximum Air Inlet Pressure 145 psig (10.0 Barg)
Minimum Air Inlet Flow Rate 180 l/min (ATP)
Outlet Gas
Maximum Pressure Drop (Outlet-Inlet) δP 8 psig
Maximum Gas Outlet Pressure
100 psig
Maximum Outlet Flow (High Purity Nitrogen) 60 Litres/min (ATP)
Start up time for Purity 60 minutes
Particles 0.01um
Serviceable Parts List (Service Kit Part # 08-4429)
Breathing Air Inlet Filter Elements 00-4424
00-4427
Active Carbon Filter Element 00-4425
General
Dimensions W x D x H cm
(inches)
Shipping Weight Kg
(lbs)
Shipping Weight Dims Kg
(lbs)
61 x 66 x
140
(24 x 26 x 55)
166
(366)
78x80x160
31x32x63
12

-
"0
:I
(J)
c:
3
II)
( " )
A
l- . ..., .. . . . .. dM « • -
Swi t c h
Safety V a lv e
Nort-Retur n V a l ve
Membranes
Inlet Valve
Rece iv er
Inlet BA Filter
"'-- Pressure R egu l ator
""-- Flow Contro ll er
RAC F i lter
w
NM 6 0 L
System Diagra m

()
• •
-
•
II
-
NM60L- Nitrogen Gas Generator

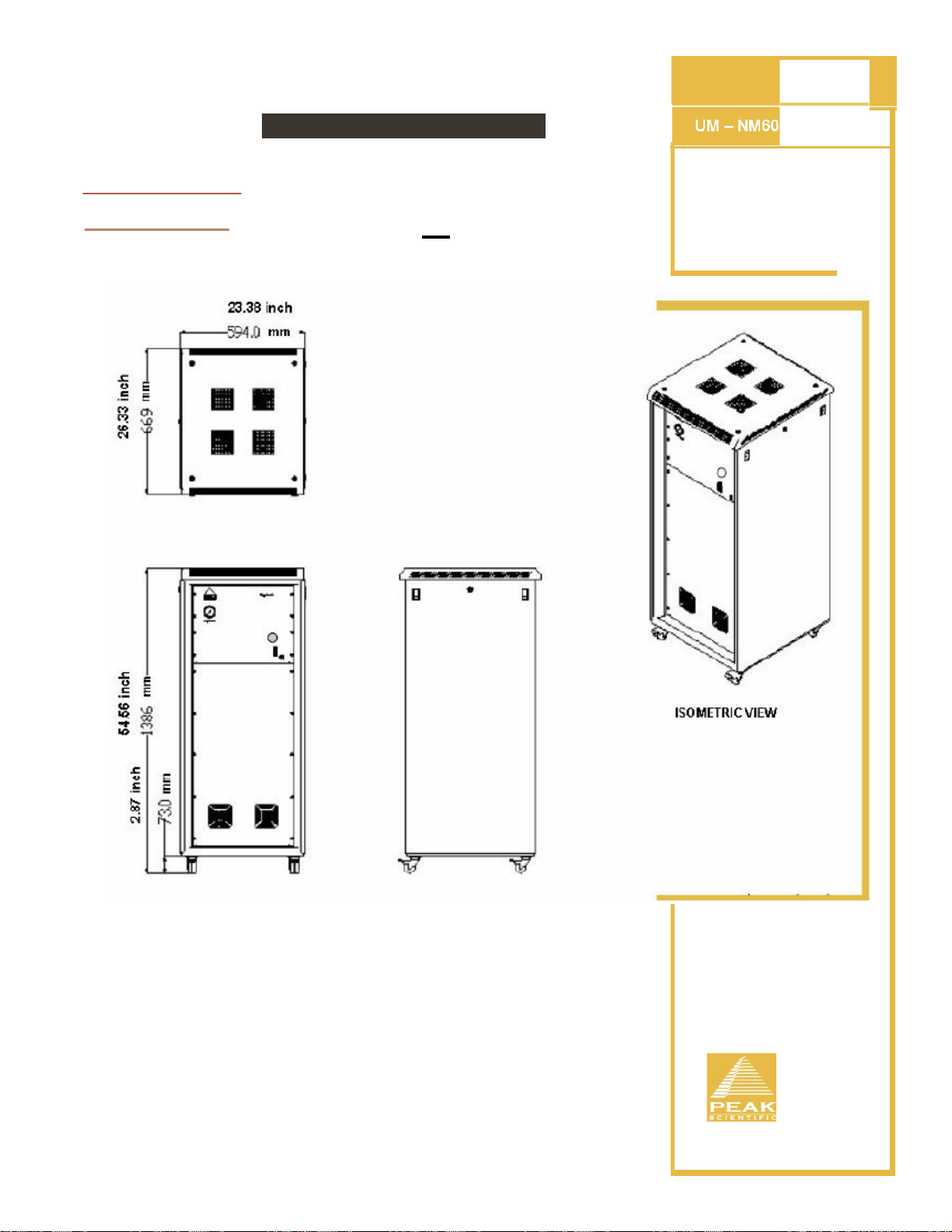

Overall
Dimensions
23.38 i nch
594.0 mm •
• •
c
Overall Dimensions
(")
(',!
cr.
II II
• •
!Ill.
.
E
••
I S OMETRI C VIEW
14

NM120L- Nitrogen Gas Generator UM – NM60L
Maintenance log Maintenance Log
Model- NM60L Serial number
Work Done Remarks Date Name
15

Notes )
16
