Peavey XRD 680 User manual

A
A
Intended to alert the user to the presence of uninsulated “dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Intended to alert the user to the presence of important operating and maintenance (servicing) instruc¬
tions in the literature accompanying the product.
CAUTION Risks of electrical shock — DO NOT OPEN
CAUTION To reduce die risk of electric shock, do not remove cover. No user serviceable parts inside. Refer
Servicing to qualified service personnel.
WARNING To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before
using this appliance, read the operating guide for further warnings.
Thank you for purchasing the Peavey XRD" 680 mixer with built-in digital effects and
power amplifier. This is an eight-channel, powerful, easy-to-use. portable mixing console.
Your XRD M 680 features a rugged heavy-gauge cold-rolled steel and aluminum chassis,
finished in oven- cured epoxy for toughness and screen-printed utilizing the latest photo¬
graphic film and U.V.- cured ink technology for razor-sharp, hard-wearing, control I.D. and
calibration graphics.
Every on-board component has been carefully chosen to deliver the highest possible perfor¬
mance. Precision, professional reliability and absolute minimal operating noise characteris¬
tics are only among the initial criteria used during the process of selecting the components
that ensure that your XRD ’ 680 becomes an indispensable addition to your live performance
equipment.
All printed circuit boards are constructed from rugged U.S. military-spec material using the
latest automated assembly technology, wave solder, and computer-controlled "all-faults-
analyzed-and-corrcctcd” Q.A. procedures.
Each channel features front panel output and monitor level controls, as well as high, mid.
low equalization and effects emphasis controls. Every input channel has a studio-quality low
impedance (XLR-type input) microphone input as well as a 1/4" line input. Switchahle
-t-48 V phantom power is provided.
The unit features dual 150 watt power amplifiers.

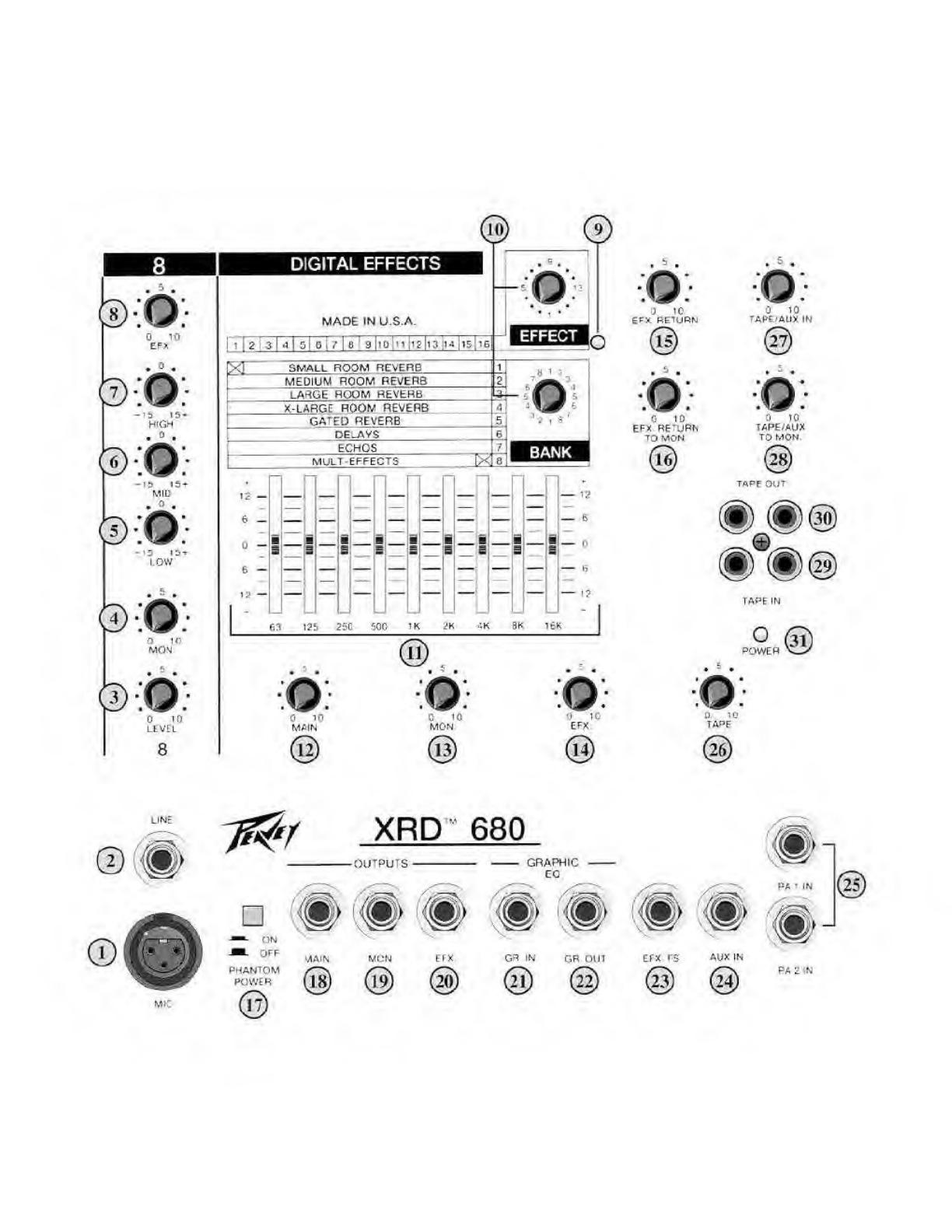

10 9
DIGITAL EFFECTS
EFX RETURN
TAPE 'AllV. IN
MADE IN U.S.A.
MALL ROOM REVERB
MEDIUM ROOM REVERB
LARGE ROOM REVERB
X-LARGE ROOM REVERB
GATED REVERB
0 1C
TAPE/AUX
TD MON
G 10
EFX RETURN
TO MON
DE-AYS
ECHOS
MULT-EFFECTS
TAPE IN
POWER
MON
MAIN

BALANCED LOW IMPEDANCE INPUT (1)
For use with low impedance microphones or low-level sources equipped with an XLR connector.
LINE INPUT JACKC2)
For use with line level signal or compatible high Z microphones equipped with a 1/4" phone plug.
NOTE: It is possible to use both the mic and line inputs on a single channel simultaneously. It is, however,
unlikely that the gain matching of the mic and line will allow this hookup to be useful. This practice is not
recommended.
LEVEL (3)
Controls the channel output level. Maximum output level is obtained by rotating this control fully clockwise.
Minimum output level is obtained by rotating this control fully counterclockwise.
MONITOR (4)
Controls the channel monitor mix level. This is independent of all other channel controls. Maximum channel
monitor mix level is obtained by rotating this control fully clockwise. Minimum channel monitor mix level is
obtained by rotating this control fully counterclockwise.
LOW EQ (5)
Controls the channel low EQ level. An active tone control (shelving type, ±15 dB) that varies the low frequency
range. Maximum low EQ boost is obtained by rotating this control fully clockwise. Maximum low EQ cut is
obtained by rotating this control fully counterclockwise.
MID EQ<6»
Conirols the channel mid EQ level. An active tone control (peak/notch. ±12 dB) that adjusts the mid frequency
range. Maximum mid EQ boost is obtained by rotating this control fully clockwise. Maximum mid EQ cut is
obtained by rotating this control fully counterclockwise.
HIGH EQ CONTROL (7)
Controls the channel high EQ level. An active tone control (shelving type, ±15 dB) that varies the high frequency
range. Maximum high EQ boost is obtained by rotating this control fully clockwise. Maximum high EQ cut is
obtained by rotating this control fully clockwise.
EFFECTS SEND (8)
Conirols the channel effects drive level. Maximum effects signal is obtained by rotating the control fully clock¬
wise. Minimum signal level cut is obtained by rotating ihis control fully counterclockwise.
MASTER SECTION:
EFFECT LED(9)
When blinking, this LED indicates that the effects system is within 6 dB of clipping: when fully illuminated,
indicates that the effects system's sound will be distorted, as clipping will be taking place. If the EFFECT LED
becomes fully illuminated, use the EFFECTS MASTER control (14) to reduce the effects system operating level
so the EFFECT LED is no longer illuminated or only blinks occasionally. A decrease in the effects level in the
main mix can be compensated for by increasing the gain of the EFFECTS RETURN (15).

EFFECT SELECTOR AND BANK SELECTOR (10)
Rotating the BANK SELECTOR control determines which particular digital bank is selected for use. As will be
seen from the front panel illustration, digital effect banks are available from small room reverbs through extra-
large rooms, gated reverbs, delays, echos and multi-effects.
Rotating the EFFECT SELECTOR control determines which particular digital effect is drawn from whichever
bank lias been selected by means of the BANK SELECTOR switch.
NOTE: Refer to the chart printed on the faceplate and select one of the 128 effects using the BANK and SE¬
LECT switches. There are 16 effects settings for each BANK. Use the BANK switch to choose the type of effect
and the SELECT switch to choose which variation of this effect to use.
9-BAND GRAPHIC EQ (11)
Provides ±12 dB equalization at each center frequency. EQ boost is obtained by moving a particular EQ band's
slide control above the center line. EQ cut is obtained by moving a particular EQ band's slide control below the
center line.
OPERATION NOTE: This equalizer is designed to provide room equalization, feedback control and system
tone control. No amount of equalization will correct the response curve of a poor loudspeaker. Always begin
with all sliders in the "0" position and avoid excessively cutting large segments of the audio passband, which
would limit the system's dynamic range.
MASTER GAIN (12)
Controls the overall volume level of the main system. The signal from this control is available at the main output
(18). Under normal conditions this signal is also internally patched through the graphic EQ and power amplifier
so that this control sets the volume of the speakers connected to the external speaker jacks (35). Maximum
master signal level is obtained by rotating this control fully clockwise. Minimum master signal level cut is
obtained by rotating this control fully counterclockwise.
MASTER MONITOR (13)
Controls the overall monitor mix level. Maximum monitor signal level is obtained by rotating this control fully
clockwise. Minimum monitor signal level is obtained by rotating this control fully counterclockwise.
EFFECTS MASTER (14)
Controls the effects level supplied to the internal effects and the effects out jack. Maximum effects signal level is
obtained by rotating this control fully clockwise. Minimum effects signal level is obtained by rotating this
control fully counterclockwise.
EFX RETURN (15)
Controls the level of the EFX in the main system mix. Maximum effects return signal level is obtained by
rotating the control fully clockwise. Minimum effects return signal level is obtained by rotating this control fully
counterclockwise.
EFX TO MONITOR (16)
Controls the level of the EFX in the monitor system. Maximum monitor effects signal level is obtained by
rotating this control fully clockwise. Minimum monitor effects signal level is obtained by rotating this control
fully counterclockwise.

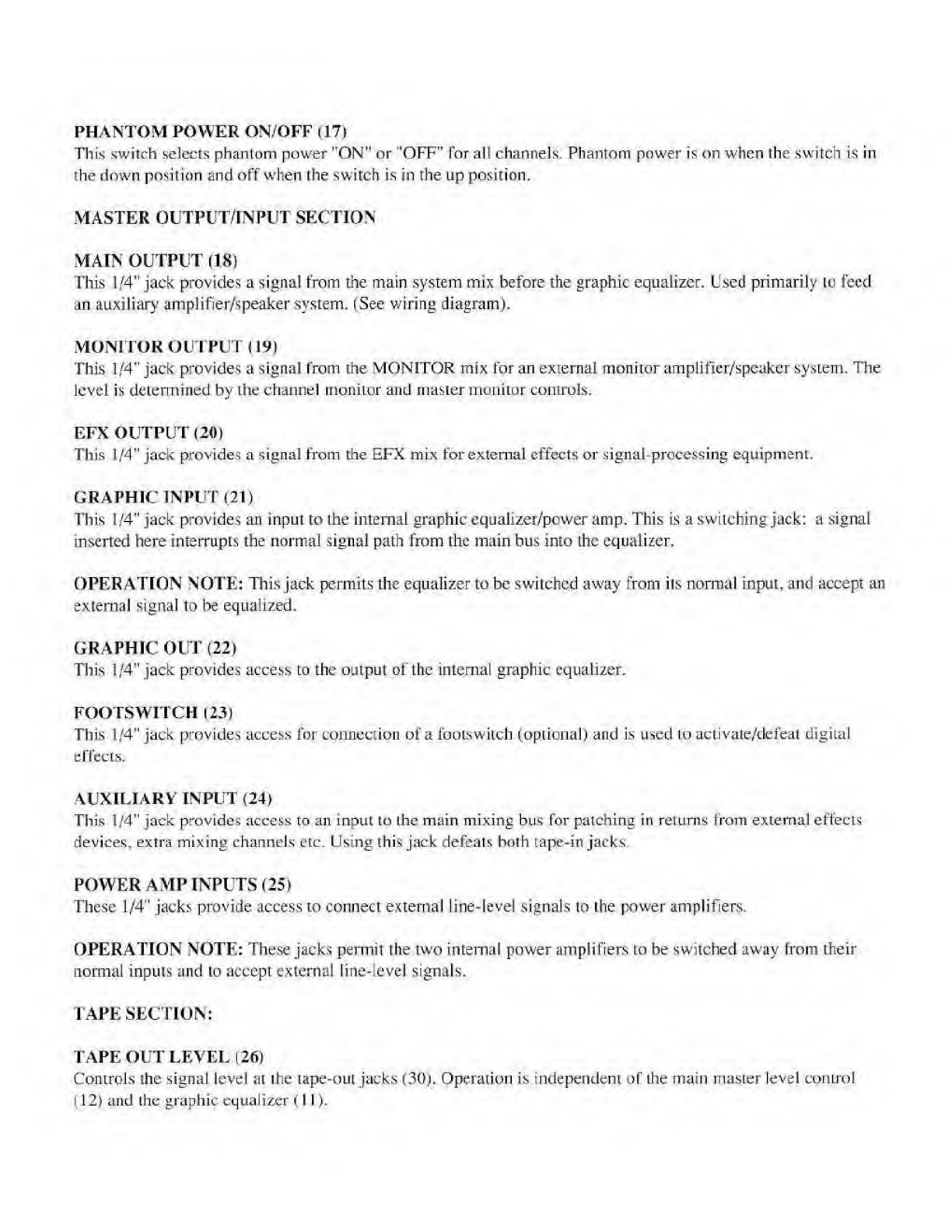

PHANTOM POWER ON/OFF (17)
This switch selects phantom power "ON" or "OFF" for all channels. Phantom power is on when the switch is in
the down position and off when the switch is in the up position.
MASTER OUTPUT/INPUT SECTION
MAIN OUTPUT (18)
This 1/4" jack provides a signal from the main system mix before the graphic equalizer. Used primarily to feed

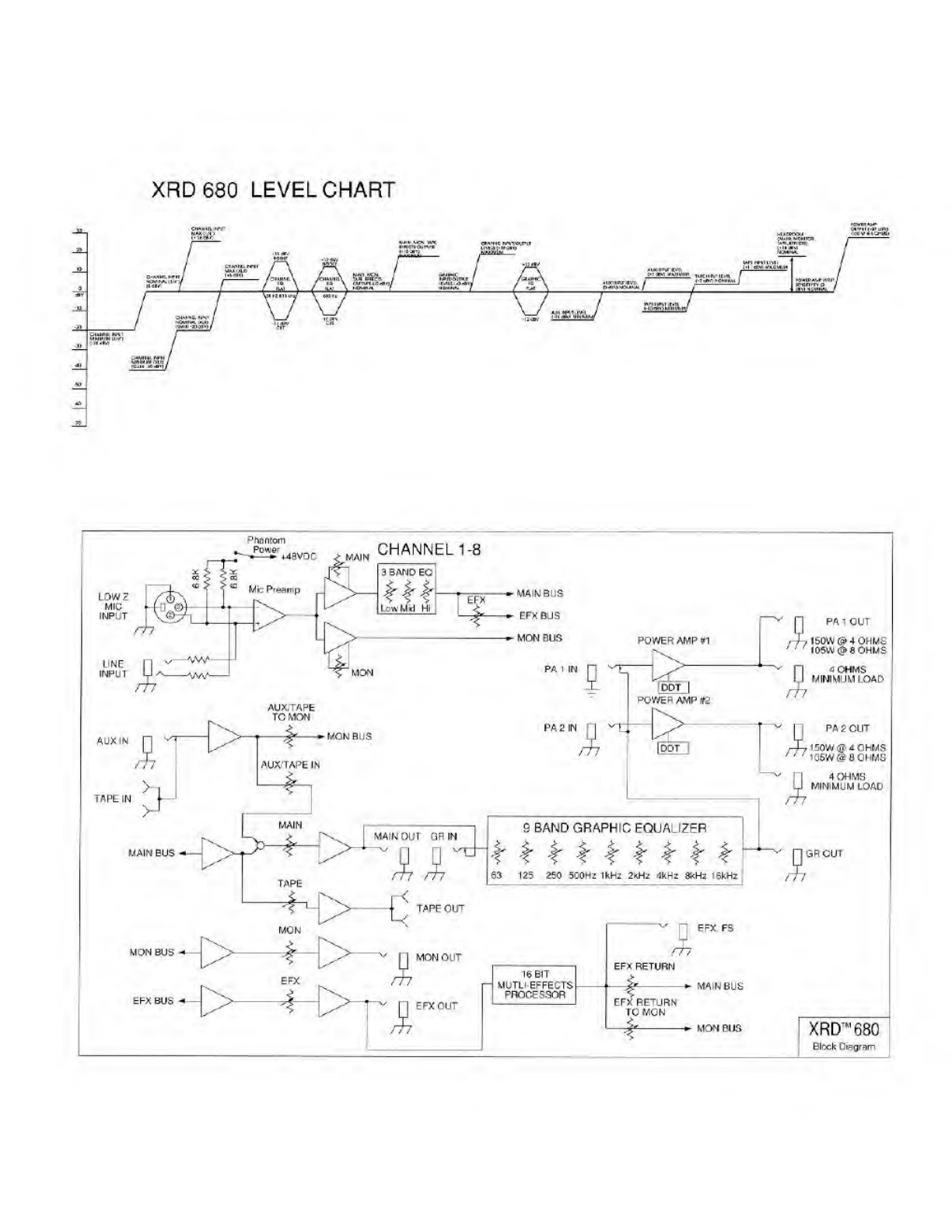

an auxiliary amplifier/speaker system. (See wiring diagram).
MONITOR OUTPUT (19)
This 1/4" jack provides a signal from the MONITOR mix for an external monitor amplifier/speaker system. The
level is determined by the channel monitor and master monitor controls.
EFX OUTPUT (20)
This 1/4" jack provides a signal from the EFX mix for external effects or signal-processing equipment.
GRAPHIC INPUT (21)
This 1/4" jack provides an input to the internal graphic equalizer/power amp. This is a switching jack: a signal
inserted here interrupts the normal signal path from the main bus into the equalizer.
OPERATION NOTE: This jack permits the equalizer to be switched away from ils normal input, and accept an
external signal to be equalized.
GRAPHIC OUT (22)
This 1/4" jack provides access to the output of the internal graphic equalizer.
FOOTS WITCH (23)
This 1/4" jack provides access for connection of a foolswitch (optional) and is used to activate/defeat digital
effects.
AUXILIARY INPUT (24)
This 1/4" jack provides access to an input to the main mixing bus for patching in returns from external effects
devices, extra mixing channels etc. Using this jack defeats both tape-in jacks
POWER AMP INPUTS (25)
These 1/4" jacks provide access to connect external line-level signals to the power amplifiers.
OPERATION NOTE: These jacks permit the two internal power amplifiers to be switched away from their
normal inputs and lo accept external line-level signals.
TAPE SECTION:
TAPE OUT LEVEL (26)
Controls the signal level at the tape-out jacks (30). Operation is independent of the main master level control
(12) and the graphic equalizer (II).

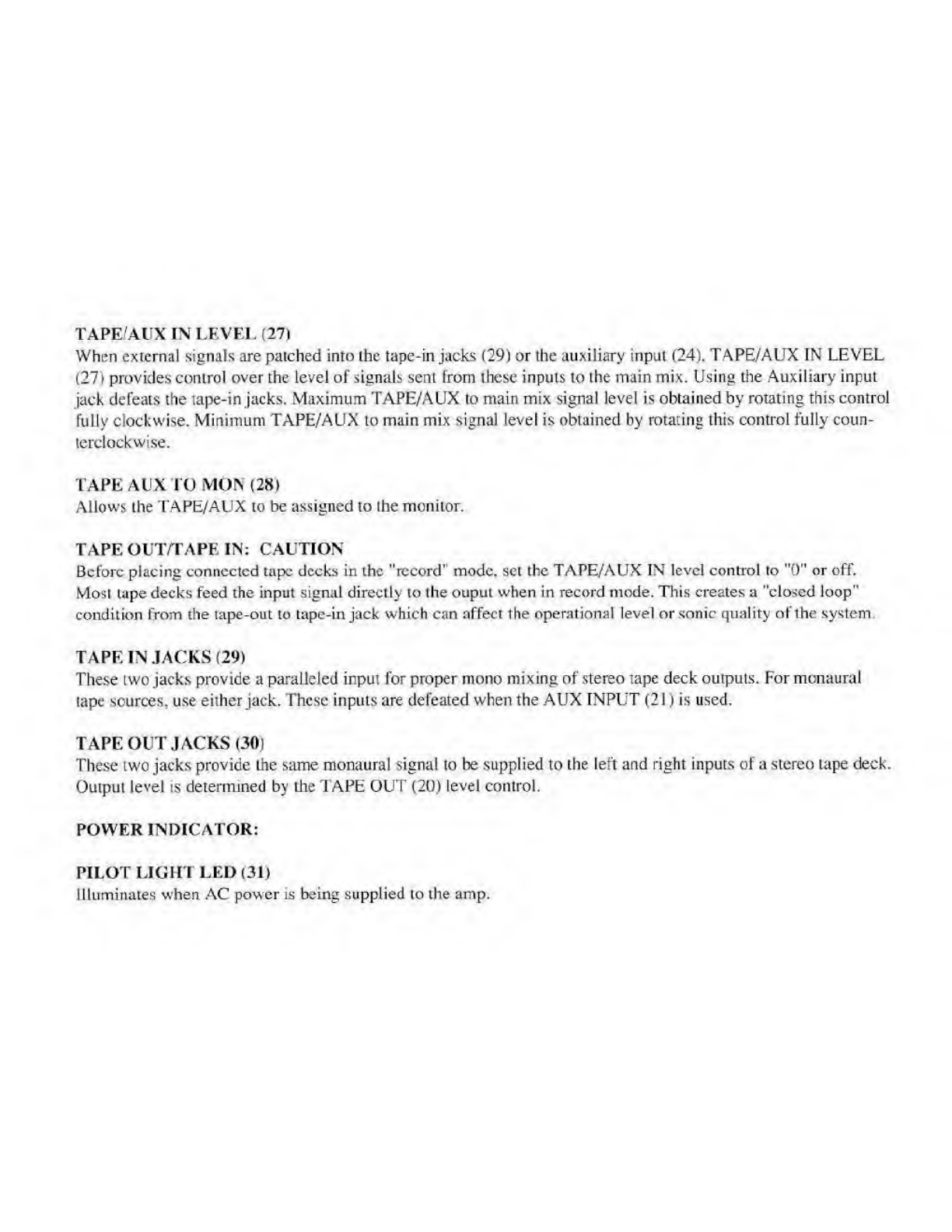

TAPE/AUX IN LEVEL (27)
When external signals are patched into the tape-in jacks (29) or the auxiliary input (24). TAPE/AUX IN LEVEL
(27) provides control over the level of signals sent from these inputs to the main mix. Using the Auxiliary input
jack defeats the tape-in jacks. Maximum TAPE/AUX to main mix signal level is obtained by rotating this control
fully clockwise. Minimum TAPE/AUX to main mix signal level is obtained by rotating this control fully coun¬
terclockwise.
TAPE A UX TO MON (28)
Allows the TAPE/AUX to be assigned to the monitor.
TAPE OUT/TAPE IN: CAUTION
Before placing connected tape decks in the "record' mode, set the TAPE/AUX IN level control to "0" or off.
Most tape decks feed the input signal directly to the ouput when in record mode. This creates a "closed loop"
condition from the tape-out to tape-in jack which can affect the operational level or sonic quality of the system.
TAPE IN JACKS (29)
These two jacks provide a paralleled input for proper mono mixing of stereo tape deck outputs. For monaural
tape sources, use either jack. These inputs are defeated when the AUX INPUT (21) is used.
TAPE OUT JACKS (30)
These two jacks provide the smite monaural signal to be supplied to the left and right inputs of a stereo tape deck.
Output level is determined by the TAPE OUT (20) level control.
POWER INDICATOR:
PILOT LIGHT LED (31)
Illuminates when AC power is being supplied to the amp.

POWER
OFF
l?0VAC
60 Ht FUSE
h.xmp
WARNING: ?s atom i~t-i»o>
OH 8 KCIHC »OC> 03 *» fyCM
iHiiouiwwi rci(t*i>jmuoe'jij
r 1-r-r.i '•<' r-ir,« -.r 1-AVflO
riTl«C( £*UC J>FE ?M VO.r 'OK.
iAVIS: nsou«« <><*•- mermen •
l>E MSOAMN MM>UCSI F*F UN'im I
6U C€ U»U» ryprft DFWJV0U3
1 %‘t
A IWOOUCI O*
pfavfy r.FcrmcNKa comp
MCR'KAN. fAA MfiDF IN J.SA
■ spfakpr outputs —
_. PAI ^ P&2
1 nnrt OHMS >4 tuilt OHMS
33V n«s MU. AMPI iHfH lOAO
* CHMS EACH CHANNEL
m
A.C. POWER AND POWER AMPLIFIER OUTPUT SECTION:
A FUSE (32)
The fuse is located within the cap of the fuseholder. If the fuse should fail, IT MUST BE REPLACED WITH
THE SAME TYPE AND VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PRE¬
VENT VOIDING THE WARRANTY. If the amp repeatedly blows fuses, it should be taken to a qualified
service center for repair.
A WARNING: THE FUSE SHOULD ONLY BE REPLACED WHEN THE POWER CORD HAS BEEN
DISCONNECTED FROM ITS POWER SOURCE.
POWER SWITCH (33)
Center position is OFF. Two ON positions are provided, one of which will properly ground the amplifier. Switch
to the ON side that yields the lowest amount of residual hum or popping noise when the instrument is touched.
220 and 240 volt models a two way On/Off switch only.
a LINE CORD (120 V PRODUCTS ONLY) (34)
^4 For your safety, we have incorporated a 3-wire line (mains) cable with proper grounding facilities. It is not
advisable to remove the ground pin under any circumstances. If it is necessary to use the equipment without
proper grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock
hazard exists when the unit is operated with the proper grounded receptacles.
A EXTERNAL SPEAKER JACKS (35)
Provided for connection of external speaker cabinet. Minimum total impedance is 4 ohms for each amplifier.
LINE (MAINS) CORD RETAINERS (36)
Allow storage of mains cable for travel.
NOTE: The line cord should lie removed from the cord retainers before use.

SPECIFICATIONS
NOTE: All specifications are typical unless
otherwise noted.
OdBV = 1 Volt RMS
0 dBu = .778 Volts RMS
All specs are referenced to nominal output level
(OdBV) unless otherwise noted.
All measurements are wideband 20 Hz to 20kHz
unless otherwise stated.
All control settings arc nominal (50% rotation) unless
otherwise noted.
CHANNEL
Equivalent Input Noise:
-114.5 dB V @ 40 dB max gain
Frequency Response:
(to speaker outputs)
±1 dB 10 Hz to 23.000 Hz
Distortion:
(1 kHz)
Less than .015%
Input Impedance:
Low Z Bal = 1.7 kilohms
Line Input = 13 kilohms
High EQ:
±15 dB @ 10 kHz minimum
center detent flat ±2 dB
IVlid EQ:
±12 dB @ 600 Hz minimum
center detent flat ±2 dB
Low EQ:
±15 dB @ 50 Hz minimum
Center detent flat ±2 dB
Nominal Channel Cain:
Low Z = 20 dB
Line = 0 dB
Minimum Channel Gain:
Low Z = -69 dB
Line = -89 dB
Maximum Channel Gain:
Low Z = 40 dB
Line = 20 dB
Nominal Input Level:
Low Z = -20dBV
Line = OdBV
Minimum Input Level:
Low Z = -40dBV
Line = -20dBV
Maximum Input Level:
Low Z = +6dB
Line = +26dB
Phantom Power:
+48 V DC
GRAPHIC EQUALIZER:
Filter Bandwidth:
1 octave
Filter Frequencies:
(ISO Stds.)
63 Hz, 125 Hz, 250 Hz, 1 kHz. 2 kHz 4 kHz. 8 kHz,
16 Hz
Filter Q:
1.57
Maximum Boost & Cut:
±12 dB
Noise:
-102 dBV
Distortion:
(1kHz)
Less than .005%
Frequency Response:
±1 dB 7 Hz to 40 kHz
Input Level:
Norn = OdBV (1.0 V RtMS)
Max = +19 dBV ( 9 V RMS)
Output Level:
Nom = 0 dBV (1.0 V RMS)
Max = +19 dBV ( 9 V RMS)
Input Impedance:
10 kilohms
Output Impedance:
100 ohms
MASTER
Gain:
Main: = 20 dB
Monitor: = 15 dB

Tape: = 15 dB
Effects: = 15 dB
Maximum Output Level:
Main: =
+ 18 dBV (8.0 V RMS)
Monitor: =
+ 18 dBV (8.0 V RMS)
Tape: =
+18 dBV (8.0 V RMS)
Effects: =
+ 18 dBV (8.0 V RMS)
Nominal Headroom:
Main: =
18 dB
Monitor: =
18 dB
Tape: =
18 dB
Effects; =
18 dB
Output Impedance:
Main: =
100 ohms
Monitor: =
100 ohms
Tape: =
10k ohms
Effects:
100 ohms
Output Noise:
Residual: -101 dBV
(Master Level Down)
Bus: -94 dBV
(Master Nominal, All Channel Level Full CCW,
Effects Returns Down)
Nominal: -86 dBV
(All Controls Nominal. Low Z Input Terminated
150 Ohms)
Aux Input Impedance:
120 kilohms
Aux Input Level:
Norn: 0 dBV
Max: +7 dBV
Min: -15 dBV
Tape Input Level:
Nom: +4 dBV
Max: +11 dBV
Min: -10 dBV
DIGITAL EFFECTS PROCESSOR
Reverberation Settings:
32 reverb positions
1 bypass setting
13 warm re verbs
13 bright re verbs
2 sated reverbs
2 reverse reverbs
Frequency Response:
20 Hz to 11 kHz
Quantization:
16-Bit Linear PCM
Signal-To-Noise Ratio:
95 dB Minimum
Headroom:
6 dB @ Limit LED Illumination
POWER AMP SECTION
(300 SC Module with DDT ,V )
Frequency Response:
+0, -1 dB 10 Hz to 40 kHz @ Rated Power
Rated Power:
150 watts RMS into 4 ohms, both channels driven.
100 watts RMS into 8 ohms, both channels driven.
Power (8) Clipping:
(1% THD. 1 kHz. 120 VAC line, typical)
160 watts RMS into 4 ohms, each channel, both
channels driven.
113 watts RMS into 8 ohms, each channel, both
channels driven.
225 watts RMS into 4 ohms, one channel driven.
130 watts RMS into 8 ohms, one channel driven.
Intermodulation Distortion:
Less than 0.1%, (10 mW to rated power. 250 Hz & 7
kHz, 4 ohms)
Total Harmonic Distortion:
Less than 0.1 %
DDT iv Dynamic Range:
Greater than 26 <1B
DDT :v Maximum Distortion:
Below 0.5% THD for 6 dB overload
Below’ 1% THD for 20 dB overload
Hum & Noise:
-92 dB below 150 watts
Slew Rate:
15 V/pSec
Dumping Factor:
Greater than I00@ 1 kHz. 4 ohms
Input Sensitivity:
I V RMS For 150 watts @ 4 ohms
Input Impedance:
19 kilohms
Power Requirements:
800 watts. 120 VAC, 60 Hz

Phantom
^ Power
Me Preamp
+48VDC MAIN
CHANNEL 1-8
AUX.TAPE
TO MON
MAIN OUT GR IN
POWER AMP
( DDT 1
POWER AMP #2
9 BAND GRAPHIC EQUALIZER
63 125 250 500Hz IKHz 2kHz 4kHz 8kH2 16kHz
PA 1C
/ ) , 150W @ 4 OHMS
' ' 1 I05W@8 0HMS
I! *OHr-
1,1 MINIMUM
4 OHMS
MINIMUM LOAD
150W @ 4 OHMS
105W@8OHMS
4 OHMS
MINIMUM LOAD
16 BIT
MUTLl EFFECTS
PROCESSOR
EFX RETURN
EFX RETURN
TO MON
XRD"680
Block Diagram

XRD 680 internal EQ and power
amp for mains. External EQ and
power amp for monitors.
XRD 680 internal EQ & external
power amp on mains. External EQ
& internal power amp for monitors.
MONITORS
FOOTSWITCH
OnOtf lor
inlarnal oHcctc
>'Mu. nan
<iOi*, ir.ui
' !SS " ■ '•
> ««V "l.nt
POWER AMP

XRD 680 external EQ & power amp
for mains. Internal EQ & power
amp for monitors.
DIGITAL El
D'OITAL EFFEC'
imiiiiiiijfflMi
XRD 680
CC003CI

BANK
imiiiimnniiigai
EQUALIZER
XRD 680
-rutruiK ■ — mt" C
XRD 680 external EQ & internal
power amp for mains. Internal EQ
& internal power amp for monitors
TO PA1
MAIN PA
Channel Input Equalization

THIS LIMITED WARRANTY VALID ONLY WHEN PURCHASED AND REGISTERED IN THE UNITED STATES OR CANADA. ALL EXPORTED PRODUCTS ARE SUBJECT
TO WARRANTY AND SERVICES TO BE SPECIFIED AND PROVIDED BY THE AUTHORIZED DISTRIBUTOR FOR EACH COUNTRY.
Ces clauses de garantie ne sont vaiables qu'aux Etats-Unis et au Canada. Dans tour les aulres pays, les clauses de garantie et de maintenance son! fixees par
le dlstributeur national et assuree par lul selon la legislation cnvigucur.
Diese Garantie ist nur in den USA and Kanada gultig. Alle Export-Produkte sind der Garantie und dcm Service des Importeurs des jewelligen Landes unterworfen.
Esta garantia es valida solamente cuando el produclo es comprado en E.U. continentales o en Canada. Todos los productos que sean comprados en el extranjero,
estan sulctos a las garantias y servicio que cac'a distribuidor autorizado determine y ofrezca en los diferentes paises.
PEAVEY ONE-YEAR LIMITED
WARRANTY/REMEDY
PEAVEY ELECTRONICS CORPORATION {"PEAVEY") warrants this product. EXCEPT tor covers, to otsw itches. patchcords, tubes ana meters, to be free from defects
in material and workmanship for a period of one (1) year from dale of purchase. PROVIDED, however, that this limited warranty is extended only to the original retail purchaser
and is subject to the conditions, exclusions, and limitations hereinafter set forth:
PEAVEY 90-DAY LIMITED WARRANTY ON TUBES AND METERS
II this product coniains tubes or meters. Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a period
of ninety (90) days from dote ot purchase: PROVIDED, however, that this limited warranty is extended only to the original retail purchaser ana is also subject to the conditions,
exclusions, and limitations hereinafter set forth.
CONDITIONS, EXCLUSIONS, AND LIMITATIONS OF LIMITED WARRANTIES
These limited warranties shall be void and oi no elfect, if:
a. The first purchase of the product is for the purpose of resale; or
b. The original retail purchase is not made from an AUTHORIZED PEAVEY DEALER; or
c. The product has been damaged by accident or unreasonable use, neglect, improper service or maintenance, or other causes not arising out of defects In
material or workmanship; or
d. The serial number affixed to the product is altered defaced, or removed.
In the event of a defect in material and/or workmanship covered by this limited warranty. Peavey will:
a In the case of lubes or meters, replace ihe defective component without charge
b. In other covered cases (i.e.. cases involving anything other than covers, footswilches, patchcords, tubes or meters), repair the defect in material or workmanship
or replace the product, at Peavey’s option:
and provided, however that, in any case, all costs of shipping, if necessary, are paid by you, the purchaser.
THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COMPLETED AND MAILED TO AND RECEIVED BY PEAVEY WITHIN FOURTEEN (14) DAYS
FROM THE DATE OF YOUR PURCHASE.
In order to obtain service under these warranties, you must.
a. Bring the detective item to any PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER and present therewith the ORIGINAL PROOF
OF PURCHASE supplied to you by ihe AUTHORIZED PEAVEY DEALER in connection with your purchase from him of this product.
it the DEALER or SERVICE CENTER is unable to provide the necessary warranty service you will be directed to the nearest other PEAVEY AUTHORIZED
DEALER or AUTHORIZED PEAVEY SERVICE CENTER which can provide such service.
OR
b. Ship the defective item, prepaid, to:
PEAVEY ELECTRONICS CORPORATION
International Service Center
Highway 80 East
MERIDIAN, MS 39301
including therewith a complete, detailed description of the problem, together with a legible copy of the original PROOF OF PURCHASE and a complete return
address. Upon Peavey s receipt of these items:
It the defect is remedial under these limited warranties and the other terms and conditions expressed herein have been complied with, Peavey will provide the
necessary warranty service to repair or replace the product and will return It. FREIGHT COLLECT to you. the purchaser.
Peavey's liability to the purchaser tor damages from any cause whatsoever and regardless ot the (orm of action, including negligence, is limited to the actual
damages up to the greater of $50000 or an amount equal to the purchase price ot the product that caused the damage or that is the subject of or is directly
related to the cause ot action. Such purchase price will be that in effect for the specific product when the cause of action arose. This limitation of liability will
not apply to claims lor personal injury or damage to real property or tangible personal property allegedly caused by Peavey’s negligence. Peavey does not assume
liability for personal injury or property damage arising out of or caused by a non-Peavey alteration or attachment, nor does Peavey assume any responsbility
for damage to interconnected non-Peavey equipment that may result from the normal functioning and maintenance of the Peavey equipment.
UNDER NO CIRCUMSTANCES WILL PEAVEY BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS. ANY INCIDENTAL DAMAGES. OR ANY CONSE¬
QUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES. EXPRESSED OR IMPLIED. INCLUDING. BUT NOT LIMITED TO. THE IM¬
PLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE, PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND CONDI¬
TIONS NECESSARY TO THE EXISTENCE OF THE EXPRESSED, LIMITED WARRANTIES. AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH, IM¬
PLIED WARRANTIES ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR OR NINETY-DAY PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT.
SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES. SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THESE LIMITED WARRANTIES GIVE YOU
SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.
THESE LIMITED WARRANTIES ARE THE ONLY EXPRESSED WARRANTIES ON THIS PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WAR¬
RANTY. OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON PEAVEY.
In Ihe event of any modification or disclaimer of expressed or implied warranties, or any limitation of remedies, contained herein conflicts with applicable
law, then such modification, disclaimer or limitation, as the case may be, shall be deemed to be modified to the extent necessary to comply with such law.
Your remedies for breach of these warranties are limited to those remedies provided herein and Peavey Electronics Corporation gives this limited warranty
only with respect to equipment purchased in the United States of America.
INSTRUCTIONS — WARRANTY REGISTRATION CARD
1. Mail the completed WARRANTY REGISTRATION CARD to:
PEAVEY ELECTRONICS CORPORATION
POST OFFICE BOX 2898
MERIDIAN, MISSISSIPPI 39302-2898
a Keep the PROOF OF PURCHASE. In the event warranty service is required during the warranty period, you will need this document. There will
be no identification card issued by Peavey Electronics Corporation.
2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICATION OF CHANGES OF ADDRESSES:
a Completion and mailing of WARRANTY REGISTRATION CARDS Snoulfl notification become necessary for any condition that may
require correction, the REGISTRATION CARD will help ensure that you are contacted and properly notified.
b Notice of address changes — If you move from the address shown on the WARRANTY REGISTRATION CARD, you should notfly Peavey of
the change of address so as to facilitate your receipt of any bulletins or other forms of notification which may become nocessary n
connection with any condition that may require dissemination of information or correction.
3 You may contact Peavey directly by telephoning [phone].

IMPORTANT SAFETY INSTRUCTIONS
WARNING When using electric products, basic cautions should always be followed, including the following.
1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be retained for future reference.
3. Obey ail cautions in the operating instructions and on the back of the unit.
4 . All operating instructions should be followed.
5. This product should not be used near water, i.e.. a bathtub, sink, swimming pool, wet basement, etc.
6. This product should be located so that its position docs no interfere with its proper ventilation. It should not be placed flat
against a wall or placed in a built-in enclosure that will impede the flow of cooling air.
7. This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.
8. Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
9 Never break off the ground pin on the power supply cord. For more information on grounding, write tor our free booklet
"Shock Hazurd and Grounding.'*
I (). Power supply cords should always be handled carefully. Never walk or place equipment on power supply cords. Periodically
check cords for cuts or signs of stress, especially at the plug and the point where the cord exits the unit
II The power supply cord should be unplugged when the unit is to be unused for long periods of time.
12. If this product is to be mounted in an equipment rack, rear support should be provided.
13. Metal parts can be cleaned with a damp rag. The vinyl covering used on some units can be cleaned with a damp rag, or an
ammonia-based household cleaner if necessary. Disconnect unit from power supply before cleaning.
14 . Care should be taken so that objects do not fall and liquids arc not spilled into the unit through die ventilation holes or any
other openings.
1 5. This unit should be checked by a qualified service technician if
a. The power supply cord or plug has been damaged.
b. Anything has fallen or been spilled into the unit.
c. The unit docs not operate correctly.
d. The unit has been dropped or the enclosure damaged.
16. The user should not attempt to service this equipment. All service work should be done by a qualified service technician.
17. This product should be used only with a cart or stand that is recommended by Peavey Electronics.
18. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to
noise induced hearing loss, hut nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient
time.
The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the following permissible noise
level exposures.
Duration Per Day In Hours Sound Level dEA. Slow Response
8
90
6
92
4
95
3
97
2
100
1*5
102
1
105
14
110
'A or le.ss
115
According to OSHA. any exposure in excess of the above permissible limits could result in some hearing loss.
Ear plugs or protectors in the ear canals or over the ears must be worn when operating this amplification system in order to
prevent a permanent hearing loss if exposure is in excess of the- limits as set forth above. To ensure against potentially
dangerous exposure to high"sound pressure levels, it is recommended that all persons exposed to equipment capable of produc¬
ing high sound pressure levels such as this amplification system he protected by hearing protectors while this unit is in
operation.
SAVE THESE INSTRUCTIONS
Features and specifications subject to change without notice.
Peavey Electronics Corporation 711 A Street/ Meridian, MS 39302-2898 / U.S.A. / [phone] f Telex 504115 . Fax [phone]
©1993 #80301911 Printed in U.S.A. 9/93
