Miele H 267 B User manual

Operating instructions
for Combi-ovens,
Models H 267 B, H 277 B
To prevent accidents and reduce
the risk of damaging the machine, ö]
read the Operating Manual
before installing or using
the machine. M.-Nr. 04 919 480

Caring for the environment
Disposal of the packing
material
The transport and protective packing is
made from materials that are environ-
mentally friendly and can be recycled.
Rather than throwing these materials
away, please ensure that they are
offered for recycling.
Disposal of your old machine
Old machines contain materials which
can be recycled. Please contact your
local recycling center or scrap mer-
chant about recycling programs.
To ensure that the machine presents no
danger to children while being stored
for disposal, see the appropriate sec-
tion in the Warning and Safety instruc-
tions.

Contents
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Child Safety Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Oven Operation
– Description of the cooking modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
– Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
– Selecting an cooking mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
– Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
– Changing the temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
– Canceling a mode or turning off the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
– Pre-heating the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
– Energy Conservation Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
– Baking tray, oven tray and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
– Minute Minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Timer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
rogramming the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Applications
– Baking recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
– Roasting recommendations and roasting with the roast probe . . . . . . . . . . . . . 34
– Defrosting in the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
– Casseroles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
– Broiling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Maintenance
Cleaning and care
– Oven door and control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
– Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
– Oven interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Correcting minor problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Optional accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Installation / Electrical connection
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

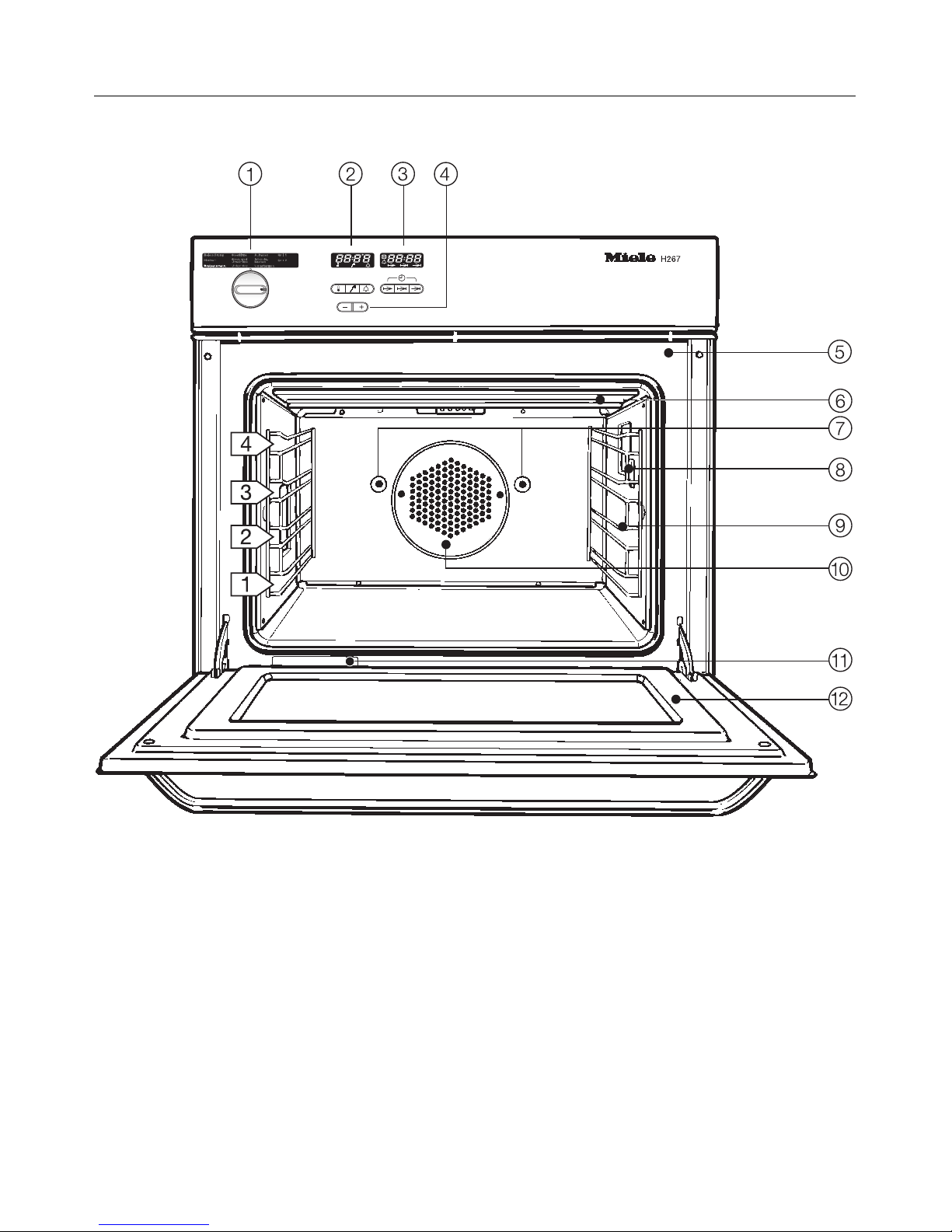

Guide to the appliance
H 277 B for ]
Control panel
bOven Mode Selector
cOven display and pushbuttons
dTimer display and pushbuttons
e–/+ button with indicator lamp
Oven interior
fDoor safety switch
gTop heating element
hConnection for rotisserie
iConnection socket for roast probe
jNon-tip, four level racks
kConvection fan
lData plate
mOven door
4

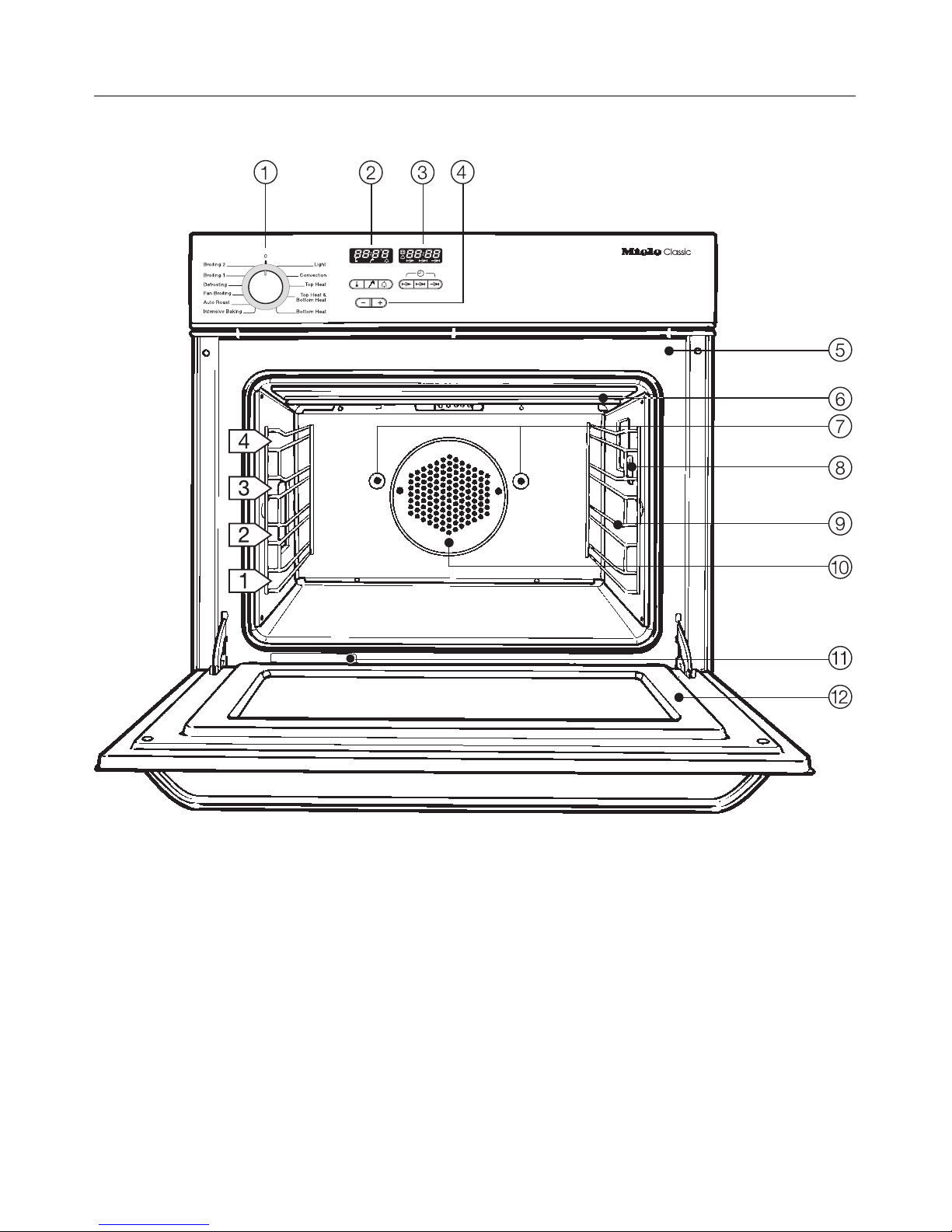

Guide to the appliance
H 267 B for ö
Control panel
bOven Mode Selector
cOven display and pushbuttons
dTimer display and pushbuttons
e–/+ button with indicator lamp
Oven interior
fDoor safety switch
gTop heating element
hRotisserie connections
iConnection socket for roast probe
jNon-tip, four level racks
kConvection fan
lData plate
mOven door
5

Guide to the appliance
Accessories
–2 baking trays
–dual purpose broiling pan / oven tray
–non-tip rack for baking, roasting
or grilling
–grease filter
to be placed in front of the air intake
when Convection roasting.
Droplets of grease suspended in the
circulating air are deposited on the
grease filter to help keep the oven
clean.
–Roast probe for temperature control-
led roasting and broiling
–Dual rotisserie
for broiling on the spits
–Lever (pictured below)
to remove the oven lamp cover
6

arning and Safety instructions
This appliance complies with all
legal safety requirements. Improper
use can cause both personal injury
and material damage.
Before installation and before using
the oven for the first time, read the
operating instructions carefully.
They contain important information
on safety, and on the operation and
care of the appliance.
Do not let children in, on or around
the appliance or its controls.
Keep these instructions in a safe
place and pass them to any future
users.
roper Use
This appliance is intended for
residential use only. Use for any
other purpose is at the owner’s risk and
could be dangerous. The manufacturer
cannot be held responsible for damage
caused by improper use of this ap-
pliance.
Installation and Servicing
Before connecting the appliance to
the power supply, make sure that
the available voltage and frequency
correspond to the ratings on the data
plate. Consult a licensed electrician if
in doubt.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and a grounding system
which complies with local and national
ordinances. It is extremely important
that this safety requirement be verified
by a qualified electrician. The manufac-
turer cannot be held responsible for
problems arising due to an inadequate
or missing ground.
This appliance must only be oper-
ated after it has been installed in
appropriate cabinetry, as outlined in
the Installation instructions.
Installation and repairs should only
be performed by qualified and
trained personnel. Repairs or other
work performed by unqualified person-
nel could be dangerous.
The appliance is completely iso-
lated from the electrical supply
only when:
–the main circuit breaker is tripped, or
–the fuse is removed (in countries
where this is applicable)
7

arning and Safety instructions
Oven operation
High temperatures can be produced
by the oven.
Care should be taken to ensure that
small children do not touch the ap-
pliance when it is in use. External parts
of the oven such as the door glass,
vents, and control panel can become
hot.
Use of heat-resistant oven gloves
is recommended:
–when placing food in, turning, or re-
moving items from the oven. The top
heating element and oven racks can
become very hot and the risk of
burns exists.
Always open the door carefully.
–Let hot air or steam escape before
removing or replacing food.
Wait until the upper element is cool
before lowering it for cleaning, in
order to avoid the risk of burns.
Do not use force to pull down the
top heating element as this can
break it.
Always place the oven racks in
their desired location while the
oven is cool. If a rack must be moved
while the oven is hot, do not let the pot
holder contact the hot heating elements.
Caution: Heating elements may
be hot even though they are not
glowing. Interior surfaces of an oven
become hot enough to cause burns.
During and after use, do not let cloth-
ing or other flammable materials con-
tact the heating elements or interior sur-
faces of the oven until they have had
sufficient time to cool.
Do not let aluminum foil or the
meat probe contact hot heating ele-
ments.
Do not push pots and pans on the
oven floor as this could scratch the
surface.
Do not lean, sit, or place heavy
items on the open oven door. The
door can support a maximum weight of
22 lbs (10 kg).
Cover any food left in the oven.
This will prevent the food from
drying out and steam from condensing
inside the oven. If condensation is ex-
cessive, damage to the oven may
occur.
Use only the Miele roast probe sup-
plied with the oven. If a replace-
ment is necessary, it can be obtained
from the Miele Parts Dept. or a Miele
dealer.
8

arning and Safety instructions
When not in use, do not leave the
roast probe in the oven. High broil-
ing temperatures could damage it.
Do not heat unopened containers
of food in the oven, as pressure
may build up and cause them to ex-
plode.
To keep food warm after cooking,
take advantage of the residual
heat or select the lowest temperature
available.
Put any frozen products, such as
pizza, on aluminum foil or on the
rack. Do not place them on the baking
tray or broiling pan, as this could cause
the metal to distort to such an extent
that it may be difficult to remove the
tray/pan from the oven.
Never use aluminum foil to line
the oven floor or place pots and
pans or baking sheets directly on
the oven floor when using “Top &
Bottom Heat”, “Bottom Heat” or
the “Intensive Bake” modes, as
this could cause the enamel on
the oven floor to crack.
Flammable materials should never
be stored in an oven or near sur-
face cooking units.
General notes
Never use a steam cleaner to
clean the oven. Pressurized steam
could cause a short circuit, or cause
permanent damage to the oven sur-
face and/or components. The manufac-
turer cannot accept responsibility for
damage caused by steam cleaning.
Children should not be left alone or
unattended in an area where an
oven is in use. They should never be
allowed to sit or stand on any part of
the oven.
Caution: Do not store items of interest
to children in cabinets above an oven.
Children climbing on the oven to reach
these items could be seriously injured.
Do not leave the oven unattended
when cooking with oils or fats as
these can be a fire hazard if allowed to
overheat.
Do not use water on grease fires.
Smother the fire or flame or use a
dry chemical or foam fire extinguisher.
Wear proper apparel. Loose-fitting
or hanging garments should never
be worn while using the oven.
Do not use the oven to heat the
room. Due to the high tempera-
tures radiated, objects left near the
oven could ignite.
9

arning and Safety instructions
When using kitchen appliances
connected to outlets near the
oven, make certain that their cables do
not contact with any cooking zones or
get trapped in the oven door.
Use only dry potholders. Moist or
damp potholders on hot surfaces
may result in burns from steam. Do not
let potholders touch hot heating ele-
ments.
Always ensure that food is suffi-
ciently cooked. Many factors will af-
fect the overall cooking time, including
the size or amount of food, the selected
temperature, changes to the recipe
and the shape and size of the cooking
container. Some foods may contain
microorganisms which are only de-
stroyed by thorough cooking. If in
doubt, select a longer cooking time.
It is important that the heat is
allowed to spread evenly throug-
hout the food being cooked. This can
be achieved by stirring or turning the
food, or by observing a sufficiently long
set time at the end of the cooking cycle.
Disposal of your old machine
Before discarding an old machine,
cut off the cable and remove the
door in order prevent accidental injury
to any children or animals who may at-
tempt to play inside of it.
The manufacturer is not liable for
damage caused by non-com-
pliance with safety instructions.
10

Child Safety Feature
The Child Safety Feature can be acti-
vated to prevent the oven being turned
on unintentionally by children.
It is activated as follows:
The Oven Mode Selector must be in
the "0" (OFF) position.
Press the "p" (Temperature) button
until the key symbol appears in the
display.
Once this symbol appears, the oven
can no longer be turned on.
To cancel the Child Safety Feature:
Select an oven mode.
Press the "p" (Temperature) button
until the key symbol in the display dis-
appears.
11

Before using for the first time
Timer
After the appliance has been turned on,
Either;
–"12:00" and the "f" (Start) and
")" (End) symbols will flash in the
display.
or
–the timer will remain dark.
To save energy the time display has
been turned off (factory setting)
If the "f" and ")" buttons are
pressed simultaneously, "12.00"
should appear in the display.
Setting the time of day
Press the "f" (Start) and ")" (End)
buttons simultaneously.
"12:00" and the control lamp in the cen-
ter of the “– /+”button will now stay on
without flashing.
Use the “– /+”button to enter the
time in hours and minutes.
When the control lamp for the “– /+”but-
ton goes out, the time has been set.
The colon will flash and the display will
change in one minute intervals.
To turn off the time display while still
allowing the clock to run unseen,
see page 24.
Oven
Use a cloth to wipe out the oven inte-
rior with warm water and a non-ab-
rasive detergent solution. Dry it with
a soft cloth.
Do not close the oven door until the
oven interior is dry.
Rinse the accessories.
New ovens may have a slight odor dur-
ing their first use. Running the oven for
at least an hour at 450°F / 230°C or
higher will make it dissipate more
quickly.
Turn the Oven Mode Selector to
"Convection".
Select the highest temperature using
the "–/+" button.
The timer can be used to set the finish
time to one hour.
Make sure the room is well venti-
lated during this process.
12

Oven Operation
Description of the cooking
modes
Convection
This mode cooks by circulating the
heated air over and around the food.
The convection fan/heater combination
located on the rear wall of the oven
blows heated air through openings in
the rear panel of the oven. Because of
this, the oven usually does not need
preheating as the heated air will reach
the food immediately.
Exception: Pre-heat the oven when
roasting meat.
Use of the convection mode allows you
to bake and roast on different levels at
the same time.
Due to the uniform cooking that occurs
when using the “Convection”setting, a
lower temperature can be selected
when using this mode.
Auto Roast
This setting offers convection cooking
with an Auto Roast feature. The oven
will initially heat up to a high tempera-
ture in order to sear the meat and lock
in the juices, thereby allowing it to re-
main moist and tasty. Once this high
temperature has been reached, the
oven automatically returns to your se-
lected temperature and continues cook-
ing as in the “Convection”mode.
Consequently the oven should not be
pre-heated when using the auto roast
function.
Top Heat
Heat from the top element can be used
to brown dishes or to finish dishes with
a cheese topping.
Top & Bottom Heat
With this method of cooking, radiant
heat is directed onto food from above
and below.
Pre-heating the oven is only necessary
when:
–baking biscuits or cakes with a short
baking time.
–baking certain types of doughs.
–roasting meat.
Bottom Heat
Select “Bottom Heat”at the end of a
baking cycle for cakes which require
extra browning on the bottom.
13

Oven Operation
Description of the cooking
modes
Defrosting
Defrosting can be done without heat or
at a temperature of up to 120°F (50°C).
When Defrosting without heat, the circu-
lated air will be at room temperature.
Intensive baking
This method combines "Convection"
with "Bottom Heat" and is recom-
mended for dishes that have a moist
topping and crisp base such as pizza
or quiche lorraine.
Fan Broiling
Hot air from the broiling element is
blown over the food by the convection
fan on the rear wall of the oven. This
allows broiling at lower temperatures
than in the “Broiling 1”or “Broiling 2”
mode.
Broiling 1
The inner part of the upper heating ele-
ment is used in this mode. It will glow
red a few minutes after being turned
on, and is then ready for use. Use this
mode for small quantities or thin pieces
of food.
Broiling 2
The entire upper heating element is
used for broiling.
In this mode, the inner part of the heat-
ing element will glow red a few minutes
after being turned on. The outer part of
the element will remain noticeably dar-
ker, but will still produce the heat
necessary for broiling.
This mode is especially useful for broil-
ing thicker cuts or large quantities of
food distributed over the entire rack.
14

Oven operation
Controls
The oven controls consist of the Oven
Mode Selector and push buttons.
Oven Mode Selector
Use this control to select the desired
cooking mode.
The selector can be turned clockwise
or counter-clockwise.
Mode selector on USA models:
The mode selected will illuminate.
ushbuttons
With the pushbuttons you can:
–change the oven temperature.
–change the core temperature when
using the roast probe.
–activate the Minute Minder.
Each pushbutton has a matching sym-
bol in the display.
15

Oven operation
The “– /+” button is used to input all
entries or alterations to the oven.
Temperature or time can be altered in
increments, by pressing the “– /+”but-
ton briefly, or more rapidly by holding
the button in.
“–” button:
To select a lower temperature, earlier
time or shorter period.
“+” button:
To select a higher temperature, later
time or longer period.
The increase / decrease is changed
–for the oven temperature in 10°F
(5°C) steps,
–for the core temperature in 2°F (1°C)
steps,
–for the Minute Minder in 1 min. steps.
Temperature or time can be entered as
follows:
Press the required button.
Enter the time or temperature imme-
diately using the “– /+”button.
As long as the indicator lamp in the
center of the “– /+”button is lit, a time
or temperature can be entered or al-
tered.
The indicator lamp in the “– /+” but-
ton lights up:
–when a cooking mode has been se-
lected (except for "Light"),
–if the "p" button is pressed during
the cooking process,
–if the "e" button is pressed when
cooking with the roast probe,
–if the "l" button is pressed.
Each time the “– /+”button or one of
the other buttons is pressed, this gives
more time for data input.
When the indicator lamp goes out, the
entry has been stored.
Symbols and figures which appear in
the oven display:
–"e“, whenever the roast probe is
connected.
–"e" and the core temperature you
set always takes precedence when-
ever the roast probe is connected.
–The oven temperature and "p" when
the probe is not being used.
–"l" always appears when a time has
been entered into the Minute Min-
der. If a time has been entered while
the oven is in use, it will appear
along with the oven temperature. If
only the Minute Minder is being
used, it will appear with a time count-
down.
16

Oven operation
Selecting a cooking mode
With the Oven Mode Selector, the fol-
lowing cooking modes can be chosen:
–Light
Turns on the oven light.
(factory setting: to save energy, the
light will go out one minute after the
last button was pressed).
–Convection
For baking or roasting on several le-
vels at the same time.
–Auto Roast
An initial high temperature is used to
sear the meat. Cooking then con-
tinues using the “Convection”mode
at the selected temperature.
This mode should not be used for
baking, except when baking freshly
prepared wholemeal or rye doughs,
(not packaged mixes).
–Top Heat
For browning dishes or finishing
dishes with a cheese topping.
–Top & Bottom Heat
For baking or roasting traditional
recipes or soufflés.
–Bottom Heat
Use this setting towards the end of
baking, to brown the base of a cake.
–Defrosting
For gentle defrosting of deep frozen
foods.
–Intensive Baking
For recipes which require a moist
topping, and a crisp base, such as
pizza, quiche lorraine, open fruit
cake or cheesecake.
This mode should not be used for
roasting or shallow baking as the
base will be overcooked.
–Fan Broiling
Ideal for grilling thicker items such
as stuffed meat, kebobs and pieces
of poultry. Broiling can be done with
the oven door closed.
–Broiling 1
For broiling flat items or small quan-
tities of food, or for browning small
dishes. Broiling can be done with the
oven door closed.
–Broiling 2
For broiling flat items or large quan-
tities of food, and for browning larger
dishes. Broiling can be done with the
oven door closed.
17

Oven operation
A recommended temperature, listed
below, will appear for each cooking
mode when it is selected.
Convection . . . . . . . . . . . . 160°C/320°F
Auto Roast* . . . . . . . . . . . 160°C/320°F
Top Heat. . . . . . . . . . . . . . 190°C/370°F
Top & Bottom Heat . . . . . . 190°C/370°F
Bottom Heat . . . . . . . . . . . 190°C/370°F
Defrosting. . . . . . no temperature given
Intensive Baking. . . . . . . . 170°C/340°F
Fan Broiling . . . . . . . . . . . 200°C/390°F
Broiling 1 . . . . . . . . . . . . . 240°C/460°F
Broiling 2 . . . . . . . . . . . . . 240°C/460°F
* Cooking temperature. The initial sear-
ing temperature is about 230°C/446°F
Once a cooking mode is selected, the
heating elements will turn on.
Selecting a temperature
If you wish to use the suggested tem-
perature, it will be set automatically
when the “– /+”button indicator lamp
goes out.
Once the lamp goes out, the actual
oven temperature will be displayed.
The oven temperature rise will be
shown in 2°F (1°C) increments until the
selected temperature is reached. From
this point onward, the oven tempera-
ture will be displayed.
If the oven door is opened, or a lower
temperature is selected, the decrease
in oven temperature will also be shown
in 2°F (1°C) increments.
18

Oven operation
Changing the temperature
The suggested temperatures can be
changed within the following ranges:
Convection . . . . . . . 80-480°F/30-250°C
Auto Roast . . . . . 210-440°F/100-230°C
Top Heat. . . . . . . . . 80-480°F/30-250°C
Top & Bottom
Heat . . . . . . . . . . . . 80-530°F/30-280°C
Bottom Heat . . . . 210-480°F/100-250°C
Defrosting. . . . . . . . . 80-120°F/30-50°C
Intensive baking. . 120-480°F/50-250°C
Fan Broiling . . . . . 120-500°F/50-260°C
Broiling 1 . . . . . . 390-570°F/200-300°C
Broiling 2 . . . . . . 390-570°F/200-300°C
To alter the temperature while the in-
dicator lamp is lit:
Enter the desired temperature using
the “– /+”button.
To alter the temperature once the
lamp has gone out:
Press the "p" button.
Enter the desired temperature using
the “– /+”button.
To cancel a cooking mode or
turn off the oven:
When the Oven Mode Selector is
turned to "0", any oven or probe core
temperature settings that have been en-
tered, or symbols appearing in the dis-
play will be cancelled.
Time entered into the Minute Minder is
not affected.
Exception: When the roast probe is
connected the "e" symbol stays lit. If a
time has been entered, "l“and the
countdown time will appear in the dis-
play.
19

Oven operation
re-heating the oven
The oven normally needs pre-heat-
ing only in the following cases:
With "Convection":
–when roasting meat.
With "Top & Bottom Heat" :
–when baking biscuits and cakes with
a short cooking time,
–when baking some dough’s,
–when roasting meat.
To pre-heat the oven:
Turn the Oven Mode Selector to the
desired cooking mode.
Select the desired temperature.
When the temperature has been
reached:
Put the food into the oven.
Energy Conservation Feature
If cooking is done using the timer or
roast probe, the residual heat in the
oven will automatically be used to con-
serve energy.
The letters "EC" in the display indicate
that the Energy Conservation Feature is
active.
Shortly before the end of the pro-
grammed cooking time, the heating ele-
ments will shut off. If a convection
mode is being used, the convection fan
will continue running, as will the internal
cooling fan.
The residual heat in the oven will be
used to complete the cooking process.
20
