"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
INTERACTIVE MENU:
Various information
CLICK ON A LINE OF THE MENU TO ACCESS THE CORRESPONDING
PAGE
INFO:
SEE THE 2014 PELLENC TOOL BATTERIES WORKSHOP DOCUMENT, FOR FUR-
THER INFORMATION ON THE WIRED COMMUNICATION SYSTEM

3
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
Sommaire
LEVEL 2 - USER'S TECHNICAL DEPARTMENT 7
BATTERY TECHNICAL CHARACTERISTICS 150 / 150P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TECHNICAL CHARACTERISTICS - CHARGERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
FULLCHARGETIME..................................................................... 8
DESCRIPTION.......................................................................... 9
BATTERY TECHNICAL CHARACTERISTICS 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TECHNICAL CHARACTERISTICS - CHARGERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
FULLCHARGETIME.................................................................... 10
DESCRIPTION......................................................................... 11
BATTERY 200 TECHNICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CHARGER TECHNICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CHARGING TIME (FULL CHARGE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DESCRIPTION......................................................................... 13
BATTERY 400 / OLIVION / 700 / 1100 TECHNICAL CHARACTERISTICS - . . . . . . . . . . . . . . . . . . . . . . . . 14
TECHNICAL CHARACTERISTICS - CHARGER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CHARGING TIME (FULL CHARGE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
DESCRIPTION......................................................................... 15
TECHNICAL CHARACTERISTICS POLY 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
TECHNICAL CHARACTERISTICS - CHARGER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CHARGING TIME (FULL CHARGE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DESCRIPTION......................................................................... 17
WORKSTATION ORGANISATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
DAILY VISUAL VERIFICATIONS BEFORE USING 150 / 150P BATTERY. . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DAILY VISUAL VERIFICATIONS BEFORE USING 250 BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DAILY VISUAL VERIFICATIONS BEFORE USING 200 BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DAILY VISUAL VERIFICATIONS BEFORE USING 400 / OLIVION / 700 / 1100 BATTERY. . . . . . . . . . . . . . 20
DAILY VISUAL VERIFICATIONS BEFORE USING THE POLY 5 BATTERY. . . . . . . . . . . . . . . . . . . . . . . . . . 20
CHARGER VOLTAGE MEASUREMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SPECIAL CASE OUTSIDE WORK PERIOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
EXTRACTION OF A BROKEN CONTACT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
USING THE DEUTSCH CRIMPING PLIERS FOR CRIMPING CLOSED BARREL CONTACTS . . . . . . . . . . 24
USING THE PALADIN CRIMPING PLIERS FOR CRIMPING CLOSED BARREL CONTACTS . . . . . . . . . . . 27
LEVEL 3 - APPROVED PELLENC REPAIRER - 29
INSTALLATION OF RFID DIAGNOSTIC SOFTWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
USE OF RFID SYSTEM.................................................................. 31
BATTERY SOFTWARE VERIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
USING THE LI-ION BATTERY SOFTWARE - MAIN SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
USING THE LI-ION BATTERY SOFTWARE - INFORMATION SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
USING THE LI-ION BATTERY SOFTWARE - MEASUREMENT SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . 36
USING THE LI-ION BATTERY SOFTWARE - LIXION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
USING THE LI-ION BATTERY SOFTWARE - TREELION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . 40
USING THE LI-ION BATTERY SOFTWARE - OLIVION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
USING THE LI-ION BATTERY SOFTWARE - SELION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

4
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
USING THE LI-ION BATTERY SOFTWARE - VINION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
USING THE LI-ION BATTERY SOFTWARE - PRUNION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
USING THE LI-ION BATTERY SOFTWARE - CULTIVION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . 50
USING THE LI-ION BATTERY SOFTWARE - AIRION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
USING THE LI-ION BATTERY SOFTWARE - HELION TOOL SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
USING THE LI-ION BATTERY SOFTWARE - EXCELION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . 56
USING THE LI-ION BATTERY SOFTWARE - RASION TOOL SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
USING THE LI-ION BATTERY SOFTWARE - LEFT WHEEL RASION / CLEANION TOOL SCREEN . . . . . . 60
USING THE LI-ION BATTERY SOFTWARE - RIGHT WHEEL RASION / CLEANION TOOL SCREEN . . . . . 62
USING THE LI-ION BATTERY SOFTWARE - LISTING SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
USING THE LI-ION BATTERY SOFTWARE - "CONSUMPTION TIME" SCREEN . . . . . . . . . . . . . . . . . . . . . 65
USING THE LI-ION BATTERY SOFTWARE - BATTERY SCREEN ................................ 66
USING THE LI-ION BATTERY SOFTWARE - BATTERY FAULT SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . 67
USING THE LI-ION BATTERY SOFTWARE - CHARGER SCREEN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
USING THE LI-ION BATTERY SOFTWARE - COMMENTS SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
BATTERYCYCLE ...................................................................... 72
TOOLSNECESSARY ................................................................... 75
BATTERYDETAILS..................................................................... 76
INFORMATION DEEP DISCHARGE OF AN ELEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
TOOLSNECESSARY ................................................................... 79
REPAIR CONTACTS IN THE TOOL CONNECTOR EXAMPLE: 200 BATTERY . . . . . . . . . . . . . . . . . . . . . . . 83
DIAGNOSTICS FOR BATTERY COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
BATTERY BEEP DIAGNOSTICS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
LI-ION DIAGNOSTICS (ALL MODELS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
POSSIBLE CHARGE LEVEL INDICATOR MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
USE OF CHARGE LEVEL INDICATOR DIAGNOSTICS WITHOUT PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
BATTERY DISCHARGE TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
PRUNING SHEARS BATTERY LEVEL 2 MESSAGE SHEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
LEVEL 2 MESSAGE SHEET EXCEPT FOR PRUNING SHEARS BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . 96
SPECIFIC TIGHTENING TORQUE, BATTERY 150/150P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
SPECIFIC TIGHTENING TORQUE, BATTERY 250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
400 / 700 / OLIVION / 1100 SPECIFIC TIGHTENING TORQUES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
POLY 5 SPECIFIC TIGHTENING TORQUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
LEVEL 4 - EXPERT LEVEL - 101
TOOLSNECESSARY .................................................................. 102
AUTONOMY PROBLEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
NODISPLAY ......................................................................... 104
BATTERYPROBLEM................................................................... 105
TOOLINOPERATIVE................................................................... 106
DOES NOT CHARGE CHARGER PROBLEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
INOPERATIVE........................................................................ 108
EXPEDITION BATTERY NOT FUNCTIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
12 CELL VOLTAGE MEASUREMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
REPLACEMENT OF THE BOARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
CHARGELEVELTEST ................................................................. 121
CHARGERTEST...................................................................... 124
TEST OF CHARGING VOLTAGE CURRENT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

5
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
FINALTEST.......................................................................... 127
CONTACT PLATE SOLDERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
LI-ION BATTERY PARAMETERIZATION SOFTWARE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

6
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
Page intentionally blank

7
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
ŹLEVEL 2 - USER'S TECHNICAL
DEPARTMENT

8
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
ULIB battery 150 150P
Charger (0.4 A) 90 % 8H 7H
100 % 10H 9 H
CB5004 charger
Voltage 100-240V ~ 50/60Hz 25W
Charging voltage 50.2 V dc
Charging current 0.4A dc max.
FULL CHARGE TIME
TECHNICAL CHARACTERISTICS - CHARGERS
BATTERY TECHNICAL CHARACTERISTICS 150 / 150P
Battery Ulib 150 / 150P
Rated battery voltage 43.2 V
Type of battery 12 cells in 1 pack
Battery capacity 3.45 Ah (150) 3 Ah (150P)
Battery energy/power 864 W (150)
150 Wh (150)
1728 W (150P)
130 Wh (150P)
Weight of the battery unit 830 grams (without cord)
End of charging time-out 20 H

9
3
5
6
10
11
12
9
7
8
2
1
4
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT

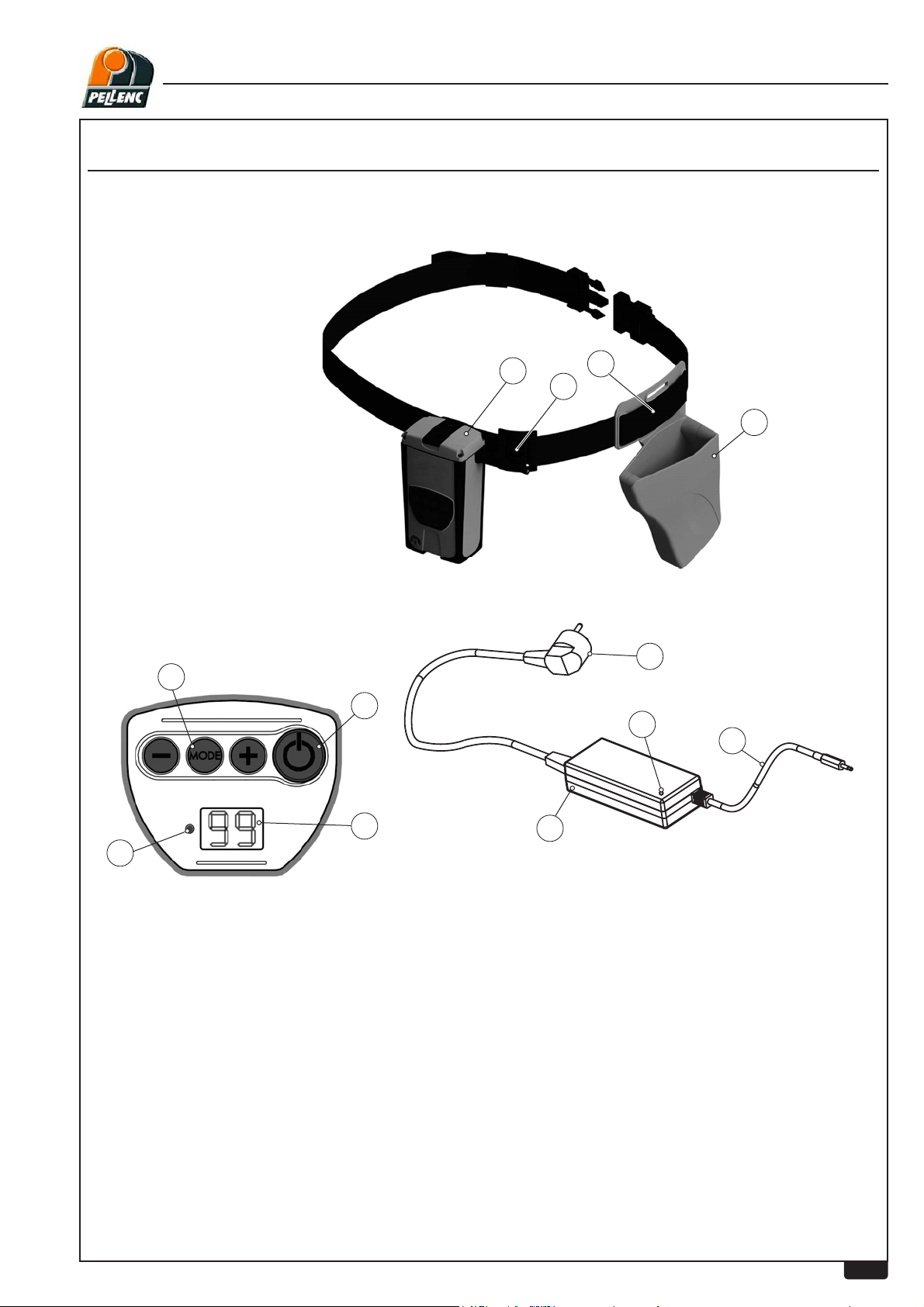

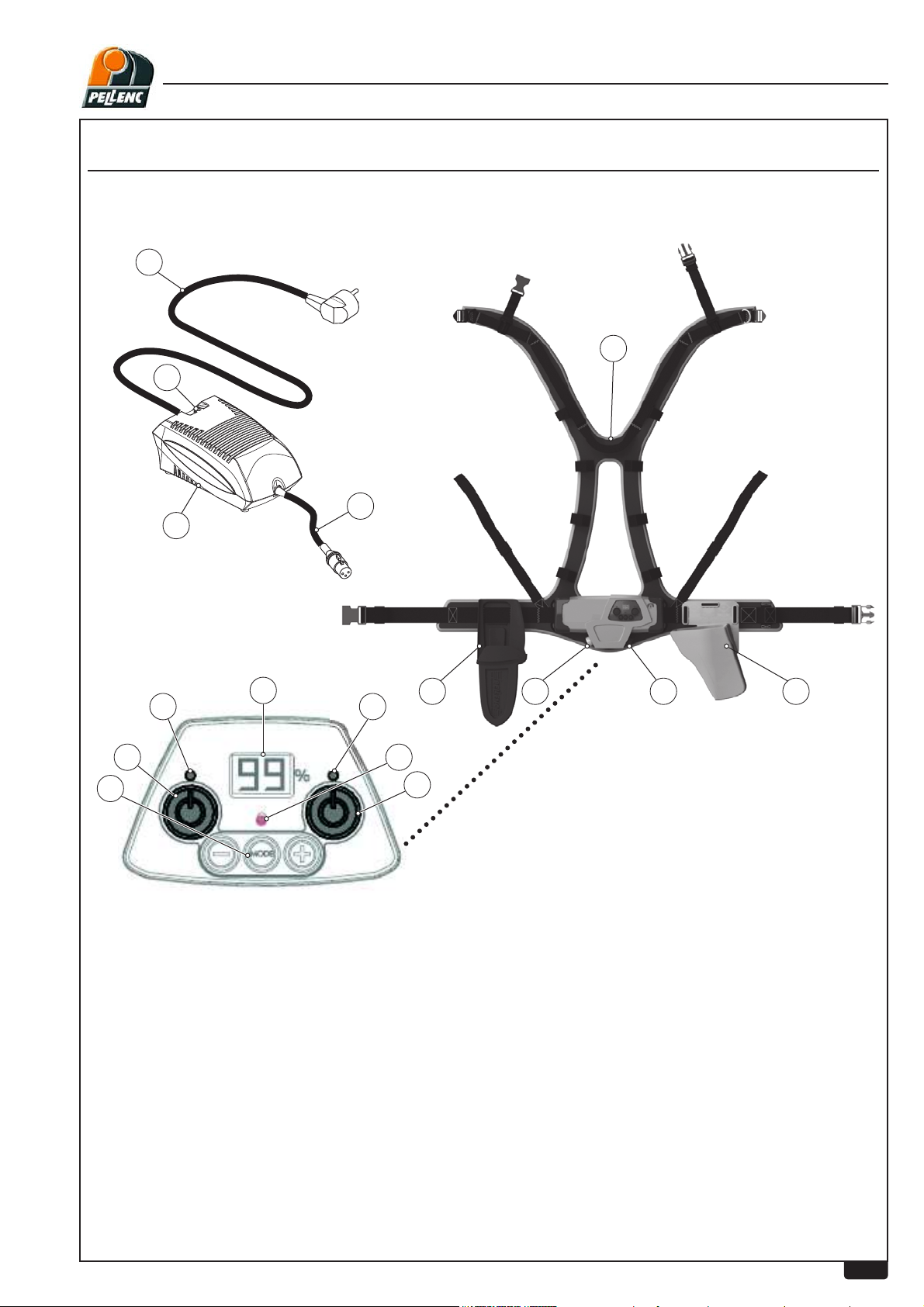

Charger
Charger indicator light
Charger power connector
Charging connector
Adjustable belt
Holster
Belt clip
150 / 150P Battery
Mode change button
ON/OFF BUTTON
Battery level display
ON/OFF LED
DESCRIPTION

10
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
Battery Ulib 250
Nominal\battery voltage 43.2 V
Type of battery 24 cells in 1 pack
Battery capacity 5.8 Ah
Battery energy/power 1728 W
250 Wh
Weight of the battery unit 1680 grams (without cord)
End of charging time-out 20 H
CB5012 charger CB5022 Charger
Voltage 100-240V ~ 50/60Hz 75W class II 100-240V ~ 50/60Hz 140W class II
Charging voltage 50.2 V dc
Charging current 1.2 A dc max. 2.2 A dc max.
ULIB battery 250
CB5012 charger (1.2 A) 90 % 4.5 h
100 % 05:30 hrs
CB5022 Charger (2.2 A)
Recharge the battery using the regular charger (CB5012 or
&%DIWHUHYHU\¿IWKWLPHXVHG
90 % 2.5 h
100 % 3 hrs
FULL CHARGE TIME
TECHNICAL CHARACTERISTICS - CHARGERS
BATTERY TECHNICAL CHARACTERISTICS 250

11
3
2
1
5
8
11
10
12 13
12
14
11 976
4
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
Charger
Charger indicator light
Charger power connector
Charging connector
Adjustable harness
Connector M12
Pruning shears connector
Pellenc Selion M12 chainsaw holster
Pruner holster
Battery level display
Right and left LEDS
ON/OFF button right and left
Charge indicator
Mode change button
DESCRIPTION

12
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
Battery 200
Nominal battery voltage 43.2 V
Type of battery 12 times 2 cells grouped into 1 pack
Battery capacity 4.5 Ah
Battery energy/power 1200 W / 194 Wh
End of charging time-out 10 H
Weight of battery assembly 1.8 kg
BATTERY 200 TECHNICAL CHARACTERISTICS
Charger CB5012 Charger CB5022
Voltage 100-240V ~ 50/60Hz 75W class II 100-240V ~ 50/60Hz 140W class II
Charging voltage 50.2 V dc
Charging amperage 1,2 A dc max. 2,2 A dc max.
Battery ULB 200
Charger CB5012 (1,2 A) 90 % 3h40
100 % 5h
Charger CB5022 (2,2 A)
5HFKDUJHWKHEDWWHU\XVLQJWKHUHJXODUFKDUJHUDIWHUHYHU\¿IWK
time used (CB5012/CB5022)
90 % 2h
100 % 3h
CHARGING TIME (FULL CHARGE)
CHARGER TECHNICAL CHARACTERISTICS
LEVEL 2 - USER'S TECHNICAL DEPARTMENT

13
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

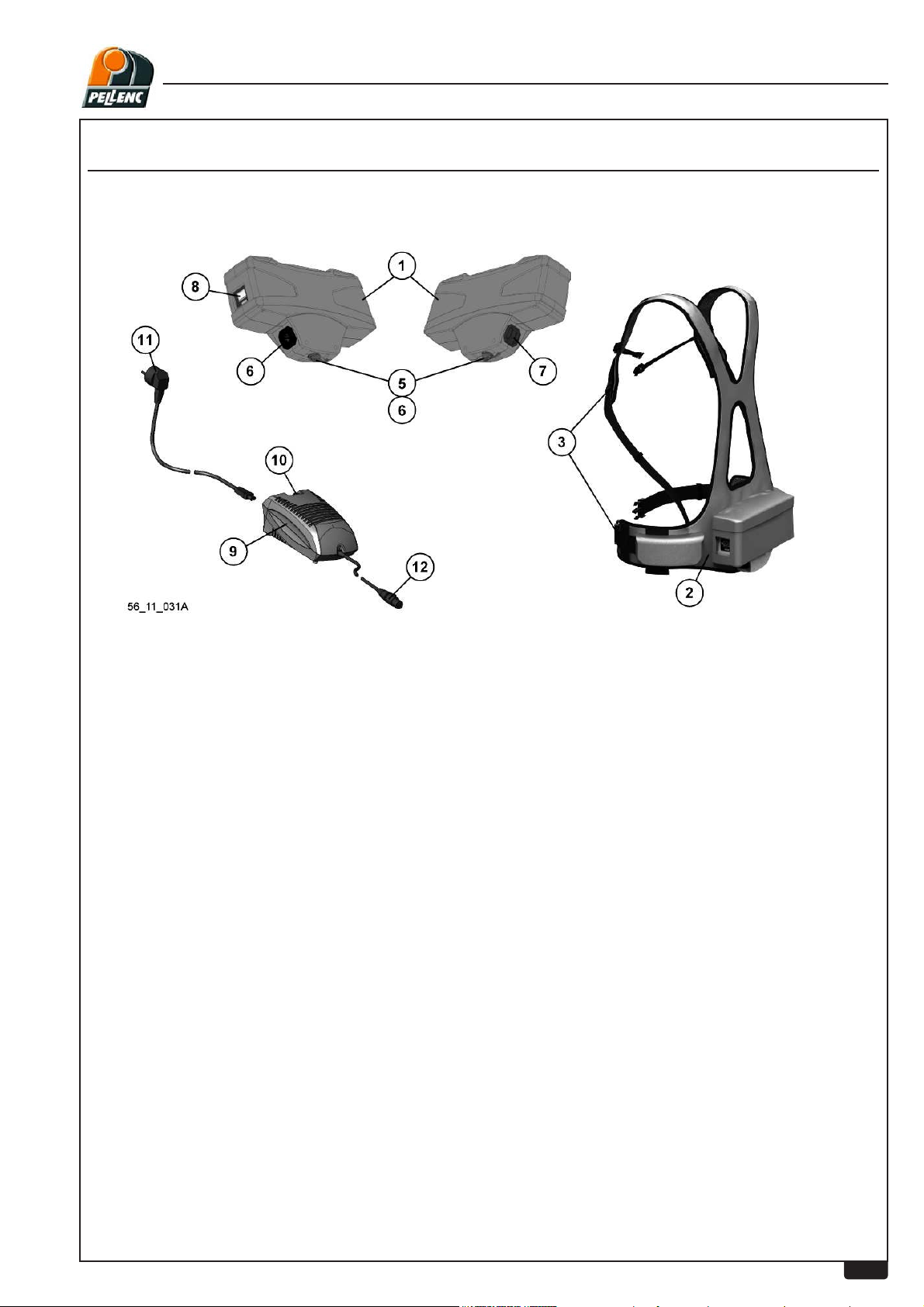

1– Battery
2– Belt
3– Adjustment buckles
4– Tool power connector
5– Charging connector
6– Charging connector cap
7– On/Off switch
8– Battery charge level indicator
9– Charger
10– Charging light
11– Charger mains power plug
12– Charging connector
DESCRIPTION
LEVEL 2 - USER'S TECHNICAL DEPARTMENT

14
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
BATTERY 400 / OLIVION / 700 / 1100 TECHNICAL CHARACTERISTICS -
Charger CB5012 Charger CB5022 Quick Charger CB5076
Voltage 100-240V ~ 50/60Hz 75W
class II
100-240V ~ 50/60Hz
140W class II
100-240V ~ 50/60Hz
485W class II
Charging voltage 50.2 V dc
Charging amperage 1,2A dc max. 2,2A dc max. 7,6A
TECHNICAL CHARACTERISTICS - CHARGER
CHARGING TIME (FULL charge)
Battery 400 OLIVION / 700 1100
Charger CB5012 (1,2A) 90 % 7h 13h 20h
100 % 9h 15h 22h
Charger CB5022 (2,2A) 90 % 4h 7h 10h
100 % 5h 8h 12h
Quick Charger CB5076 (7,6A)
Recharge the battery using the regular
FKDUJHUDIWHUHYHU\¿IWKWLPHXVHG&%
CB5022)
90 %
impossible
2h 3h
100 % 3h 4h
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
Battery 400 Olivion 700 1 100
Nominal battery
voltage 43.2 V
Type of battery
12 times 4
elements included
in 1 pack
12 times 7
elements included
in 1 pack
12 times 6
elements included
in 1 pack
12 times 8 elements
included in 1 pack
Battery capacity 9 Ah 15.4 Ah 17.4 Ah 23.2 Ah
Battery energy/
power 2000 W / 390 Wh 1500 W / 680 Wh 2000 W / 680 Wh 2000 W / 1000 Wh
Weight of the
battery unit 3.5 kg 5.5 kg 5.5 kg 6.1 kg
End of charging
time-out 14 H 20 H 20 H 22 H

15
56_10_013A
2
11
4
5
3
56_07_001A
12 13
14
15
56_07_012B
10 1
9
68 7
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG

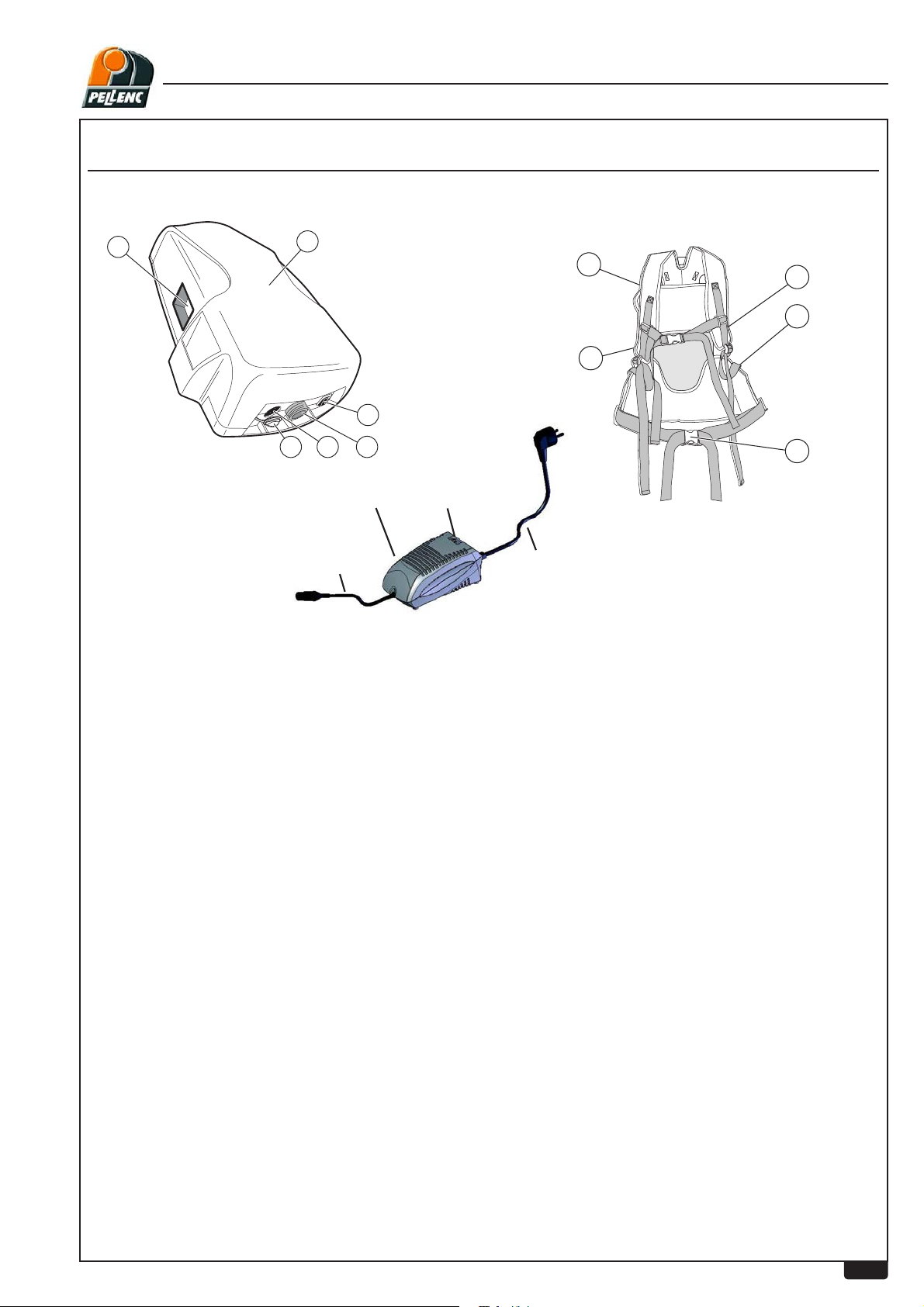

1-Battery
2-Carrying jacket
3-Adjustment buckles
4-Shoulder straps
5-Retaining straps
6-Tool power connector
7-Charging connector
8-Charging connector cap
9-On/Off switch
10-Battery charge level indicator
11-Pectoral adjustment buckles
12-Charger
13-Charging light
14-Charger mains power plug
15-Charging connector
DESCRIPTION
LEVEL 2 - USER'S TECHNICAL DEPARTMENT

16
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
TECHNICAL CHARACTERISTICS POLY 5
Charger CB5012 Charger CB5022 Quick Charger CB5076
Voltage 100-240 VAC / 50-60
Hz 75W class II
100-240V ~ 50/60Hz
140W class II
100-240V ~ 50/60Hz
485W class II
Charging voltage 50.2 V dc
Charging amperage 1,2A dc max. 2,2A dc max. 7,6A
TECHNICAL CHARACTERISTICS - CHARGER
CHARGING TIME (FULL charge)
Battery POLY5
Charger CB5012 (1,2A) 90 % 7h
100 % 9h
Charger CB5022 (2,2A) 90 % 4h
100 % 5h
Quick Charger CB5076 (7,6A)
Recharge the battery using the regular charger
DIWHUHYHU\¿IWKWLPHXVHG&%&%
90 % 1H30
100 % 2H00
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
Battery Poly 5
Rated battery voltage 44 V
Type of battery 12 times 2 elements included in 1 pack
Battery capacity 10.6 Ah
Battery energy/power 2000 W / 460 Wh
Battery life See instructions
Weight of the battery unit 3.4 kg
End of charging time-out
10 hours / 5 if charger is <1.1A
The battery may not be fully charged
(if it was at 0%)

17
2
4
10
3
56_10_034A
11 12
13
14
56_07_001B
56_09_013A
1
9
8 7 6 5
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
1-Battery
2-Carrying jacket
3-Adjustment buckles
4-Shoulder straps
5-Tool power connector
6-Charging connector
7-Charging connector hatch
8-On/Off switch
9-Battery charge level indicator
10-Pectoral adjustment buckles
11-Charger
12Charging light
13Charger mains power plug
14-Charging connector
DESCRIPTION
LEVEL 2 - USER'S TECHNICAL DEPARTMENT

18
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
WORKSTATION ORGANISATION
SMALL TOOLBOX LIGHT FOR PROPER ILLUMINATION OF THE
WORKING AREA
FIREPROOF WORK
SURFACE
SEAT ANTISTATIC MAT
(CONNECTED TO THE
MAINS)
ANTISTATIC
WRISTBAND
NEARBY WASTE
RECEPTACLE
Antistatic kits including a wristband and a mat are
available and can be ordered from specialist websites.
FIRE
EXTINGUISHER
CLASS D
PHWDO¿UH

19
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
CONNECTORS
VERIFICATION:
-Charger jack
- Tools jack
- Switch
IT IS RECOMMENDED THAT THE DISTRIBUTOR VERIFY AND DOWNLOAD THE BATTERY ONCE A YEAR
IT IS RECOMMENDED THAT THE DISTRIBUTOR VERIFY AND DOWNLOAD THE BATTERY ONCE A YEAR
IT IS RECOMMENDED THAT THE DISTRIBUTOR VERIFY AND DOWNLOAD THE BATTERY ONCE A YEAR
CARRIER VEST
VERIFICATION:
- Loop
- Clip

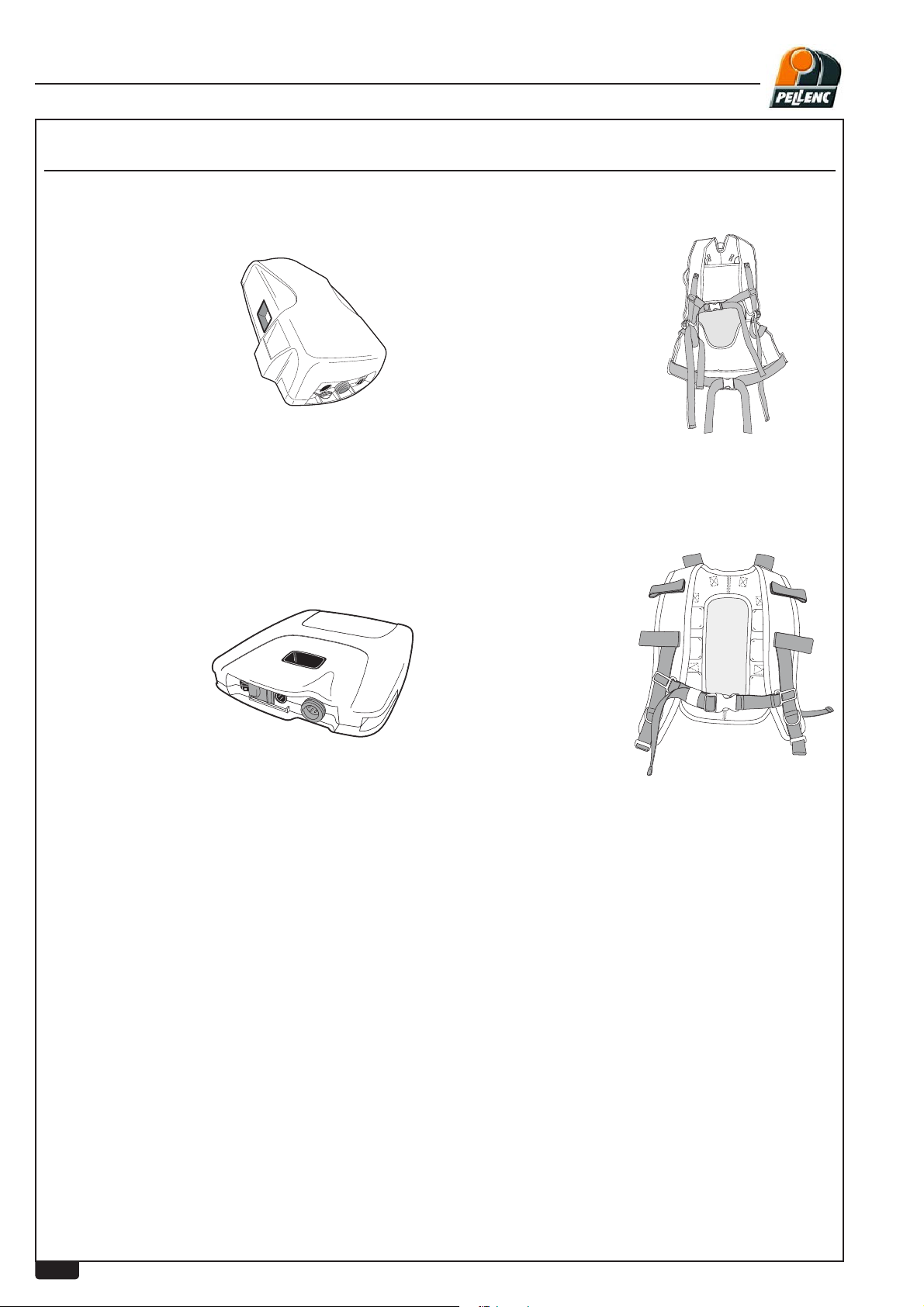

DAILY VISUAL VERIFICATIONS BEFORE USING 150 / 150P BATTERY
DAILY VISUAL VERIFICATIONS BEFORE USING 250 BATTERY
DAILY VISUAL VERIFICATIONS BEFORE USING 200 BATTERY
VERIFICATION OF
CONNECTORS:
- Tool connector cable
VERIFICATION OF
CONNECTORS:
- Charger jack
- Tool connectors
CARRIER VEST
VERIFICATION:
- Loops
- Clip
- Holster
CARRIER VEST
VERIFICATION:
- Loops
- Clips
- Holsters

20
"- LEVEL EXPERT- PELLENC POWER TOOL BATTERY" Workshop document
Issue 11/2016 ref. : DOCUMENT ATELIER_BATTERIE_EXP_OUTILS_PELLENC_V2_2016_ENG
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
CONNECTORS
VERIFICATION:
-Charger jack
- Tools jack
- Switch
CONNECTORS
VERIFICATION:
-Charger jack
- Tools jack
- Switch
IT IS RECOMMENDED THAT THE DISTRIBUTOR VERIFY AND DOWNLOAD THE BATTERY ONCE A YEAR
IT IS RECOMMENDED THAT THE DISTRIBUTOR VERIFY AND DOWNLOAD THE BATTERY ONCE A YEAR
CARRIER VEST
VERIFICATION:
- Loop
- Clip
CARRIER VEST
VERIFICATION:
- Loop
- Clip
DAILY VISUAL VERIFICATIONS BEFORE USING 400 / OLIVION / 700 / 1100 BATTERY
DAILY VISUAL VERIFICATIONS BEFORE USING THE POLY 5 BATTERY
