pellenc 150 User manual

PELLENC POWER TOOLS BATTERY
150
Operating instructions 56_158889-A
01/2022
ENG
Translation of the original op-
erating instructions manual
READ THE USER GUIDE CAREFULLY BEFORE USE
.

PELLENC POWER TOOLS BATTERY 150
56_158889-A
TABLE OF CONTENTS
1. INTRODUCTION ..................................................................................................................... 5
2. SAFETY ................................................................................................................................... 6
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL ......................................... 6
2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE ......................................................... 6
2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER ............................................. 7
2.4. SAFETY SIGNAGE .......................................................................................................................... 8
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS ...................................................... 9
3.1. DESCRIPTION .................................................................................................................................. 9
3.2. BATTERY TECHNICAL FEATURES .............................................................................................. 9
3.3. TECHNICAL CHARACTERISTICS - CHARGER ............................................................................ 9
4. COMMISSIONING ................................................................................................................. 11

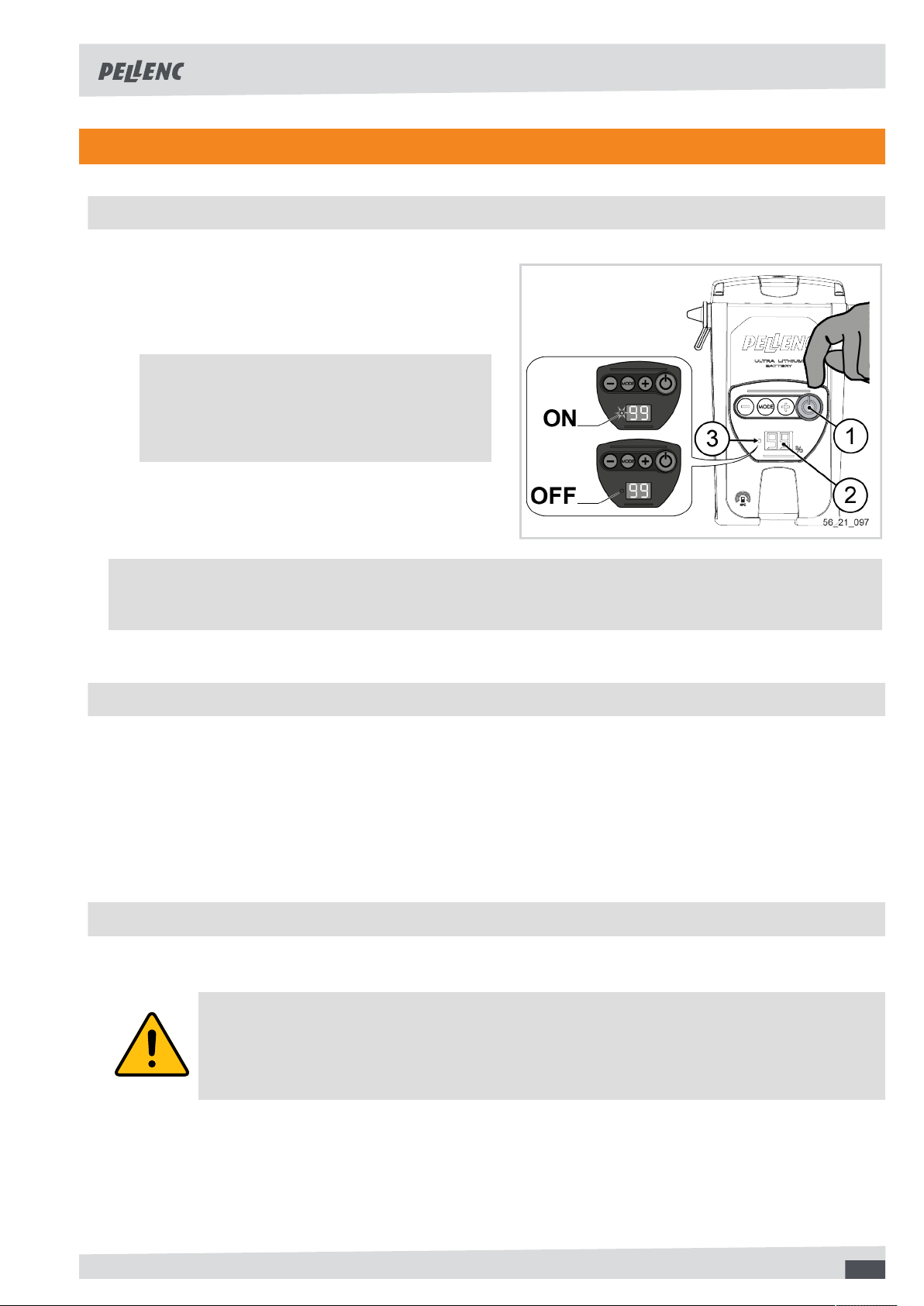

4.1. SWITCHING THE BATTERY ON AND OFF ................................................................................. 11
4.2. HMI DISPLAY ................................................................................................................................. 11
4.3. CHARGING ..................................................................................................................................... 11
4.4. FITTING THE HOLSTER TO THE BELT ...................................................................................... 13
4.5. TOOL CONNECTION ..................................................................................................................... 13
4.6. PUTTING THE LEAD AND WRIST STRAP IN PLACE ................................................................ 14
5. USING THE TOOL ................................................................................................................ 15
5.1. AUTHORISATION MODES ............................................................................................................ 15

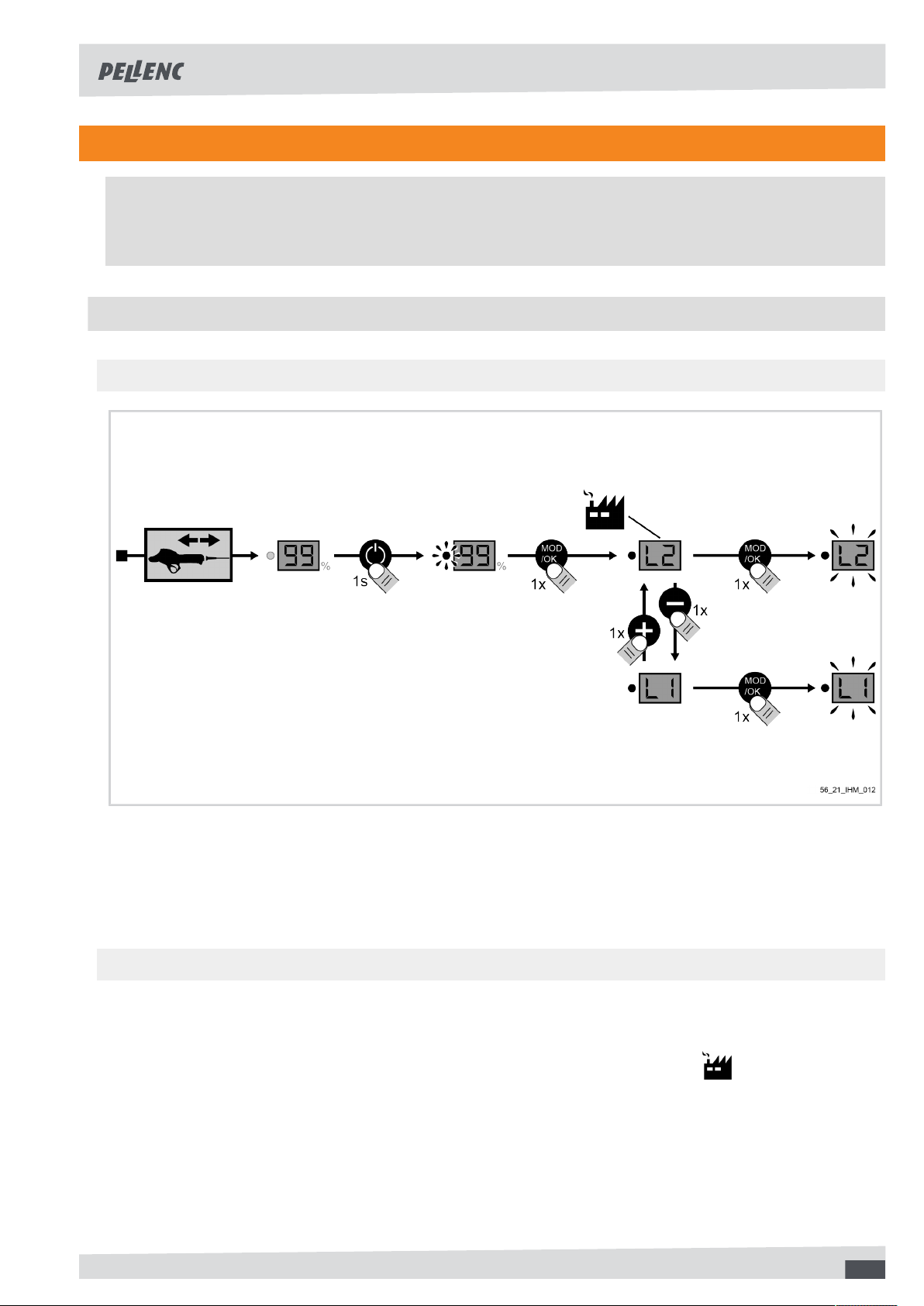

5.1.1. CHANGE OF AUTHORISATION MODE ............................................................................................ 15
5.1.2. PRESENTATION OF AUTHORISATION MODES .............................................................................. 15
6. MAINTENANCE .................................................................................................................... 16
6.1. MAINTENANCE TABLE ................................................................................................................ 16

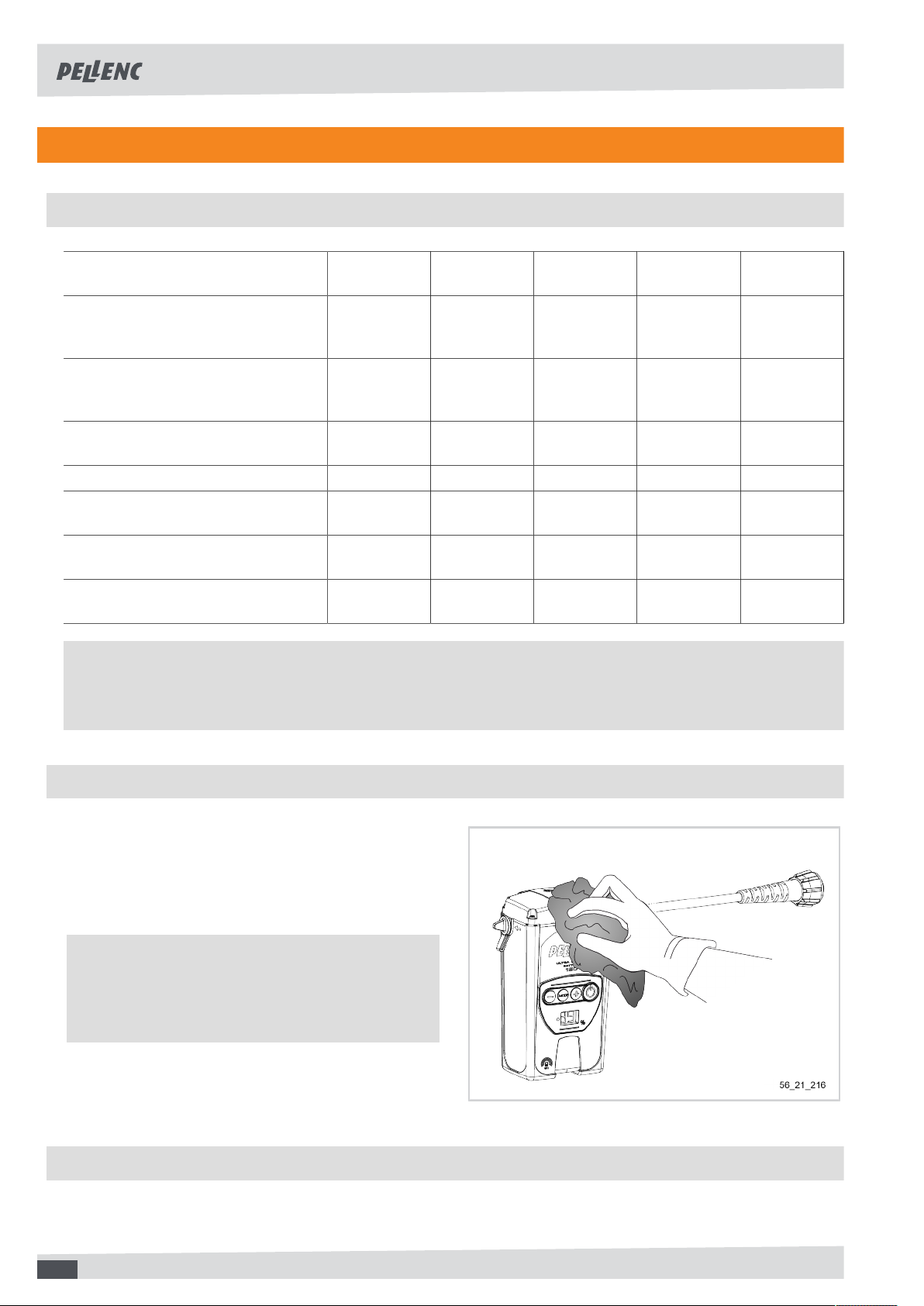

6.2. CLEANING THE BATTERY ........................................................................................................... 16
6.3. CLEANING THE CHARGER ......................................................................................................... 16
7. INCIDENTS AND TROUBLESHOOTING ............................................................................. 18

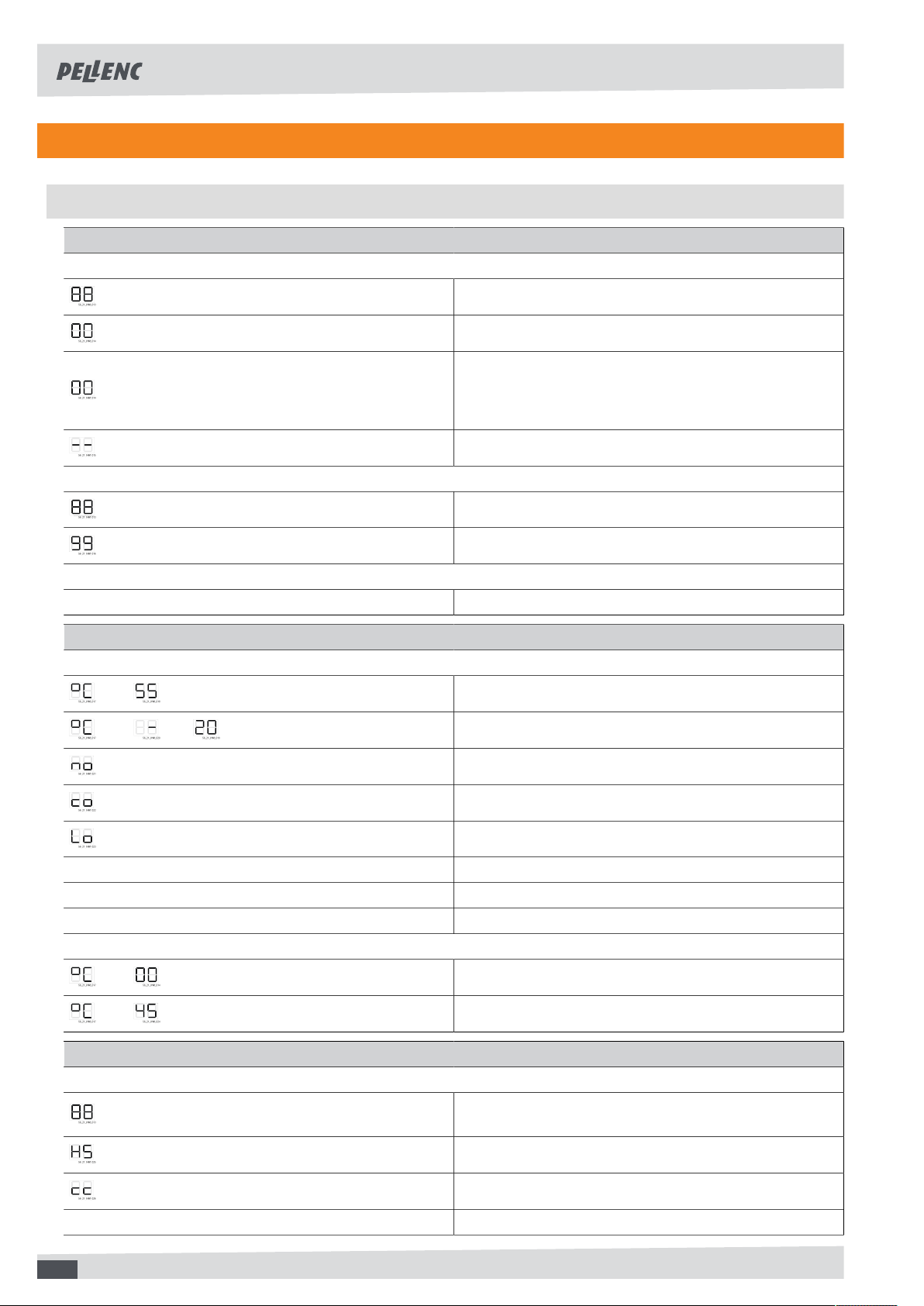

7.1. RECAP OF BATTERY DISPLAY MESSAGES AND AUDIBLE SIGNALS .................................. 18
7.2. TROUBLESHOOTING .................................................................................................................... 19
7.3. BATTERY REPLACEMENT .......................................................................................................... 20
8. STORAGE AND TRANSPORT ............................................................................................ 21
8.1. BATTERY STORAGE CONDITIONS ............................................................................................ 21
9. ACCESSORIES AND CONSUMABLES .............................................................................. 21
9.1. OPTIONAL ACCESSORIES .......................................................................................................... 21
3

PELLENC POWER TOOLS BATTERY 150
56_158889-A
9.2. CONSUMABLES ............................................................................................................................ 22
10. WARRANTIES .................................................................................................................... 23
10.1. GENERAL WARRANTIES ........................................................................................................... 23
10.1.1. STATUTORY WARRANTY ............................................................................................................. 23
10.1.2. COMMERCIAL WARRANTYPELLENC ............................................................................................ 23
10.1.3. PAID AFTER-SALES SERVICE ...................................................................................................... 24
11. COMPLIANCE STATEMENTS ........................................................................................... 26
11.1. "EU" DECLARATION OF CONFORMITY: 150 BATTERY ......................................................... 26
11.2. UK DECLARATION OF CONFORMITY : BATTERIE 150 .................................................... 27
11.3. "EU" DECLARATION OF CONFORMITY: CHARGER CB5010HV ........................................... 28
11.4. UK DECLARATION OF CONFORMITY : CB5010HV CHARGER ........................................ 29
11.5. "EU" DECLARATION OF CONFORMITY: CHARGER CB5004HV2 ......................................... 30
11.6. UK DECLARATION OF CONFORMITY : CHARGEUR CB5004HV/5004HV2 ...................... 31
4

PELLENC POWER TOOLS BATTERY 150
56_158889-A
1. INTRODUCTION
Dear Customer,
Thank you for purchasing your Pellenc power tools battery 150. Properly used and maintained, this equipment will
give you years of satisfaction.
Warning
Your machine contains numerous recoverable or recyclable materials. Return it to
your dealer or, failing this, to an approved servicing centre to be treated.
Comply with the regulations in force in your country as concerns environmental protection associated with your
activity.
Warning
It is imperative that you read through the ENTIRE user’s manual guide before using or servicing
the tool. Always comply with the instructions and illustrations provided in the user’s manual.
Throughout the user’s manual guide you will find advisory notes and information entitled: NOTE, IMPORTANT,
ATTENTION and WARNING.
Points marked “NOTE” indicate additional information.
Points marked "IMPORTANT" warn the user of a potential risk for the equipment.
Points marked “ATTENTION” warn the user of a potentially hazardous situations which if not avoided may result
in minor injuries.
Points marked “WARNING” warn the user of a potentially hazardous situation which if not avoided may result in
serious injury or death.
The warning indicates that damage resulting from failure to comply with the procedures and instructions is not
covered by the warranty and the owner will be liable for any repair costs.
Safety indications are also given on the tool; they remind you of the safety precautions to be taken. Identify and
read these indications before using the tool. Immediately replace any indications that may become partially illegible
or deteriorated.
Refer to Section 2.4, “Safety signage” for the location diagram of the safety stickers affixed to the tool.
No part of this manual may be reproduced without the written permission of the company PELLENC. The illustrations
provided in this manual are for information purposes only and are in no way contractual. The PELLENC company
reserves the right to make any modification or improvement to its products as deemed necessary without inform-
ing customers already in possession of a similar model. This manual forms an integral part of the tool and must
accompany the tool if it changes hands.
5

PELLENC POWER TOOLS BATTERY 150
56_158889-A
2. SAFETY
Warning
Never carry out maintenance work on damaged battery packs. Service of battery packs should
only be performed by the manufacturer or authorized service providers.
2.1. SAFETY MEASURES ASSOCIATED WITH THE USE OF THE TOOL
Note
Refer to the operating instructions for the tool concerned.
Warning
Read all safety warnings and all instructions. Retain all the safety measures and instructions for
later reference.
This device is not intended for use by individuals (including children) with reduced physical, sensory or mental
capabilities, nor by anyone lacking in experience or knowledge, except if they are supervised or have received prior
instructions from a person responsible for their safety.
2.2. SAFETY MEASURES ASSOCIATED WITH BATTERY USE
1. If not using the battery unit, store it away from other metal objects such as paper clips, coins, keys, nails, screws
or other such small metal items that might form a connection between the two terminals. Creating a short-circuit
between the battery terminals can lead to burns or cause a fire.
2. Keep the battery out of the reach of children and place it on a non-combustible support.
3. Do not interfere with its cooling cycle.
4. Do not use or leave the battery near a heat source (> 60°C).
5. Do not leave the battery in direct, strong sunlight.
6. Do not expose the battery to microwaves or high pressure.
7. Do not immerse the battery in water.
8. The batteries must be charged in a dry, ventilated room at a temperature between 10°C and 25°C maximum,
away from any moisture.
9. If the battery is not used for 10 days, the battery will automatically discharge until it reaches its storage charge
rate, then goes to standby. It will heat up during this phase.
10. Over time, the capacity of your battery decreases. When it reaches half of its original battery-life operating
autonomy, it should be replaced.
11. The battery may lose 1 to 4 % of its capacity when exposed to a temperature higher than or equal to 55 °C
for one week.
12. The charging location must be equipped with a class D fire extinguisher (for metal fires) in good working order.
13. The standards in effect must be complied with when shipping a complete tool or a battery.
• Complete tool with battery: product classified UN3481 class 9.
• Battery alone: product that is classified as class 9, UN3480.
14. Use of a battery other than that provided by Pellenc SA is dangerous (risk of serious injury). If a different battery
is used, Pellenc SA cannot be held responsible for any consequences.
15. The battery must be protected from any impact and must be positioned and secured appropriately during trans-
portation.
16. In the case of suspicious smoke, place the battery outside the charging area or transportation vehicle as far
away as possible from any inflammable material.
17. Never store a battery when its capacity is below 50 %. Recharge the battery before storage if the value is
below 50%.
6

PELLENC POWER TOOLS BATTERY 150
56_158889-A
18. In inappropriate conditions, a liquid can flow batteries; avoid contact with it. In the event of accidental contact,
rinse with water. In the event of contact with eyes, seek professional medical help. The liquid leaking from the
batteries can cause irritations or burns.
19. Pellenc power tools must only be used with the battery units designed for the purpose. Use of other battery
units can present a risk of injury and fire.
20. Recharge only with the charger specified by the manufacturer. A charger adapted to one type of battery unit
may present a fire risk if used with a different battery unit.
21. Do not use the battery for any purpose other than that initially envisaged (exclusively for use with Pellenc tools).
22. At the end of its life, the battery must be returned to the authorized distributor from whom it was purchased to
be recycled in accordance with waste regulations.
23. Fragile case, contains an electronic board and lithium.
2.3. SAFETY MEASURES WHEN USING THE "PELLENC" CHARGER
1. When in operation, the charger’s temperature can reach 60°C. No flammable material must be within 1.5 metres
of the charger and battery.
2. Place the charger out of the reach of children and on a non-combustible support.
3. Do not interfere with its cooling cycle.
4. The charger is intended only for recharging the battery. Do not charge non-rechargeable batteries.
5. The charging location must be equipped with a class D fire extinguisher (for metal fires) in good working order.
6. If the output cord is cut or damaged, bring the entire charger back to the authorised distributor where the tool
was purchased.
7. Only recharge using the "PELLENC" charger indicated by the manufacturer. A charger adapted to one type of
battery unit may present a fire risk if used with a different battery unit.
8. This charger is designed to charge Pellenc tool lithium batteries.
9. Do not use it for any other purposes.
10. Children must be supervised to ensure they do not play with the charger.
11. Check that the cable cannot be bent and that it does not touch hot surfaces or sharp edges.
12. Ensure good ventilation during the charging.
13. Never cover the charger. This charger must not be used outdoors.
14. Make sure the power connector is not exposed to water.
15. Never attempt to charge a damaged battery.
16. The grid connection must comply with national electrical regulations.
17. Check the wiring of the charger before use. Never use the charger if the wiring is damaged.
18. When the battery is charging, place the charger on a non-flammable support, more than 1.5 m away from any
flammable object.
7

PELLENC POWER TOOLS BATTERY 150
56_158889-A
2.4. SAFETY SIGNAGE
150 battery
IP54 product protection rating
(Protection against dust and water
spray from all directions).
Please read the operating instruc-
tions.
This equipment must be used at
a temperature of between -5° and
+35°C.
Tool compliant with British stan-
dards
Tool compliant with Moroccan
standards.
Non specified electrical products.
Independent Communications Au-
thority of South Africa
The product complies with the
strict radio interference standards
set by ICASA at the approved fre-
quency.
Marking symbol for identifying the
chemical characteristic of the bat-
tery during recycling.
8

PELLENC POWER TOOLS BATTERY 150
56_158889-A
3. DESCRIPTION AND TECHNICAL CHARACTERISTICS
3.1. DESCRIPTION
1. Charging connector
2. Battery clip to be clipped onto the adjustable belt
3. Tool power cord
4. Tool power cord connector
5. Decrease button
6. Mode switch button
7. Increase button
8. On/Off button
9. HMI display screen
10. Power on and charging LED
3.2. BATTERY TECHNICAL FEATURES
Name Ulib 150
Rated battery voltage 43.2 V
Type of battery 12 cells in 1 pack
Battery capacity 3.45 Ah
Battery power 864 W
Battery energy 150 Wh
Operating frequency bands 3.56 MHz
Max. transmitted RF power -41 dBm
Battery life 8 hours (with C35 pruning shears)
Weight of the battery unit 845 grams (without cord)
3.3. TECHNICAL CHARACTERISTICS - CHARGER
Charger CB5004HV2 Charger CB5010HV
Charger reference 152271 132649
Voltage 100-240V ~50/60Hz Class II
Charging voltage 50.2 V DC
Charging current 0.4 A dc max. 1 A dc max.
9

PELLENC POWER TOOLS BATTERY 150
56_158889-A
Type of charger 150 battery charge
percentage 150 battery charging time
70% 6 h
Charger CB5004HV2 (0.4 A) 100% 9.5 hrs
70% 2 hr 30 min
Charger CB5010HV (1 A) 100% 4 h 30 min
Important
The adapter, ref 152147, ensures compatibility between the CB5010HV charger and 150 battery.
10

PELLENC POWER TOOLS BATTERY 150
56_158889-A
4. COMMISSIONING
4.1. SWITCHING THE BATTERY ON AND OFF
Powering on
1. If the HMI display is off, press the Start/Stop button
(1) to exit the battery from standby.
Note
The HMI display (2) shows the remaining bat-
tery capacity and the power LED (3) remains
off when the unit is switched off.
2. Press the On/Off button (1).
Powering off
• Press the On/Off button (1).
Note
The power-on LED (2) lights up when the power is turned on and goes out when the power is turned off.
4.2. HMI DISPLAY
The battery is equipped with an HMI display that shows the remaining capacity of the battery. The capacity is
expressed as a percentage.
• The display shows 99%, the battery is fully charged.
• If the display shows > 55% after one day's work, it is not necessary to recharge the battery before a second
similar day of work.
• The display shows 00% or a value very close to it, you must recharge immediately.
4.3. CHARGING
Before using the battery for the first time, it must be fully charged (99% steady).
Caution
Before connecting the charger to the mains, check that your power system characteristics com-
ply with the specifications given on the charger (see Section 3.3, “Technical characteristics -
Charger”).
When the battery is discharged, the tool stops automatically. The gauge display goes off, and the buzzer beeps
once. Then consult Section 7.1, “Recap of battery display messages and audible signals”.
1. Make sure that the battery is switched off, see Section 4.1, “Switching the battery on and off”.
11

PELLENC POWER TOOLS BATTERY 150
56_158889-A
2. Place the charger and battery in a dry, ventilated and
dust-free room at 10#25°C. Place the battery lying
in a horizontal position.
3. Connect the charger power connector (1) to the
power outlet. The charger indicator (2) lights up red.
4. Align the arrows on the charging cord connector (3)
with the charging connector (4) on the battery.
5. Connect the charging cable (3) to the charging con-
nector (4) of the battery. The charger indicator (2)
lights up green, and the battery indicator (5) flashes
orange.
6. When the gauge display (6) flashes, the battery is
charging. The charge is finished when the message
appears on the gauge display.
Once the battery is charged, first disconnect the
charging cord (3) from the battery and then the
mains plug from the charger (1).
Note
After a long storage period (new battery, winter storage etc.), when you disconnect the charger, the charge
level indicator may display a value of less than 99%. This is a normal phenomenon which can reoccur for up
to 5 charge cycles with normal use between each charge.
12

PELLENC POWER TOOLS BATTERY 150
56_158889-A
4.4. FITTING THE HOLSTER TO THE BELT
1. Detach the hook and loop strap (1).
2. Pull the hook and loop strap (1) out of the belt loop
(2).
3. Install the holster (3) on the belt (4).
Note
When fitting the holster on the right, ensure
that the hook and loop strap is on your right.
When fitting the holster on the left, ensure that
the hook and loop strap is on your left.
4. Position the hook and loop strap (1) on the holster
(3).
5. Slide the end of the hook and loop strap (1) into the
belt loop (2).
6. Pull and fasten the hook and loop strap (1).
7. Position the belt at waist level and adjust the tight-
ness with the tabs (5).
8. Clip the battery (6) onto the belt (4) and connect the
tool power cord (7) to the tool, see Section 4.5, “Tool
connection”.
9. Put the tool in the holster (3).
10. Attach the tool power cord (7) to the arm using the
armband provided, see Section 4.6, “Putting the lead
and wrist strap in place ”.
4.5. TOOL CONNECTION
Note
For more information on connecting the tool to the battery, refer to the tool's operating instructions manual.
13

PELLENC POWER TOOLS BATTERY 150
56_158889-A
4.6. PUTTING THE LEAD AND WRIST STRAP IN PLACE
1. Put on the belt then clip the battery to it and in-
stall the connected tool in the holster, see Sec-
tion 4.4, “Fitting the holster to the belt” and Sec-
tion 4.5, “Tool connection”.
2. Put the armband (1) around your arm.
3. Insert the tool power cord (2):
• in parallel if it is to slide into the armband clip (3);
• perpendicularly if it is to be attached in the arm-
band clip (3).
14

PELLENC POWER TOOLS BATTERY 150
56_158889-A
5. USING THE TOOL
Note
For more information on the modes of use and "functional" settings, please refer to the tool operating instruc-
tions.
5.1. AUTHORISATION MODES
5.1.1. CHANGE OF AUTHORISATION MODE
1. Disconnect the tool and turn on the battery,
2. Press the "mode" button,
3. Select the mode by pressing + or -,
4. Press the "mode" button to confirm,
5. After setting the mode, turn off the battery and then reconnect the tool.
5.1.2. PRESENTATION OF AUTHORISATION MODES
You can set the parameters for the tool's adjustment level to make it easier to use.
• L1: Normal" mode: the user has access to the operating modes but no "functional" adjustments are possible.
•
L2: “Expert" mode: the user accesses the operating modes and "functional" settings.
15

PELLENC POWER TOOLS BATTERY 150
56_158889-A
6. MAINTENANCE
6.1. MAINTENANCE TABLE
Maintenance task At each
start-up Every 4 hours Every week After each use
Every year or
as necessary
Visual inspection of the general con-
dition of the battery (no deformation
or wear)
X
Visual inspection of the general con-
dition of the charger (no deformation
or wear)
X
Check of the tightness of the tool
power cord knob X
Check the battery level. X
Cleaning the battery, see Sec-
tion 6.2, “Cleaning the battery”. X
Cleaning the battery, see Sec-
tion 6.3, “Cleaning the charger”. X
Battery check by an authorised deal-
er PELLENC. X
Important
Have the battery serviced every 400 hours or at least once a year by an authorised dealer PELLENC. Always
store the charged and clean battery in a dry place.
6.2. CLEANING THE BATTERY
1. Make sure that the battery is switched off, see Sec-
tion 4.1, “Switching the battery on and off”.
2. Ensure that the battery is disconnected from the
charger and the tool.
3. Clean the battery casing with a soft damp cloth.
Important
Cleaning shall be carried out with water only and
without detergent, chlorine or sterilising solutions
with an alkaline reaction.
6.3. CLEANING THE CHARGER
1. Ensure that the charger is unplugged and disconnected from the battery.
2. Clean the charger housing with a soft damp cloth.
16

PELLENC POWER TOOLS BATTERY 150
56_158889-A
Important
Cleaning shall be carried out with water only and without detergent, chlorine or sterilising solutions with an
alkaline reaction.
17

PELLENC POWER TOOLS BATTERY 150
56_158889-A
7. INCIDENTS AND TROUBLESHOOTING
7.1. RECAP OF BATTERY DISPLAY MESSAGES AND AUDIBLE SIGNALS
Normal messages
Use
fixed Battery charge level (0 to 99)
with 1 beep per minute Battery empty, recharge immediately
flashing with 1 beep every 10 seconds
Stop using, recharge immediately.
Only on ALPHA batteries connected to an ALPHA
Tool.
Flashing Display off to avoid duplication with tool display
Charging
flashing every 4 seconds Battery charge level (0 to 99)
fixed Charging complete
Storage
Off Standby
Degraded mode messages
Use
and alternately Stop the tool; the battery temperature is too high
and and alternately Stop the tool; the battery temperature is too low
Electronic board out of order
Electronic board not configured
fixed Cell voltage too low
Long beep and 1 short beep Tool stop: tool intensity too high
Long beep and 2 short beeps Incompatible tool detected
Long beep and 4 short beeps Stop the tool; the tool temperature is too high
Charging
and alternately Charge interrupted: Battery temperature too low
and alternately Charge interrupted: Battery temperature too high
Fault messages
Use
and 1 beep every 2 minutes for 24 hours
Voltage too low after 3 hours of non-use. Recharge bat-
tery immediately
Electronic board out of order
Short circuit on the tool connector
Long beep and 5 short beeps Loss of connection, tool not detected
18

PELLENC POWER TOOLS BATTERY 150
56_158889-A
Fault messages
Charging
and alternating and continuous beep Battery problem
and alternately Charger problem
7.2. TROUBLESHOOTING
Symptoms
Battery dis-
play messages
and beeps
Probable cause Checks Solutions Repairer
with 1
beep per minute
Empty battery
Check that the bat-
tery is not com-
pletely discharged
Recharge the battery User
Configuring the
electronic boardThe battery
does not start Electronic cir-
cuit board
At an authorised PEL-
LENC distributor
Change the electron-
ic board if the diodes
remain off after start-
ing and checking
the previous points
Authorised PEL-
LENC distributor
Long beep and
4 short beeps
The tool has
reached its tem-
perature limit
4 beeps from the battery Let the tool cool down
for roughly 5 minutes
and
alternately
Battery temper-
ature too high
Let the battery
cool down for
about 5 minutes
The tool stops
during use
and and
alternately
Battery tem-
perature Battery temper-
ature too low
Use the battery within
the correct temperature
range, see Section 2.2,
“Safety measures asso-
ciated with battery use ”
User
and
alternately
Battery temper-
ature too low
Use the battery
within the correct
temperature range
The battery
does not charge
and
alternately
Battery tem-
perature Battery temper-
ature too high
Let the battery
cool down for
about 5 minutes
User
19

PELLENC POWER TOOLS BATTERY 150
56_158889-A
Caution
Never attempt to open or repair the battery pack or the charger.
7.3. BATTERY REPLACEMENT
Important
The battery must only be replaced and disposed of by an authorised distributor.
20
