Pelsue 1000 User manual

Part #112920-001
Product Manual:
Model #1000
Centrifugal Blower
T.A. Pelsue Company
2500 South Tejon Street
Englewood, Colorado, USA 80110
Tel. [phone] or 303-936-7432
Fax. [phone]
Internet: www.pelsue.com
Email: [email protected]
ISO 9001 Certified

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015
Page 2

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015 Page 3
Since our inception in 1963 – the T.A. Pelsue Company has designed and manufactured high
quality equipment to improve the personnel ef-
ciency and working conditions in various under-
ground, conned, and outdoor areas.
Founded by T. Allen Pelsue, the company has estab-
lished a continuing reputation for excellence in the
production of ne products for a broad spectrum of
industry throughout the world.
Now, in our second generation of family direction,
continued commitment to innovation and quality
makes Pelsue a leading source of equipment for
many types of conned spaces. We specialize
in safety, retrieval, fall arrest, ventilation, cable
placing, splicing, and maintenance nationally and
abroad. With more than 70,000 square feet of facil-
ities available, Pelsue continues the dedication that
has made us pre-eminent in this eld.
ISO 9001 Certified

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015
Page 4
Table of Contents
Section Description Page #
1.0......................................General Information.................................. 5
1.1...........................Quality Policy
1.2...........................Pelsue Product Warranty
2.0......................................Introduction & Product Information........ 7
2.1...........................Serial Number
3.0......................................Conguration & Assembly........................ 8
3.1...........................Parts Diagram & List

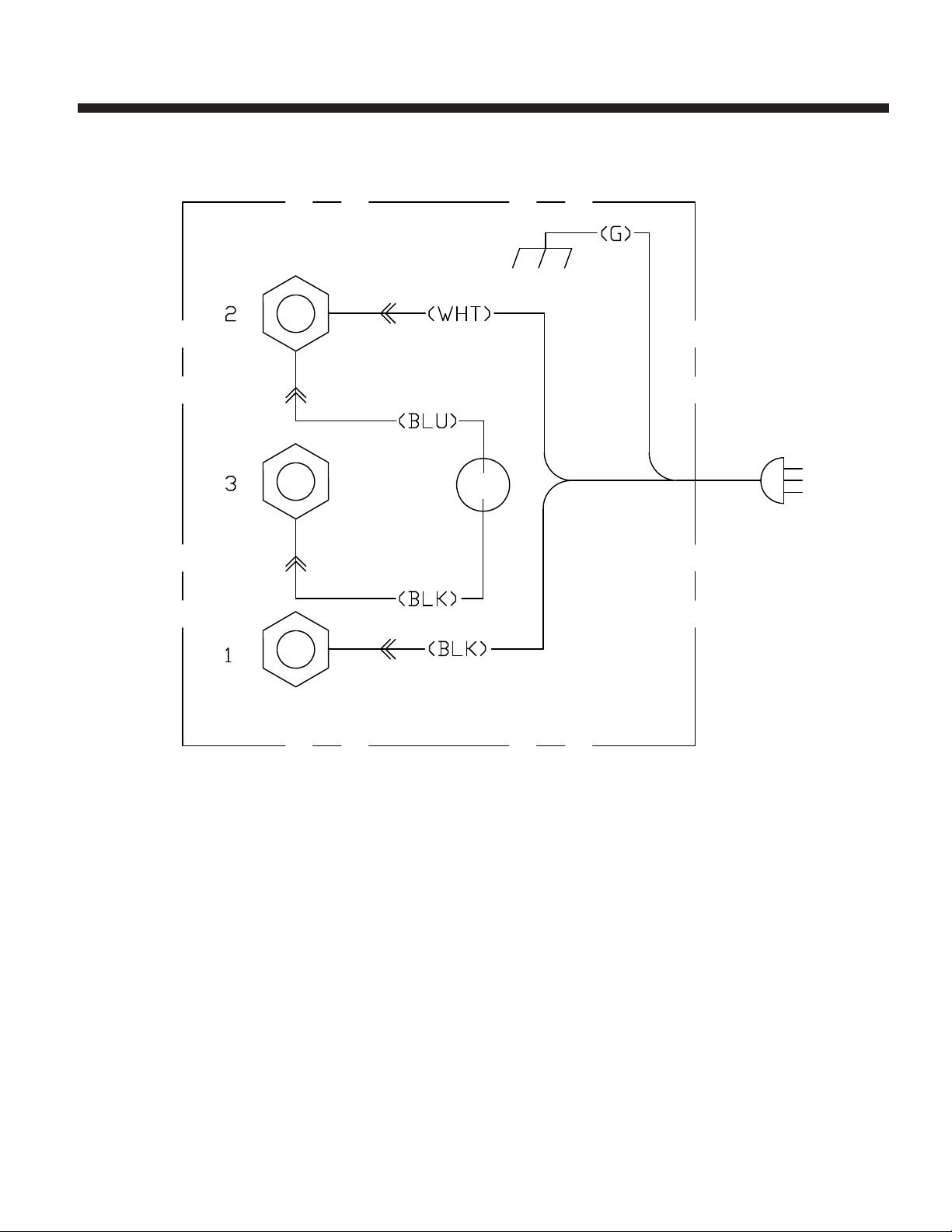

3.2...........................Wiring Diagram
4.0...................................... Safety.......................................................... 11
4.1...........................Safety Alert Symbol
4.2...........................General Safety Information
5.0......................................Product Operation.....................................13
5.1...........................Product Description & Capabilities

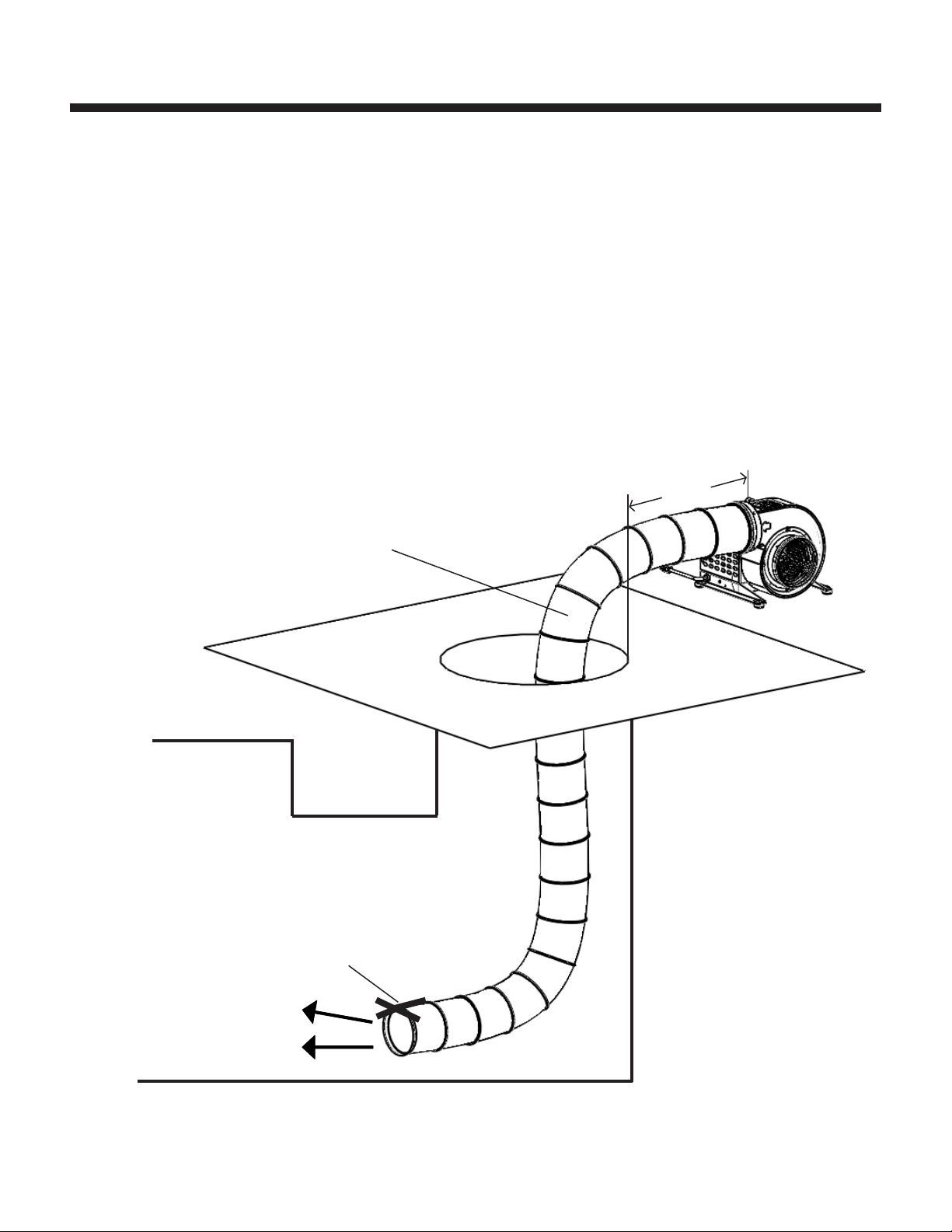

5.2...........................Start-Up & Operating Procedures

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015 Page 5
1.0 General Information
T.A. Pelsue Company
Quality Policy
OUR GOAL IS THE PURSUIT OF NEVER-ENDING IMPROVEMENT IN
PRODUCT QUALITY AND BUSINESS SYSTEMS.
METHODS TO BE EMPLOYED IN ATTAINING THIS GOAL WILL INCLUDE
NEW PRODUCT QUALITY PLANNING, EMPLOYEE TRAINING, AND
UTILIZATION OF EMPLOYEE INVOLVEMENT GROUPS TO SOLVE
PROBLEMS.
IN AN INCREASINGLY COMPETITIVE MARKETPLACE, ENSURING
CUSTOMER SATISFACTION IS ONE OF THE DIFFERENTIATORS THAT
SETS YOU APART FROM THE PACK AND YIELDS A COMPETITIVE
ADVANTAGE.
THEREFORE, WE WILL SUPPORT TOTAL CUSTOMER SATISFACTION BY
IMPLEMENTING THE ISO 9001 QUALITy SySTEM AND PROVIDING
THE NECESSARY ATMOSPHERE AND TRAINING TO NURTURE THIS
CONCEPT THROUGHOUT OUR ORGANIZATION.
WE WILL MAKE EVERY BUSINESS DECISION AS THOUGH THE QUALITY OF
THE PART OR SERVICE PROVIDED WAS DESTINED FOR OUR OWN
OR OUR FAMILY’S USE. WE WILL ALWAYS THINK QUALITy FIRST.
EVERY T.A. PELSUE COMPANY EMPLOYEE IS EXPECTED TO COMMIT TO
THIS PHILOSOPHY IN THE PERFORMANCE OF HIS OR HER DAILY TASKS.
QUALITY FIRST!
T.A. PELSUE COMPANY SENIOR MANAGEMENT TEAM
1.1 Quality Policy

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015
Page 6
1.2 - Pelsue Product Warranty
PELSUE PORTABLE PRODUCT WARRANTY
• Pelsue products are designed and engineered to perform as stated in published specications. Quality materi-
als and workmanship are used in the manufacture of this product. With regular maintenance and proper care,
Pelsue equipment provides many trouble free hours of operation.
• The T.A. Pelsue Company warrants to the buyer that material furnished will conform to specications and will be
free from defects in material and workmanship from the date of shipment to the original buyer, for the period listed
by product description on the reverse side of this warranty statement.
• In the event of failure of any components of a Pelsue product within the warranty period, service must be pre-
approved by the T.A. Pelsue Company and service must be performed by the T.A. Pelsue Company Parts and
Service Department in Englewood Colorado, or at the option of T.A. Pelsue Company, service may be performed
at any designated service center, which may include any authorized service center for the component manufac-
ture.
• Damage or failure due to misuse, mishandling, or unauthorized modications will not be covered by this warranty.
Unless otherwise agreed, the T.A. Pelsue Company shall repair or replace the defective components within (30)
calendar days of notice of failure. T.A. Pelsue Company’s obligation hereunder, shall be limited to the repair or
replacement of the product or component as set forth above, and shall not include any liability whatsoever for
damages caused by such failure, including but not limited to consequential or incidental damages owing from
use or lack of use of product.
• Any replacement, repair, modication, installation or other service performed by the T.A. Pelsue Company shall
be warranted by the remainder of the unexpired period of the warranty, or for a period of (90) calendar days,
whichever is longer.
• All materials or parts returned for credit or warranty shall be returned only with prior approval, and will be subject
to factory inspection before credit is allowed. Parts claimed defective will be replaced upon request and will be
invoiced as purchased, subject to credit when the parts claimed to be defective have been received and exam-
ined by the factory.
• This warranty is expressly in lieu of all other warranties expressed or implied, including any warranties of mer-
chantability or warranties of tness for any particular use and all other obligations or liabilities in connection with
the sale of this equipment.
Product Description Warranty Coverage*
• Blowers................................................................................................. 1 year
• Heaters................................................................................................ 1 year
• Blower Hoses/Ducts............................................................................. 3 months
• Pel-Cans and Caddys...........................................................................1 year
• Hose Adapters...................................................................................... 1 year
• Manhole Shields & Manhole Guards................................................... 1 year
• Pel-Brite Work Lights............................................................................ 6 months
• Planks and Plank Supports.................................................................. 6 months
• Duct Rodders and Accessories............................................................ 6 months
• Submersible Pumps............................................................................. 6 months
• Discharge and Suction Hoses for Pumps............................................. 3 months
• Wheel Chocks...................................................................................... 1 year
*From date of shipment to original buyer.
T.A. Pelsue Company, 2500 South Tejon Street, Englewood, Colorado 80110, 800-525-8460

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015 Page 7
2.0 - Introduction & Product Information
MODEL:__________________________________________
Serial Number :_____________________________________

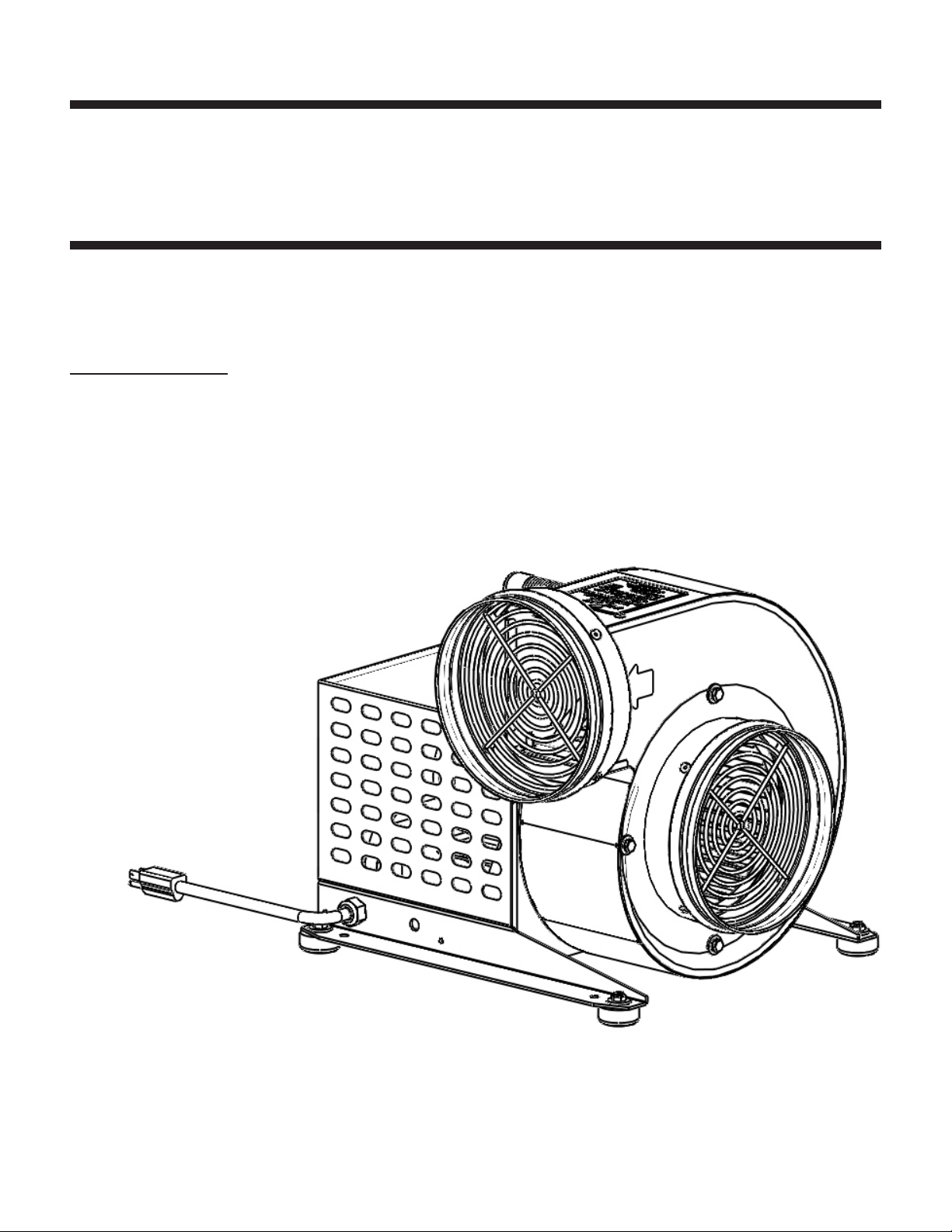

Congratulations on your choice of a Pelsue Model #1000 Centrifugal Blower to compliment your conned space
ventilation operation. This equipment has been designed and manufactured to exceed conned space requirements
and regulations in order to meet the needs of the discriminating operator for efciency and safety during conned space
entry operations.
Safe, efcient and trouble-free operation and maintenance of the system requires that anyone who will be operating,
maintaining, or inspecting the equipment, read, understand and follow all the operation, safety, maintenance, and inspec-
tion instructions contained within this manual. This manual covers the Pelsue Model #1000 Centrifugal Blower. Use the
Table of Contents as a guide to nd specic information.
Keep this manual available for future reference if required, and as a tool in the training of new operators.
This product is a part of a system for conned space
ventilation operations. The user must read, understand
and follow the instructions contained in this manual
before using this equipment. Failure to follow these
instructions could result in serious injury or death.
2.1 - Serial Number
Product Serial Number
Always give your dealer the serial number of your Pelsue conned space ventilator product when ordering parts or
requesting service or other information.
The specication & rating decal is permanently embossed with a serial number. The rating decal is located at the top of
the housing of the centrifugal blower as shown in Fig. 2a . The specication & rating decal will appear as shown to the
right in Fig. 2b. A space has been provided below for the recording of the serial number for future reference.
Figure 2b: #1000
Serial Number Decal
#1000
SERIAL
NUMBER
LOCATION
Figure 2a: Serial Number
Location

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015
Page 8
3.0 - Conguration & Assembly
Upon initial receipt of the Model #1000 Centrifugal Blower, inspect the packaging for any evidence that the product may
have been damaged in shipment. While unpacking the product, inspect all of the components for damage. If damage
to any of the components is discovered, Alert the shipping carrier immediately of the damage to the shipment.
Refer to the following parts breakdown diagram (Figure #3.1a) and the accompanying parts list (Table #3.1a) for iden-
tication of parts in the event replacements become necessary. The parts list table displays applicable part numbers,
descriptions, and quantity per assembly.
* Replacement parts can be ordered from the T.A. Pelsue Company at 800-525-8460.
3.1 Parts Diagram & List

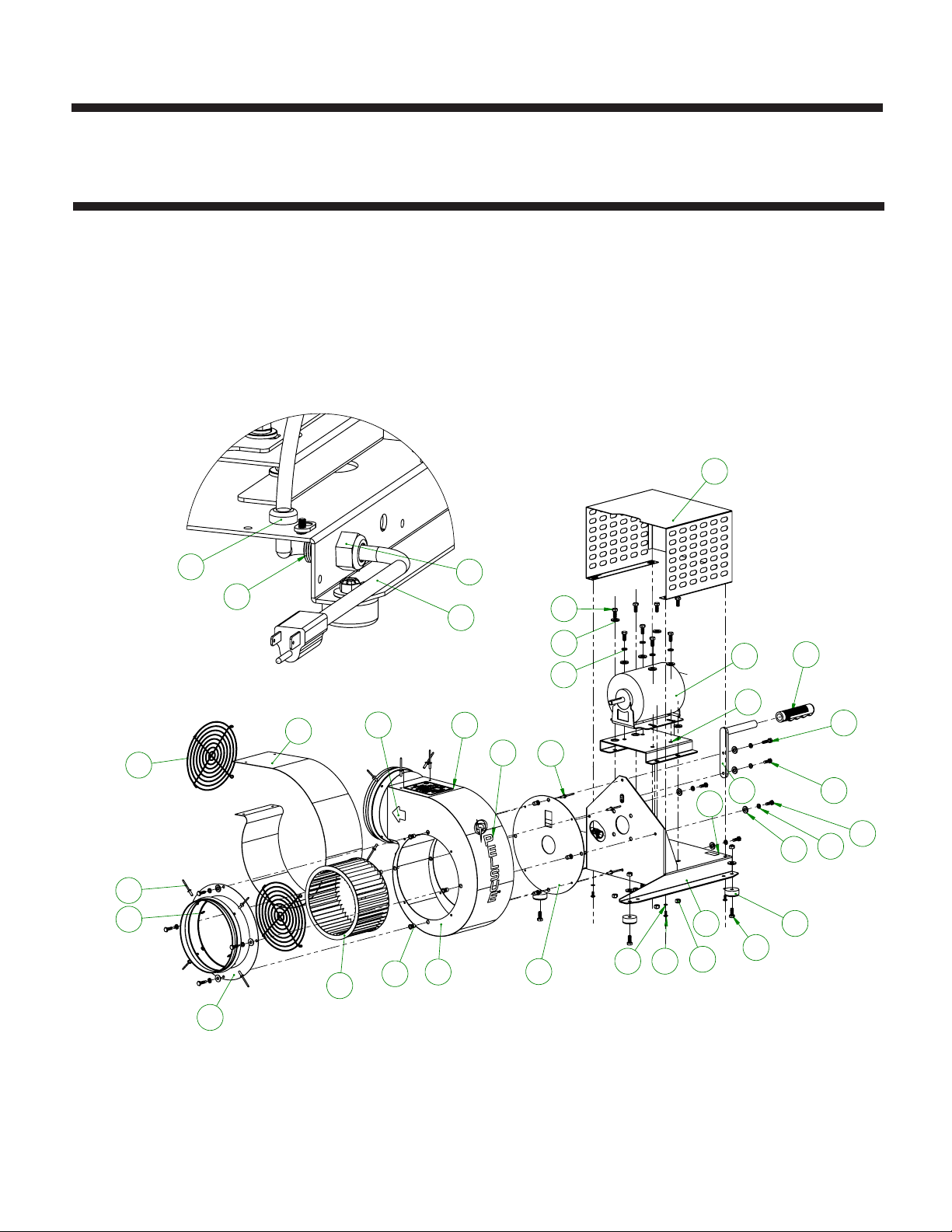

Figure 3.1a: #1000
Parts Diagram













 
 















$
'(7$,/$
6&$/(




47<
5(4'
3$5725
,'(17,),<,1*12
120(1&/$785(
25'(6&5,37,21
0$7(5,$/
63(&,),&$7,21
,7(0
12
3$576/,67
  6&5(:&$3+(;+'81&;3/$7('*5$'( 385&+$6(' 

 5,9(767$9(;%/,1')/$1*('20(%/$&.',$ 385&+$6(' 

 1876(577+,16+((781&&5,03,167</( 385&+$6(' 

1 :$6+(5/2&.,17(51$/7227+3/$7(' 385&+$6(' 

 6&5(:0$&+,1(75866+($'81&;/*%/. 385&+$6(' 


:(/'0(17&(175,)8*$/02725&29(5%2/721
)250('*$67/
0)'5()':* 

( *5200(758%%(5,';2' 385&+$6(' 


'(&$/,'(17,),&$7,215$7,1*6(5,$/02'(/

385&+$6(' 


'(&$/,163(&7('%<'$7($'+(6,9(%$&.;

385&+$6(' 

 '(&$/3(/68(9(57,&$/:,7+3/2*2%/$&. 3&+5()':* 

 '(&$/',5(&7,21$/$552:%/$&. 385&+$6(' 

 *5,36/,'(215281'),1*(5*5,3),762' 385&+$6(' 

( &25'6(7:02/'('3/8*6-72:5$7(' 385&+$6(' 

 :$6+(55,9(7%$&.83,';2'66 385&+$6(' 

 5,9(767$9(;%/,1')/$1*('20(%/$&.',$ 385&+$6(' 

 :$6+(5/2&.,1+(/,&$/63*3/$7(' 385&+$6(' 

 :$6+(5)/$7,17<3($:3/$7(' 385&+$6(' 

 6&5(:&$3+(;+($'81&; 385&+$6(' 

 1876729(581&*5$'( 385&+$6(' 

 :$6+(5/2&.+(/,&$/635,1*3/$7(' 385&+$6(' 

 :$6+(5)/$77<3($:3/$7(' 385&+$6(' 

 6&5(:+(;+'81&;/21*3/$7(' 385&+$6(' 


*5,//(,17$.(287/(7*$67((/:,5(%/$&.
),1,6+ 3&+5()':*


 +$1'/(6(5,(6%/2:(56 0)'5()':* 

 ,16(57&872)))25%/2:(5:+((/ ; 

 $'$37(53$1(/02817,1*3$77(51)25027256 0)'5()':* 


63$&(5)5$0(027251(:&(175,)8*$/%/2:(5
%$6(
0)*6((':*) 

 )22758%%(52':5(&:$6+(5 385&+$6(' 

 675$,15(/+8%',$01276+2:1 385&+$6(' 

+
:+((/%/2:(567((/%25(2';:
530
385&+$6(' 

 02725+39$&+=63((')5$0( 385&+$6(' 

 :(/'0(1768&721$'$37(55,9(721*5,//()25 0)'5()':* 


:(/'0(17&(175,)8*$/%/2:(5+286,1*)25
+26(
0)'5()':* 

< :(/'0(17*$67((/$//&(175,)8*$/%/2:(56 0)'5()':*% 

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015 Page 9
Table 3.1a: #1000
Parts List
3.1 Parts Diagram & List (continued)













 
 















$
'(7$,/$
6&$/(




47<
5(4'
3$5725
,'(17,),<,1*12
120(1&/$785(
25'(6&5,37,21
0$7(5,$/
63(&,),&$7,21
,7(0
12
3$576/,67
  6&5(:&$3+(;+'81&;3/$7('*5$'( 385&+$6(' 

 5,9(767$9(;%/,1')/$1*('20(%/$&.',$ 385&+$6(' 

 1876(577+,16+((781&&5,03,167</( 385&+$6(' 

1 :$6+(5/2&.,17(51$/7227+3/$7(' 385&+$6(' 

 6&5(:0$&+,1(75866+($'81&;/*%/. 385&+$6(' 


:(/'0(17&(175,)8*$/02725&29(5%2/721
)250('*$67/
0)'5()':* 

( *5200(758%%(5,';2' 385&+$6(' 


'(&$/,'(17,),&$7,215$7,1*6(5,$/02'(/

385&+$6(' 


'(&$/,163(&7('%<'$7($'+(6,9(%$&.;

385&+$6(' 

 '(&$/3(/68(9(57,&$/:,7+3/2*2%/$&. 3&+5()':* 

 '(&$/',5(&7,21$/$552:%/$&. 385&+$6(' 

 *5,36/,'(215281'),1*(5*5,3),762' 385&+$6(' 

( &25'6(7:02/'('3/8*6-72:5$7(' 385&+$6(' 

 :$6+(55,9(7%$&.83,';2'66 385&+$6(' 

 5,9(767$9(;%/,1')/$1*('20(%/$&.',$ 385&+$6(' 

 :$6+(5/2&.,1+(/,&$/63*3/$7(' 385&+$6(' 

 :$6+(5)/$7,17<3($:3/$7(' 385&+$6(' 

 6&5(:&$3+(;+($'81&; 385&+$6(' 

 1876729(581&*5$'( 385&+$6(' 

 :$6+(5/2&.+(/,&$/635,1*3/$7(' 385&+$6(' 

 :$6+(5)/$77<3($:3/$7(' 385&+$6(' 

 6&5(:+(;+'81&;/21*3/$7(' 385&+$6(' 


*5,//(,17$.(287/(7*$67((/:,5(%/$&.
),1,6+ 3&+5()':*


 +$1'/(6(5,(6%/2:(56 0)'5()':* 

 ,16(57&872)))25%/2:(5:+((/ ; 

 $'$37(53$1(/02817,1*3$77(51)25027256 0)'5()':* 


63$&(5)5$0(027251(:&(175,)8*$/%/2:(5
%$6(
0)*6((':*) 

 )22758%%(52':5(&:$6+(5 385&+$6(' 

 675$,15(/+8%',$01276+2:1 385&+$6(' 

+
:+((/%/2:(567((/%25(2';:
530
385&+$6(' 

 02725+39$&+=63((')5$0( 385&+$6(' 

 :(/'0(1768&721$'$37(55,9(721*5,//()25 0)'5()':* 


:(/'0(17&(175,)8*$/%/2:(5+286,1*)25
+26(
0)'5()':* 

< :(/'0(17*$67((/$//&(175,)8*$/%/2:(56 0)'5()':*% 
ITEM
NUMBER
PART NUMBER DESCRIPTION QUANTITy
3124389-Y13 WELDMENT - 12 GA STEEL, BLOWER BASE 1
4124343-001 WELDMENT - CENTRIFUGAL BLOWER HOUSING 1
5124355-001 WELDMENT - SUCTON ADAPTER, RIVET ON GRILLE 1
6118247-001 MOTOR - 1/3 HP, 115 VAC, 6� HZ, 1 SPEED, 48 FRAME 1
744H-150300 WHEEL - BLOWER, STEEL, .5" BORE, 7.91" OD 2200 RPM 1
8100405-004 STRAIN REL - 1/2" HUB, �.25�"- �.375" DIAM. 1
9100188-002 FOOT - RUBBER, 1-1/2" OD W/REC WASHER 4
10 124398-048 SPACER - 48 FRAME MOTOR 1
11 124344-001 ADAPTER PANEL - MOUNTING PATTERN FOR MOTORS 1
12 124347-791 INSERT - CUT-OFF, FOR 7.91" BLOWER WHEEL 1
13 102440-001 HANDLE - 1000 SERIES BLOWERS 1
14 112298-001 GRILLE - INTAKE/OUTLET, 13 GA STEEL WIRE, BLACK 2
15 100157-007 SCREW - HEX HD, 5/16-18 UNC X 3/4" LONG, PLATED 12
16 100050-010 WASHER - FLAT, 5/16" TYPE A, W, PLATED 16
17 100121-010 WASHER - LOCK, 5/16", HELICAL SPRING, PLATED 4
18 107942-001 NUT - STOVER, 5/16"-18 UNC, GRADE 5 8
19 101427-002 SCREW - CAP, HEX HEAD, 1/4"-2� UNC X 3/4" 8
20 100050-009 WASHER - FLAT, 1/4 IN, TYPE A, W, PLATED 9
21 100121-009 WASHER - LOCK, 1/4 IN, HELICAL SPG, PLATED 9
22 118519-001 RIVET - STAVEX, BLIND FLANGE DOME, BLACK, 0.188" 12
23 104151-001 WASHER - RIVET BACK UP, 7/32" ID X 7/16" OD, SS 12
24 26E-005700 CORDSET - W/MOLDED PLUG 16/3 SJTOW RATED 1
25 124624-001 GRIP - SLIDE-ON, ROUND FINGER GRIP, FITS 3/4" OD 1
26 111837-001 DECAL - DIRECTIONAL ARROW, BLACK 2
27 121529-001 DECAL - "PELSUE" VERTICAL WITH "P" LOGO 1
28 900306-001 DECAL - "INSPECTED BY - DATE", ADHESIVE BACK 1
29 113107-001 DECAL - IDENTIFICATION, RATING & SERIAL #, MODEL #1000 1
30 62E-011200 GROMMET - RUBBER, 3/8" ID X 3/4" OD 1
31 124943-001 WELDMENT - CENTRIFUGAL MOTOR COVER, BOLT-ON 1
32 111841-002 SCREW - MACHINE TRUSS HEAD, 1�-24 UNC X 1/2" LG, BLK 4
33 68N-004300 WASHER - LOCK, INTERNAL TOOTH, #10, PLATED 4
34 120386-001 NUTSERT - THIN SHEET, 1/4-2� UNC, CRIMP-IN STYLE 8
35 118518-001 RIVET - STAVEX, BLIND FLANGE DOME, BLACK, 0.188" DIA 4
36 100604-010 SCREW - CAP, HEX HD, 1/4-2� UNC X 1" PLATED, GRADE 5 1

#112920-001 - Product Manual: Model #1000 CENTRIFUGAL BLOWER - Revision 05 - Date: 06-04-2015
Page 10
Figure 3.2a: #1000
Wiring Diagram
3.2 Wiring Diagram
Shown below in Figure 3.2a, is a wiring diagram of the motor and the cordset.
