Penton MCS80T/EN User manual

Rated power, Watts
Tappings 100 volt line, Watts
Transformer Impedance , Ohms 100V
Tappings 70.7 volt line, Watts
Driver impedance, Ohms
Effective Frequency Range, Hz (BSEN60268-5)
S.P.L. @ 4m, 1watt, dB,1/3 Octave, 1KHz
S.P.L. @ 1m, 1watt, dB, Octave 1KHz
S.P.L. @ 4m, Full power, dB, 1/3 Octave 1KHz
S.P.L. @ 1m, Full power, Octave 1KHz
80
80/40/20/10
125/250/500/1k
40/20/10/5
4
180-18,000
71
96
91
115
4.Electrical
IP-rating..........................................33
Max/Min amb temp.............70°C/-25°C
Relative humidity........................≦95%
3.Environmental
1 Oct.Pink noise
1 Oct.Pink noise
1 Oct.Pink noise
1 Oct.Pink noise
500 Hz
1K Hz
2K Hz
4K Hz
Horizontal Vertical
360°
175°
131°
89°
35°
14°
10°
52°
2.Horizontal coverage angles & Vertical angles
100V 80W 40W 20W10W
125
250 5001K
Volume selector switch Black
IMP.(Ω)
COM
70V 40W 20W 10W5W COM
∞
OFF
OFF
EN54-24:2008
0359-CPD-0149
TYPE B
With Transformer:
100V/70V line
P1
Penton Communications Inc, Taichung, Taiwan.
PENTON
R
MCS80T/ENC SPECIFICATIONS
>
ZCL0504-070 P
0359
13
Service Germany: 49-6027-979875 ; France: 33-4-76992630 ; Switzerland: 41-21-8812510
Phone USA: 1-401-7271600 ; The Rest of Europe: 31-10-2088690(Netherlands)
:
“Voice alarm loudspeaker for fire detection and fire alarm system for building”
MCS80T/EN
>
Technical Specifications
SPL(dB)
Frequency(Hz)
Sensitivity 100Hz-10000Hz 1/3 Oct. Pink noise 1W/4 Meters)
Sensitivity 100Hz-10000Hz Oct. Pink noise 1W/1 Meter)
*Active Equalizer Applied: NO
100 200 500 1k 2k 5k 10k
90
50
60
70
80
1.Frequency response
40
BK
φ20
970mm
218.5mm(Max)
100
Dimensions, Front & Depth, mm
Net weight, Kgs
Colour(Unless specified)
Materiall
Mounting
970x98x90
6
RAL9016
Aluminium
Stainless L bracket
5.Mechanical
MCS 80T/EN & MCS80T/ENC has been tested in 100 hours max power (80W). The model does not deviate
more than 3dB from the original test value. The freq. response curve and impedance complies with the
original one All SPL tests are preformed in a anechoic chamber ( <70m/3).
±

PENTON
R

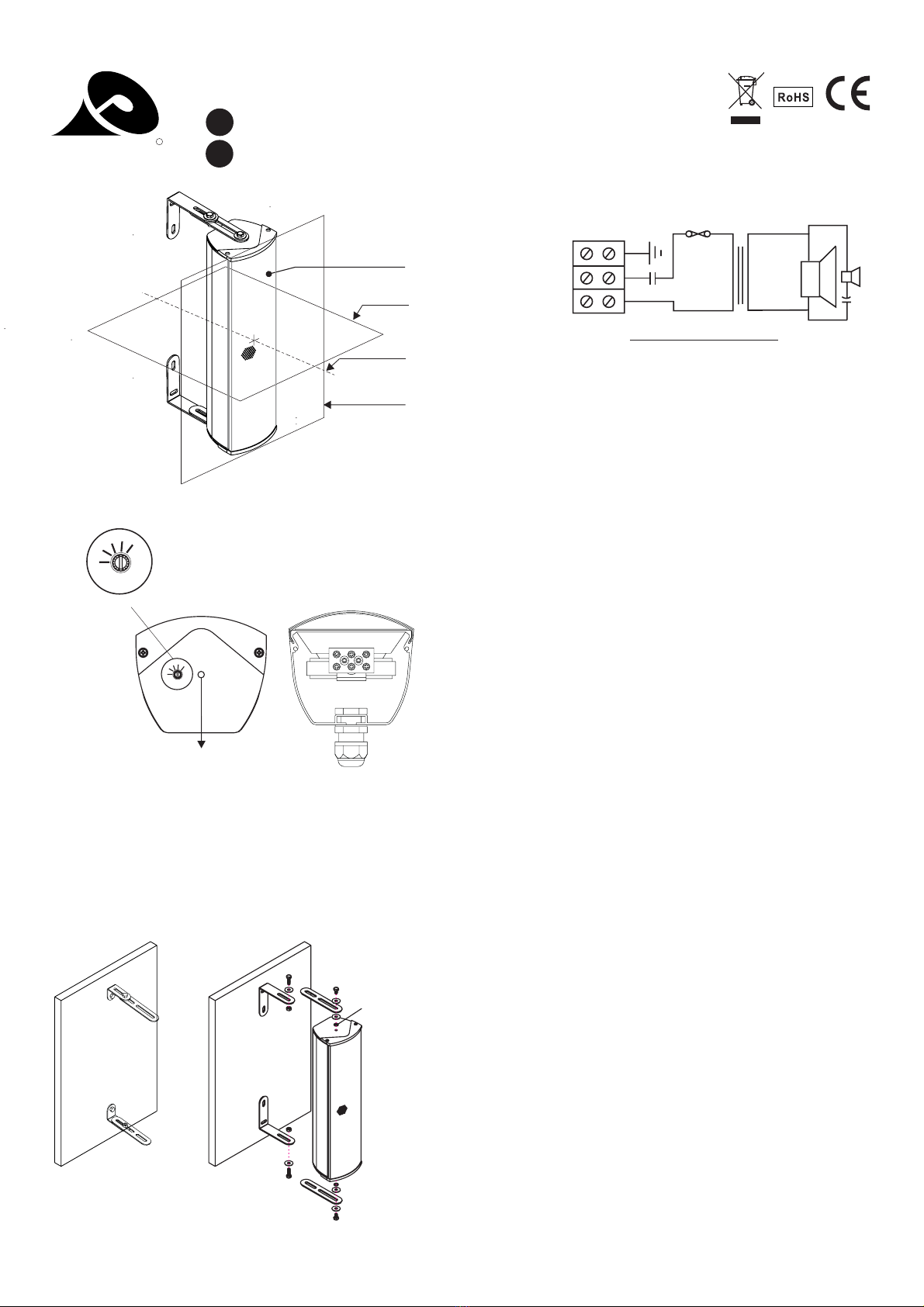

INSTALLATION GUIDE
EN54-24:2008 TYPE B 0359-CPD-0149
MCS80T/ENC
>
P2
0359
13
MCS80T/EN
>
1. loudspeaker enclosure
2. reference axis
3. reference plane
4. horizontal plane
4
3
2
1
80w
40w
20w
10w
OFF
80w
40w
20w
10w
OFF
Top View of
Column Loudspeaker
with lid off
Three way ceramic block
V olume selector switch
“ L”Mounting bracket location
O-ring
“L”Bracket
A
Extension Bracket
A
1)
2)
Remove the top cover of the unit (cable gland end) and
connect the 100 voltline input cable into the ceramic
terminal block through the cable gland provided.
On removing the top cover of the loudspeaker you will
observe a three way terminal block that is connected
to the 100 volt line transformer, as this unit is provided
with a selector switch located at the base of the column,
insert the100 volt line cable using the red wire to the
red and black to black cable connections.
7)
”L”
”L”
Qty 2 x nuts
”L”
Qty 2 x o-ring (used to be waterproof)
8)
You may require tilting or distancing the column from the
mounting surface this can be done by extending the
bracket with the supplied extension bracket in the
hardware kit.Items to be found in the hardware kit:
Qty 2 brackets
Qty 2 x extension brackets
Qty 2 x 10mm long hex head bolts
(used to mount ”L” brackets)
Qty 2 x 20mm long hex head bolts (used to mount
extension brackets onto brackets)
Qty 6 x washers (used with hex bolts above)
Before putting 100 volts through the unit it is advisable
to check the impedance of circuit.
3)
5)Drill the mounting location holes for the unit
in a vertical plane (position “A” drawing
below). Drill the outer bracket holes 935 mm
apart and the inner set 845 mm apart.
On terminating the wiring secure the cable
gland tight into the rear of the loudspeaker
chamber.
4)
6)Mount the speaker in the required location as specified
by an acoustic engineer.
Around the top lid you will observe a rubber gasket
please make sure that it is in place when relocating the
lid to the loudspeaker chamber to maintain its weather
resistance.
*A swivel mounting bracket is available for this unit see Penton accessories.
COM.
80W
40W
100V
Circuit Diagram
MCS 80T/EN
MCS 80T/ENC
*with capacitor
20W
10W
Thermal Fuse
*
OFF
x8
