Warnings & Cautions
Documentation Conventions
Please read this manual and follow its instructions carefully. The
words: Warning, Caution, and Note carry special meaning and
should be reviewed carefully:
Warning:
The personal safety of the patient or user may
be involved. Disregarding this information could
result in injury to the patient or user.
Caution: Special service procedures or precautions must
be followed to avoid damage to the equipment.
Note: Special information to make maintenance easier
and important information more clear.
An exclamation point within a triangle alerts the
user of risk of danger; attention, consult
company documents.
General Warnings
It is important to read and understand this manual. Failure to
follow these instructions may cause damage to the product or
harm to the patient and/or the user. The user should do the
following:
1. Warning: Read the DirectVision®Technical Reference
Manual before assembling and using the product.
2. Warning: Federal (USA) Law restricts this device to use by
or on the order of a physician.
3. Warning: Never look directly at the light emitted from the
light source of the camera handpiece or the DirectVision®
Guide. Damage to eye may result.
!

DirectVision®Technical Reference Manual
Page 2 of 49
4. Warning: Never leave the DirectVision® System powered
and unattended. Heat from the light source could ignite
drapes or other materials.
5. Warning: Do not store or use the DirectVision® System in
an environment that contains flammable gases which can
result in an explosion.
6. Warning: The DirectVision® System must only be repaired
by personnel authorized by PercuVision®. Unauthorized
repairs could compromise the safety and integrity of the
product and voids the warranty.
Failure to follow the instructions in this manual could void the
warranty.
PercuVision® reserves the right to improve our product. As a
result, product may not conform in detail to published design or
specifications. Improvements are subject to change without
notice. Please contact PercuVision® customer care department
for information on improvements and new products.
General Cautions
1. Caution: Carefully unpack the shipment and check for
physical damage. If damage is observed, please refer to the
Service and Claims Section in DirectVision® Technical
Reference Manual.
2. Caution: Do not use the DirectVision® System until you have
verified that it is properly assembled, setup and functioning
correctly.
3. Caution: Use only in conjunction with other Type BF or CF
rated medical electrical equipment approved to IEC 60601-1
or equivalent standard.
4. Caution: Never attempt repairs or maintenance to the
DirectVision® System before reviewing the Service and
Claims Section of DirectVision® Technical Reference
Manual.

DirectVision®Technical Reference Manual
Page 3 of 49
5. Caution: To prevent damage to the DirectVision® Guide and
camera handpiece, always handle with care. Do not drop,
crush, cut, or bend any portion of the visual guide beyond
a 2” radius. Although the visual guide is flexible, bending
beyond the specified radius could cause breakage in the
fiber optic bundle, which reduces its useful life. Kinking the
visual guide could break the entire fiber optic bundle which
can render it non-operational.
6. Caution: Do not expose the DirectVision® System to
excessive heat which can cause damage.
7. Caution: Never place heavy objects on the DirectVision®
System.

DirectVision®Technical Reference Manual
Page 4 of 49
Product Description
DirectVision® product line consists of:
•DirectVision® System
– Camera Handpiece
– Camera Control Unit (CCU)
– Monitor Display
– Cart
•DirectVision® Guide
•DirectVision® Catheter
Camera Handpiece

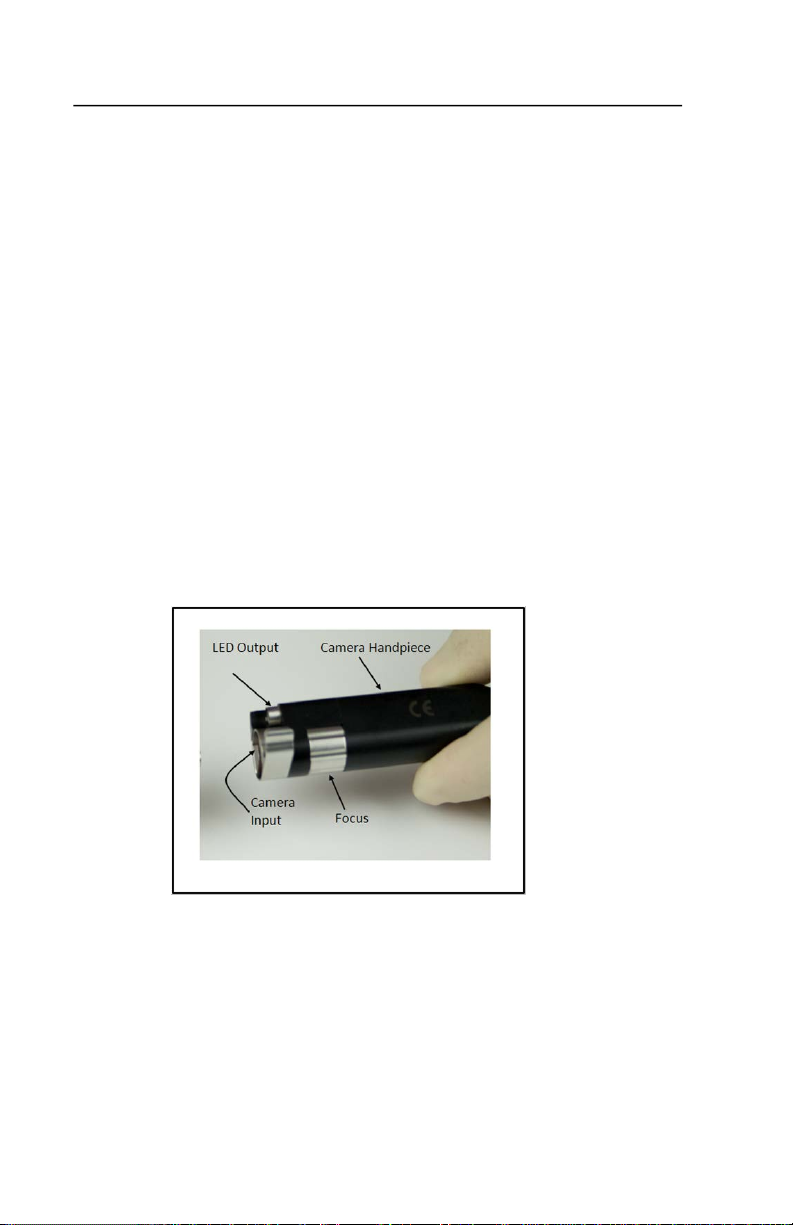

The camera handpiece contains the camera, optics to focus the
video image and an LED white light source. Camera operation is
dependent on receiving power and input video control signals
from the CCU. It uses the input control signals to produce
streaming video output .
The camera handpiece has a locking swing arm to securely couple
the camera handpiece to the DirectVision® Guide. The body of
the camera handpiece has a Focus Ring, which provides focus for
the video image.

DirectVision®Technical Reference Manual
Page 5 of 49
The camera handpiece provides two interfaces:
•Visual Guide
•CCU
Visual Guide Interface
The camera handpiece provides alignment and a locking
mechanism for the camera handpiece- visual guide interface.
When the camera handpiece is not attached to the visual guide, a
protection cap is locked into place.

DirectVision®Technical Reference Manual
Page 6 of 49
Camera Control Unit Interface
A shielded cable attached to the camera connector plug provides
the wired electrical interface between the Camera Control Unit
(CCU) and the camera handpiece. When plugging the camera
connector into the CCU, use the red dots on the camera connector
and CCU receptacle to align the recessed connector pins for
proper insertion.
Caution: Be careful how you align the Camera Handpiece Plug into
the CCU Connector Receptacle. Failure to align pins with the
corresponding pin hole could cause damage to the pins.

DirectVision®Technical Reference Manual
Page 7 of 49
Storage during Transportation
When the camera handpiece is not in use,
1. The wired attached Plug Cap is locked to the Camera
Handpiece Plug. The Plug Cap protects the receded gold
connector pins.
2. Protection cap is locked into place. The cap protects the
front glass of the LED light source and camera from
accumulating dust. It also protects the outside rim of the
lock mechanism of the handpiece from damage.
3. The handpiece is stored in the cart storage drawer.

DirectVision®Technical Reference Manual
Page 8 of 49
Camera Control Unit
The Camera Control Unit (CCU) provides power and control signals
to the camera. It converts video signal received from the camera
to several standard output video formats for video display. It also
provides the power for the LED light source.
The CCU is permanently mounted to the cart. Power and video
cables are pre-connected to the CCU. It is powered by a 12 VDC
medical grade power supply which is housed under the top tray of
the cart. It utilizes an LED to indicate the power ON state.
Front Panel Controls
The front panel of the CCU provides the following controls:
•ON/OFF switch
•LED Power Indicator
•Window Size
•Auto Gain Control
•White Balance
•Brightness adjustment
•Camera Connector

DirectVision®Technical Reference Manual
Page 9 of 49
Electronic Interfaces
The rear of the CCU provides interfaces for:
•Power (IN) 12 VDC
•RS 232 ( for internal service use)
•S-Video (OUT)
•Composite Video (OUT)
•USB 2.0 (OUT)
•FUSE

DirectVision®Technical Reference Manual
Page 10 of 49
Color Monitor Display
The color monitor display is a 17” high resolution LCD monitor. It is
mounted on a swivel bracket on the cart which enables easy
viewing angle adjustment. The monitor is powered by a 12 VDC
medical grade power supply located under the top tray.
LED Indicator
The LED Indicator provides the current power state of the
monitor. It is located in front at the lower right corner of the
Monitor screen bezel. It can display two colors: GREEN indicates
the Power ON State and a video signal is received. ORANGE
indicates that the monitor is in either the Power Saving State or
No Video Signal State.

DirectVision®Technical Reference Manual
Page 11 of 49
Control Dial
The Control Dial is a multi-functional device located behind the
LED Indicator on the right side of the front bezel. It has three
movements: rotate upward, rotate downward and press inward
as a button.
Monitor Power ON/OFF
Press the Control Dial inward to power the Monitor ON. To turn
the Monitor power OFF, press the Control Dial inward and hold for
at least 1 second until the LED turns off.
Menu Control
While the monitor is ON (i.e. Green LED and image on the screen),
press the Control Dial inward to activate the monitor menu
system. When the menu system is active, use the three-way
movement of the Control Dial to adjust the monitor:
•Rotate Downward: Move Down/Right, Increase
•Rotate Upward: Move Up/Left, Decrease
•Button Press: Execute, Do, Save

DirectVision®Technical Reference Manual
Page 12 of 49
Main menu selections for the Display Monitor are:
•Color
•Picture
•Auto
•OSD Menu (On Screen Display)
•MISC
•Exit
A plastic cover on the left side of the monitor screen hides the
cable connectors. Upon removal of the cover, the following cable
connectors are exposed:
•Power (IN) 12 VDC
•VGA Video (IN)
•Composite Video (IN)
•S-video( IN)
Note: the two monitor connectors used by the DirectVision®
System are: Power(IN) 12VDC and Composite Video (IN).

DirectVision®Technical Reference Manual
Page 13 of 49
Cart
The cart is mobile and features a small footprint. It is easily
moved from one patient location to another.
Workspace
The cart features a 15½“ x 21” work space integrated with two
steering handgrips.
Storage Area
There are three storage drawers, two of which are lockable. Keys
are provided.
Swivel Arm
A swivel arm bracket in the back of the cart houses a camera
handpiece holder and a telescoping IV pole. The camera
handpiece holder serves as a temporary holder of the camera
handpiece when the camera handpiece is being prepared to be
connected to the visual guide.
Power
Two medical power supplies are housed beneath the top tray, one
for the Camera Control Unit and the other for the display monitor.

DirectVision®Technical Reference Manual
Page 14 of 49
Height Adjustment
A yellow gas spring height adjustment lever enables positioning of
the monitor to a height for comfortable use.
Casters
The cart features four, 4 inch casters: two locking casters, one
swivel caster and one tracking caster. The locking casters are the
rear two wheels. During the catheterization procedure, the rear
two casters must be locked to prevent cart movement. The lock
levers for these wheels are gray.
The right front wheel is a tracking caster. It serves as a steering
wheel when the cart is moved. The lock lever for this wheel is
black.
