Autoshop Smarttool User manual

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
1
http://autoshopvn.com
PART I : INTRODUCTION

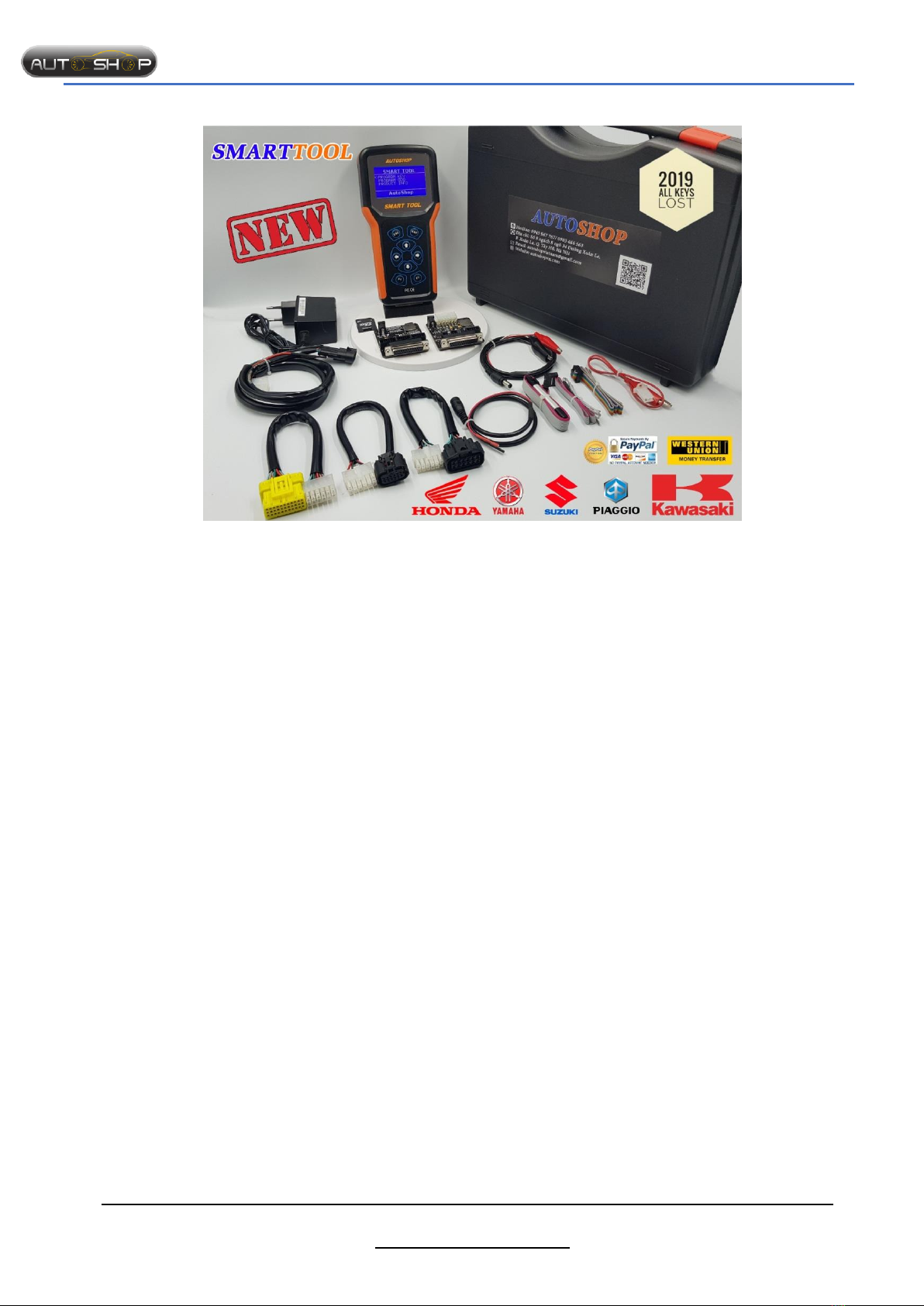

SMARTTOOL is a perfect product of AutoShop JSC. We research, develop and distribute it all the
world. The aim of SmartTool tend to become a multi-functions device, "All In One" such as:
diagnosis, programing magnetic key, Smartkey and ODO correction for all brands such as: HONDA,
YAMAHA, PIAGGIO, SUZUKI, SYM, KYMCO.
It is useful for motorbike, motorcycle repair workshop and locksmiths. The handset is convenient
without computer.
Support editing, reading, erasing KeyID and automatic registration, sync keys and Smartkey Control
Unit (SCU) on SMARTTOOL.
Simple interface.
Many Languages: English, Vietnamese.
One year free online update.
Warranty 12 months.
1. Features
1.1 Smart key/ Keyless Honda, Yamaha and Suzuki
1.1.1 Features:
Manual programing:
Add key by key.
OFF/Disable the missing keys.
Register new keys in the all keys lost case.
Sync SCU-ECM.
Replace new ECM.
Auto programming:

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
2
http://autoshopvn.com
Read KEYID and ECMID.
Erase KEYID.
Register new keys by RESET CODE. (*)
OFF/Disable the missing keys by dump.
Sync SCU automatically.
Change new ECMID automatically
Check the synchronization between FOB and SCU.
Edit data
Change ON / OFF key status
Edit, Sync, Change new ECMID
Re-use the Honda “used FOB” (*)
Sync FOB - SCU automatically.
Reflash EEPROM or Main data of SCU
Change the part number of SCU. (*)
Erase the missing key code.
Register up to 6 keys at once bike Honda SH, PCX, X-ADV 750, FORZA 300
1.1.2 Smart key list:
HONDA: AIRBLADE (2018-2019), CLICK 125i (2018-2019), LEAD 125 (2017-2019), PCX( 2016-
2019), SH 125/150/300(2016-2019), SH MODE ( 2016-2019), VISION (2018-2019), VARIO
125/150 (2018-2019), X-ADV 750, FORZA 300 ( 2018-2019).
YAMAHA : AEROX (2018-2019), GRANF FILANO, JANUS ( 2018-2019), NVX(2018-2019) , QBIX,
XMAX, NMAX, T-MAX 530i*, T-MAX DX*, T-MAX DX*, T-MAX SX SPORT*, T-MAX IRON MAX*
SUZUKI: RAIDER FI (2016-2019), GSX FI (2016-2019).
1.2. PIAGGIO, VESPA
Register the new keys in the all keys lost case.
Reset, erase all keys of IC / ECM.
Support register new keys.
Support list : AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I,
ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4,
PGU09, PGN04/PGS02/PGS06/PGT01.
1.3. Odometer adjustment
Function
Correct odometer value of motorcycle dashboard.
Restore the original data
All Honda, Yamaha, Suzuki and Piaggio.

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
3
http://autoshopvn.com
2. SPECIFICATIONS
2.1. Main

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
4
http://autoshopvn.com

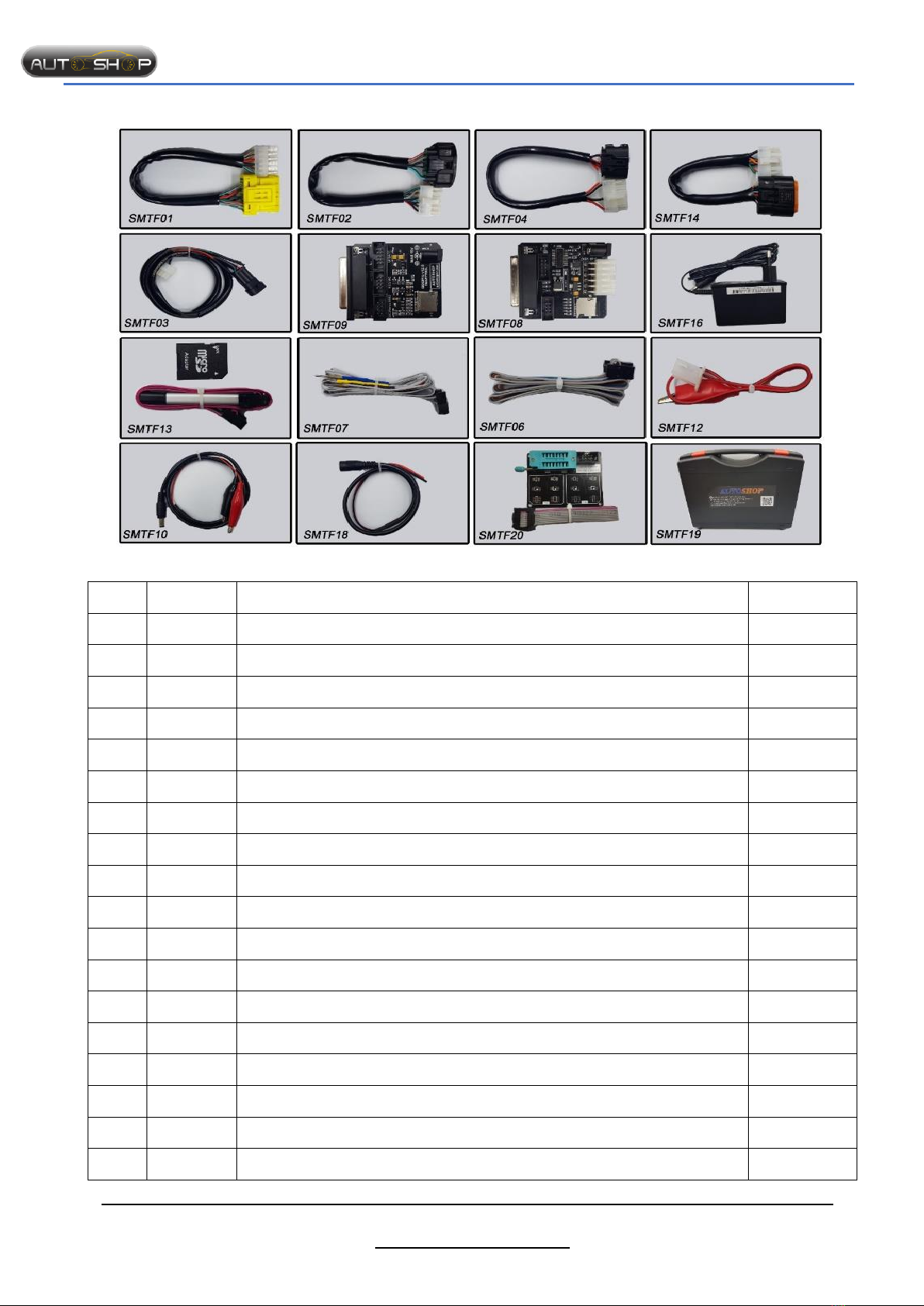

2.2 List of accessories
NO.
CODE
LIST
QUANTILY
1
SMTF00
SMARTTOOL DEVICE
01
2
SMTF01
Smart key cable HONDA PCX/SH/XADV/FORZA
01
3
SMTF02
Smart key cable LEAD/AIRBLADE/CLICK/VARIO
01
4
SMTF03
K-Line cable for PIAGGIO/VESPA
01
5
SMTF04
Smart key cable Yamaha
01
6
SMTF06
Connect cable reading of family 93Cxx, Pic, R5F
01
7
SMTF07
Smart key Yamaha ID reading -ODO cable of family 24cxx
01
8
SMTF08
KEY Adapter
01
9
SMTF09
ODO Adapter *
01
10
SMTF10
Power cable 12V
01
11
SMTF11
Micro card adapter
01
12
SMTF12
Smart key extra cable for Honda
01
13
SMTF13
Update cable
01
14
SMTF15
Instruction document
01
15
SMTF16
Adapter 12V/2A
01
16
SMTF17
Micro card 2G
02
17
SMTF18
Test power ODO cable*
01
18
SMTF19
Box black
01
Note: Depending on the function of the device package will have accessories attached.

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
5
http://autoshopvn.com
LIST FUNCTION
a, Programming Smart key/ Keyless HONDA, YAMAHA, SUZUKI
HONDA
Manual Programing
Auto Programing
Edit Data SCU
Add key by key
OFF key
Alll keys lost
Replace new SCU
Replace new ECM
Read KEYID
Read ECMID
Erase KEYID
Alll keys lost
OFF key
Replace new SCU
Replace new ECM
Display key registered
Status ON / OFF key
register
Writer ECMID to SCU
One key used
many bike
Re-use the Honda
“used FOB"
Register new keys by
RESET CODE
Reflash EEPROM
Change the part
number of SCU
Check the synchron
-ization FOB and SCU
Register up to 6 keys at
once bike
AIR BLADE
(2018-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
CLICK 125i
(2018-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
LEAD 125
(2018-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
PCX
(2015-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
VISION
(2018-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
SH 125
(2015-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
SH 150
(2015-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
SH 300i ABS
(2015-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
SH MODE
(2017-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
Super Cub C125
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
VARIO
(2017-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
X-ADV 750
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
FORZA
( 2018-2019)
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
YAMAHA
Add key by key
OFF key
Alll keys lost
Replace new SCU
Read KEYID
Erase KEYID
Read ECM ID
Status ON / OFF
key register
Reflash EEPROM
AEROX (2018-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
GRANDE (2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
GRANF FILANO
(2018-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
FREE GO (2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
LEXI
(2018-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
NMAX
(2018-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
JANUS PREMIUM
(2018-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
NVX 125 DELUXE
(2017-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
NVX 155 ABS
(2017-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
QBIX
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
XMAX
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
TMAX 530i*
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
TMAX DX*
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
TMAX SX SPRORT*
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
TMAX IRON MAX*
✔
✔
✔
✔
✔
✔
Updating
Updating
✔

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
6
http://autoshopvn.com
SUZUKI
Add key by key
OFF key
Alll keys lost
Replace new SCU
Read KEYID
Erase KEYID
Read ECM ID
Status ON / OFF
key register
Reflash EEPROM
GSX 150 FI
(2017-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
RAIDER FI
(2017-2019)
✔
✔
✔
✔
✔
✔
Updating
Updating
✔
b, Programming Piaggo/Vespa
Add key by
key
All keys losst
Reset,
erase all
keys of IC
/ ECM
Add key by
key
All keys losst
Reset,
erase all
keys of IC
/ ECM
BEVERLY 125 MIUG3
✔
✔
✔
VESPA 125/150 3V MUIG3
✔
✔
✔
BEVERLY 300 MIUG3
✔
✔
✔
GTS 125/150 MIUG3
✔
✔
✔
BEVERLY 350 MIUG3
✔
✔
✔
LXV 125 3V MIUG3
✔
✔
✔
FLY 125 MIUG3
✔
✔
✔
GTS 125/300 ABS MIUG3
✔
✔
✔
FLY 150 MIUG3
✔
✔
✔
LT125/150 3V MIUG3
✔
✔
✔
FLY 125 3V MIUG3
✔
✔
✔
LX125 MIUG3
✔
✔
✔
FLY 150 3V MIUG3
✔
✔
✔
LX 125 AC19I/AC20I
✔
✔
FLY 125 AC19I/20I
✔
✔
LX 125 AC191/AC201
✔
✔
FLY 150 AC 19I/20I
✔
✔
LX 125 ACII/AC2I/AC5I
✔
✔
FLY 125 AC 191/201
✔
✔
LX 125/150 E1MIUG3
✔
✔
✔
FLY 150 AC 191/201
✔
✔
LX 150 3V MIUG3
✔
✔
✔
FLY AC II/AC2I/
✔
✔
LX 150 AC19I/AC20I
✔
✔
AC5I/AC8I
✔
✔
LX 150 AC191/AC201
✔
✔
LIBERTY 125 3V PGN04/PGS02
/PGT01
✔
✔
LX 150 ACII/AC2I/AC5I
✔
✔
LIBERTY 150 3V MIUG3
✔
✔
LX 125/150 3V PGN04/PGS02/PGT01
✔
✔
LIBERTY 150 3V PGN04/PGS02
/PGT01
✔
✔
LXV 125/150 2V/3V MIUG3
✔
✔
✔
LIBERTY 125 AC19I/20I
✔
✔
PRIMAVE 125/150 MIUG3
✔
✔
✔
LIBERTY 150 AC19I/20I
✔
✔
PRIMAVE 125 150/PGN04/PGS02/PGT01
✔
✔
LIBERTY 125 AC191/201
✔
✔
PRIMAVERA ABS
✔
✔
LIBERTY 150 AC191/201
✔
✔
S125/150 MIUG3
✔
✔
✔
LIBERTY AC II/AC2I/AC5I/AC8I
✔
✔
S125/150 3V MIUG3
✔
✔
LIBERTY ABS PGS06
✔
✔
SPRINT 125 3V PGN04
✔
✔
MEDLEY 125 PGQ16
updating
updating
updating
SPRINT 150 3V PGN04
✔
✔
MEDLEY 150 PGQ16
updating
updating
updating
SPRINT ABS
✔
✔
X10 125 MIUG3
✔
✔
✔
X10 350 MIUG3
✔
✔
✔

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
7
http://autoshopvn.com
c, Odometer adjustment*
HONDA
EEPROM
Connection diagrams
Read ODO
Adjustment ODO
RESET ODO
YAMAHA
EEPROM
Connection diagrams
Read ODO
Adjustment ODO
RESET ODO
AIR BLADE
(2013- 2014)
93C66
✔
✔
✔
✔
AEROX
PIC16Fxx
✔
✔
✔
✔
AIR BLADE
(2015-2017)
93C66
✔
✔
✔
✔
JANUS
PIC16Fxx
✔
✔
✔
✔
AIR BLADE
(2018 - 2019)
93C66
✔
✔
✔
✔
NVX
PIC16Fxx
✔
✔
✔
✔
BEAT
(2018-2019)
93C66
✔
✔
✔
✔
TFX
PIC16Fxx
✔
✔
✔
✔
CBR 15DR/150/250
24C04
✔
✔
✔
✔
MSLAZ
PIC16Fxx
✔
✔
✔
✔
CBR1000
93C56
✔
✔
✔
✔
GRANDE 2016
93C66
✔
✔
✔
✔
SUPPER CUB
(2018-2019)
24C04
✔
✔
✔
✔
ACRUZO
93C66
✔
✔
✔
✔
CLICK
(2014-2015)
24C04
✔
✔
✔
✔
EXCITER
(2014-2017)
93C66
✔
✔
✔
✔
CLICK
(2016-2017)
24C04
✔
✔
✔
✔
EXCITER 150
(2018-2019)
93C66
✔
✔
✔
✔
CLICK
(2018 - 2019)
24C04
✔
✔
✔
✔
FZ150/150i/FZ16
93C66
✔
✔
✔
✔
FUTURE NEO FI
93C46
✔
✔
✔
✔
GRANDE 2019
93C66
✔
✔
✔
✔
FUTURE X
93C46
✔
✔
✔
✔
NOVO LX/4
93C56
✔
✔
✔
✔
LEAD 125
(2013-2016)
93C66
✔
✔
✔
✔
NOVO SX/5
93C66
✔
✔
✔
✔
LEAD 125
(2017-2019)
93C66
✔
✔
✔
✔
QBIX
(2017-2019)
93C66
✔
✔
✔
✔
MSX 125
93C66
✔
✔
✔
✔
R1/R15/RR15D
93C46
✔
✔
✔
✔
PCX
(2008-2015)
24C04
✔
✔
✔
✔
FREE GO 2019
93C66
✔
✔
✔
✔
PCX (2016-2017)
24C04
✔
✔
✔
✔
GRAND FILANO
93C66
✔
✔
✔
✔
PCX
(2018-2019)
24C04
✔
✔
✔
✔
XMAX
(2017-2019)
93C66
✔
✔
✔
✔
SCOOPY-I
93C66
✔
✔
✔
✔
TMAX(2017-2019)
93C86
✔
✔
✔
✔
SH 125/150
( 2015-2016)
93C56
✔
✔
✔
✔
MT07
(2018-2019)
93C86
✔
✔
✔
✔
SH 125/150
( 2017-2019)
93C66
✔
✔
✔
✔
MT09
(2018-2019)
93C86
✔
✔
✔
✔
SH 300I ABS 2007
93C56
✔
✔
✔
✔
SH 300I ABS
(2008-2016)
93C66
✔
✔
✔
✔
VARIO
(2018-2019)
24C04
✔
✔
✔
✔
SH MODE
(2016-2019)
93C66
✔
✔
✔
✔
WAVE 125I
93C46
✔
✔
✔
✔
VARIO (2014-2015)
24C04
✔
✔
✔
✔
WINNER 150
93C66
✔
✔
✔
✔
VARIO
(2016-2017)
24C04
✔
✔
✔
✔
WINNER X 2019
24C04
✔
✔
✔
✔

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
8
http://autoshopvn.com
PIAGGIO/
VESPA
SUZUKI
LIBERTY
( 2017-2019)
93C66
✔
✔
✔
✔
AN 150
93C56
✔
✔
✔
✔
PRIMAVERA(2017-2019)
93C66
✔
✔
✔
✔
EN 150
93C56
✔
✔
✔
✔
SPRINT
(2017-2019)
93C66
✔
✔
✔
✔
RAIDER
(2012-2015)
93C66
✔
✔
✔
✔
LIBERTY
( 2014-2016)
R5F
✔
✔
✔
✔
GSX
( 2009-2015)
93C66
✔
✔
✔
✔
PRIMAVERA
(2014-2016)
R5F
✔
✔
✔
✔
GSX FI
(2016-2019)
R5F
✔
✔
✔
✔
SPRINT
(2014-2016)
R5F
✔
✔
✔
✔
RAIDER FI
( 2016-2019)
R5F
✔
✔
✔
✔
KAWASAKI
Z1000R
93C66
✔
✔
VERSY 650
93C66
✔
✔
Z125
93C66
✔
✔
Z300
93C46
✔
✔
NINJA 250
93C56
✔
✔
Z900
93C66
✔
✔
NOTE: (*) Depending on the product package and depending on the distribution market, the
device will have different functions

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
9
http://autoshopvn.com
PART II: PROGRAM KEY
A. HONDA
1. HONDA PCX-SH-SHMODE-XADV-FOZA-SUPER CUB
Device:
-SMART TOOL.
-Cable for HONDA PCX, SH, SH MODE/125/150.
-KEY ADAPTER.
-SCU and FOB.
Connect SCU to SMART TOOL
1.1 Manual program
1.1.1 Disable/ OFF FOB
Purpose:
-OFF the missing FOB.
-Remove the lost key
Preparation:
-SMTF00- SMART TOOL.
-SMTF01- Cable for HONDA PCX/SH125/150/MODE
-SMTF08- KEY ADAPTER.
-SCU (smart key control unit), the original FOB.

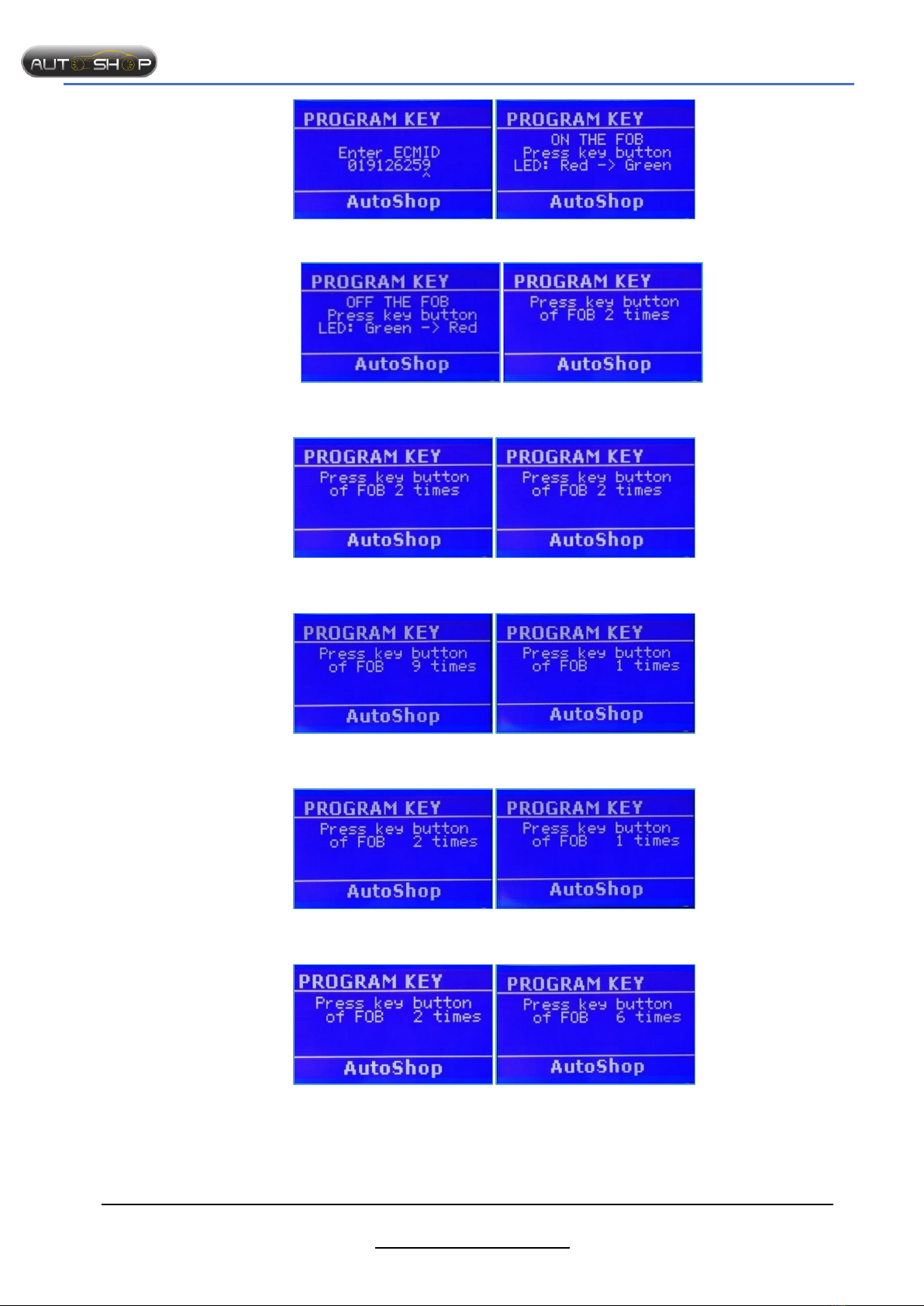

The steps taken on the Smart Tool:
Step 1: Select bike Step 2: Select “OFF THE MISSING FOB”
Step 3: Turn on FOB Step 4: Turn OFF FOB

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
10
http://autoshopvn.com
Successfully!!!
Step 1: Select “MANUAL PROGRAM” Step 2 : Select “ ADD KEY BY KEY”
Step 3: Turn on the original FOB Step 4: Turn OFF the original FOB
Step 5: Turn on the new FOB Successfully!!!
Notes:
-Turn OFF all unused FOBs.
-The original FOB is the key which synced with SCU.
-The part no. of FOB must be same type with SCU, such as K01, K77, K96…
1.1.3 Add new key when all keys lost
Purpose.
-Register new key when all keys lost.
Preparation:
- SMTF00- SMART TOOL.
Notes:
-Turn OFF all unused FOBs.
-To turn on FOB again, we use add key by key function.
-After success, the other keys are turned OFF.
-Using the synced FOB with SCU to OFF.
1.1.2 Add key by key
Purpose:
-Add new key(FOB).
-ON FOB again.
Preparation:
-SMTF00- SMART TOOL.
-SMTF01- Cable of Honda PCX/SH125/150/MODE.
-SMTF08- KEY ADAPTER.
-SCU (smart key control unit), the original and new FOB.
The steps taken on the Smart Tool.

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
11
http://autoshopvn.com
-SMTF01- Cable for HONDA PCX/SH125/150/MODE
-SMTF08- KEY ADAPTER.
-SCU (smart key control unit), the new FOB.
The steps taken on the Smart Tool.
Step 1: Select “MANUAL PROGRAM” Step 2: Select “ALL KEYS LOST”
Step 3: Enter KEYID Step 4: Turn OFF FOB
Step 5: Turn on FOB Successfully!!!
Notes:
-Turn OFF the unused FOBs.
-KEYID which is registered inside SCU.
-Read KEYID and ECMID: Select “AUTO PROGRAM””READ KEYID”.
-Take 2-3 mins from step 4 to step 5.
1.1.4 Replace SCU (smart key control unit)
Purpose:
-To sync between ECM and SCU.
-Replace new SCU when old SCU is broken.
Preparation:
-SMTF00- SMART TOOL
-SMTF01- Cable for HONDA PCX/SH125/150/MODE
-SMTF08- KEY ADAPTER
-SCU and FOB synced each other, ECMID code.
The steps taken on the Smart Tool
Step 1: Select “MANUAL PROGRAM” Step2:Select“REPLACE NEW SCU”

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
12
http://autoshopvn.com
Step 3: Enter ECMID Step 4: Turn on FOB
Step 5: Turn OFF the FOB Step 6: Press key button of FOB 2 times
Step 7: Press key button of FOB 2 times Step 8: Press key button of FOB 2 times
Step 9: Press key button of FOB 1 times Step 10: Press key button of FOB 9 times
Step 11: Press key button of FOB 1 times Step 12: Press key button of FOB 2 times
Step 13: Press key button of FOB 6 times Step 14: Press key button of FOB 2 times

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
13
http://autoshopvn.com
Step 15: Press key button of FOB 5 times Step 16: Press key button of FOB 9 times
Successfully!!!
Notes:
-Turn OFF the unused FOBs.
-Use FOB which is synced with the new SCU.
-If you don’t have ECMID, Select “AUTO PROGRAM””READ KEYID” to get ECMID.
-After success, you can Select “READ KEYID” to check ECMID.
1.1.5 Replace ECM
Purpose:
-When ECM is damaged.
-The device only introduces ECM replacement.
Preparation:
-SMTF00- SMART TOOL.
-The new ECM.
The steps taken on the Smart Tool
-Step 1 : Remove old ECM
-Step 2 : Replace new ECM
-Step 3 : ON IG
-Step 4 : Success
1.2 AUTO PROGRAM.
1.2.1 Read KEYID - ECMID store in SCU and auto OFF/ON FOB
Purpose
Read KEYID and ECMID to add new key.
OFF or ON FOB without the original FOB.
Preparation
SMTF00- SMART TOOL.
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
SCU (smart key control unit), the new FOB.
The steps taken on the Smart Tool

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
14
http://autoshopvn.com

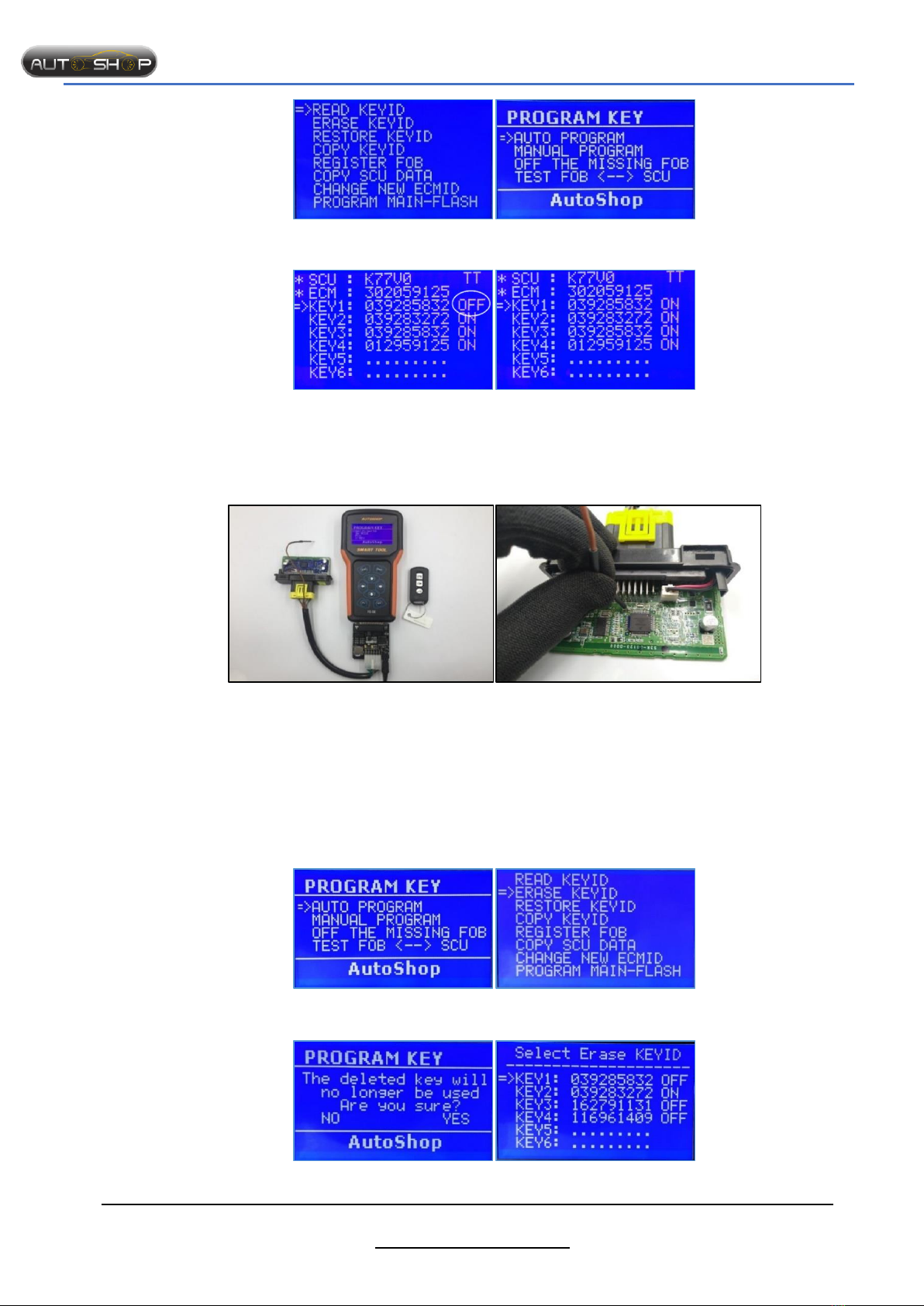

Step 1: Select “AUTO PROGRAM” Step 2: Select “READ KEYID”
Step 3: KEYID AND ECMID Step 4 (if need) : Use “</>” symbol to ON/OFF
Notes:
Check cable, connection points carefully.
To ON/OFF use the left button or the right button on SMART TOOL and press ENT.
1.2.2 Erase KEYID.
Purpose:
Add more new FOB When SCU data is full of KeyID
Erase KeyID of the FOB that has been dropped.
Preparation
SMTF00- SMART TOOL.
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
SCU (smart key control unit).
The steps taken on the Smart Tool.
Step 1: Select “AUTO PROGRAM” Step 2 : Select “ERASE KEYID”
Step 3: Press enter to erase Step 4: Select KEYID to erase

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
15
http://autoshopvn.com
Step 5: Press enter to erase Erased successfully
Notes:
Check cable, connection points carefully.
Select “RESTORE KEYID” to restore the erased KeyID if you did wrong step
1.2.3 Restore KeyID.
Purpose:
We can restore the erased KeyID.
Preparation
SMTF00- SMART TOOL.
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
SCU (smart key control unit).
The steps taken on the Smart Tool.
Step 1: Select “AUTO PROGRAM”Step 2 : Select “RESTORE KEYID”
Step 3: Select KEYID to restore Successfully!!!
Notes:
Check cable, connection points carefully.
Select the empty position to write.
1.2.4 Register-Reuse FOB.
Purpose:
Make 1 FOB work for 2,3,4… many bikes.
Reuse the registered FOB.
Preparation
SMTF00- SMART TOOL.

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
16
http://autoshopvn.com
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
SCU (smart key control unit), FOB.
The steps taken on the Smart Tool.
Step 1: Select “AUTO PROGRAM” Step 2: Select “REGISTER FOB”
Step 3: Select the empty position to register Step 4: Enter KEYID
Step 5: Enter reset FOB code Successfully!!!
Notes:
Check cable, connection points carefully.
Select the blank position to register a new KEYID. Shouldn’t select the position had code.
Use Mobile app “ALLMOTO” to get Reset Code
Download from CH PLAY, APPSTORE or website: www.autoshopvn.com
1.2.5 Copy KEYID.
Purpose:
Register 1 FOB for many bikes.
Replace new SCU and keep all of the used key
Preparation
SMTF00- SMART TOOL.
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
The original and new SCUs.
The steps taken on the Smart Tool:
Step 1: Select “AUTO PROGRAM”Step 2 : Select “COPY KEYID”

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
17
http://autoshopvn.com

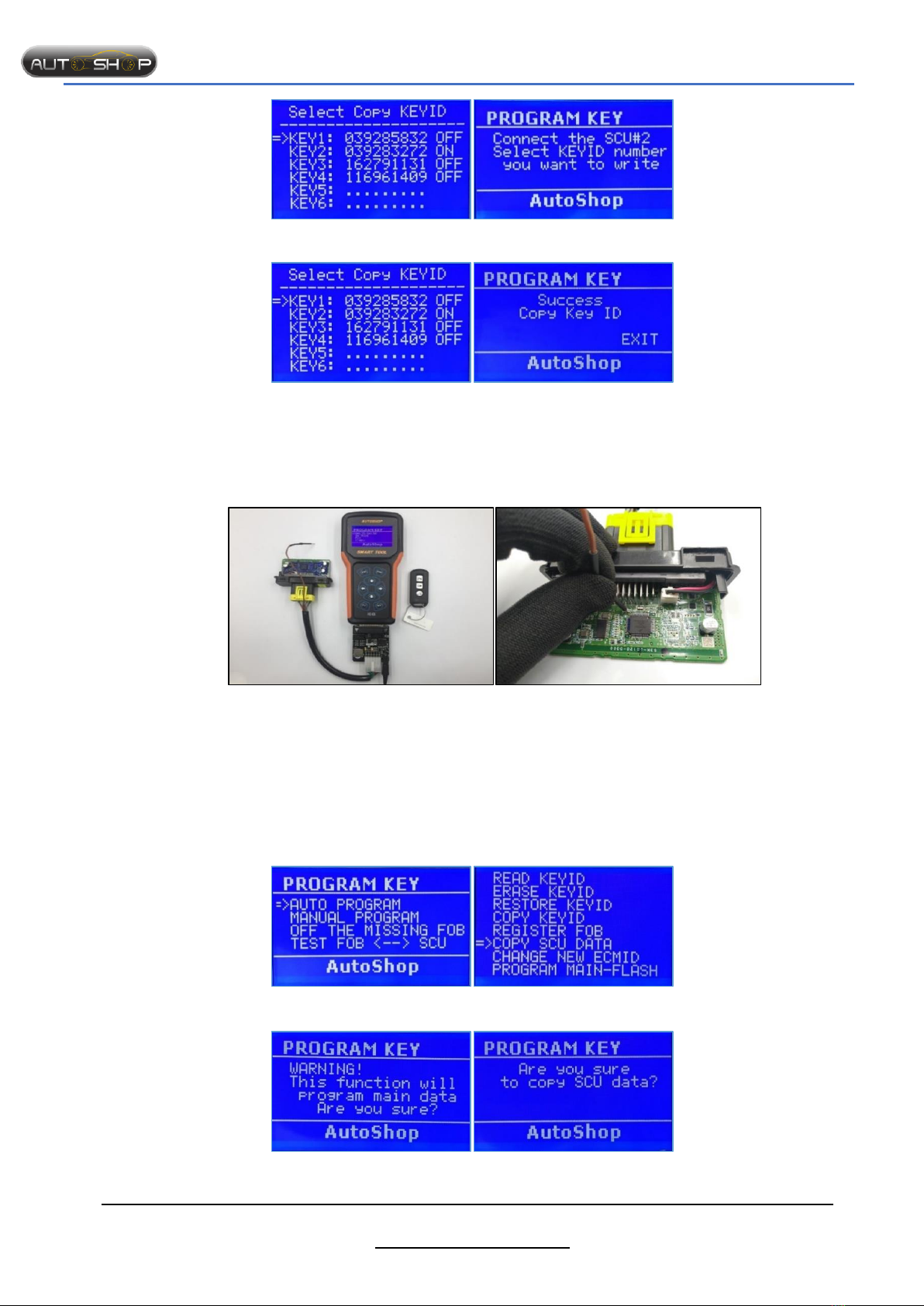

Step 3: Select KEYID to copy Step 4 : Connect the 2nd SCU
Step 5: Select the empty position to write Successfully!!!
Notes:
Check cable, connection points carefully.
Select the blank position to register a new KEYID. Shouldn’t select the position had code.
1.2.6 Copy SCU (smart key control unit).
Purpose:
Replace SCU by copy SCU function without synchronization ECM
Keep FOB of the old SCU.
Preparation
SMTF00- SMART TOOL.
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
SCU (smart key control unit), the new FOB.
The steps taken on the Smart Tool.
Step 1: Select “AUTO PROGRAM”Step 2 : Select “COPY SCU DATA”
Step 3: Press Enter Step 4: Press Enter

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
18
http://autoshopvn.com

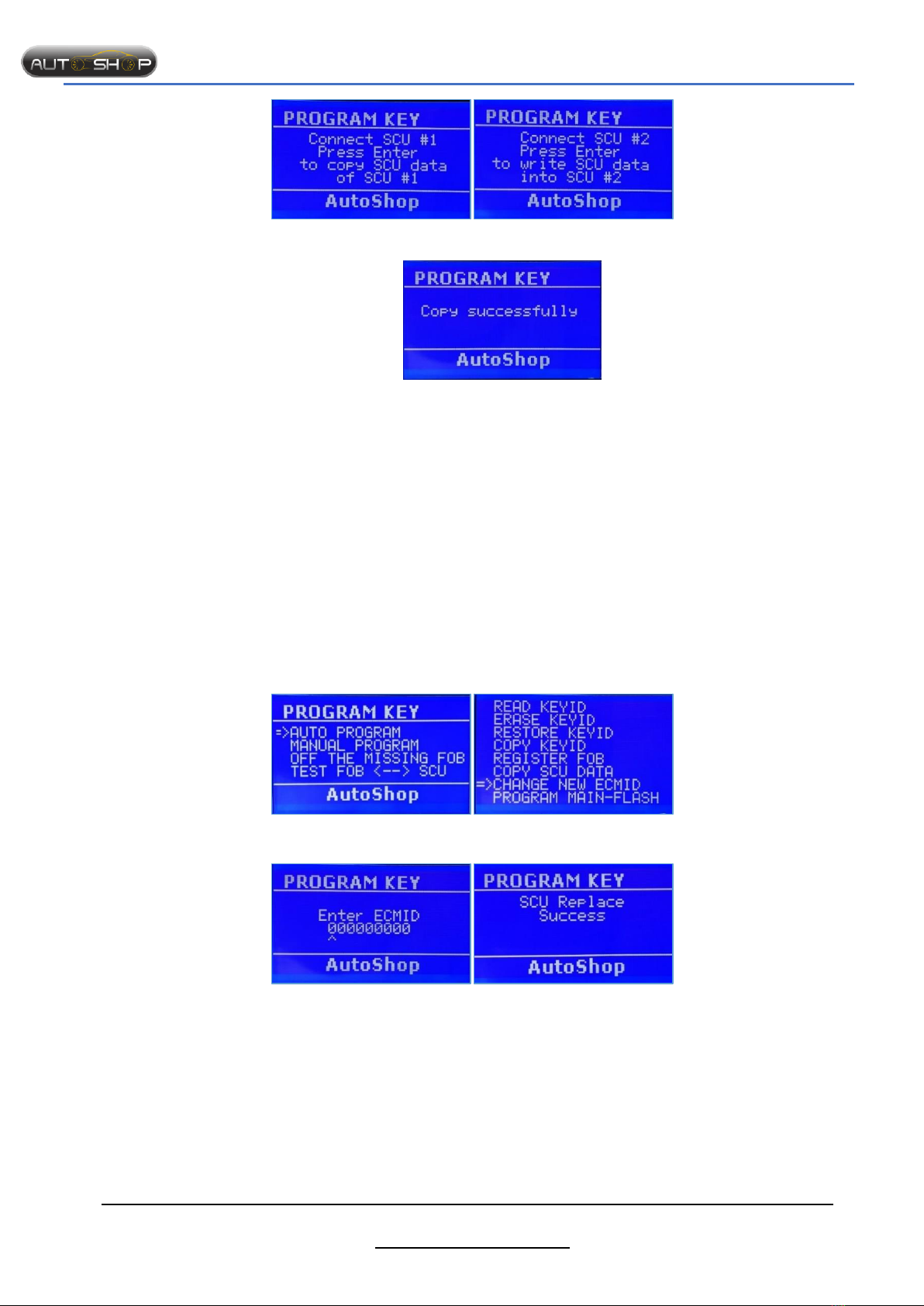

Step 5: Connect the 1st SCU to copy data Step 6: Connect the 2nd SCU to write data
Successfully!!!
Notes:
Check cable, connection points carefully.
This feature changes all data of new SCU, consider carefully before selecting this function.
1.2.7 Edit ECMID.
Purpose:
Edit ECMID
Sync ECM & SCU without bikes
Advantages: easy to manipulate, high accuracy, save time.
Preparation
SMTF00- SMART TOOL.
SMTF01- Cable for HONDA PCX/SH125/150/MODE
SMTF08- KEY ADAPTER.
SCU (smart key control unit).
The steps taken on the Smart Tool.
Step 1: Select “AUTO PROGRAM”Step 2 : Select “CHANGE NEW ECMID”
Step 3: Enter ECMID Successfully!!!
Notes:
Check cable, connection points carefully.
This function changes data of SCU.
To know ECMID, select “READ KEYID”.
1.2.8 Test SCU  FOB
Purpose:
- Check the FOB & SCU match together or not
- After adding new key, you can check the synchronization between SCU and FOB.

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
19
http://autoshopvn.com
Preparation:
-SMTF00- SMART TOOL.
-SMTF01- Cable for HONDA PCX/SH125/150/MODE
-SMTF08- KEY ADAPTER.
-SCU (smart key control unit), the new FOB.
The steps taken on the Smart Tool:
Step 1: Select “TEST FOB SCU” Step 2: Turn on the FOB
Successfully!!!
2. HONDA AIRBLADE, LEAD, VISION, VARIO, CLICK
2.1 Read KeyID
Purpose:
- When all keys lost
- Read KeyID to register new FOB.
Preparation:
-SMTF00- SMART TOOL.
-SMTF02- Cable for HONDA AIRBLADE/ VARIO/ CLICK
-SMTF08- KEY ADAPTER.
-SCU (smart key control unit).
Special notes:
- Check cable, solder, make sure the machine is firmly fixed.
- When reading KeyID, don’t touch and move the smart box
- Wait to complete 100% reading KeyID and display KeyID.
- During reading, if the connection was disconnected or loose the solder, the device will
automatically calculate the KeyID at the moment. Then to repair SCU, use the function "REFLASH
SCU” and " REPLACE SCU "to synchronize the data for SCU.
- If unsuccessful reading (not enough 100%, unread ID), pls continue reading 2, 3 times until finish
100% and get KeyID on the screen.

SMARTTOOL –BEST PROGRAMMER SMART KEY HONDA, YAMAHA, SUZUKI AND PIAGGIO
20
http://autoshopvn.com
- Should read by menu "QUICK READ KEYID". If unsuccessful reading, try "FULL READ KEYID".
The steps taken on the Smart Tool
Way 1: Select “QUICK READ KEYID” (Priority)
Step 1: Select “PROGRAM KEY”Step 2: Select “HONDA”
Step 3: Select bike Step 4: Select “QUICK READ KEYID”
Step 5: Press enter to read KeyID
Way 2: Select “FULL READ KEYID” (when the 1st way can’t be showed KeyID)
Step 1: Select “PROGRAM KEY” Step 2: Select “HONDA”
Step 3: Select bike Step 4: Select “FULL READ KEYID”
Step 5: Press enter to read KeyID
