Autel MaxiBAS BT609 User manual

1
Trademarks
Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiCheck®, and MaxiRecorder®
are trademarks of Autel Intelligent Technology Corp., Ltd., registered in
China, the United States and other countries. All other marks are
trademarks or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise without the prior written permission
of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on
the latest information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no
guarantee is given for the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or
any economic consequential damages (including the loss of profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully,
paying extra attention to the safety warnings and precautions.
For Services and Support
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
[email protected]
For technical assistance in all other markets, please contact your local
selling agent.

2
Safety Information
For your own safety and the safety of others, and to prevent damage to the
device and vehicles upon which it is used, it is important that the safety
instructions presented throughout this manual be read and understood by
all persons operating or coming into contact with the device.
There are various procedures, techniques, tools, and parts for servicing
vehicles, as well as in the skill of the person doing the work. Because of the
vast number of test applications and variations in the products that can be
tested with this equipment, we cannot possibly anticipate or provide advice
or safety messages to cover every circumstance. It is the automotive
technician’s responsibility to be knowledgeable of the system being tested.
It is crucial to use proper service methods and test procedures. It is
essential to perform tests in an appropriate and acceptable manner that
does not endanger your safety, the safety of others in the work area, the
device being used, or the vehicle being tested.
Before using the device, always refer to and follow the safety messages
and applicable test procedures provided by the manufacturer of the vehicle
or equipment being tested. Use the device only as described in this manual.
Read, understand, and follow all safety messages and instructions in this
manual.
Safety Messages
Safety messages are provided to help prevent personal injury and
equipment damage. All safety messages are introduced by a signal word
indicating the hazard level.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury to the operator or to bystanders.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury to the operator or to bystanders.

3
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot
know, evaluate or advise you as to all of the possible hazards. You must be
certain that any condition or service procedure encountered does not
jeopardize your personal safety.
DANGER
When an engine is operating, keep the service area WELL VENTILATED or
attach a building exhaust removal system to the engine exhaust system.
Engines produce carbon monoxide, an odorless, poisonous gas that causes
slower reaction time and can lead to serious personal injury or loss of life.
SAFETY WARNINGS
Wear safety glasses and protective clothing.
NEVER smoke or allow a spark or flame in vicinity of battery or engine.
Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing or eyes.
If battery acid contacts skin or clothing, wash immediately with soap
and water. If acid enters eye, immediately flush eye with cold running
water for at least ten minutes and get medical attention immediately.
Use caution when working with metallic tools to prevent sparks or short
circuits.
Remove any jewelry or watches before you start servicing the battery.
Keep hair, hands, and clothing as well as tester leads and cords away
from moving blades and belts.

4
MaxiBAS BT609
Wireless Battery & Diagnostics System
The MaxiBAS BT609 wireless battery and diagnostics system applies Adaptive
Conductance, a proprietary Autel technology that identifies low-capacity
batteries. It can display a quick health status of the existing battery, register a
new battery and perform advanced battery and electrical system diagnostics.
The BT609’s features include Auto-VIN to immediately identify vehicle and
battery information and to display graphic instructions for battery positioning
and testing. This tool can also perform various service and maintenance tasks.
There are three main components to the MaxiBAS BT609:
MaxiBAS BT609 Tablet –the central processor and monitor for the system;
MaxiBAS B200 Tester – the battery tester with the clamp cable;
MaxiVCI V200 - Vehicle Communication Interface.
1. MaxiBAS BT609 Tablet
MaxiBAS Tablet Front View
1. 7.0-inch Touchscreen
2. Built-in Microphone
3. Power LED
4. Ambient Light Sensor

5
MaxiBAS Tablet Back View
5. Loudspeaker
6. Camera
7. Camera Flash
MaxiBAS Tablet Top View
8. USB OTG/Charging Port
9. USB Host Port
10. Micro SD Card Slot
11. Power/Lock Button
Technical Specifications
Item Description
Operating System Android 9.0
Memory 2GB RAM & 64GB On-board Memory
Display 7.0 inch TFT-LCD with 1280 x 800 resolution & capacitive
touchscreen

6
Item Description
Connectivity Wi-Fi (IEEE 802.11 a/b/g/n/ac 1x1)
BT 5.0+EDR+BLE
USB 2.0 (1 USB HOST + 1 USB OTG)
Micro SD Card (Support up to 128GB)
Camera 8 Megapixel
Sensor Ambient Light Sensor (ALS)
Audio
Input/Output
Microphone
Loudspeaker
Power and Battery 5800mAh 3.85V lithium-polymer battery
Charging via 5V AC/DC power supply with the
temperature between 0°C and 45°C
Input Voltage 5V/2A Adapter
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -10 to 60°C (14 to 140°F)
Dimensions (WxHxD) 197 mm (7.75") x 135 mm (5.31") x 14 mm (0.55")
Weight 445g (0.98 lb.)

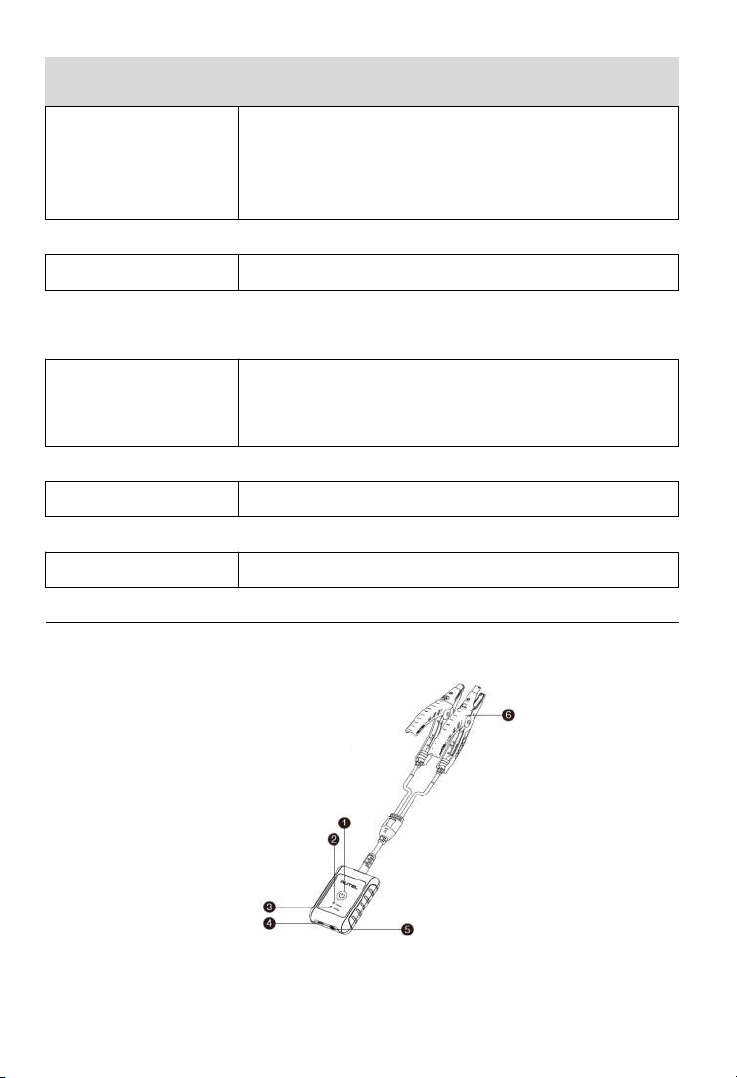

2. MaxiBAS B200 Tester

7
1. Power Button
2. Status LED
3. Power LED
4. USB Port
5. Multimeter Cable Port
6. Battery Clamp Cable
Technical Specifications
Item Description
Connectivity USB 2.0, Type C
Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage 5V DC
Working Current < 150 mA at 12V DC
CCA Range 100 to 3000A
Voltage Range 1.5V to 36V
Working Temperature -10°C to 50°C (14 to 122°F)
Storage Temperature -20°C to 60°C (-4 to 140°F)
Dimension (L x W x
H)
107 mm x 75 mm x 26 mm (clamp cable not included)
Weight 320 g (0.7 lb.)

8
3. MaxiVCI V200
1. Lighting Push Button
2. Power LED
3. Vehicle/Connection LED
4. Vehicle Data Connector (16-pin)
5. USB Port
Other Accessories
Battery Side Post Terminal Type S x2
Connects the battery posts and the clamps
Battery Side Post Terminal Type T x2
Connects the battery posts and the clamps
Power Adapter
Together with the USB cable, connects the unit to an external
DC power port for power supply.
USB Cable
Together with the power adapter, connects the unit to an
external DC power port for power supply.

9
Getting Started
Ensure the BT609 is sufficiently charged or is connected to the external power
supply.
Inspect the Battery
Before starting a test, observe the battery for:
Cracking, buckling, or leaking. If you see any of these defects, replace the
battery.
Corroded, loose, or damaged cables and connections. Repair or replace
as needed.
Corrosion on the battery terminals, and dirt or acid on the case top. Clean
the case and terminals using a wire brush and a mixture of water and
baking soda.
IMPORTANT
Please ensure that the BT609 and the MaxiVCI V200 are powered ON when
binding the devices and during battery registration.

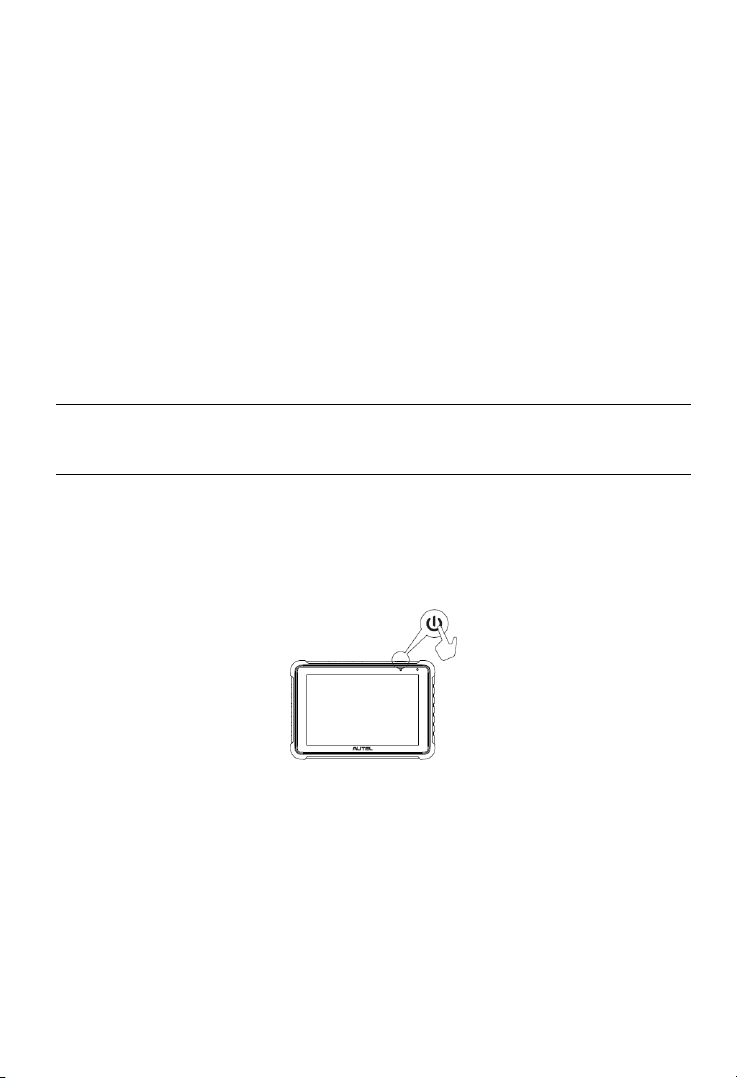

Power Up
Long press the Lock/Power button to turn on the BT609. The first time you use
the device, a message will pop up asking you to register the device. Follow on-
screen instructions to create an Autel ID and complete the registration.
Software & Firmware Update
Software Update: connect the BT609 to the Internet and tap Update in
the Main Menu to check all the available updates.
Firmware Update: connect the BT609 to the Internet and tap Settings in
the Main Menu, select VCI Manager and tap Firmware Upgrade. Follow

10
on-screen instructions to check the firmware version and update the VCI
to the latest version.
Establish Vehicle Communication
Connect the VCI to the vehicle’s DLC (OBD II port), which is generally located
under the vehicle dash. Follow on-screen instructions to connect the VCI to the
app on your device via Bluetooth pairing.
Connect to a Battery
1.
Follow on-screen instructions to connect the B200 to the BT609 via
Bluetooth pairing.
2.
Connect the red clamp to the positive (+) terminal and the black clamp to
the negative (-) terminal.

11
Service Procedures
This section introduces information for technical support, repair service, and
application for replacement or optional parts.
Technical Support
If you have any question or problem on the operation of the product, please
contact us (see the following contact info) or your local distributor.
AUTEL CHINA HQ
Phone: [phone]
Website: www.autel.com
Email: [email protected]
Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili,
Nanshan, Shenzhen, 518055, China
AUTEL NORTH AMERICA
Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST
Website: www.autel.com
Email: [email protected]
Address: Suite 200, 175 Central Avenue, Farmingdale, New York,
USA. 11735
AUTEL EUROPE
Phone: 0049 (0) 61032000522
Website: www.autel.eu
Email: [email protected]/[email protected]
Address: Robert-Bosch-Strasse 25, 63225, Langen, Germany
AUTEL SOUTH AMERICA
Phone: [phone]
Website: www.autel.com/es
Email: [email protected]/[email protected]
Address: Office 103, Building 3845, International
Business Park,

12
Veracruz, Panamá Pacífico, Panamá
AUTEL AUSTRALIA
Phone: [phone]
Website: www.autel.com.au
Email: [email protected]
Address: 155 Islington Street, Melbourne, Collingwood, VIC
Repair Service
If it becomes necessary to return your device for repair, please contact us
first and then download the repair service form from www.autel.com, and fill
it in. The following information must be included:
Contact name
Return address
Telephone number
Product name
Complete description of the problem
Proof-of-purchase for warranty repairs
Preferred method of payment for non-warranty repairs
NOTE
For non-warranty repairs, payment can be made with Visa, Master Card, or
with approved credit terms.
Send the device to your local agent, or to the below address:
8th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen,
518055, China
Other Services
You can purchase the optional accessories directly from Autel’s authorized
tool suppliers, and/or your local distributor or agent.
Your purchase order should include the following information:
Contact information
Product or part name
Item description
Purchase quantity

13
Compliance Information
FCC Compliance FCC ID: WQ8MAXIBASBT609
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules and Industry Canada’s
license-exempt RSSs. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Cet appareil est conforme aux CNR exempts de licence d’Industrie Canada.
Son fonctionnement est soumis aux deux conditions suivantes:
1. Ce dispositif ne peut causer des interferences; et
2. Ce dispositif doit accepter toute interférence, y compris les interférences
qui peuvent causer un mauvais fonctionnement de l’appareil.

14
WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
SAR
The radiated output power of this device is below the FCC radio frequency
exposure limits. Nevertheless, the device should be used in such a manner that
the potential for human contact is minimized during normal operation.
The exposure standard for wireless devices employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC
is 1.6 W/Kg. Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest certified power
level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual
SAR level of the device while operating can be well below the maximum value.
This is because the device is designed to operate at multiple power levels so as
to use only the power required to reach the network. To avoid the possibility of
exceeding the FCC radio frequency exposure limits, human proximity to
antenna should be minimized.
The highest SAR value reported under this standard during product certification
for use when properly worn on the body is 1.421 W/kg.

15
RoHS COMPLIANCE
This device is declared to be in compliance with the European RoHS Directive
2015/863/EU.
CE COMPLIANCE
This product can be used across EU member states.
We declares that this device is in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU.
