Perenio PEHWE20 User manual

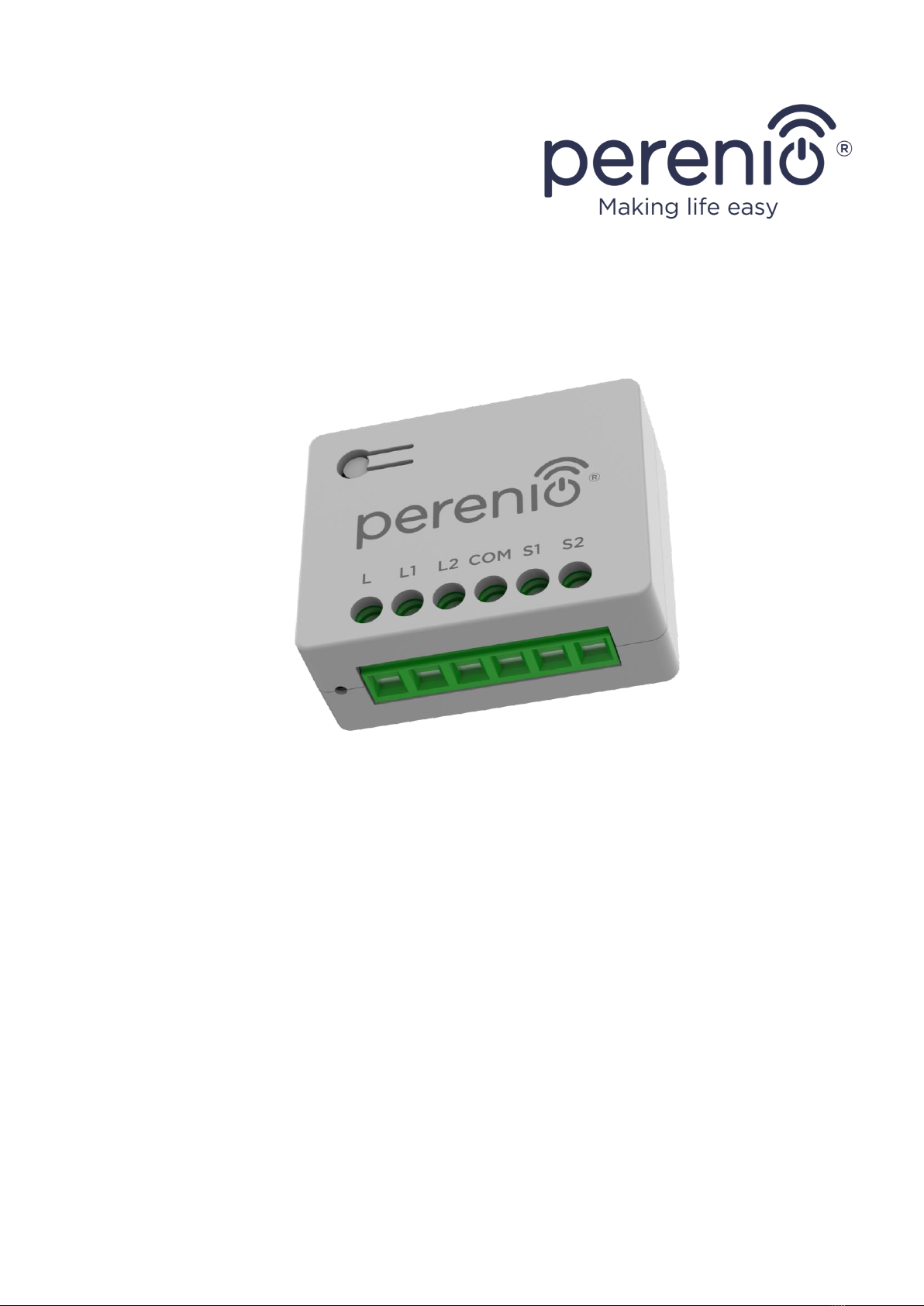

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
May, 2023

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 3 of 50
Introduction
The Perenio® PEHWE20 two-channel Mini Relay (hereinafter referred to as the Mini
Relay, Relay, Device) is designed for remote control of lighting fixtures in a room. The
device is connected to the Perenio Smart Home & Office app (hereinafter referred
to as the Perenio Smart) to monitor and control the energy consumption of light
sources. The Mini Relay is designed to operate inside a sub-socket, under a switch, or
in another location suitable for power control.
This User Manual contains a detailed description of the device as well as instructions
for its installation and operation.
NOTE. The Mini Relay can only operate in conjunction with a Perenio® Control
Gateway / IoT Router. Operation with other automation systems is not
guaranteed by the manufacturer.
Copyright
Copyright ©PerenioIoT spol s r.o. All rights reserved.
The Perenio® trademark belongs to Perenio IoT spol s r.o. (hereinafter referred to
as the Perenio IoT, the Company). All other similar trademarks and their names as
well as logos and other symbols are the property of their respective owners *.
The materials presented under the Perenio® trademark and contained in this User
Manual are protected under international and local laws, including copyright and
related rights laws.
Any reproduction, copying, publication, further distribution or public display of
materials presented herein (in whole or in part) is only permitted after appropriate
written permission from the copyright holder.
Any unauthorized use of this manual materials may subject the user to civil liability
and criminal prosecution under applicable law.
Any references to names of other companies, brands and equipment in this document
are for the purpose of explanation and description of the device and do not infringe
any intellectual property rights.
* iOS is a registered trademark of CISCO TECHNOLOGY, INC. Android is a registered trademark of Google
Inc. Google Play and Google Home are trademarks of Google Inc. App Store is a registered trademark
of Apple Inc. Amazon Alexa is a registered trademark of Amazon Technologies, Inc.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 4 of 50
Responsibility and Technical Support
This document has been prepared in accordance with all necessary legal requirements
and contains detailed, complete and comprehensible information on the operation and
maintenance of the device. The information is current as of the date indicated in the
document. Strict adherence to the instructions contained in this document is a basic
requirement for the correct, reliable and safe operation of the device.
Perenio IoT reserves the right to modify the device and to make additions and changes
to this document without prior notice and shall not be liable for possible negative
consequences resulting from the use of an outdated version of the document or for
any possible technical or typographical errors or omissions and incidental or
consequential damages that may arise from the transmission of this document or the
use of devices.
Perenio IoT makes no warranties with respect to the material herein, including but not
limited to the merchantability and suitability of the device for any particular
application.
In the event of discrepancies in the language versions of the document, the Russian-
language version of this manual shall take precedence.
If you have any technical questions, please contact your local Perenio IoT
representative or the technical support department at perenio.com.
The most common problems encountered are described in Section 7 of this document
and on the perenio.com where you can also download the latest version of this
manual.
Information about the manufacturer:
Perenio IoT spol s r.o/,
Na Dlouhém, 79, 251 01 Říčany-Jažlovice, Česko (Czech Republic).
perenio.com

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 5 of 50
Conformity to Standards
The device is CE certified and meets the requirements of the
following European Union directives:
•Radio Equipment Directive 2014/53/EU.
The device meets the requirements of the RoHS Directive
2011/65/EU on the restriction of hazardous substances.
The device has passed all assessment procedures established in the
technical regulations of the Customs Union and complies with the
norms of the Customs Union countries.
National Mark of Conformity of Ukraine, indicating that the device
meets all required technical regulations.
The symbol in the form of a crossed-out waste bin is used to mark
electrical and electronic equipment and indicates its separate
collection.
The symbol is given in accordance with the Waste Electrical and
Electronic Equipment (WEEE) Directive 2012/19/EU and indicates
that this equipment requires separate collection at the end of its
life and must be disposed of separately from unsorted municipal
waste.
To protect the environment and human health, dispose of used
electrical and electronic equipment according to approved safe
disposal guidelines.
Information about the
certificates received is given
in Section 6 of this document.
Copies of certificates and
reports can be found in the
appropriate section of the
website at perenio.com.
AT
BA
BE
BG
CH
CZ
CY
DE
DK
EE
ES
FI
FR
GR
HR
HU
IE
IT
KZ
LT
LV
LU
MT
NL
NO
PL
PT
RO
RS
SE
SK
SL
UK

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 6 of 50
Limitations and Warnings
Please read the information in this Section carefully before you start installing and
operating the device. Failure to follow the recommendations may result in malfunction
or danger to your life. Perenio IoT is not responsible for any loss or damage resulting
from improper installation and/or use of this device.
WARNING! The warnings, precautions and instructions in this document cannot
cover all possible hazards. Use common sense when operating the device.
Warning symbols and icons
There may be a risk of electric shock, so use caution.
The device is intended for indoor use only.
Packaging material is graphic cardboard.
Product packaging shall be disposed of in a garbage can.
IP20
The degree of protection of the device enclosure that provides
protection against the ingress of solid objects larger than 12.5 mm.
There is no protection against moisture entering the device.
Zigbee
The device supports the communication standard for connecting to the
Zigbee network.
Safe operation conditions
1. Please observe the transportation, storage and operating conditions of the
device as stated by the manufacturer.
2. The device should only be installed on a de-energized section of the power grid.
3. Installation must only be performed by a qualified electrician.
4. Do not connect the device to equipment that exceeds the specified maximum
load.
5. The device may be connected only as specified in the User Manual. Any other
method of connection may result in damage and/or injury.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 7 of 50
6. The device may be used only with a power supply that complies with all
applicable regulations. A short-circuit in the mains supply or any appliance
connected to the unit can damage it.
7. This device may be connected to and operated by electrical circuits and devices
only if they comply with the relevant standards and safety regulations.
8. Do not use the device in cases where malfunction may result in fire, injury, or
death (e.g., life support and security systems).
9. Do not drop, throw, disassemble, or attempt to repair the device on your own.
10. Do not expose the device to liquids (do not immerse in liquid, do not splash).
11. To avoid personal injury, do not use the device if there are any signs of external
damage, including cracks, dents, or holes.
12. This device is not intended for use by persons under 18 years old or by persons
with reduced physical, sensory or mental capabilities, unless they have the
necessary experience or knowledge to operate it properly, or unless they are
under the supervision of a person responsible for their safety.
13. Do not allow children to use the device without adult supervision and/or play
with it.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 8 of 50
Table of Contents
Introduction .................................................................................................. 3
Copyright ...................................................................................................... 3
Responsibility and Technical Support.................................................................4
Conformity to Standards.................................................................................. 5
Limitations and Warnings ................................................................................6
1 General Description and Specifications.......................................................... 10
1.1 General Purpose ..................................................................................... 10
1.2 Technical Specification............................................................................. 13
1.3 Package Contents ................................................................................... 14
1.4 Packaging and labeling ............................................................................ 15
2 Installation and Setup ................................................................................ 16
2.1 Installation of the Mini Relay..................................................................... 16
2.2 Activation in the Perenio Smart Mobile App................................................. 19
2.3 Additional Mini Relay Settings ................................................................... 23
2.4 Mini Relay Control Panel........................................................................... 25
2.4.1 Setting the Countdown Timer ........................................................... 25
2.4.2 Setting the Scheduled Timer............................................................. 26
2.4.3 Creating Scenarios with the Device.................................................... 30
2.4.4 History of Events ............................................................................ 38
2.5 Moving the Mini Relay to another Room or Location................................... 38
2.6 History and push notifications ................................................................ 39
3 Maintenance and repair .............................................................................. 41
4 Warranty Obligations.................................................................................. 42
5 Storage, transportation and disposal ............................................................ 45
6 Other Information...................................................................................... 46
7 Troubleshooting......................................................................................... 47
8 Glossary................................................................................................... 48

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 9 of 50
Figures and Tables
Figure 1 –Appearance ...................................................................................11
Figure 2 –Package Contents...........................................................................14
Figure 3 –Example installation of the Mini Relay ...............................................16
Figure 4 –Wiring diagrams.............................................................................18
Figure 5 –Process of adding a new device (Mini Relay) ......................................22
Table 1 –LED Indicator Statuses.....................................................................12
Table 2 –Connection Button Functions.............................................................12
Table 3 –Basic Technical Specifications............................................................13
Table 4 –Typical Errors and Troubleshooting Methods........................................47
Timers and Scenarios
I Creating a new scheduled timer to turn on the Mini Relay .................................26
II Setting the scheduled timer to turn off the Mini Relay .....................................28
III Deleting the scheduled timer......................................................................29
IV Creating a manually launched scenario.........................................................30
V Creating an automatically launched scenario ..................................................32
VI Creating a scenario from a template ............................................................36
VII Test run of the scenario ............................................................................36
VIII Adding a scenario to Favorites ..................................................................37
IX Deleting a scenario....................................................................................37

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 10 of 50
1 General Description and Specifications
1.1 General Purpose
The Mini Relay is designed to control lighting fixtures with LED or incandescent lamps.
The device is designed so that it can be installed in a box under a switch or in another
place suitable for monitoring the electrical load.
The Mini Relay is mounted on a single conductor (neutral or phase) which allows it to
be placed in any accessible area of the wiring (under a switch, at the base of a
chandelier, etc.).
The Mini Relay supports the operation of two types of switches:
•Conventional (with a fixed position);
•Pulse (bell).
Two control modes are available for each switch type via the Perenio Smart app.
To operate the Mini Relay, the following is required:
•Smartphone with Internet access and the Perenio Smart app installed;
•Perenio® Control Gateway or IoT Router connected via the Perenio Smart
app account.
See details in par. 2.3 below.
The two-channel Mini Relay device has a number of distinctive features, namely:
•Remote control, monitoring and power setting of lighting devices;
•Built-in Zigbee antenna (supports Zigbee 3.0, incl. Zigbee 1.2);
•Ability to operate as a data repeater;
•Mechanical switch of two channels for a “dry contact”;
•Manual and remote connection via the Perenio® Control Gateway / IoT Router;
•Manual reset to factory settings;
•Single LED to indicate the connection and reset statuses (“Connected”,
“Connection process”, “Reset”);
•Thermal protection;
•Switching to connection mode with one button;
•Data on the radio signal and/or the connection quality;
•Support for pulse (bell) switches.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 11 of 50
Figure 1 –Appearance
Buttons, Ports and Indicators
❶
Connection button
Activation of the process of connecting
the Mini Relay via the Perenio Smart
app, and/or reset the settings
❷
LED indicator
Display of the Mini Relay operation
status (connection process, status,
reset process)
❸
Connectors:
•L–Connector for incoming phase
•L1 –Connector for Channel 1 load
•L2 –Connector for Channel 2 load
•COM –Common line of switches
•S1 –Connector for Switch 1
•S2 –Connector for Switch 2
Built-in screw terminal blocks for
securing power wires with a 3 mm flat-
blade screwdriver (not included in the
package). The cross-section of the
connected conductor is up to 2.5 mm2
❹
Output for external antenna
Not used for this model
❺
Bypass
Passive device for connecting devices in
parallel to the main load. It is required
for normal operation of the Relay with
some types of loads, e.g. when using
LED lamps of low power
❺
❶
❷
❹
❸

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 12 of 50
Table 1 –LED Indicator Statuses
Indicator
Status
Description
Blue
On
The device is in active mode and connected to
the Zigbee network
Blinking *
The device is in activation mode in the mobile
app
Fast Blinking **
Device was reset to factory settings
Off
The device is inactive
* The device indicator is on for 3 s and then off for 0.3 s.
** The device indicator is on for 0.3 s and then off for 0.3 s.
Table 2 –Connection Button Functions
Description
Action
Press and hold for 3 to 9 seconds
Launching activation mode in the mobile app
Press and hold for 10 seconds
Starting the factory reset process
WARNING! All Perenio IoT products and the mobile application (including any
further proprietary or third-party software and hardware) are not intended for a
rapid response to emergency situations and may not be used as a means of
firefighting and/or emergency response, including but not limited to fires, floods,
gas leaks or explosions, break-ins and theft, and natural disasters and other force
majeure events resulting in damage and/or loss incurred by or at the user

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 13 of 50
1.2 Technical Specification
Table 3 –Basic Technical Specifications
Parameter
Value
Device Features
Model
PEHWE20
Number of channels
2
LED Indicator
1
Microcontroller
EFR32MG22
Communication protocol
Zigbee 3.0 (IEEE802.15.4)
Frequency range
2,400-2,485 MHz
Coverage area
Up to 30 m indoors
Up to 100 m in open area
Power
Entry: 100-240 V (AC)
50/60 Hz
Power consumption: 0.5 W max
Maximum voltage
250 В
Maximum load current
1.0 A max
2 × 0,5 A
Maximum power
250 VA, 2 × 125 VA
Antenna
Antenna operating frequency
2.4 GHz
Transmitter power
＜6 dBm
Receiver sensitivity
-102 dBm
Antenna gain
-2 dBi
Operating Conditions
Permissible cross-section of the wire
to be connected
2.5 mm2
Temperature
0...+50 °C
Humidity
5-75 % (no condensation)
Storage Conditions
Temperature
-20...+60 °C
Humidity
5-95 % (no condensation)

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 14 of 50
Parameter
Value
Additional Information
Protection level
IP20
Case material
Plastic pC UL-94, V-0
Colour
Gray
Size (L x WxH)
43×37×17 mm
Net weight
23 г
Support for voice assistants
Google Home, Amazon Alexa
Warranty period
2 years
Service life
2 years
Certificates
CE, EAC, RoHS
1.3 Package Contents
The Perenio® Mini Relay includes the following:
1. PEHWE20 Mini Relay (1 pc.)
2. Bypass (1 pc.)
3. Quick Start Guide (1 pc.)
4. Warranty Card (1 pc.)
1
2
3
4
Figure 2 –Package Contents *
* The images of accessories are for reference purposes only.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 15 of 50
1.4 Packaging and labeling
The Perenio® PEHWE20 Mini Relay is supplied in an individual cardboard package
measuring 95×50×30 mm (L×W×H), containing the full name and marking, list of
supplied devices and accessories, main technical specifications, as well as date of
manufacture and manufacturer's information.
Weight of the device in the packaging:
•net weight: 23 g;
•gross weight: 66 g.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 16 of 50
2 Installation and Setup
2.1 Installation of the Mini Relay
Figure 3 –Example installation of the Mini Relay
WARNING! To avoid electric shock, the Mini Relay must only be installed by a
qualified electrician only, with the mains voltage disconnected. The bypass is
intended for use only in conjunction with the Mini Relay.
1. Make sure that the Perenio® Control Gateway or IoT Router is pre-installed,
connected to the Internet and activated in the Perenio Smart mobile app.
2. Unpack the Mini Relay.
3. Disconnect the power at the connection point.
4. Make the connection according to one of the 6 diagrams shown in the figure
below.
5. Secure the wires in the connectors using a 3 mm flathead screwdriver (not
supplied in the package).
6. Apply voltage to the connection point –the LED will start flashing blue.
7. Activate the device in the mobile app.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 17 of 50
1
Connecting the device to a single pushbutton switch:
2
Connecting the device to a single bell switch:
3
Connection of the device to two pushbutton switches (bypass installed on the
first line):

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 18 of 50
4
Connection of the device to two bell switches (bypass installed on the first line):
5
Connection of the device to two pushbutton switches (bypass installed on the
second line):
6
Connection of the device to two bell switches (bypass installed on the second
line):
Figure 4 –Wiring diagrams

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
©Perenio IoT spol s r.o. All rights reserved Document version: 1.0.3
Page 19 of 50
The bypass can be connected to either line, and the load can be applied on either or
both channels.
It is not mandatory to connect the bypass to the mains if it is an incandescent lamp,
but it is necessary to connect it to the mains to control LED lights, because otherwise
malfunction of the Mini Relay may occur. The element itself, if possible, is
recommended to be placed inside the lamp so that it will not be visible and will not
spoil the view of the interior.
2.2 Activation in the Perenio Smart Mobile App
To connect the Mini Relay via the Perenio Smart app, please follow the below steps:
1. Unpack the device and install it according to par. 2.1 above.
2. Sign in to your Perenio Smart app account (See par. Abelow).
3. Activate the device in the app (see par. B below).
4. Enter the desired Relay name and select the room of installation.
A. LOGIN TO THE EXISTING USER ACCOUNT
a. Connect your smartphone to Wi-Fi network;
b. Enter your e-mail address and password in the login
screen;
c. Click on the LOG IN button.
NOTE. If the password was lost, the User can restore it by
clicking on a corresponding link on the screen.
To restore a forgotten password, use the e-mail address
linked to your User Account, to which instructions on
changing the password will be sent.

Perenio® PEHWE20 Two-Channel Mini Relay
Installation and Operation Manual
Document version: 1.0.3 ©Perenio IoT spol s r.o. All rights reserved
Page 20 of 50
B. CONNECTION TO THE CONTROL GATEWAY/IOT ROUTER
a. Make sure the Control Gateway/IoT Router is activated
and “Online” in the mobile app;
b. Click on the “+” icon in the upper right corner of the
Devices tab, select “Add new device” and then the Mini
Relay device in the list;
c. Select the Control Gateway/IoT Router to which the Mini
Relay shall be connected (This screen will be displayed,
only if there are several Control Gateways/IoT Routers
activated in the User Account);
NOTE. The Control Gateway/IoT Router must be
connected to the mains and the Internet, as well as
activated in the Perenio Smart App.
d. Set the device to the activation mode in the application
in one of the following ways:
i. press and hold the connection button on the device
until the LED starts flashing (the process of holding
the button takes 3 to 10 seconds);
ii. press the switch connected to
the Mini Relay 10 times within
10 seconds, i.e. turn the
switch on and off 5 times, then
turn it to “On” position.
NOTE. If the Relay is connected to a non-latching switch,
you have to press the last one 5 times in 10 seconds.
