1 General Description and Specifications
1.1 General Purpose
The Perenio® PECSS01 Photoelectric Sensor is a Zigbee-based device intended to
detect visible smoke particles (flameless stage). It is used as part of the Perenio
Smart Building Management System and provides for timely alert in the event of
smoke in the room.
The principle of operation is based on the Sensor triggering in the case of IR light
scattering when visible smoke particles enter the detector area, which increases the
accuracy of ignition source detection.
NOTE. The Smoke Sensor is NOT intended to detect gas, flame and high
temperatures, as well as to extinguish fire.
ATTENTION! The Smoke Sensor is not a fire detecting device and transmits no
alarms to fire automatics devices or the fire department control panel. It is
designed to provide an audible signal in case of detection of increased
concentrations of smoke, vapor and dust particles in the area of installation.
The PECSS01 Smoke Sensor has a number of distinctive features, namely:
High alarm level (up to 85 dB/3 m);
Timely detection of smoke;
iOS and Android smartphone compatibility;
Support of Zigbee;
Ultra-low power consumption (up to 3 years of operation with one battery);
Impact- and heat-resistant casing material;
Installation using 3M Tape or screws;
Standalone operation;
Small size and stylish design.

Installation and Operation Manual for Perenio®
PECSS01 Smoke Sensor
Doc Version: 2.5.1 ©Perenio IoT spol s r.o. All Rights Reserved
Page 10 of 33

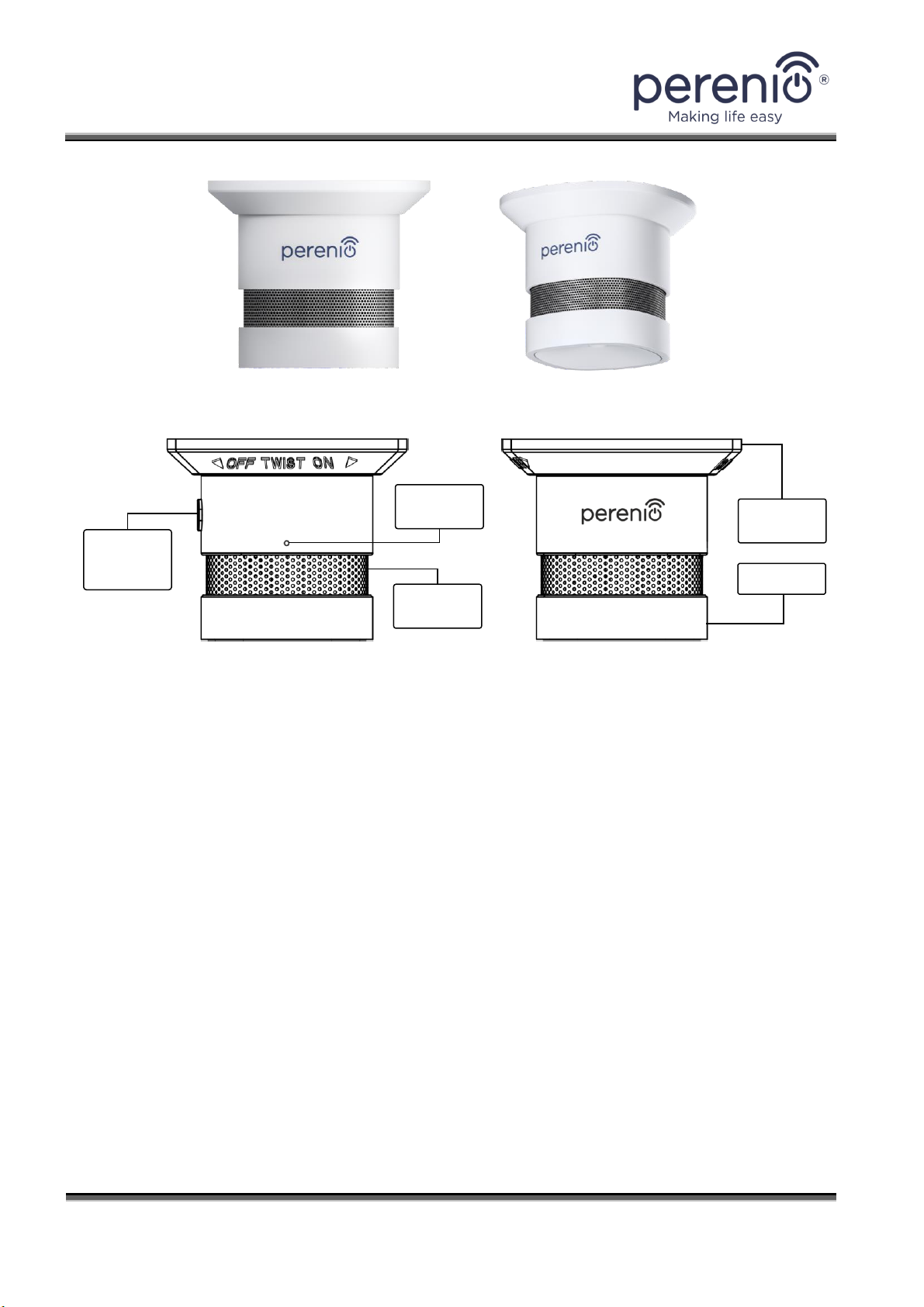

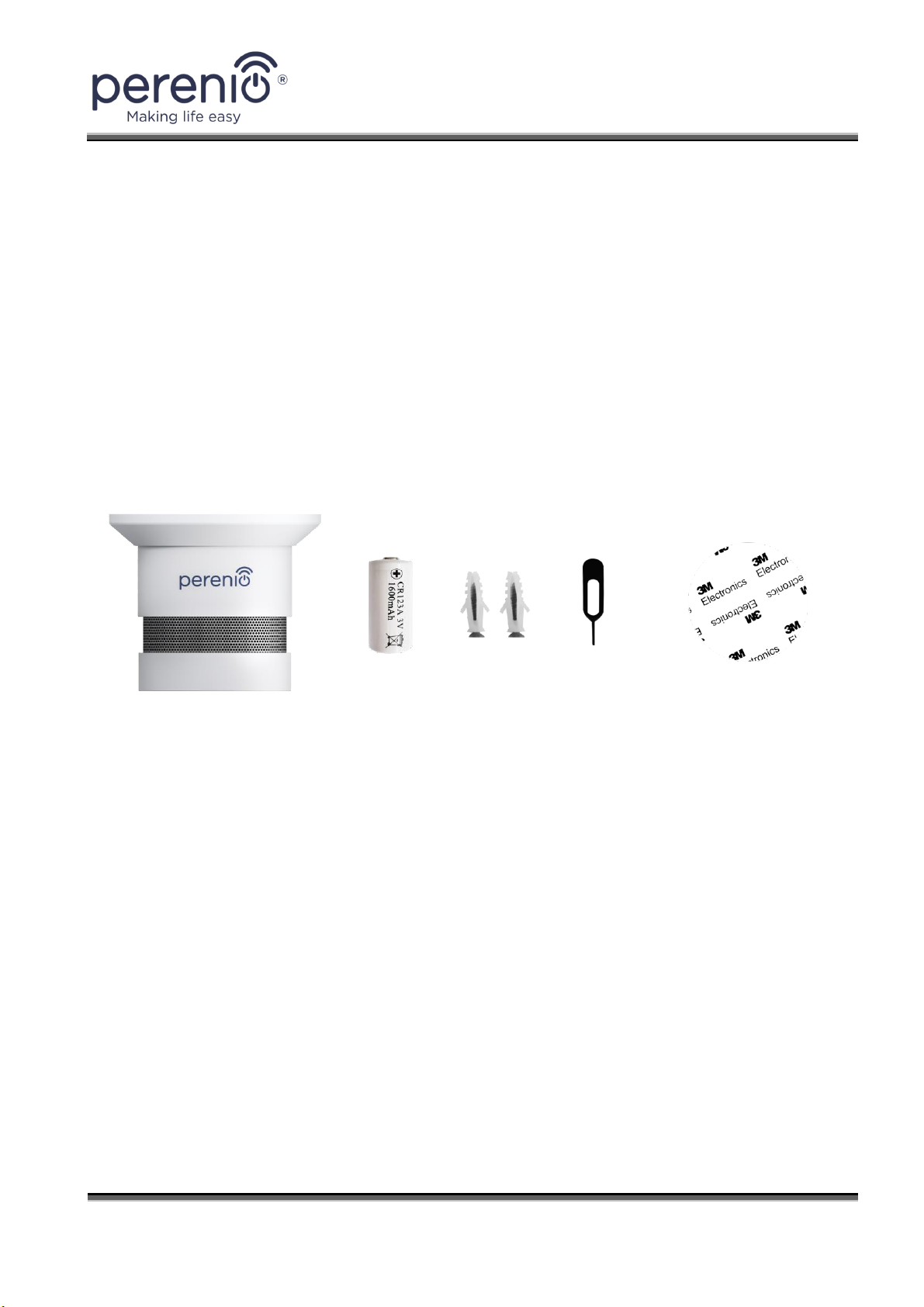

Figure 1 –Smoke Sensor Exterior
Figure 2 –Buttons and Indicators
Buttons, Ports and Indicators
Test Button/
Indicator
When pressed once, the beep sounds in the standby mode
(It is used to check normal operation of the device). It is
also used as the Sensor status indicator
Smoke Detector
The smoke catching section of the Sensor
Mounting Bracket
It is designed for mounting the Smoke Sensor on screws
(Mounting holes available) or the 3M Tape
Reset Button
It is used to reset Smoke Sensor settings, as well as for
the Smoke Sensor to be detected by the Control
Gateway/IoT Router
Siren
A signaling device that emits sound in the case of smoke
in the room
Smoke
Detector
Test Button/
Indicator
Reset
Button
Mounting
Bracket
Siren
