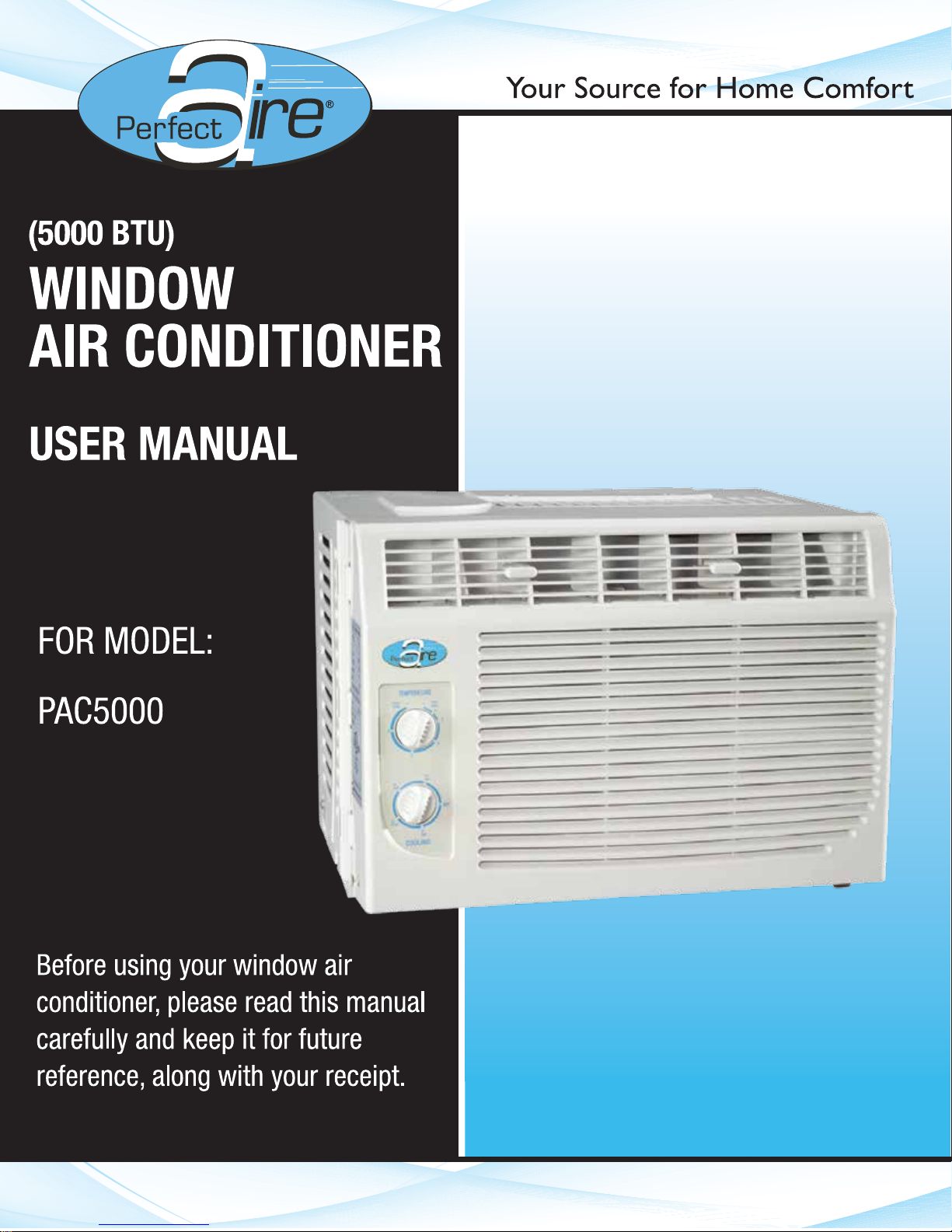

Perfect Aire PAC5000 User manual

1
CONTENTSCONTENTS
!CAUTION
SAFETY PRECAUTIONS ..................................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ...............................................................4
NORMAL SOUNDS .............................................................................................. 5
AIR CONDITIONER FEATURES..........................................................................6
INSTALLATION INSTRUCTIONS .........................................................................7
CARE AND CLEANING.......................................................................................11
TROUBLESHOOTING TIPS ............................................................................... 12
This manual provides the information needed for proper use and maintenance of this air
conditioner. Basic preventative care can help extend the life of this unit. The “Troubleshooting
Tips” section in this manual contains a chart with solutions to the most common problems.
Referring to this section may save time and prevent the need for a service call in the event of
a problem.
● Contact an authorized service technician for repair or maintenance of this unit.
● Contact an installer for installation of this unit if necessary.
● The air conditioner is not intended for use by young children without supervision.
Young children should be supervised to ensure that they do not play with the air conditioner.
● Disabled persons may require assistance with set up.
● If the power cord is to be replaced, replacement work should be performed by authorized
personnel only.
● Installation and repair work must be performed in accordance with the national wiring
standards by authorized personnel only.
● Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
NOTE: All the illustrations in this manual are for explanation purposes only. Unit purchased
may be slightly different.
The design and specifications are subject to change without prior notice for product
improvement. Contact customer service for details.

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or
damage. The seriousness is classified by the following indications.
SAFETY PRECAUTIONS
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug properly.
Do not modify power cord
length or share the outlet with
other appliances.
Always ensure effective
grounding.
Always unplug the unit if
strange sounds, smell or
smoke comes from the unit.
Do not use firearms near unit.
Ventilate room before operating air conditioner if
there is a gas leakage from another appliance
such as a stove.
Failure to do so may cause
electric shock or fire due to
excess heat generation.
Doing so may cause electric
shock or fire due to heat
generation.
Incorrect grounding may cause
electric shock.
Failure to do so may cause fire
and electric shock.
Doing so may cause fire.
Failure to do so may cause explosion,
fire and burns.
Doing so may cause electric
shock or fire due to heat generation.
Doing so may cause electric shock.
Doing so may cause failure of
machine or electric shock.
Doing so may cause fire and
electric shock.
Doing so may cause fire and
electric shock.
Doing so may cause electric shock
or fire. If the power cord is
damaged, it must be replaced by the
manufacturer or an authorized
service center or a similarly qualified
person in order to avoid a hazard.
This could cause health issues.
Incorrect installation may cause fire
and electric shock.
Doing so may cause electric shock.
Doing so may cause an explosion or fire.
Doing so may cause failure and
electric shock.
Do not operate or stop the unit
by inserting or pulling out the
power plug directly from the wall.
Do not operate with wet hands
or in damp environment.
Do not allow water to run into
electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord close
to heating appliances.
Do not use a damaged power
Do not direct airflow directly at
room occupants.
Always install circuit breaker
and a dedicated power circuit.
Do not open the unit during
operation.
Do not disassemble, modify,
or drill holes into the air
conditioner.
!
!
!
!
!
WARNING
! !
!
! !
!
cord.
Do not use the power cord near flammable gas
or combustibles, such as gasoline, benzene,
thinner, etc.
!
!!
!
!
WARNING
2

3

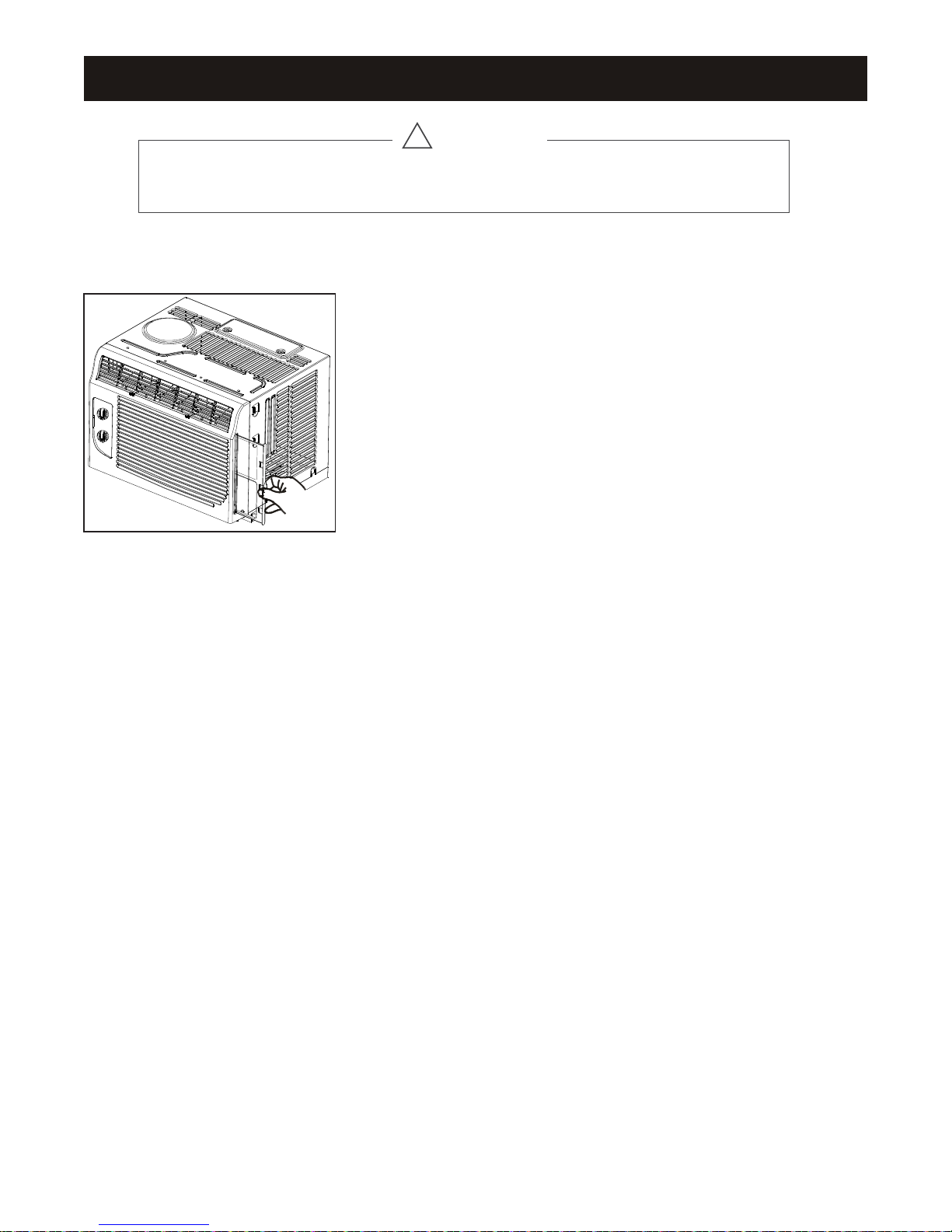

When removing air filter, do not
touch metal parts of the unit.
Doing so may cause an injury..
Cleaning unit when power is ON
may cause fire and electric shock
and may cause an injury.
Operation with windows open may
cause moisture to enter the room.
Stop operation and close the
window in severe storms or
hurricanes.
Do not clean with water.
Water may enter the unit and
degrade the insulation causing an
electric shock.
This could injure the pet or plant.
Failure to do so may cause electric
shock and damage.
Do not put a pet or house plant
where it will be exposed to
direct air flow.
Hold the plug by the head of the
power plug when taking it out.
Ensure proper ventilation
especially in rooms with a stove
or other appliances.
Failure to do so may result in an
oxygen shortage.
This unit is NOT intended to
preserve precision devices, food,
pets, plants, and art objects. It may
cause deterioration of quality, etc.
Leaving power on may cause unit
failure or fire.
Use only as intended.
If unit will not be used for a long
period of time, turn OFF main
power switch.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate supply
by taking the power-plug out and contact a qualified
serviced technician.
Obstacles may cause appliance
failure or accident.
Cleaners or detergents may change
the color or scratch the surface of
the unit.
Do not place obstacles around
air-inlets or inside of air-outlet.
Use only a soft cloth to clean
the unit.
Prolonged exposure to outdoor
elements may cause damage to
installation bracket causing unit to fall.
There is danger of electric shock.
Periodically check installation
bracket for damage.
.
Operation without secured filters
may cause failure. A dirty filter
can cause the unit to not run efficiently.
Water from unit contains
contaminants and could cause
illness.
Always insert the filters securely.
Clean filter AT LEAST once
every two weeks.
NEVER drink water drained from
air conditioner.
Unit and circuit breaker/fuse
must be switched OFF when
cleaning.
Do not place heavy objects on the power cord
and always ensure that the cord is not
compressed.
Use caution when unpacking
and installing.
Sharp edges could cause injury.
!!
!! !
!
!
!!
!
!
There is danger of fire or electric shock.
!
CAUTION
SAFETY PRECAUTIONS (CONTINUED)

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions,
including the following:
If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window
is a triple-track type with a screen panel included, remove the screen completely before installation.
Be sure the air conditioner has been securely and correctly installed according to the installation instructions in this manual.
Save this manual for possible future use in removing or installing this unit.
When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils.
4
IMPORTANT SAFETY INSTRUCTIONS
Be sure the electrical service is adequate for the model you have chosen.
This information can be found on the serial plate, which is located on the
side of the cabinet and behind the grille.
Be sure the air conditioner is properly grounded. To minimize shock and fire
hazards, proper grounding is important. The power cord is equipped with a
three-prong grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If
the wall receptacle you intend to use is not adequately grounded or
protected by a time delay fuse or circuit breaker, have a qualified electrician
install the proper receptacle.
Ensure the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place. This could
result in mechanical damage within the air conditioner.
WARNING!
DO NOT store or use gasoline or other flammable vapors or liquids in
the vicinity of this or any other appliance.
Avoid fire hazard or electric shock. DO NOT use an extension cord or
an adaptor plug. DO NOT remove any prong from the power cord.
WARNING!
NOTE The power supply cord with
this air conditioner contains a current
detection device designed to reduce
the risk of fire.
Please refer to the section "Operation
of Current Device" (below) for details.
In the event that the power supply cord
is damaged, it MUST be replaced by
an authorized repairman.
Operation of Current Device
1. Plug in the air conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST
button. The RESET button will click as it pops out.
3. Press the RESET button; again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit.
(On some products this is also indicated by a light on the plug head.)
NOTES:
Do not use this device to turn the unit on or off.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails to reset when either the TEST button is pushed or it cannot be reset.
If power supply cord is damaged, it cannot be repaired. Please call customer service to assist with replacement.
TEST
RESET
Plug in &
press RESET
NOTE: Some plugs have
buttons on the top.
DO NOT, under any
circumstances, cut,
remove, or bypass
grounding prong.
Power supply cord
with 3-prong grounding plug
and current detection device
The power supply cord contains a current device that senses damage to the power
cord. To test your power supply cord do the following:
NOTE: This air conditioner is designed to be operated under conditions as follows:
If the unit is operated beyond the conditions specified above, it may cause a failure of the unit.
Cooling operation Outdoor temp: 18-43°C/64-109°F (18-52°C/64-125°F for special tropical models)
Indoor temp: 17-32°C/62-90°F
For Your Safety
Electrical Information
WARNING! Prevent Accidents
Do not use an extension cord or an adaptor plug.

5
NOTE: All of the pictures in this manual are for explanatory purposes only. The actual shape/look of the
air conditioner purchased may be slightly different, but the operations and functions are similar.
Sound of Rushing Air
At the front of the unit,you may
hear the sound of rushing air
being moved by the fan
High Pitched Chatter
High efficiency compressors
may have a high pitched chatter
during the cooling cycle.
Gurgle/Hiss
“Gurgling” or “hissing” noise may
be heard due to refrigerant
passing through evaporator
during normal operation.
Pinging or Switching
Droplets of water hitting condenser
during normal operation may cause
“pinging” or “switching” sounds.
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation.
NORMAL SOUNDS

To begin operating the air conditioner, follow these steps:
1. Set the thermostat to the highest number (coldest or cooler setting).
2. Set the selector control to the highest COOL setting.
3. Adjust the louver for comfortable air flow. (See “Air Directional Louvers” below.)
4. Once the room has cooled, adjust the thermostat to the setting you find most comfortable.
5. Make sure that the air flow inside and outside are not obstructed by anything.
! !
NOTE:
After the air conditioner is turned off, leave the unit OFF for a minimum of 3 minutes before attempting
to turn back on. The cool circuit has an automatic 3 minute time delayed start if the unit is turned off and
on quickly. This allows pressure inside of the compressor to equalize and prevents overheating as well as
possible circuit breaker tripping. Failure to follow these instructions may be harmful to your unit.
6
The controls featured in this manual are representative of many available models.
Your model may offer slightly different features.
Cool Mode
The desired cool setting is selected by rotating the Cooling knob to the
appropriate location.
“HI COOL” has a maximum cooling effect and airflow.
“LO COOL” has a minimum cooling effect and airflow.
Fan Mode
Rotate the Cooling knob to select your choice of fan speeds for air circulation.
NOTE: When selecting a fan speed, the compressor will NOT run.
Thermostat
The thermostat is used to set the desired room temperature when the unit is being
operated in the “COOL MODE”.
TEMPERATURE
lo
cool
lo
fan
OFF
hi
cool
hi
fan
cool
min
max
cool
COOLING
1
7
To set the desired room temperature, rotate the thermostat (temperature) knob to the
desired setting. After the set temperature is achieved the thermostat will automatically
start and stop the compressor in order to maintain the desired set temperature.
Rotate the thermostat (temperature) knob clockwise for higher cool settings. “MAX
COOL” and/or higher cool settings will provide lower room temperatures. Rotate the
thermostat (temperature) knob counter clockwise for lower cool settings. “MIN COOL”
and/or lower cool settings will maintain higher room temperatures.
2
3
AIR CONDITIONER FEATURES
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating this appliance.
WARNING
Air Directional Louvers
Control Panel
Lever
Air Direction
The louvers will allow you to direct the air flow
left or right throughout the room as needed.
Move the Levers from side to side until the desired
direction is obtained.
5
4
6

7
Read these instructions completely
and carefully.
IMPORTANT- Save these instructions.
IMPORTANT- Observe all
governing codes and ordinances.
Note to Consumer- Keep these
instructions for future reference.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Completion time- Approximately 1 hour.
Skill level- Installation of this appliance
requires basic mechanical skills.
We recommend that two people install
this product.
Proper installation is the responsibility
of the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
BEFORE YOU BEGIN
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
CAUTION
Do not change the plug on the power cord
of the air conditioner.
Aluminum house wiring may present special
problems- consult a qualified electrician.
When handling unit, be careful to avoid cuts from
sharp metal edges and aluminum fins on front and
rear coils.
TOOLS YOU WILL NEED
Phillips
Screwdriver
Level
TOOLS YOU MAY USE
Screwdriver
Pencil
Ruler or tape measure
Scissors or knife
NOTE: Save carton and these Installation Instructions for future reference.
The carton is the best way to store unit during winter or when not in use.
WINDOW REQUIREMENTS
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23 to 36 inches (584 mm to 914 mm).
INNER
Wooden Windows
INSTALLATION INSTRUCTIONS
OFFSET
INTERIOR
WALL
EXTERIOR
WALL
INNER
WINDOW
SILL

8
INSTALLATION INSTRUCTIONS (CONTINUED)
PREPARE THE WINDOW
1
3/4 (or 1/2 )
Screws
(7)
Lock Frame
(2)
Sash Lock
(1)
Mounting Hardware
Window sash
seal foam
(1)
PREPARE AIR CONDITIONER
2
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8"
screws as shown in Fig.C.
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.
INSTALL THE ACCORDION PANELS
3
NOTE: Top rail and sliding panels at each side
are offset to provide the proper pitch to the rear
of (5/16"). This is necessary for proper
condensed water utilization and drainage. If you
are not using the side panels for any reason, this
pitch to the rear must be maintained.
A.Place unit on floor, a bench
or a table. Hold the
accordion panel in one
hand and gently pull back
the center to fill the
open end. See Fig.1.
Fig.1
Lower sash must open sufficiently to allow a clear
vertical opening of 13 inches (330 mm). Side
louvers and the rear of the AC must have clear air
space to allow enough airflow through the
condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
A: Remove the air conditioner from the carton and
place on a flat surface.
B: Remove top rail from the rear of the packaging
material as shown in Fig. A.
Packaging
Fig. A
Top Rail
Fig.B
Fig.C
Top Rail Hardware
3/8"Screws
(4)
Top Rail
(1)
oror

9

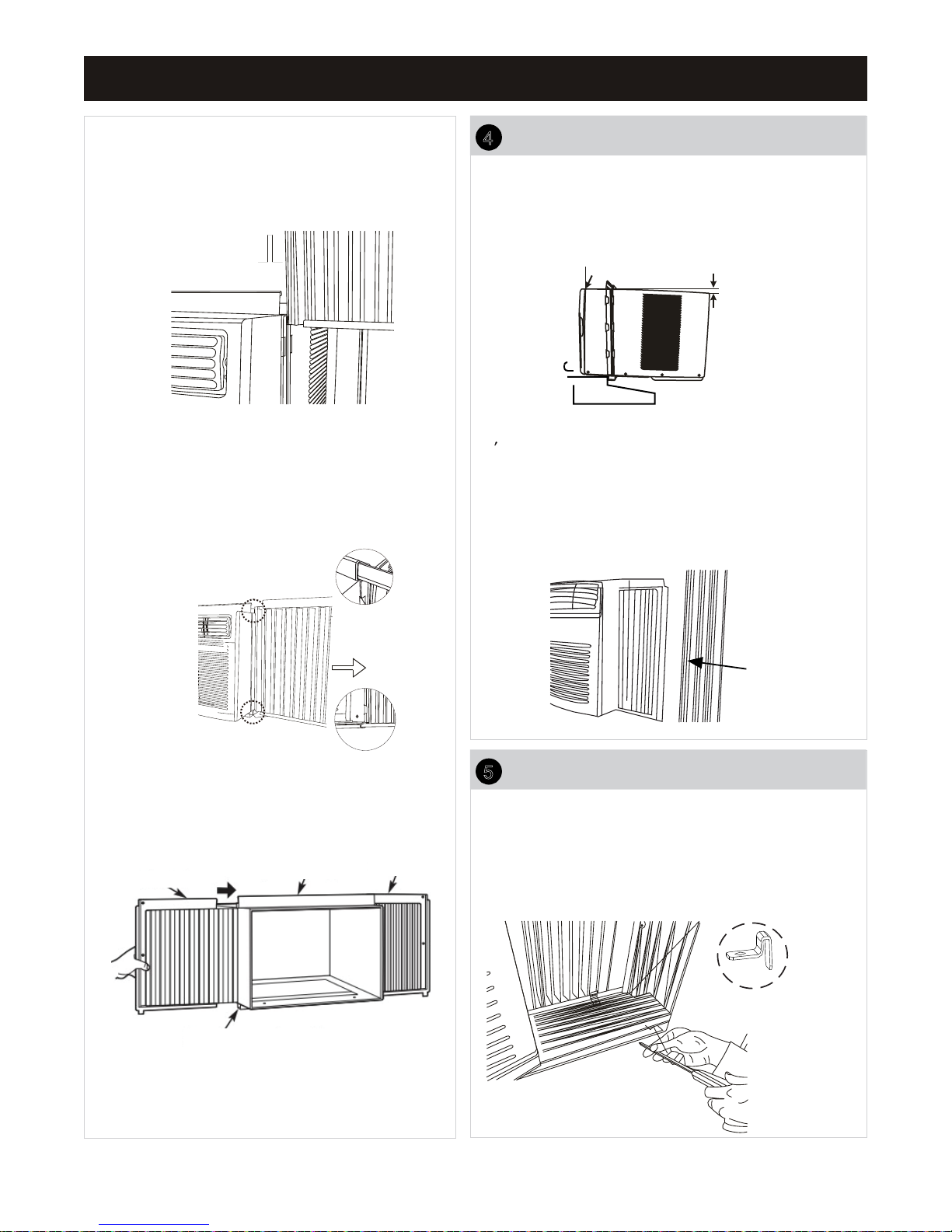

SECURE THE ACCORDION PANELS
4
B. Slide the free end "｢" section of the panel
directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave
enough space to slip the top and bottom of
the frame into the rails on the cabinet.
Fig. 2
"｢"section
C. Once the panel has been installed on the
side of the cabinet, make sure it sits securely
inside the frame channel by making slight
adjustments. Slide the top and bottom ends
of the frame into the top and bottom rails of
the cabinet. Fig. 3.
D. Slide the panel all the way in and repeat
on the other side.
Top Rail
Bottom Rail
Fig. 3
A. Keeping a firm grip on the air conditioner,
carefully place the unit into the window opening so
the bottom of the air conditioner frame is against
the window sill (Fig. 5). Carefully close the window
behind the top rail of the unit.
Fig. 5
NOTE: Check that air conditioner is tilted back
approximately 5/8"to 3/4" (tilted about 3
O
to 4
O
downward to the outside). If, after proper
installation, condensation does not drain from the
overflow drain hole during normal use, adjust slope.
B. Extend the side panels out against the window
frame (Fig. 6).
window
frame
Fig. 6
INSTALL SUPPORT BRACKET
5
A. Place the frame lock between the frame
extensions and the window sill as shown in Fig. 7.
Drive 3 / 4" (19 mm)or 1 / 2 "(12.7 mm) locking
screws through the frame lock and into the sill.
NOTE: To prevent window sill from splitting,drill
1 / 8" (3 mm) pilot holes before driving screws.
Fig. 7
NOTE: If storm window blocks AC, see Fig. 11.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
Wooden Windows
INSIDE
OUTSIDE
Approx. 5/8"to 3/4"
Measure from the cabinet edge
INSTALLATION INSTRUCTIONS (CONTINUED)

10
B. Drive 3/4" (19 mm) or 1/2" (12.7 mm)
locking screws through frame holes into window
sash (Fig. 8).
Fig. 8
C. To secure lower sash in place, attach right
angle sash lock with 3/4" (19 mm) or 1/2"
(12.7 mm) screw as shown (Fig. 9).
Fig. 9
D. Cut Window sash seal foam and insert it in the
space between the upper and lower sashes
(Fig. 10).
Fig. 10
FOAM SEAL
If AC is Blocked by Storm Window
Add wood as shown in Fig.11, or remove storm
window before air conditioner is installed.
If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted shut.
Accumulated rain water or condensation must be
allowed to drain out.
Removing AC From Window
● Turn AC off, and disconnect power cord.
● Remove sash seal from between windows, and
unscrew safety sash lock.
●Remove screws installed through frame and
frame-lock.
● Close (slide) side panels into frame.
● Keeping a firm grip on air conditioner, raise sash
and carefully remove.
●Be careful not to spill any remaining water
while lifting unit from window. Store parts WITH
air conditioner.
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Fig. 11
Storm window
frame or other
obstruction.
SASH
1-1/2" min
(38 mm)
INSTALLATION INSTRUCTIONS (CONTINUED)

Air Filter Cleaning
NOTE: Never use hot water over 104ºF (40ºC) to clean the air filter.
Never attempt to operate the unit without the air filter.
● Be sure to unplug the air conditioner to prevent shock or fire hazard.
The cabinet and front may be dusted with an oil-free cloth or washed
with a cloth dampened in a solution of warm water and mild liquid
dishwashing detergent. Rinse thoroughly and wipe dry.
● Never use harsh cleaners, wax or polish on the cabinet front.
●Be sure to wring excess water from the cloth before wiping the
controls. Excess water in or around the controls may cause damage
to the air conditioner.
●Plug in air conditioner after unit has dried completely.
If air conditioner will be stored during the winter, remove
it carefully from the window according to the installation
instructions. Cover it with plastic or return it to the original
carton. Always store unit in upright position.
Winter Storage
11
Cabinet Cleaning
CARE AND CLEANING
!
CAUTION
N
Clean air conditioner occasionally to keep it looking and operating like new. Be sure to
unplug the unit before cleaning to prevent shock or fire hazards.
The air filter should be checked at least once a month to see
if cleaning is necessary. Trapped particles in the filter can build
up and cause an accumulation of frost on the cooling coils.
●Remove the filter by sliding out from the right-hand side.
● Wash the filter using liquid dishwashing detergent and warm
water. Rinse filter thoroughly.
● Gently shake excess water from the filter. Be sure the filter is
thoroughly dry before replacing.
● As an alternative, vacuum the filter clean.

12
AIR
CONDITIONER NOT
COOLING ROOM, OR NOT
BLOWING COLD AIR
• Be sure unit is not too large or too small for the area of the room.
• Verify that all doors, windows, curtains and any other openings are closed off. Verify nothing is obstructing the
front grille of unit, such as curtains, etc.
• Allow enough time for room to cool, especially if outside temp is very high.
• Check that the filter is not dirty and louvers are open all the way and blowing in the direction desired.
• Check that unit is set to Cool Mode and that temperature is down enough (but not too low).
• If unit is near a heat source, such as a stove, etc., then relocate unit.
• If air coming from unit is cool to the touch, then unit is working properly; please double check the first three
bullet points above.
• If using Follow Me remote feature, move remote away from unit.
• Temperature sensor behind air filter touching cold coil. These two elements should not be touching.
Carefully straighten tube away from coil.
• Unplug unit for at least 5 minutes. Follow Reset instructions on plug.
AIR CONDITIONER
CYCLING ON AND OFF TOO
FREQUENTLY OR NOT ENOUGH
• Be sure unit is not too large or too small for the area of the room.
• Remove grille and make sure the temperature sensor is not too close to the coils. These two elements should
not be touching. Carefully straighten tube away from coil.
• Make sure nothing is blocking the grille or side vents.
• Make sure there is no dirt or debris inside the unit or on the filter.
AIR CONDITIONER COOLING BUT
ROOM IS TOO WARM - ICE
FORMING ON COOLING COIL
BEHIND DECORATIVE FRONT
• Outdoor temperature is below 64ºF (18ºC). To defrost the coil, set to Fan Only mode.
• Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to Fan Only mode.
• Thermostat is set too cold for night-time cooling. To defrost the coil, set to Fan Only mode. Then, set
temperature to a higher setting.
UNIT WILL NOT TURN ON
• Reset circuit breaker. Make sure there are not too many items (ie lamps, TV’s, etc.) working off the
same breaker.
• Check plug connection.
• If plug is operating on an on/off switch, be sure that the switch is ‘on’.
• Try plugging unit into another outlet.
• Unplug unit for at least 5 minutes. Follow Reset instructions on plug.
UNIT BLOWS FUSES OR POPS
CIRCUIT BREAKER
• Make sure there are enough available amps on the circuit for the air conditioner.
• Large units which run on a 230v will require a dedicated 20 or 30 amp circuit.
WATER DRIPPING OUTSIDE • Unit is removing a large quantity of moisture from a humid room. This is normal during excessively humid days.
WATER PUDDLES INSIDE UNIT
OR IS COMING INTO ROOM
• Adjust the slope of the unit so that it drains downward toward the exterior of the home.
(See Installation Instructions.)
• Make sure that there is no debris blocking the drainage area of the unit.
REMOTE SENSING / FOLLOW ME
DEACTIVATING PREMATURELY
• Remote control not located within range. Place remote control within 20 ft and 180º radius of the front
of the unit.
• Remote control signal obstructed. Remove obstruction.
Issue Possible Solutions
AIR CONDITIONER IS
MAKING NOISES
• Check to be sure the unit is free from debris such as leaves, sticks, etc. Verify nothing is obstructing the unit.
• Check the fan blade for cracks or chips.
• Make sure the unit is properly and securely mounted inside the window or wall.
• Clean the air filter.
TROUBLESHOOTING TIPS
Before calling for service, please review the chart below.
NOTE: A highly recommended troubleshoot for any issue in general consists of turning off unit and unplugging for 5 minutes.
It is also recommended to try another wall outlet.

Your Source for Home Comfort
Distributed by:
Perfect Aire, LLC
5151 Belt Line Rd.
Suite 878
Dallas, TX 75254
Specification and performance data is subject to change without notice.
Printed in PRC
877-365-6274
www.perfectaire.us
