PerfectPrime IR501 User manual

IR501 Thermal Camera
Instruction Manual

Contents
P. 1
1. Overview
2. App Download & Phone Connection
3. Product Specications
4. Product Operation
5. Manual Mode
6. Camera Alignment
7. Dierent Mode Of View
8. Gallery
9. Graph
10. Get Graph Data
11. Graph Setting Mode
2
3
4
5
6 - 9
10
11
12
13
14
15

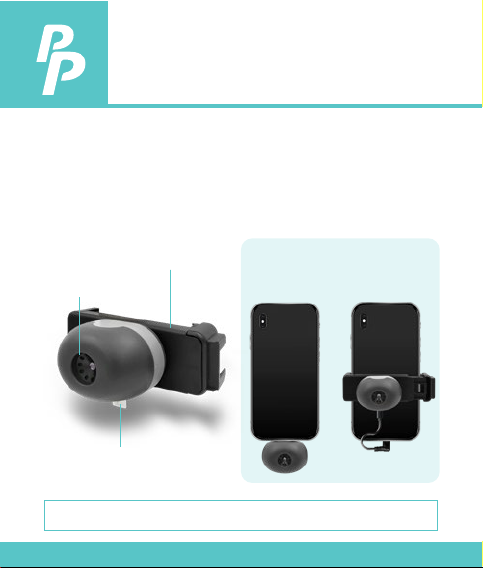

1. Overview
P. 2
Method 1
Direct Plug
Method 2
Plug With
Micro-USB Cable
PerfectPrime provides you a way to sense the invisible, measure the
unfathomable, and analyze the improbable by providing thermal
imaging and temperature measurements in a new way. This guide
provides you all the information you need to operate the IR501
Thermal Camera for Android devices.
USB-C Connector
Thermal Camera
Phone Stand Holder
The IR501 is powered by the host device, no charging or battery is needed.

2. App Download &
Phone Connection
P. 3
Scan the QR code below or enter the URL (https://play.goo-
gle.com/store/apps/details?id=com.thermal-
more.perfectprime) to download the "IR501 Thermal Camera
Viewer" application and install it (only supports Android
Phone system).
App Download
After installation, make sure host device supports USB OTG in
your phone’s settings. Once plugged in, the application will
automatically open within 10 seconds. Select the IR501
Thermal Camera Viewer App to start.
Phone Connection
AppQR Code

3. Product Specications
P. 4
Parameter Description
Sensor Resolution 206 x 156
Frame Rate <9Hz
Scene Temperature Range 40°C to 330°C
Sensor Sensitivity 65mk(typical), <100mK(max) @25°C
Field of View 35.4º x 26.8º
Detection Range 333m
Recognition Range 83m
Identification Range 43m
Distance to Spot Ratio 56:1
Focus Fixed
f-number(focal length/aperture) f/1.2
Focal length 4.0mm
Accuracy +/-5°C or 5% between 5% to 140°C
scene temperature
Typical performance of +/-10% between
140°C to 330°C scene temperature
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -10°C to 50°C
Humidity 10% to 95%RH, non-condensing
Dimension 47mm x 32.5mm x 32.5mm

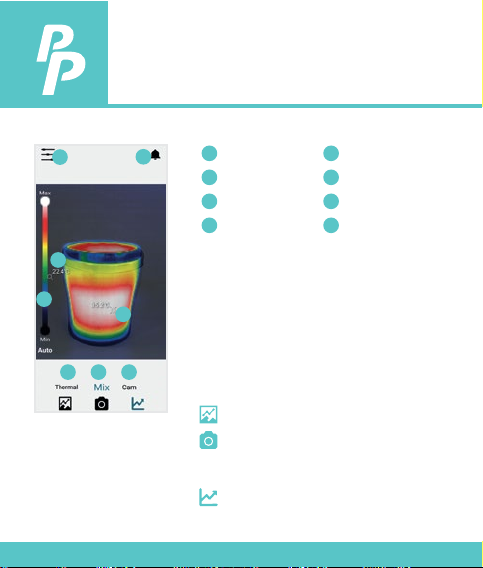

4. Product Operation
P. 5
Selections for difierent mode of view:
Selections for difierent mode of function:

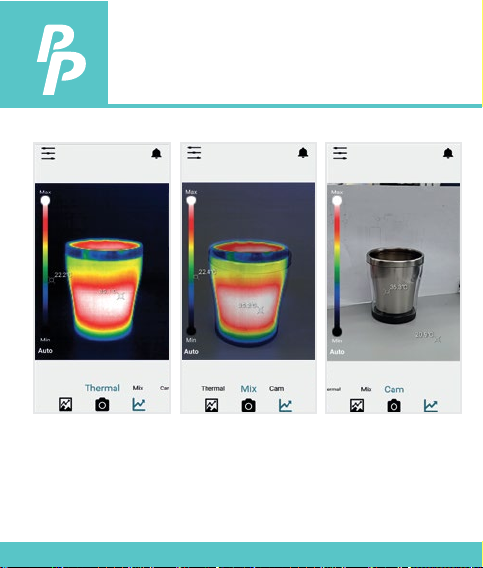

Thermal Mode: Thermal Image Only
Mix Mode: Blending between
Thermal Image and Photo
Camera Mode: Thermal Image Only
Press to entry Gallery Album
1) Press to Capture Main View
instantly
2) Press & hold to record video
Press to entry Graph Mode
Menu
Color Scale
Notication
Min. Temp.
1
2
3
4
Max. Temp.
Thermal Mode
Mix Mode
Camera Mode
5
6
7
8
6 7 8
1
2
3
4
5

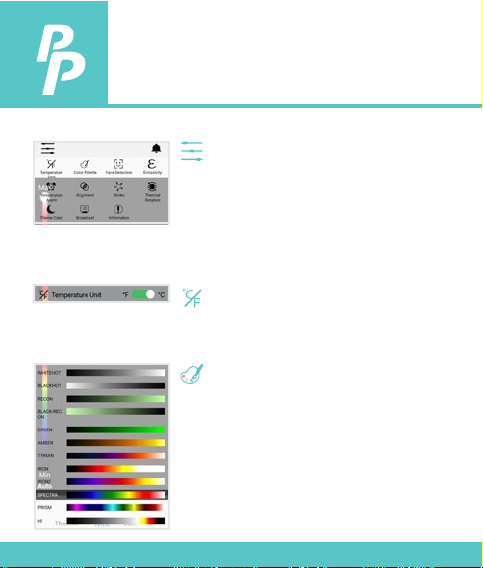

5. Manual Mode
P. 6
Manual Button:
Press to entry Manual Setting Mode.
Within the settings, you can adjust
variables including the color palette,
temperature display unit, emissivity, over
temperature alarm and under
temperature alarm.
Temperature Unit:
Press to select the temperature unit of
oC or oF.
Color Palette:
Press to select the color palette for the
thermal view.

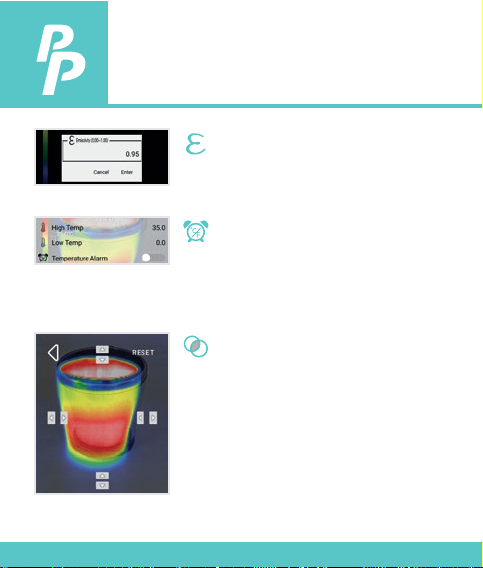

5. Manual Mode
P. 7
Emissivity:
Press to select the color palette for the
thermal view.
Temperature Alarm:
Press to enable/disable the temperature
alarm and input the high and low
temperature alarm value.
Alignment:
Press to adjust between camera view and
thermal view.

5. Manual Mode
P. 8
Stroke:
Press to select the color palette for the
thermal view.
Thermal Rotation:
Press to rotate the thermal view to match
with camera view.
Theme Color:
Press to select the white background
or black background.

5. Manual Mode
P. 9
Broadcast:
Press to enable the web view function.
Information:
Press to display the contact information,
version and release date.
