Perk 8HCH-KK-SSF-2/1POU User manual

[email protected] for assistance.
Model No.: 8HCH-KK-SSF-2/1POU
SAVE THIS MANUAL FOR FUTURE USE
USER MANUAL
PN: 5M000023XN00
WARNING:
TO REDUCE THE RISK OF INJURY, USER
MUST READ INSTRUCTION MANUAL
BEFORE OPERATING PRODUCT.
Single Serve Turbo Brewer and 2/1POU
Water Cooler Combination Unit
The product in this manual may differ
slightly from that pictured.

1. 2 in1 appliance saves on valuable counter space.
2. High temperature, preheated hot water is ready to pour
through your Coffee Capsule, making a very fast, yet fully
developed cup.
3. No more thin, watery cups of coffee. Brews at 201 OF, a
temperature experts recommend for full bodied, robust flavor
extraction. A full 9 OF hotter than other Single Cup Coffee
Makers.
4. Turbo Heater provides plenty of hot water. No waiting time between
cups of coffee.Direct supply of water means no refilling of the coffee
water tank. Combines the benefits of premium quality water with gour-
met coffee to make a delicious cup of coffee.
5. Sophisticated Advanced Technology System keeps water HOT and
Energy consumption down.

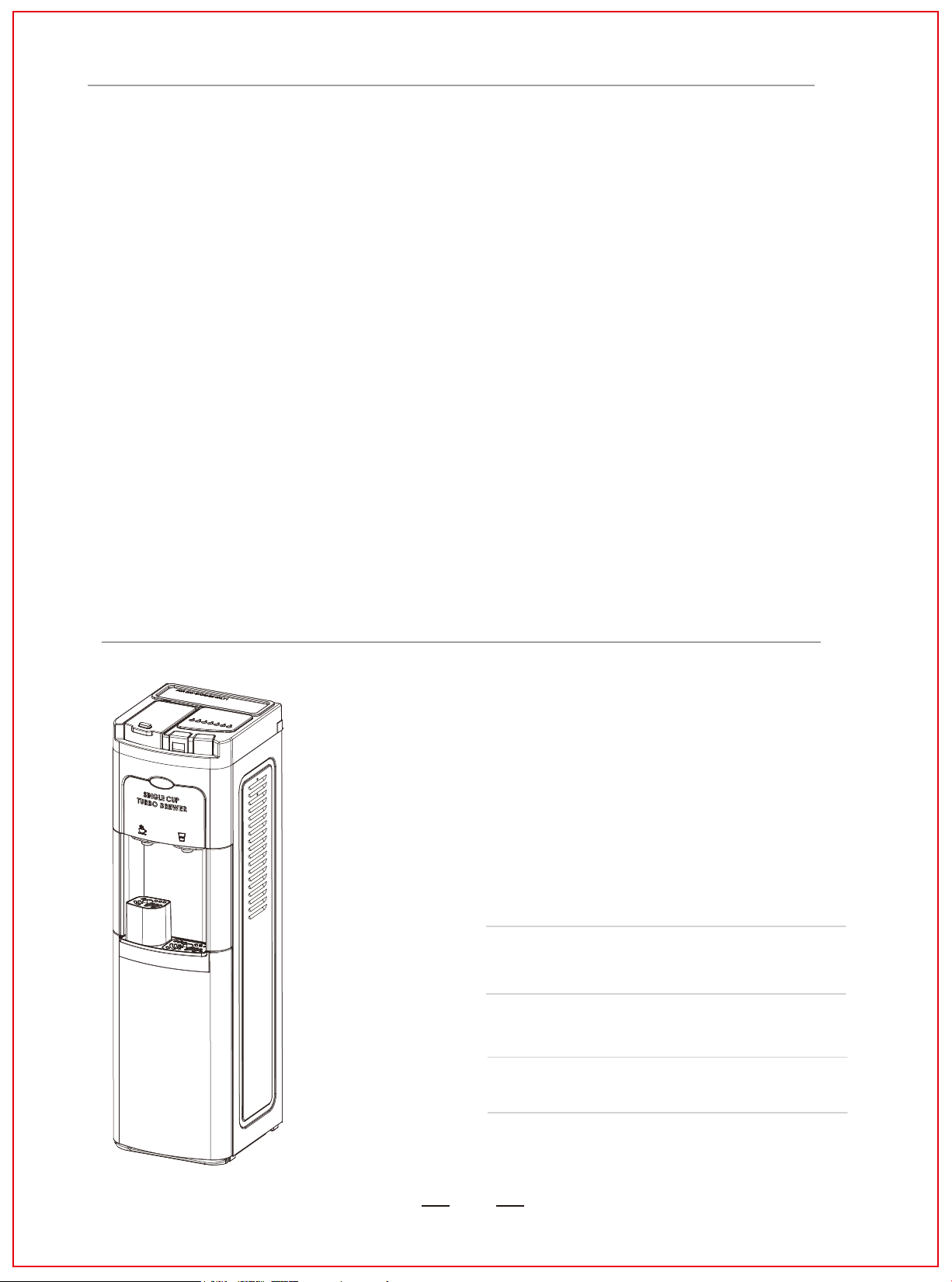

Getting to know your Single Serve Turbo Brewer
with Water Cooler for use with Coffee Capsule or
Equivalently Pre-Packaged Coffee.
2

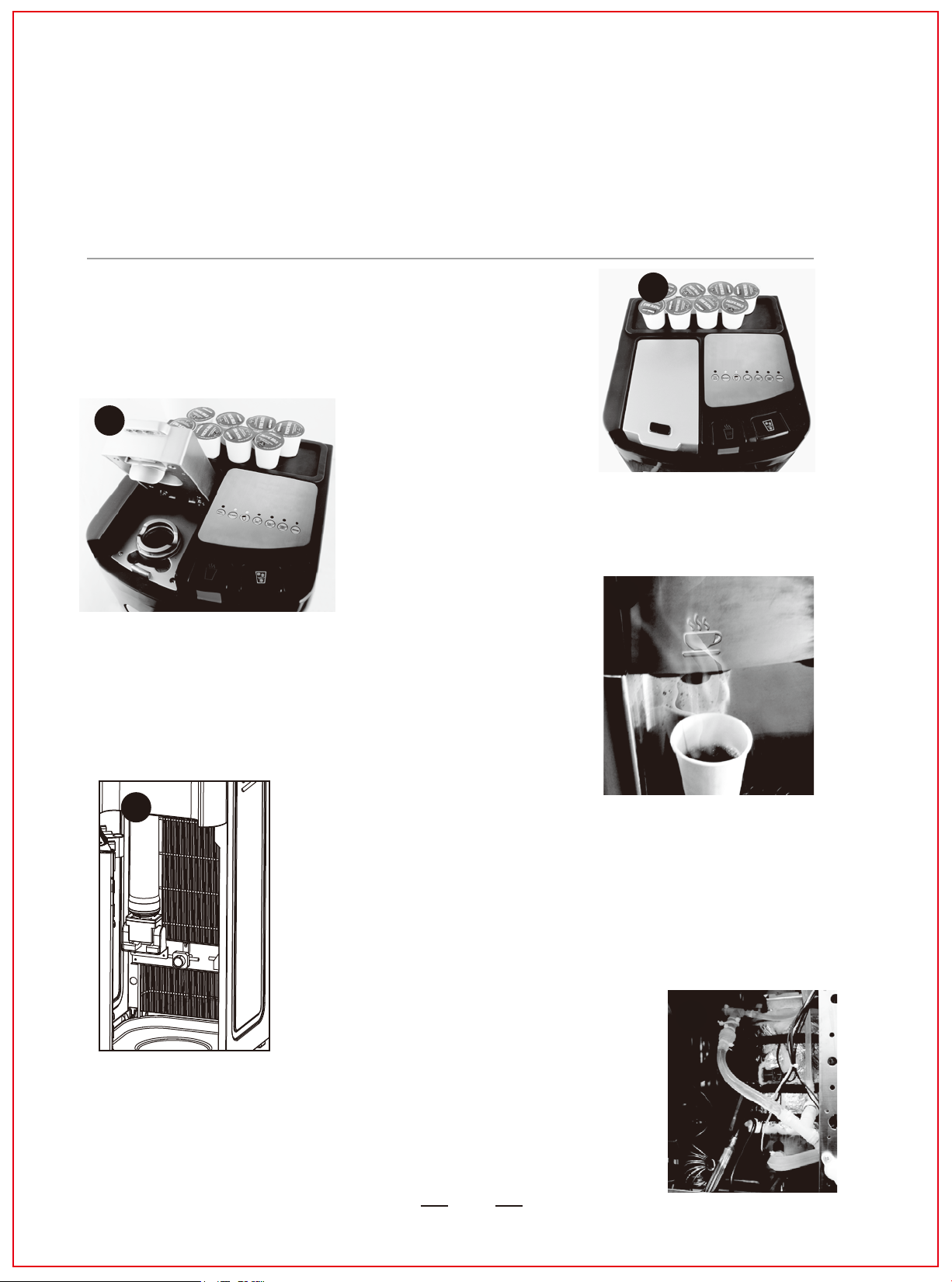

FEATURES
1
3
4
5
2

7
8
3
6
9. Steaming hot water makes rich, full flavored coffee out of regular Coffee Capsules with
your choice of bottled water.
10. Exceptional hot tank performance and safety efficient, produce
hotter water at all times, has a great insulation, triple safety, good for
mineral water use.
a. Our patented design maintain steady 2010F
temperature of hot water.
b. Superior Mineral based insulation keeps heat
where it belongs.
c. Hot Tank Triple safety includes temperature
regulating and high temperature thermostats plus
fusible link, that melts when overheated.
d. External heater allows use of mineral water without
causing heating element failure due to calcification,
as it is common in the hot tank with the internal heaters
Decalcification required once per year only when used with tap or
Spring/mineral water.
e. Patent Pending design of Turbo Heating makes more and hotter
water in the shortest time.
10
7. Efficient refrigeration provides up to 1.6 gallon of X-cold water per
hour, while making an ice bank for more and colder water. X-Cold tech-
nology uses ice to chill the water to the lowest average temperature in
the industry.
6. Continuous dispensing for 6cups of coffee, no waiting
time for heating water. Easy to use intuitive prompt menu.
8. Dispenses water for 3 cup sizes, 6 oz, 8 oz and 10 oz. Coffee
Capsules conveniently stored. Properly hot water allows to make
an America favorite Medium Roasted Coffee for Smooth and
Rich Flavour. Other Brewers with lower water temperature rely
on dark roast for more flavour.

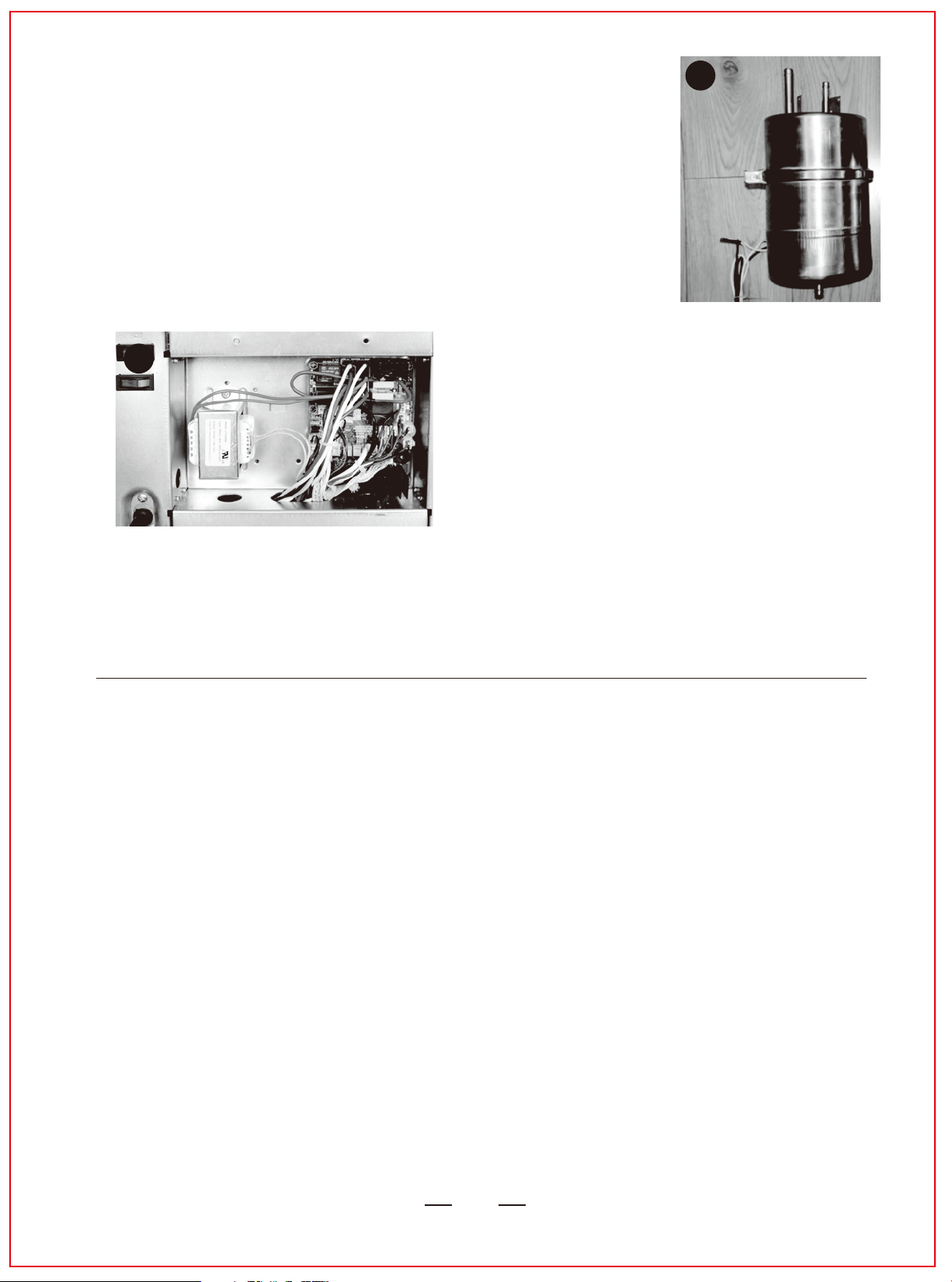

11. Superior technology
Hot water tank made from two pieces drawn construction. No
untreated weld joints. No rust in your hot water.
Patented technology allows for the water temperature to be controlled
within 1 degree F while on standby. 20 years designed life time.
External heater makes it ideal for use with mineral water.
12. Function of Water Cooler
Electrical control panel easily accessible from the
rear of the cabinet
SOUND’S YOU MIGHT HEAR.
Although all functions are very quiet, you might hear following sound’s:
1. When without display cooler plugged in, air pump for an ozone start to work and last for
12 seconds.
After start up it will work every 4 hours for same period of time.
Coolers with display are programmed to have ozone delivery pump to work every 4 hours
starting from 12 o’clock. Very low humming sound.
2. Water Filtration system delivers water to cold tank. Running water into cold tank can be
heard also, like a miniature water fall, or a fish aquarium. Very low sound.
Water pump sound is greater when filter is used, due to the added load.
If you need assistance call
888-377-6216 .
There are two water level control devices. An Electronic sensor and mechanical float
valve. Electronic sensor activates solenoid shut off valve silently.
Mechanical float valve is similar to toilet bowl float valve. As water level nearing to be full,
near closing the valve higher pitch noise might be heard from the float valve.
This noise will last until cold water tank is full.
12
11
4

3. Hot tank water heater.
During the periods of maintaining steady temperature hot tank operates in silent mode.
When water is dispensed or pre-heat button is activated Turbo function will emit “kettle”
like moderate sound few minutes before it reaches the required temperature.
4. Refrigeration compressor works when water needs to be cooled. It has very low pitch
humming noise like your refrigerator
5. In some cases sound resulting from installation on hard flooring is present. Place Sound
absorbing mat under your cooler to eliminate this noise. Mat is supplied with your cooler.
COMPARISON BETWEEN AND OTHER BRAND WATER
COOLER AND COFFEE BREWER
Model
Self Clean
Compressor power/current
Hottankpower/Current
Cold water peak hour output
below 50 0F in gal/hour
Cold water peak hour output
below46 0F in gal/hour
Cold water peak hour output
below43 0F in gal/hour
Hottank Volume and power
Hotwater peak hour output
above 1760F
Lowest Hot Water Tank temperature
Highest Hot Water temperature,
measured in the brewerpot
Energy Efficiency, Use electricity
in 24 Hours
Pre-heattimefor each draw
of coffee cup
Water temperature in brew pot
Brewer controls
Water Supply Volume
Stainless steel front panels
Other water cooler
not available
81.2W/1.05A
445 Watts
0.95 gal/hr
0.63 gal/hr
0 gal/hr
33.8 oz 445W
1.53 gal/hr
above 1760F
780C/1720F
n/a
1.0268 KWH
No
8HCH-KK-SSF-2/1POU
Yes
96.5W/1.148A
1400 Watts
1.59 gal/hr
0.92 gal/hr
0.66 gal/hr
40.6 oz 1400 Watts
2.64 gal/hr above 1940F
900C/1940F
940C/2010F
830 Watts
instant, 6 continuous draws,
no waiting period (for futures)
940C/2010F
intuitive, with sequential green
lights guiding the way. no need
for manual to operate
Yes
Other single serve coffee brewer
not applicable
not applicable
1500 Watts
not applicable
not applicable
not applicable
cup size volume 4,6,8,10
and 12 oz filled each time
and then heated. 1500 Watts
not applicable
room temperature
890C/1920F
depending on usage
first cup 29 seconds
for 8 oz cup 17 seconds
for second cup
860C~890C
/1870F~1920F
confusing, cannot
operate easily without
reading manual
0.58 gallon/2.2 L Continuous supply from city mains5 gallon/18.9 L
No
Voltage / Frequency: 120V/60Hz
5

SAFETY PRECAUTIONS
To reduce risk of injury and property damage, user must read this entire manual
before assembling, installing & operating combination unit providing coffee brewer
and water dispenser.
Failure to execute the instructions in this manual can cause personal injury or
property damage.
This product dispenses water at very high temperatures. Failure to use properly can
cause personal injury.
When operating this coffee brewer / water dispenser, always exercise basic safety
precautions, including the following unit :
• Prior to use, this unit must be properly assembled and installed in accordance with this
manual.
• This unit is intended for coffee brewing and water dispensing only. Do NOT use with
other liquids. Do NOT use for other purposes. Never use any other liquid in the
dispenser other than known and microbiologically safe bottled water. Warranty is void
if water cooler portion is used for any other liquids including coffee, tea, juices, beer or
wine. some fluids like juices may develop harmful bacteria.
• For indoor use only. Keep unit in a dry place away from direct sunlight. Do NOT use
outdoors.
• Install and use only on a hard, flat and level surface.
• Do NOT place dispenser into an enclosed space or cabinet.
• Do NOT operate dispenser in the presence of explosive fumes.
• Position back of dispenser no closer than 4 inches from wall and permit free airflow
between wall and dispenser. There must be at least 4 inches clearance on the sides of
the dispenser to permit airflow.
• Use only properly wired and grounded outlets.
• Do not use an extension cord with this unit.
• Use dedicated electrical outlet. Connected load is 14 amps.
• Always grasp plug and pull straight out from outlet lugs bent. Never unplug by pulling
on power cord.
• Do NOT use this unit if cord becomes frayed,or otherwise damaged.
• To protect against electric shock, do NOT immerse cord, plug, or any other part of
cooler in water or other liquids.
• Ensure this unit is unplugged prior to cleaning.
• Never allow small children to dispense coffee or hot water without proper and direct
supervision. Unplug unit to prevent unsupervised use by small children.
• Service should be performed only by a certified technician. Please contact us at
888-377-6216 for assistance, between 9 AM and 5 PM monday to friday eastern time.
WARNING
6

SAFETY PRECAUTIONS - Electrical Requirements
WARNING
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Make sure power prongs(lugs) and ground prong are in
good condition, hot bent or altered in any ways. Do not remove ground prong. Do not use an
adapter.Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Dedicated power outlet 115/120 volt, 60 Hz., AC only, 15- amp, fused electrical supply is
required. A time-delay fuse or circuit breaker is recommended. Do not overload the circuit,
provide separate circuit, to serve only this appliance.
This water cooler is equipped with a power supply cord having a 3 prong grounding plug.
To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong,
grounding-type outlet, grounded and wired in accordance with local codes and ordinances,If
a mating outlet is not available. It is the personal responsibility and obligation
of the customer to have the properly grounded outlet installed by a qualified electrician.
If codes permit and a separate ground wire is used, it is recommended that a qualified
electrician determine that the ground path is adequate.
Do not ground to a gas pipe.
Check with a qualified electrician if you are not sure the water cooler is properly wired and
grounded.
Do not use a fuse in the neutral or ground circuit. It must be installed in the power line only.
GROUNDING INSTRUCTIONS
For a grounded, cord-connected water cooler:
This water cooler must be properly wired for correct polarity and grounded. In the event of a
malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a
path of least resistance for electric current. This water cooler is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
appliance is properly wired or grounded.
Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.Do not bend or remove prongs.
“Please make sure that ELECTRICAL OUTLET IS PROPERLY WIRED
TO CORRECT SIZED CIRCUIT BREAKER OR FUSE AND PROPERLY
GROUNDED. MUST BE WIRED TO HAVE CORRECT POLARITY.”
7

Features ......................................................................................................
Sound’s You Might Hear ...............................................................................
Comparison Between and other Brand Water Cooler and Coffee Brewer....
Safety Precautions .........................................................................................
Safety Precautions-Electrical Requirements...................................................
Key Information for Future Use ......................................................................
Specifications ..............................................................................................
Parts & Features .........................................................................................
Assembly ......................................................................................................
Installation .................................................................................................
Dispensing Coffee - See Instructions for “How to Brew Coffee”....................
Descaling Your Coffee Brewer/Water Cooler.................................................
How to Install filters........................................................................................
Troubleshooting ............................................................................................
Open Inspection Porthole .............................................................................
Cleaning Under Control Board in Case of Severe Spill of Liquids................
How to Open Control Board Enclosure for an Inspection.............................
2
4
5
6
7
8
9
9
10
10
11
12
13
14
17
17
18
TABLE OF CONTENTS
KEY INFORMATION FOR FUTURE USE
For future support please record your serial number (located on
label on back of the unit) and date purchased. Staple your
receipt to manual.
You will need this information to obtain warranty service.
Product:
Model Number : 8HCH-KK-SSF-2/1POU
Serial ID Number:
Date of Purchase:
Store:
Single Serve Turbo Brewer and 2/1POU Water Cooler
Combination Unit
8

SPECIFICATIONS
PARTS & FEATURES
Power Supply
Refrigerant Type
Max Cold Water Power
Cold Capacity / Hour
Cold Temp Range
Hot Water Power
Hot Capacity / Hour
Hot Temp Range
Product Dimensions
Net Weight
Cover Tray
Lid of the Coffee Brewer
Coffee Brewer Control panel
Control: Hot Water
Toddlers Safety Latch
Control: Cold Water
Faucet Nozzle For Coffee
Faucet Nozzle For Cold/Hot Water
LED Night Light
Drip Tray For Coffee
Drip Tray for Cold/Hot Water
Door
Bottle Tray
Filters for 2/1POU
Hot Energy Saving Switch
Cold Energy Saving Switch
Electrical control panel
Power Cord
Carry Handle
Drain Plug
Condenser
120V~/60Hz / 12 Amp
R-134A
100W
6 L/H
3°C – 10°C / 37.4
0
F- 50
0
F
1400W
9.5 L/H
89°C – 94°C / 192
0
F - 203
0
F
111.4 H x 32 W x 38.2 D(cm)
43.9 H × 12.6 W x 15 D (inch)
20.6kg/45.4lbs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
4
5
7
9
10
11
12
13
14 21
20
19
17
8
18
16
6
3
15
9

WARNING
ASSEMBLY
Keep plastic bags away from children.

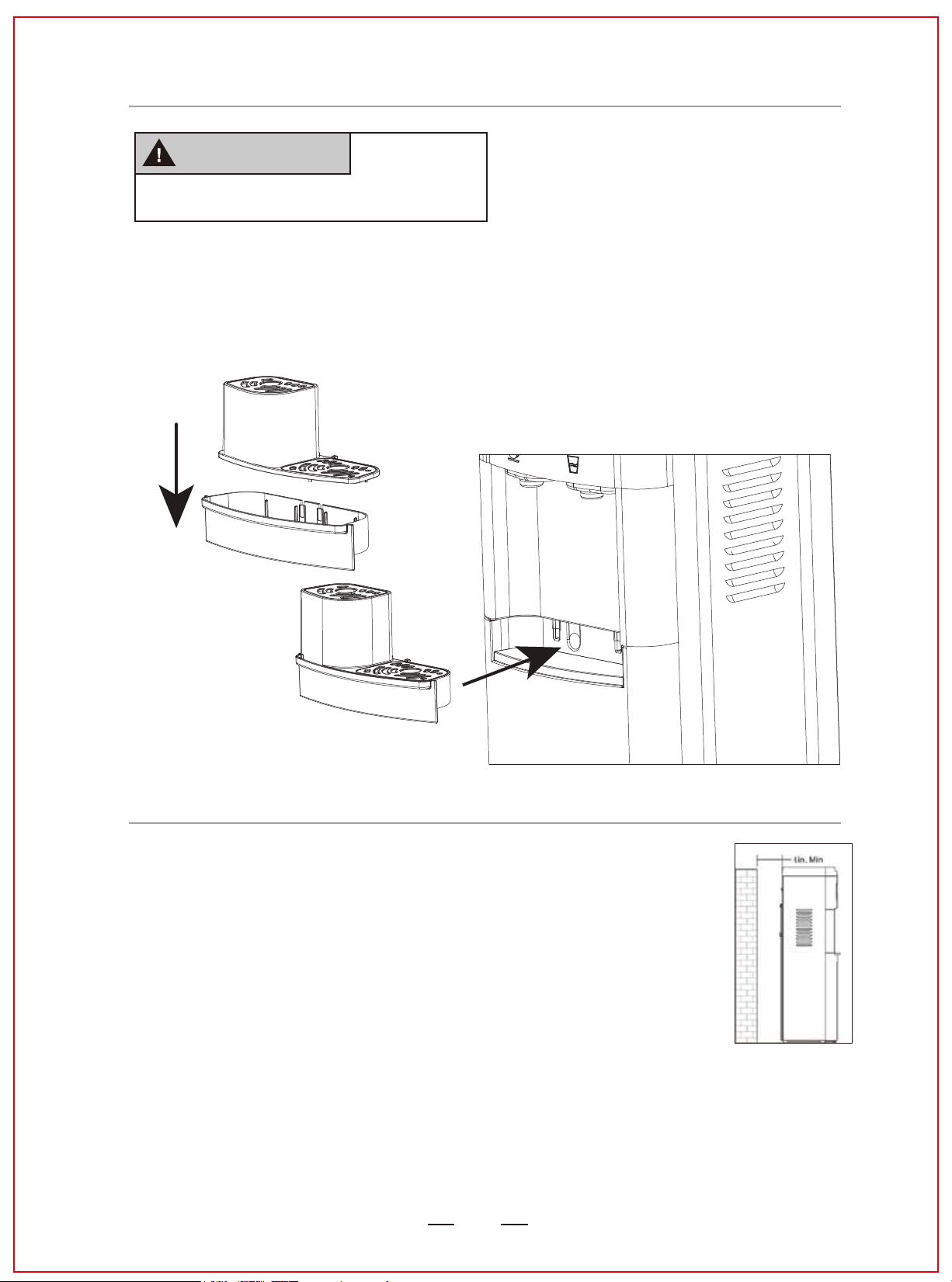

1. Remove dispenser from packaging.
2. Unpack drip tray and insert into dispenser.
3. Remove protective packaging from around probe.
4. Properly dispose of all packaging materials.
1. Place water cooler upright.
2. Locate water cooler on a hard and level surface in a cool shaded
location near a grounded wall outlet.
Notice: Do NOT plug in power cord yet.
3. Position water cooler so the back is at least 4 inches from wall and there
are at least 4 inches of clearance on both sides.
4. To minimize vibration and noise, make sure dispenser is level.
Notice: Do NOT plug in power cord yet.
INSTALLATION
10

11
Operating Instructions:
1. Make sure you have turned on RED hot energy savings switch at the back. See No. 15 on page 9.

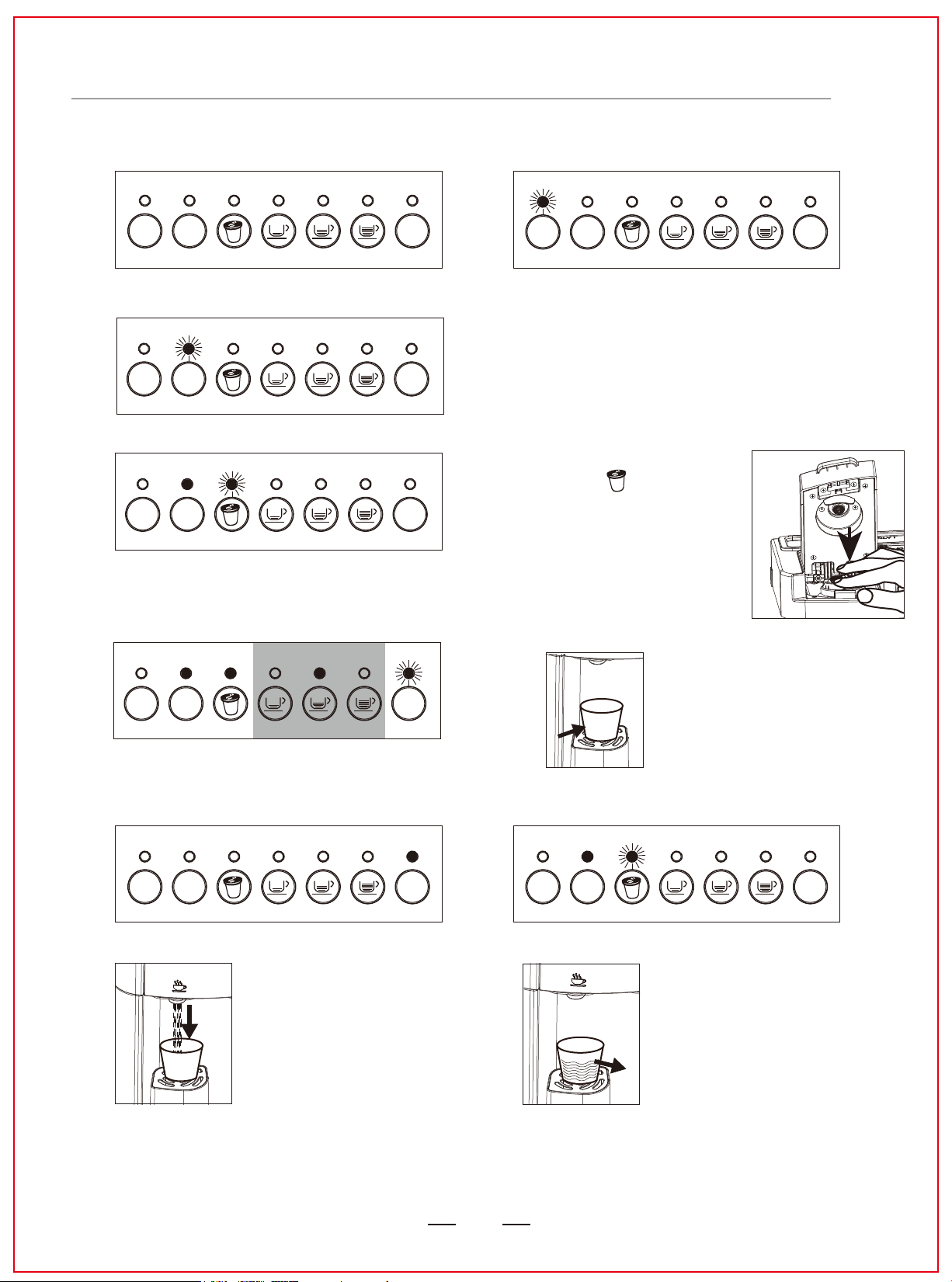

DISPENSING COFFEE -SEE INSTRUCTIONS FOR “HOW TO BREW COFFEE”
BREW
PRE-
HEAT READY BREW
PRE-
HEAT READY
BREW
PRE-
HEAT READY
BREW
PRE-
HEAT READY
BREW
PRE-
HEAT READY
BREW
PRE-
HEAT READY BREW
PRE-
HEAT READY
2.
3.
4.
7.
8. 9.
5.
Touch “PRE-HEAT”button. If “READY”light is not ON.
By default 8 oz, middle cup is pre selected
for you. If you wish to have different size cup,
touch your choice.
6.
10. To fill next cup repeat procedures from 3 to 7, after ready light is ON.
Touch “BREW” button when the “BREW” LED is ON. Light will be off after coffee is poured.
Wait few seconds for coffee to start pouring.
Place a coffee cup on top
of brewers drip tray.
a. Open lid and place a COFFEE
CAPSULE when “ ” LED is
blinking.
b. Press coffee capsule down by
your hand to pierce bottom of the
capsule.
c. If Brewer was switched off, wait up to 10 minutes until the Ready light is
ON. If “READY” light is blinking, if indicates there is not enough water in storage
tank.Wait up until water is pumped up .Check if bottle has water.
Ready light will go on only when hot water temperature
is 2010F. Water temperature goes down to 1950F if
Brewer was not used for 3 hours. Ready light might
keep on blinking if water level is low . Please check the
bottle.
Wait for 3 seconds after coffee
pour stops, before removing
cup. Do hot open coffee
brewer lid early.

Your brewer and water cooler share a low watt density, external hot water tank heater. If has a
larger area to spread heat comparing to ordinary internal water heating elements. You may experi-
ence a buildup of mineral scale or calcium deposits, depending on mineral content of the water.
Still, build up occurs at a much slower rate than with an internal heaters. Mineral scale is non-toxic,
however it can affect the brewer's performance by interfering with internal valves. Descaling your
brewer helps maintain clean internal parts that come in contact with water.
If you are using mineral or filtered water, the brewer should be descaled every year to ensure
optimal performance or whenever there are white deposits in the hot water tank. It is possible for
calcium deposits to build up faster, making it necessary to descale more often. If you use distilled or
RO water descaling is not required.
This is how to descale your hot water tank:
Step 1. Make sure you have at least half a gallon of undiluted white vinegar on hand.
You will also need a 1½ gallon jug and access to a sink.
Step 2. Switch off the cooler by unplugging power cord. Remove the 5 gallon bottle. Drain all
the water out through the drain at the back. Replace the drain plug.
Step 3. Place the probe into the container with vinegar.
Step 4. Plug the power cord into an outlet. Hold the reset switch for the door to start the cooler
and get the pump working. Fill the cooler with vinegar.
Step 5. Check if hot tank is full of vinegar by dispensing it from hot water faucet.
Step 6. Remove the container filled with the vinegar and close the door.
Step 7. Turn the Hot Energy Saving’s switch on (see #15 on page 9) and allow it to sit for at
least 30 minutes.
Step 8. After the prescribed period of time, unplug the cooler, drain the vinegar through the drain
on the back.
Step 9. Rinse by closing the drain and placing a 5 gallon bottle or other container with tap water
inside of the compartment with the probe inserted into it. Plug the cooler back in to fill
the hot and cold tank with tap water.
Step 10. Rinse with tap water until smell goes away .
Step 11. Turn the Energy Saving's switch (#15 on page 9) ON and let it sit for 30 minutes.
Step 12. Drain the water through the back drain again by following previous instructions.
Step 13. Repeat rinsing until the vinegar smell is gone and there is no sign of calcium deposits
left (they may get dissolved or show up as small white crystals).
Step 14. Place the 5 gallon bottle back and enjoy your brewer/water cooler once again.
DESCALING YOUR COFFEE BREWER / WATER COOLER
12

13
HOW TO INSTALL FILTERS
Turn CW and push to installTurn CCW and pull to removeSwivel upwards
1 2 3

14
Water cooler does not operate.
• Make sure the power cord is properly connected to a dedicated working outlet.
• Make sure energy savings switches are turned on. Make sure the cooler is plugged in and
the circuit breaker is not tripped. If needed, use another receptacle and confirm there is
electricity going to the cooler.
• Please test carefully.
No water is coming from the taps.
• Make sure there is a proper connection to city water and water is not shut off.
• Check the hose connections from the water pump to the probe in the coffee.
• Check the hose connections from water pump to the dispensing probe.
• Check if leak valve is wet and has shut off water supply.
TROUBLESHOOTING
1. Remove U-shaped lock. 2. Press collet and pull
tubing out.
3. If end has burrs, clean it up with pencil sharpener, do not make
chamfer large, it will cause leak.
4. Push tubing in all the way. 5. Reinstall U-shaped lock.

15
Water is leaking.
• If leak remains, remove the probe from the bottle and call 888-377-6216 for assistance.
Push buttons are stuck and/or faucets are leaking.
• Apply mineral oil (baby oil) to button slides to reduce friction.
Cold water is not cold.
• It takes up to 3 hour after setup to cool water fully.
• Make sure the back of the dispenser is at least 4 inches from a wall and there is free airflow on all 4 sides
of the dispenser.
• Make sure energy saving switch is ON.
Hot water is not hot.
• It takes 15 minutes after setup to dispense hot water.
• Make sure the power cord is properly connected to a dedicated working outlet.
• Make sure the energy saving switch is “ALWAYS ON” and the “Hot cup” icon is illuminated. That indicates
the heating system is turning on.
The LED night lights are flashing and the dispenser is beeping.
• Replace the empty bottle. If a replacement is unavailable, leave the door ajar or unplug the cooler to stop
the beeping and flashing lights.
• There may be an air leak. Check the hose connections from the water pump to the probe in the coffee.
Dispenser is noisy.
• Make sure dispenser is positioned on a level surface. Place mat provided under the cooler.
The buttons on the control panel do not work or unresponsive
• The hot tank may be empty. Please check to see if the bottle is empty. If it is, please replace it. If it isn't
adjust the probe to an appropriate length.
• Please check if a coffee capsule is in the coffee machine. If there isn't, please add one. If there is one,
please open and close the lid. Settings will expire after being on hold for a while.
• Please check if the LED is working on the control board. If it isn't, perhaps the wires are loose or are
making poor contact. See flow to open porthole and outer cabinet.
Can't close the lid
• The cup holder may be mounted incorrectly. Please make sure the triangular arrow is facing up.
• Check if the spring in the lid is blocked by debris.
Noisy ozone pump, Noisy water pump
• If the ozone and/or water pump are noisy, please call 888-377-6216 for assistance.
• Humming sound is normal.
Touch keys on the sensor touch control board not responsive.
• Check to see if you touched two or more keys at the same time. If so, please move your hands away for
awhile and try again. Wipe keys clean and dry. If not, perhaps your finger is too dry. Try moistening your
finger and try again.
Because the coffee machine may have sat for a long time prior to purchase, please dispense a
little hot water before brewing the first cup of coffee.
Dosage of water per coffee cup:
• The variation of 0.5OZ is normal for a same setting.
Coffee capsule not punctured by needle.
• Please check if the Coffee Capsule is placed properly.

16
WARNING

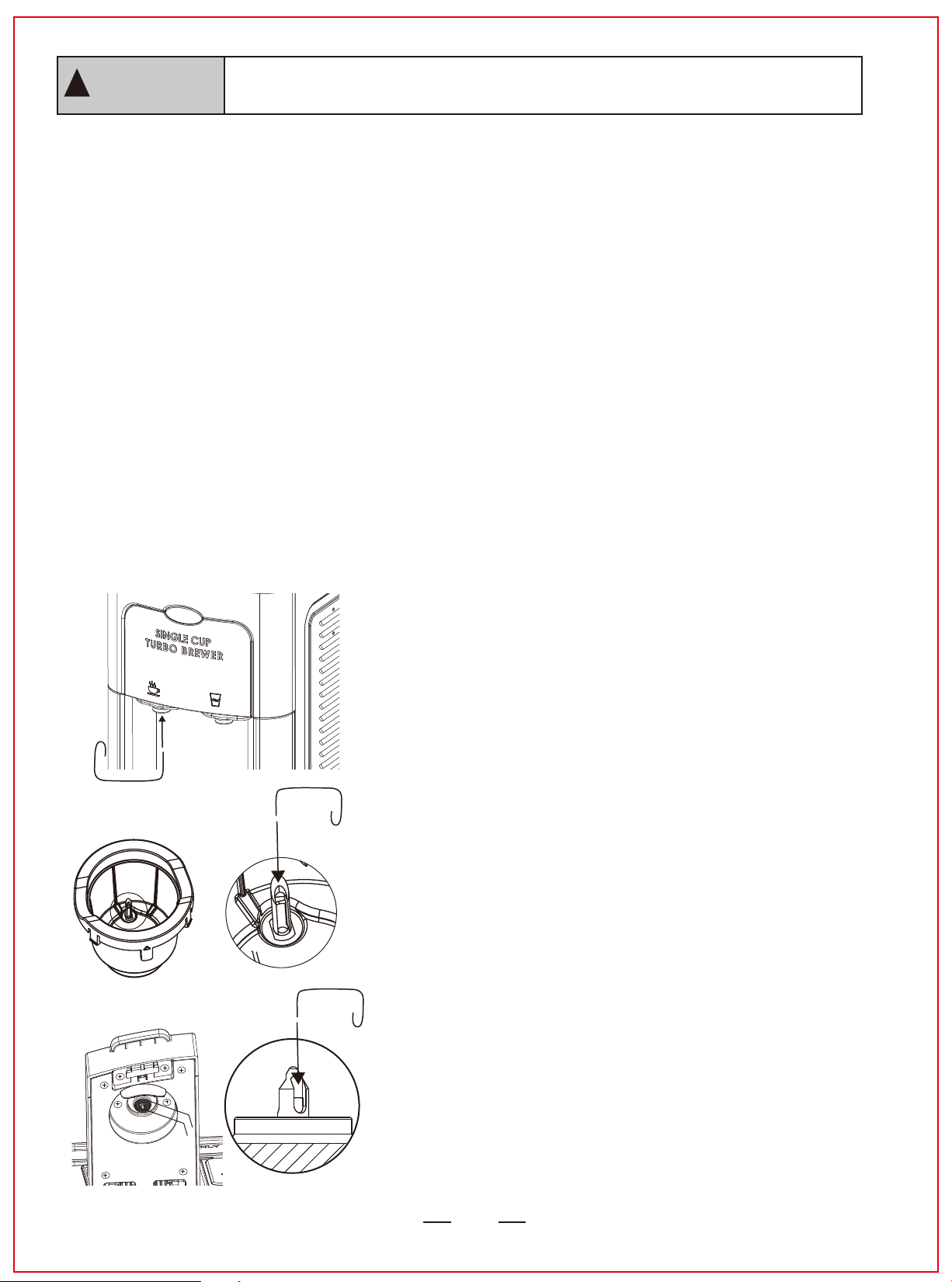

If COFFEE CAPSULE is pierced more than once, upper needle may get
blocked by coee grinds. Please use unfolded paper clip to clean it out.
Blockage of passageways.
When brewer is operated properly, it will not get blocked. If coffee capsule is used more than once it may create
blockage. To prevent passageway blockage please use coffee capsule once only. Open lid few seconds after
last drop had run out. Do not open lid prematurely. Coffee cartridge with piercing needle must be maintained
clean and without the dirt. Container below the cartridge must be periodically cleaned from dried up coffee.
Your Brewer has two capsule piercing needles. One on top, called inlet needle and one at the bottom, called
outlet needle. It also has long passageway from the brewer to the exit nozzle. If blockage occurs in the exit
nozzle , use unfolded paper clip to clean it out.To maintain proper operation make sure the both needles and
exit nozzle are kept clean.
Lower needle is not of tubular construction and does not go all the way through. It has U-shaped configuration
with slot on its side. This proprietary design makes clogging up this needle more difficult compared to
conventional design. If lower needle is blocked, wash cartridge under running water and use unfolded paper clip
to clean inside of the needle. It is not open all the way through. it has sealed end.
Coffee runs out out of the coffee capsule through the slot in the needle and then into the inside of the coffee
capsule using same slot. this way blockages are minimized and coffee runs out of the machine at lower
temperature. During the brew process water is very hot.
If upper, inlet nozzle get blocked use paper clip to clean. Needle has 3 openings around the central spike. Check
if the silicone seal on the upper piercing needle is properly installed.
Dispense few cups of water to rinse well. Clean with unfolded paper clip well. To dispense water only you will
need to open and close lid in order to send signal via sensor to control board. Never leave blocked needle for
more then 5 minutes, since blocked coffee will dry up and make it more difficult to remove.
A
BB
A
If blockage occurs in the exit nozzle , use unfolded
paper clip to clean it out.
If upper, inlet nozzle get blocked use paper clip to
clean. Needle has 3 openings around the
central spike. Check if the silicone seal on the
upper piercing needle is properly installed.
Lower needle is not of tubular construction and
does not go all the way through. It has U-shaped
configuration with slot on its side.It has sealed
end. Coffee runs out out of the coffee capsule
through the slot in the needle and then into the
inside of the coffee capsule using same slot.

17
WARNING

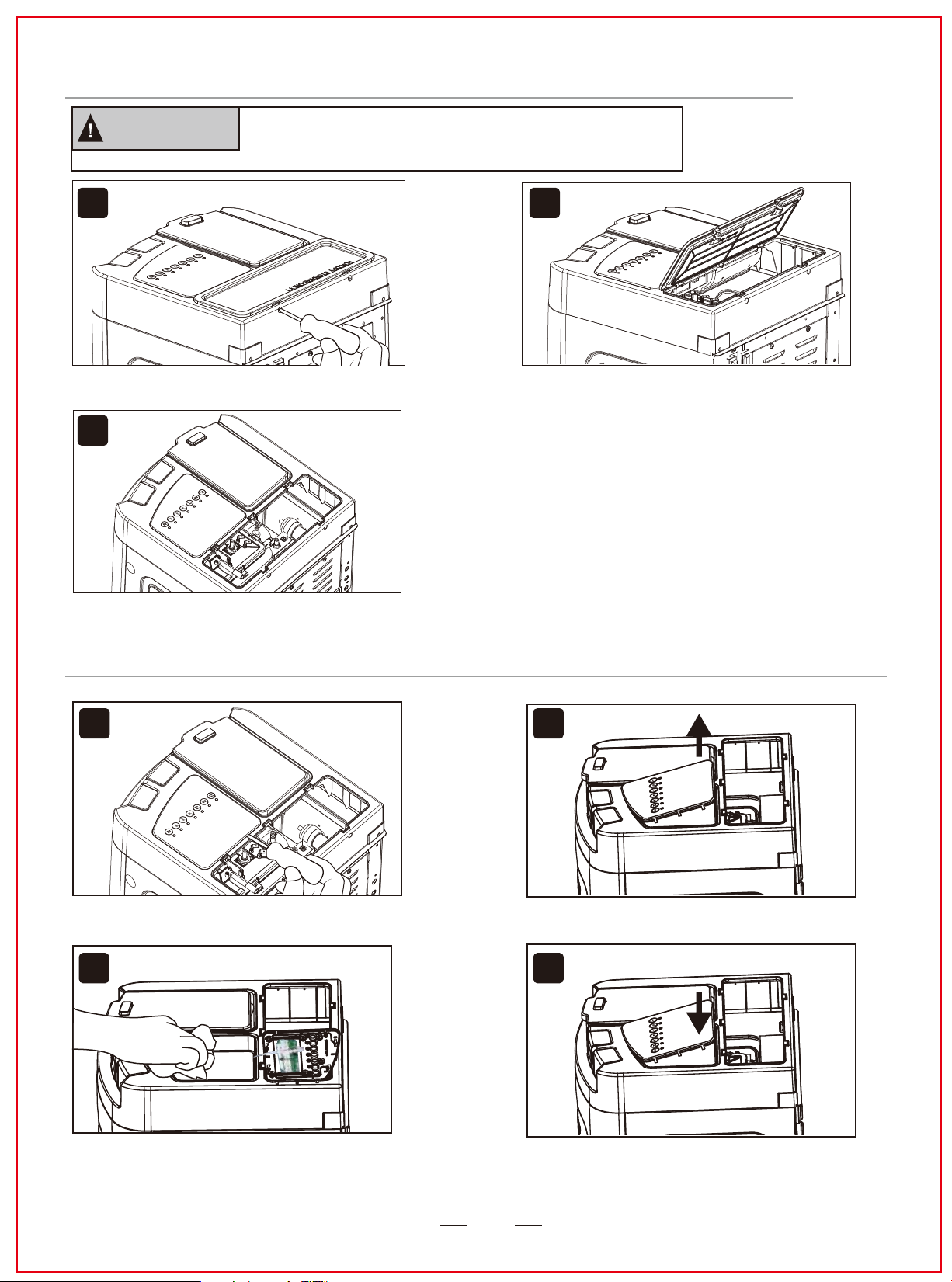

OPENING INSPECTION PORTHOLE
CLEANING UNDER CONTROL BOARD IN CASE OF SEVERE SPILL OF LIQUIDS.
To be performed by qualied person only.
Unplug unit by disconnecting power cord.
Unscrew two holding screws from the back
as shown.
Lift Coffee Capsule storage tray. Beware
of hot water.
Report observations to service toll
phone [phone].
Using flat screwdriver. Push lock tabs
to release control board assembly. Lift controe board assembly.
If water present soak it up with paper towel. Close lid and press down.
1
1
3
3 4
2
2

18
HOW TO OPEN CONTROL BOARD ENCLOSURE FOR AN INSPECTION
Unscrew two holding screws
from the back as shown.
Report observations to service
toll phone [phone].
WARNING
To be performed by qualied person only.
Unplug unit by disconnecting power cord.

19
Notice!
Electrotemp is not licensed by, associated with, or endorsed by
Keurig, Inc., and any use of the K-CUP®mark in connection with this
product is only to convey that Electrotemp’s product can be used
with Keurig’s K-CUP coffee products.

Imported by Global TTL:
EnviroLux is a registered Trademark of Global-TTL
6137 NE 63rd Street Vancouver, WA 98661.
888-377-6216
