Perlick HP15 User manual

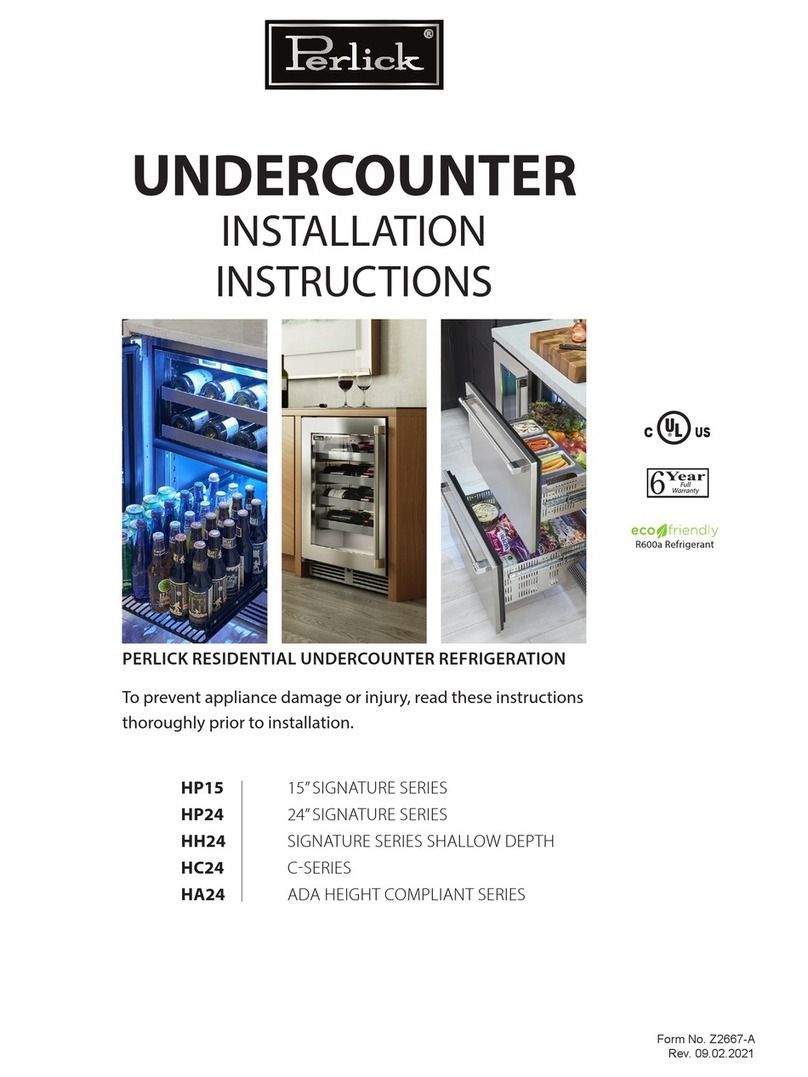

PERLICK RESIDENTIAL UNDERCOUNTER REFRIGERATION
To prevent appliance damage or injury, read these instructions
thoroughly prior to installation.
UNDERCOUNTER
INSTALLATION
INSTRUCTIONS
HP15 15”SIGNATURE SERIES
HP24 24”SIGNATURE SERIES
HH24 SIGNATURE SERIES SHALLOW DEPTH
HC24 C-SERIES
HA24 ADA-COMPLIANT SERIES
C
US
R600a Refrigerant
Form No. Z2667-A
Rev. 12.15.2020
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
2| perlick.com/residential
Warranty
To register your product, visit our web site at www.perlick.
com. Click on “Residential”, then “Resources”. Click on the
link “Warranty Registration Form”. You must complete and
submit this form or the installation date will revert back to
the ship date.
Please record the purchase date and the dealer’s name,
address and telephone number below.
Model Number: ________________________________
Serial Number: _________________________________
Purchase Date: _________________________________
Dealer Name & Address __________________________
______________________________________________
______________________________________________
______________________________________________
Phone Number _________________________________
Introduction
Congratulations on your purchase of a Perlick Residential
undercounter product. This manual has been prepared
to assist you in the installation of your cabinet and to
acquaint you with its operation and maintenance.
This manual has been prepared to assist you in the
installation of your under counter refrigerator and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our products
provide the highest level of customer satisfaction. If
service is required, your dealer can provide you with a list
of qualied service agents. For your own protection, never
return merchandise for credit without our approval.
We thank you for selecting a Perlick product and assure
you of our continuing interest in your satisfaction.
GENERAL INFORMATION
TABLE OF CONTENTS
General Information................................................................................................................................................................................2
Safety ............................................................................................................................................................................................................3
Refrigerant..................................................................................................................................................................................................3
Prior To Installation ..................................................................................................................................................................................3
Preparing the Cabinet for Use
Uncrating and Inspection ..............................................................................................................................................................4
Electrical...............................................................................................................................................................................................4
Use and Operation...................................................................................................................................................................................4
Repair & Maintenance ............................................................................................................................................................................5
Installing Casters or Legs.......................................................................................................................................................................5
Installation ..................................................................................................................................................................................................5
Preparing the Space ................................................................................................................................................................................6
Placing the Cabinet..........................................................................................................................................................................6
Installing the Unit.....................................................................................................................................................................................6
Toe Plate Installation........................................................................................................................................................................7
Adjusting Full Extension Shelving ..............................................................................................................................................8
Door Options/Adjustment.............................................................................................................................................................8
Handle/Lock Installation ............................................................................................................................................................. 11
Overlay Installation ....................................................................................................................................................................... 12
Touch-Screen Control Operation..................................................................................................................................................... 15
Checking Product Temperature................................................................................................................................................ 15
Digital Temperature Control ...................................................................................................................................................... 15
Programming Button Denitions ............................................................................................................................................ 15
LED Functions ................................................................................................................................................................................. 15
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 3
IMPORTANT!
Read and understand all information in this manual before attempting the installation. All plumbing
and electrical work must be performed by a qualied technician and conform to all applicable state
and local codes.
SAFETY
PLEASE READ all instructions completely before
attempting to install or operate the unit. Take particular
note of the DANGER, WARNING and CAUTION information
in the manual. The information is important for the safe
and ecient installation, operation and care of your Perlick
unit.
DANGER
Indicates a hazard that WILL result
in serious injury or death if
precautions are not followed.
WARNING
Indicates a hazard MAY cause
serious injury or death if
precautions are not followed.
CAUTION
Indicates a hazard where minor
or moderate injury may occur if
precautions are not followed.
NOTICE
Indicates that property damage
may occur if warnings or
instructions are not followed.
Refrigerant
DANGER
Take caution when handling,
moving and using the product to
avoid damaging the refrigerant tubing or increasing
the risk of a leak
WARNINGAll service work shall be
performed by factory authorized
service personnel and all component parts shall be
replaced with like components to minimize the risk of
possible ignition due to incorrect parts or improper
service.
CAUTIONIf service is necessary, repair work
must be performed by a Perlick
authorized servicer. Work done by unqualied
individuals could potentially be dangerous and will
void the warranty.
NOTICE
This product contains blown foam
insulation using blowing agent
R-611 (Methyl Formate). The foam in this product
does not contain HFC’s, CFC’s, or HCFC’s.
All models covered in this user manual are manufactured
usingrefrigerantR600a(Isobutane).R600aisahydrocarbon.
This refrigerant is ammable and is only allowed for use in
appliances with fulll the requirements of UL/IEC 60335-1
and UL/IEC 60335-2-24. (To cover potential risk originated
from the use of ammable refrigerants). Consequently,
R600a is only allowed to be used in refrigerating appliances
with are designed for this refrigerant and fulll the above-
mentioned standard.
• R600a is heavier than air. The concentration will always
be highest at the oor level.
• The explosion limits are as follows:
o Lower Limit: 1.8% by volume
o Upper Limit: 8.4% by volume
o Ignition Temperature: 460°C
Prior To Installation
Carefully inspect cabinet for hidden damage. If damage is
discovered, le your claim immediately with the transport
company. Perlick is not responsible for damage in transit.
CAUTION
When moving the unit, be sure to
protect nished ooring with
appropriate material to avoid damage from moving the
unit.
CAUTION
Do not lift unit by drawer, shelving
or door handles, as damage to the
unit could occur if not moved as instructed.
WARNING
To prevent personal injury, a
minimum of two people are
required to lift the unit. Larger units may require
additional personnel.
Before moving the unit, secure the door shut with tape
to prevent door from swinging open while being moved.
Carefully move unit to installation site and place in front
of opening.
CAUTION
If unit has been laid on its back or
sides, place unit upright and allow
minimum of 24 hours before connecting power.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
4| perlick.com/residential
WARNING
Never use an extension cord to
connect the unit to the electrical
source. Do not use a two-prong adapter or remove the
power cord ground prong. Failure to use grounding
mayresultindeath,seriousinjury,or property damage.
NOTICE
Using any voltage other than
specied will result in serious
damage to the unit.
Figure 1. HH (Sottile Model) Electrical Connections
USE & OPERATION
DANGER
Do not use or store ammable
liquids (ie; gasoline) or vapors
near the appliance to avoid re.
WARNING
To avoid contamination, use food
safe containers (not included) for
the storage of craft ice in the cabinet’s freezer
compartment.This equipment does not include a drain
and is intended for use with craft ice and other non-
hazardous food stored in food safe containers. Perlick
recommends the use of NSF food certified containers.
CAUTION
If service is necessary, repair work
should be performed by a Perlick-
authorized service personnel. Work done by
unqualied individuals could create dangerous
conditions in unit that may result in serious injury or
death.
NOTICE
The unit must NOT be totally
enclosed or damage may occur.
UNCRATING AND INSPECTION
Remove all crating material before operating. Carefully
inspect cabinet for hidden damage. If damage is
discovered, le your claim immediately with the transport
company. Perlick is not responsible for damage in transit.
DANGER
Do not use or store ammable
liquids (ie; gasoline) or vapors
near the appliance to avoid re.
INSTALLATION
NOTICE
The unit must NOT be totally
enclosed or damage may occur. Air
circulation must not be restricted. The condenser at
cabinet front must be provided with a minimum of two
inches air space. Be sure to provide access so front cover
can be removed to clean the condenser.
NOTICE
If unit has been laid on its back or
sides, place unit upright and allow
a minimum of 24 hours before connecting power.
Failure to follow this procedure may damage the
compressor and void the warranty.
NOTICE
Use care when handling, moving
and using the product to avoid
damaging the refrigerant tubing or increasing the risk
of a leak.
PLUMBING
No plumbing connections are required. Condensate from
the cooling coil is automatically evaporated through a
condensate pan located in the condensing section of the
unit.
ELECTRICAL
For specifications, see data plate located on the cabinet.
Also, see wiring diagram located in this publication.
WARNING
Inspect the electrical cord and
plug for damage prior to
energizing the unit to avoid potential electric shock.
WARNING
Use electical grounding to avoid
electrocution or electric shock.
This appliance is equipped with a 3-prong (grounding)
polarized plug for your protection against possible
shock hazards. Failure to use grounding may result in
death, serious injury, or property damage.
Preparing the Cabinet for Use
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 5
13-⁄”
⁄”
⁄”
Figure 2A. 15” Anti-tip Kit
22-⁄”
⁄”
⁄”
Figure 2B. 24” Anti-tip Kit
REPAIR & MAINTENANCE
WARNING
All service work shall be performed
by Perlick-authorized service
personnel. All component parts shall be replaced with
like components. Incorrect parts or improper service
may result in re.
INSTALLING CASTERS OR LEGS OPTIONAL
Attach bracket assembly to the bottom of the cabinet base
using the ¼”-20 Philips head machine screws provided.
Attach casters or legs to the mounting bracket with ¼” –
20 Philips head screws provided
NOTICE
Anti-tip brackets are only used for
stationary cabinets and should not
be installed on cabinets with accessory casters. Caster
kits are available for HP, HC and HA model cabinets.
Refer to the instructions supplied with the caster kit
for proper installation.
NOTICE
If installing on a concrete oor,
concrete fasteners are required and
not included with the anti-tip kit.
NOTICE
Some installation sites may require
modications to provide a secure
surface for attaching the brackets.
A set of anti-tip brackets is supplied with the unit. These
brackets should be attached to the oor at the rear of the
unit. Each bracket must be located to engage the rear
glides when the cabinet is pushed back into position. Refer
to Figures 2A and 2B (shown on right) for anti-tip bracket
mounting locations.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
6| perlick.com/residential
PREPARING THE SPACE
CAUTION
If the unit is to be installed under
a countertop, it is recommended
that the countertop be supported by surrounding
cabinetry and use shims to support countertop
directly above the refrigerated cabinet.
CAUTION
Make sure the oor under the
unit is level with the surrounding
nished oor. Protect a nished oor with plywood,
cardboard, or some other suitable material before
moving the unit into place. Failure to do this may result
in damage to the oor.
PLACING THE CABINET
To assure maximum performance, fresh air must
be allowed to circulate through the machinery
compartment. Do not place anything in front of the
cabinet that would obstruct air ow at these grilles. Do
not place the unit in an unventilated small room.
NOTICE
Cabinet should be leveled front to
back then side to side
1). Make sure the space opening is correctly sized for
the unit. See chart below for nished rough opening
requirements:
HP15 15” Signature Series
Height Depth Width
34-3/8”minimum,
35-1/2”maximum
24” 15”
HP24 24” Signature Series
Height Depth Width
34-3/8”minimum,
35-1/2”maximum
24” 24”
HH24 Signature Shallow Depth
Height Depth Width
32-1/2” 18” 24”
HC24 24” C-Series
Height Depth Width
34-3/8”minimum,
35-1/2”maximum
24” 24”
HA24 24” ADA-Compliant Series
Height Depth Width
32-1/2” 24” 24”
NOTE: For a cabinet door to open properly, the door must open a
minimum of 90°. Use a minimum 3” ller in corner installations to
assure a full 90° opening. Allow 25” clearance in front of unit for full
door swing and shelf/drawer pull out for all units.
2). Check that the following are level and square:
• Front and interior opening
• Installation opening and oor surface
• Countertop bottom front edge
NOTE: The oor under the unit must be at the same level as the
surrounding nished oor.
CAUTION
To prevent possible damage to
the countertop, do not place
heavy objects on countertop directly over unit.
INSTALLING THE UNIT
1) Plug the unit into the 15 amp grounded electrical
outlet located within the installation opening. With
power applied to the unit, check that the lighting and
cooling functions operate properly. Turn o the power
to the wall outlet at the circuit breaker.
2) With all surfaces in the installation opening square
and level, refer to Figure 4 on page 7 and perform the
following steps to level the unit:
• At the front of the opening, measure from the oor to
the bottom of the front edge of the countertop.
• Measure from the oor surface to the top of the unit
at the rear corners.
• Adjust the unit legs so these two measurements are
equal. Using an adjustable wrench or pliers, turn legs
clockwisetolowertheunitorcounterclockwisetoraiseit.
NOTE: Legs should not extend more than 3/4” from the bottom
of the unit.
3) Slide the unit into position in the opening. Make sure
the rear leveling legs slide under the ant-tip brackets.
Push the unit into the opening until the bottom front
edge of the unit is ush with the surrounding cabinetry,
or until the rear legs are tight against the anti-tip
brackets.
4) Shim the front of the unit so the front face is ush
with the surrounding cabinetry. Adjust the front legs to
support the countertop at the shimmed height. Using
an adjustable wrench or pliers, turn the legs clockwise to
lower the unit or counterclockwise to raise it. Countertop
should be resting on top of the unit.
NOTE: Countertop should be resting evenly on entire top of the
unit. Shim if necessary to prevent damage to the countertop.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 7
5) Check interior door openings to make sure the unit is
level and square. Install shelving and/or drawers. Place
the slide brackets squarely into the bracket grooves.
When installed properly, a “click” should be heard from
the slide bracket retaining tabs and the brackets should
slide smoothly. The retaining tabs will stop the shelf/
drawer when pulled out to full extension.
6) Turn on the power to the wall outlet at the circuit
breaker.
NOTE: Improper shelf/drawer installation may not actuate
slide mechanism.
TOE PLATE INSTALLATION
Once the unit is secured in place, install the louvered
toe plate. Secure the plate by snapping the latch into
the latch catch on the unit , and re-attach screws using
through holes provided in the toe kick. A phillips #2
screwdriver, with a 3” long shaft will be required. (Figure
5).
CAUTION
The toe plate must be removed to
service the unit. The oor cannot
interfere with removal, and the louvered sections
must not be covered or obstructed. Obstructions
could prevent proper air circulation, which may
damage the unit.
NOTE: To achieve maximum performance, interior louver
openings and fan guard openings should never be obstructed.
Figure 4. Leveling the Unit
Figure 5. Toe Kick Installation
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
8| perlick.com/residential
SHELVING/DRAWER ADJUSTMENTS
CAUTION
Completely empty shelf or drawer
before removing.
1. Pull the shelf/drawer out to its furthest position.
Locate the tabs in the middle of both extenders. Lift
one tab up while pushing the opposite tab down,
and pull shelf/drawer out (Figure 6).
2. Position each bracket separately. Grasp the middle
of the bracket, pull the front end up and out, then
forward to remove it.
3. Place bracket at desired location. Push the bracket
rear hook into the rear mounting slot, then set front
of the bracket in the front slot.
4. Repeat for other brackets.
5. Push extenders completely into brackets. Align the
shelf/drawer grooves with the extenders and slide
completely into the unit.
DOOR OPTIONS
Perlick residential units oer a variety of door panel
design alternatives; solid stainless steel, solid wood
overlay, glass with stainless steel trim and glass with
wood overlay trim.
Solid stainless steel and stainless steel glass doors are
shipped from the factory with decorative stainless steel
panels and handles in place on the unit. Solid wood
overlay and glass wood overlay doors are designed to
accept a decorative front panel to match surrounding
cabinetry and door handles.
NOTE: Wood overlay models are designed to accept wood
overlay panels from your cabinetry supplier. They do not
include a wood overlay. Templates are available on www.
perlick.com/residential-products. Click on Service & Support,
and then choose Wood Overlay Templates from the menu.
Take care in choosing the correct template for your specic
model. The handle is supplied by the customer.
All Perlick units (excluding beer dispenser and ice maker
models) accept any of the above door congurations
and are fully interchangeable. Glass door congurations
are not available on beer dispenser or ice maker models.
NOTE: Glass with stainless steel trim and glass with wood trim
may sweat in conditions with relative humidity over 75%.
CHANGING DOOR SWING DIRECTION
NOTE: Changing the door mount is not advisable if the door is
equipped with a custom wood overlay. Doing so may result in
an undesirable handle position.
To change the door swing direction, a hinge kit is
required:
• Part No. 67439R - Right hinge kit
• Part No. 67439L - Left hinge kit
In addition to the hinge kit, the following tools are
required:
• Large at head screwdriver
• Regular Phillips head screwdriver
• Plastic putty knife
1) Support the door in the open position as shown in
Fig. 7 on page 9. Remove the hinge pin.
2) Pull door to the side and then lower door.
3) Remove top and bottom hinge brackets. Retain screws
for later use. See Fig. 8 on page 9.
4) Remove the hole plugs from the top and bottom
hinge bracket mounting holes (see Fig. 8 on page 9).
Place the plugs in the holes on the opposite side made
vacant by removing the hinges in step 3.
Figure 5. Shelving/Drawer Adjustment
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 9
5) Using the screws removed in step 3, install the top and
bottom hinge brackets from the kit (Fig. 9).
6) Remove the top and bottom door hinge brackets and
the push plunger brackets (Fig. 10). Retain the screws for
later use.
Figure 7. Door Removal
Figure 8. Hinge Removal
Figure 9. Hinge Installation
Figure 10. Door Brackets
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
10 | perlick.com/residential
8) Remove the Perlick nameplate from the door front
using a plastic putty knife (Fig. 12). Install the new Perlick
nameplate included in the kit.
9) Insert the bearing into the door hinge bracket (Fig.
13).
10). Insert the V-block into the door bottom hinge
bracket and attach with the e-clip (Fig. 13). Note the
orientation of the V-block.
6°
11) Attach the top and bottom hinges and push plunger
using screws removed in step 6 (Fig. 14).
7) Remove the front panel from the door assembly
by removing the door gasket and then removing the
overlay mounting screws, 4 per side, from the perimeter
of the door assembly (Fig. 11). Rotate the front panel
180°. The top becomes the bottom. Reattach using the
same screws and mounting holes and then reinstall the
door gasket.
Figure 11. Removing Front Panel
Figure 12. Nameplate
Figure 13. Bearing and V-Block
Figure 14. Door Hinges
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 11
12) Place the lower V-block into the lower cabinet hinge
with the notch parallel to the cabinet (Fig. 15).
13) Lift the door assembly and insert the top pin into the
bearing.Movedoortowardcabinetand aligntheV-blocks
(Fig. 16).
14) Insert and tighten the lower hinge pin to complete
the assembly.
HANDLE INSTALLATION
The handle mounting on the wood
overlay should be mounted on the
overlay only (not the actual door) to avoid damage to
the factory door.
CAUTION
DOOR LOCK INSTALLATION
NOTE: Full size lock installation wood overlay panel templates
are available on the Perlick website. Visit www.perlick.com/
Residential, click on Service & Support, and then choose
Wood Overlay Templates from the menu. Lock templates are
available for all HP, HC, HA and HH series models. Take care in
choosing the correct template for your specic model.
When installing to a wood overlay, perform the lock
installation before mounting the wood overlay to the
door!
1. See Figure 17 below. Attach mounting bracket to
wood overlay.
2. Insert lock body and attach with nut.
r
Proper woodworking materials
and equipment should be used to
avoid damage or errors in workmanship.
CAUTION
1. Handle must be attached to the overlay before
mounting the overlay onto the door. Mark the rear
of the wood overlay panel with handle fastening
locations.
2. Drill through the wood overlay panel at marked
locations, taking care not to damage the panel.
3. Countersink screw heads so that screw heads are ush
with the back side of the panel. Attach the handle to
the overlay panel.
Figure 15. Installing V-Block
Figure 16. Installing Door
Figure 17. Installing Door Lock
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
12 | perlick.com/residential
WOOD OVERLAY INSTALLATION
Before beginning installation, check all components for
proper t and nish. Handle should be installed to the
overlay prior to installing overlay to door (use countersunk
athead fasteners for handle installation.)
CAUTION
For best performance and
functionality, the overlay panels
should be 3/4”thick. The weight of the overlays should
not exceed 20 lbs for solid (-2) doors, 10 lbs for glass
(-4) doors, or 10 lbs for drawer (-6) models.
1. -2, -4 and -6 models come ready to accept wood
overlay as shown below.
2. Remove the gasket carefully starting at the corners
and avoid ripping the dart.
3. In some cases, the dart on the gasket may rip. If this
happens, replace with a new gasket.
4. With the gasket removed, the screw holes needed
to hold the overlay panel will be reveal as shown
below.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 13
5. Loosely attached the four corners of the overlay
panel with the door frame with #10 x 3/4” wood
screws.
6. Make sure the overlay panel is aligned properly with
the door.
7. After alignment is satised, fasten down all screws
through the screw holes.
8. When re-installing the gasket, make sure the dart is
pressed inside the slot on the door frame. Start at
the four corners and rmly press your way inwards.
CAUTION
Do not overtighten wood overlay
attachment screws, as this may
damage the factory supplied door frame.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
14 | perlick.com/residential
9. Verify that the gasket is fully seated onto the door
frame when completed.
WINE RACK TRIM OPTIONAL
All wine reserve racks come with sleek stainless steel fronts.
Unnished solid hardwood fronts are optional and can be
removed and replaced with other wood to match your
cabinetry. See Figure 18 and 19 for wine rack face details.
NOTE: The unnished faces should be nished and sealed.
In many cases, stains and/or nishes have odors that may
be objectionable in an enclosed area. Do not stain or nish
wood faces while installed on unit. To remove the front
wood face from the wine shelf, simply pull out the wine
shelf and remove the fasteners, nish as desired, and when
completely dry, reinstall with fasteners.
Figure 19. Wine Rack Trim, 24” models
Figure 18. Wine Rack Trim, 15” models
10. After installation of the overlay panel is completed,
verify that the gasket is completely sealing around
the cabinet frame. If installing panels onto drawer
models (-6), repeat installation process for second
drawer face. Installation is now complete.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 15
TOUCH-SCREEN CONTROL OPERATION
OPERATION
MASTER SWITCH
Signature Series products come equipped with a master power
switch located behind the louvered toe kick. Remove the toe
kick to turn power on or o to the unit. To remove the toe kick.
Remove the two screws located in the through holes on the
edge of the toe kick, near the latch strikes. A #2 Phillips screw
driver with a 3” shaft will be required for remove the toe kick.
INTERIOR LIGHT
Door units are equipped with an interior light that illuminate
when the door is opened. All models come standard with
adjustable blue and white LED lighting. The cabinet also comes
equipped with a manual light switch for displaying the products
through a glass door.
Always ensure that the manual light switch is in the OFF
position before closing a solid wood or stainless steel door. If
manual light switch is left on for an extended period of time, it
will increase energy usage and decrease LED life.
LOADING PRODUCT
Before storing perishables, turn unit on and allow it to operate
for a minimum of 24 hours to allow temperatures to stabilize.
When loading items into the unit, do not block internal louvers
and fan guard openings or performance will be decreased.
CHECKING PRODUCT TEMPERATURE
1) To accurately check the temperature of product stored in the
refrigerated compartment, insert an accurate thermometer into
a plastic unbreakable bottle, partially lled with water. Tighten
bottle cap securely.
2) Place the bottle in the desired area for 24 hours. Refrain from
opening the unit during the testing period. After 24 hours,
check the temperature of the water. Adjust the temperature
accordingly using the following procedures:
DIGITAL TEMPERATURE CONTROL
Programming Button Denitions:
Signature Series Dual-Zone Control Instructions
On/O
Press the ON/OFF button to turn the unit on or o.
Upper Compartment:
To view the upper compartment temperature, press and release
the DEFROST button (melting snowake).
Lower Compartment (Must be coldest zone):
Display reading always shows the lower compartment
temperature.
Changing the Lower Compartment Temperature:
1. Press and hold the SET button until the display shows St1
with”F” ashing.
2. Press SET again to display the lower compartment’s current
temperature (“F” will continue to ash).
3. Use the UP or DOWN arrow key to scroll to the desired
temperature. The controller will memorize the new
temperature.
Changing the Upper Compartment Temperature:
1. Press and hold the SET button until the display shows St1
with”F”ashing. Press the DOWN arrow once; the display will
read St2.
2. Press SET again to display the upper compartment’s current
temperature (“F” will continue to ash).
3. Use the UP or DOWN arrow key to scroll to the desired
temperature. The controller will memorize the new
temperature.
Figure 1. Digital Temperature Controller
HP & HH models feature a blue display
HC & HA models feature a red display
SET Button
DEFROST button (melting snowake)
UP Arrow
DOWN Arrow
ON/OFF Button
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
16 | perlick.com/residential
NOTE: Dependent on the model and conguration, the controllers have
been programmed to only allow a lower compartment temperature
adjustment range as specied within the chart below. The upper
compartment range is not limited, but should always be kept within
the specied range shown in the table for the upper compartment. See
the chart below for the specied range allowed for your unit.
Temperature Scale
To change F to C, press and hold the down arrow for 3 seconds.
To Start A Manual Defrost (HP24Z Models Only)
Press and hold the DEFROST button (melting snowake) for 3-5
seconds. Melting snowake will illuminate.
15”, 24” Single Zone, 24” Shallow Depth, and ADA Controls
To Set Target Temperature
Press and release the SET button. Display will show the current
temperature setpoint.
To Change Setpoint Temperature
1. Press and hold the SET button until the display shows the
current setpoint temperature with the “F” ashing.
2. Use the UP and DOWN arrow button to scroll to the desired
temperature.
To Start A Manual Defrost (Freezer Models Only)
Press the DEFROST button (melting snowake).
To See Maximum Stored Temperature
Press the UP arrow button to see the maximum stored
temperature. To reset the maximum stored temperature, while
displayed, press and hold the SET button until ‘rst’ ashes in the
display.
To See Minimum Stored Temperature
Press the DOWN arrow button to see the minimum stored
temperature. To reset the minimum stored temperature, while
displayed, press and hold the SET button until ‘rst’ ashes in the
display.
On/O
Press the ON/OFF button to turn the unit on or o.
NOTE: Dependent on the model and conguration, the controllers
have been programmed to only allow a temperature adjustment
within a specied range. See the chart to right for the specied range
allowed for your unit.
Signature Series – HP15 Models
Model Min Temp Set Max Temp Set
HP15R 33° F 42° F
HP15B 33° F 48° F
HP15W 45° F 65° F
HP15T 33° F 42° F
Signature Series – HP24 Models
Model Min Temp Set Max Temp Set
HP24R 33° F 42° F
HP24F -10° F 10° F
HP24B 33° F 48° F
HP24W 45° F 65° F
HP24T 33° F 42° F
Signature Series Shallow Depth
Model Min Temp Set Max Temp Set
HH24RS 33° 42°
HH24BS 33° 48°
HH24WS 45° 65°
C-Series Models
Model Min Temp Set Max Temp Set
HC24RB 33° 42°
HC24BB 33° 48°
HC24WB 45° 65°
ADA-Compliant Series
Model Min Temp Set Max Temp Set
HA24FB -10° 10
HA24RB 33° 42°
HA24BB 33° 48°
HA24WB 45° 65°
LED Mode Function
ON Compressor is on
Flashing Anti-short cycle
delay is on
ON Defrost is on
ON Alarm is on
Flashing You are in the process of
programming the unit
LED Functions
The following table describes LED functions.
Signature Series – Dual-Zone Units
Model Range (F)
HP24Z Upper 33° - 42°F / Lower -10° - 10°F
HP24C Upper 45° - 65°F / Lower 33° - 42°F
HP24D Upper 51° - 65°F / Lower 45° - 55°F
Audible alarm will sound if the door is left ajar for longer than
one minute. Fully closing the door will clear the alarm condition,
prolonged time spent with the door open can damage the
equipment.
PERLICK RESIDENTIAL UNDERCOUNTER INSTALLATION MANUAL
Perlick customer service (800)558-5592 | 17
NOTES
8300 West Good Hope Road, Milwaukee, WI 53223, USA
perlick.com/residential • (800) 558-5592
Perlick Residential is a division of Perlick Corporation
© 2020 Perlick Corporation
Form No. Z2667-A
Rev. 12.15.2020
Other manuals for HP15
6
This manual suits for next models
10
Table of contents
Other Perlick Undercounter manuals
