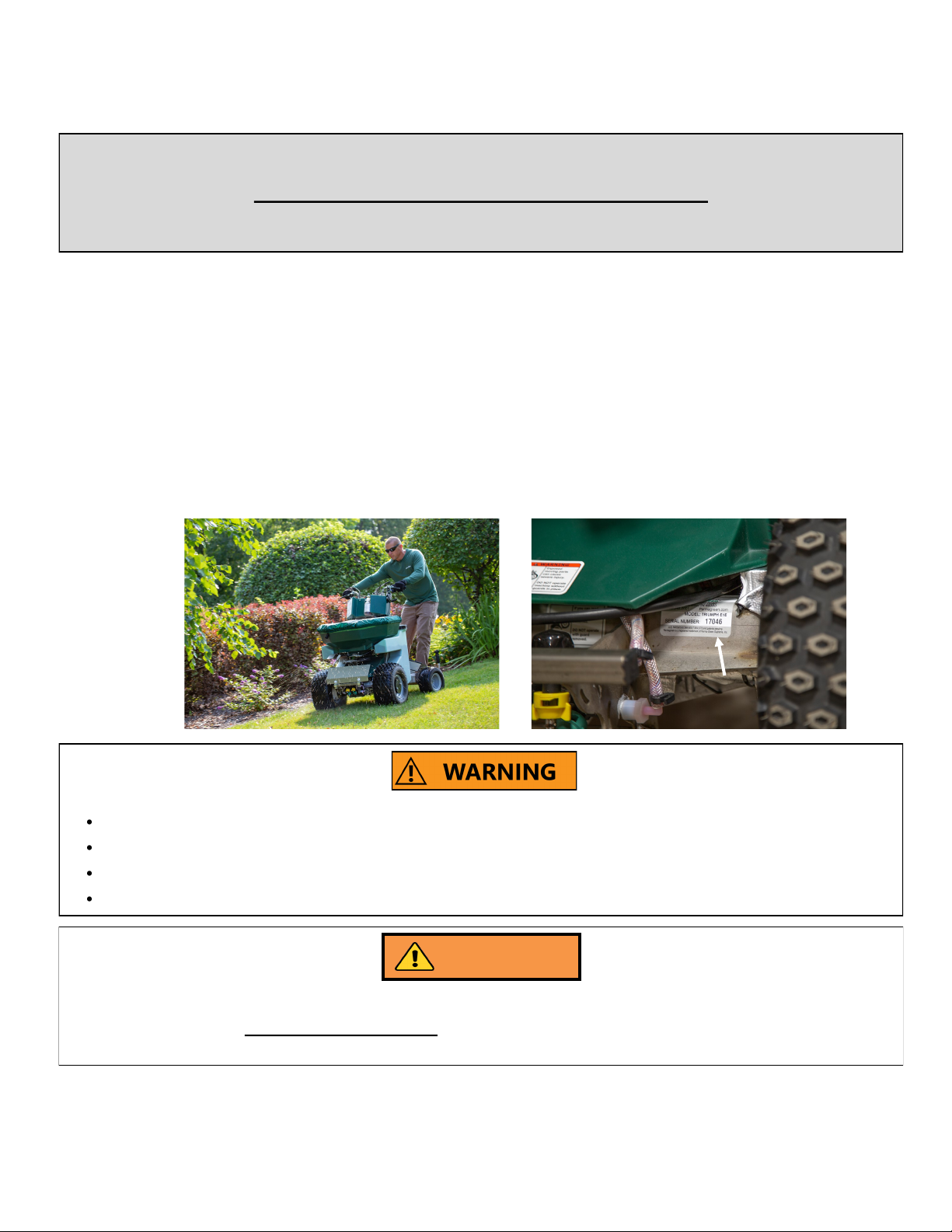

PermaGreen Supreme 711Triumph A1A User manual
Periodically check permagreen.com for available Triumph updates
Copyright © 2022, Perma-Green Supreme, Inc. All rights reserved. No part of this book covered by the copyright hereon may be reproduced
or copied in any form or by any means, except as permitted by the proprietary data statement for use with Perma-Green Supreme. Inc.
equipment, without the written permission of Perma-Green Supreme, Inc. Triumph is protected by US Patent 6.336,600 and 7,954,573 and
Patents Pending.
Perma-Green Supreme, Inc. September 23, 2022 Triumph (v1) North American Version
Operator’s Manual
To Avoid serious injury or death:
This Triumph MUST pass a New Machine Pre-Operation Inspection prior to use.
DO NOT start the machine until instructed to do so during the Pre-Operation Inspection.
Read this Manual before using.
ALL operators and mechanics MUST be trained.
-
-
Keep this record in the front of the manual. When a manual revision is provided, insert the revised pages in the
manual. Record the revision number, the date the revision was inserted in the manual, and provide your initials or
signature in the BY column.
i
Section Page
1. Introduction to using Your Manual. .....................................................................................................1
2. New Machine Pre-operation Inspection ........................................................................................ 2-3
3. Safety Manual ............................................................................................................................... 5-13
a. Machine Safety Labels ........................................................................................................5
b. Warnings..............................................................................................................................8
4. Driver’s Training and Operation .................................................................................................. 14-19
a. Component and Safety Device Identification ....................................................................14
d. Adding Gas, Starting and General Instructions .................................................................15
e. Driving Techniques and Principles ....................................................................................16
f. Driving on Hillsides and Daily Service ...............................................................................17
g. Testing Safety Devices......................................................................................................18
5. Spreader Operation..................................................................................................................... 21-24
a. Spreader Controls and Operation......................................................................................21
b. Calibration..........................................................................................................................23
6. Sprayer Operation....................................................................................................................... 25-27
a. Sprayer Controls................................................................................................................25
b. Sprayer Operation .............................................................................................................26
c. Calibration.........................................................................................................................27
d. Spot Sprayer.....................................................................................................................28
7. Troubleshooting Manual..........................................................................................................….29-31
8. Service Manual ………………………………………………...……………………………………….33-37
9. Plumbing and Electrical Schematics…………….…………….……………………………………….. ..38
10. Specifications….. ……………………………………………………………………………..………......39
11. Warranty………...…………………………………………………………..……………………………...40
ii
iii
Congratulations on the purchase of your new and welcome to
the Perma Green family! Before attempting to start or operate your Triumph,
please read the Operator Manual and safety labels on the machine. Follow all
the instructions carefully.
This manual explains machine inspection, operation, troubleshooting, and
service, as well as, the safety features of the machine. We at Perma Green are
confident that this machine will provide you with years of excellent performance
and durability when operated and maintained as directed in this manual.
This operator manual is considered a permanent part of the machine. It must be
available at all times to all of the operators and persons servicing the machine.
Should the machine be resold, this manual and service records are to remain
with it.
An engine manufacturer’s owner’s manual has been provided with your
machine. This will provide maintenance and troubleshooting information for the
engine installed in your machine.
All information, illustrations, and specifications contained in this manual were in
effect at the time of publication. Perma Green Supreme Inc. reserves the right to
change, modify, and/or discontinue specifications and/or design without notice.
Date Purchased:____________________________
Model Number:
Serial Number: _____________________________
Dealer Name: ______________________________
Dealer Phone: ______________________________
1
The Shift, Hopper, Pattern, and Deflector Levers operate
push/pull cables and use friction or detents that will hold
their position when released.
Move the Shift Lever downward until it hits the top of the
Neutral Stop. The machine shall roll forward easily
confirming Neutral Gear has been located.
When the Drop Handle Lever is pushed backwards, the
entire Handle bar assembly will pivot up or down and shall
automatically latch when placed in either position.
Lock both brake levers.
Check machine for damage, loose or missing bolts and
fasteners.
Inspect the machine to make sure all safety labels are in
place. See Safety Manual for locations.
Inspect Anti-slip Footpads for damage and adhesion.
With the Valve Stem in the position, make
sure the tire pressure is .
Check and add oil, if necessary, to both engine
crankcase and clutch housing. : Do not screw
dipstick in when checking level. See Engine Manual for
details.
Lubricate all moving parts. See the Service Manual for
details.
Using only the gas can provided with the
machine, add regular unleaded gasoline to the gas tank.
Connect the spark plug wire.
Open the fuel shutoff valve.
Shift into Neutral. The machine shall easily roll forward
confirming .
Lock both Brake Levers.
Chock the wheels to prevent movement.
Choke the engine, but operate the Throttle Lever
while starting. High engine speed causes the centrifugal
clutch to engage and the machine might lurch unexpectedly
during starting.
Set the kill switch to the position.
Have firm footing on the ground when attempting to start
the Machine.
Pull the starter cord to start the engine. After the engine
starts, place the choke in the position.
If unusual noise or vibration is
detected, stop engine and correct the problem.
While in Neutral, the engine idle at no more than
. ,
adjust the idle speed down (see Service Manual).
While in Neutral, pull the Throttle lever. The top engine
speed be (plus or minus ) at full
throttle. If necessary, adjust the full throttle speed. Pull and
release the Throttle Lever several times. The engine
automatically and quickly return to idle.
Even though your Triumph is shipped completely assembled and
tested, damage may have occurred in transit or storage.
-
Perma Green Supreme Inc., 5609 Murvihill Rd, Valparaiso, IN
46383; [email protected]; or (Fax) 219-476-7113.
-
-
Place the machine on level pavement.
The Throttle Lever, Front and Rear Brake Levers, Handle
Release Lever, and Spray Lever shall move smoothly
when pulled and automatically snap back to their original
position when released.
The Auxiliary Throttle Return Spring is in place
Test operation of the Spray and Brake Levers have index
finger operated locks that hold these levers in the pulled or
retracted position. Pulling and releasing any of these
levers automatically releases the lock.
-2
-
-
start the machine until instructed to do so.
operate unless all Safety Devices are functioning
properly.
If any Safety Device fails the inspection, contact PermaGreen
for replacement of any missing, damaged or malfunctioning
part.
-
All users, mechanics, and owners read and understand
this Safety manual before inspecting, operating or repairing the
Triumph. If you are not entirely familiar with the Safety Manual,
read it now before proceeding with the Pre-Operation
Inspection.
The tires contain a
liquid ballast of diluted pressurized RV antifreeze. operate
the machine without ballast in the tires.
-
WARNING
Following the starting procedures above attempt to start the
machine in , and . It
start in gear.
Remove the chock blocks and unlock both Brake Levers.
On a paved parking lot, shift into and pull the
Throttle Lever. The machine should smoothly accelerate to
about .
Pull the Rear Brake Lever. Both rear wheels should drag
equally without causing a change of course, left or right.
Accelerate again and carefully pull the Front Brake Lever.
When applied, the front brakes shall not lock up.
Stop. Repeat the acceleration and brake tests in
. Top speed shall not exceed .
At top speed, the Rear Brakes alone shall bring the machine
to a smooth stop within .
The Front Brakes alone shall do the same.
Appling both Front and Rear Brakes together should stop
the machine in less than the length of the machine.
Shift into . The machine should back up
under power.
Fill the tanks with water. Open the Suction valve and the Fill
Valve. Place a collection bucket under the Fill Valve. Start
the engine and run it at high speed until the Spray System is
primed. Close the Fill Valve.
Many local regulations permit small quantities of RV
antifreeze to be disposed of in the sanitary sewer system.
Check your local regulatory agency for proper disposal.
Check for and repair any leaks.
With the collection bucket in place, spray through each
nozzle individually to purge the lines of RV antifreeze/water
solution.
Adjust the position of each nozzle. Refer to Spray System
Instructions.
Operate the Hopper Lever to completely open and close the
hopper holes. Vibration shall not cause the Hopper Lever to
move.
The Rate Control Knob is in place.
Operate the Third Hold Lever to close or reveal the Third
Hole in the hopper.
Operate the Deflector Lever. Neither bouncing nor vibration
should cause the Deflector to change position.
Place planking on top of the Screen in the Hopper to protect
the agitator and the screen.
Put of weight into the Hopper.
With the tanks filled, repeat the braking tests stated above in
the Drive and Brake System Inspection.
Drop the handlebar and walk up a incline, stop
the machine and apply and lock both Front and Rear
Brakes. The brakes shall prevent the machine from moving.
Repeat the test heading down the incline.
With the machine fully loaded, drive through a series of lock
to lock figure eights for 5 minutes. The steering effort to
come out of the tightest turn shall be less than of
force.
The Steering brakes bands shall not overheat.
Review the Operator’s Manual, Safety information,
operating instructions, and controls with the purchaser.
Purchasers shall be made comfortable with the proper
operation of the Triumph prior to using the machine.
The Triumph Warranty Registration Form shall be
completed, signed and dated by the purchasing Dealer and
Inspector, and faxed or mailed to Perma Green within
. Perma Green, 5609 Murvihill Rd, Valparaiso IN
46383 or (fax) 219-476-7113.
.
1) Complete the New Machine Pre-Operation Inspection.
2)
3) Dealer shall provide the purchaser:
A) Verbal instructions of their obligation to read the Triumph
Operator’s Manual and the Safety Instructions contained
therein, as well as, to conduct the New Machine Pre-
Operation inspector if not performed by the Dealer.
B) The Triumph Operations Manual with the serial number
that matches the Triumph being delivered.
C) The Triumph Warranty Registration Card with the serial
numbers that matches the Triumph being delivered.
D) Engine Operation Manual
E) Squeeze and Spray spot sprayer.
F) Hopper cover
G) Calibration Gauge set
H) Approved Gas Can & 6” extension for Gas Can.
I) Sample packet of -® fuel additive.
J) Spray Shield
K) Hopper Screen
- 3
4

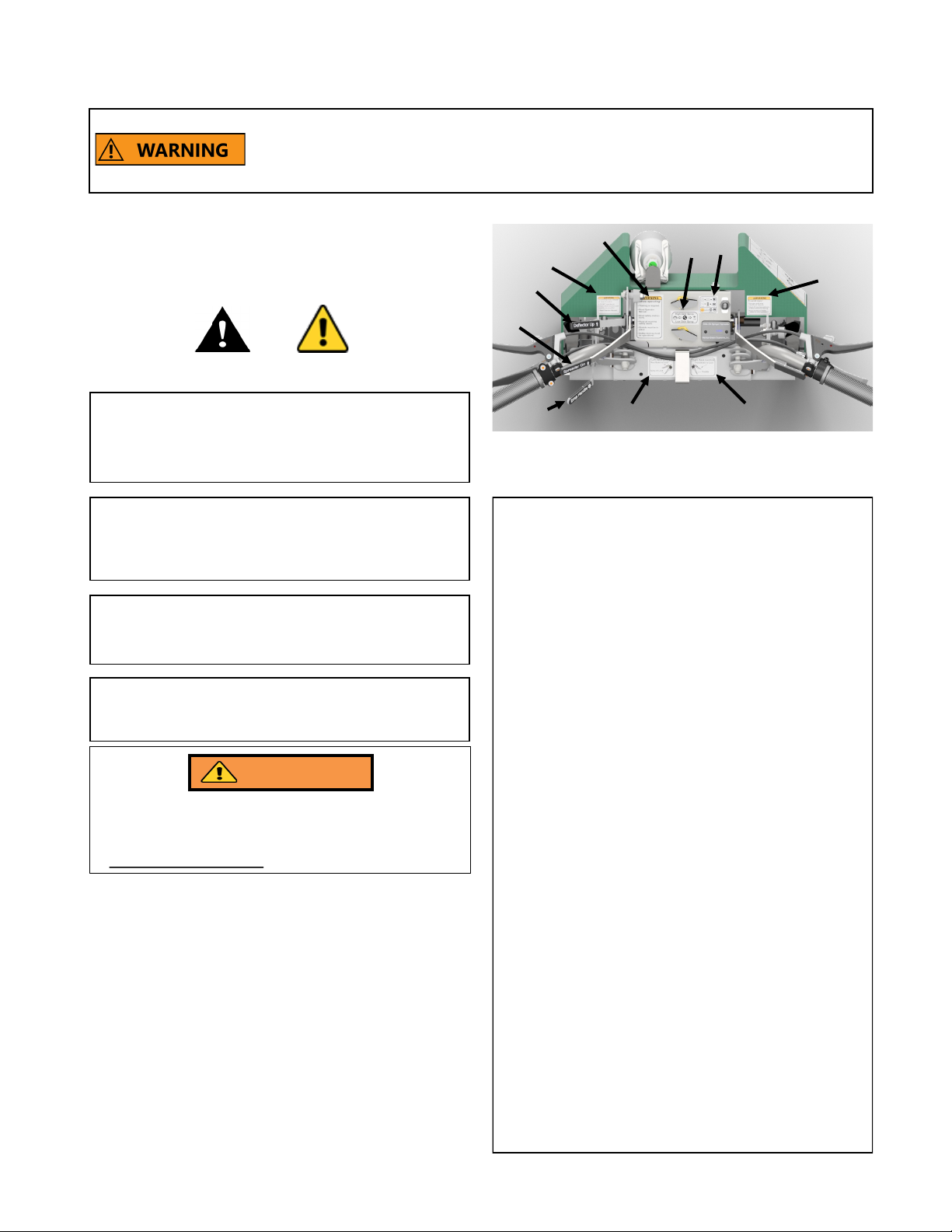

This manual and the labels on the machine contain messages to
bring to your attention to potential safety concerns, machine
damage, operation, and maintenance information. Please read all
the special messages carefully to avoid injury and machine
damage.
The word “” along with this safety symbol
identify a potentially hazardous situation which, if not
avoided, may cause serious injury or death.
The word “” along with this safety symbol
identify a potentially hazardous situation which, if not
avoided, may cause minor or moderate injury.
IMPORTANT: The word “IMPORTANT” identifies a
situation which may cause damage to the machine or
other property.
NOTE: The word “” identifies useful information
which may be helpful to the operator or mechanic.
5

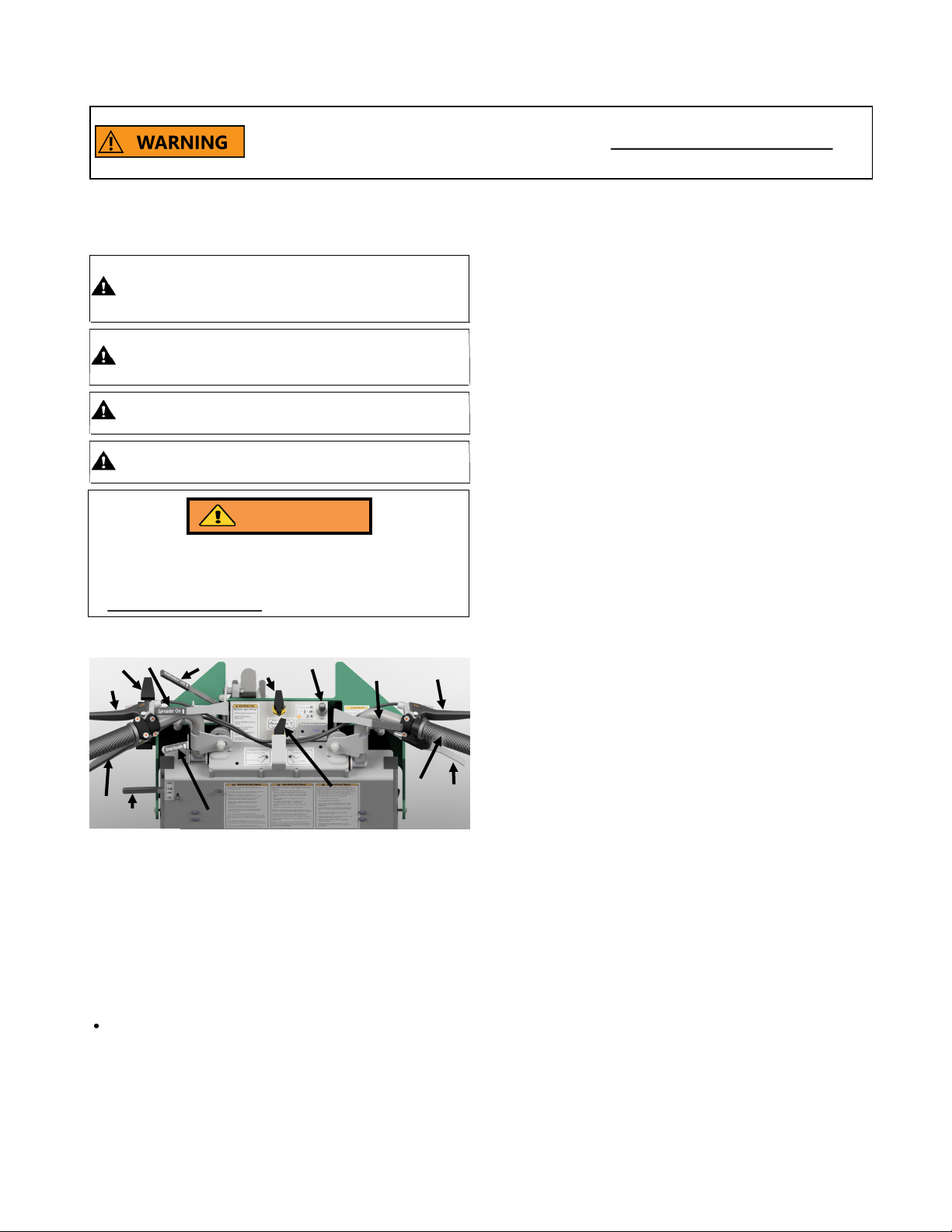

, Dashboard Labels
To avoid injury! Preview work area; Identify all hazards; Shut
off machine and lock brakes whenever leaving. Read
additional Safety Labels on this machine.
Before operating: Training is required; Read operator’s
Manual; Read safety instructions; Read all machine safety
labels; Shields must be in place; Safety devices must be
operational.
To avoid tip-over, rollover or loss-of-control: operate
on slopes where traction and stability are doubtful; Read
Operator Manual.
A
BD
C
E
F
G
H
J
I
-
WARNING
Exposed moving parts can cause severe injury. start
engine or operate machine without guards in place.
! Keep hands and feet away
. Stand only on footpads;
Replace worn footpads; Keep footpads clean.
. Keep a firm grip on both
handles. Drop handlebars if necessary. Use caution stepping
on and off.
Keep feet on platform and guard in place.
Tip-over, rollover or loss-of- control may cause death or
serious injury. This machine has a high center of gravity and
turf conditions affect stability. operate on slopes
where traction and stability are doubtful. To help avoid tip-over,
rollover and loss-of-control, use extreme caution on hillsides
and:
• Study terrain and plan a safe operating pattern.
• operate on slopes over .
• Use on hills and lean uphill for balance.
• Avoid traveling straight down hill. Instead, zigzag down using
brakes to slow descent.
• Travel across the grade, beginning at the bottom and work
your way up.
• Avoid sharp turns and sudden starts and stops.
• Apply rear brakes first and then front brakes.
• Reduce the amount of granular and liquid products carried.
• Operate as a walk-behind in situations where tip-over,
rollover or loss-of-control is possible.
6
Improper operation and improper maintenance of this machine
may cause death or serious injury. operate the
machine if:
• Engine speed exceeds .
• Machine moves unexpectedly when starting or shifting into
gear.
• You detect any unusual noise or vibration.
• You are underage or under the Influence of drugs or alcohol.
• Conditions are wet or there is low light.
• A passenger is on board. Inspect the work area and identify all
hazards present first. Stay clear of drop-offs, holes, debris or
other hazards. Before shifting gears, stop and then shift. Before
leaving the operator position, park on level ground, lock brakes,
shut off the engine, and shift into . Perform daily and
weekly maintenance. Refer to the Operator Manual for details.
Operation by an untrained person may cause death or serious
injury to the operator or others. operate until you have
read and understand the Operator Manual and Safety
Information. operate until you receive and understand
the following training:
• Machine Safety Labels.
• Operator controls.
• Safety Devices.
• Supervised Driver’s Training with enough practice time so you
can safely control the machine on hills.
• Pesticide handling safety.
• Fuel handling safety. The owner of this machine is responsible
for training operators and mechanics. If you cannot read English,
the owner must explain the material to you. The Operator
Manual is part of this machine and be available to the
operator and mechanics at all times.
, Panel Labels
T
SRQ
, Rear Labels
N
M
L
O
P
K
7

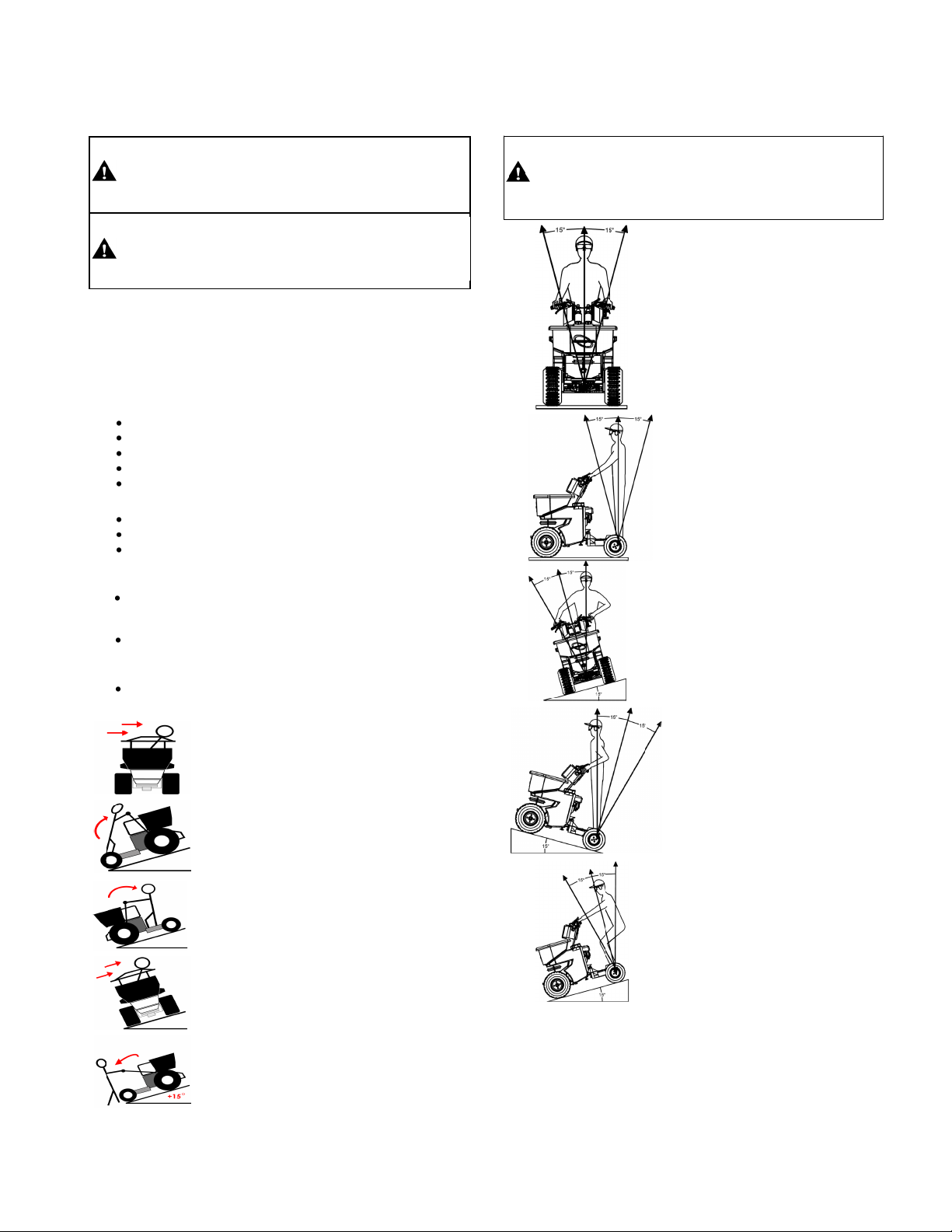

operate on slopes over . You instinc-
tively stand at your balance point (BP). When your BP is out-
side the , the slope is over 15⁰. *Illustrations
show operator on 15⁰ slopes.
To avoid pesticide injury: Read and follow all handling applica-
tion and disposal precautions on the pesticide label; Wear all
the personal protective equipment required on the label when
handling and applying.
The engine emits toxic, poisonous carbon monoxide gas;
run in an enclosed area.
Use extra care when handling gasoline. It is flammable and
vapors are explosive. Never remove gas cap or add gas when
engine is running; smoke. Keep heat, sparks and
flame away; Never refuel or drain indoors; Use only an ap-
proved container; close fuel valve when transporting
the machine; Read engine Owner’s Manual.
, Side Labels
X
Y
W
V
U
Exposed moving parts can cause sever injury.
operate machine without guard in place.
If you can read this sign, a guard has been removed.
operate with guard removed.
If you can read this sign, a guard has been removed.
operate with guard removed.
--
Serial Number Plate
8
To avoid injury: The owner is responsible for training himself and
all other operators and mechanics. Before starting the engine and/
or operating the machine, each operator must read and
understand the Operator Manual, the Safety Manual and all other
training material. If the person cannot read English, the owner is
responsible to explain the material to them. Training include
driver’s training with adequate practice time for the
operator to become competent in controlling the machine under all
conditions.
It is the owner’s responsibility to perform the maintenance as
described in the Service Manual section. The owner/user can
prevent and is responsible for accidents or injuries occurring to
themselves, other people or property.
An untrained operator or mechanic can cause an accident with
serious injury to himself or bystanders.
All operators and mechanics be trained. The owner is
responsible for training the users.
Driver’s Training should be conducted under the direct
supervision of an experienced Perma Green operator. If one is
not available, contact Perma Green for additional assistance.
Trainee must read the Operator’s Manual including the Safety
Manual prior to starting the engine. If the operator or mechanic
cannot read English, it is the owner’s responsibility to explain
the material to the users.
The Driver’s Training and Operation section provides a step by
step outline of what shall be covered during training.
The trainer shall supplement the training procedures provided in
the Driver’s Training and Operation section with any additional
instruction he deems necessary to ensure the safe operation of
the Triumph. The Trainer should add additional instruction as
necessary to provide the Trainee with additional useful
information.
The trainer should supplement the presentation of material in
the Driver’s Training and Operation section with instruction and
references to all messages that appear in the Safety
Manual and machine .
At each point where the trainee is to learn a new phase of
driving the machine, the trainee be provided adequate
practice time to demonstrate the ability to satisfactorily control
the machine while starting, stopping, turning, getting on and off,
or other task described in that point before proceeding to the
next phase.
Initial training should take place on a flat open area free of
obstructions with the Triumph in .
As the trainee progresses to more advanced phases of training
the degree of difficulty may be increased, but at each phase the
initial training must begin on terrain that has a low degree of
difficulty. This is particularly important to keep in mind when
learning how to operate on inclines and slopes.
The Trainer shall demonstrate the principles covered in each
phase.
The Trainee shall be required to use only for the
first few days of unsupervised operation.
Avoid serious injury!
An Operator of this machinery must meet the following
qualifications:
The operator must be an experienced professional lawn care
technician who possess a demonstrated ability to apply fertilizer
and pesticide products correctly.
The operator must meet all state Pesticide Applicator
Certification requirements.
The operator must be at least .
The operator must be physically fit and able to lift
with ease.
The operator must weigh and pounds.
Has read and understands the information contained this
manual. Never let children or untrained people operate or
service the equipment. Local regulations may restrict the age of
the operator.
Always read and follow Pesticide labels and SDS sheets
requirements for Personal Protective Equipment.
Wear substantial water proof footwear and tightly secure all
laces and straps.
wear shorts. Instead always wear close fitting
clothing and jackets to prevent clothing from getting caught on
the handle bars and other control levers.
Wear appropriate clothing including hard hat, safety glasses
and hearing protection. Long hair, loose clothing, straps,
shoelaces or jewelry may get caught in moving parts.
Operate machine unless all Safety Devices are in
place and in good working condition.
Safety Devices include:
Machine Safety Labels .
Operator Presence Control/Throttle/Centrifugal Clutch. Letting
go of the Throttle lever disengages power to the drive wheels.
Front and rear Brakes with Lock. Front brake has a spring to
limit the force applied to reduce the possibility of lock-up.
Locked brakes are parking brakes.
Drop down handle. Allows operator to walk-behind machine.
Slip resistant footpads.
Belt and pulley covers on engine and hood.
Neutral Safety Switch System which prevents the Triumph from
starting in gear.
Articulating bolt lock. Prevents unintentional loosening of lower
bolt.
Articulating Safety Link which prevents unintentional
disengagement of the Sulky from the front frame.
Fluid filled tires which provide ballast for a lower center-of-
gravity.
Smart Steer Brake Assist Steering System.
Belt and Pulley Guards
9
Avoid serious injury!
change the engine governor setting or over speed
the engine. The top engine speed when the machine is in
Neutral is . Use the electronic multifunction display to
monitor the top speed and make adjustments as necessary.
Never shift gears while the machine is moving as this may
cause a rapid slowdown or stop the front wheels causing loss-of
-control or a tip over. Always, stop the machine before shifting
gears.
Only operate in good visibility conditions. Avoid holes and
inspect work area for hidden hazards before starting machine
engine.
Be sure the machine is in and all brakes are locked
before starting engine.
Adequate and reliable footing is necessary to safely operate this
machine. Walk, don’t run. Never operate on wet grass. Reduced
footing could cause slipping. Use caution stepping on or off the
sulky to avoid tripping.
Use extra care when operating this machinery on inclines or
slopes. Be sure to refer to the Operator’s Manual for specific
instructions regarding operating the machinery on slopes and/or
inclines. Turf conditions can affect the machine’s stability. Use
caution while operating near drop-offs or other hazards.
Never operate with the guards not securely in place. Be sure all
interlocks are attached, adjusted properly, and functioning
property before starting the engine.
Stop on level ground, lock all brakes, shut off engine, and shift
into neutral before leaving the operator’s position for any
reason.
Keep hands, feet, clothing and loose objects away from moving
parts and pinch points.
Never carry passengers. Keep a safe distance between the
machine and all third parties.
Slow down and use caution when making turns and/or crossing
roads and sidewalks.
Do not operate the machine under the influence of alcohol or
drugs.
Use care when loading or unloading the machine into a trailer or
truck.
Avoid distractions, including but not limited to cell phones and
MP3 players, while operating this machine. Operators must
concentrate and focus on the safe use of this machinery at all
times.
Keep a firm hold on the handlebars at all times.
touch hot muffler while running or after shutdown.
Wear eye protection and other necessary Personal Protection
Equipment (refer to Pesticide Label) when using compressed air
or water to clean the machine. Regulate the pressure to
(200 Kilopascals).
Prior to operating, carefully inspect the work areas for hazards or
uneven ground that may be hidden in the grass.
Clear the work area of moveable objects such as branches,
wires, rocks, glass, etc. That may interfere with the
machine.
Mark the location of all immovable objects or irregular
areas.
Avoid hitting obstacles such as holes, abrupt changes in
ground contour, branches, stumps, roots, protruding pipes,
paving edges, etc. that could unexpectedly turn, stop, or
upset the machine possibly throwing you off, into or over the
handle bars causing serious injury or death.
Keep away from drop-offs, the edges of ponds, streams,
pools, etc. especially at the bottom of slopes.
Evaluate the terrain.
Determine what accessories and attachments are needed
to properly and safely perform the job. Only use accessories
and attachments approved by the manufacturer.
Study the terrain and plan a safe operating pattern. If no
safe operating pattern exists attempt to drive the
Triumph in that area.
If hills are present, refer to additional Warnings in Hillside
Operation in this section.
Evaluate the turf conditions.
operate if conditions are wet or there is low
light.
Use extra care when handling gasoline and other fuels. They are
flammable and vapors are explosive.
shut off fuel valve when transporting or stor-
ing the machine.
Use only the approved container supplied with the machine.
Never remove gas cap or add fuel when engine is running
or hot. Allow it to cool first.
smoke and stay clear of any sparks or open
flames.
Never refuel or drain the machine indoors. Move machine
outdoors instead.
Clean up fuel spills immediately. attempt to start
the machine near a fuel spill. Move it away instead. If fuel is
spilled on clothing; attempt to start the machine,
stay way from open flames, sparks or other sources of igni-
tion, and change clothing.
The engine gives off carbon monoxide, a poisonous gas.
run engine in an enclosed area or indoors.
Prevent fires.
Keep engine clean and free from debris.
Clean up spilled fuel.
Check and repair leaking fuel lines, fittings and cap.
park near an open flame or other source of
ignition, such as a furnace or water heater.
10
Examine the machine prior to each use. use the machine
if any parts are not in good working condition.
Check for worn tires, cracks in parts, loose or missing bolts,
cotter pins etc. and replace or repair before operating.
Make sure all safety devices are present and in good working
order, including all the safety labels, Shields, Brakes, the
Neutral Safety Switch System, and the Operator Presence
Control/ Throttle/Centrifugal Clutch (CPC) which disconnects
the power to the drive wheels when released. (To test the
Brakes, Neutral Safety Switch System, and OPC/Throttle/clutch,
follow instructions in the Driver’s Training and Operation section
of this manual). Read Safety Manual .
Make any necessary repairs or adjustments before starting the
engine and/or operating the machine.
Loss-of-control may cause death or serious injury.
Always keep a firm grip on the handlebars with both hands.
back up if there is a possibility you or a bystander
could become trapped between the machine and an immovable
object or barrier.
Always look behind and down before backing up to be sure of a
clear path.
Always look behind and up before backing up to be sure the
path is clear of low hanging obstacles such as tree branches,
clothes lines, and low doorways.
Use extra caution backing up when in an enclosed area.
Backup slowly, until you become familiar with how the machine
handles.
Never coast backwards. Instead back up under power and in
with the Throttle/Clutch engaged using
the brakes as necessary.
Use extra caution backing from an awkward location or position.
Keep both feet firmly on the footpads whenever possible.
Backing up while in the walking position is hazardous and in
most cases can and should be avoided. However, when backing
up from the walking position is unavoidable (such as when
unloading the machine from a trailer), use extreme caution.
back up if there is any possibility that you could
lose your footing or become trapped between the machine and
an immovable object such as a tree or building.
Back in Reverse Gear with the Throttle/Clutch engaged
using the brakes as necessary.
Use caution when riding on, and getting on and off the Triumph.
Keep a firm grip on the handles with both hands.
Stand only on the footpads. .
Keep footpads clean.
Replace worn or damaged footpads.
Use caution stepping on or off Driver’s platform.
Loss-of-control may cause death or serious injury.
Always keep a firm grip on the handlebars with both hands.
Operate the machine in until you become familiar
with it.
Never operate the machine at a greater speed than is
reasonable in light of the conditions presented.
Only operate in on slopes, inclines, bumpy ground,
or high grass.
Avoid sudden starts, stops and turns as they may cause you to
lose your balance and be thrown from the machine.
To avoid injury when starting:
attempt to start the machine if any of the following
apply:
You are in a confined space.
You or someone else could be trapped between the
machine and a solid obstacle should the machine
unexpectedly move upon startup. Remember to check for
low hanging obstacles such as tree branches, clotheslines,
etc.
You are not certain of firm, dry, level footing to prevent loss
of balance.
Before attempting to start engine:
You must move the machine to a solid, level, dry, open
area before starting the engine.
Verify the machine is in Neutral. The machine rolls forward
easily in neutral.
Lock all brakes.
operate the Throttle/Clutch.
attempt to start or operate the machine if:
The Neutral Safety Switch System or any other safety
device is not working.
The Throttle/Clutch/OPC does not move freely and
automatically and rapidly return to the idle position.
The idle engine speed exceeds upon starting.
The machine unexpectedly moves upon starting or when
shifting gears.
Make repairs or adjustments as necessary prior to starting
or operating the machine.
Anytime you leave the operator position, you must:
Stop on level ground.
Turn off the engine.
Lock both Brake Levers.
Shift into .
Never leave the machine unattended on an incline or slope where
someone could disengage the brakes and the machine could roll.
When leaving the machine unattended, close fuel shut off valve.
more weight to the front drive wheels. Refer to the driver’s
position illustrations in Driver’s Training and Operation
section of this Manual for details.
Accelerate gently. Accelerate slowly. Accelerating too
quickly may result in a loss of traction.
make sharp or quick turns. Making sharp or
quick turns may cause you to lose your balance and be
thrown off the machine or cause a side rollover.
In areas of poor traction, operate the machine as a walk
behind unit.
If you experience a loss of control while driving the machine
on an upward slope, lower the handlebars as you step
backwards off the operator’s platform and apply the brakes.
Once the brakes are applied, take corrective action.
Backing down a slope is a hazardous maneuver which
should be avoided. To avoid backing down a slope; stop the
machine, apply the brakes, step off the Driver’s platform,
drop the handlebars, steer the front of the machine across
the grade, and gradually engage the Throttle/Clutch. If
backing down a slope is unavoidable (such as when
unloading the machine from a trailer), use extreme caution.
Read Safety Manual , Reverse Operation, for
details on backing up.
, the weight and traction is transferred
to the front drive wheels. Avoid driving the machine at this angle
since the machine may tip over.
Recommendations for driving downhill:
Lean backwards as you travel downhill to provide better
balance for you and transfer more weight to the rear
wheels. If necessary, extend your arms and squat down
backwards with arms extended to transfer more weight
further to the rear.
Do not change speed suddenly. accelerate.
Decelerate gently by applying the rear brakes first followed
by the front brakes.
Use extreme caution when turning. make sharp
turns as you may lose your balance and/or be thrown from
the machine or loose control. When making turns, slow
down and make gradual turns.
Zigzag or slalom slowly and gradually downhill traveling
across the grade using both brakes to slow your speed. The
steeper the slope the more gradual the slaloms should be
between the switchbacks.
Avoid any obstacles that could suddenly stop the front
wheels causing a tip over.
If you ever loose control while driving down a slope, let go
of the handles and jump off to the rear, if necessary.
Backing uphill is a risky maneuver which should be avoided.
To avoid backing uphill; stop the machine, apply the brakes,
step off the Driver’s platform, drop the handlebars, steer the
front of the machine across the grade, and gradually
engage the Throttle/Clutch. When backing uphill is
unavoidable, use caution. Read Safety Manual
, Reverse Operation, for details on backing up.
, the
weight distribution between the front drive wheels and the rear
wheels is similar to level ground. However, more weight is
transferred to the lower wheels which may cause the machine to
rollover towards the downhill side. This is the preferred angle for
driving on gentle slopes.
Recommendations for driving across a hillside:
Lean uphill to provide better balance for you and transfer
more weight to the uphill wheels.
change speed suddenly.
---
Loss-of-control, tip-over or rollover may cause death or serious
injury. This machine has a high center of gravity and turf conditions
affect stability. Slopes are a major factor in loss-of-control, tip-over,
and rollover accidents.
Never shift gears while the machine is moving as this may
cause a rapid slowdown or stop the front wheels causing loss-of
-control or a forward tip over. Instead, bring the machine to a
complete stop before shifting gears.
Study the terrain before beginning work and plan a safe
operating pattern. If the area at issue will not accommodate a
safe operating pattern, attempt to drive the Triumph in
that area.
operate on slopes or inclines where traction and
stability are doubtful.
ride on slopes exceeding . Read
Machine Safety Label and Safe Balance Zone sections for
details on estimating slopes before starting or
operating the Triumph.
Never operate on wet slopes.
Look for holes, ruts, rocks, and other hidden hazards in the work
area before starting work. Uneven terrain can overturn the
machine. Tall grass can hide hazards.
operate near drop-offs, ditches, or bodies of water.
Keep a firm grip of the handlebars with both hands at all times.
Slow down and lean into turns for better balance and to transfer
your weight to the inside wheels to prevent loss-of-control, tip
over, or rollover.
Tires with excessively worn tire tread are dangerous on slopes
or inclines. Replace tire (s) with less than of tread
remaining. Only use liquid filled tires supplied by Perma Green.
Maintain tire pressure at . Higher pressures will cause the
tires to lose traction and under inflated tires will cause instability.
attempt to climb over curbs and parking blocks
while operating the Triumph at a high speed as this may cause
a forward tip-over.
To help avoid Loss-of-control, tip over, and rollover, use
extreme caution on inclines, and slopes and:
Use to provide improved traction and a slower
ground speed.
Travel across the grade. Begin at the bottom of the slope
and work your way up.
Avoid traveling straight down a slope. When descending a
slope, zigzag or slalom across the grade gradually
downwards using the brakes to slow the machine.
Lean uphill at all times to provide better balance and to
transfer weight to the uphill tires.
Slow down and avoid sharp turns and sudden starts and
stops.
Reduce the amount of granular and liquid products carried.
Apply rear brakes first and then front brakes.
Operate the Triumph as a walk-behind unit in situations where loss
-of-control, tip-over, or rollover is possible.
the drive tires have
reduced traction and there is greater risk that the machine could tip
backwards.
Recommendations for driving up an incline or slope:
Lean forwards to provide better balance and to transfer
11
make sharp turns as you may lose your
balance and be thrown off the machine or loose control.
When making turns, slow down and make gradual turns.
The machine also has a tendency to rollover when
performing this maneuver.
Avoid making downhill turns as the machine will accelerate
through the turn making it more difficult for you to keep your
balance and control over the machine so as to prevent
rollover.
Avoid any obstacles that could suddenly pitch the front
uphill wheel upwards causing a rollover towards the
downhill side.
If you ever loose control while driving across a slope let go
of the handles and jump off to the uphill side of the
machine, if necessary.
Backing up across the grade is a maneuver which in should be
avoided. To avoid backing up; stop the machine, apply the brakes,
step off the Driver’s platform, drop the handlebars, steer the front of
the machine in the desired direction, and gradually engage the
Throttle/Clutch. When backing up is unavoidable, use caution.
Read Safety Manual , Reverse Operation, for details
on backing up.
Driving up and down ramps is hazardous. The risks include tip-
over, rollover, loss-of-control, and back-over.
Use extreme caution when driving the Triumph onto and off of a
Transport, (such as a vehicle, carrying rack, or trailer).
When loading and unloading, park the Transport on level
pavement well away from puddles, obstacles, and curbs that
may cause the operator to loose his footing or become
entrapped. Allow adequate room for the ramps to be deployed
and the machine and operator to come straight on or off the
Transport platform and ramps.
To prevent a ramp from slipping out from under the machine,
make sure the ramp is securely fastened to the Transport
platform and the ramp and machine wheels are properly aligned
with each other.
Never unload a Triumph by shifting it into and
allowing it to freewheel backwards down a ramp. Rather, the
driver must start the Triumph while on the Transport platform,
shift the engine into , and inch the machine down the
ramp under power using the brakes as necessary. Read Safety
Manual , Reverse Operation, for required
precautions while operating the Triumph in reverse.
If there is not adequate standing room for the operator on the
Transport platform, the machine should be started while the
operator is standing on the ground.
If an enclosed Transport is used, use extra caution starting and
operating the Triumph inside the enclosure.
Transporting the machine over the road can be hazardous. The
risks include but not limited to traffic accidents, failure of Transport
system, and ejection of the machine from the Transport.
12
If wheel fasteners are not tight, a serious accident may occur.
Check wheel fastener tightness frequently during the first
of operation.
After loosening any wheel fasteners, frequently check their
tightness for the next of operation.
Transporting the Triumph requires a heavy duty Transport capable
of safely carrying a fully loaded Triumph weighing (318
Kg) plus the weight of all materials carried on the transport.
Follow other Transport manufacturer’s precautions and always
use all safety devices provided.
overload or unbalance the Transport or hitch.
Use only heavy duty ramps with a minimum width of
(216 mm) and an anti-slip surface capable of supporting
(455 Kg) or the combined weight of the machine and
driver whichever is greater. The ramp angle must be
or less.
To prevent the machine from being thrown from the transport,
always secure the machine to the Transport’s platform. Use
securing devices provided by the manufacturer or securing
devices each securing device or all securing devices together
must have a minimum load rating of (636 Kg). Elastic
straps and similar devices are to be used.
Check Transport, ramps, hitch, and securing devices each time
they are used.
Check carefully for cracked welds or cracked parts, loose or
missing hardware, excessive wear or damage, or missing or
nonworking safety and securing devices.
When a carrying rack is used, check for damage caused by
the rear edge dragging or bottoming out on the pavement.
This can result in structural failure of the rack, hitch and
vehicle frame or hardware.
use the Transport if it is not in good working
condition. Make necessary repairs or replacements before
using.
-
Use of parts other than those supplied by Perma-Green Supreme,
Inc. may compromise the safe use of the machine and void the
warranty.
Use only genuine Perma Green parts. Check with your Dealer or at
PermaGreen.com for the latest Parts List for your Perma Green
equipment.
13
Dispose of all hazardous waste products properly.
Clean up hazardous waste spills immediately.
Refer to the Pesticide Label for proper handling and disposal
instructions.
Refer to SDS for proper handling and disposal instructions.
Wear the Personal Protective Equipment specified on SDS and
Pesticide Labels.
Before disposing of hazardous waste check with your local
regulatory agency.
Improper maintenance can cause serious injury.
Lock brakes, stop engine and disconnect spark plug wire. Wait
for all movement to stop before adjusting, cleaning or repairing .
Clean grass and debris from drives, mufflers, and engine to help
prevent fires. Clean up oil or fuel spillage.
Let engine cool before storing and do not store near flame.
Shut off fuel while storing or transporting. store fuel
near flames or drain indoors.
Park machine on level ground. Never allow untrained personnel
to service machine.
Use jack stands to support components when required.
Carefully release pressure from tires and spray system.
Remove spark plug wire before making any repairs.
Keep hands and feet away from moving parts. If possible, do
not make adjustments with the engine running.
Keep all parts in good working condition and all hardware
tightened.
Replace all worn or damaged Machine Safety Labels.
Replace worn or damaged footpads.
Perform all scheduled maintenance as directed in the Service
Manual.
The improper use, handling, application, and disposal of pesticide
products applied by this machine may cause death or serious
injury.
Read and follow product label and Safety Data Sheet (SDS)
precautions for handling, mixing, applying, and disposing of
pesticides applied by this machine. Some materials may present
health hazards that will require the use of Personal Protective
Equipment (PPE). Always wear required PPE.
Keep required PPE available for use by the operator or
mechanic at all ties.
Keep pesticide labels and SDS available for the operator or
mechanic at all times.
Tires are filled with pressurized diluted RV antifreeze to provide
ballast for a lower center of gravity. Explosive separation of rim and
tires may cause serious injury.
remove fluid from tires.
All replacement tires must be fluid filled.
Wear a face shield when checking, filling, and repairing fluid-
filled tires.
Refer to the Service Manual for instructions on repairing fluid
filled tires.
Do not attempt to check, repair or replace fluid fill tires without
the proper equipment.
Use a clip-on chuck and extension hose. Stand to the side of
the tire when filling.
Always maintain tire pressure at . under or
over-inflate tires.
Rear tires have split rims. Release tire pressure prior to
loosening any nuts or bolts.
Never weld or heat the tire rims as this could cause a tire
explosion or structural damage to the rim.
Check tires often for cuts, wear, bubbles and missing or lose lug
nuts. Check pressure often.
Fix or replace worn or damaged tires, rims, and hardware.
Always replace tires with genuine Perma Green liquid-filled tires
and rims.
-
WARNING
At each point where the trainee is to learn a new phase of driving
the machine, the trainee be provided adequate practice time
and demonstrate the ability to satisfactorily control the machine
while starting, stopping, turning, getting on and off, along with
performing any other task described in that specific phase of the
training before proceeding to the next phase.
.
Locate, identify, and explain the function of the following (refer to
For location):
A complete
listing is found in the Safety Manual section.
A. turns the engine off and permits it
to be started. It is part of the Neutral Safety Switch System to
prevent the Triumph from starting in Gear.
B. controls the front service brake on
the Transaxle. Pulling the lever activates the Front Brake. The
Front Brake Lever can be locked in the pulled position by
pushing the lock button on the lever with your finger. In the
locked position the Front Brake is one half of the Parking Brake
System of the machine. The Lock is automatically released by
pulling the lever again. A Spring controls the amount of force
applied to the Front brake.
C. is part of the Throttle/Clutch/Operator
Presence Control (OPC) System for the machine. The Lever
controls engine speed. The engine speed increases as the lever
is pulled and the Centrifugal Clutch automatically engages
sending power to the Transaxle though a belt and pulley
system. Releasing the Throttle Lever decreases engine speed
and disengages power to the Transaxle.
D. - Interlocked
handlebar actuation helps the operator control a fully loaded
machine.
E. selects either the
Broadcast or Trim nozzle for spraying during
Operation. Point valve handle left to enable Broadcast spraying,
right to enable Trim spraying, or forward to turn Nozzles off.
F. selects either the
Broadcast or Trim Nozzle for spraying during
Operation. It operates similarly to the
Spray Selector Valve.
G. unlatches the Handlebars
permitting them to drop down for the convenience of the
operator and to permit the machine to used as a walk-behind
unit. The Handlebars automatically lock in the down position.
Pushing the Lever rearward with the thumb unlatches the
Handlebars.
H. opens a valve when spraying is desired.
Like the Brake Levers it has a lock to permit continuous
spraying. Additional details about the spray controls will be
provided in the Sprayer Operator section of this manual.
I. controls the rear service brakes. It
operates similarly to the Front Brake Lever and is one half of the
Parking Brake System.
J. T-opens and closes the pattern adjustment
Slide Plate below the spreader’s Third-Hole (left hole looking
from the Operator’s position). It is to be closed whenever the
Deflector is lowered to reduce the amount of granular product
distributed to the right side of the machine. It also functions in
the partially closed position to balance the spreader pattern.
Pulling the lever rearwards closes the Third-Hole. A gray
Memory Lock adjusts the partially open setting.
K. Topens and closes the Hopper to control the
release of granular product. Additional details about spreading
controls will be provided in the Spreader section of this manual.
L. raises and lowers the spreader
Deflector to prevent granular material from being spread to the
14
Owner read Safety Manual , Owner’s
Responsibility; , Supervised Driver’s Training; , Minimum
Operator’s Qualifications; and , Operator clothing and
Personal Protection Equipment.
Trainer read Safety Manual , Supervised
Driver’s Training; , Minimum Operator’s Qualifications; and ,
Operator clothing and Personal Protection Equipment.
Trainee read entire Operator’s Manual before starting
or operating this machine.
Read Safety Manual , Safety Devices before
starting or operating the Triumph.
AKB
C
E
L
K
J
I
H
G
F
M
D
-
WARNING
right side of the machine while trimming. Moving the Lever rearwards
lowers the Deflector.
selects a gear on the Transaxle. There are 4 gears
available: , , , and . A Stop locates
. provides a forward speed of and
is used on hills, in small areas where detailed trimming is required,
and when the Triumph is operated as a walk-behind unit.
provides a forward speed of .
Locate, identify and explain the function of: (refer to )
M. selects a gear on the Transaxle. There are 4 gears
available: , , , and . A Stop locates
. provides a forward speed of and is
used on hills, in small areas where detailed trimming is required, and
when the Triumph is operated as a walk-behind unit.
provides a forward speed of .
N. prevents accidental contact with moving belt and
pulleys.
O. provide traction for the operator’s feet.
P. prevents the front and rear halves of
the machine from unintentionally separating.
Q. prevents unintentional loosening of the
lower pivot bolt.
R. -provide ballast and a lower center of gravity
for better stability.
S. prevents accidental contact with moving belt and
pulleys.
15
Locate machine on a flat, level area free from obstacles and
bystanders
Shift into Neutral.
Lock both Brake Levers.
Turn Kill Switch on.
Choke engine if necessary.
pull Throttle/Clutch Lever while starting.
Pull Starter.
Lock both Brake Levers
Shift into Neutral
Turn Kill Switch off.
Stop on level ground.
Lock both Brake Levers
Shift into Neutral
Turn Kill Switch .
When leaving the machine unattended, close Fuel Valve.
Never leave the machine unattended on a slope where
someone could disengage the Brakes and the machine
could roll.
IMPORTANT: Excessive force applied to the Shift Lever can
cause internal Transaxle damage and other damage which is not
covered by Warranty.
Release Throttle/Clutch Lever.
Bring the machine to a complete stop.
Shift into the desired gear. If the machine does not shift
easily, move the front of the machine angling it right or left
until the Transaxle gears shift easily.
IMPORTANT: Emphasize the necessity of NOT forcing the
Shift lever, if the transmission does not shift easily.
Never shift gears while the machine is moving
as this may cause a tip-over or loss-of control.
Read Safety Manual : , Avoiding slipping or
tripping injury; and read Machine Safety Label : ,
Avoid Slipping Injury and , Avoid Tripping Injury, before
starting or operating the Triumph.
Move the machine
outdoors, and
Use the
Approved No-
Spill Container
and 6-inch-
extension.
When adding
fuel, stand at the
rear of the
Triumph with the
Handlebars up.
Emphasize fuel
handling safety.
Read Safety Manual Fuel Safety, before adding
gasoline. Use extra care when handling gasoline.
Read Machine labels: , Use extra care when han-
dling gasoline and , The engine emits toxic, poisonous car-
bon monoxide gas, before adding gasoline.
In addition to the steps in Safety Manual :
Check and adjust as necessary the Spray Nozzle alignment and
pattern.
Check and adjust the Spreader Control settings as necessary.
Read Safety Manual : , Inspect Machine before
each use; , Check wheel fasteners; and ,Tire Safety, each
before starting or operating the machine.
Read Safety Manual : , Engines starting Safety;
and , Parking, before starting or operating the machine.
S
R
QP
ON
R
M
16
Refer to and for techniques and principles to
use while maneuvering and driving.
Initial training should take place outdoors in a flat open area free of
obstructions with the machine in and the Hopper and
Tanks empty. Initial training should include the following:
To Drive forward:
Safely start the machine.
Safely step onto the operator platform.
Shift into .
Unlock Brakes
Pull the Throttle/Clutch Lever.
To stop:
Release the Throttle/Clutch Lever.
Pull the Rear Brake Lever first.
Pull the Front Brake Lever.
To turn right:
Pull back on the right handle while simultaneously pushing
forward on the left handle. A Stop prevents the machine
from jack-knifing.
Always lean into the turns by shifting your body weight to
the inside of the turn.
To turn left:
Reverse the procedure.
The driver’s side-to-side
is the centerline passing
vertically through his nose. The
sidelines indicate the
maximum limits of the side-to-side
.
The driver’s front-to-rear
is the centerline passing
vertically through his body. The
sidelines indicate the
maximum limits of the front-to-back
.
When the driver’s
is directly over the control levers, he
has reached the sideline of the side-
to-side safe .
When the front of the driver is even
with the handlebars, he has reached
the front sideline of the
.
When the driver’s arms are full
extended and he must squat to
reach his , he has
reached the rear sideline of the
.
. Balance Zone Principles
Read Machine Safety Label including: , To
avoid injury preview work area; , Improper Operation and
improper maintenance; , Pinch point; and , Exposed Moving
parts can cause severe injury before starting or operating the
Triumph.
Read Safety Manual : , Operator Clothing and
personal protection equipment; , Operation; , Inspecting
work area; and , Forward Operation, now before starting or
operating the Triumph.
When you turn the machine, point the front of
the machine in the direction of the turn. Lean
towards the pivot point side of the turn to shift
your body weight to the inside of the turn.
When you drive up a slope, first stop and
shift the machine into (). Lean
forward, into the incline as you drive up the
slope.
When you drive down a slope, first stop and
shift the machine into (). Lean
to the rear, into the incline, as you drive down
the slope.
When you are driving the machine across a
slope, first stop and shift the machine into
(). Lean into the hill as you
travel across the slope.
On slopes over ; stop, release,
and lower the handlebar. Walk behind the
machine. Never ride the Triumph on inclines
or slopes greater the .
. Driving Techniques, Triumph Spreader Sprayer
operate machine on slopes which
exceed . You instinctively stand at your
. When your is outside
the , the slope is over . Know
the limits of your .
This manual suits for next models
2
Table of contents
Other PermaGreen Supreme Paint Sprayer manuals
Popular Paint Sprayer manuals by other brands
Earlex
Earlex CHV512 operating instructions
SAMES KREMLIN
SAMES KREMLIN SMART CUPS Assembly instructions
Klimawent
Klimawent FPS-1 Use and maintenance manual
DeVilbiss
DeVilbiss LUNA-MARKII-R-PLUS Operation manual
Würth
Würth HRS2 Translation of the original operating instructions
DeVilbiss
DeVilbiss JGHV Quick start and cleaning guide
