Pessotto SILVY NEW21 User manual

820X1940 mm
920X1940 mm
920X2040 mm
Advanced Technology for Beds
Mod. SILVY NEW21
MANUALE E ISTRUZIONI DI MONTAGGIO
USER'S GUIDE AND ASSEMBLY INSTRUCTIONS
Ribalta orizzontale singola-Castello orizzontale
Hideway Horizontal single bed-Bunk bed
01/09/2021

Pessotto reti srl
Viale delle industrie, 36 - Albina di Gaiarine (TV) - Italia
Tel. [phone] - Fax [phone]
[email protected] - www.pessottoreti.com
IN ACCORDANCE WITH STANDARD 2001 /95/CE UNI EN 1129-1
1. General description..............................................9
Use............................................................................9
Product description..................................................9
Guarantee.................................................................9
2. Safety...................................................................10
Safety standard........................................................10
Residual risk areas....................................................11
Labels........................................................................11
3. Use of the bed system horizontal hide-away and
functioning...............................................................12
General data............................................................12
Technical features ...................................................12
4. Maintenance - cleaning-lubrification -
disposal....................................................................13
Maintenance...........................................................13
Cleaning and lubrification........................................13
Disposal....................................................................13
Assembling instructions ..........................................14
USER GUIDE
“ORIGINAL INSTRUCTIONS”
Index

1. General description
Use
The manual horizontal hideaway bed system allows to bring the bedspring from
its horizontal position inside the cabinet in a horizontal position, to be used as a
bed, in a absolutely quick and easy way, with very low efforts. Before using the
hideaway bed, the user must be sure of its good condition and the good
condition of its accessories.
Before using the hideaway bed, the user must make sure that on the sleeping
surface there is only the mattress and bed linens.
ALL INSTRUCTIONS OF THIS BOOKLET
SHALL BE CAREFULLY READ!!!
Product description
The bed system in composed by following items:
• left and right metal plates with epoxy powder coating
• a slatted bedspring
• hardware fittings accessory for bunk bed
Guarantee
PESSOTTO RETI warrants its products for a period of 2 years from the date of
purchase.
This warranty excludes commercial components. These parts are guaranteed by
their original manufacturer.
The guarantee is valid only for appliances that have been installed and used
correctly by following all the guidelines of this brief and the “Fixing instructions”.
Responsibility for any misuse is disclaimed.
This product’s use is very simple: before installing and using it, it’s mandatory to
care-fully read the booklet. Herein you’ll find all correct advices for an optimal
installation, use and maintenance of the product.
It’s important that the booklet is kept together with the product.
This product has been developed for a non-professional use by private persons in
households. Its use is not intended to be used by people (children included) who’s
physical, sensorial or mental capacities are weak, or do not have any experience or
knowledge, unless they have been taught by a person that’s responsible for their
sa-fety. Children shall be surveyed and are not allowed to play with the device.
The installation and/or adjustments of the product shall be carried out in a
workmanlike way only by qualified installers, in accordance with all the
installation rules of this brief.
Remarks: No liability is assumed by PESSOTTO RETI in
failure to comply with the given advices.
Pag 9

2 . Safety
Safety standard
Compliance with the safety standards puts the user in terms of working
productively, without danger of harm to himself and to others.
Compliance with the safety standards puts the user in terms of working
productively, without danger of harm to himself and to others.
Before starting to use the product the users shall be aware of its functions and
its technical features, learnt through an accurate and complete reading of the
present user’s guide.
Tampering or replacement of bed parts that are not authorized by Pessotto Reti,
are not allowed.
The use of accessories or spare parts other than those recommended by the
supplier,present a non proper and hazardous use of the product.
Any modification of the product not expressly approved by the company
Pessotto Reti releases the company from any civil or penal liability.
It’s forbidden to use the product without any mattress on the
bedspring surface.
It’s forbidden to use the bed for a different use, than the one
described previously in section USE.
Non correct installation or not made by specialized craftsmen, may
cause detachments, breaking or dysfonctions with possible damages
to persons, things or animals. All given instructions have to be
strictly observed.
It’s strictly forbidden to remove any safety device and protection
(labels)
on the set; periodically check the incidental position on the
mechanism of blankets or else.
Before starting any maintenance, repair work or cleaning the operator
must have read and understood all technical information contained in
this guide.
Any maintenance and repair shall be performed by qualified personnel
only.
WARNING !!!
Never place the product near any heat sources.
Position and lock the bed system to be maintained clear of objects
that may hinder its movement.
The instructions and rules contained in this manual must be
observed at all times.
Pag 10

Residual risk areas
In some areas of the product there are some residual risks that couldn’t be
avoided in designing.
Each user has to be aware of the residual risks of this product in order to avoid
possible accidents.
These dangers are listed below:
1)HAZARDS OF CRUSHING
While moving the bedspring there are residual risks of
crushing hands between the moving parts of the mechanism
and the fixed structure of the bed.
2)MAKE SURE that the area of the bedspring or on the
bedspring itself there are no people, animals or things that
could collide with its movement.
PLACING OF LABELS
On the product following safety or identification labels could be placed:
The labels are to infor the users of possible risks during
mechanism's motion.
No stickers or plates shall be removed, tampered or destroyed.
POSITION LABEL DESCRIPTION
On the bed frame in
handling
Caution:
hand crushing
Pag 11

3. Use of the horizontal hideaway bed and
its function
General
The horizontal manual hideaway bedsystem has been developed by keeping in mind
to have an extra bed, according to the needs, in a absolutely quick way, avoiding all
unju-stified efforts of the user.
MANUAL MECHNANISM
The manual hideaway bed’s movement happens by means of two gas springs put on
the sides of the structure, and recline the bedspring, subsequently a stop prevents it
from returning in the vertical position (pag.48).
technical features
TECHNICAL FEATURES
BEDSPRING SIZE 820x1940 920x1940 920x2040
bedspring weight 23Kg 23,6Kg 24,5Kg
mattress average
weight
14,5Kg 17,5Kg 19Kg
Front panel weight 21Kg 22,5Kg 24,5Kg
internal size of the
single bed
horizontal cabinet
1000x1980x380mm 1100x1980x380mm 1100x2080x380mm
Internal size of the
bedbunk cabinet
2065x1980x380mm 2165x1980x380mm 2165x2080x380mm
Pag 12

MAINTENANCE
Make periodical check of all screwed on parts, including also the steadiness of the
wall fixation, by checking that no elements are lose, folded, damaged or missing
CLEANING AND LUBRICATION
The cleaning of all metal parts shall be made with a humid sponge or cloth.
Don't use any solvents or abrasive materials.
The lubrication of moving parts must only be carried out by qualified personnel.
DISPOSAL
The different parts shall be disposed in special
containers in accordance with the ruling standards.
DO NOT DUMP.
4. MAINTENANCE - CLEANING - LUBRIFICATION - DISPOSAL
Pag 13

M6X15 pz 12
12 pcs
MANDATORY: Assembling shall be carried out by
skilled and qualified staff only
IMPORTANTE: Il montaggio deve essere eseguito da
personale esperto e qualificato
4/5/8
mm
MATERIALI E ATTREZZATURE NON FORNITI
MATERIALS AND TOOLS NOT PROVIDED
KIT
Viti 4x25 pz 12
Screw 4x25 12pcs
Sistema fissaggio pz 4
Wall fixing system 4pcs
Maniglie x ante pz 1/2
Doors Handles 1/2pcs
Pag14

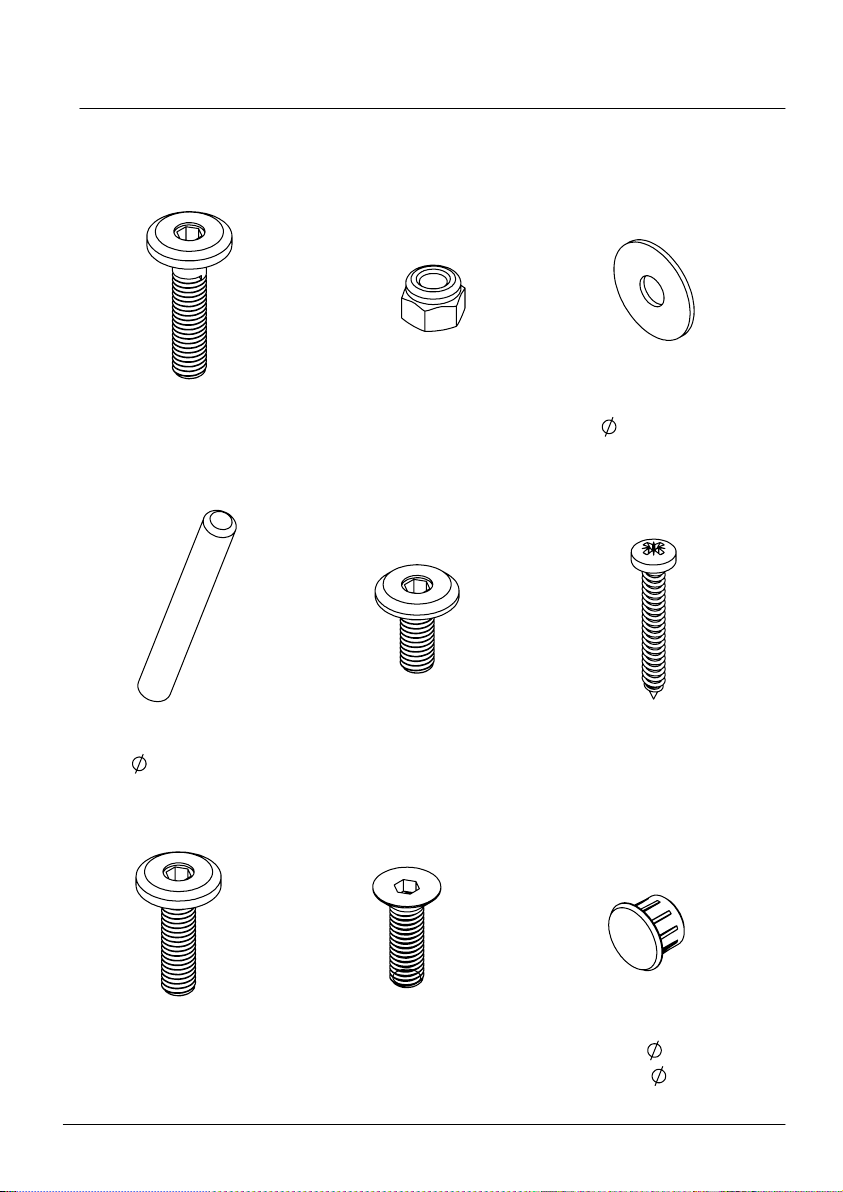

E
M6X12 pz 12
12 pcs
G
M6X20 pz 2
2 pcs
A
M6X30 pz 6
6
pcs
B
M6 pz 6
6
pcs
C
6/24 pz 6
6
pcs
D
X50 pz 2
2 pcs
Elementi in lamiera saldata. Finiture verniciato a polveri epossidiche.
Elements in welded sheet metal. Finishes in epoxy powders.
MATERIALI / MATERIALS
COMPONENTI DEL KIT/ KIT COMPONENTS
FORNITO PROVIDED
F
TC4X25 pz 5
5 pcs
H
M6X20 pz 16
16 pcs
I
Copriforo
10 pz 12
Hole Cover 10 12 pc
Pag15

N
Rete pz 1
Bedspring 1 pc
J
Meccanismo SX pz 1
LH mechanism 1 pc
K
Meccanismo DX pz 1
RH mechanism 1 pc
L
Staffe pz 2
Brackets 2 pcs
M
Sicura antichiusura pz 1
Safety hook 1 pc
COMPONENTI DEL KIT/ KIT COMPONENTS
FORNITO PROVIDED
Pag 16

P
Staffa x scaletta pz 1
Ladder bracket 1 pc
T
M8x60 pz 2
Screw M8x60 2 pcs
R
M6x45 pz 2
M6x45 2 pcs
COMPONENTI DEL KIT CASTELLO/ BUNK BED KIT COMPONENTS
FORNITI PROVIDED
O
Ptotezione pz 1
Safety rail 1 pc
Q
Scaletta pz 1
Ladder 1 pc
S
M6 pz 2
M6 2 pcs
U
M8 pz 2
M8 2 pcs
W
8/24 pz 2
8/24 2 pcs
Pag17

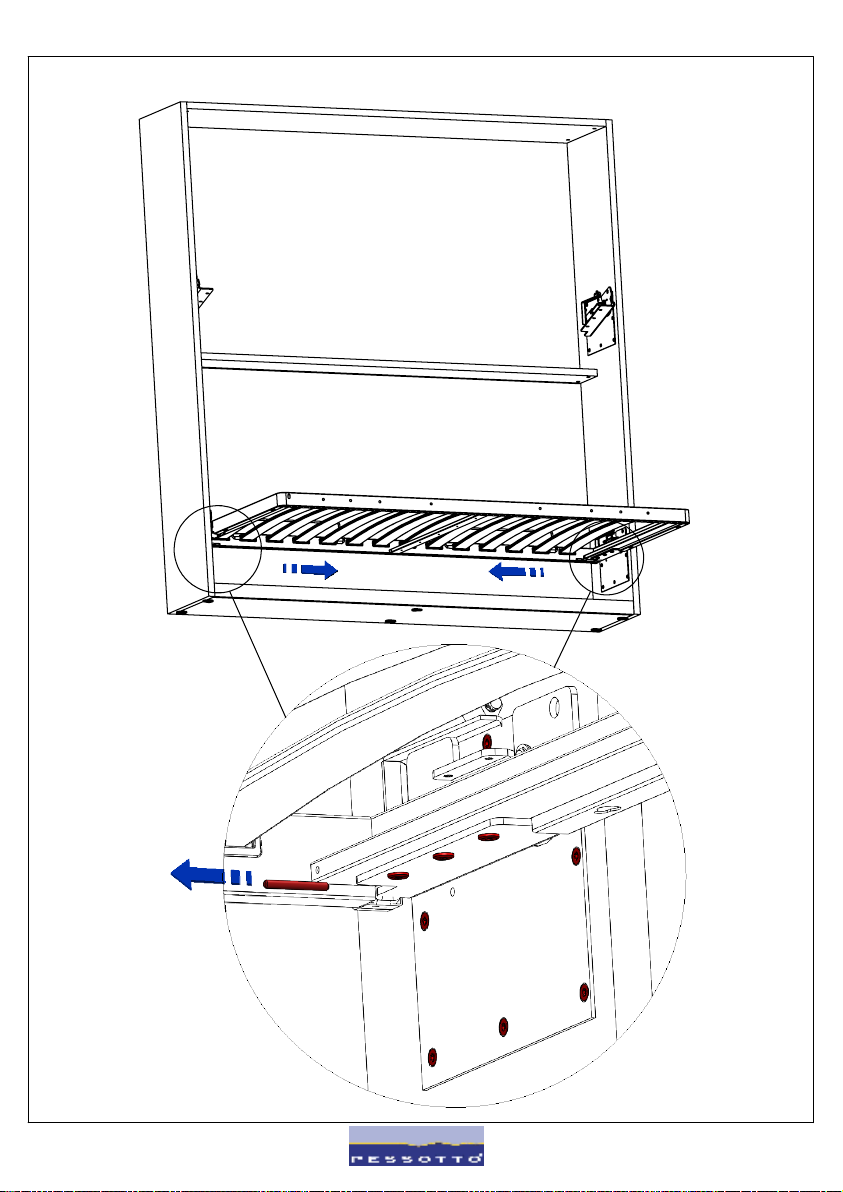

KIT
x12
4x25
STEP 01
VITI NON FORNITE
NOT PROVIDED SCREW
Pag 18
ISTRUZIONI DI MONTAGGIO / ASSEMBLY INSTRUCTION

X 4
STEP 02
KIT
OBBLIGATORIO
NOTE:l’accoppiamento vite, tassello,
muro deve essere superiore a 200
Newton di trazione su singola vite/punto
di fissaggio. Accertarsi con il proprio
fornitore la tipologia di tasselli da usare.
MANDATORY
Remarks:The combination screws,
dowel wall must be over 200
Newton traction on each single
screw/fixing point.Check with the
supplier on whatkind of dowels are
to be used.
Pag 19
ISTRUZIONI DI MONTAGGIO / ASSEMBLY INSTRUCTION

Dx pz 1
Rh 1 pc
X 10
H
Hx8
STEP 03
J
M6X20
K
Sx pz 1
Lh 1 pc
Pag 20
ISTRUZIONI DI MONTAGGIO / ASSEMBLY INSTRUCTION

X2
Step 04a
D
D
AO
AO
SEZIONE AO-AO
Dx/ Rh
AO
AO
AP
AP
BG
BG
BH
SEZIONE BG-BG
STEP 04
D
6X50
Step 04b
Sx/ Lh
Pag 21
ISTRUZIONI DI MONTAGGIO / ASSEMBLY INSTRUCTION

X6
M6X20
H
STEP 05
Pag 22
ISTRUZIONI DI MONTAGGIO / ASSEMBLY INSTRUCTION

C
6/24
B
M6
A
X6
STEP 06
Step 06a
Step 06b
M6X30
X6X6
ABC X3
Pag 23
ISTRUZIONI DI MONTAGGIO /
ASSEMBLY INSTRUCTION

STEP 07
Pag 24
ISTRUZIONI DI MONTAGGIO /
ASSEMBLY INSTRUCTION

EX12
E
M6X12
X12
5MM
STEP 08
M6X20
Step 08a
Pag 25
ISTRUZIONI DI MONTAGGIO /
ASSEMBLY INSTRUCTION

EX12
E
M6X12
X12
Step 08b
Step 08c
Step 08d
STEP 08
M6X20
Pag 26
ISTRUZIONI DI MONTAGGIO /
ASSEMBLY INSTRUCTION
