Owners Manual
75V
Softener Manual
1. Page 22 of this manual contains important maintenance procedures for the continued proper
operation of your unit. These MUST be performed regularly for your warranty to remain valid.
2. Read all instructions carefully before operation.
3. Avoid pinched o-rings during installation by applying NSF certied lubricant to all seals (provided with install kit).
4. This system is not intended for treating water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.

2
Table of Contents
READ THIS PAGE FIRST
BEFORE STARTING INSTALLATION 3
HOW YOUR WATER CONDITIONER WORKS 5
SPECIFICATIONS
SPECIFICATIONS 6
SYSTEM DIMENSIONS 7
BRINE TANK DIMENSIONS 8
INSTALLATION

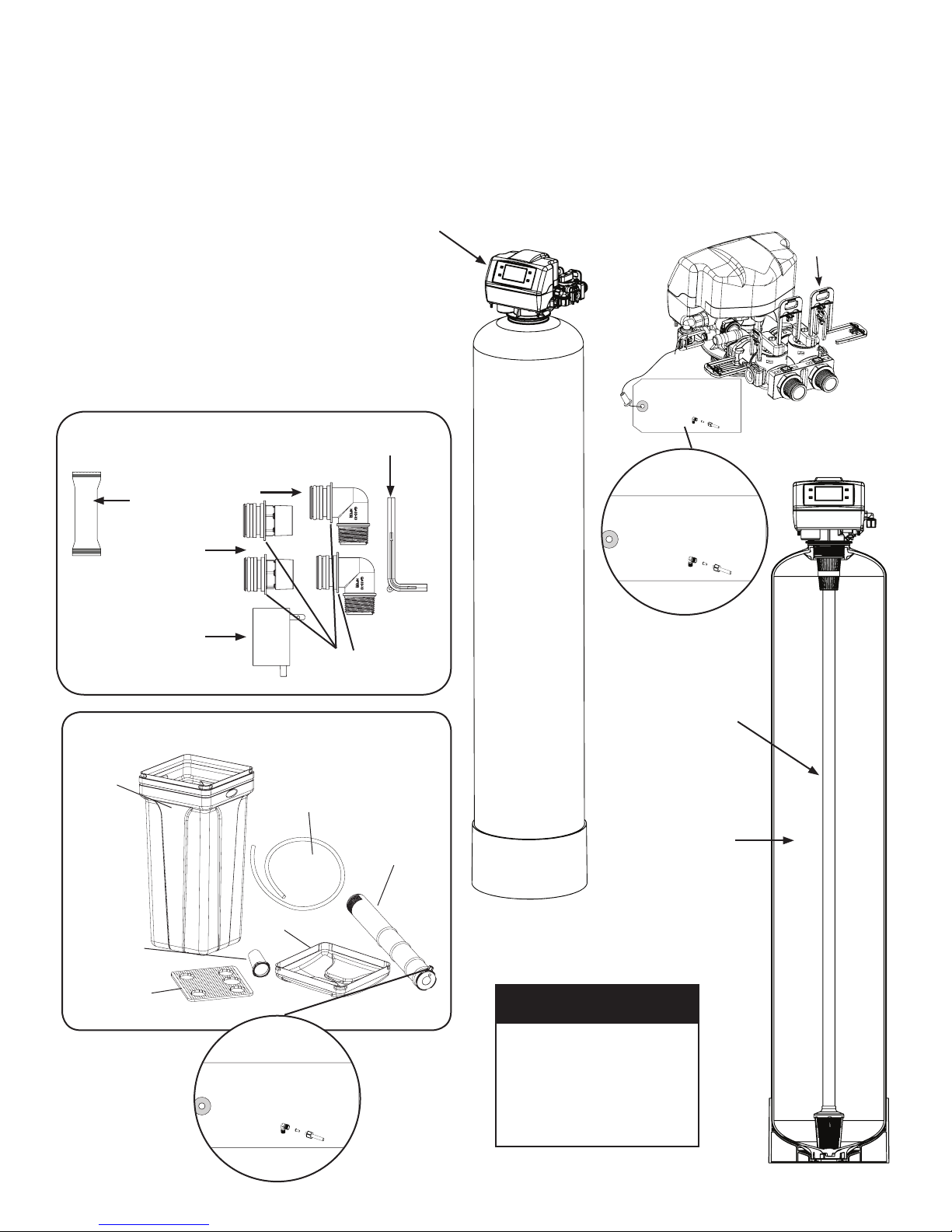

UNPACKING / INSPECTION OF TWIN TANK MODEL 10
UNPACKING / INSPECTION OF CABINET MODEL 12
CHECK VALVE TYPE AND VALVE SERIAL # 13
BEFORE INSTALLATION 14
PREPARATIONS 15
INSTALLING BRINE TANK 17
WATER SOFTENER INSTALLATION 18
CABINET WATER SOFTENER INSTALLATION 19
OPERATION
STARTUP INSTRUCTIONS 20
MAINTENANCE INSTRUCTIONS AND SCHEDULE 22
IMPORTANT WARRANTY AND MAINTENANCE
INFORMATION 23
CARE OF YOUR SOFTENER 24
SERVICING COMPONENTS 24
RES-UP® FEEDER INSTALLATION INSTRUCTIONS 24
SERVICING 75 VALVE 25
REPLACEMENT
POWERHEAD REPLACEMENT 26
PISTON AND/OR BRINE VALVE ASSEMBLY REPLACEMENT 26
METER ASSEMBLY REPLACEMENT / CLEAN INJECTOR ASSEMBLY 27
REPLACING THE BYPASS AND METER CABLE 28
REPLACE MOTOR /REPLACE DRAIN LINE FLOW CONTROL / REPLACING PCBS 29
AFTER SERVICING 30
PARTS BREAKDOWN 31
POWERHEAD 31
VALVE BODY 32
BYPASS 33
CABINET 34
PROGRAMMING
HOW TO SET DATE AND TIME, MANUAL REGENERATION AND DEALER INFORMATION 35
MAIN MENU 36
MASTER PROGRAMMING 37

2 3
Read this manual thoroughly to become familiar with the
device and its capabilities before installing or operating your
Water Filter. Failure to follow instructions in this manual
could result in personal injury or property damage. This
manual will also help you to get the most out of your filter.
This system is intended for use on municipal water only and
its installation must comply with all State, provincial or local
regulations. Check with your local public works department
for plumbing and sanitation codes. In the event the codes
conflict with any content in this manual the local codes
should be followed. Consult your licensed plumber for
installation of this system.
This water filter is designed to operate on pressures of 30 psi
to 125 psi. If the water pressure is higher than the maximum
use a pressure reducing valve in the water supply line to the
filter.
This unit is capable of operating at temperatures between
40°F and 110°F (4°C - 43°C). Do not use this water filter on hot
water supplies.
Do not install this unit where it may be exposed to wet
weather, direct sunlight, or temperatures outside of the
range specified above.
Avoid pinched o-rings during installation by applying
(provided with install kit) NSF certified lubricant to all seals.
Filters are commonly exposed to high levels of iron,
manganese, sulfur, and sediments. Damage to pistons, seals,
and or spacers within the control valve are not covered in
this warranty due to the harsh environment.
It is recommended to regularly inspect and service the
control valve on an annual basis. Cleaning and or replacement
of piston, seals, and or spacers may be necessary depending
on how harsh the conditions are.
Do not use water that is microbiologically unsafe without
adequate disinfection before or after this system.
This publication is based on information available when
approved for printing. Continuing design refinement could
cause changes that may not be included in this publication.
The manufacturer reserves the right to change the
specifications referred to in this literature at any time,
without prior notice.
READ THIS PAGE FIRST
BEFORE STARTING INSTALLATION
INSTALL NOTES &
SAFETY MESSAGES
Watch for the following
messages in this manual:

NOTE
Do not remove or destroy
the serial number. It must be
referenced on request
for warranty repair or
replacement
CAUTION!
Disassembly while
under pressure can
result in flooding.
WARNING!
ELECTRICAL SHOCK
HAZARD! UNPLUG THE UNIT
BEFORE REMOVING THE
COVER OR ACCESSING ANY
INTERNAL CONTROL PARTS
NOTE: used to emphasize
installation, operation or
maintenance information
which is important but does
not present a hazard.
CAUTION: used when
failure to follow directions
could result in damage to
equipment or property.
WARNING: used to
indicate a hazard which
could cause injury or death if
ignored.




4
HOW YOUR WATER CONDITIONER WORKS
Water softeners remove hardness in the water by exchanging particles in the water, or ions. They remove hard ions such as calcium and magnesium in the water by trading it
for sodium ions producing soft water. Unlike the calcium and magnesium, sodium stays dissolved in water and does not form a scale. Sodium also does not interfere with the
cleaning action of soaps. The sodium is released by a charged resin contained in the softener, this resin also traps the calcium and magnesium ions. Eventually this resin releases
all of its sodium and has filled up with other ions, so it then must be regenerated. Regeneration is accomplished by washing the resin with a salt saturated brine solution that
removes the calcium and magnesium while replenishing the sodium. This is why the softener requires a brine tank and salt. The water softener can run for days before running
out of sodium, and when it does, the sodium is replenished in only a matter of a few hours
When using a softener to remove both hardness and dissolved iron it is important that it regenerates more frequently than ordinarily would be calculated for hardness removal
alone. Although many factors and formulas have been used to determine this frequency, it is recommended that the softener be regenerated when it has reached 50–75% of the
calculated hardness alone capacity. This will minimize the potential for bed fouling.
If you are operating a water softener on clear water iron, regular resin bed cleaning is needed to keep the bed from coating with iron. Even when operating a softener on water
with less than the maximum of dissolved iron, regular cleanings should be performed. Clean every six months or more often if iron appears in your conditioned water supply. Use
resin bed cleaning compounds carefully following the directions on the container.
Precision Brining: Precision brining means that your conditioner calculates the exact
amount of brine required to regenerate saving up to 30% more salt
When your conditioner regenerates it will display 2 numbers for capacity 1 will be total
capacity the other will be 70 % of capacity.The unit counts down to the end of the
70% then calculates how much of the 30% you used (your reserve) it then adjusts the
brine amount accordingly and regenerates that evening.This feature means that your
capacity will always be dierent after every regeneration therefore maximizing your
salt use.
Soft Water Recharge for High Usage: Should you reach the 70% capacity and
then go beyond the 30% before it is time to regenerate the conditioner will do a quick
regeneration to restore limited capacity to get it through the remainder of the day.
System Refresh: If you are away for an extended period of time the Conditioner
does a refresh cycle to prevent any chance of bacterial growth or stagnation inside the
conditioner.

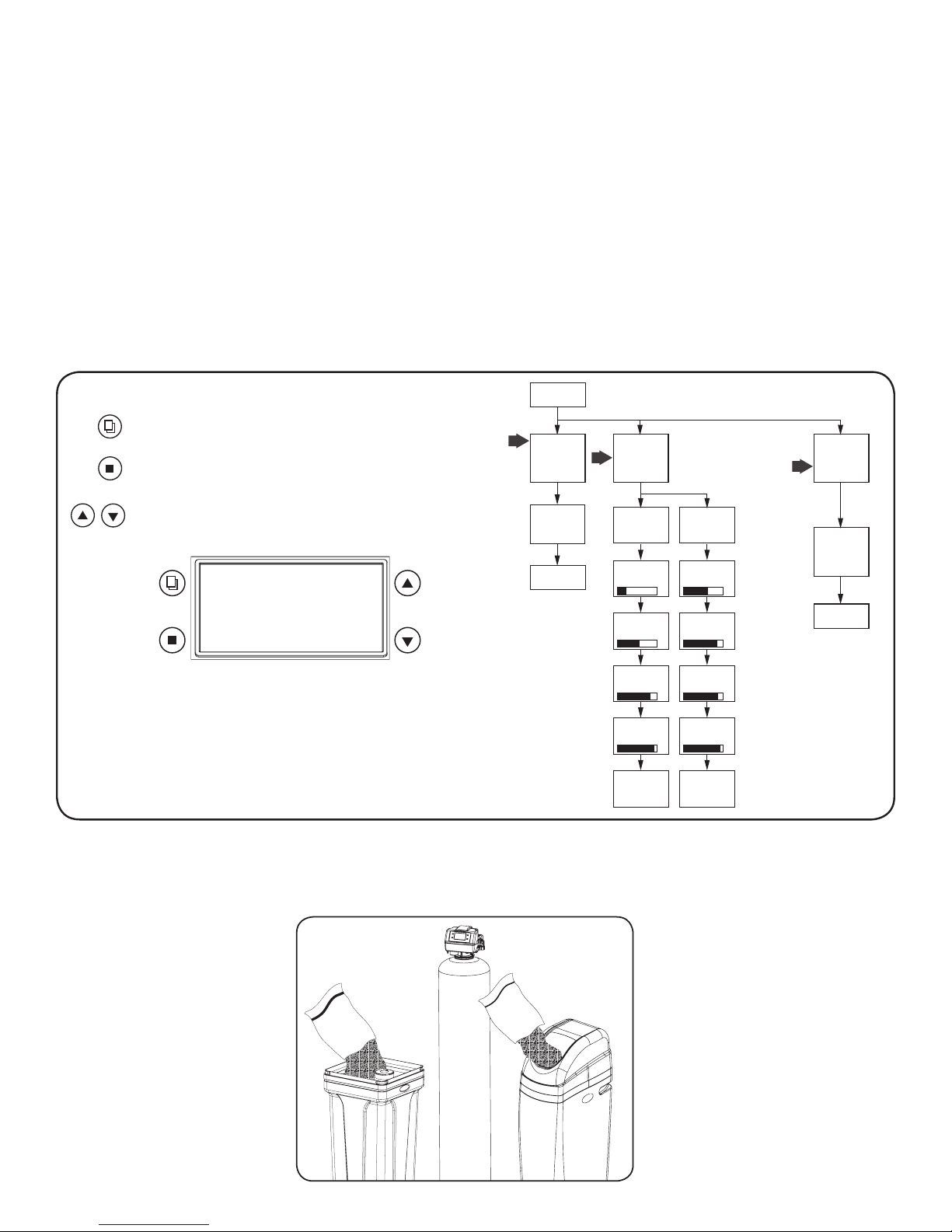

Scrolling Diagnostics: By pressing any button to light the LCD display the unit will
automatically begin scrolling important information for diagnostic purposes
Date and Time
Total Gallons and Remaining Gallons
Number of People: in the household as programmed at install
Reserve Capacity: calculated as 75 gallons per person
Estimated Days to Next: estimation of days to the next regeneration based on current
consumption, hardness and capacity
Last Regeneration: the date of the last regeneration cycle by the conditioner
Total Regenerations: this is the total number of times the conditioner has regener-
ated
Total Gallons: total gallons treated by the conditioner
Over Run Total: – how many times Soft water recharge was required due to high
usage
Current Flow Rate: will only display if treated water is running otherwise it would
read 0
Peak Flow: maximum ow that has gone through the conditioner.
Delayed Regen OFF: – generally only used after servicing.
Regen Time: This is the time of day that the conditioner is scheduled to regenerate
Rell Time: The current calculated rell time for makeup brine (displays up to 70% of
total brine required)
Valve Mode: current valve setting EG. Softener UF (up ow)
To stop the scrolling you can unlock the board as directed and press the down arrow to
stop the scrolling.You can then use the down arrow to go to each of the diagnostics as
required.

4 5
Model
System Capacity Grains Flow Rate Regeneration
Water Usage
Factory Setting
(Gallons)
Mineral
Tank Size
Resin
Cu. Ft.
Brine Tank / Cabinet Size
Inches
Salt Capacity
(Lbs)
Ship Weight
(Lbs)
@ 10 Lbs/Cu ft @ 6 Lbs/Cu Ft
(Factory Setting) @ 3 Lbs/Cu Ft Service
USGPM
Backwash
USGPM
PW75V-75 21,000 18,750 11,550 8.0 1.5 56.7 8 x 44 0.75 BTS 15.0x34.7/BTR 18.1x34.7 BTS 230 /BTR 270 93
PW75V-100 28,000 25,000 15,400 10.0 2.0 67.2 9 x 48 1.00 BTS 15.0x34.7/BTR 18.1x34.7 BTS 230 /BTR 270 110
PW75V-150 42,000 37,500 23,100 12.0 2.4 76.2 10 x 54 1.50 BTS 15.0x34.7/BTR 18.1x34.7 BTS 230 /BTR 270 141
PW75V-200 56,000 50,000 30,800 15.0 3.5 124.4 12 x 52 2.00 20.3 x 37.4 385 158
PW75V-250 70,000 62,500 38,500 15.0 4.0 135.4 13 X 54 2.50 20.3 x 37.4 385 198
PW75V-300 84,000 75,000 46,200 15.0 5.0 173.2 14 x 65 3.00 23.0 x 40.5 550 244
PW75V-75C 21,000 18,750 11,550 8.0 2.0 66.7 9 x 35 0.75 13.8 x 23.6 x 43.3 225 93
PW75V-100C 28,000 25,000 15,400 10.0 2.4 75.2 10 x 35 1.00 13.8 x 23.6 x 43.3 225 110
SPECIFICATIONS
Working Temperature:This unit must be
operated at temperatures between 40°F and
110°F (4°C - 43°C).
Working Pressure:This water softener
must be operated on pressures
between 30 psi to 125 psi. If the water
pressure is higher than 125 PSI, use a
pressure reducing valve in the water supply
line to the softener.
Voltage = 120V / 60 Hz
Pipe Size = 3/4” and 1”
• At the stated service flow rates, the
pressure drop through these devices will
not exceed 15 psig.
• The manufacturer reserves the right
to make product improvements which
may deviate from the specifications
and descriptions stated herein, without
obligation to change previously
manufactured products or to note the
change.
* Do not use water that is microbiologically
unsafe without adequate disinfection
before or after the system.
Peak flow rates intended for intermittent
use only (10 minutes or less) and are for
residential applications only. Do not use
peak flow rate for commercial applications
or for a continuous rate when treated
water supplies are geothermal heat pump,
swimming pool, etc.
For satisfactory operation, the pumping rate
of the well system must equal or exceed
indicated backwash flow rate.
All units come with plastic bypass
Maximum Iron = 1.5 ppm
Maximum Hydrogen Sulde = 0.0 ppm
Maximum Manganese = .75 ppm
pH = 6.5 to 8.5

6
Cabinet Model
B
Twin Tank Model
A
A B
PW75V-75 44” 8”
PW75V-100 48” 9”
PW75V-150 54” 10”
PW75V-200 52” 12”
PW75V-250 54” 13”
PW75V-300 65” 14”
PW75V-75C 35” 9”
PW75V-100C 35” 10”

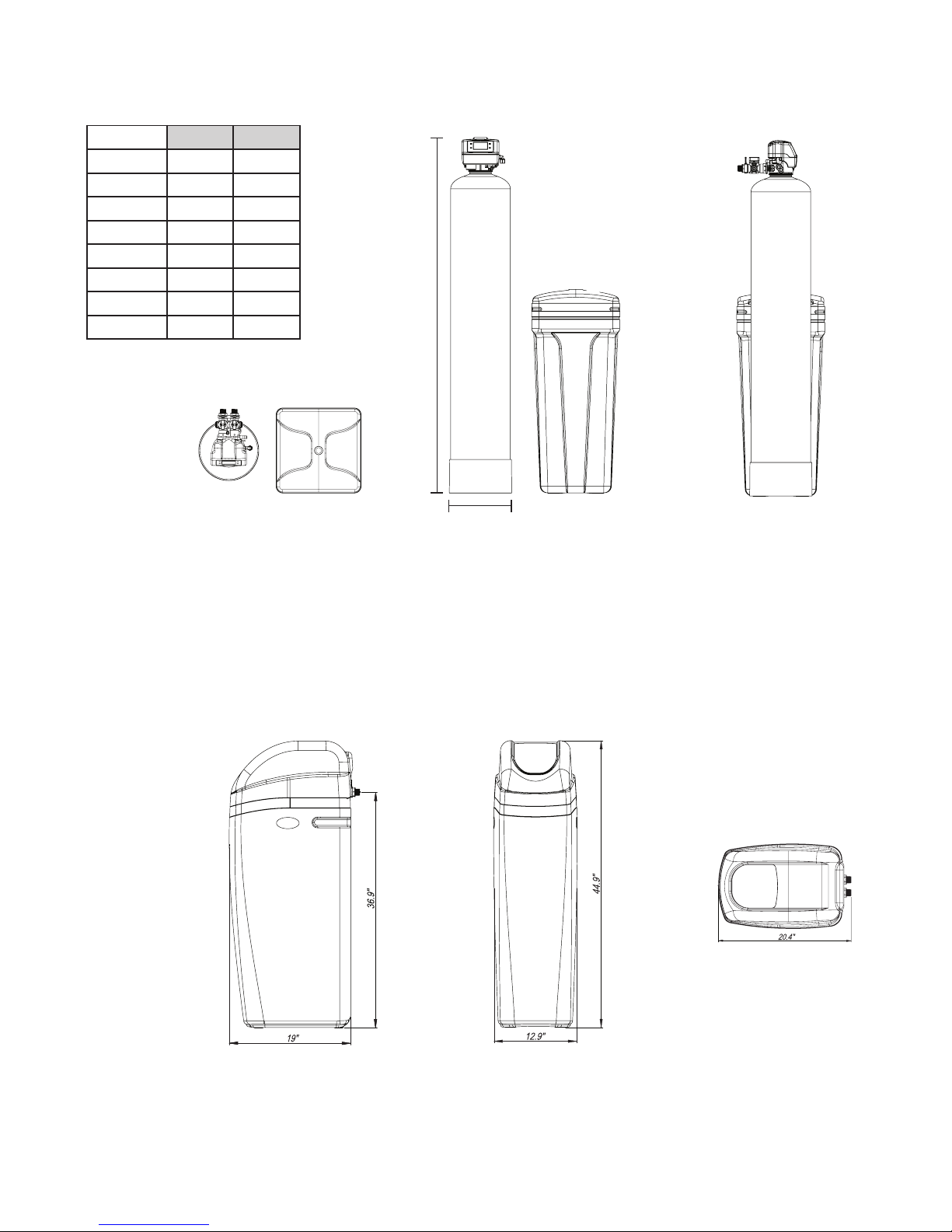

SYSTEM DIMENSIONS

6 7
Model Color Liquid Volume Tank Dimensions
(inches)
5 Pack Carton
Dimensions (inches)
Salt Capacity 5 Pack Carton
Shipping Weight
US Gal Liters L x W x H L x W x H Lbs Kg Lbs Kg

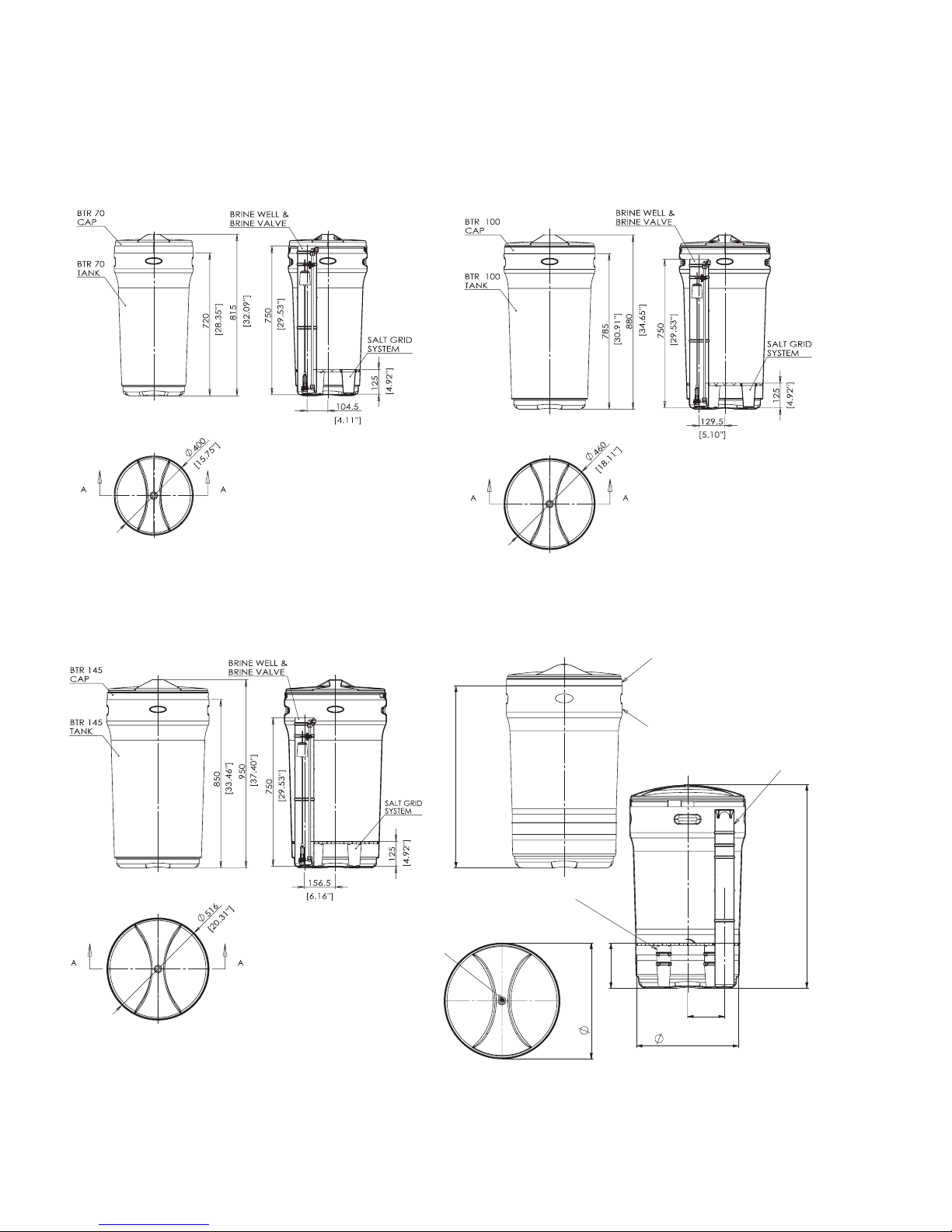

Brine Tanks
BTR-70 Black 20.3 76.5 15.8 x 32.1 16.7 x 16.7 x 61.0 185.0 92.8 41.6 18.9
BTR-70 Blue 20.3 76.7 15.8 x 32.1 16.7 x 16.7 x 61.0 185.0 92.8 41.6 18.9
BTR-100 Vanilla 29.5 111.5 18.1 x 34.7 18.9 x 18.9 x 65.6 270.0 122.2 52.8 23.9
BTR-100 Black 29.5 111.5 18.1 x 34.7 18.9 x 18.9 x 65.6 270.0 122.2 52.8 23.9
BTR-100 Blue 29.5 111.5 18.1 x 34.7 18.9 x 18.9 x 65.6 270.0 122.2 52.8 23.9
BTR-145 Black 42.3 159.7 20.3 x 37.4 21.9 x 21.9 x 72.2 385.0 174.2 65.6 29.8
BTR-200 Grey 53.0 200.3 23.0 x 40.5 24.6 x 24.6 x 84 700.0 316.7 125.0 56.6
BTS-70 Black 19.0 71.8 13.1 x 13.1 x 34.7 14.4 x 14.4 x 62 175.0 92.8 48.8 22.1
BTS-70 Blue 19.0 71.8 13.1 x 13.1 x 34.7 14.4 x 14.4 x 62 175.0 92.8 48.8 22.1
BTS-100 Vanilla 25.0 94.5 15.0 x 15.0 x 34.7 16.6 x 16.7 x 61 230.0 104.1 54.4 24.7
BTS-100 Black 25.0 94.5 15.0 x 15.0 x 34.7 16.6 x 16.7 x 61 230.0 104.1 54.4 24.7
BTS-100 Blue 25.0 94.5 15.0 x 15.0 x 34.7 16.6 x 16.7 x 61 230.0 104.1 54.4 24.7
* All brine tanks come with salt grid, safety oat and brine well
Dimensions
BTS70
BTS100
BRINE TANK DIMENSIONS

8
175/225/275
salt grid system
918(36.2")
salt tank body
sa
lt
t
an
k
lid
(7.3")
(20.35")
1028
186
(40.5")
517
175/225/275
brine well and brine valve
salt grid system
585(23")
BTR 200l label
BTR70
BTR145
BTR100
BTR200

8 9
NOTE
Due to transportation
and climatic conditions all
connections including the
valve to the tank need to be
checked at time of
installation and tightened if
necessary.
,03257$17
3/($6((1685(7+($77$&+('
78%(67,))(1(5,6,16(57('
,1727+(%5,1(/,1(%()25(
7,*+7(1,1*
7+(187
,03257$17
3/($6((1685(7+($77$&+('
78%(67,))(1(5,6,16(57('
,1727+(%5,1(/,1(%()25(
7,*+7(1,1*
7+(187
There are 6 Red clips. Please check to
make sure you have all of them.
Clips
Be sure to check the entire unit for any shipping damage or parts loss. Also note damage to the shipping cartons. Contact the transportation company for all damage and loss
claims. The manufacturer is not responsible for damages in transit.
Small parts, needed to install the Softener, are in a parts box. To avoid loss of the small parts, keep them in the parts bag until you are ready to use them.
What is included in the box?
For Models 75,100,150, 200, you will expect the following:
1. Control Valve*
2. Tank
3. Parts Box
4. Owners Manual
5. Drain Hose & Clamp (Not included in some brands)
6. Brine Tank Assembly
UNPACKING / INSPECTION OF TWIN TANK MODEL
*All units (75, 100, 150, 200) are pre assembled with control
valve installed on the tank, no assembly required.
1. Control Valve
2. Tank
Distributor
Tube Inside
the Tank
Water
softening
Resin Inside
the Tank.
Brine Tank Brine Tank
Tubing
Brine Well/
Safety Float
Brine Tank Lid
Grid

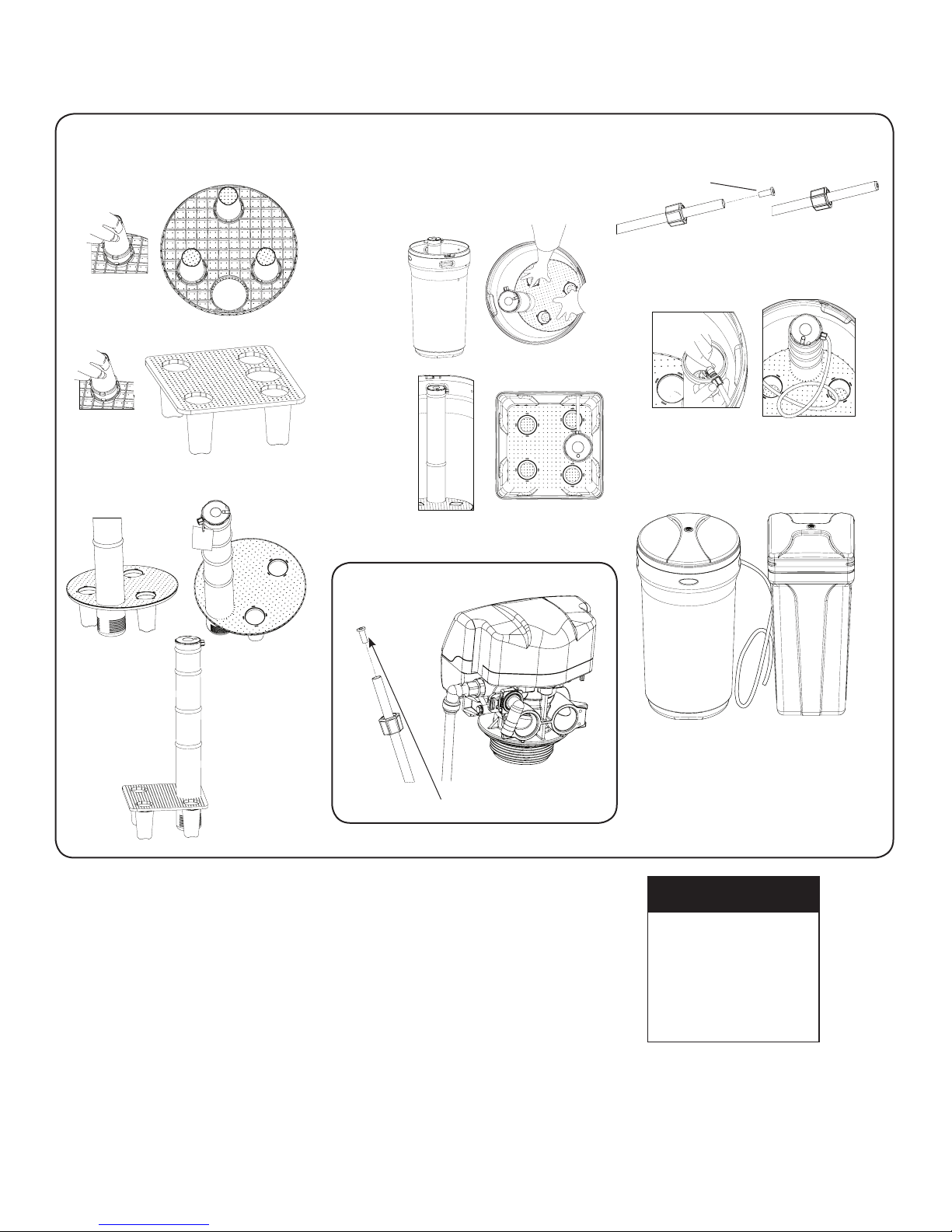

Grid Legs (4)
6. Brine Tank Assembly (Square Brine Tank Shown))
,03257$17
3/($6((1685(7+($77$&+('
78%(67,))(1(5,6,16(57('
,1727+(%5,1(/,1(%()25(
7,*+7(1,1*
7+(187
3. Parts Box
60090003
2X 1” Straight
Adapter
60010006
Bypass Tool
O Rings Attached
60090010
2 X 3/4”
Elbow
Adapter)
60010630
Transformer
92360
Grease
Packet

10
,03257$17
3/($6((1685(7+($77$&+('
78%(67,))(1(5,6,16(57('
,1727+(%5,1(/,1(%()25(
7,*+7(1,1*
7+(187
,03257$17
3/($6((1685(7+($77$&+('
78%(67,))(1(5,6,16(57('
,1727+(%5,1(/,1(%()25(
7,*+7(1,1*
7+(187
There are 6 Red clips. Please check to
make sure you have all of them.
Clips
For Model 250 and 300 the media and Control Valve is packaged separately in carton and bags
What is included with 300 model?
1. Tank (Model 250 and 300 will get an Adapter and Oring attached to the tank)
2. Control Valve with Parts Box
3. Media Boxes (Qty 3 for 250 and 300)
4. Drain Line and Hose Clamp (Not Included with some models))
5. Brine Tank Assembly
Models 250, 300 will
get Adaptor and
Oring Shown
1. Tank
2. Control Valve
Distributor
Tube Inside
the Tank
Media Inside
the Tank.
Media Type
will depend
on what
models were
purchased
3. Media Box
(Qty depends
on Models)
Brine Tank Brine Tank
Tubing
Brine Well/
Safety Float
Brine Tank Lid
Grid
Grid Legs (4)
5. Brine Tank Assembly (Round Brine Tank Shown))
,03257$17
3/($6((1685(7+($77$&+('
78%(67,))(1(5,6,16(57('
,1727+(%5,1(/,1(%()25(
7,*+7(1,1*
7+(187
2. Parts Box
60090003
2X 1” Straight
Adapter
60010006
Bypass Tool
O Rings Attached
60090010
2 X 3/4”
Elbow
Adapter)
60010630
Transformer
92360
Grease
Packet

10 11
UNPACKING / INSPECTION OF CABINET MODEL
1. Cabinet with Valve attached
2. Parts Box
3. Drain Line and Hose Clamp (Not Included with some models))
2. Parts Box
2X 1”
Straight
Adapter
Bypass Tool
2 X 3/4”
Elbow
Adapter)
Transformer
Grease
Packet

12
Valve Serial #
Complete System Serial #
%17)6'&9
+969+9
1&
7KLV9DOYHLV7HVWHGDQG&HUWLILHGE\16)
LQWHUQDWLRQDODJDLQVW$16,16)6WDQGDUG
IRUPDWHULDOVDQGVWUXFWXUDOLQWHJULW\
UHTXLUHPHQWVRQO\
1
CHECK VALVE TYPE AND VALVE SERIAL #
Check to make sure Valve Type is Upflow (UF) (left Sticker shown below). The right Sticker shows the serial # of the control valve. The middle Sticker is dataplate which
provides information of Serial # and Date of Manufacture of complete system. Both Serial # labels are important for troubleshooting.
Please record these numbers for future use on page 23 in the maintenance section.
(22018448W): Part #
(L)Year : ’’ M’’ stand for 2016 year,’’ L’’ stand for 2015, ’’K’’ stand for 2014, ’’J’’
stand for 2013
(7)Month: 1 (Jan) 2(Feb) 3(Mar) 4(April) 5(May) 6(June) 7(July)
8(Aug) 9(Sep) A(Oct) B(Nov) C(Dec)
(3)Date: 1 2 3 4 5 6 7 8 9 A(10) B(11) C(12) D(13) E(14) F(15) G(16)
H(17) I(18) J(19) K(20) L(21) M(22) N(23) O(24) P(25) Q(26) R(27) S(28)
T(29) U(30) V(31)
(0001): Batch code
Valve Serial #:
Year Month Date Batch #Part #

12 13
8QILOWHUHG:DWHU%\SDVV
/RRS&XW&DSSHG
*URXQG6WUDS5HTXLUHG%HFDXVH
RI%UHDNLQ&RQWLQXLW\
)LOWHUHG:DWHU/LQHLQ+RPH
Fig. 1.
BEFORE INSTALLATION
Make sure you have a copy of your most recent water test results. If your water has not been tested previously you can contact
your supplier of this product to obtain a water sample bottle to be sent to one of our facilities for a free analysis. It is important
that this product not be installed until you have this information.
In all cases where metal pipe was originally used and is later interrupted by poly pipe or the Noryl bypass valve or by physical
separation, an approved ground clamp with no less than #6 copper conductor must be used for continuity, to maintain proper
metallic pipe bonding.
Inspecting and Handling Your 75 Softener*
Inspect the equipment for any shipping damage. If damaged, notify the transportation company and request a damage
inspection. Damage to cartons should also be noted.
Handle the filter unit with care. Damage can result if it is dropped or set on sharp, uneven projections on the floor.
Do not turn the filter unit upside down.
To Insure this Product Functions Properly:
Your feed water line size to the unit must be a minimum of 3/4 inch with an operating pressure of no less than 30
psi and no more than 125 psi.
MECHANICAL:
Do not use petroleum based lubricants such as petroleum jelly, oils or hydrocarbon based lubricants.Use only 100% silicone
lubricants (grease packet provided in parts kit). All plastic connections should be hand tightened only. Teflon tape may be used
on connections that do not use an O-ring seal. Do not use pliers or pipe wrenches except where indicated by Nut shape (eg. pipe
adapters) All plumbing must be completed according to local codes. Soldering connections should be done before connecting
any pieces to the pipe as excessive heat can damage them.
Tools Required for Installation:
NOTE: We recommend installation only be completed by a competent installer or
plumbing professional to insure this product is installed in accordance with local
plumbing codes.
sTwo adjustable wrenches
sAdditional tools may be required if modification to home plumbing is required.
sPlastic inlet and outlet fittings are included with the filter. To maintain full valve flow, 3/4” or 1” pipes to and from the
filter fittings are recommended. You should maintain the same, or larger, pipe size as the water supply pipe, up to the filter
inlet and outlet.
sUse copper, brass, or PEX pipe and fittings.
sSome codes may also allow PVC plastic pipe.
sALWAYS install the included bypass valve, or 3 shut-off valves. Bypass valves let you turn off water to the filter for repairs if
needed, but still have water in the house pipes.
s5/8” OD drain line is needed for the valve drain. A 10’ length of hose is not included with some brands.
NOTE
All government codes and
regulations governing the
installation of these devices
must be observed.
NOTE
If a severe loss in water
pressure is observed when
the filter unit is initially
placed in service, the filter
tank may have been laid on
its side during transit. If this
occurs, backwash the filter
to “reclassify” the media.
*NOTE
Due to transportation
and climatic conditions all
connections including the
valve to the tank need to be
checked at time of
installation and tightened if
necessary.
NOTE
Check your local electrical
code for the correct clamp
and cable size.
CAUTION!
If the ground from the
electrical panel or breaker
box to the water meter or
underground copper pipe
is tied to the copper water
lines and these lines are cut
during installation of the No-
ryl bypass valve and/or poly
pipe, an approved grounding
strap must be used between
the two lines that have been
cut in order to maintain
continuity. The length of the
grounding strap will depend
upon the number of units
being installed and/or the
amount of copper pipe being
replaced with plastic pipe.
See Fig. 1.

14
Plug
the
Riser
Tube
Cone
The riser
(distributor)
remains inside the
tank seated in the
depression at the
bottom

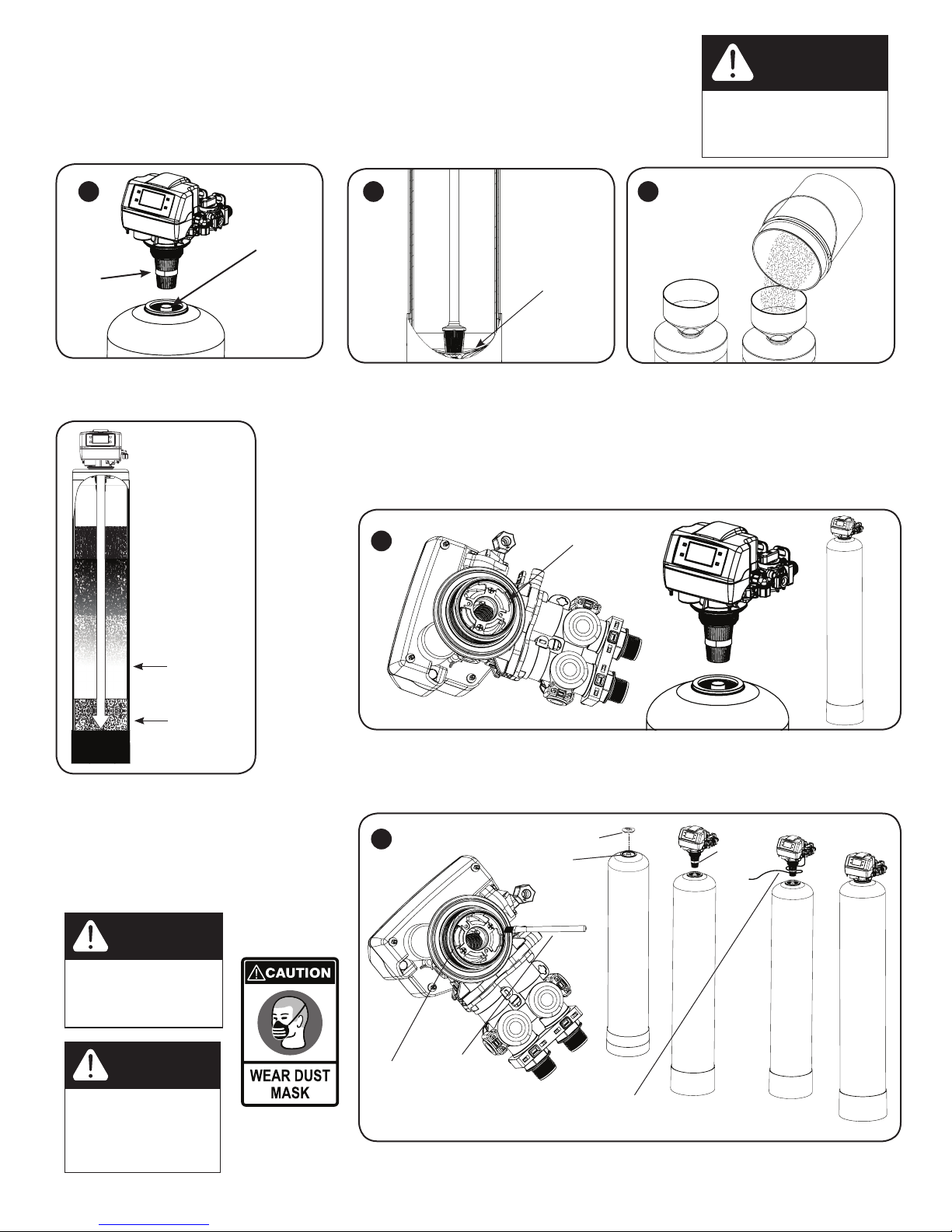

a) Lube the bottom oring (picture d) and attach
the cone to the valve.
b) Temporarily plug the open end of the riser
tube to ensure that no resin or gravel falls
down into the distribution. The riser (distrib-
utor) remains inside the tank seated in the
depression at the bottom. Plug tube with a
tape. Remove after media is loaded.
c) Fill support bed first. The media will not
always spill down inside the tank and may
need to be swept inside.The large funnel
(sold separately makes lling the tank easier
and neater. (Or an empty 1 gallon or 4 liter
container with the bottom cut out makes a
good funnel.)
a b c
Fill tank one quarter full of water to protect
distribution during gravel installation.
Place the media into the tank in the order
indicated above. Slowly and carefully add
the gravel support bed and the ltration
media leveling each layer as it is placed into
the tank.
Resin
Support Bed
Gravel
d) Unplug the riser tube, carefully position the valve over it and turn the valve into the threads in the berglass tank,
tightening securely into tank. Note: Ensure that the internal O-ring in the valve ts securely over the riser tube.
Silicone grease (part # 92360) or other food grade lubricant may be applied to the O-ring to ease installation of
the riser tube.
d) Lube the bottomValve Orings with the grease supplied, attach the cone. Unscrew the spill cap. Carefully Slide the
D-Tube inside the Valve and Screw theValve inside the Tank such that the power cord doesnt
get caught between the valve and the tank.
O-ring
d
d
CAUTION: Make sure the power cord of the
valve doesnt get caught between the threads
Grease port Orings using
brush (not included) or
your finger (Make sure to
wear protective gloves)
D-Tube
Unscrew Spill Cap Attach
Cone
PREPARATIONS
1. Media Installation (When Necessary). Models including and higher than 2 CF (Models 250,300) of media are shipped with
separate media in pails or boxes. Models lower than 2 CF of media come loaded with media and this step can be skipped for new
installation.
CAUTION!
The unit should be
depressurized before
installing or replacing media
CAUTION!
Make sure that the
unit is de-pressurized
before conducting
this task.
CAUTION!
DO NOT use petro-
leum based lubricants
as they will cause
swelling of O-ring
seals.

14 15
Inlet
Outlet
Water Lines
Outside faucets used to water lawns and gardens should not supply softened water. A new water line is often required to be connected to supply hard water to the inlet of
the water softener and to the outside faucets. Cut the water line between where it enters the house and before any lines that branch o to feed the hot water heater or other
xtures in the house and as near the desired location of the water softener as possible. Install a tee tting on the feed end of the cut pipe, and an elbow tting on the other end.
Install piping from the tee to the inlet of the water softener and from the elbow to the outlet of the softener. To sever the water lines which branch o to feed any outside faucets,
cut the branch lines approximately two inches from the tting on the main water line. Install an elbow on the end of the pipe nearest the outside faucet and a cap on the end
connected to the existing water line. Install piping from the tee installed on the inlet line to the water softener to the elbow installed on the pipe to the outside faucet. Following
this procedure will result in all lines in the house, with the exception of the outside faucets, but including the water heater and therefore the hot water lines, being supplied with
soft water.
NOTE
If the plumbing system is
used as the ground leg of
the electric supply, conti-
nuity should be maintained
by installing ground straps
around any nonconductive
plastic piping used in
installation.
NOTE
Before starting installation,
read page 16, Plumbing
System Clean-Up, for in-
structions on some proce-
dures that may need to be
performed first.
Facts to Remember When Planning Your Installation
1. All installation procedures must conform to local and state or provincial plumbing codes.
2. Outside faucets used to water lawns and gardens should not supply untreated water, replace untreated water with feed water
to the unit. If necessary to do this please install check valve, see page 14. A new water line is often required to be connected to
supply untreated water to the inlet of the water softener and to the outside faucets.
3. Make sure the bypass is attached well to the control valve. Connect the straight or elbow connectors to the bypass with red
clips. Connect the inlet and outlet of the water softener to the plumbing of the house. The control valve must not be submitted
to temperatures above 43°C (110°F). When sweat ttings are used, to avoid damaging the control valve, solder the threaded
copper adapters to the copper pipe and then, using Teon tape, screw the assembly into the bypass valve.
Do not use pipe thread compound as it may attack the material in the valve body.
4. Apply Teon Tape and Orings to the ttings
5. Connect Softener to the house plumbing. Any solder joints near the valve must be done before connecting any piping to the
valve. Always leave at least 6”(152 mm) between the valve and joints when soldering pipes that are connected to the valve.
Failure to do this could cause damage to the valve.
6. Drain Line connection: UsingTeon tape, screw the 1/2”hose barb and attach oring into the drain port in the valve. Attach
1/2”drain hose (Supplied with some models and brands) to the hose barb and tighten securely with a hose clamp (Supplied
with some models and brands). Run the drain line to a oor drain or a laundry drain. Complete any necessary plumbing.
7. Using the Allen Key (included), place the unit in the bypass position. Slowly turn on the main water supply. At the nearest cold
treated water tap nearby remove the faucet screen, open the faucet and let water run a few minutes or until the system is free
of any air or foreign material resulting from the plumbing work.
8. Make sure there are no leaks in the plumbing system before proceeding. Close the water tap when water runs clean.
9. Open the brine tank / cabinet salt lid and add water until there is approximately 3”(75 mm) of water in the tank. Do not add
salt to the brine tank at this time.
Determine the best location for your water softener, bearing in mind the location of your water supply lines, drain line and 120 volt AC electrical outlet. Subjecting the
softener to freezing or temperatures above 43°C (110°F) will void the warranty.
PREPARATIONS
Please notice the inlet and outlet labels on the valve as shown here to
determine the position of the equipment:

16
a) Attach the three brine grid legs to grid plate.The
legs will snap on to the tabs of the salt plate making
a“click”sound. For square brine tank there are four
legs.)
c) Drop the brine grid with brine well inside the
brine tank such that the nut tting faces the
hole on the brine tank. Then press the grid
evenly inside the brine tank until the brine grid
legs touches the bottom of the brine tank.
b) Insert the brine well assembly inside the grid
plate as well below.
d) Take the brine tube and insert the nut and plastic sleeve as
shown below.
e) Insert the tube in the oat assembly elbow and hand tighten
the nut. In many cases the brine line already come installed
from the factory. Leave the other end of the brine line tube
inside the brine tank
f)For installation of brine tank at the installation site, pull the
other end of the brine tube from the hole on the brine tank.
The completed assembly is shown below.
The hole in
the brine tank
should line up
with the brine
line as shown
for round and
square brine
tank.
IMPORTANT:
IN ROUND
BRINE TANK, IT
IS IMPORTANT
TO ALIGN THE
HANDLE TO
THE BRINE
WELL AS
SHOWN
Insert Sleeve
*NOTE
Resin Cleaner
An approved resin cleaner
MUST be used on a regular
basis if your water supply
contains iron.
See page 24 - Res-Up®
Feeder Installation
Instructions
Attaching Brine Tubing to the Brine Line
of the Valve
Insert Sleeve inside the Tubing
INSTALLING BRINE TANK

16 17
AC 120V/10A
Current Protect Socket
Water Pipe Inlet
Water Pipe Outlet
3/8”Brine Tube
Brine Tank
5/8”Overow line Optional
Pipes Fixed
Structure
Floor Drain
Laundry Drain
5/8”Drain Line
PressureTank
Drain Elbow
Assembly
Brine Elbow
Assembly
Optional
Overow
Assembly
Outlet
NOTICE - THERE ARE INLET AND
OUTLET LABELS ON THE VALVE.
PLEASE MAKE SURE TO PLUMB
AS SHOWN HERE
Inlet
Cold (Raw water)
Cold (Filtered water) Cold (Raw water)
Water Heater
Hot (Soft Water)
Upow Water Softener
Filter
InIn Out
Out
Cold (Soft Water)
T
o Outside Faucet
InOut
Water Softener Installation
Connect Softener to the HousePlumbing Any solder joints near the valve must be done before connecting any piping to the valve. Always leave at least 6”(152 mm)
between the valve and joints when soldering pipes that are connected to the valve. Failure to do this could cause damage to the valve.
CAUTION!
Never insert drain line
directly into a drain, sewer line, or trap.
Always allow an air gap between the drain
line and the wastewater to prevent the
possibility of sewage being back-siphoned
into the conditioner.
NOTE
Waste connections or drain
outlet shall be designed and
constructed to provide for
connection to the sanitary
waste system through an
air-gap of 2 pipe diameters
or 1 inch (22 mm) whichever
is larger.
WATER SOFTENER INSTALLATION

18
Water Pipe Inlet
Water Pipe Outlet
Brine Elbow
Assembly
3/8”Brine Tube
Brine Valve
Connector
Detail
PressureTank
Cabinet
Optional
Pipes Fixed
Structure
Floor Drain
Laundry Drain
5/8”Drain Line
Optional
Overow
Assembly
5/8”Overow Line
Drain Elbow
Assembly
100V-120V / 220-240V
AC 50/60Hz
Outlet
NOTICE - THERE ARE INLET AND
OUTLET LABELS ON THE VALVE.
PLEASE MAKE SURE TO PLUMB
AS SHOWN HERE
Inlet
Cold (Raw water)
Cold (Filtered water) Cold (Raw water)
Water Heater
Hot (Soft Water)
Upow Water Softener
Filter
InIn Out
Out
Cold (Soft Water)
T
o Outside Faucet
InOut
CABINET WATER SOFTENER INSTALLATION
CAUTION!
Never insert drain line
directly into a drain, sewer line, or trap.
Always allow an air gap between the drain
line and the wastewater to prevent the
possibility of sewage being back-siphoned
into the conditioner.
NOTE
Waste connections or drain
outlet shall be designed and
constructed to provide for
connection to the sanitary
waste system through an
air-gap of 2 pipe diameters
or 1 inch (22 mm) whichever
is larger.

18 19
The controller will show the following on
the screen - Time, Date and number of Days
Remaining for Regeneration.
JAN/01/2018
12:00AM
DAYS REMAINING: 2
1
Key Pad Conguration
MENU This function is to enter the basic set up information required at the
time of installation.
SET This function is to initiate an immediate or delayed manual
regeneration.
DOWN / Increase or decrease the value of the settings while in the
UP programming mode.
STARTUP INSTRUCTIONS
1. Connect the Transformer to the Valve
Plug the 12-volt transformer into a 120 VAC 60 Hz outlet.
2. Add Water to Brine Tank
Open the brine tank /cabinet salt lid and add
water as per the chart below. Do not add salt to
the brine tank at this time.
BT-100 -2.5 US Gallons
BT-145 - 3.25 US Gallons
BT-200 - 5.5 US Gallons
Familiarize with Button Configuration:
3. Screen Display
4. Manually Regenerate the Valve
Manually step the valve to the BACKWASH position. If screen is locked, press MENU Key for 5 seconds to unlock.
Manually Regenerate the Valve and move it to backwash position.
Sample
Connection
Sample
Connection
SERVICE
BYPASS
Sample
Connection
Sample
Connection
SERVICE
BYPASS
MANUAL REGEN
Delay Immediate
BACKWASH
IIIIIIIIIIIIIIIIIIIIIIII 15 Minutes
BRINE DRAW
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII 50 Minutes
BACKWASH
BRINE DRAW
RINSE (SKIP)
REFILL (SKIP)

20
Key Pad Conguration
MENU This function is to enter the basic set up information required at the
time of installation.
SET This function is to initiate an immediate or delayed manual
regeneration.
DOWN / Increase or decrease the value of the settings while in the
UP programming mode.
Date and Time
Hardness
Manual Regen.
Dealer Information
Main Menu
Regen. Now?
Regen. Tonight?
Press To Cancel
Press To Conrm
Backwashing ...
Any Key 3s To Next
13:59
89 Downow 89 UpowAuto On
18%
Brine Drawing ...
Any Key 3s To Next
063:59
50%
Rinsing ...
Any Key 3s To Next
00:00
90%
Relling ...
Any Key 3s To Next
00:00
98%
Relling ...
Any Key 3s To Next
Regen. Now?
Regen. Tonight?
Press To Cancel
Press To Conrm
Brine Drawing ...
Any Key 3s To Next
103:59
68%
Backwashing ...
Any Key 3s To Next
13:59
88%
Rinsing ...
Any Key 3s To Next
12:09
90%
Relling ...
Any Key 3s To Next
03:59
98%
Relling ...
Any Key 3s To Next
Date and Time
Hardness
Manual Regen.
Dealer Information
Main Menu
QUALITY WATER
666 3 AVE
CHIGAGO IL
TEL [phone]
Setting Complete
Press To Return
Date and Time
Hardness
Manual Regen.
Dealer Information
Main Menu
= Date and Time =
17-Feb-2016, 12:25PM
Press To Cancel
Press To Conrm
Setting Complete
Press To Return
Standby
interface
Auto On
Auto On
Auto On Dealer
information
input letter
by letter
STARTUP INSTRUCTIONS (CONTINUED)
4. Manually Regenerate the Valve(Continued)
6. Add Salt to
the Brine Tank/
Cabinet
Put 40 kgs of crystal water
softener salt in the brine tank.
The unit will automatically
fill the water to the correct level
when it regenerates.
Start up and
programming
complete. Unit is
now operational.
4a. Open the inlet on the bypass valve slowly and allow water to enter the unit. (The outlet of the bypass should remain closed to prevent any nes or debris from entering the
plumbing system. Allow all air to escape from the unit before turning the water on fully then allow water to run until the drain water appears to be clear of any nes.
4b. Plug in the valve. Allow the valve to continue its cycles until complete and back in service. Do not manually shorten this cycle as it is critical to have the valve go through all
cycles normally to purge all air from the control valve for the upow injection system to work correctly.
4c. TheValve is already programmed from factory. Please set up date and time of day and feedwater hardness as shown below:
NOTE** All units are factory programmed for the correct size and regeneration cycle, alteration should only be done by a factory
trained technician or after consultation with one of our technical representatives if you have any questions please call:
1-877-288-9888
5. Power and Program Valve
Initial Manual Regen by pressing SET button. When in backwash cycle, do not skip the cycle and let all air from the tank escape.
After backwash cycle, the valve will advance to brine draw which needs to be skipped by pressing SET button.
The valve will now advance to RINSE CYCLE which can be skipped.Then valve will advance to rell cycle which should not be skipped.This cycle will let the air our of ejector system
of the valve.
