PEUGEOT 407 2008 User manual

FAMILIARISATION
Sunroof (Saloon)
This roof improves the ventilation and
light in the passenger compartment.
74 72
105
106
Tyre under-inflation detection
This equipment checks the pressure of
the tyres while driving and warns you if
a malfunction occurs.
Rear screen (SW)
This rear screen provides remarkable
accessibility and makes the loading
of objects easier without opening the
boot.
Audible rear parking assistance
This equipment warns you if an obsta-
cle is detected behind the vehicle when
reversing.

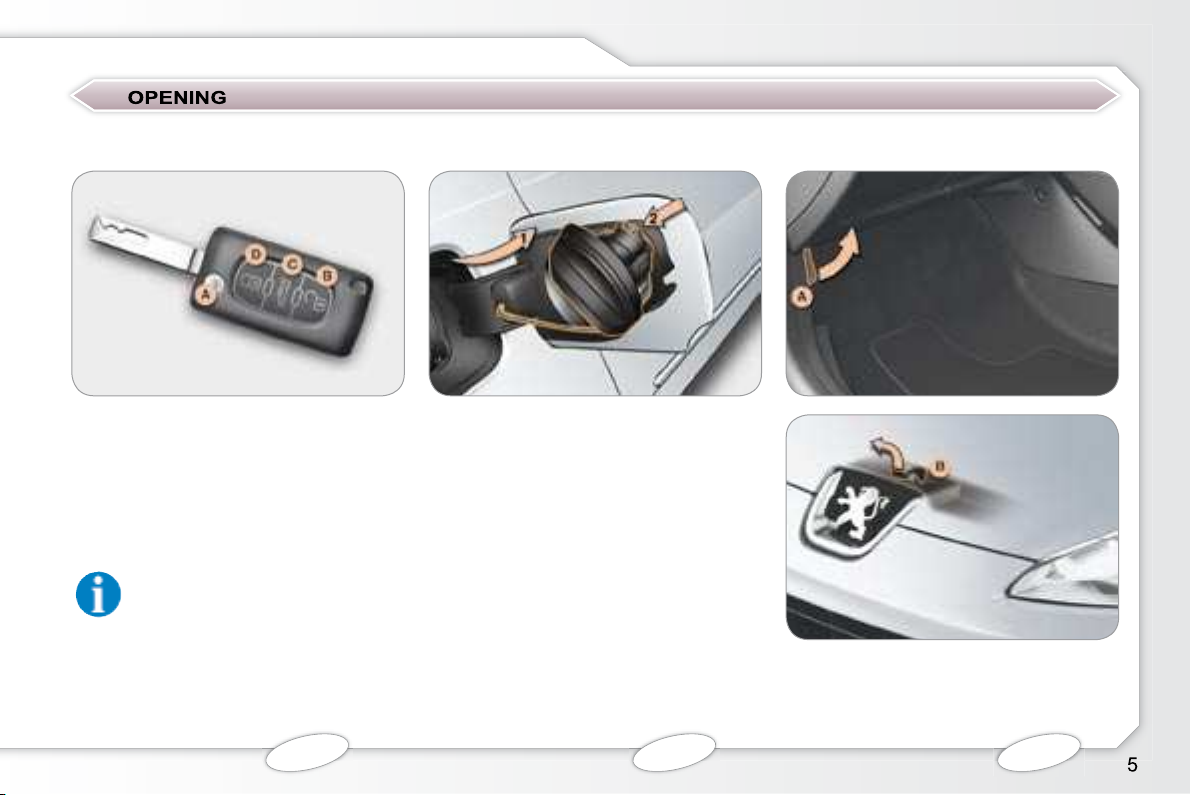

FAMILIARISATION
Remote control key
A. Unfolding/folding the key.
B. Unlocking the vehicle
(brief press).
C. Unlocking and partial opening of the
boot (saloon) or of the rear screen
(SW)
(long press).
Also...
D. Normal locking
(a single press)
or
deadlocking of the vehicle
(two presses in succession).
Fuel tank
1. Opening of the fuel fi ller fl ap.
2. Opening and hooking of the fuel
tank cap.
Tank capacity: approximately 67 litres.
A. Interior control.
B. Exterior control.
66 76 108
Bonnet

FAMILIARISATION
Press the button and raise the boot
lid.
72 72
With the rear screen closed, to open the
boot , pull the handle Athen raise the
tailgate.
Boot (SW)
Rear screen (SW) Panoramic roof (SW)
74
1. Opening of the shutter.
2. Closing of the shutter.
Boot (Saloon)
With the tailgate closed, to open the
rear screen , pull the handle Bthen
raise the rear screen.
The tailgate and the rear
screen cannot both be open
at the same time.

FAMILIARISATION
Automatic air conditioning
This automatic air conditioning system
guarantees comfort and a suffi cient
circulation of air in the passenger com-
partment.
4 or 6 speed automatic gearbox
This equipment permits driving in auto-
adaptive mode enhanced by a selection
suited to the dynamic driving condi-
tions.
Audio and communication
systems
This equipment benefi ts from the lat-
est technology: MP3 compatible audio
equipment, Bluetooth hands-free tele-
phone, colour display, audio system,
auxiliary sockets.
Cruise control
This system automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
98
144
101
INTERIOR
40

FAMILIARISATION
INSTRUMENTS AND CONTROLS
1.
Audio equipment steering wheel stalk.
2. Steering lock and ignition.
3. Steering wheel height and depth
adjustment.
4. Cruise control/speed limiter stalk.
5. Lights/Direction indicator stalk.
6. Air conditioned glove box.
Fuse box.
7. Bonnet release.
8.
Passenger-operated electric window
control.
9. Speakers (tweeters).
10. Air diffuser vent grille.
11. Instrument panel.
12.
Wiper/Wash-wipe/Trip computer stalk.
13. Headlamp height adjustment.
14.
Storage compartment (driver's side).

FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Multifunction display.
2.
Audio RD4/RT4 GPS audio/telephone.
3. Automatic air conditioning controls.
4. Deactivation of the audible parking
assistance.
Central locking from the inside.
Alarm control.
Hazard warning lights.
SPORT suspension control.
Deactivation of the ESP system.
Child lock.
5. Ashtray/Front lighter (100 W max).
6. Gear lever.
7. Handbrake.
8. Retractable cup/can holder.
9. Armrest with storage compartment.
10. 12 volt accessories socket (100 W
max).
11. Rear ashtray.
144
 173
Audio RD4
The audio equipment can be
switched on (button A ) with the
ignition off.
The audio/telephone can be
switched on (button A ) with the
ignition off.
RT4 GPS audio/telephone

FAMILIARISATION
 53
Forwards-backwards Height and angle of the driver's seat
cushion Seat back angle
Front seat adjustments

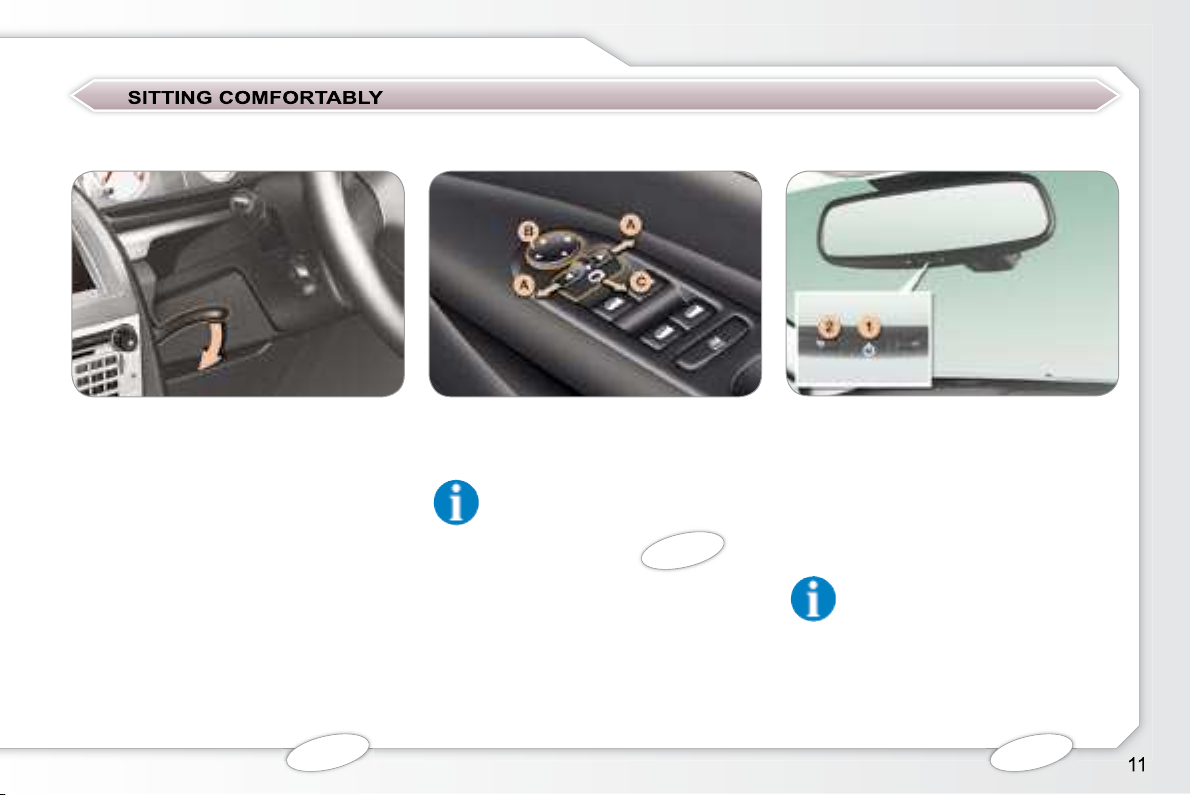

FAMILIARISATION
Switch on the ignition and press switch 1 :
- indicator light 2 on (switch pressed):
automatic operation.
- indicator light 2 off: automatic sys-
tem off. The mirror remains in its
clearest state.
Manual
When stationary, unlock the steering
wheel by pushing the control forwards
then lock by pulling the control fully.
50
51
Exterior mirror adjustment
A. Selection of the mirror.
B.
Adjustment of the position of the mirror.
Also...
To guarantee optimum visibility
during your manoeuvres, the
mirror lightens automatically
when reverse gear is engaged.
Steering wheel adjustment Automatic day/night interior
mirror adjustment
52
Also...
C. Folding/Unfolding.

FAMILIARISATION
Front seat belt
1. Fastening.
2. Height adjustment.
1. Stop position.
2. Ignition position.
3. Starting position.
71
Electric window controls
1. Driver's electric window switch.
2. Passenger electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
Ignition switch
91
Also...
5. Deactivation of the electric
window switches located in
the rear (child safety).

FAMILIARISATION
Lights
Ring A
Ring B
Windscreen wipers with intermittent
wipe
2 Fast wipe.
1 Normal wipe.
I Intermittent wipe.
0Park.
 Single wipe.
Wipers
Rear wiper (SW)
Lights off
Side lights
Dipped/Main beam headlamps
Front fog lamps (one press).
Rear fog lamps (two presses).
Park.
Intermittent wipe.
Wash-wipe.
77 80 81
Automatic windscreen wipers
2 Fast wipe.
1 Normal wipe.
AUTO Automatic wipe.
0Park.
 Single wipe.
Also...
When the windscreen wipers
control is activated and you
engage reverse gear, the rear
wiper operates at intermittent
speed.

FAMILIARISATION
Automatic air conditioning (monozone)
1. Automatic programme (comfort).
2. Temperature adjustment.
3. Air fl ow adjustment.
42
Automatic air conditioning (dual zone)
1. Driver and passenger automatic programme (comfort).
2. Driver's side temperature adjustment.
Passenger's side temperature adjustment.
3. Air fl ow adjustment.
46
Ventilation off.
4. Air distribution adjustment.
5. Front visibility control.
6. Rear screen demisting.
7. Intake of exterior air.
Recirculation of interior air.
Ventilation off.
4. Driver's air distribution adjustment.
5. Passenger's air distribution adjustment.
6. Front visibility control.
7. Rear screen demisting.
8. Intake of exterior air.
Recirculation of interior air.

FAMILIARISATION
Instrument panel
A. When the ignition is on, the fuel
gauge needle should rise.
B. When the engine is running, its as-
sociated low level warning light
should switch off.
C. When the ignition is on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
level which is low.
Lighting of the indicator light indicates
the status of the corresponding function.
When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If any warning light remains on, refer to
the page concerned.
18 22
105
A. Audible rear parking
assistance off.
B. Central locking.
C.
Interior protection alarm off.
D. Hazard warning lights.
E. Selection of the
electronically controlled
suspension.
F. Electronic stability
programme ESP off.
66
70
89
100
89
Warning lights Controls bar

FAMILIARISATION
1. Insertion of the key.
2. Selection of the "OFF" position
3. Removal of the key keeping the
switch in this position.
This prevents opening of the two rear
doors from the inside.
With the ignition on, press the button.
A message appears on the multifunc-
tion display.
You are advised to check that the child
lock is activated each time you switch
on the ignition.
When the ignition is switched on, if
a front occupant has not fastened his
seat belt and if the vehicle speed is be-
low 12 mph (20 km/h) , you are warned
by the seat belt warning light which
comes on.
The warning light switches off when the
seat belt(s) concerned is(are) fastened.
If the vehicle speed is above 12 mph
(20 km/h) , you are warned by the seat
belt warning light which fl ashes, an
audible signal and a message on the
multifunction display locating the seat
belt(s) left unfastened.
Detection of fastening of the
front seat belts
94 91 69
Front passenger air bag Electric child lock

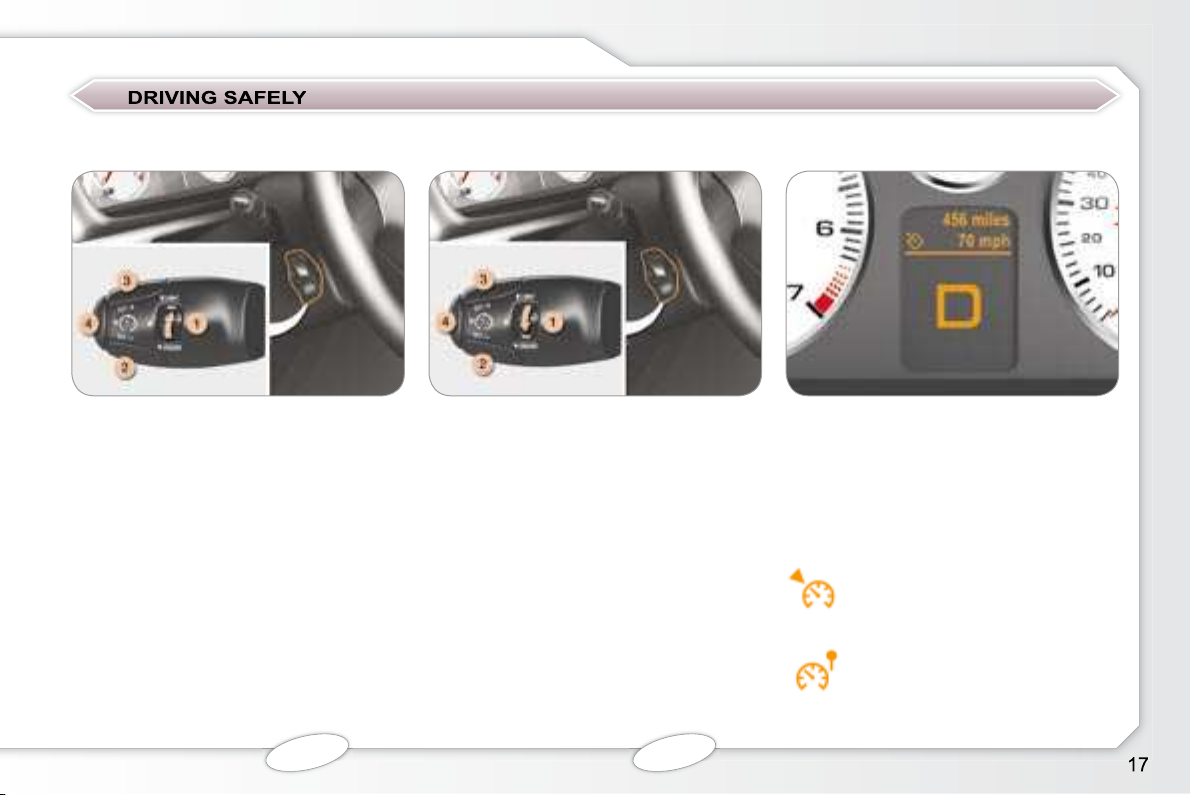

FAMILIARISATION
This enables the vehicle to maintain
a constant speed programmed by the
driver.
1. Cruise control mode Selection/Off.
2.
Decrease of the programmed value.
3. Increase of the programmed value.
4. Cruise control On/Off.
In order to be programmed or activated,
the vehicle speed must be above 25 mph
(40 km/h), with at least fourth gear en-
gaged on the manual gearbox.
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
This prevents the vehicle from exceeding
the speed programmed by the driver
(minimum speed 20 mph (30 km/h)).
1. Speed limiter mode Selection/Off.
2.
Decrease of the programmed value.
3. Increase of the programmed value.
4. Speed limiter On/Off.
The settings must be adjusted with the
engine running.
Speed limiter
Cruise control
101  103
Cruise control Instrument panel display
Speed limiter

1
INSTRUMENTS and CONTROLS
18
1 - Coolant temperature indicator dial.
2 - Lights on indicator lights:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 - Rev counter dial.
4 - Warning lights:
STOP warning.
handbrake applied or brake fl uid
level or electronic brake force
distribution fault.
engine oil pressure.
battery charge.
seat belts not fastened in the front.
punctured tyre.
high coolant temperature.
4-DIAL PETROL-DIESEL MANUAL GEARBOX INSTRUMENT PANEL
9 - Fuel level indicator dial.
10 - Trip recorder zero reset and
service display button.
Note: this also permits
displaying of the trip recorder if
the cruise control/speed limiter
is activated.
11 - Display:
Total distance recorder.
Trip recorder.
Cruise control/speed limiter
indicator light.
Service indicator.
Oil level indicator.
12 - Instrument panel lighting
rheostat.
4 - Warning lights (cont.):
emission control system.
air bags.
anti-lock braking system (ABS).
service.
electronic stability control (ESP).
water in diesel fi lter (diesel).
5 - Left-hand direction indicator.
6 - Right-hand direction indicator.
7 - Speedometer dial.
8 - Warning lights:
pre-heat (diesel engine starting).
fuel level.
passenger air bag disarmed.

1
INSTRUMENTS and CONTROLS
19

1
INSTRUMENTS and CONTROLS
20
1. Coolant temperature indicator dial.
2. Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3. Rev counter dial.
4. Warning lights:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5. Fuel level indicator dial.
5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX
INSTRUMENT PANELS
10. CHECK and trip recorder zero reset
and service display button.
11. Instrument panel display:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position
indicator.
Cruise control/speed limiter
reference value.
Service indicator.
Direction advice (navigation)
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
12. Instrument panel lighting rheostat.
6. Warning lights:
handbrake applied or brake fl uid
level or electronic brake force
distribution fault.
right direction indicator.
7. Speedometer dial.
8. Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (diesel engine starting).
9. Engine oil temperature indicator dial.

1
INSTRUMENTS and CONTROLS
21

1
INSTRUMENTS and CONTROLS
22
CHECK (VEHICLE
AUTOTEST)
In the presence of a fault
A "minor" fault has been detected:
when the CHECK OK indicator light
has been displayed, the warning
light(s) is(are) displayed.
You can start your vehicle; however,
contact a PEUGEOT dealer as soon
as possible.
A "major" fault has been detected: the
CHECK OK indicator light does not
appear and the warning light(s) is(are)
displayed.
Do not start your vehicle.
Call a PEUGEOT dealer without delay.
Automatic CHECK
With the key in the ignition on position,
all of the warning lights of the func-
tions tested are displayed. They are
switched off after a few seconds.
At the same time, an automatic CHECK
(vehicle autotest) is carried out.
No "major" fault has been de-
tected: the CHECK OK indica-
tor light is displayed after two
seconds.
You can start your vehicle.
Pressing the "CHECK/000" button on
the instrument panel starts the manual
CHECK (vehicle autotest).
This function enables you to fi nd out, at
any time (with the key in the ignition on
position or with the engine running):
- the warnings present,
- the status of the functions activated
or deactivated (wipers, automatic
switching on of the lights).
Manual CHECK
The passenger air bag dis-
armed indicator light remains
on while the air bag is dis-
armed.
With the engine running and the ve-
hicle moving, the instrument panel
screen displays the warning lights (in
the event of a fault).

1
INSTRUMENTS and CONTROLS
23
Braking system warning
light
WARNING LIGHTS
COMMON TO THE
4-DIAL AND 5-DIAL
INSTRUMENT
PANELS
This indicates:
- handbrake applied or incorrectly
released,
- an excessive drop in the brake fl u-
id level, in this case linked with the
STOP warning light,
- an electronic brake force distribu-
tion malfunction, linked with the
STOP warning light.
Seat belt warning light
When the ignition is switched on, the
warning light comes on if a front occu-
pant has not fastened his seat belt or
if he unfastens it.
Fuel warning light
In certain driving conditions and de-
pending on the engine, the distance
which you will be able to travel with
the remaining fuel may be less than
30 miles (50 kilometres) (the capacity
of the tank is approximately 67 litres).
Emission control system
warning light
This should switch off a few seconds
after the engine is switched on.
When the engine is running, if the
warning light fl ashes or comes on con-
tinuously, this indicates an emission
control system malfunction.
Contact a PEUGEOT dealer as soon
as possible.
Diesel engine pre-heat
warning light
Wait for the warning light to switch off
before starting. The duration of the
display is determined by the exterior
climatic conditions.
Passenger air bag disarmed
warning light*
If the warning light remains on, this in-
dicates that the passenger air bag has
been disarmed intentionally.
The warning light is repeat-
ed on the instrument panel
screen in the case of the
last 2 faults.
Stop immediately in the two latter
cases. Consult a PEUGEOT dealer.
If it comes on continuously above
6 mph (10 km/h), it indicates an ABS
fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Consult a PEUGEOT dealer.
Anti-lock braking system
(ABS) warning light
* According to country.
The warning light is re-
peated on the instrument
panel screen.
