PEUGEOT 208 User manual

Handbook

Start Start
Mirror Screen
Flipbook Start MyPEUGEOT Start MyPEUGEOT
The handbook. To download to your smartphone. To display in the touch screen of your vehicle.
Focus on audio & telematic functions.
Access to certain driving assistance systems.
The on-line handbook:
http://public.servicebox.peugeot.com/ddb/
The Start MyPEUGEOT application is available
for your vehicle and allows familiarisation with
your new PEUGEOT.
App Store for smartphones that support
CarPlay®and Google Play for smartphones
that support MirrorLinkTM.
Find all of the information from the handbook
for your vehicle on the internet. Summary of the main systems and their
settings.
The Start MyPEUGEOT inter-activity becomes
available in landscape format in the touch
screen.
The synchronisation of a personal smartphone
allows users to display applications from the
smartphone adapted for the CarPlay®and
MirrorLinkTM technology.
From the home page presenting the range,
choose a language, click on the body style and
then the edition, by reference to the date of first
registration of the vehicle.
Library of warning and indicator lamps.
The latest information included is
identified by this symbol:

Welcome
Thank you for choosing a 208.
This handbook has been designed to help you make the most of your
vehicle in all circumstances.

Contents
2
208_en_Chap00a_sommaire_ed01-2016
Unlocking - Key 35
Doors 35
3-door 36
Locking - Key 37
Alarm 41
Boot 43
Window controls 46
Access
Instruments
PEUGEOT i-Cockpit 48
Front seats 49
One-piece rear seats 53
Ventilation 56
Heating 59
Air conditioning 61
Dual-zone digital air conditioning 63
Demisting - defrosting 66
Courtesy lamp 68
Mood lighting 69
Sunroof blind 70
Interior ttings 71
Ports and sockets - Connectivity 72
Boot ttings 73
Rear parcel shelf 74
Ease of use and comfort
Mirrors 75
Lighting 77
Automatic illumination of headlamps 79
Daytime running lamps 83
Direction indicators 84
Headlamp adjustment 85
Cornering lighting 86
Wipers 87
Lighting and visibility
Hazard warning lamps 90
Road holding 90
Seat belts 93
Airbags 96
Carrying children 100
Deactivating the passenger's
front airbag 102
ISOFIX child seats 109
Child lock 114
Safety
Eco-driving 115
Driving recommendations 117
Starting 118
Switching off 120
Parking brake 121
Manual gearbox 122
Electronic gearbox 123
Automatic gearbox 126
Gear shift indicator 129
Hill start assist 130
Stop & Start 131
Speed limiter 134
Cruise control 136
Active City Brake 141
Parking sensors 144
Reversing camera 146
Park Assist 147
Under-ination detection 151
Driving
Instrument panels 11
Library of indicator and warning lamps 14
Engine coolant temperature 25
Touch screen 29
Trip computer 30
Date and time 33
Lighting dimmer 34
Overview
Exterior view 4
Interior view 5
Instruments and controls 6
Middle console 8
Upper console 9
Lower console 9
Underbonnet view 10

Contents
3
208_en_Chap00a_sommaire_ed01-2016
Fuel tank 154
Snow chains 158
Towing a trailer 159
Energy load 161
Accessories 162
Changing a wiper blade 164
Fitting roof bars 165
Bonnet 167
Checking levels 170
Checks 173
BlueHDi and AdBlue®additive 174
Straight cut matt paint 181
Practical information
Triangle 182
Temporary puncture repair kit 183
Spare wheel 188
Changing a bulb 195
Fuses 202
12 V battery 208
Towing 212
Running out of fuel (Diesel) 214
In the event of a breakdown
Emergency call 222
Assistance call 223
7-inch touch screen 225
Audio system / Bluetooth 295
Audio system 315
Audio equipment and telematics
Alphabetical index
Key
Warning
This symbol marks warnings which it is
essential to observe for your own safety,
for the safety of others or to avoid any risk
of damaging your vehicle.
Information
This symbol draws your attention to
additional information for better use of
your vehicle.
Protection of the environment
This symbol accompanies advice relating
to protection of the environment.
Advice
This symbol indicates a reminder of
practical information.
Technical data
General information 215
Petrol engines 216
Diesel engines 217
Dimensions (in mm) 218
Identication markings 220

Overview
4
208_en_Chap00b_vue-ensemble_ed01-2016
Exterior view
Remote control key 35-39, 44
- opening / closing
- anti-theft protection
- guide-me-home lighting
- starting
- switching off
- battery
- unlocking the vehicle
- locking the vehicle
Boot 43
- opening / closing
- emergency release
Reversing camera 146
Temporary puncture repair kit 183-187
Wipers 87-89
Changing a wiper blade 164
Demisting - Defrosting 66-67
Changing bulbs 199-201
- rear lamps
- 3rd brake lamp
- number plate lamps
- foglamp
Fuel tank, misfuel prevention 154-157
Running out of Diesel fuel 214
Sunroof blind 70
Roof bars 165
Accessories 162-163
Advice on care 181
Roadholding 90-92
Snow chains 158
Under-inflation 151-153
Tyre pressures 186-187, 220
Spare wheel 188-194
- tools
- removing / refitting
Lighting controls 77-83
LED lamps 83
Daytime running lamps 83
Headlamp beam adjustment 85
Cornering lighting 86
Changing bulbs 195-199
- front lamps
- foglamps
- direction indicator repeaters
Door mirrors 75-76
Doors 35-39, 40
- opening / closing
- central locking
- emergency control
Courtesy lamp 68
Alarm 41-42
Electric windows 46-47
Park Assist 147-150
Parking sensors 144-145
Towbar 159-161
Towing 212-213

Overview
5
208_en_Chap00b_vue-ensemble_ed01-2016
Interior view
Boot fittings 73-74
- rear parcel shelf
- hooks
- boot lamp
- lashing rings
Front seats 49-51
Heated seats 52
Front arm rest 52
Child seats 100-113
Child seats used with a 3-point
seat belt 106-108
ISOFIX child seats 109-112
Manual child lock 114
Electric child lock 114
Airbags 96-99
Interior mirror 76
Parking brake 121
Moving off on a slope 130
Interior fittings 71-72
- 12 V accessory socket
- USB port / Auxiliary socket
- mats
Deactivating the passenger's front
airbag 97, 102
Seat belts 93-95
Warning triangle 182
Rear seats 53-55

Overview
6
208_en_Chap00b_vue-ensemble_ed01-2016
Instruments and controls
On the left On the right
"-" Change down
(if electronic gearbox).
"+" Change up (if electronic
gearbox).
Cruise control. Steering mounted controls
for the audio system.
Steering mounted controls
for the touch screen:
volume, change source.
Steering mounted controls
for the touch screen.
Front airbag.
Adjust the steering wheel.
Screen wash/wipe.
Lighting.
Speed limiter.
Memorise speeds.
Main or dipped beam
headlamps.
Front and rear foglamps.
Direction indicators.
Trip computer.
84
77-80
30
87-89
123-124
48
96-97
228
297, 317
228
139-140
134-135
136-138
123-124
Intermittent rear wipe.
88

Overview
7
208_en_Chap00b_vue-ensemble_ed01-2016
Side switch panel*
Deactivate the DSC/ASR
system.
Deactivate Stop & Start.
Reinitialise the under-inflation
detection (without touch screen).
Deactivate the rear parking
sensors.
or
Activate the electric child lock.
Deactivate volumetric alarm
monitoring.
Adjust the headlamp beam height.
Activate Park Assist.
A lamp indicates the state of the
function.
* Depending on version.
144-145
147-150
90-92
131-133 85
151-153
41-42
114

Overview
8
208_en_Chap00b_vue-ensemble_ed01-2016
Touch screen. Heating /
Ventilation.
Hazard warning lamps.
Bluetooth audio system.
Audio system.
Middle console
Central
locking.
Dual-zone automatic
air conditioning.
Centre console
225-293
295-313
315-326
59-60
63-65
90
40
Manual air
conditioning.
66-67
Demisting / Defrosting
(rear screen, mirrors,
windscreen, side
windows).
61-62

Overview
9
208_en_Chap00b_vue-ensemble_ed01-2016
Upper console
PEUGEOT Connect Assistance.
PEUGEOT Connect SOS.
Courtesy lamp switches.
Active City Brake.
Lower console
12 V socket.
USB port / Jack auxiliary socket.
Manual 5.
Manual 6.
Electronic 5.
Gearbox
Electronic 6.
Automatic 4 / Automatic 6.
222
122
122
123-125
123-125
126-128
72
68
141-143
223 72

Overview
10
208_en_Chap00b_vue-ensemble_ed01-2016
Underbonnet view
Identification markings 220
Dimensions 218-219
Changing bulbs 195-201
- front
- rear
Running out of fuel, Diesel 214
Opening the bonnet 167
Under the bonnet, petrol 168
Under the bonnet, Diesel 169
Petrol engines 215-216
Diesel engines 215, 217
12V battery 208-211
Load reduction, economy mode 161
Engine compartment
fuses 202-203, 207
Dashboard fuses 202-206
Petrol weights 215-216
Diesel weights 215, 217
AdBlue®additive 174-180
Checking
levels 89, 168-172, 178-179
- oil
- brake fluid
- coolant
- screenwash fluid
- additive (HDi Diesel AdBlue®)
Checks and maintenance 168-169, 173
- air filter
- oil, oil filter
- particle filter (Diesel)
- brake fluid
- brake pads / discs

1
Instruments
11
208_en_Chap01_instruments-bord_ed01-2016

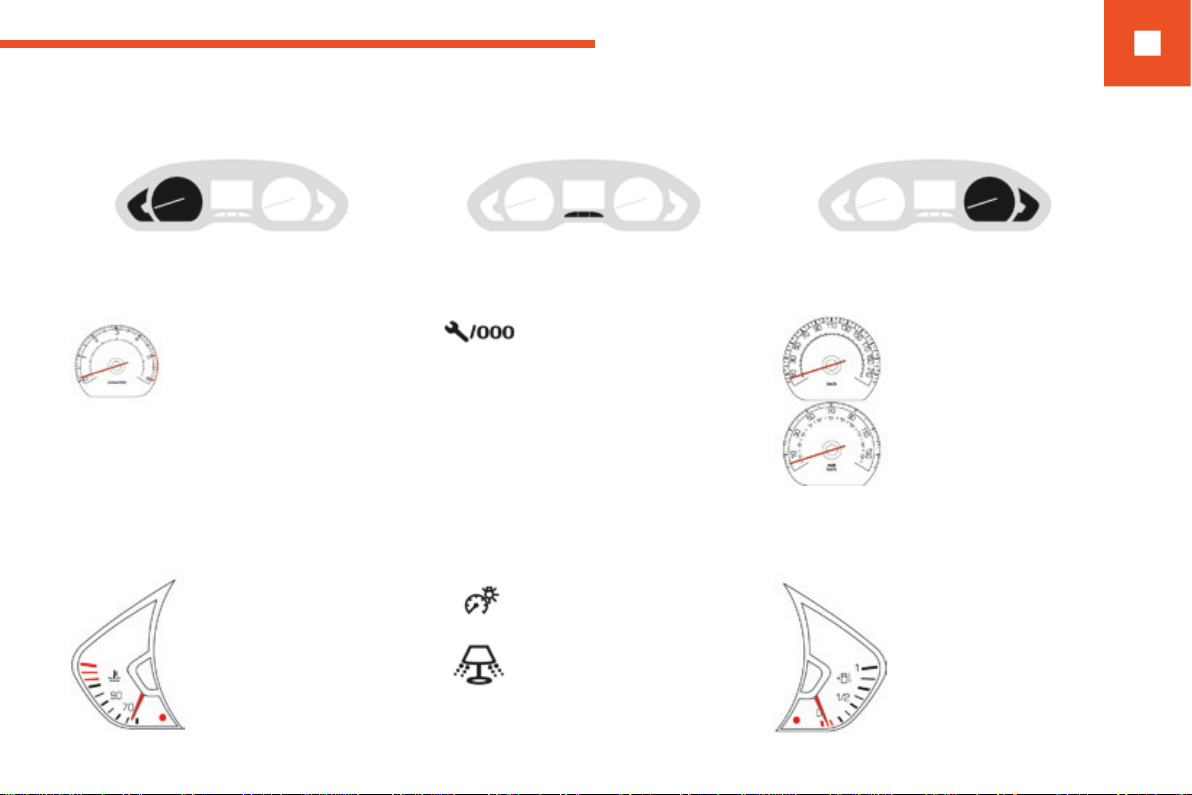

Instrument panels
Instrument panel lighting
Control button
Main lighting dimmer.
Recall the servicing
information.
Instrument panel ambience
lighting.
Rev counter (x 1000 rpm),
graduation depends on the
engine (petrol or Diesel).
Rev counter
Indicator
Engine coolant temperature
indicator.
Speedometer
Analogue speedometer
(km/h or mph).
Fuel gauge
Fuel level in the tank.
Adjust the time.
Reset the function selected (service indicator
or trip recorder).
Depending on version:
- Adjust the time.
- Digital speedometer.

Instruments
12
208_en_Chap01_instruments-bord_ed01-2016

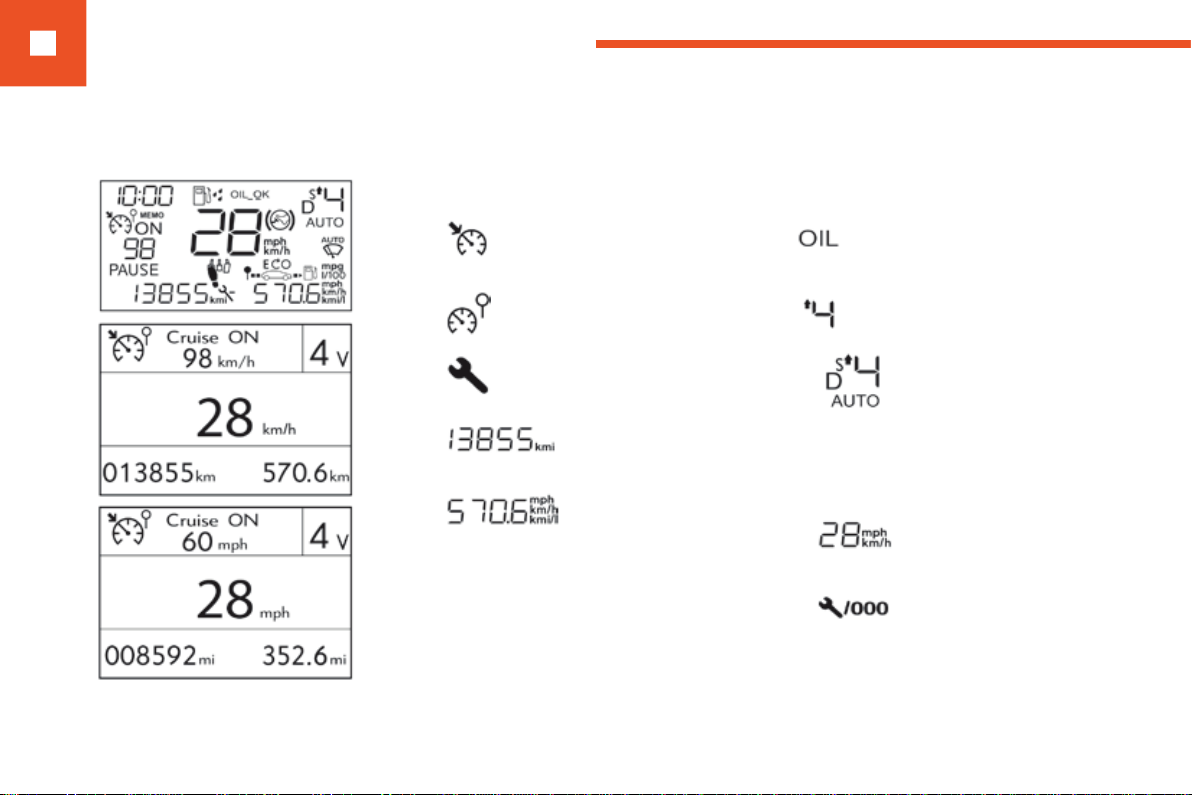

Display screens
Cruise control settings.
Speed limiter settings.
Service indicator.
Trip recorder (km or miles).
Gear shift indicator with a manual
gearbox.
Odometer (km or miles).
Engine oil level indicator (depending
on version).
Selector position and gear
with an electronic gearbox.
Selector position and gear
with an automatic gearbox.
Digital speedometer
(km/h or mph).
This function can be
deactivated by a long press
on this button (depending on
version).

1
Instruments
13
208_en_Chap01_instruments-bord_ed01-2016
Stop & Start time counter.
Average speed of the vehicle.
Current or average fuel consumption.
Remaining driving range.
Distance travelled by the vehicle.
Neutral.
Automatic mode.
Reverse.
Park position.
Manual mode.
Change up / Change down.
Trip computer Gearbox
Snow programme.
Sport programme.

Instruments
14
208_en_Chap01_instruments-bord_ed01-2016
Library of indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel and/or
instrument panel screen when the vehicle's
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information in the table on the warning lamp
concerned.
Associated warnings
The illumination of certain warning lamps
may be accompanied by an audible signal
and a message in the instrument panel or
multifunction screen.
The warning lamps may come on continuously
(fixed) or flash.
Certain warning lamps may come on in one of
two modes. Only by relating the type of lighting
to the operating status of the vehicle can it be
ascertained whether the situation is normal or
whether a fault has occurred.
Indicator and warning
lamps
● indicator lamp informing that a system is
switched on,
● warning lamp for preventive purposes or for
a fault.

1
Instruments
15
208_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Diesel engine
pre-heating fixed. The key is at position 2 (ignition on) in the ignition switch. Wait until the warning lamp goes off before starting. The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
30 seconds in very low temperatures).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Parking brake fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Foot on the
brake pedal fixed. The brake pedal must be pressed. With an electronic gearbox, press the brake pedal to start the engine (lever in position N).
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake, to unlock the lever and come out of position P.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
flashing. With an electronic gearbox, if you
hold the vehicle on an incline using
the accelerator for too long, the
clutch overheats.
Use the brake pedal and/or the parking brake.

Instruments
16
208_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Foot on the
clutch fixed. In the STOP mode of Stop & Start, changing to START mode is refused
because the clutch pedal is not fully
down.
You must declutch fully to allow the change to engine
START mode.
Stop & Start fixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start system
has put the engine into STOP mode.
The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
flashes for a few
seconds, then goes
off.
STOP mode is temporarily
unavailable.
Or
START mode is invoked
automatically.
For more information on Stop & Start, refer to the
corresponding section.
Automatic
wiping fixed. The wiper control is pushed downwards. Automatic front wiping is activated. To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.
Passenger's
airbag system fixed. The control, located in the glove box, is set to the OFF position.
The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault with
the operation of the airbags (Airbag
warning lamp on).
Set the control to the ON position to activate the
passenger's front airbag.
In this case, do not fit a child seat in the rearward
facing position.

1
Instruments
17
208_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
STOP fixed, associated with
another warning lamp. It is associated with the engine oil pressure or the engine coolant
temperature.
Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or qualified workshop.
Service fixed, associated with
another warning lamp. Major faults have occurred. Refer to the section on this warning lamp and you must then contact a PEUGEOT dealer or qualified
workshop.
fixed associated with a
message (if a display
screen is fitted).
Faults have occurred for which there
is no specific warning lamp. Identify the fault by reading the message shown in the screen (if a display screen is fitted) and refer to the
corresponding section:
- engine oil level alert,
- risk of blockage of the particle filter (Diesel),
- Diesel fuel additive level (Diesel with particle
filter).
You must contact a PEUGEOT dealer or a qualified
workshop.

Instruments
18
208_en_Chap01_instruments-bord_ed01-2016
Warning / indicator lamp State Cause Action / Observations
Braking fixed. The brake fluid level has dropped
significantly. You must stop as soon as it is safe to do so. Top up with brake fluid listed by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+
fixed, associated
with the ABS warning
lamp.
The electronic brake force distribution
(EBFD) system has a fault. You must stop as soon as it is safe to do so. Have it checked by a PEUGEOT dealer or a qualified
workshop.
Maximum
coolant
temperature
fixed with the needle
in the red zone. The temperature of the cooling system is too high. Stop as soon as it is safe to do so. Wait until the engine has cooled down before topping
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
a qualified workshop.
Anti-lock
Braking System
(ABS)
fixed. The anti-lock braking system has a
fault. The vehicle retains conventional braking. Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
delay.
