Pfeiffer Vacuum MVP 030-3 DC User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
MVP 030-3 DC
Diaphragm Pump

Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/50

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Variants 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Instructions in the text 7
1.3.2 Pictographs 8
1.3.3 Product labels 8
1.3.4 Abbreviations 8
2 Safety 10
2.1 General safety instructions 10
2.2 Safety instructions 10
2.3 Safety precautions 13
2.4 Product usage limits 13
2.5 Proper use 14
2.6 Foreseeable improper use 14
3 Product description 15
3.1 Product identification 15
3.2 Shipment 15
3.3 Function 15
4 Transportation and Storage 16
4.1 Transporting the vacuum pump 16
4.2 Storing the vacuum pump 16
5 Installation 17
5.1 Installing the vacuum pump 17
5.2 Connecting the vacuum side 17
5.3 Connecting the exhaust side 17
5.4 Interfaces 18
5.4.1 Voltage supply 20
5.4.2 Inputs 20
5.4.3 Outputs 21
5.4.4 RS-485 interface allocation 21
5.4.5 Cross-linked via the RS-485 connection 22
5.4.6 Connection options via interface RS-485 22
5.5 Pfeiffer Vacuum protocol for RS-485 interface 23
5.5.1 Telegram frame 23
5.5.2 Telegram description 23
5.5.3 Telegram example 1 23
5.5.4 Telegram example 2 24
5.5.5 Data types 24
6 Operation 26
6.1 Putting the vacuum pump into operation 26
6.2 Operating modes 26
6.3 Switching on the vacuum pump 27
6.4 Operation with Pfeiffer Vacuum parameter set 27
6.4.1 General 27
6.4.2 Control commands 28
6.4.3 Status requests 28
6.4.4 Reference value inputs 29
6.4.5 Configuring the connections with the PV parameter set 29
6.4.6 Speed actuator operation 30
Table of contents
3/50

6.4.7 Standby mode 30
6.4.8 Normal operation 31
6.5 Operation monitoring 31
6.5.1 Operating mode display via LED 31
6.5.2 Temperature monitoring 31
6.6 Pumping condensable vapors 31
6.7 Switching off the vacuum pump 32
7 Maintenance 33
7.1 Maintenance instructions 33
7.2 Checklist for inspection and maintenance 33
7.3 Replace the diaphragms and valves 34
7.4 Check the ultimate pressure 38
8 Decommissioning 39
8.1 Decommissioning the vacuum pump for longer periods 39
8.2 Disposing of the vacuum pump 39
9 Malfunctions 40
9.1 General 40
9.2 Error codes 40
9.3 Warning and error messages when operating with DCU 40
10 Service solutions from Pfeiffer Vacuum 42
11 Spare parts packs 44
12 Accessories 45
13 Technical data and dimensions 46
13.1 General 46
13.2 Technical data 46
13.3 Substances in contact with the media 47
13.4 Dimensions 47
Declaration of conformity 49
Table of contents
4/50

List of tables
Tbl. 1: Product labels 8
Tbl. 2: Abbreviations used in this document 9
Tbl. 3: Usage limits of the vacuum pump 13
Tbl. 4: Ambient conditions 17
Tbl. 5: Connection plug arrangement Simple Pump Interface D-Sub-socket, 15-pin 18
Tbl. 6: Definition of the RS-485 interface 21
Tbl. 7: Factory setting of the electronic drive unit for diaphragm pumps when deliv-
ered
26
Tbl. 8: Parameter set | Control commands 28
Tbl. 9: Parameter set | Status requests 29
Tbl. 10: Parameter set | Reference value inputs 29
Tbl. 11: Configuration with parameters [P:019] and [P:024] 30
Tbl. 12: Configuration with parameters [P:060] and [P:061] 30
Tbl. 13: Behavior and meaning of the LED of the electronic drive unit 31
Tbl. 14: Maintenance intervals for diaphragm pumps 34
Tbl. 15: Error messages for the vacuum pump 40
Tbl. 16: Warning messages for the vacuum pump 40
Tbl. 17: Warning and error messages when using a DCU 41
Tbl. 18: Spare parts of the MVP 030-3 DC 44
Tbl. 19: MVP 030-3 DC accessories 45
Tbl. 20: Conversion table: Pressure units 46
Tbl. 21: Conversion table: Units for gas throughput 46
Tbl. 22: Technical data, MVP 030-3 DC 47
Tbl. 23: Materials that make contact with the process media inside the diaphragm
pump
47
List of tables
5/50

List of figures
Fig. 1: Design of the MVP 030-3 DC 15

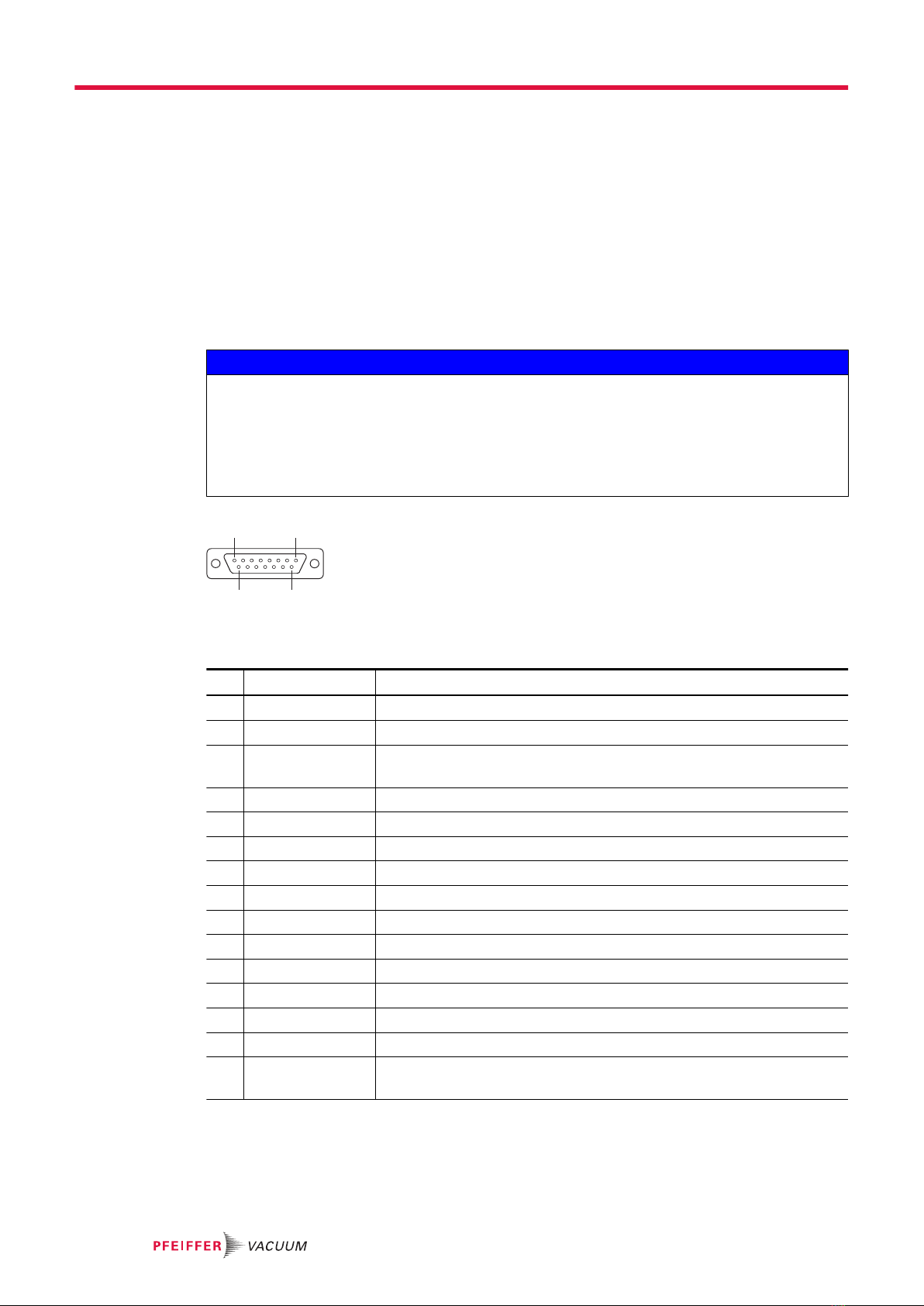

Fig. 2: Pin assignment of the D-Sub socket, 15-pin 18

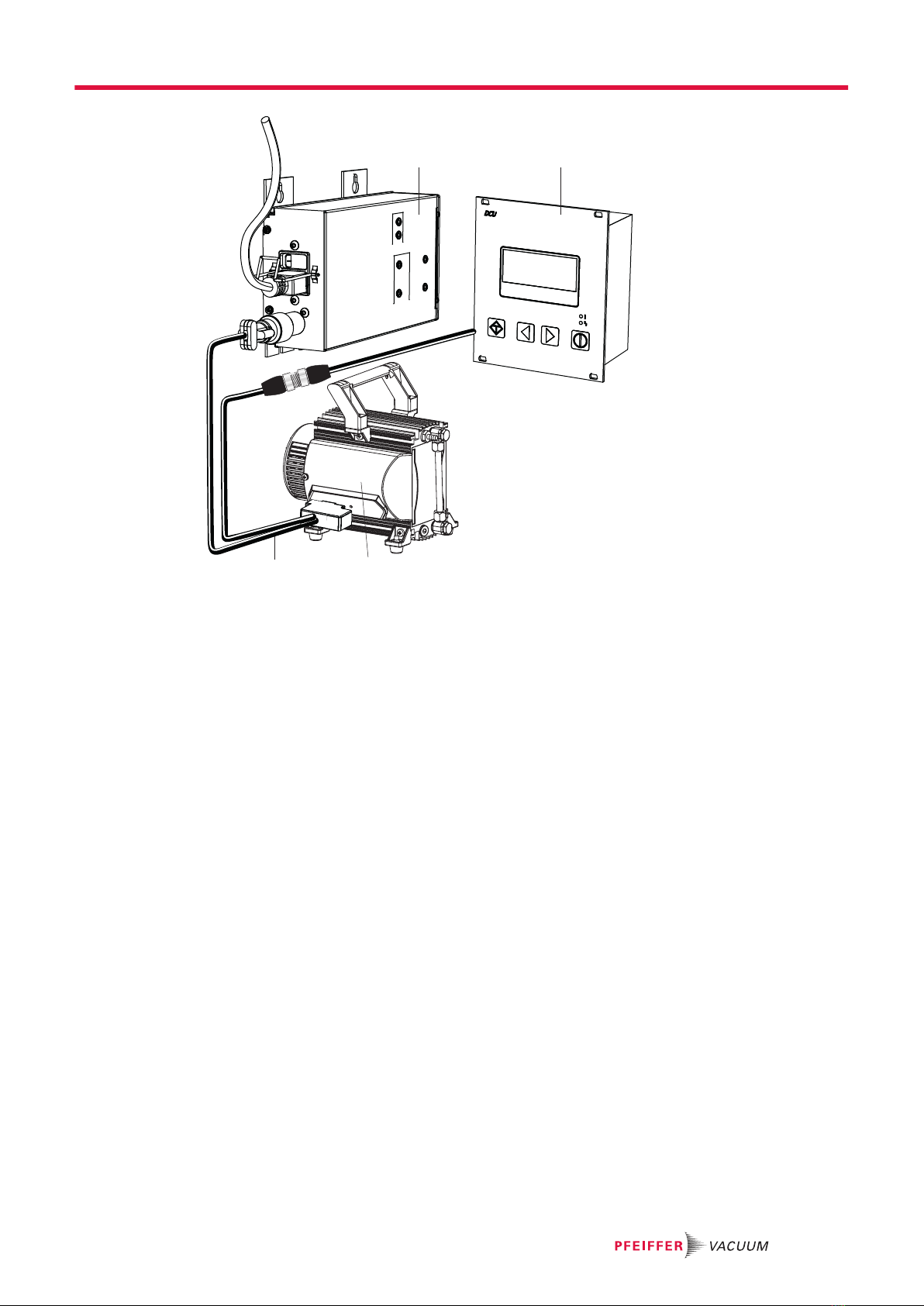

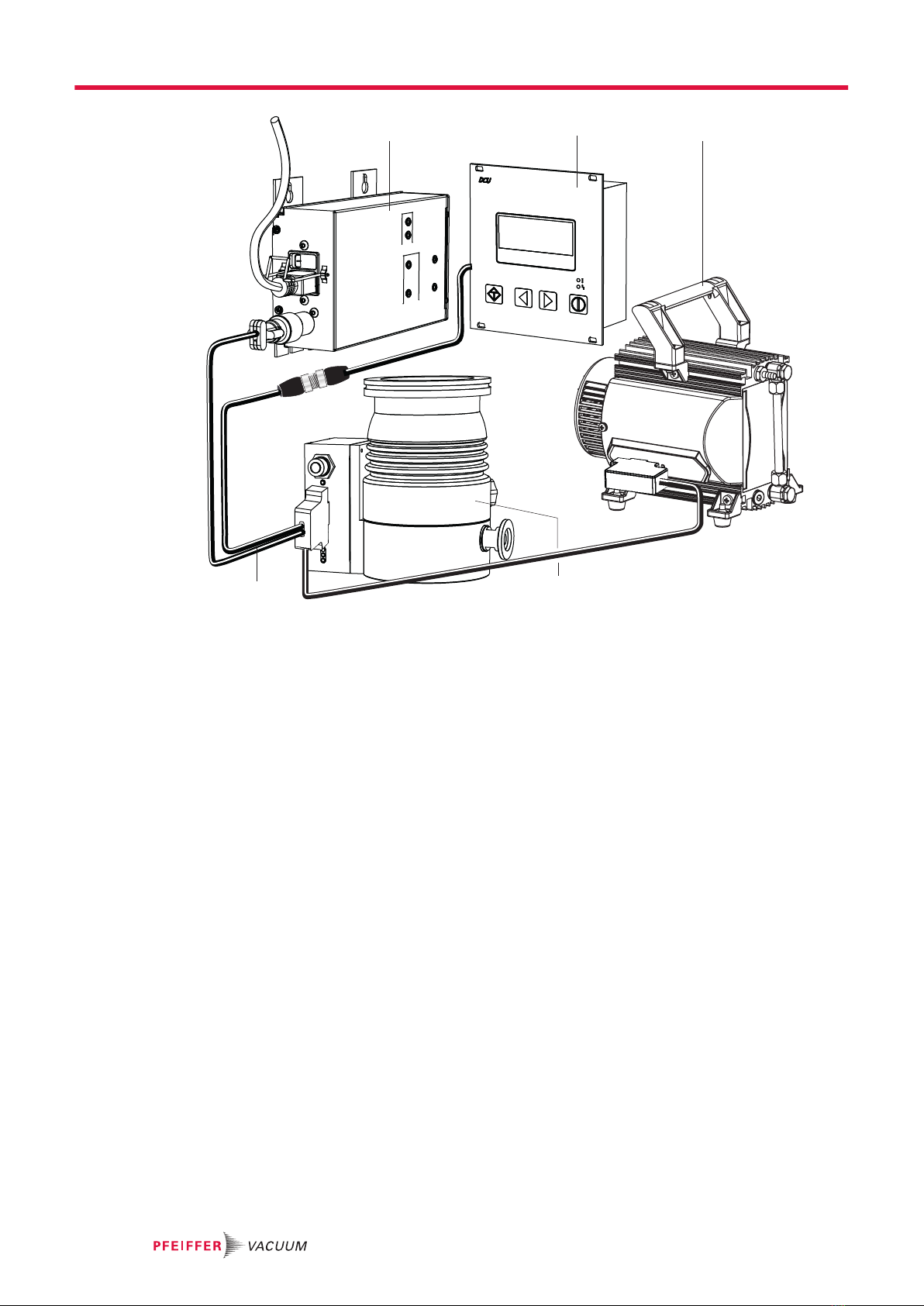

Fig. 3: Connection example: MVP 030-3 DC – DCU/TPS 19
Fig. 4: Connection example: MVP 030-3 DC – HiPace/DCU/TPS 20
Fig. 5: Networking via the RS-485 interface 22
Fig. 6: Connection options via interface RS-485 22
Fig. 7: Mounting the flushing gas nozzle 32
Fig. 8: Dismantle the pump head and replace the valves 35
Fig. 9: Replacing the diaphragms 36
Fig. 10: Mounting the pump head 37
Fig. 11: Spare parts of the MVP 030-3 DC 44
Fig. 12: Dimension diagram of the MVP 030-3 DC (SPI) 48
List of figures
6/50

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are for customers of Pfeiffer Vacuum. They describe the function of the
designated product and provide the most important information for safe usage of the product. The de-
scriptions comply with applicable directives. All information provided in these operating instructions refer
to the current development status of the product. The documentation remains valid as long as the cus-
tomer does not modify the product in any way.
1.1.1 Applicable documents
Designation Document
Declaration of conformity A component of these operating instructions
1.1.2 Variants
These instructions apply to diaphragm pumps of the DC series:
●MVP 030-3 DC as standard version
●MVP 030-3 DC in the version for the integration in a pumping station (without handle and rubber
feet)
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
About this manual
7/50

1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip

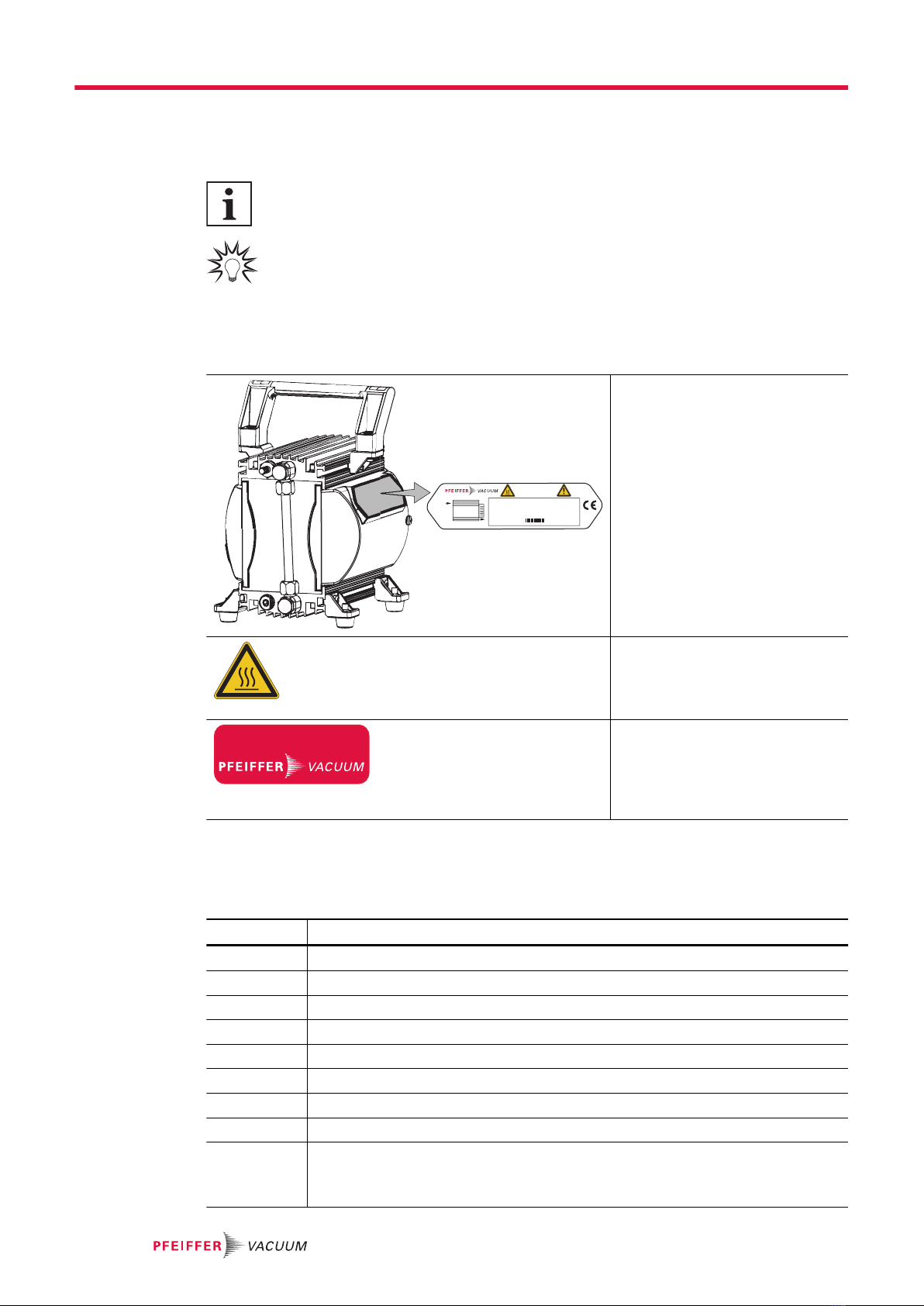

1.3.3 Product labels
This section describes all the labels on the product along with their meaning.
Pfeiffer Vacuum
D - 35614 Asslar
Germany
MVP 030-3DC PK T01 500
24 V – max. 7A
Pw: 64 W m: 4.3 kg S 1.8 m /h
Ser.–Nr.:
456180616570
(N2)3
Rating plate
The rating plate is located on the
cover of the electronics.
Warning of hot surfaces
The label warns of hot surfaces dur-
ing operation or immediately after
switching off the vacuum pump.
warranty seal
Closure seal
The diaphragm heads are sealed at
the factory. Damaging or removing
a closure seal results in loss of the
warranty.
Tbl. 1: Product labels
1.3.4 Abbreviations
Abbreviation Meaning in this document
DC Direct current
DCU Display Control Unit (Pfeiffer Vacuum display and control unit).
DN Nominal diameter (from the French: diamètre nominal)
fRotation speed value of a vacuum pump (frequency, in rpm or Hz)
HPU Handheld Programming Unit. Aid for control and monitoring of pump parameters
LED Light emitting diode
MVP Diaphragm vacuum pump
NN Mean sea level
[P:xxx] Electronic drive unit control parameters. Printed in bold as a three-digit number in
square brackets. Frequently displayed in conjunction with a short description.
Example: [P:312] software version
About this manual
8/50

Abbreviation Meaning in this document
PE Earthed conductor (protective earth)
PWM Pulse width modulation
(Type of modulation where one technical variable (e.g. electrical voltage) changes
between two values.)
SPI Simple Pump Interface
TTemperature (in °C), property abbreviation of the vacuum pump
TC Turbopump electronic drive unit (turbo controller)
TPS Voltage supply (turbo power supply)
Tbl. 2: Abbreviations used in this document
About this manual
9/50

2 Safety
2.1 General safety instructions
This document includes the following four risk levels and one information level.
DANGER
Imminent danger
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
►Instructions on avoiding the hazardous situation
WARNING
Possibly imminent danger
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
►Instructions on avoiding the hazardous situation
CAUTION
Possibly imminent danger
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
►Instructions on avoiding the hazardous situation
NOTICE
Danger of property damage
Notice is used to address practices not related to physical injury.
►Instructions on avoiding property damage
Notes, tips or examples indicate important information on the product or on this document.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. As far as appli-
cable, all unit life cycle phases have been considered.
Risks during transport
NOTICE
Damage caused during transport
Transport in unsuitable packaging can damage the product.
►Observe the transport instructions.
►Always transport the vacuum pump in the original packaging or in a respective impact-proof
packaging.
►Transport the vacuum pump using only the transport handles provided.
►Seal inlet and outlet ports with blind plugs or protective caps.
Safety
10/50

Risks during storage
NOTICE
Damage caused by improper storage
Improper storage leads to damage to the vacuum pump.
►Store the vacuum pump in a cool, dry, dust-free place, where it is protected against impacts.
►Seal inlet and outlet ports (e.g. using transport caps).
►Maintain the permissible storage temperature. (See technical data)
Risks during installation
DANGER
Danger to life from electric shock
When establishing the voltages that exceed the specified safety extra-low voltage (according to IEC
60449 and VDE 0100), the insulating measures will be destroyed. There is a danger to life from elec-
tric shock at the communication interfaces.
►Connect only suitable devices to the bus system.
CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
NOTICE
Property damage on the electronics
Separating all plug-and-socket connections within the bus system with voltage supply switched on
may lead to the destruction of electronic components.
►Always disconnect the voltage supply before removing the connecting plug.
►After switching off the power supply pack, wait until the residual load has dispersed completely
before disconnecting the plug-and-socket connection.
Risks during operation
WARNING
Danger of poisoning due to toxic process media escaping from the exhaust pipe
During operation with no exhaust line, the vacuum pump allows exhaust gases and vapors to escape
freely into the air. There is a risk of injury and fatality due to poisoning in processes with toxic process
media.
►Observe the pertinent regulations for handling toxic process media.
►Safely purge toxic process media via an exhaust line.
►Use appropriate filter equipment to separate toxic process media.
WARNING
Risk of explosion from reactive, explosive or other hazardous gas / air mixtures.
Uncontrolled inlet of gas at the flushing gas nozzle leads to sparks generated mechanically following
diaphragm rupture, hot surfaces or to explosive gas / air mixtures in the vacuum system caused by
static electricity.
►If necessary, use inert gas for supplying the flushing gas in order to avoid a potential ignition.
Safety
11/50

CAUTION
Danger of burns on hot surfaces
Depending on the operating and ambient conditions, the surface temperature of the vacuum pump
can increase to above 70 °C.
►Provide suitable touch protection.
CAUTION
Risk of poisoning due to toxic process gases escaping
For intake pressures > 500 hPa, process gas may escape from the flushing gas nozzle.
►If necessary, use an extraction line.
NOTICE
Vacuum pump damage caused by overpressure
Mixing up the connections causes overpressure overload. The vacuum pump can be started only
against max. 1 bar differential pressure between inlet and outlet; otherwise the motor jams and sus-
tains damage.
►Make sure that the distributor is installed correctly on the diaphragm heads, before connecting
the vacuum pump to the vacuum equipment.
►Before commissioning, make completely sure that the pressure side pressure is below the per-
missible limit.
Risks during maintenance, decommissioning and in event of malfunctions
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
CAUTION
Danger of injury from moving parts
After a power failure or a standstill as a result of overheating, the motor restarts automatically. There
is a risk of injury to fingers and hands if they enter the operating range of rotating parts.
►Safely disconnect motor from the mains.
►Secure the motor against reactivation.
►Dismantle the vacuum pump for inspection, away from the system if necessary.
CAUTION
Danger of burns on hot surfaces
In the event of a fault, the surface temperature of the vacuum pump can increase to above 105 °C.
►Allow the vacuum pump to cool down before carrying out any work.
►Wear personal protective equipment if necessary.
NOTICE
Property damage from incorrect installation
Changed dead volume from incorrect installation of the original spacer disks worsens the final vac-
uum or leads to bearing damage.
►During disassembly, keep the existing spacer disks separate per installation location.
►Reinstall the original spacer disks back in-between the supporting washer and connection rod.
Safety
12/50

NOTICE
Danger of property damage from improper maintenance
Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no
liability.
►We recommend taking advantage of our service training offering.
►When ordering spare parts, specify the information on the nameplate.
2.3 Safety precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions when handling the product
►Observe that the current supply of the vacuum pump must meet the requirements for double iso-
lation between mains input voltage and operating voltage, as per IEC 61010 and IEC 60950.
Pfeiffer Vacuum recommends that only original power supply packs are used.
Pfeiffer Vacuum guarantees compliance with the requirements of European and North American
guidelines only in this case.
►Prevent process gases and their reaction and ancillary products that are harmful to health and the
environmental from escaping, or dispose of these according to the applicable regulations.
►Avoid contact with process gases that are harmful to health and if required, wear personal protec-
tive clothing.
►Check the media compatibility of parts carrying media.
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Do not expose body parts to the vacuum.
►Never disconnect plug connections during operation.
►Never fill or operate the unit with cleaning agents or cleaning agent residues.
►Do not carry out your own conversions or modifications on the unit.
►Observe the unit protection class prior to installation or operation in other environments.
►Provide suitable touch protection, if the surface temperature exceeds 70°C.
►Keep lines and cables away from hot surfaces (> 70 °C).
►Before returning the vacuum pump, observe the notes in the chapter Service solutions. .
2.4 Product usage limits
Operations condition, status Intake pressure Permissible intake temperature of
medium to be pumped
Continuous operation > 100 hPa (high gas load) +10 °C to +40 °C
Continuous operation < 100 hPa (low gas load) 0 °C to +60 °C
short-term (< 5 minutes) < 100 hPa (low gas load) -10 °C to +80 °C
Tbl. 3: Usage limits of the vacuum pump
Safety
13/50

2.5 Proper use
●The vacuum pump may only be used for vacuum generation.
●It is not permissible to operate the vacuum pump with accessories not recommended by Pfeiff-
er Vacuum.
●Always observe installation, commissioning, operating, and maintenance instructions.
2.6 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Improper use is any, even unin-
tended, use, which is contrary to the product purpose; and in particular:
●Pumping of corrosive media
●Pumping explosive media
●Pumping corrosive, explosive, radioactive, or volatile media
●Pumping of gases that introduce an ignition source to the suction chamber
●Pumping of gases that contain impurities such as particles, dust, or condensate
●Pumping of fluids
●Pumping FPM-solubilizing media
●Pumping vapors from combustible liquids
●Pumping pressurized media (> atmospheric pressure)
●Pumping media that can condense or cause adhering deposits to form in the suction chamber
●Use of the vacuum pump outside the specified area of application
●Using the vacuum pump below ground
●Using the vacuum pump to generate pressure
●Using the vacuum pump in systems in which sporadic loads and vibrations or periodic forces act
on the unit
●Using the vacuum pump in strong electrical, magnetic, or electromagnetic fields
●Connection to vacuum pumps or equipment which are not suitable for this purpose according to
their operating instructions
●Connection to devices with exposed live parts
●Connecting to sockets without earthing contact
●Using lubricants not specified by Pfeiffer Vacuum
●Using pipes to lift the vacuum pump
●Use of accessories or spare parts that are not listed in these instructions
●Using the vacuum pump as a climbing aid
●Using the connection lines between the diaphragm heads as carrying handles
●Using the vacuum pump in ambient conditions that do not meet the specified IP protection class
limits
Safety
14/50

3 Product description
3.1 Product identification
To ensure for a clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
The following information is shown on the rating plate:
●Pump model
●Model number
●Date of manufacture
Certification
Certification can be identified on a test seal on the vacuum pump. Respective information for this can be
found online at:
●www.tuvdotcom.com
●with the company ID no. 000021320
3.2 Shipment
●Vacuum pump with drive
●Silencer
●Operating instructions
●Blind plug on the vacuum connection
3.3 Function
The diaphragm pump of the MVP 030-3 DC series is a dry compressing vacuum pump with 3 pumping
stages. The vacuum pump is a positive displacement pump with a periodic change in suction chamber
size, produced by the movement of the diaphragm. The gas flow causes the valves to open and close
automatically. The pump units are directly connected to the drive motor.
3
2
8
7
654/4.1
1
Fig. 1: Design of the MVP 030-3 DC
1 Vacuum connection, G 1/8" 5 LED
2 Banjo bolt 6 Connecting socket
3 Interhead connection 7 Exhaust with silencer
4 Locking screw 8 Retainer
4.1 Flushing gas nozzle (optional)
Product description
15/50

4 Transportation and Storage
4.1 Transporting the vacuum pump
Pfeiffer Vacuum recommends keeping the transport packaging and original protective cov-
er.
Procedure
In order to prevent dirt and foreign matter from entering the pump interior, it is important that the protec-
tive cap is kept on the vacuum connection during transport.
1. Unpack the vacuum pump.
2. Lift the vacuum pump out of the transport packaging by hand using the handle.
3. Make sure that no forces are acting on the piping system.
4.2 Storing the vacuum pump
Pfeiffer Vacuum recommends storing the products in their original transport packaging.
Procedure
1. Seal the vacuum connection with the blind plug.
2. Store the vacuum pump only in dry, dust-free rooms, within the specified ambient conditions.
3. Hermetically shrink-wrap the vacuum pump together with a drying agent in a plastic bag if the vac-
uum pump is to be stored in areas with damp or aggressive atmospheres.
Transportation and Storage
16/50

5 Installation
5.1 Installing the vacuum pump
Installation location Inside, protected against the accumulation of dust and weather influences
Protection category IP 20
Installation altitude max. 2000 m above sea level,
at an installation location above 1000 meters above sea level, there is a
risk of insufficient cooling.
if necessary, take measures according to Directive DIN EN 61010.
Ambient temperature +12 °C to +40 °C
Relative air humidity 80% at T ≤ 31 °C, to max. 50% at T ≤ 40 °C
Degree of contamination 2
Excess voltage category II
Tbl. 4: Ambient conditions
Procedure
1. Place the vacuum pump on a flat, horizontal surface.
2. For stationary installation, screw the vacuum pump direct to the mounting surface if necessary.
–For this purpose, dismantle the rubber feet.
3. When installing the pump in a closed housing, ensure adequate air circulation.
–The vacuum pump does not have a fan.
4. Keep the specifications on the motor rating plate visible and freely accessible.
5.2 Connecting the vacuum side
Preventing pressure losses
Using the shortest possible vacuum connection lines with large nominal diameter prevents
pressure losses.
Condensate separator
Pfeiffer Vacuum recommends the installation of a condensate separator in case vapors are
formed from moisture during evacuation.
Procedure
1. Remove the locking cap from the vacuum connection.
2. Install the connection between vacuum pump and vacuum system so that it is as short as possi-
ble.
3. Install a condensate separator upstream of the vacuum pump.
4. Connect the vacuum pump to the vacuum system using the vacuum connection.
5.3 Connecting the exhaust side
CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
Installation
17/50

Procedure
The silencer is mounted as standard. With higher gas throughput, an optional exhaust line can be
mounted.
1. Check the installed silencer for free passage.
2. Choose a minimum exhaust line cross section equal to the connection nominal diameter.
3. Depending on the pump type, use metallic hoses or PVC hoses with flange connections.
4. Route the piping downwards from the vacuum pump, to prevent condensate return.
5. Support or suspend the piping to the vacuum pump so that no piping system forces act on the
vacuum pump.
5.4 Interfaces
NOTICE
Property damage on the electronics
Separating all plug-and-socket connections within the bus system with voltage supply switched on
may lead to the destruction of electronic components.
►Always disconnect the voltage supply before removing the connecting plug.
►After switching off the power supply pack, wait until the residual load has dispersed completely
before disconnecting the plug-and-socket connection.
18
915
Fig. 2: Pin assignment of the D-Sub socket, 15-pin
Pin Function Description, factory setting
1 +24 VDC input Voltage supply for drive and interface
2 DI access request V+: Control via DIs, --> GND/open: Control unlocked
3 DI1 V+: Rotation speed setting mode, --> GND/open: no rotation speed set-
ting mode
4 n.c.
5 DI pumping station V+: Vacuum pump on, --> GND/open: Vacuum pump off
6 DI standby V+: standby, --> GND/open: no standby
7 V+ 24 V output
8 DO1 GND: Error, V+: no error
9 DO2 GND: Vacuum pump off, V+: Vacuum pump on
10 n.c.
11 n.c.
12 n.c.
13 RS-485 D+
14 RS-485 D-
15 Earth (GND) Body contact of the voltage supply; reference earth for all digital inputs
and outputs
Tbl. 5: Connection plug arrangement Simple Pump Interface D-Sub-socket, 15-pin
Installation
18/50

2
1
3
4
Fig. 3: Connection example: MVP 030-3 DC – DCU/TPS
1 TPS 3 MVP
2 DCU/HPU 4 Connecting cable, order number: PM 061 350 -T
Installation
19/50

1 2 3
45
Fig. 4: Connection example: MVP 030-3 DC – HiPace/DCU/TPS
1 TPS 4 Turbopumpe HiPace
2 DCU/HPU 5 Connecting cable, order number: PE 100 013 -T
3 MVP
5.4.1 Voltage supply
24 V DC input: The voltage supply is carried out using a connecting cable from the Pfeiffer Vacuum
accessories or using a cable provided by the customer.
●Pin 1: +24 V DC
●Pin 15: Earth (GND)
24 V DC output / pin 7: Inputs 2 to 6 are activated if they are connected to pin 7 (active high) with +24
VDC. They can also be activated via an external SPS. The functions are deactivated by "SPS high lev-
el" and by "SPS low level".
●PLC High level: +13 V to +33 V
●PLC High level: -33 V to +7 V
●Ri: 7 kΩ
●Imax < 200 mA
5.4.2 Inputs
The digital inputs serve the switching of different functions of the electronic drive unit:
DI (remote priority)/pin 2
V+: The connection has an operating supremacy before all other digital inputs.
open: Remote priority "inactive"
DI1 (rotation speed setting mode)/pin 3
V+: Rotation speed setting mode "active"
open: Rotation speed setting mode "inactive"
DI vacuum pump/pin 5
The vacuum pump is switched on
Installation
20/50
