Pfeiffer TPG 261 User manual

BG 5195 BEN / A (2011-05)
A PASSION FOR PERFECTION
VACUUM
TPG 261
SingleGauge™, Single-Channel Measurement and Control Unit for
Compact Gauges
Operating Instructions

2BG 5195 BEN / A (2011-05) TPG261.oi
In all communications with Pfeiffer Vacuum, please
specify the information on the product nameplate. For
convenient reference copy that information into the
space provided below.
Typ:
No:
F-No:
V Hz VA
Pfeiffer Vacuum, D-35614 Asslar
This document applies to products with part number
PT G28 030.
The part number (No.) can be taken from the product
nameplate.
This manual is based on firmware version 302-510-D.
If your unit does not work as described in this document,
please check that it is equipped with the above firmware
version (→58).
We reserve the right to make technical changes without
prior notice.
All dimensions are indicated in mm.
Product Identification
Validity

BG 5195 BEN / A (2011-05) TPG261.oi 3
The TPG 261 is used together with Pfeiffer Vacuum
Compact Gauges (in this document referred to as
gauges) for total pressure measurement. All products
must be operated in accordance with their respective
Operating Instructions.
The scope of delivery consists of following parts:
1 TPG 261 Single-Channel Measurement and Control
Unit
1 Power cord
1 Connector for control connection
4 Collar screws and plastic sleeves
2 Rubber feet
1 Rubber bar
1 CD-ROM (Operating Instructions)
1 EC Declaration of Conformity
1 Installation Instructions
1 Safety Guide
SingleGauge™ INFICON AG
FullRange™ INFICON GmbH
Intended Use
Scope of Delivery
Trademarks

4BG 5195 BEN / A (2011-05) TPG261.oi
Contents
Product Identification 2
Validity 2
Intended Use 3
Scope of Delivery 3
Trademarks 3
1Safety 6
1.1 Symbols Used 6
1.2 Personnel Qualifications 7
1.3 General Safety Instructions 7
1.4 Liability and Warranty 8
2Technical Data 9
3Installation 14
3.1 Personnel 14
3.2 Installation, Setup 14
3.2.1 Rack Installation 14
3.2.2 Installation in a Control Panel 17
3.2.3 Use as Desk-Top Unit 18
3.3 Mains Power Connector 19
3.4 Gauge Connector sensor 20
3.5 control Connector 21
3.6 relay Connector 22
3.7 Interface Connector RS232 23
4Operation 24
4.1 Front Panel 24
4.2 Turning the TPG 261 On and Off 25
4.3 Operating Modes 26
4.4 Measurement Mode 27
4.5 Parameter Mode 31
4.5.1 Switching Function Parameters 33
4.5.2 Gauge Parameters 37
4.5.3 Gauge Control 47
4.5.4 General Parameters 52
4.5.5 Test Parameters 56

BG 5195 BEN / A (2011-05) TPG261.oi 5
5Communication (Serial Interface) 65
5.1 RS232C Interface 65
5.1.1 Data Transmission 65
5.1.2 Communication Protocol 67
5.2 Mnemonics 69
5.2.1 Measurement Mode 70
5.2.2 Parameter Mode 76
5.2.2.1 Switching Function Parameters 76
5.2.2.2 Gauge Parameters 77
5.2.2.3 Gauge Control 82
5.2.2.4 General Parameters 83
5.2.2.5 Test Parameters 84
5.2.3 Example 90
6Maintenance 91
7Troubleshooting 92
8Repair 93
9Storage 94
10 Disposal 94
Appendix 95
A: Conversion Tables 95
B: Default Settings 96
C: Firmware Update 97
D: Literature 100
E: Index 103
EC Declaration of Conformity 105
For cross-references within this document, the symbol
(→XY) is used, for cross-references to further docu-
ments, listed under "Literature", the symbol (→[Z]).

6BG 5195 BEN / A (2011-05) TPG261.oi
1 Safety
DANGER
Information on preventing any kind of physical injury.
WARNING
Information on preventing extensive equipment and
environmental damage.
Caution
Information on correct handling or use. Disregard can
lead to malfunctions or minor equipment damage.
The lamp/display is lit.
The lamp/display flashes.
The lamp/display is dark.
Press the key (example: PARA key).
Do not press any key.
1.1 Symbols Used
Symbols for residual
risks
Further symbols

BG 5195 BEN / A (2011-05) TPG261.oi 7
Skilled personnel
All work described in this document may only be
carried out by persons who have suitable technical
training and the necessary experience or who have
been instructed by the end-user of the product.
Adhere to the applicable regulations and take the nec-
essary precautions for all work you are going to do and
consider the safety instructions in this document.
DANGER
DANGER: mains voltage
Contact with live parts is extremely
hazardous when any objects are introduced
or any liquids penetrate into the unit.
Make sure no objects enter through the
louvers and no liquids penetrate into the
equipment.
Communicate the safety instructions to all other users.
1.2 Personnel
Qualifications
1.3 General Safety
Instructions

8BG 5195 BEN / A (2011-05) TPG261.oi
Pfeiffer Vacuum assumes no liability and the warranty
becomes null and void if the end-user or third parties
•disregard the information in this document
•use the product in a non-conforming manner
•make any kind of interventions (modifications, altera-
tions etc.) on the product
•use the product with accessories not listed in the cor-
responding product documentation.
1.4 Liability and
Warranty

BG 5195 BEN / A (2011-05) TPG261.oi 9
2 Technical Data
Voltage 90 … 250 VAC
Frequency 50 … 60 Hz
Power consumption ≤45 W
Overvoltage category II
Protection class 1
Connection European appliance connec-
tor IEC 320 C14 (→19)
Temperature
storage
operation
–20 … +65 °C
+ 5 … +50 °C
Relative humidity ≤80% up to +31 °C,
decreasing to 50% at +40 °C
Use indoors only
max. altitude 2000 m NN
Pollution degree II
Protection type IP30
Number 1
Compatible
Compact Gauges
Pirani
Pirani Capacitance
Cold Cathode
FullRange™ CC
Process Ion
FullRange™ BA
Capacitance
Piezo
TPR 261, TPR 265, TPR 280,
TPR281
PCR 260, PCR 280
IKR 251, IKR 261, IKR 270
PKR 251, PKR 261
IMR 265
PBR 260
CMR 261 … CMR 375
APR 250 … APR 267
Number 1
sensor connector Amphenol C91B appliance
connector, female, 6-pin
(pin assignment →20)
Mains specifications
Ambiance
Compatible gauges
Gauge connections

10 BG 5195 BEN / A (2011-05) TPG261.oi
Voltage +24 VDC ±5%
Current 750 mA
Power 18 W
Fuse protection 900 mA with PTC element,
self-resetting after turning the
TPG 261 off or disconnecting
the gauge. The supply con-
forms to the requirements of a
grounded protective extra low
voltage (SELV).
Front panel
Remote control
via 3 keys
via RS232C interface
Measurement range depending on gauge
(→[1] … [17])
Measurement error
gain error
offset error
≤0.01% F.S.
≤0.01% F.S.
Measurement rate 50 / s
Display rate 10 / s
Filter time constant
slow
normal (nor)
fast
1.2 s (fg= 0.13 Hz)
400 ms (fg= 0.4 Hz)
20 ms (fg= 8 Hz)
Measurement units mbar, Pa, Torr
Offset correction for linear gauges
–5 … 110% F.S.
Calibration factor for logarithmic gauges
0.10 … 9.99
for linear gauges
0.500 … 2.000
A/D converter resolution 0.001% F.S.
Gauge supply
Operation
Measurement values

BG 5195 BEN / A (2011-05) TPG261.oi 11
Number 2
Reaction delay ≤20 ms if switching threshold
close to measurement value
(for larger differences con-
sider filter time constant)
Adjustment range depending on gauge
(→[1] … [17])
Hysteresis ≥1% F.S. for linear gauges,
≥10% of measurement value
for logarithmic gauges
Contact type floating changeover contact
Load max. 30 VAC, 30 W (ohmic)
60 VDC, 1 A, 30 W (ohmic)
Service life
mechanic
electric
5×107cycles
1×105cycles (at max. load)
Contact positions →22
Relay connector D-Sub appliance connector,
female, 15-pin
(pin assignment →22)
Number 1
Reaction time ≤20 ms
Contact type floating normally open contact
Load max. 30 VAC, 30 W (ohmic)
60 VDC, 1 A, 30 W (ohmic)
Service life
mechanic
electric
5×107cycles
1×105cycles (at max. load)
Contact positions →21
Control connector Amphenol C91B appliance
connector, female, 7-pin
(pin assignment →21)
Switching functions
Switching function relays
Error signal
Error signal relay

12 BG 5195 BEN / A (2011-05) TPG261.oi

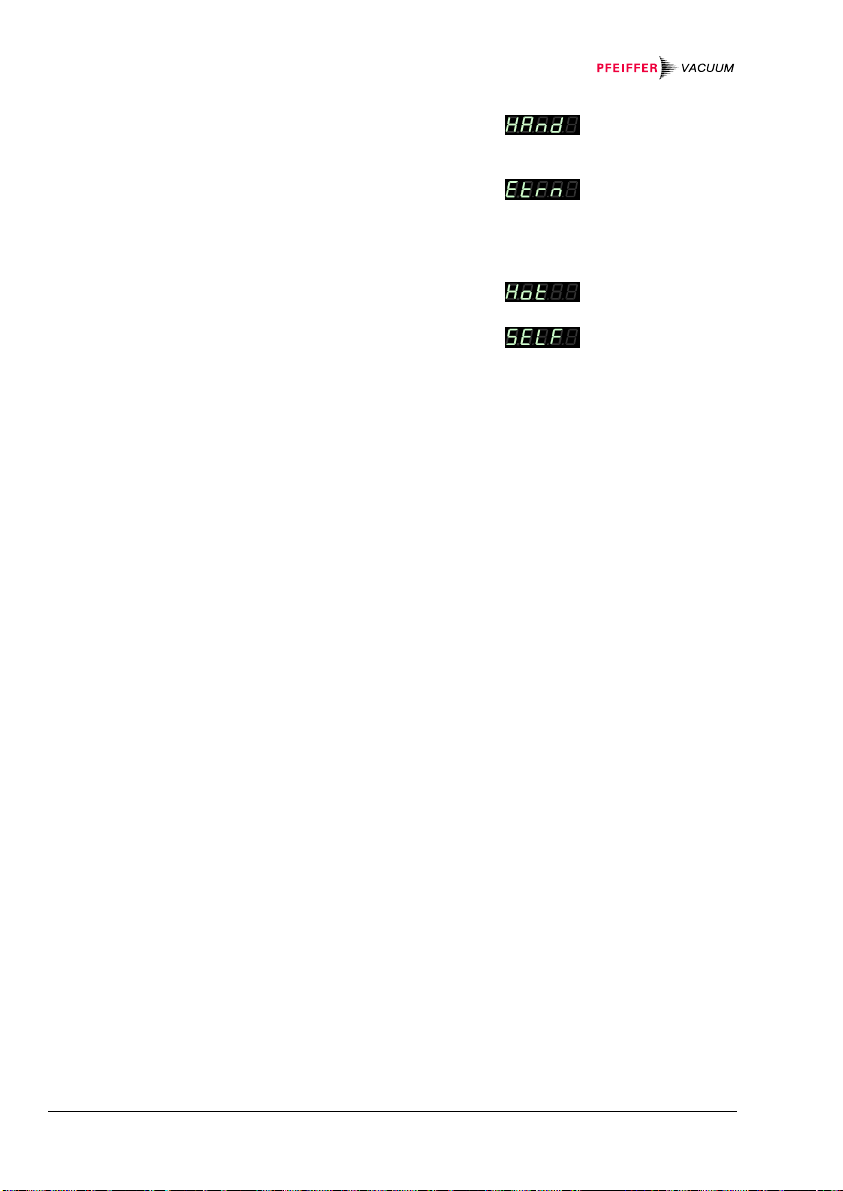

Manual
via keys
activation/deactivation
(→28, 49, 50)
External
via control connector
ON condition
OFF condition
signal ≤+0.8 VDC
signal +2.0 … 5 VDC or input
open
Hotstart
when mains power on
(→49)
Self control
deactivation when
pressure rises
OFF threshold
adjustable (→51)
Control connector Amphenol C91B appliance
connector, female, 7-pin
(pin assignment →21)
Number 1
Voltage range 0 … +10 VDC
Internal resistance 660 Ω
Measuring signal vs.
pressure
depending on gauge
(→[1] … [17])
Control connector Amphenol C91B appliance
connector, female, 7-pin
(pin assignment →21)
Standard RS232C
Protocol ACK/NAK, ASCII with
3-character mnemonics,
bi-directional data flow,
8 data bits, no parity bit,
1 stop bit
RS232C only TXD and RXD used
Transmission rate 9600, 19200, 38400 baud
RS232 connector D-Sub appliance connector,
male, 9-pin
(pin assignment →23)
Gauge control
Analog output
Interface

BG 5195 BEN / A (2011-05) TPG261.oi 13
228.5 2.5
≈310
111.6
68.1
VACUUM
ø3.5
55.9
70.8
122.5
128.5
For incorporation into a rack or control panel or as desk-
top unit.
1.1 kg
Dimensions [mm]
Use
Weight

14 BG 5195 BEN / A (2011-05) TPG261.oi
3 Installation
Skilled personnel
The unit may only be installed by persons
who have suitable technical training and the
necessary experience or who have been
instructed by the end-user of the product.
The TPG 261 is suited for incorporation into a 19" rack
or a control panel or for use as desk-top unit.
DANGER
Putting a product which presents a visible
damage into operation can be extremely
hazardous. If the product presents a visible
damage do not put it into operation and make
sure it is not inadvertently put into operation.
The TPG 261 is designed for installation into a 19" rack
chassis adapter according to DIN 41 494. For this pur-
pose, four collar screws and plastic sleeves are supplied
with it.
DANGER
DANGER: protection class of the rack
If the product is installed in a rack, it is likely
to lower the protection class of the rack
(protection against foreign bodies and water)
e.g. according to the EN 60204-1 regulations
for switching cabinets.
Take appropriate measures for the rack to
meet the specifications of the protection
class.
3.1 Personnel
3.2 Installation, Setup
3.2.1 Rack Installation

BG 5195 BEN / A (2011-05) TPG261.oi 15
In order to reduce the mechanical strain on the front
panel of the TPG 261, preferably equip the rack chassis
adapter with a guide rail.
For safe and easy installation of heavy rack chassis
adapters, preferably equip the rack frame with slide rails.
Guide rail
Slide rails

16 BG 5195 BEN / A (2011-05) TPG261.oi
nSecure the rack adapter in the rack frame.
The admissible maximum ambient tem-
perature (→9) must not be exceeded
neither the air circulation obstructed.
Rack chassis adapter
Height 3 U
oSlide the TPG 261 into the rack chassis adapter …
… and fasten the adapter panel to the rack chas-
sis adapter using the screws supplied with the
TPG 261.
Height 3 U rack
chassis adapter

BG 5195 BEN / A (2011-05) TPG261.oi 17
DANGER
DANGER: protection class of the rack
If the product is installed in a control panel, it
is likely to lower the protection class of the
control panel (protection against foreign
bodies and water) e.g. according to the
EN 60204-1 regulations for switching cabi-
nets.
Take appropriate measures for the control
panel to meet the specifications of the pro-
tection class.
For mounting the TPG 261 into a control panel, the fol-
lowing cut-out is required:
M3 or ø3.5
122.5
113
70
55.9
The admissible maxi-
mum ambient tem-
perature (→9) must
not be exceeded nei-
ther the air circulation
obstructed.
For reducing the mechanical strain on the front panel,
preferably support the unit.
3.2.2 Installation in a
Control Panel

18 BG 5195 BEN / A (2011-05) TPG261.oi
nSlide the TPG 261 into the cut-out of the control
panel …
… and secure it with four M3 or equivalent screws.
The TPG 261 is also suited for use as desk-top unit. For
this purpose, two self-adhesive rubber feet as well as a
slip-on rubber bar are supplied with it.
nStick the two supplied rubber feet to the rear part
of the bottom plate …
… and slip the supplied rubber bar onto the bot-
tom edge of the front panel.
3.2.3 Use as Desk-Top
Unit

BG 5195 BEN / A (2011-05) TPG261.oi 19
Select a location where the admissible maxi-
mum ambient temperature (→9) is not ex-
ceeded (e.g. due to sun irradiation).
DANGER
DANGER: line voltage
Products that are not professionally
connected to ground can be extremely
hazardous in the event of a fault.
Connect the product according to the local
regulations and ground it correctly.
The unit is supplied with a power cord. If the mains con-
nector is not compatible with your system, use your own,
suitable cable with protective ground (3×1.5 mm3).
The socket must be
fuse - protected with
10 Amax
If the unit is installed in a switching cabinet, the mains
voltage should be supplied and turned on via a central
distributor.
3.3 Mains Power
Connector

20 BG 5195 BEN / A (2011-05) TPG261.oi
Do not unfasten
this screw
(internal ground
protection)
Connect the gauge to the sensor connector via
a sensor cable set available from us (→sales
literature) or your own, screened (electromag-
netic compatibility) sensor cable. Make sure the
gauge you are connecting is compatible
(→9).
Pin assignment of
the female 6-pin
Amphenol C91B ap-
pliance connector:
1
2
3
4
56
12
54
63
Pin Signal
1
6
2
3
4
5
Identification
Supply +24 VDC
Supply common GND
Signal input (measuring signal+)
Signal common (measuring signal–)
Screening
3.4 Gauge Connector
sensor
Pin assignment
sensor
