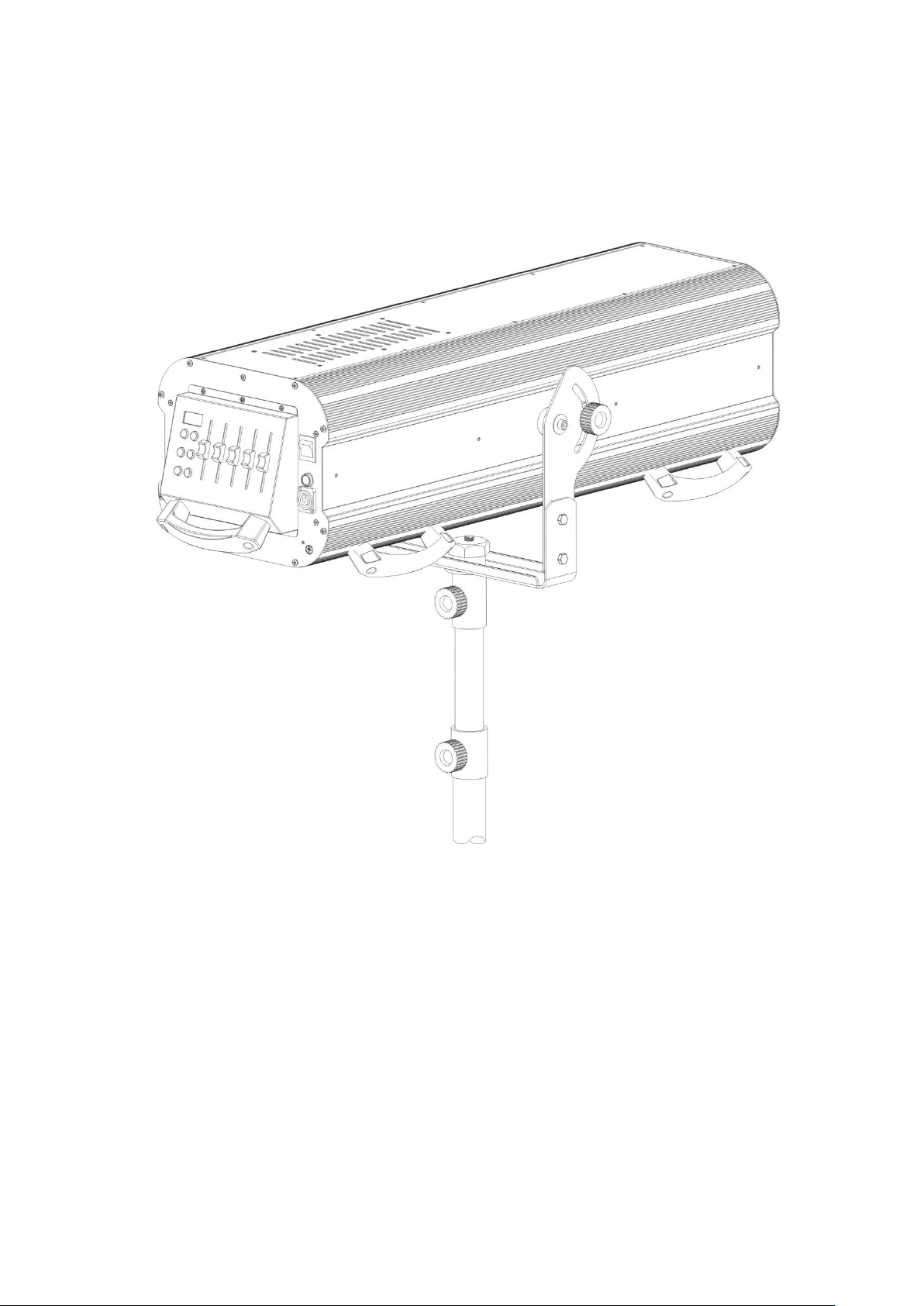

Phantos XMlite FS440 User manual

FOLLOW SPOT
Weight：26KG
Power：420W
Color Tempreature：3200-6500K

Content
1.Content..............................................................................................02
2.Caution .............................................................................................03
3.Dimension.......................................................................................... 04
4.Product info...................................................................................... 05
5.Parts info.......... ............................................................................... 06
6.Lamp change and replace.............. ……………………................ 07
7. Control Panel.................................................................................. 08
8. Inside structure............................................................................ 10
9. PCB................................................................................................. 10

2 Caution
2.1, before installation, please check whether the mechanical fasteners for transport
and loose, and do the regular maintenance.
2.2, to maintain voltage stability, otherwise easy to cause the lamp damage.
2.3, please check before the voltage is normal, it is not suitable for frequent switching
power supply, power off,
2.4 You must need to wait for ten minutes to make a light bulb completely cooled
again if need open again..
2,5 in order to ensure the service life of the product, please keep dry and ventilated.
2,6 strictly charged installation and disassembly. The product should do the
maintenance by the the professionals.
2.7 when checked everything is normal, adjust the angle, connect the power supply
and the ground wire..
, do not stare at the lamp light source directly, so as not to damage the eyes.
, please use the electric wire connected more than 2.0 square..
10, please make sure the lamp power is disconnected during the light of installation
and repair.,

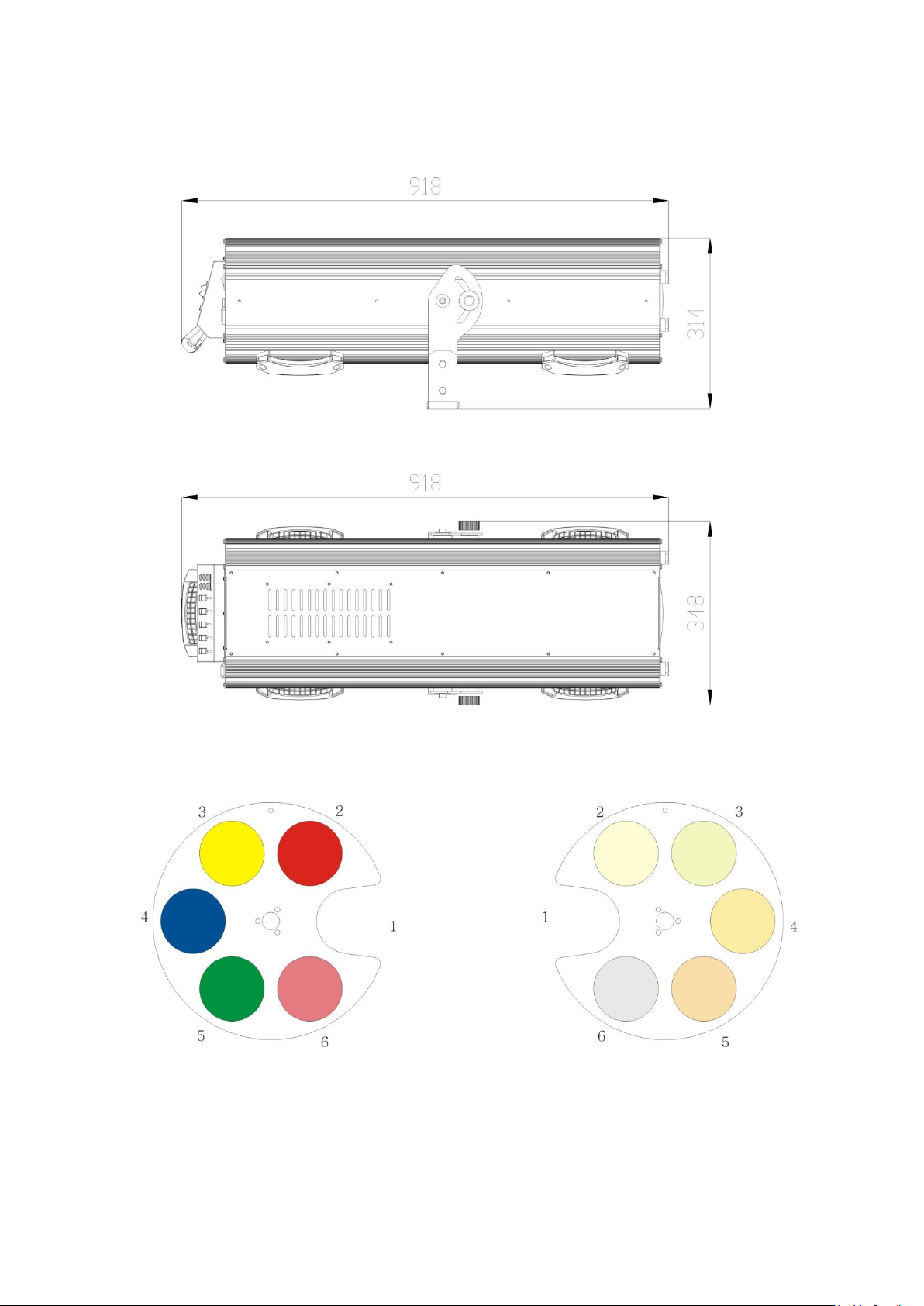

3.Dimension
Colors
01 —white 02 —red
03 —yellow 04 —blue
05 —Green 06 —magenta
01 —6500K 02 —5600K
03 —4300K 04 —3800K
05 —3200K 06 —Frost

4.Product information
1.Technical Specifications
Voltage : 200-240V/50-60Hz
Lamp :YODN 15R 330W
Lamp lifespan：1500hours
Lamination output：4200lm
Effect：13lm/w
Equally：98％
Dimmer：linear dimmer
Color wheel:5 color+ white
Iris: can adjust
Color temperature：3200-6500 color temperature +frost
Focus：5-10 degree with focus
IP20
Power：100-240V，50-60Hz,
Total power：420W
Light size：918x348x314mm
Product weight：26kg
Stand weight：6kg
Flight case size：1022×580×490mm

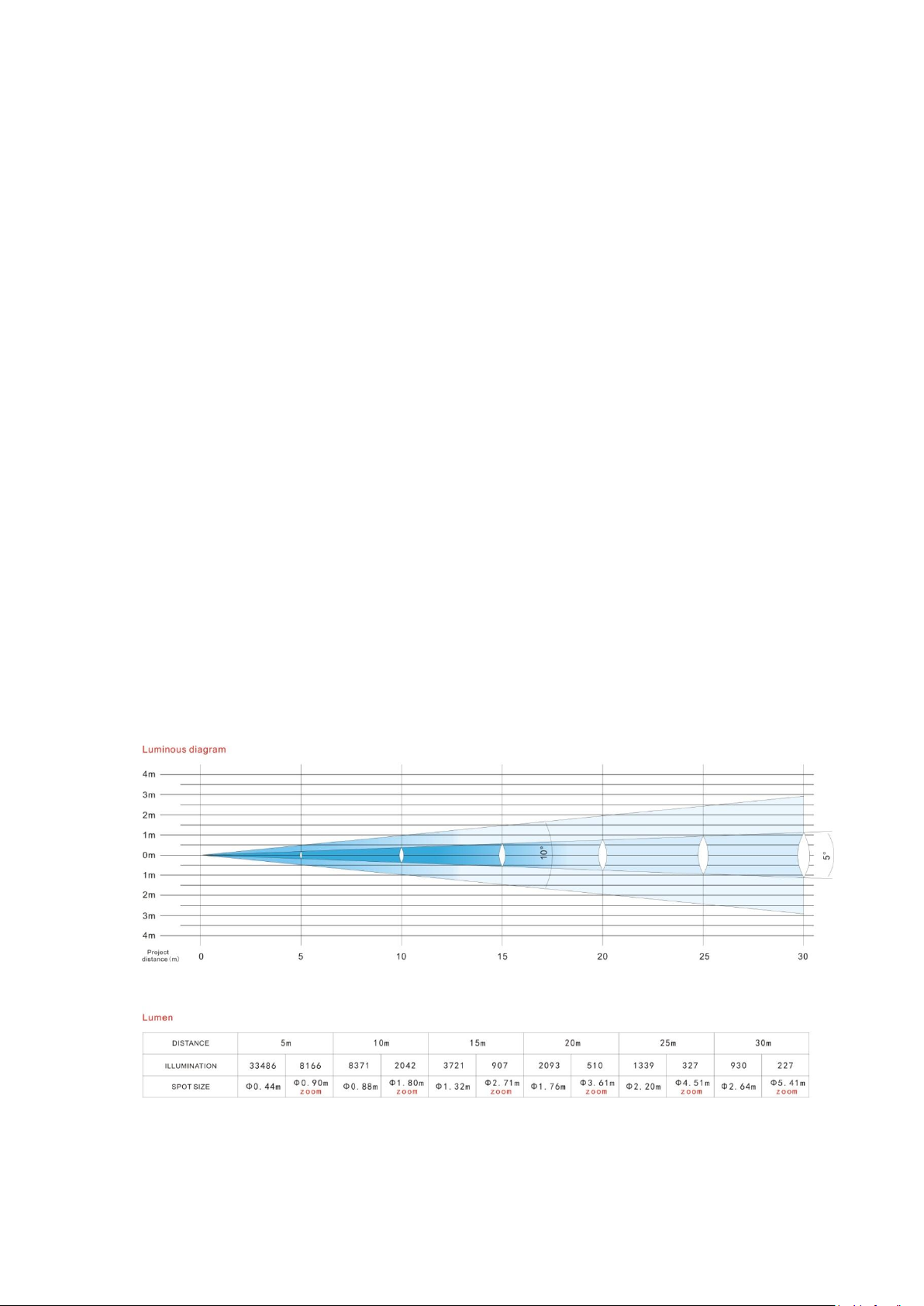

2.Lumination

5.Part information
5.1 Control panel
02
01 —display screen
02 —Channels rod
03 —Colors key
04 —Power switch
05 —Fuse
06 —Power input
01
03
04
05
01 —control panel
02 —handle
03 —stand handle
04 —light
05 —lens
01
03
04
05
06
02

6. Lamp model and replacement
1. Discharge the handle；2.take apart the panel box
3.take part the lamp rear panel 4.take apart the screws for the lamp
5. use the screws driver to hold the metal. 6. discharge the power cable.

7. Control panel
1.Panel operation instruction
When lamp off, press the red key for 3 seconds, the display show(on) for lamp on.
When lamp on, press the white key for 3 seconds, the display show(OFF) for
lamp off.
When lamp off, please wait about 10 minutes if need lamp on.(better for the
Lamp life.)
COLOR TEM ：Color temperature adjust from 6500K-3200K，to the top is the wash.
Channels
DMX Number
Function
Key
1
White
2
Red
3
Yellow
4
Blue
5
Green
6
Pink
CH01
0-255
Dimmer
0-129
Close
240-255
Open
CH02
0-255
Iris
CH03
0-255
Zoom out
CH04
0-255
Focus
CH05
0-42
6500K
43-84
5600K
85-126
4300K
127-168
3800K
169-210
3200K
211-255
Frost

2. Menu Operation
Blue Key: Save the update set and back to the main menu
White Key: Down(or +),can plus continually if press after 1 second
Red Key: Up(or -), can minus continually if press after 1 second
Yellow key: Back to the menu(not save the data)
Menu
item
Selection
Function
Info set
< 1nfo >
< t4PE >
Lights kind
< FAn1 >
Fan 1 status（r19H:normal Erro:
Error）
< FAn2 >
Fan 2 status（r19H:Normal Erro:
Error）
< d15U >
Version（xxx）
< dr1U >
Motor version（xxx）
< rEtn >
Enter
Display set
<d15P >
Display delay
close
< LoFF >
oN
Lamp on
L001
Close after 1 min
L002
Close after 2 min
L003
Close after 3 min
Menu display
enter
< NEN8 >
oFF
No enter
N001
Enter after 1 min
N001
Enter after 2 min
N001
Enter after 3 min
< rEtn >
Enter
Readress
< rEdr >
< CoLo >color motor
Motor reset（0-255）
< CoLt >color motor
Feature
SET
< 5PEC >
< 2oon >focus motor
< FocU >focus motor
< rEtn >
Enter
Run mode
< rUod >
r001
manual
r002
auto
default
< dEFA >
oFF
no
oN
Default set
<rEtn>
enter
< LANP >
default
< LAPd >
oFF
Lamp off after reset
oN
Lamp on after reset
Lamp control
< NAnL >
oFF
Lamp off by manual
oN
lamp on by manual
< rEtn >
Enter
< ALLr>
oFF
No Reset
oN
Reset
rEtn
Menu exit

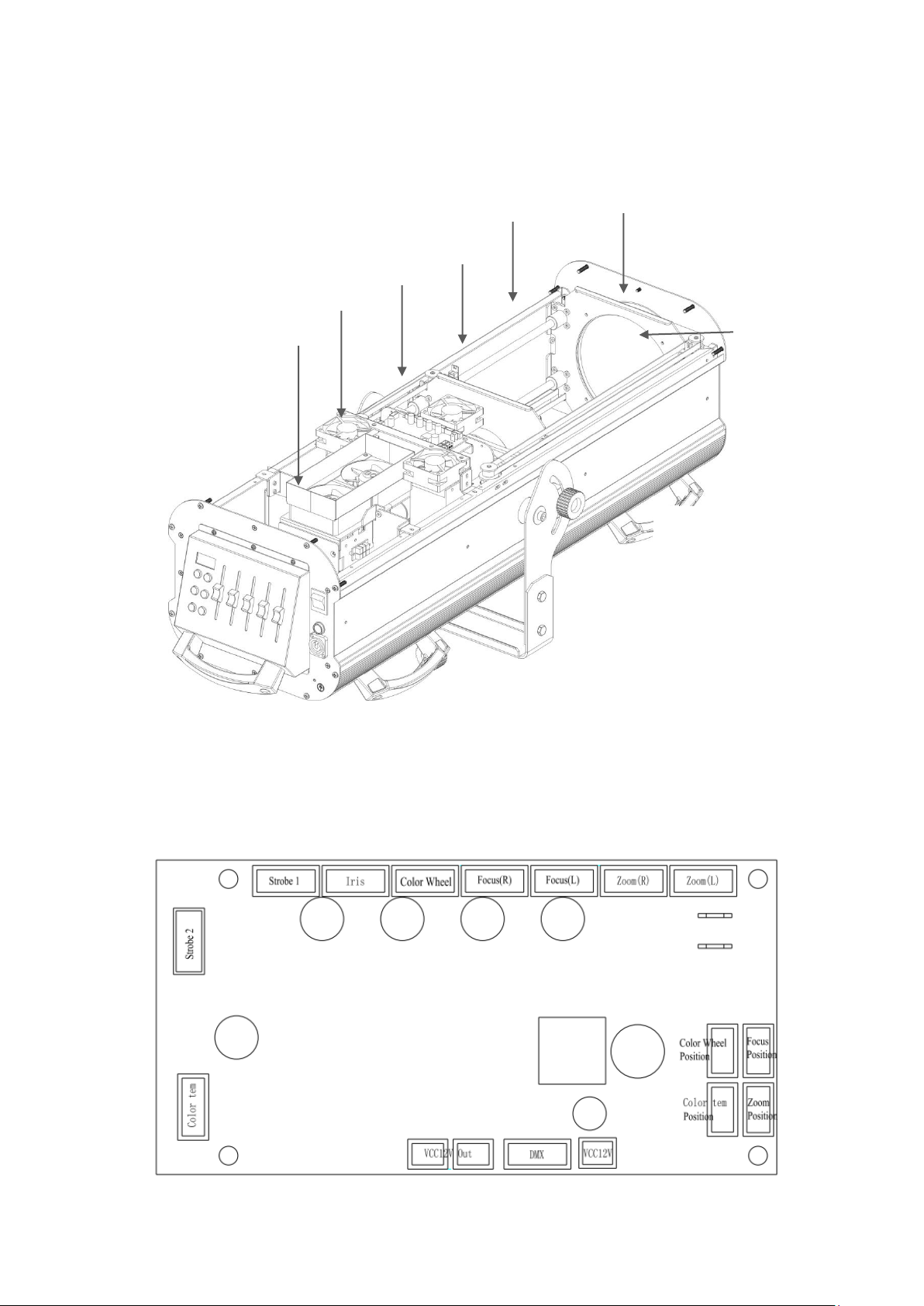

8. Inside structure
9. PCB
05
06
02
03
04
01
07
01 —Lamp socket
02 —Fan
03 —Driving board
04 —Focus module
05 —Slide bar
06 —zoom module
07 —belt
