Owner’s Manual
PS-1200
POWER SUPPLY for EA-1200

3
Table of Contents
Safety Instructions...................................................................................................4
Usage Cautions.......................................................................................................5
Care of Equipment...................................................................................................5
Names and Functions..................................................................................6
Connections...........................................................................................................7
Trouble Shooting Guide..........................................................................................8
User Support.......................................................................................................8
Specifications.........................................................................................................8
Thank you for purchasing Phasemation product.
Read your Owner’s Manual thoroughly for proper operation before starting to
use your equipment.
Please keep your Owner’s Manual with caution.

4
Safety Instructions
WARNINGS
CAUTIONS
Before starting
to use
In this owner’s manual and on the product, various pictures are used
to show our customers how to use Phasemation PS-1200 safely and
properly in order to avoid the loss of customer’s assets and to protect
our customers from harm.
Do not use the
equipment being
broken.
Never remodel the
equipment.
Never install the
equipment near
water.
Never put an object
filled with water on
the equipment.
Never put an object
inside the equipment.
Cautions of
Installation
Places which are not
suitable for
installation
Connection
In case of using the equipment in an abnormal
state, such as seeing smoke, having strange
smell and hearing unusual sounds or noise, this
can result in a risk of fire or electric shock. If
such an abnormal state occurs, turn the power
switch off, and endure to disconnect the AC plug
from the outlet. After no smoke is confirmed, ask
dealer for the repair.
Do not disassemble the equipment or do not
remodel it. This can result in a risk of fire.
Do not use the equipment in the bathroom. This
can result in a risk of fire or electric shock.
The equipment is designed for using indoors.
Do not expose the equipment to water. This can
result in a risk of failures, fire and electric shock.
Do not put a vase, flower pot, glass or any
object filled with skin lotion, chemical or water,
or small metal object on the equipment. In case
the liquids are spilled or the small objects fall
inside the equipment, this can result in a risk of
fire or electric shock.
If a foreign object has fallen inside the
equipment, turn the amplifier’s power switch off,
and contact the dealer. To keep using the
equipment can result in a risk of fire and electric
shock.
Do not install the equipment in the humid or
dusty environment. This can result in a risk of
fire or electric shock.
When connecting with other audio equipment or
a television set, read the manual of equipment,
turn the power switch off, and connect according
to the instructions.
Do not install the equipment on the unstable
tables or unstable places. In case the equipment
falls, it can result in a risk of injury of customers.
Pay attention to the wiring of the cord so that a
foot is not caught, or the person can stumble or
the equipment can fall, which is so dangerous.
When moving the equipment, turn the power
switch off, and endure to disconnect the power
plug from the outlet and remove the connecting
cord. The cord can be damaged and this can
result in a risk of fire and electric shock.

5
Installation place
Useable AC power supply voltage and frequencies
Repair
Handling of AC power cable
Usage Cautions
Care of Equipment
Note
In order to use the equipment for a long time, follow the instructions
shown in below:
Do not install this equipment near a heat source such as direct sun light, a stove and so on.
Do not use this equipment at a poorly-ventilated, humid or dusty place.
Do not install this equipment at an unstable place such as slope or vibrating place.
Do not install this equipment near a window where the equipment can be exposed to rain.
Do not install this equipment in a high humidity environment.
Avoid using this equipment on an equipment generating heat such as an amplifier.
Keep this equipment away from a power supply transformer or a motor of other equipments.
AC 230V power supply must be supplied.
The equipment operates normally in the both areas of 50Hz and 60Hz power supply frequen-
cies.
Do not touch the AC power cable with wet hands.
Do not pull the cable strongly or bend the cable. The cable can be damaged and can result in
a risk of fire and electric shock.
Use the AC power cable of the accessories.
If the equipment is covered with dust or dirt, clean it with a soft cloth.
If the equipment is covered with heavy dust, put a very thin mild detergent on a soft cloth.
Wring the cloth and wipe off the dust and dirt. Then, clean with a dry soft cloth.
Never use chemical agents such as thinner, naphtha and alcohol when cleaning it.
If any of them is attached to the equipment, the silk printing can be flaked or the surface can
lose metal luster.
In case of equipment failure, consult the dealer.
Avoid covering the equipment with a cloth or installing it in enclosed space because
radiation and air convection from the chassis surface can be hindered.
This unit has no intake or exhaust holes for heat dissipation to prevent the entry of exter-
nal sound pressure and dust. The chassis is cooled by convection and the heat dissipat-
ed from the unit is cooled by radiation and air convection from the chassis, which has high
thermal conductivity.

6
Names and Functions
(1) POWER switch
The power supply can be turned on or off by pressing the POWER switch.
(2) POWER indicator
The POWER indicator lights up blue when the power supply is supplied.
(3) DC OUT
The DC power supply is supplied from two connectors to the L and R Phono Equalizer
units through two DC power junction cables of EA-1200 accessories. L and R are not
assigned to two connectors.
* It is not a problem to exchange (3) and (4) for the operations, but it may take about
30 seconds for the indicator light to turn off after turning the POWER switch to OFF.
(4) AC IN
Connect the AC power cable of the accessories to the AC INLET of the Power Supply
Unit and plug it to an outlet.
Connecting the two AC plugs of the power supplies to adjacent outlets can make the
sound kept at high quality.
Power Supply Unit
Long slot
Side with
the circle
Circle
A circle is assigned on one side of the plug of the
AC power cable so that better quality sound is
reproduced by matching the power supply polarity
with another equipment.
This polarity may be different due to the house
wiring for the outlet or because of the power supply
condition; however, generally the side with the
circle should be inserted to the long slot of the
outlet.
Power Connection
〜AC IN FUSE 3A
〜50/60Hz 33W100V
MODEL PS-1200
DC OUT
① ② ③ ④
PS-1200

7

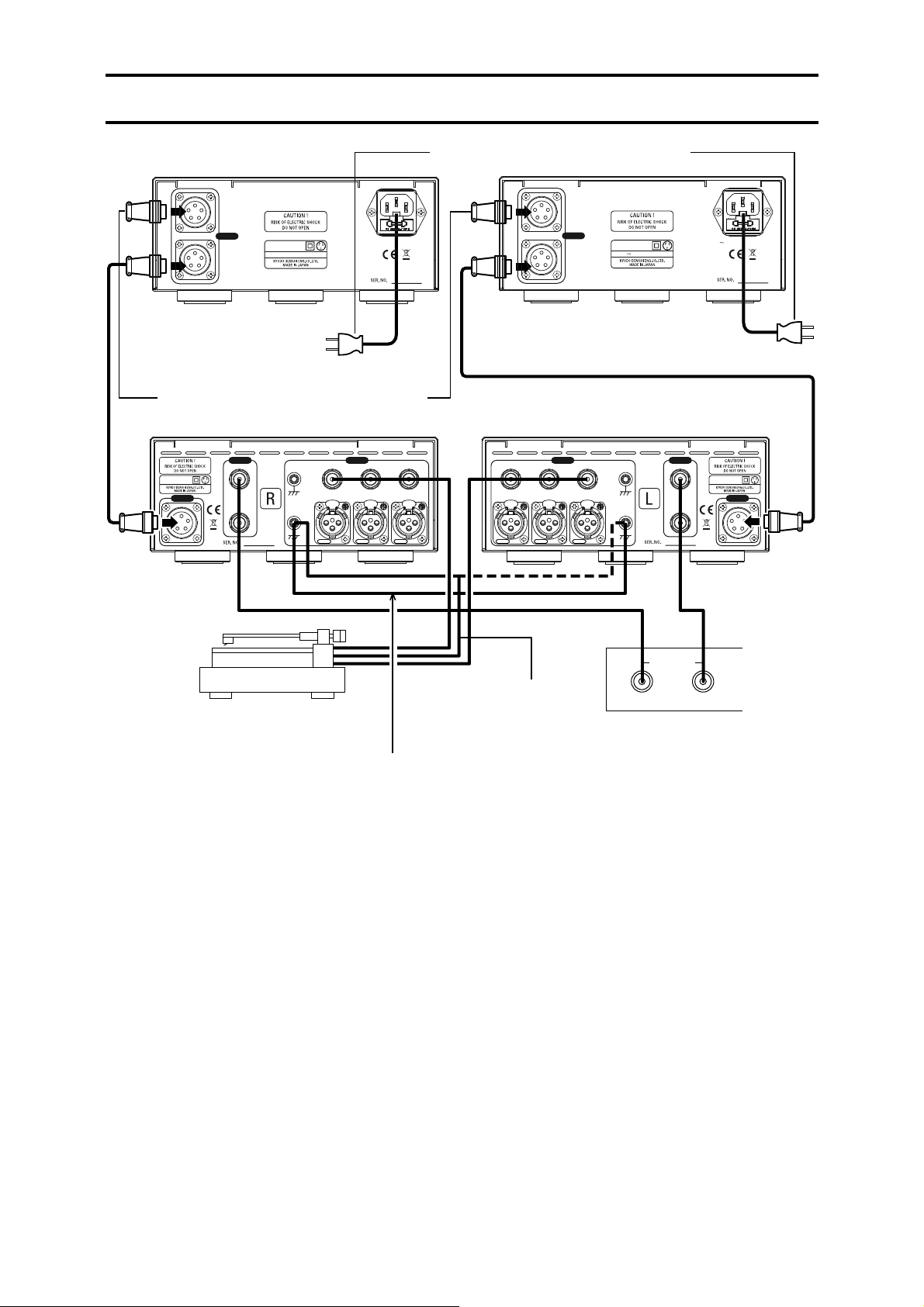

Connections
AUX INPUT
RIGHT LEFT
3
21
PUSH
NEUTRIK
3
21
PUSH
NEUTRIK
3
21
PUSH
NEUTRIK
MODEL EA-1200 1
12
2
3
OUTPUT
DC IN
INPUT
GND
GND
3
21
PUSH
NEUTRIK
3
21
PUSH
NEUTRIK
3
21
PUSH
NEUTRIK
1 2 3
INPUT
GND
GND
MODEL EA-1200EQ
1
2
OUTPUT
DC IN
Pre-amplifier
Analogue Disc Player
Earth Cable
Ground Wire of Accessories
AC Power Cable of Accessories
Shorting Connector of Accessories
〜AC IN FUSE 3A
〜50/60Hz 33W100V
MODEL PS-1200
DC OUT
AC IN FUSE 3A
50/60Hz 43W
MODEL EA-1200PS
DC OUT

8
Trouble Shooting Guide
Trouble Causes Measures
The power is not
supplied.
In case the equipment does not operate properly, check out the followings.
If it does not operate properly even after checking the advised points, endure to
disconnect the AC plug from the outlet and then contact the dealer.
Sound is not
heard immediately
after turning the
power on.
The plug of AC power cable is
not plugged in completely.
The vacuum tubes are worked in
the equipment.
Sound is not outputted until the
circuits become stable operation.
Insert the plug of AC cable into an
outlet firmly.
Firmly insert the outlet of AC
power cable into the AC inlet of
Power equipment.
After turning the power supply to
ON, please wait one minute.
Specifications
User Support
As for the unclear matters with regard to the after service, please contact the dealer.
The appearance and specifications of this equipment are subject to change without notice in order
to improve it.
Accessories: AC power cable (x1) and shorting connectors (x2)
* The power consumption is printed as “43W” on the power supply unit of EA-1200, but
they are 33W each for both power supplies when two power supplies are used.
Product
Power consumption
Dimensions (mm)
Weight
Power Supply Unit for being added for EA-1200
33W*（230VAC 50 to 60Hz）
210（W）×93（H）×346（D）
6ｋｇ

Kyodo Denshi Engineering Co., Ltd.
8-40-17 Shinyoshidahigashi Kohoku-ku Yokohama-shi Kanagawa 223-0058 Japan
TEL [phone]
FAX [phone]
E-mail [email protected]
URL https://phasemation.com
is the original audio brand of Kyodo Denshi Engineering Co., Ltd.
