Dear customer,
thank you for buying aPHILCO brand product. So that your appliance serves you well, please read all the
instructions in this user’smanual.
1Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
CONTENTS
PART 1: Safety Instructions.........................................................................................................................................................3
PART 2: Proper operation............................................................................................................................................................5
PART 3: Instructions for use...................................................................................................................................................... 6
• Coffee machine model ........................................................................................................................................................ 6
• Symbol description ...............................................................................................................................................................8
PART 4: Instructions for first-time use .................................................................................................................................... 9
• Power conection ................................................................................................................................................................... 9
• Fill water tank........................................................................................................................................................................ 9
• Fill beans................................................................................................................................................................................. 9
• Grinding wheel .....................................................................................................................................................................10
• Power on................................................................................................................................................................................10
• Power off................................................................................................................................................................................. 11
PART 5: Making beverages....................................................................................................................................................... 12
• Making coffee ....................................................................................................................................................................... 13
• Single time setting of coffee parameters....................................................................................................................... 14
• Making coffee with coffee powder ..................................................................................................................................15
• Making double cups of coffee ..........................................................................................................................................16
PART 6: Program setting............................................................................................................................................................17
• Maintenance setting.............................................................................................................................................................17
• Beverage setting ...................................................................................................................................................................17
• Setting up beverage parameters and range ..................................................................................................................17
• Temperature setting ............................................................................................................................................................18
• Pre-brew setting................................................................................................................................................................... 18
• Automatic Power off ........................................................................................................................................................... 18
• Reset.......................................................................................................................................................................................18
• Information ............................................................................................................................................................................19
• Language...............................................................................................................................................................................19
• Exit...........................................................................................................................................................................................19
PART 7: Cleaning and maintenance......................................................................................................................................20
• Rinsing the coffee machine .............................................................................................................................................20
• Cleaning the brewing unit................................................................................................................................................20
• Descaling the coffee machine......................................................................................................................................... 22
• Cleaning the coffee grounds container and the drip tray......................................................................................... 24
• Cleaning the water tank....................................................................................................................................................25
2Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
• Cleaning the bean container............................................................................................................................................25
• Cleaning the coffee machine...........................................................................................................................................25
PART 8: Display information ...................................................................................................................................................26
PART 9: Failures handling........................................................................................................................................................ 27
PART 10: Transport and recycle..............................................................................................................................................28
PART 11: Technical Data............................................................................................................................................................29
3Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
PART 1: SAFETY INSTRUCTIONS
Please see specification label on the bottom of coffee machine or specification parameters indicated in instruction
manual (P29).
Precautions
• Please do not contact with heat parts of coffee machine to avoid scalding.
• To avoid operator’s injury caused by burn, electric shock or other unexpected reasons, please do not contact
the power cord, plug, and main body with water.
This appliance can be used by children aged from 8 years and above if they have
been given supervision or instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and user maintenance shall not
be made by children unless they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than 8 years. Children shall not play
with the appliance.
Appliances can be used by persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the
hazards involved.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• Unplug from outlet when stop using and before cleaning. Allow to cool before disassembling and cleaning
the coffee machine.
• Use of parts that are not explicitly recommended would result in a fire of coffee machine, electric shock, or
injury to persons.
• Please do not use the machine outdoor.
• Please do not hang up the power cord to the edges of the table, for it might be abased to an electric
leakage, and cause injury to operators.
• Please place the machine in a fixed and stable workbench, and keep far away from high temperature (e.g.
gas stoves, electric cookers, induction cookers, etc).
• Power off the machine, until the cleaning program finished and no indication on screen, and then unplug
the power.
• When using Espresso, Americano and Hot water, liquid in high temperature will flow from coffee spout and
hot water spout. Please do not touch it to avoid scalding.
Warnings
Never disassemble and repair the machine without authorization. If there is any errors, please sent it to
authorized service center for repairing.
4Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Prohibitions
Except cleaning and daily maintenance for coffee machine, if it failures, please send it to authorized after-sale
service center for repairing, or contact with customer service for after-sale services.
• Never immerse the machine into water, and do not put the machine near the water tap or water tank.
• Never disassemble coffee machine without authorization, for any maintenance, please return it to Service
Centre or contact after-sales service center.
• Never use an unmatched voltage to the electric specification of the machine; otherwise, the machine would
be burnt.
• Only purified water in room temperature is allowed to be filled into the water tank. Never put warm water,
hot water, milk or other liquid into it.
• Never carry or move the coffee machine while working. For moving or carrying the coffee machine, please
switch it off and unplug the power cord first.
• The machine may release heat. Therefore, when placing the machine in the workbench, at least 3cm must
be left against its surface, sides and wall side; at least 15cm must be left against its top. Prohibit placing the
machine into a narrow space. As for dimension of the machine, please look up the Technical Data of User
Manual (Page P29).
• Never use non-family usage detergent to wipe the machine, otherwise it may cause corrosion of coffee
machine, and result in a risk of electric shock.
• Never use wet rag to wipe coffee machine, may result in a risk of electric shock.
• Never use hard edged tool or rough rag to clean the stain on the machine, it will damage the machine. To
wipe the coffee machine with a rag provided is recommended.
• Never put instant coffee powder or cocoa powder and other mixture into the bean container or powder
container. It would cause coffee machine damaged.
• Never fill specially treated coffee bean (e.g. cocoa, sugar coated) into the bean container, it would cause
coffee machine damaged.
• Only roasted coffee bean is allowed to put into the bean container. Rice, soybean, chocolate bean, nut,
sugar, spice etc are prohibited. Otherwise it would cause coffee machine damaged.
• Never wash bean container or powder container with water, it will damage the machine.
• Never use coffee machine in the environment temperature below 0 °C.
Water inside the machine will freeze and cause the coffee machine damaged.
• Never expose the machine in rainy, snowy, frosty environment. It would cause coffee machine damaged.
If the coffee machine is damaged because of the situation that has been warned above, it is not
covered in the warranty!
5Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
PART 2: PROPER OPERATION
To guarantee the coffee taste, make sure that temperature of the water filled into the water tank is at 25°C or so.
Coffee machine can only be used for preparing coffee and hot water. Do not use it for any other intended use.
We will not in charge of any responsibility for the consequences of improper use. Please carefully read all the
contents of this manual, so that you can know the coffee machine sufficiently.
Please keep this manual properly for looking up at any time.
Safety Tips
Please notice the following tips to avoid personal injury from electric shock.
• Do not operate the coffee machine if the appliance or the power cord is damaged.
• When encountering breakdowns of the machine (if any burning smell or smoke), unplug the power cord
immediately and contact with service center.
• If the power cord coffee machine is damaged, please contact with service center.
• Place the coffee machine and the power cord far away from heat sources.
• Please don’t contact power cord with sharp tools.
• Do not repair the coffee machine without authorization or operate it in the way that was not mentioned in
this manual, to avoid personal injury.
• Place the coffee machine out of the reach of children.
• When Coffee machine is unused for long periods, unplug the power cord and put it away, so that not to trip
up people or damage to the power cord.
• Please don’t use unoriginal parts, otherwise, it may cause the machine damaged.
6Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
PART 3: INSTRUCTIONS FOR USE
Reading this manual will help you familiar with the coffee machine, and use it properly.
“Instruction for first-time use“ introduces the operation process of coffee machine step-by-step, for first-time use.
“Encounter problem” will provide information when encountering problems.
Coffee machine model
This Manual is only applicable to the coffee machine of the model PHEM 1050.
Instructions of coffee machine parts
1
2
3
4
5
6
7
8
9
10
11
12
1 Bean container cover
2 Water tank lid
3 Water tank
4 Coffee grounds
container
5 Drip tray
6 Drip tray grid
7 Powder container cover
8 Grinding wheel
9 Bean container
10 Hot water spout
11 Coffee spout
12 Power cord
7Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Coffee machine operation interface instructions
1 Power switch 5 Screen
2 Americano button 6 Setting
3 Espresso button 7 Coffee strength button
4 Coffee button 8 Double cup
1
2
3
4
5
6
7
8
8Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Symbol description
Non-compliance with the operation, may cause electric shock, and
threat to life.
Non-compliance with the operation may cause Coffee machine
damaged, or personal injury.
Non-compliance with the operation, may cause scalded or burn
injury.
This symbol, if prompted, please carefully read it.
This symbol, if prompted, represents recycle.
9Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
PART 4: INSTRUCTIONS FOR FIRST-TIME USE
This chapter will help you to know the basic operations and settings for your first time use
Power conection
• Place the coffee machine on a stable workbench that is not
close to water.
• Keep the coffee machine far away from high temperature heat
source.
• Be sure to use power supply that is in accord with regulation.
• Put the power cable at a suitable place to avoid people tripping
over.
Fill water tank
• Only purified water at room temperature is allowed to fill in
the water tank, never fill any other liquid (e.g. warm water, hot
water, milk). It will damage coffee machine. In order to ensure
the taste of coffee, it is recommended to use water at 25°C or
so. Low temperature water will not make a good taste.
• To ensure healthy and the taste of coffee, please change the
water in the tank every day.
• The amount of water in the water tank cannot exceed the
height of the MAX mark.

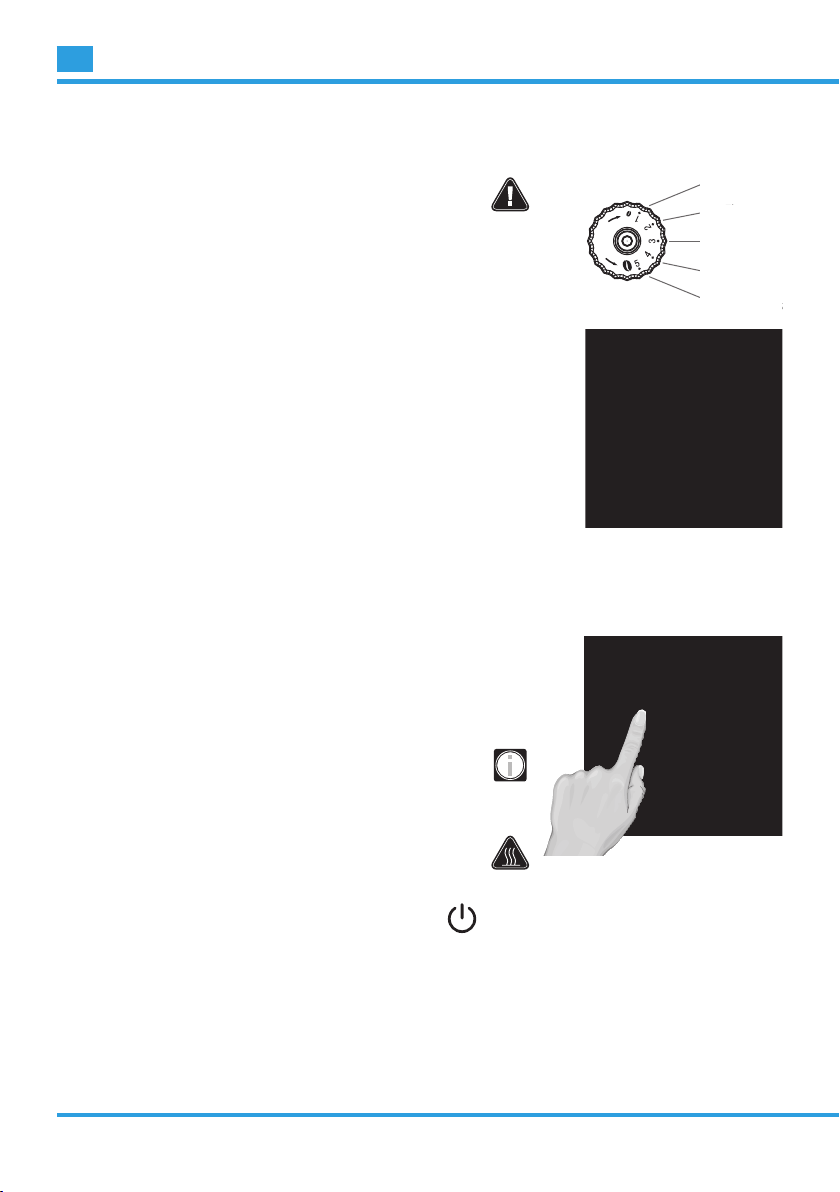

Fill beans
• Never put the coffee beans that have been specially treated
(e.g. sugar, cocoa) into the bean container.
• Only roasted coffee beans can be put into the bean container,
never put others like rice, soybeans, chocolate beans, nuts,
sugar, and spices.
• Never put hard objects into the bean container, otherwise it will
damage the grinder.
• The bean container cover playing a role as seal. It keeps the
aroma of coffee bean maximally. Please do not lose the cover.
• Don’t fill the liquid in the bean container.
10 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Grinding wheel
• Please adjust the fineness of coffee bean powder according
to the coffee beans.
Finest
Fine
Medium
Rough
Roughe
s
Finest
Fine
Medium
Rough
Roughest
• Please adjust the grinding wheel when the grinder is
running, or the grinder will be damaged.
• If your coffee beans are in dark color, it is recommended to
set to rough mode.
• If your coffee beans are in light color, it is recommended to
set to the fine mode.
• During making coffee, if the coffee outflows very slow or
completely does not outflow, please set it to the rough
mode.
• If the coffee outflows very quickly and the color of crema on
the top is very light, please set it to the fine mode.
• The adjustment of grinding wheel will be effective only after
making two or more cups of coffee.
Power on
• As the machine has been tested at factory, there may be
a little coffee powder left over. We promise the machine is
brand new.
• The coffee machine will start self-testing and cleaning at the
first-time use, this helps the coffee machine to achieve the
best working condition, and this process cannot be skiped.
• Every time powering on the coffee machine, it will
automatically complete heating and cleaning for one time,
and the process cannot be stopped. The coffee machine can
only be used after finished the above cycle process.
• During the cleaning process, some hot water may flow out
of the coffee spout into the drip tray. Please avoid contacting
the spilling hot water.
Please ensure the power is connected before pressing
power button.
11 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Power off
• Every time when powering off the coffee machine, it will
automatically complete cleaning process for one time, and
the process cannot be stopped. This operation is to clean up
the coffee pipelines and remove the coffee grounds.
Welcome
• During the cleaning process, some hot water will flow out of
the coffee spout into the drip tray. Avoid touching spilt hot
water, so as not to be burned.
• When you press power button, the machine will be
power off after auto cleaning.
12 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
PART 5: MAKING BEVERAGES
This chapter instructs you making various kinds of beverages
by this coffee machine. Please read the following instructions
carefully to help you make high-quality beverages.
The temperature of the hot water is high, please do not touch it
to avoid being scalded..
Before we make all kinds of coffee, please ensure “READY” is
indicated on the display.
• Never use dark roasted coffee beans.
• The coffee beans should be put at dry place and avoid
sunlight.
• Only purified water at normal temperature can be used. To
make the coffee taste better, it is recommended to use water
around 25°C.
• To ensure the quality of coffee, please change the water in
water tank every day.
• Please warm the coffee cup before making coffee for better
taste.
• Please adjust the height of the coffee spout according to the
height of the cup in order to avoid coffee splashing.
• Adjustable height of coffee spout: 80-115mm.
13 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Making coffee
You can make any kinds of coffee by touch icons, when the screen shows
“READY”.
Take espresso for example to explain how to make coffee.

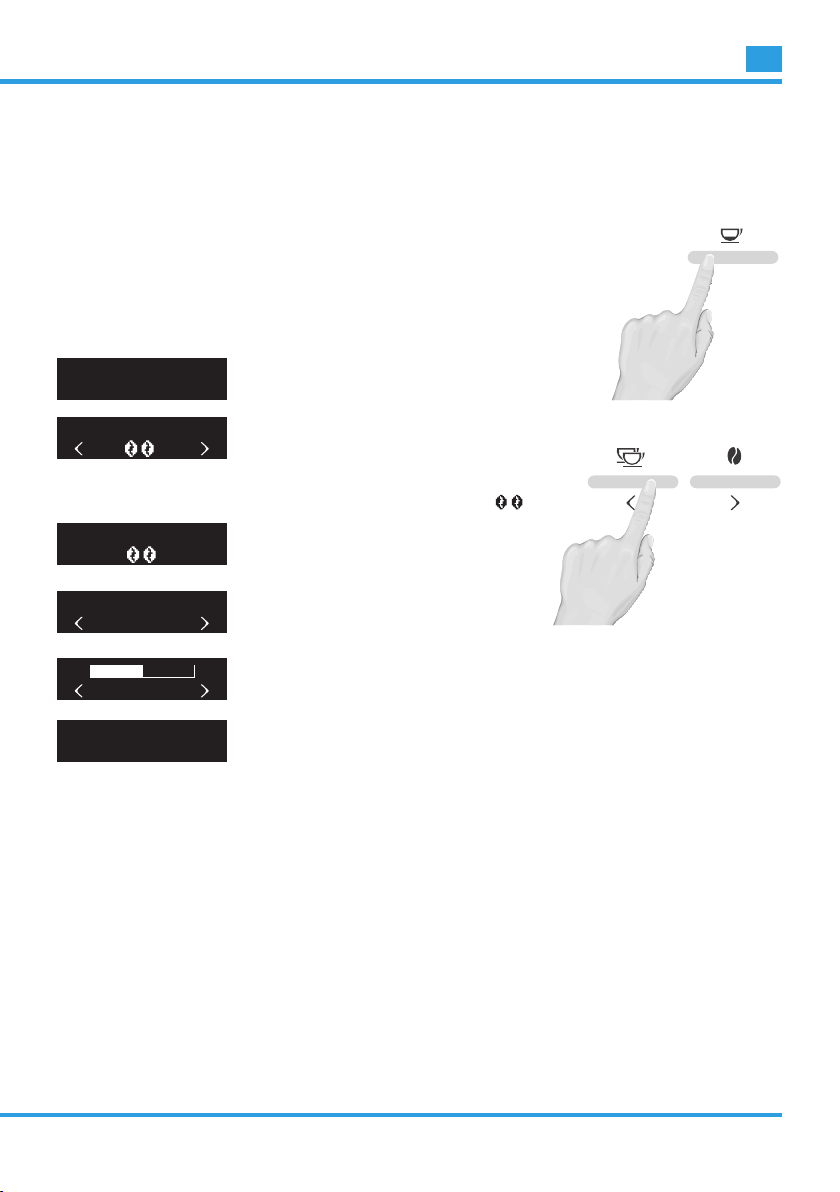

ESPRESSO
The volume of espresso is suggested between 30 to 50ml.
Because of the small volume of espresso, please warm the coffee cup
before making coffee. When making coffee, press espresso button twice
to cancel.
READY
When the screen shows “READY”, press
espresso button for espresso function.
STRENGTH When grinding coffee beans, you can
adjust the strength by pressing the left
and right button. And you can cancel it
by press twice espresso button.
The default strength for espresso:
ESPRESSO After grinding, the strength can not
be adjusted by press the left and right
button.
VOLUME 30ML
ESPRESSO
During coffee process, you can adjust
the volume of coffee by press the left
and right button.
VOLUME 30ML
During coffee process, you can cancel it
by press espresso button.
ENJOY!
When the espresso finished, please
enjoy it.
14 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Single time setting of coffee parameters
5 items as bellow can be set at single time.
• Set the amount of coffee beans when the screen shows “READY”
• Set the amout of coffee beans during grinding process
• Set the the volume of coffee when making coffee
• Set the the hot water volume when making Americano
• Set the the hot water volume when making hot water
Detail instructions

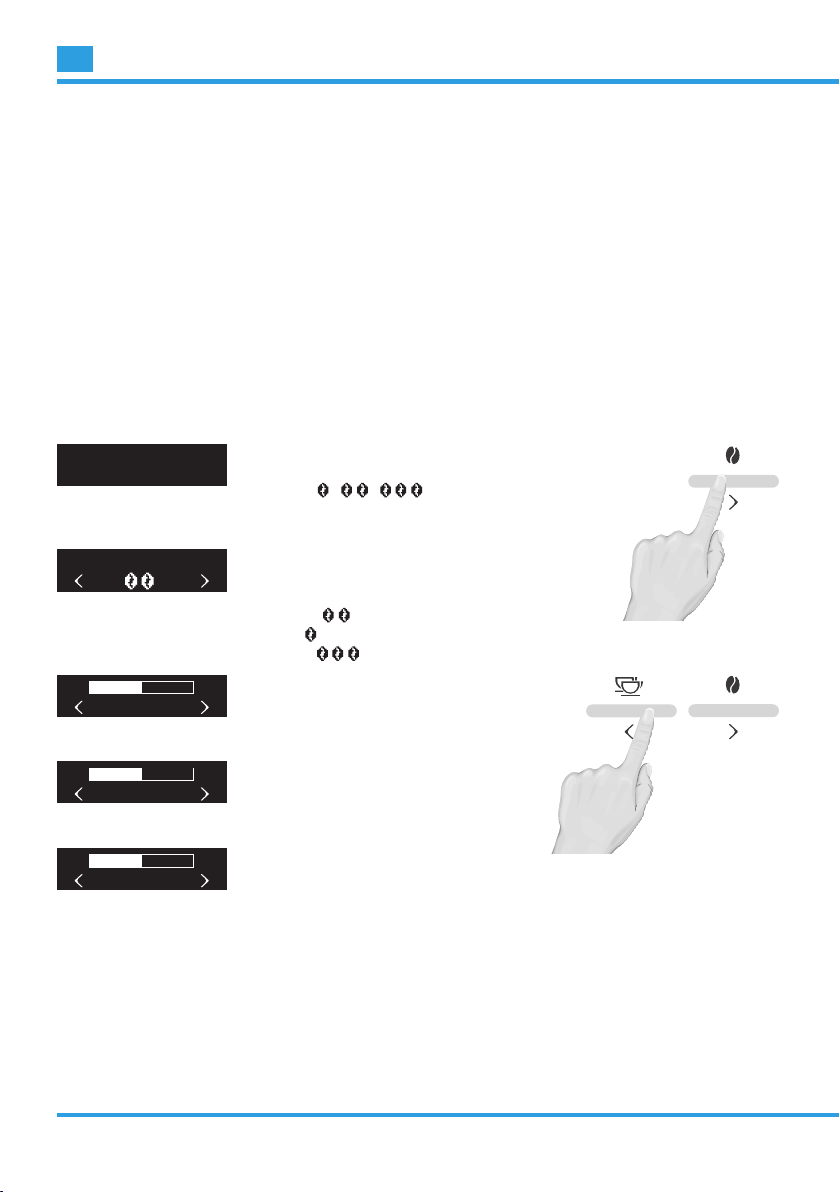

You can set the fineness of coffee and the volume of beverage before or
during making the beverage at single time, the setting will not be saved.
READY
When the screen shows “READY”, press
the coffee strength button to set three
levels: the setting is
only for making the next coffee, and it
will not be saved.
STRENGTH When grinding coffee beans, you can
adjust the strength by pressing the left
and right button. The default setting is
normal , press left button to choose
mild , and press right button to choose
strong
COFFEE 40ML
When making “Coffee”, press left
and right button to adjust the amout
of coffee beans, press right button to
increase, left button to reduce.
WATER 80ML
When making “Americano”, press left
and right button to adjust the amounts
of hot water. Press right button to
increase, left button to reduce.
WATER 80ML
When making “Hot water”, press left
and right button to adjust the amounts
of hot water, press left button to reduce,
right button to increase.
15 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Making coffee with coffee powder
You can choose this function if you want to make coffee with
coffee powder.
• Prohibit filling other mixtures such as instant coffee powder
or cocoa powder in the powder container. Otherwise it will
damage the machine.
• Do not fill the coffee powder into the coffee bean container,
otherwise, it will damage the machine.
• Do not rinse the powder container with water, or it will result
in operator’s injury by electric shock.
• Please use proper grounded coffee powder for espresso.
• Only 7-14g coffee powder can be added. Machine will be
damaged with more powder.
• The process of using coffee powder to make coffee only
skips the process of grinding coffee beans, other operations
are the same as making espresso, Americano, and coffee.
This chapter illustrates with espresso.
READY
When the screen shows ”READY”,
press setting button to enter into
setting.
CLEAN
press left and right button to choose
the fuction you need.
USE POWDER When the screen shows “USE
POWDER”, press setting button to
enter into coffee powder making coffee
fuction.
FILL POWDER
SELECT BEVERAGE
Add coffee powder, choose your
beverage. The espresso, americano,
and coffee can be chosen.
16 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Making double cups of coffee
You can make double cups of coffee with this machine.
• Double cups of coffee includes double espresso and double coffee.
• The process of making double cups of coffee is the same as process
of making espresso and normal coffee, the only difference is need to
choose beverage for making double cups of coffee.
READY
When the screen shows ”READY”,
press double cup button to enter into
process.
SELECT BEVERAGE Choose coffee beverage, there is
espresso and coffee for choosing.
STRENGTH The default setting is (strong)
17 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
PART 6: PROGRAM SETTING
• This chapter will give instructions on program setting.
SETTING
• Ensure the coffee machine shows “READY”, press the
setting button, than press left and right button to select
“MENU”, than you can set the menu.
Maintenance setting
Please read the detailed instructions about rinsing the brewing
unit and decalcifying on P20 and P22.
Beverage setting
• This chapter will instruct you how to set beverages. The setting
parameters include coffee taste strength, amount of coffee and
amount of hot water.
• The parameters accomplished by beverage setting will be the default
values for each beverage.
1. Americano setting
2. Epresso setting
3. Coffee setting
4. Hot water setting
Setting up beverage parameters and range
The parameters as strength and volume can be set for the beverages
bellow.
• The strength, amount of coffee and water of Americano can be set
• The strength and volume of Espresso can be set
• The strength and volume of Coffee can be set
• The volume of hot water can be set
Please read the following table for the detail setting parameters and
adjustment range
Drinks Strength Volume
ameriano
Mild:
Normal:
Strong:
Coffee volume: 25 -120ML
Hot water: 15 - 450ML
18 Revision 10/2017Copyright © 2017, Fast ČR, a. s.
EN
Drinks Strength Volume
espresso Mild:
Normal:
Strong:
Coffee volume: 25 -120ML
coffee Coffee volume: 25 -240ML
hot water Hot water volume: 15 - 450ML
Temperature setting
You can set the temperature of coffee baverage.
Enter program setting menu, choose “TEMPERATURE”, press left or right
button to choose your coffee temperature. Press setting button to confirm,
setting is completed. There is high temperature and normal temperature
for choosing.
Pre-brew setting
Pre-brew can be set when making coffee.
Enter into setting, choose “PRE-BREW”, press left or right button
to choose if need pre-brew, press setting button to confirm, setting is
completed.
Automatic Power off
• The machine’s default switch off time is 2 hours, which
means the machine will automatically switch off after power
on 2 hour.
• The setting range of automatic switch-off is from 5minutes
to 4 hours.
• After entering the program setting, choose “AUTO-OFF”,
press left and right button to adjust auto off time, then press
the setting button, setting is completed.
Reset
• This function will reset all the menu setting and default
beverage parameters to the factory settings (except the
language options). In addition, the information options will
not be reset.
• After entering the program setting, choose “RESET” option
and press the left and right button choose ”RESET”, then
press setting button to confirm, the setting is completed.
Table of contents
Languages:
Other Philco Coffee Maker manuals
