Philco PEW 6509B User manual

RANGE HOOD
USER'S MANUAL
PEW 6509B
PEW 9509B
PEW 6711
PEW 9711

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all
the instructions in this user's manual.

EN - 1
04/2012Copyright © 2012, Fast ČR, a. s.
CONTENTS
PART 1: IMPORTANT SAFETY INSTRUCTIONS................................................................................................ 2
PART 2: DESCRIPTION OF THE APPLIANCE .................................................................................................... 4
PART 3: INSTALLATION.................................................................................................................................... 5
Unpacking..................................................................................................................................................................................................5
Dimensions of the appliance ..............................................................................................................................................................5
Placement ..................................................................................................................................................................................................7
Installation .................................................................................................................................................................................................7
Carbon lter............................................................................................................................................................................................ 12
Ventilation............................................................................................................................................................................................... 13
PART 4: OPERATION ...................................................................................................................................... 14
Models with digital controls – 3 speeds.......................................................................................................................................14
Models with digital controls – 5 speeds.......................................................................................................................................14
Models with an LCD display – 5 speeds ....................................................................................................................................... 15
Operating tips........................................................................................................................................................................................ 16
PART 5: MAINTENANCE AND CLEANING...................................................................................................... 17
Changing a light bulb.........................................................................................................................................................................17
Cleaning................................................................................................................................................................................................... 18
PART 6: BEFORE YOU CALL THE SERVICE CENTRE....................................................................................... 20
PART 7: TECHNICAL SPECIFICATIONS........................................................................................................... 21

EN - 2
04/2012Copyright © 2012, Fast ČR, a. s.
PART 1: IMPORTANT SAFETY INSTRUCTIONS
Recommendation:
Carefully read these instructions before installing and operating this range hood.
Write down the serial number found on the rating label of the range hood in the space below. It is essential that
you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance,
give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance,
so that the new owner can also learn about the operation of the appliance and the relevant warnings.
SERIAL NUMBER:
Important safety instructions
 This appliance is designed for household use only.
 Before connecting the power cord plug, make sure the voltage stated on the rating label of the appliance
corresponds to the voltage in your wall socket. Connect the power cord plug to a power socket with
a voltage of 220 – 240 V ~ 50 Hz.
 Only use a properly grounded power socket.The appliance may only be connected to a properly grounded
power socket.
 All electrical connections must be performed by a qualied electrician.
 Installation performed by an unqualied person may cause incorrect operation, damage to the appliance,
create a re hazard or cause injury to persons.
 Neither the manufacturer nor the vendor take responsibility for damages caused by incorrect or
unprofessional installation, connection or operation. Tampering with the appliance by an unqualied
person will void the customer's right to a warranty repair.
 Do not expose the power cord to excessive pressure or loads, do not place heavy objects on it, it must
not be tangled and it must not be stepped on. Do not locate the power cord in or on heat sources such
as stoves, heating or other generators of heat. Otherwise this may damage the power cord or create a re
hazard.
 Only connect the power cord plug to a power socket after the entire installation is completed.
 The power plug serves as a disconnection device and for this reason the power socket must remain easily
accessible for the event of a dangerous situation, unless it is connected into a terminal box.
 Do not touch the lights if the appliance has been running for some time. Lights heat up during operation
and may cause burns.
 This appliance is designed for fume extraction during standard domestic use. Do not use the appliance
for purposes other than those for which it was designed. Otherwise you expose yourself to the risk of
a dangerous situation and voiding the warranty.
 Follow the instructions for installation and ventilation (with the exception of when a re stove is used).
 Do not use the ambé cooking method under the range hood.
 Regularly replace the lters in the range hood. Otherwise this presents a re hazard.
 Only use lters suitable for use with the range hood. The manufacturer or distributor will recommend the
suitable lter type.
 Do not use the appliance without the aluminium lter inserted. Do not take out the lters while the
appliance is on.
 Regularly clean the appliance to prevent a dangerous situation from occurring.
 Before cleaning, replacing lters, moving or any other maintenance, turn o the appliance and pull out the
power plug from the power socket, or turn o the respective circuit breaker.
 If you are using another gas or natural gas appliance in the room at the same time, the fumes from this
appliance must be spatially isolated.

EN - 3
04/2012Copyright © 2012, Fast ČR, a. s.
 If a chimney is connected to the exhaust of the range hood, use pipes with a diameter of 150 or 120 mm.
The pipe connection should be as short as possible.
 Keep packaging materials out of children's reach. They could suer injury or suocation.
 Children must be supervised to ensure that they do not play with the appliance. If the power cord is
damaged stop using the appliance. Have the power cord replaced at an authorised service centre or by
another qualied person. Under no circumstances should you replace the power cord yourself.
To ensure safety, use a fuse with a maximum rating of 6 A.
WARNING!
This appliance must not be used by persons (including children) with physical or mental
impairments or by inexperienced persons, unless properly trained or schooled in the safe use of
the appliance, or unless they have been properly supervised by a qualied person who will be
responsible for their safety.
Attention when transporting or carrying
The packaging materials are from recyclable materials, so dispose of them in an environmentally conscientious
manner according to regulations in force.
During transport adhere to the symbols of the cardboard box.
When carrying the appliance, hold it by the respective handles.
NOTE:
We recommend that you keep the original packaging at least for the duration of the warranty period for
the event of repair or refund and transport to the authorised service centre. Adhere to the symbols on
the cardboard box.
If you do not have the original cardboard box, adhere to the following instructions:
a) Do not place any items on the appliance that could damage the appliance during transport.
b) Protect the appliance against impacts, falls, etc.
c) Wrap the appliance, e.g. in bubble wrap which will protect the appliance from damage.
NOTE:
The carbon lter is not included.
NOTE:
If the building is equipped with a heat recovery system system, it is necessary to setup the appliance for
internal air circulation (without an exhaust). In that case, it is necessary to purchase the carbon lter.

EN - 4
04/2012Copyright © 2012, Fast ČR, a. s.

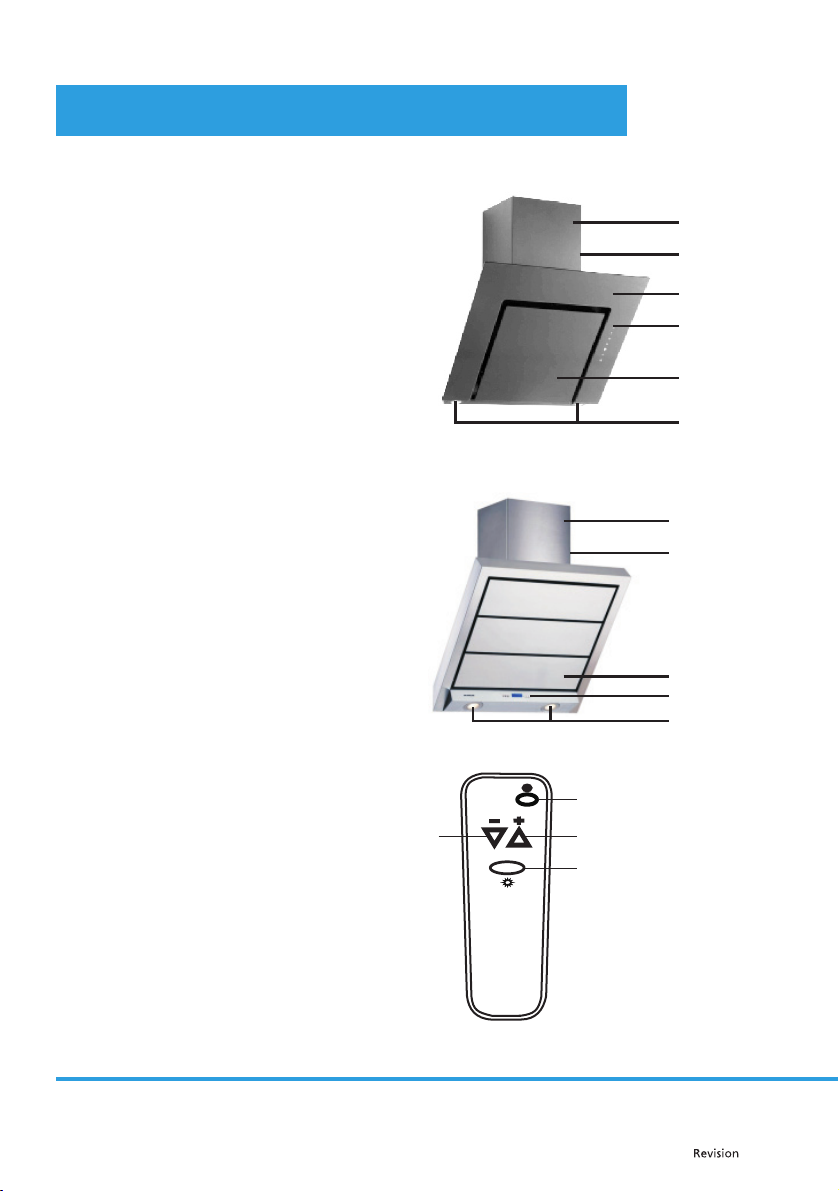

PART 2: DESCRIPTION OF THE APPLIANCE
PEW 6509BGL / PEW 9509BGL
1. Inner chimney
2. Outer chimney
3. Tempered glass
4. Control panel
5. Filter
6. Lighting
1.
2.
3.
4.
5.
6.
PEW 6711 / PEW 9711
1. Inner chimney
2. Outer chimney
3. Filter
4. Control panel
5. Lighting
1.
2.
3.
4.
5.
Remote control (Optional accessory)
a) Turn the appliance on / o
b) Increase the exhaust power
c) Decrease the exhaust power
d) Turn the lights on / o
a)
b)
d)
c)

EN - 5
04/2012Copyright © 2012, Fast ČR, a. s.
PART 3: INSTALLATION
Unpacking
 After unpacking remove all packaging and advertising labels from the appliance.
 Check that the appliance has not been damaged and that the package includes all the items described in
this user's manual.
 If the appliance was damaged during transport, contact authorised service centre.
 Do not use a damaged appliance under any circumstances.
IMPORTANT:
Ensure that children do not play with the packaging material.
Dimensions of the appliance
PEW 6509BGL PEW 9509BGL
PEW 6711 / PEW 9711

EN - 6
04/2012Copyright © 2012, Fast ČR, a. s.
IMPORTANT:
Before installing or using the appliance, please rst read all instructions and check that the voltage and
frequency values on the rating label correspond to the voltage and frequency in your electricity grid.
We recommend that the appliance be connected by a service technician or another qualied person in
compliance with local codes and regulations.
Before starting the installation
 Check that the purchased appliance has the correct dimensions corresponding to the chosen installation
location. Furthermore ensure that there is an electrical power socket available that will remain accessible
even after the range hood is installed.
 Before installing the range hood, check that all necessary masonry work is complete.
 Have all electrical connections performed by a qualied person.
 We recommend that you remove the aluminium lters before installing the range hood.
 Check that there are no packaging materials or other materials, e.g. user's manual, warranty card or bags
with screws, inside the appliance. These need to be taken out and kept for possible use in the future.
 We recommend that you disconnect and move to the side freely standing or built in stoves so that you
have easier access to the rear wall or ceiling. If this is not possible place protective material on to the work
area, cooktop or stove. This will prevent damaging these surfaces.
 Select an even surface for the necessary assembly of the range hood. Cover the surface with a protective
material and place all parts of the range hood and fastening elements on to it.
 It is necessary that a qualied technician inspects the suitability of the supplied fastening material and
other components for the specic wall / ceiling type. The wall / ceiling must be suciently strong to hold
the weight of the range hood.
 Do not attach this range hood to a wall or cabinet furniture by tiling, plastering and do not glue it on using
silicone glue. The appliance is designed to only be installed on a wall / ceiling.
 We recommend that always two people perform the installation of the appliance.
If your range hood is designed to be mounted to the ceiling, adhere to the following instructions.
1) The range hood must only be suspended on ceiling beams or on load bearing ceiling beam connections.
2) Do not suspend the range hood on false ceilings.
3) The ceiling must have a load bearing capacity of at least 40 kg.
4) The ceiling thickness must be at least 30 mm.
IMPORTANT:
THERANGE HOOD MAYONLY BE CONNECTEDTOTHEELECTRICAL GRID AFTERTHEENTIREINSTALLATION
IS COMPLETE.
Supplied accessories (depending on the model)
A non-return exhaust ap must be installed into the air outlet of the range hood (unless one is already factory
installed).

EN - 7
04/2012Copyright © 2012, Fast ČR, a. s.
Placement
Install the range hood at a height of at least 65 cm above an electric cooktop or at a height of 75 cm above
a gas cooktop.
Installation
1. Installation of hanging brackets
To hang the range hood it is necessary to rst install 2 L-shaped hanging brackets, which are supplied
together with the screws, on to the range hood according to the illustration below. Then secure the
brackets using appropriate M5 x 35 screws into an M5 thread.
M5 x 35 screws Hanging bracket

EN - 8
04/2012Copyright © 2012, Fast ČR, a. s.
2. Installation of the non-return exhaust ap
Install the non-return exhaust ap on to the top part of the range hood using 3.5 x 9.5 screws according to
the illustration below.
3.5 x 9.5 screws
3. Drilling mounting holes
Place the installation template against the wall and drill holes in points A, B, C and D using a drill bit with
a diameter of 10 mm. To install the chimney, drill holes using a drill bit with a diameter of 6 mm adhering
to the dimensions for the minimum and maximum height.
WARNING!
When drilling the mounting holes used for hanging the range hood, ensure the holes have the
correct diameter. If the holes are drilled incorrectly, then the correct assembly of the range hood
will not be possible.
4. Inserting dowels
Into the drilled holes A, B, C and D with a diameter of 10 mm, insert dowels with a diameter of 10 mm. Into
the two holes with a diameter of 6 mm, insert dowels with a diameter of 6 mm – see illustration below.
10mm plastic dowel 6mm plastic dowel

EN - 9
04/2012Copyright © 2012, Fast ČR, a. s.
Holes for connecting the exhaust, diameter 6 mm
Holes for hanging the range hood, diameter 10 mm
5. Attaching the chimney plate
Drill holes into the wall using a drill bit with a diameter of 6 mm. Attach the chimney plate by screwing
3.9 x 22 Ysb screws into the plastic dowels with a diameter of 6 mm.
Into the drilled holes A, B with a diameter of 10 mm, with the dowels inserted, screw in two 5.5 x 60 Ysb
screws. The distance between the wall and the head of the screw must be 5 mm.
5.5 x 60 Ysb screw 3.9 x 22 Ysb screw

EN - 10
04/2012Copyright © 2012, Fast ČR, a. s.

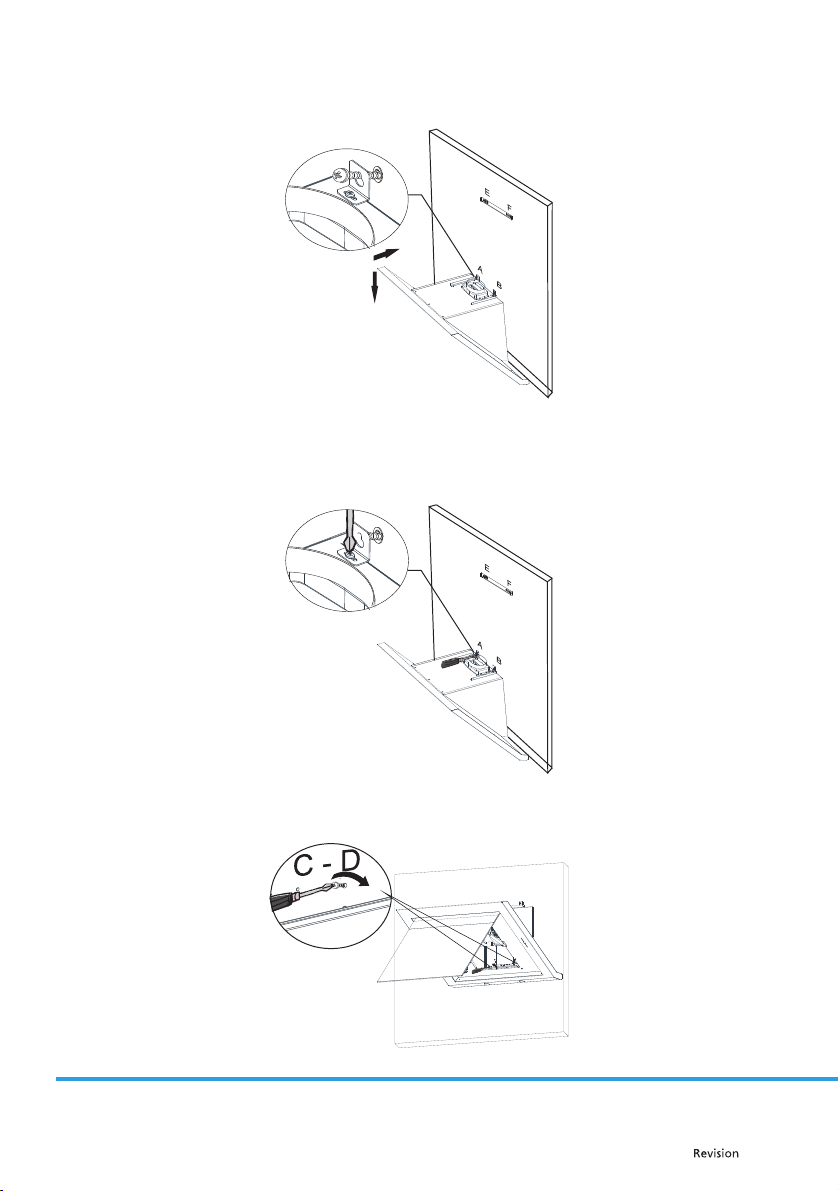

6. Hanging the range hood
Hang the range hood using the hanging brackets on to the screws in holes A and B – see illustration below.
7. Tightening the screws
After hanging the range hood, tighten the screws to secure the range hood in place. You can use the M5
x 35 Ysb screws to fully stabilise the range hood.
Note: You can use M5 screws to achieve full stability.
8. Tightening the hanging screws
In points C, D (see illustration below) tighten the 5.5 x 60 Ysb hanging screws to ensure that it is hung safely.

EN - 11
04/2012Copyright © 2012, Fast ČR, a. s.
9. Installation of the aluminium duct tube
Attach the exible aluminium duct tube on to the air exhaust in the top part of the range hood and insert
the other end into the exhaust opening in the wall. Check that the connection is secure even at full power.
10. Installation of the outer chimney
Insert the inner chimney into the outer chimney. Seat the chimneys on to the base with the motor and
slide downwards. Check that the connection between the body and the base with the motor is secure.
Outer chimney

EN - 12
04/2012Copyright © 2012, Fast ČR, a. s.

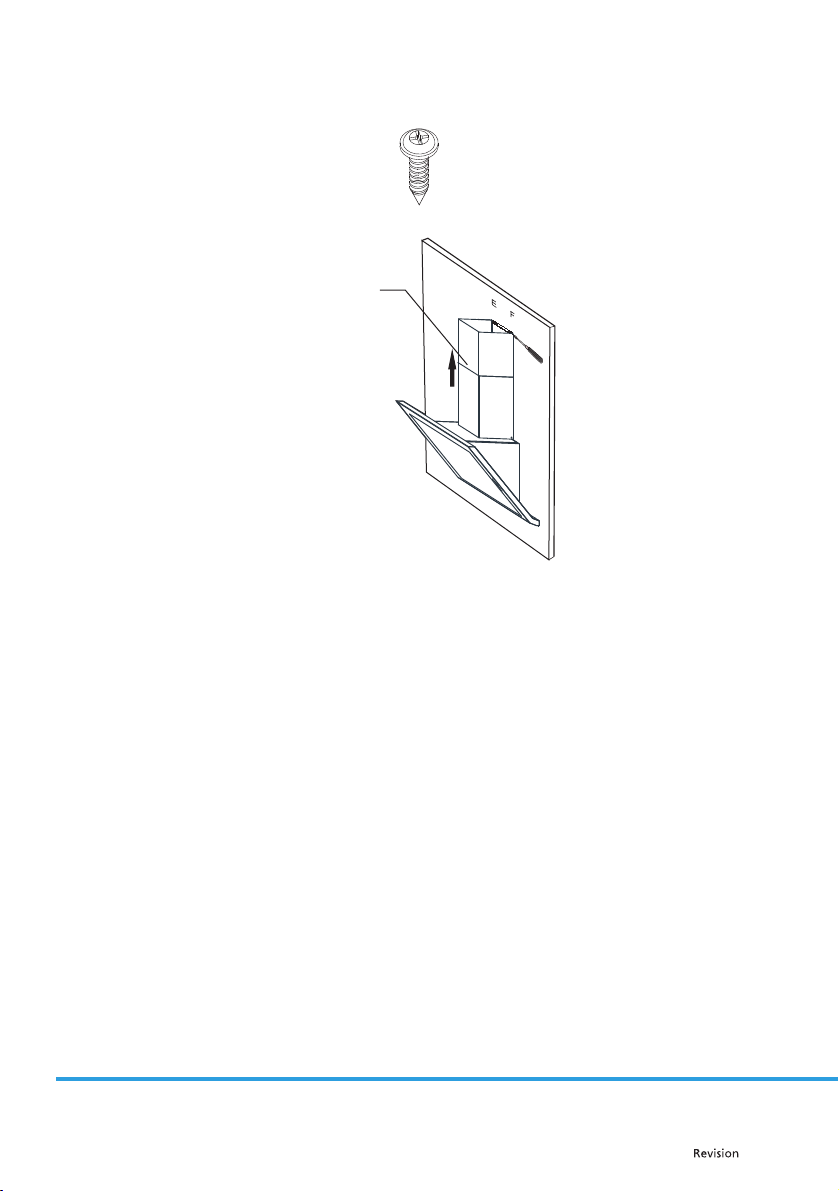

11. Installation of the inner chimney
Pull the inner chimney out of the outer chimney and secure to the plate using 9.5 x 3.5 screws.
3.5 x 9.5 screw
Inner chimney
After completing the installation check that the range hood is correctly installed and works properly.
Carbon lter
If you are using the range hood without an air exhaust, it is necessary to use a carbon lter. The carbon lter is
not included. Contact your vendor or an authorised service centre to purchase this lter.
 Before installing or replacing the carbon lter, check that the appliance is turned o and disconnected
from the power socket or that the respective circuit breaker is turned o.
 It is necessary to replace the carbon lter regularly every 3 – 5 months depending on how much the
appliance is used.
 Never wash the carbon lter in water unless the manufacturer states otherwise.
 Aluminium lters must always be installed even when the carbon lter is not installed. Do not use the
appliance without the aluminium lter installed.

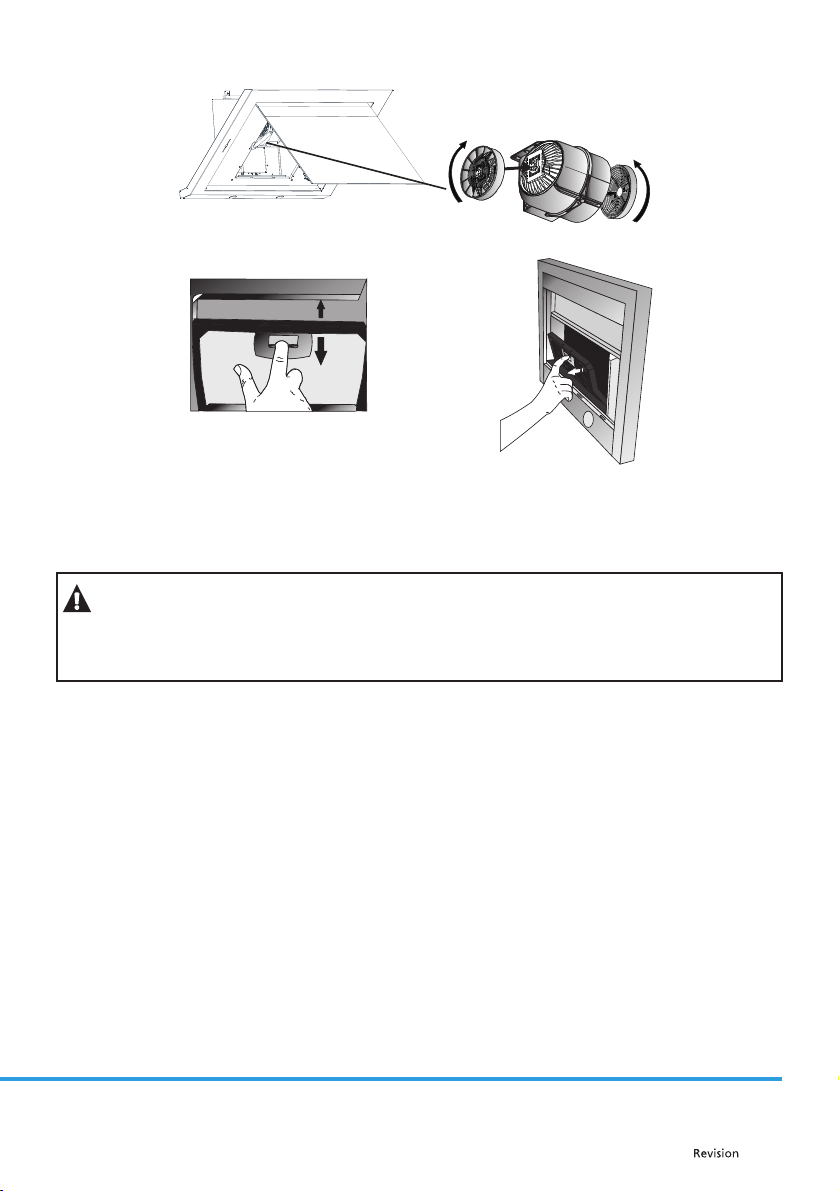

Replacing the carbon lter
1. For the correct operation of the appliance it is necessary to install a carbon lter. The number and type
depends on the model.
2. Place the carbon lter on the motor outlets and turn it in the clockwise direction.
3. To remove the carbon lter turn it in the anticlockwise direction.

EN - 13
04/2012Copyright © 2012, Fast ČR, a. s.
or
Ventilation
To ensure proper ventilation, leave windows closed while the appliance is turned on.
WARNING!
Pay increased attention if you are using the appliance together with another appliance that uses
air or fuel for its operation (e.g. heating fan, fan, etc.) or that uses gas, coal or wood, as its operation
may negatively aect the performance of the range hood because it expels air out of the room.
This warning does not apply if you installed the appliance without an exhaust out of the room.

EN - 14
04/2012Copyright © 2012, Fast ČR, a. s.
PART 4: OPERATION
Remove the protective foil from the control panel.
Models with digital controls – 3 speeds
Exhaust power selection
This range hood is equipped with 3 levels of exhaust power. Select the power level based on the use of the
stove and the amount steam that the pots emit.
Press the respective button on the control panel.
I– lowest exhaust power
II – medium exhaust power
III – highest exhaust power
Automatic timer (TIMER)
All models with a remote control are equipped with an automatic timer.
Press and hold the respective button for the exhaust power level for at least 2 seconds and the automatic timer
function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol
will appear on the display and the motor will turn o automatically after 15 minutes.
NOTE:
Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to
leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.
Lighting
The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press
the button again to turn the lights o.
Models with digital controls – 5 speeds
Exhaust power selection
This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the
stove and the amount steam that the pots emit.
To turn on the motor press the button and to set the exhaust power level press the + or – button. Press the
+ button to increase the exhaust power and the – button to reduce the exhaust power.

EN - 15
04/2012Copyright © 2012, Fast ČR, a. s.
Automatic timer (TIMER)
All models with a remote control are equipped with an automatic timer.
Press and hold the button at the set exhaust power level for at least 2 seconds and the automatic timer
function will be turned on for a period of 15 minutes. When the function is turned on, the respective symbol
will appear on the display and the motor will turn o automatically after 15 minutes.
NOTE:
Use the range hood together with the stove. This will ensure the correct air exhaust. We recommend to
leave the range hood running a few minutes longer than the stove to ensure that all odours are extracted.
Lighting
The range hood is equipped with lighting. Press the button with the light symbol to turn on the lights. Press
the button again to turn the lights o.
Models with an LCD display – 5 speeds
This range hood is equipped with 5 levels of exhaust power. Select the power level based on the use of the
stove and the amount steam that the pots emit.
On / O button – Press the button once to turn on the range hood. The initial exhaust power level is 2. Press
again to turn the range hood o.
Setting the exhaust power level – To set the exhaust power level press the + or – button. Press the + button
to increase the exhaust power and the – button to reduce the exhaust power. If you press and hold down the
+/- button for at least 2 seconds, the exhaust power levels will increase / decrease in half-second intervals.
If you set the exhaust power level to maximum (5), the appliance will work at the maximum exhaust power
level for 15 minutes and then continue at the exhaust power level of 2. The maximum exhaust power level is
called "turbo speed".
Timer
TIMER – button: Set the operating time of the appliance with a countdown feature during operation. Each
time it is pressed the power level will decrease by 1 level. If you press and hold down this button for at least
2 seconds, the power level will decline faster.
TIMER – button: Set the operating time of the appliance with a count-up feature during operation. Each
time it is pressed the power level will increase by 1 level. If you press and hold down this button for at least
2 seconds, the power level will increase faster.
Timer functions:
1. Turn o the range hood – If you set the timer while the range hood is running, the range hood will stop
running, lights will turn o and a warning sound will be emitted for 5 seconds after the timer duration
comes to an end.
2. Alarm – If you set the timer while the range hood is not running, then an alarm will be set. As soon as the
set time of the timer comes to an end, a sound will be emitted for 15 seconds. The range hood will not stop
and the lights will stay on, if the alarm timer turns o.
If a timer is not set, the clock is displayed.
Clock
The clock on the display shows the current time. If the clock is set, the colon between the hours and minutes
will ash once a second.

EN - 16
04/2012Copyright © 2012, Fast ČR, a. s.
Setting the time
1. Press the and buttons at the same time.
2. The hours and minutes will start to ash for 5 seconds.
3. In this time press the or button to set the hours or minutes.
If a power outage occurs, it will be necessary to set the time again.
Additional functions
Additional functions may be set only when the motor and the lights are o.
1. Setting the backlight brightness – Press and hold the button – after about 5 seconds the blue colour
intensity in percent will appear (e.g. b00). Press the button – once and the colour of the display colour will
change to red (e.g. r100), press the button – once more and the display colour to green (e.g. g10).
After selecting the colour, use the / buttons to set the brightness of the respective display colour
(e.g. 0 – 100). To conrm the setting press and hold button – for approx. 5 seconds. A sound will be made.
If you do not wish to save the setting, press the button or the button for the light.
2. Backlight – The display backlight is always on. Press and hold the + button for approx. 5 seconds. A sound
will be made. Now you can turn o the backlight. If you wish to again turn on the display backlight, press
and hold down the + button for approx. 5 seconds.
Blue (%) Red (%) Green (%) Colour
100 100 100 Turquoise
0 100 100 Light green
0 0 100 Green
100 0 0 Blue
50 100 0 Violet
0 100 0 Red
0 0 0 Colourless display
0 100 10 Orange
Operating tips
1. Regularly clean the aluminium lters and regularly replace the carbon lters.
2. Use the medium exhaust power level. Only use the highest power level when necessary.
3. To ensure proper ventilation, leave windows closed while the appliance is turned on.

EN - 17
04/2012Copyright © 2012, Fast ČR, a. s.
PART 5: MAINTENANCE AND CLEANING
WARNING!
Before cleaning, regular or other maintenance, installation or removal, check that the appliance
is turned o and disconnected from the power socket or that the respective circuit breaker
is turned o.
Changing a light bulb
 Turn o the appliance.
 Take out the aluminium lter.
 If the light bulb broke during operation wait until it cools down.
Models with a 50W and 35W halogen light bulb
 To remove the halogen light bulb, press the light bulb holder downwards and gently turn it anticlockwise.
Remove the light bulb.
 Install a light bulb with the same parameters in reverse sequence.
Models with a 20 W light bulb
 To remove the halogen light bulb (20 W), rst remove the glass cover using a thin screwdriver. Be careful
not to scratch the appliance. Remove a faulty light bulb by pulling downwards and insert a new working
light bulb.
 Use a light bulb with the same parameters.
NOTE:
Do not hold the light bulb with your bare hands. Dirt or sweat from the hand may shorten their lifetime.

EN - 18
04/2012Copyright © 2012, Fast ČR, a. s.
Models with a 1W LED light bulb
Depending on the model, select a procedure.
a) Light bulb without a cover
1. Open the separating cover/glass.
2. Take out the aluminium lters.
3. Disconnect the wires from the LED light bulb.
4. Push on the light bulb to remove it.
5. Remove the tape between the light bulb and the range hood.
6. Remove the protective tape from the new light bulb and proceed in reverse order to install it.
b) Light bulb with a cover
1. Open the separating cover/glass
2. Take out the aluminium lters.
3. Screw out the light bulb cover screws.
4. Then screw out the plastic screws of the light bulb.
5. Disconnect the wires from the light bulb and remove it.
6. Install a new light bulb proceeding in reverse order.
Cleaning
 Aluminium lters capture dust and fat from the extracted air.
 It is necessary to regularly wash these lters, ideally once a month, depending on the level of use.Wash the
lters in water with dishwashing detergent, or you may place the lters in a dishwasher and wash them
using a gentle program (max. 60°C).
 Take out the aluminium lters by pressing the clip.
 After cleaning allow the aluminium lters to dry thoroughly before reinstalling them.
 Wipe the outer surface of the range hood with a clean damp wiping cloth lightly dipped in water with
a small amount of dishwashing detergent. Then wipe dry.
 Avoid electrical parts coming into contact with water or another liquid.
 For cleaning you can also use special agents for the maintenance and cleaning of INOX surfaces (applies
only for models with an INOX surface treatment).
Cleaning the aluminium lters
Models with digital controls – 3 speeds
Aluminium lters need to be cleaned when "C" (depending on the model) appears on the display, e.g. every
2 – 3 weeks (depending on the level of use).
Clean the lters according to the above mentioned instructions and after reinstalling them press and hold
down the Ifan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display.
The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready
for operation.
If you wish to use the appliance without clearing the "C" symbol (depending on the model), press the Ibutton
to start extraction for 1 second, then the "C" symbol (depending on the model) will appear again and the motor
will continue running.
Models with digital controls – 5 speeds
The aluminium lters need to be cleaned when "C" appears on the display (depending on the model).
Clean the lters according to the above mentioned instructions and after reinstalling them press and hold
down the fan button for 3 seconds until the "C" symbol (depending on the model) disappears from the display.
The symbol "E" (depending on the model) will appear on the display, which means that the appliance is ready
for operation.
