Philex HDSR 400 User manual

HDSR 400
Free-to-Air HD Digital Satellite Receiver
USER GUIDE
Please read this user guide carefully before use
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

Contents
02
1. General Information......................................................................................................................................................02-06
1.1 Main Features................................................................................................................................................. 04
1.2 Satellite Receiver Accessories................................................................................................................... 04
1.3 General Operation of Receiver................................................................................................................. 04
1.4 Front Panel...................................................................................................................................................... 05
1.5 Rear Panel........................................................................................................................................................ 05
1.6 Remote Control............................................................................................................................................. 06
2. Installing Remote Control Batteries.............................................................................................................................. 07
3. Receiver Connections...................................................................................................................................................08-09
4. First time installation........................................................................................................................................................... 10
4.1 Switching on the unit for the rst time................................................................................................. 10
4.2 Dish Setting .................................................................................................................................................... 10
4.3 Motorized Setting......................................................................................................................................... 11
4.4 Channel search.............................................................................................................................................. 12
5. Operation................................................................................................................................................................................ 13
5.1 Changing Channels ..................................................................................................................................... 13
5.2 Volume Control.............................................................................................................................................. 13
5.3 Mute ................................................................................................................................................................. 13
5.4 Audio Language and Audio Mode......................................................................................................... 13
5.5 TV/Radio Mode.............................................................................................................................................. 13
5.6 View Program Information........................................................................................................................ 13
5.7 Subtitles ........................................................................................................................................................... 13
5.8 Channel List .................................................................................................................................................... 13
5.9 View teletext................................................................................................................................................... 13
5.10 EPG .................................................................................................................................................................. 13
6. Channel Editing/Managing .............................................................................................................................................. 14
6.1 Favourites ........................................................................................................................................................ 14
6.2 Edit Channel ................................................................................................................................................... 14
6.3 To Move Channel .......................................................................................................................................... 15
6.4 Channel Lock.................................................................................................................................................. 15
6.5 To Skip channel.............................................................................................................................................. 15
6.6 To Delete channels....................................................................................................................................... 15
7. System Setting ................................................................................................................................................................15-16
7.1 Time Setting.................................................................................................................................................... 15
7.2 A/V output Setting....................................................................................................................................... 16
7.3 OSD Setting .................................................................................................................................................... 16
7.4 Security Setting............................................................................................................................................. 16
7.5 Database Reset.............................................................................................................................................. 17
8. USB Device........................................................................................................................................................................17-18
8.1 To Record a Programme............................................................................................................................. 17
8.2 To Play or View a Recorded Programme............................................................................................... 18
9. System Information............................................................................................................................................................. 18
10. Technical Specication..................................................................................................................................................... 19
11. Troubleshooting................................................................................................................................................................. 20
Page Number
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

03
Before installation please make sure you read these instructions carefully and
observe the safety guidelines set out below
Avoid exposing your equipment to harsh conditions such as wet or damp places, high humidity, strong
vibration, extremely high or low temperatures, strong sunlight and places that are very dusty.
Do not cover or place heavy objects on the receiver unit. Make sure there is sucient clearance around the
unit to allow adequate ventilation.
Never push objects into holes or ventilation slots.
To save power, switch o mains power or pull out the mains power plug when you are not using the
equipment.
Don’t continue to use this equipment if you have spilt liquids in it, if it is damaged in any way or if it does
not work normally. Immediately unplug the equipment and get expert advice.
Pull the mains plug out of the wall socket during thunderstorms and disconnect the satellite antenna.
Cleaning: disconnect the mains supply and use only a lightly dampened soft cloth. Do not use
chemical solvents or strong detergents as these may damage the cosmetic nish.
• To prevent electric shock, do not remove any cover.
• If anything goes wrong, don’t try and x it yourself, get a qualied engineer to look at it
• Do not expose this equipment to dripping or splashing
• Never put a naked ame source on or near the equipment
• This product is not a toy. Do not let young children play with the equipment.
Package Contents
Before installation, please check the items of the package. The package should contain
the following items:
1 . DVB-S2 receiver x 1 pc
2. Remote control x 1 ps
3. Instruction manual x 1 pc
Your remote control (RCU) requires 2 x AAA batteries (Not Supplied)
The Satellite Dish
Your dish should be properly installed and azimuth and elevation must be precisely set up.
This unit works with DisEqC 1.2 & 2.0 on a compatible antenna positioner.
Ask your dealer for information.
Important Safety Instructions
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

04
This high denition (HD) DVB-S2 receiver is suitable for the reception of
Free-To-Air digital satellite TV and radio programs and will provide top
quality picture and sound when connected to your HDTV and to a properly
aligned satellite dish and LNB.
This user’s manual covers the installation of the receiver and the necessary
steps to operate various features. It also explains in detail the special features
built in to this receiver.
1.1 Main Features
• Fully DVB-S2 and DVB-S compliant
• Supports HDTV MPEG-2 & MPEG-4 H.264 decoding
• Supports DiSEqC 1.2 & 2.0
• 4 digit LED indicates channel number and time
• OSD language: English and other languages as per request
• Video format support 1080i, 720p, 576p, 576i
• Variable aspect ratio (4:3, 16:9) 4:3 Pan & Scan or Letter Box modes
• Easy-to-use menu system
• Easy channel installation
• Supports EPG
• Favourite Channel Edit
• Support teletext/subtitles/audio language selection
• Parental lock function
• Capacity for storing up to 5,000 channels
• Automatic software upgrade via satellite
• Ethernet for future use
• Full remote control function
1.2 Satellite Receiver Accessories
Your satellite receiver is supplied with remote control unit (RCU) and HDMI lead.
1.3 General Operation of Receiver
This manual contains full instructions for everyday operation of your receiver.
There are a series of user friendly menus displayed on screen when you turn on the unit. These menus will
guide you through installation, channel organization, program viewing and many other functions.
All functions can be selected by using the buttons on the RCU supplied with the receiver, and some
functions can also be selected by using the buttons on the front panel.
Please note that any software upgrades uploaded may change the functions on your receiver.
Should you encounter any diculties with the operation of your unit, please nd help from the Trouble
Shooting section in this manual, or call our Helpline.
General Information 1
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

05

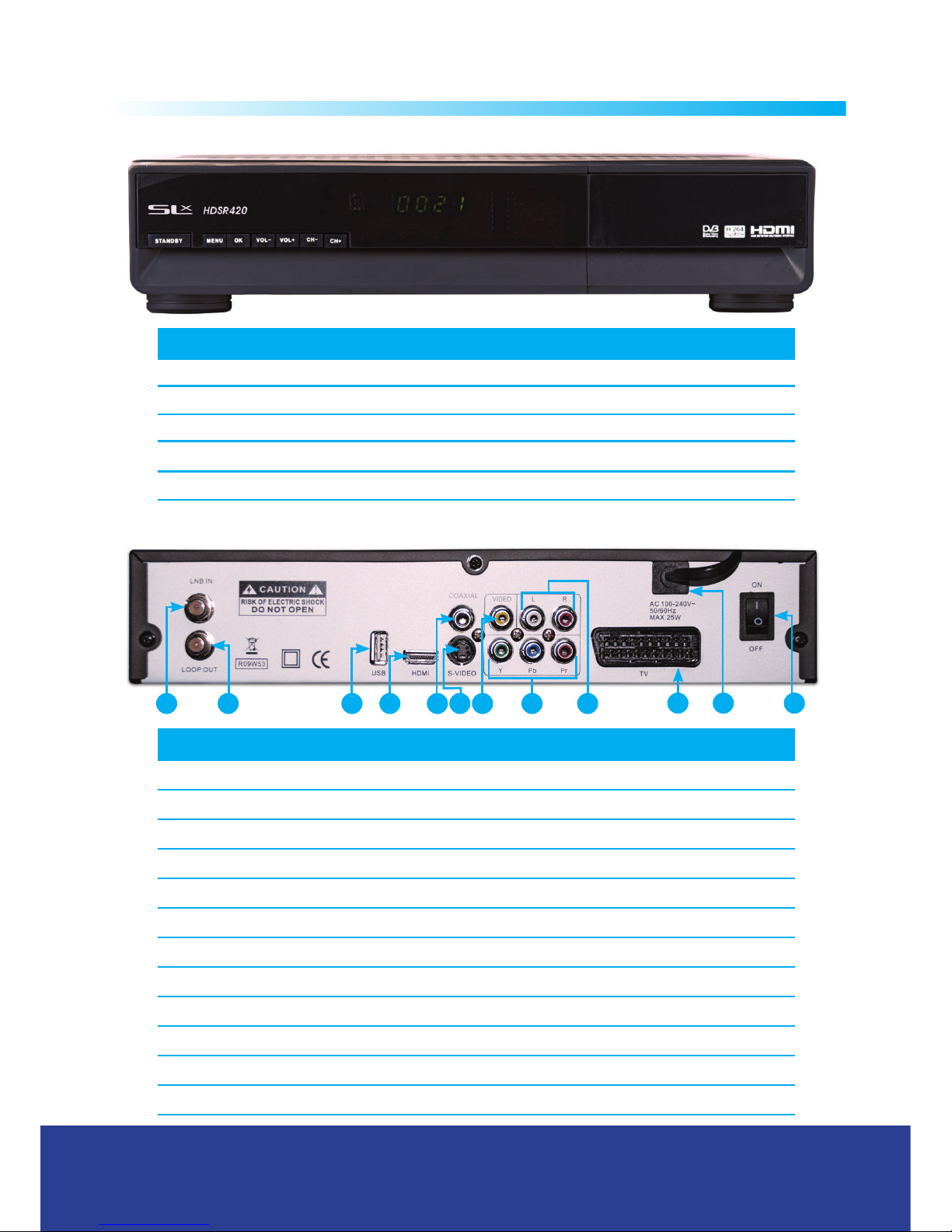

1.4 Front Panel
General Information 1
KEY FUNCTION
STANDBY Press for ON/Stanby mode
Menu Press to enter main menu
OK Press to conrm your selections
VOL+ / VOL - Press to increase/decrease Volume
CH+ / CH- Press to change Channel (up/down)
CONNECTION FUNCTION
1. LNB IN Connects to satellite antenna cable
2. LOOP OUT RF loop through output to another receiver
3. USB Connects USB 2.0 to hard drive or to PC for software updates
4. HDMI Connects to the TV using an HDMI cable for HD viewing (760p & 1080i)
5. COAXIAL Phono socket for Digital audio output connects to TV or HiFi
6. S-VIDEO Video output for S-VHS equipment - (max resolution 576i)
7. VIDEO Phono sockets for composite video output (max resolution 576i)
8. Y Pb Pr Output Phono sockets for component video output (max resolution 1080i)
9. AUDIO L/R: Phono sockets for standard stereo audio output
10. TV SCART Connects to TV/VCR using SCART - (max resolution 576i)
11. Power Lead AC~ 110-240V (Auto-selectable), 50-60Hz
12. Power Switch Switches the mains power on/o
1.5 Back Panel
1 2 3 4 5 6 7 8 9 10 11 12
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

06
General Information 1
1.6 Remote Control
KEY FUNCTION
Standby ON/OFF
Mutes the sound
0-9 To select a channel by direct number input
To start recording a program
To stop recording a program
Rewind - to scan backward when playing a
recorded program or time shift
Fast Forward - to scan forward when playing a
recorded program or time shift
To increase / reduce volume, or move cursor
left / right
Channel change, or move cursor up / down
OK To conrm the selected item in a menu screen
or show the Channel list
MENU To enter the main menu
EXIT To return to previous screen / menu
EPG Show EPG (Electronic Program Guide)
INFO To display current program information
TV/RADIO To switch between Radio and TV channels
FORMAT Enter audio setting menu
ASPECT To select screen format
AUDIO Enter audio settings menu
FAV To access your favourite channels list
RECALL To switch from current to last channel viewed
PAUSE To freeze the image during recording playback
SUBT Yo switch between available subtitles
TTX Teletext on / o
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

07
Installing Remote Control Batteries 2
Remove the battery cover from the remote control and insert two AAA size
batteries (not supplied) inside the compartment. Make sure the +/- polarity is
as shown below and as marked in the battery compartment.
Caution
1. Keep batteries out of children’s reach.
2. Don’t attempt to recharge, short-circuit, disassemble heat or throw the batteries into the re.
3. Always replace both batteries at the same time. Never mix new and old batteries or batteries of a
dierent type.
4. If you don’t intend to use the remote controller for an extended period, remove the batteries to prevent
possible leakage and corrosion.
5. Do not drop, apply shock or step on the remote control.
6. Do not spill water on the remote control.
Note: If the receiver does not respond to the remote control at close range, you replace the batteries.
Using the Remote Control
1. To use the remote control, point it towards the front of the digital set top box.
2. The remote control has a range of up to 7 metres from the set top box at an angle of up to 60 degrees.
3. The remote control will not operate if its path is blocked.
Note: Sunlight or very bright light will decrease the sensitivity of the remote control.
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

08
Receiver Connections 3
To achieve optimum signal quality, please read this chapter carefully before
setting up your receiver and select the most appropriate option depending on
the equipment you have.
Before connecting equipment to your satellite receiver please check the
instruction manual for each device.
Note: If you encounter any problems setting up your product, please contact
the Helpline (details below).
The downlead from your satellite dish is connected via the F connector on the
back of your receiver marked LNB IN ..
There are three options for connecting your satellite receiver to your TV.

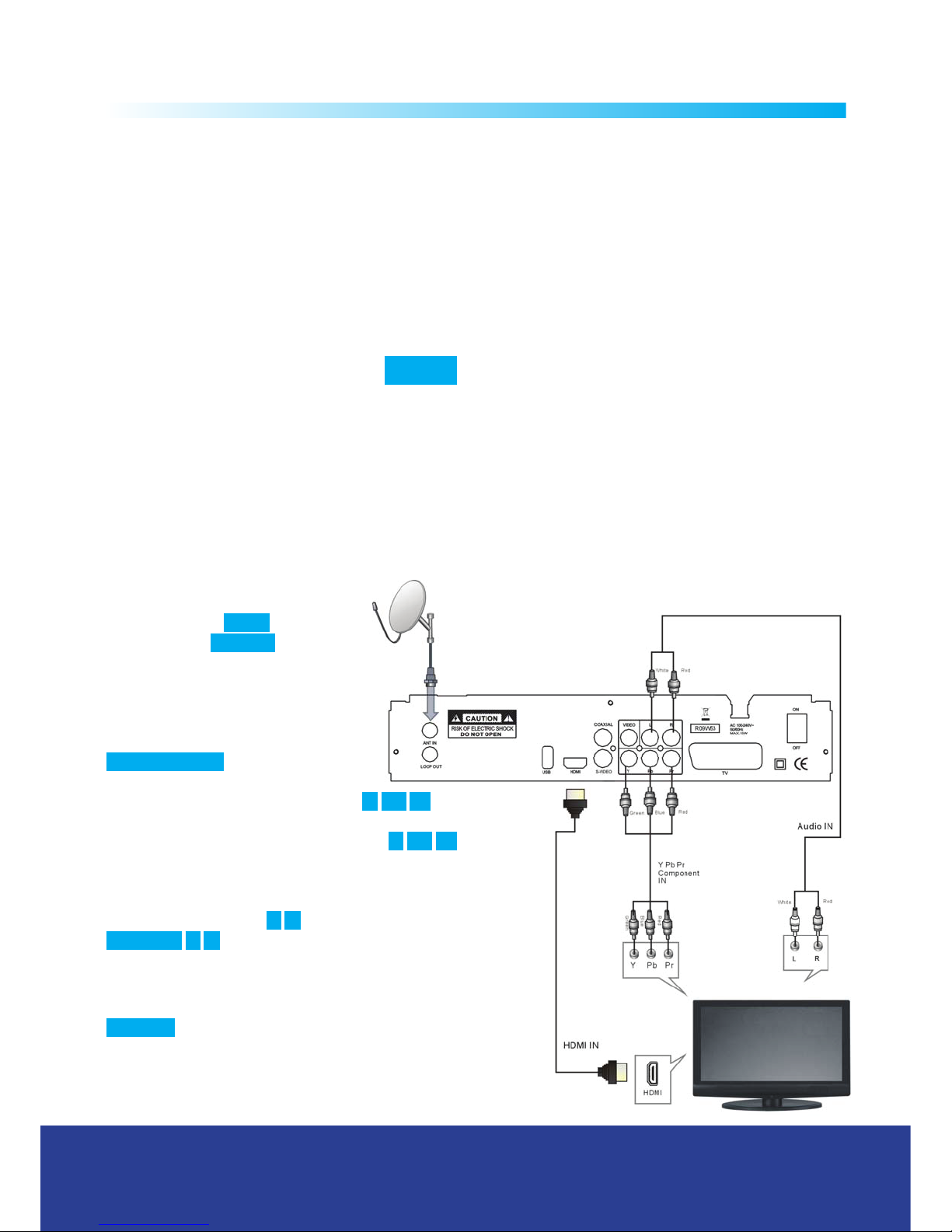

3.1 Connection to Dish and TV 1 via HDMI or YPbPr output and Audio output
(for high denition viewing). For best results always use HDMI connection if
available for HD and upscaled SD broadcasts, also for ordinary SD broadcasts
as these will be upscaled by your receiver.
Connect the HDMI lead supplied to
the HDMI socket on the back of your
receiver marked HDMI and to any
socket marked HDMI IN on the back
of your TV.
If you don’t have an HDMI socket on
your TV check for a group of 5 phono
sockets on the back of your TV marked
COMPONENT IN this is an alternative
high denition connection.
The video phono sockets are marked Y Pb Pr and require
a 3 phono to 3 phono component video lead (not supplied)
to connect to the phono sockets marked Y Pb Pr on the
back of your TV.
This type of connection will also need a 2 phono to 2 phono
lead (not supplied) to carry a stereo audio signal from the
phono sockets marked L R on your receiver to those marked
AUDIO IN L R on your TV.
Note: HDMI connections carry both Audio and Video signals,
if you want to play Audio through your HI-FI system, connect
the Digital Audio Out phono socket on your receiver marked
COAXIAL to your Hi-Fi using a digital coaxial lead. You will
need to remember to mute the volume on your TV.
3). To ensure the best image quality, set the video output
mode to HDTV, press the “FORMAT” button to select video
resolution 1080i or 720p.
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

09
Receiver Connections 3
3.3 Connection to Dish and
TV via SCART
Connect the SCART lead supplied to the
SCART socket on back of receiver
marked TV and to either of the SCART
sockets on the back of the TV marked
AV1 or AV2
3.2 Connection to Dish and TV via Composite Video or S-VHS for SD viewing
Connect a 3 phono lead (not supplied) to
the VIDEO , L & R phono sockets on
the back of the receiver and to
corresponding Phono sockets on the
back of your TV.
Alternatively use an S-Video lead (not
supplied) to connect the S-VIDEO socket
on your receiver to the S-VIDEO IN socket
on your TV and use a 2 phono to 2 phono
lead (not supplied) to carry a stereo audio
signal from the phono sockets marked
L R on your receiver to those marked
AUDIO IN L R on your TV.
3.4 Power Connection
Your satellite receiver is mains powered,
insert the 3 pin plug into a standard UK 240V
socket and switch on the socket and switch
on the receiver using the switch shown below.
On/O Switch
Note: Composite video will provide only
standard denition output at 576i. Set the
video output mode to RGB (for SCART
connection) or CVBS (for composite video
connection) by pressing the ‘OUTPUT’ button
on the remote control unit.
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support

First time installation
10
4
The main menu consists of 5 menu items:
1. Press /to scroll up and down on the menus.
2. When you have reached the menu you want, press the OK
button to conrm your choice.
3. You can select menu items by using the / buttons.
4. If you want to save a change and return to the previous menu,
press the OK button.
5. If you want to exit the current menu, press the Menu button.
4.1 Switching on the unit for the rst time
1. Ensure all connections have been made according to the
instructions on the previous pages.
2. insert the 3 pin plug into a UK 240V socket and switch on the
socket and the switch on the back of the receiver

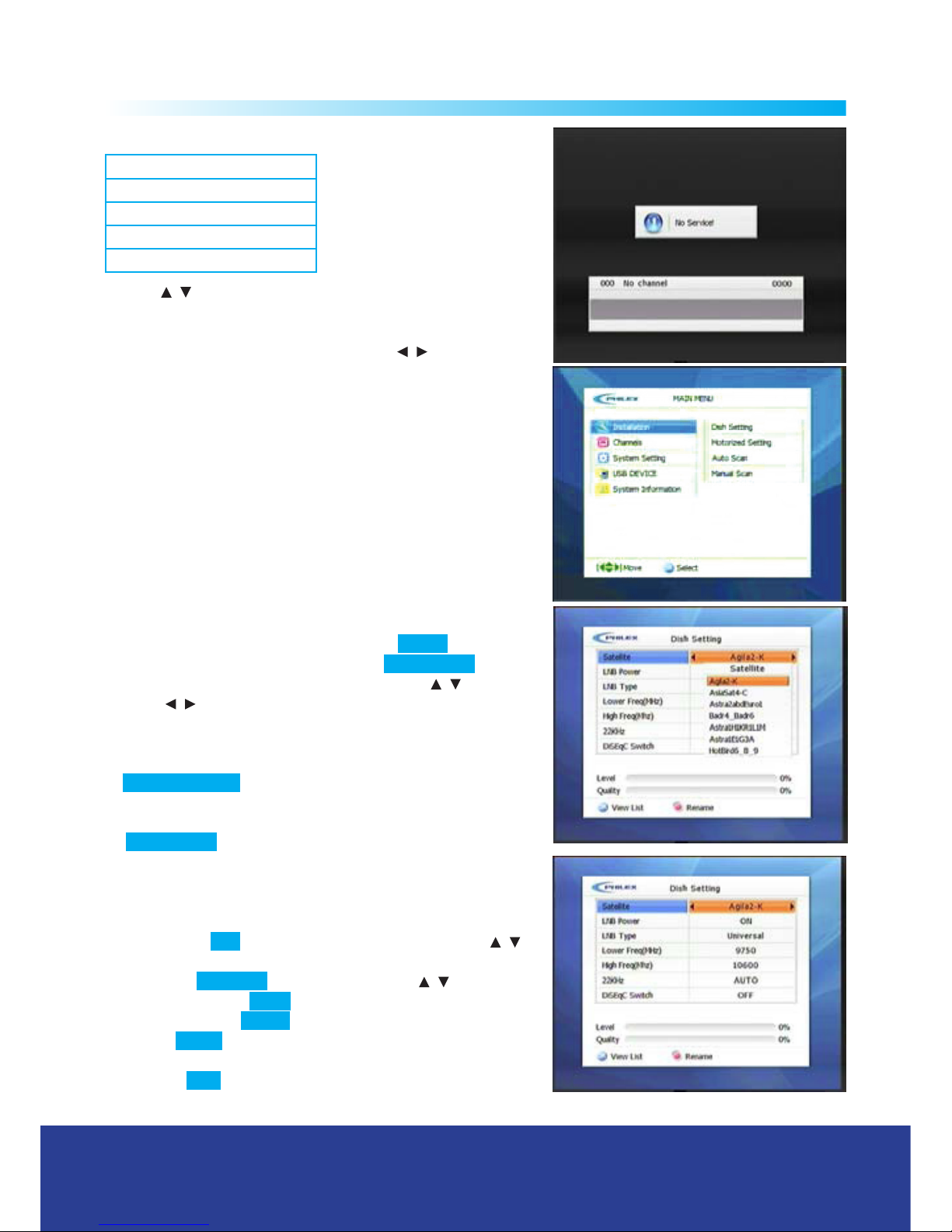

4. You will see a prompt displayed on the screen indicating that
NO Services and Channels exist.
4.2 Dish Setting
1. Before searching for channels, press the MENU button to
enter the main menu and then select Dish Setting .
2. Select the satellite you want to add with the /buttons and
press / button to select an option.
3. Press the OK button to view the satellite list and then select
the satellite you want to add, for English language channels
this will normally be Astra 2 at 28.2 Degrees East
Astra2abdEuro1
4. Press the OK button to conrm your selection.
5. You should not need to edit or change any of the items in the
Dish Setting menu as they should all be preset to the
default values highlighted below.
The settings will only need to change if you need to t a
motorized system, non standard LNB or Satellite DiSEqC
switches for multiple dish LNB feeds.
- LNB Power : ON Set LNB power ON or OFF using the /
buttons
- LNB Type : Universal Set LNB type with the /buttons.
- Lower Freq (MHz): 9750 Can be input with RCU numeric keys.
- High Freq (MHz): 10600 Can be input with RCU numeric keys.
- 22 kHz: AUTO Set the path of 0/22KHz switch box in On, O
or Auto mode.
- DiSEqC : OFF Set DiSEqC switch ON or OFF.
Installation
Channels
System Setting
USB DEVICE
System Information
Customer Careline: 08457 573479
Local Rate - UK only
Technical Support: www.philex.com/support
