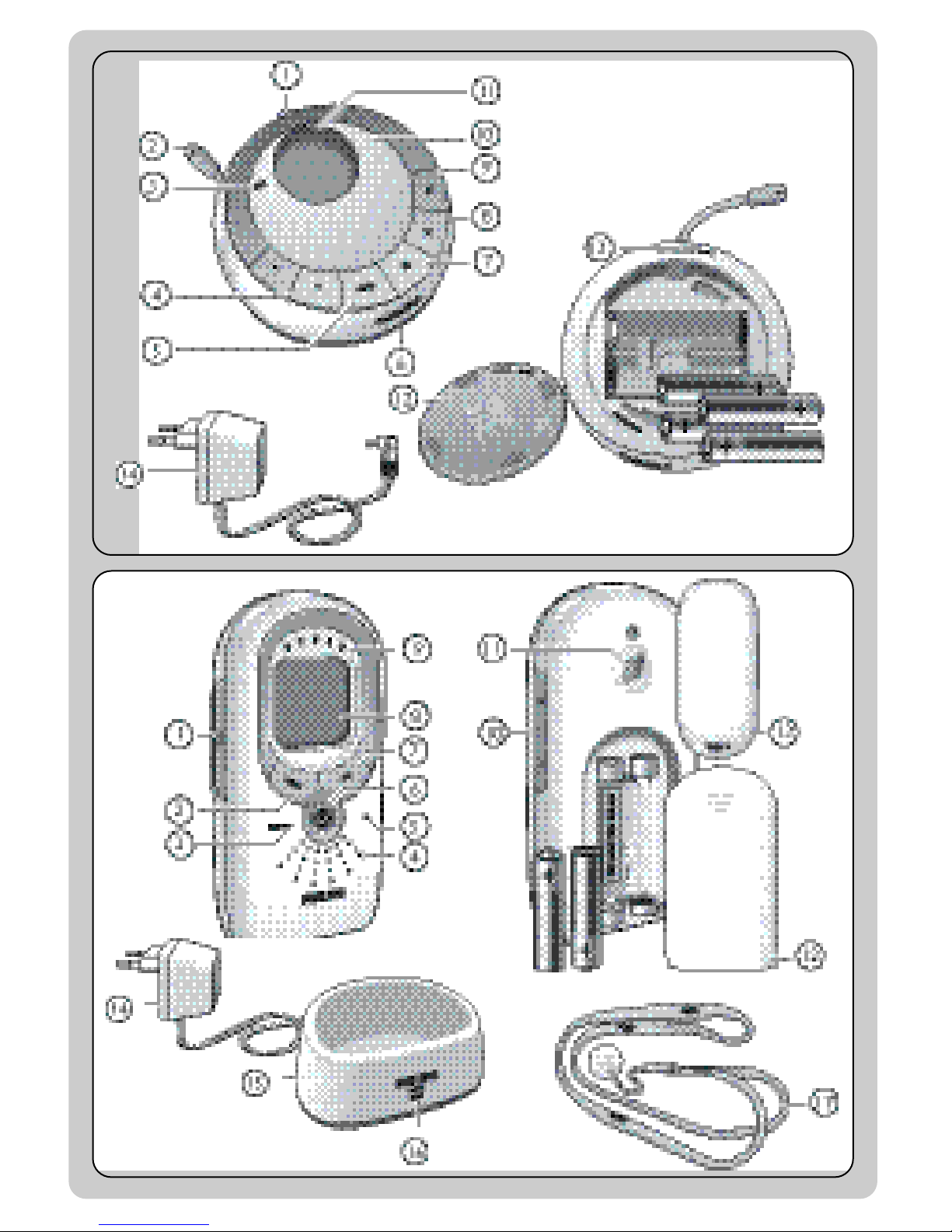

A. Baby unit
B. Parent unit

4
EN
A. Baby unit
A-1 On/Off button (y)
A-2 Temperature sensor
A-3 LINK light
A-4 Volume – / + buttons
A-5 PAGE button
A-6 Microphone
A-7 Night light button ( )
A-8 Lullaby button ( )
A-9 Play/stop button (29)
A-10 Night light
A-11 Display
A-12 Battery compartment cover
A-13 DC 9V / 300mA power supply jack
A-14 AC power adapter
B. Parent unit
B-1 TALK button
B-2 MENU button
B-3 LINK light
B-4 Loudspeaker
B-5 Microphone
B-6 On/Off button (y)
B-7 OK button
B-8 Display
B-9 Sound level lights
B-10 Volume – / + buttons
B-11 Recess for the belt clip or neck strap
B-12 Battery compartment cover
B-13 Belt clip
B-14 AC power adapter
B-15 Charging base
B-16 POWER light
B-17 Neck strap
B-18 Travel bag
Legend of functions

Legend of functions
5
C.What else you need
Both units can be battery operated.
For battery-operated use you will need:
– 4 x 1.5V AA non-rechargeable batteries for baby unit.
Not supplied.
– 2 x 1.2V AAA NiMH rechargeable batteries for parent unit.
Supplied.

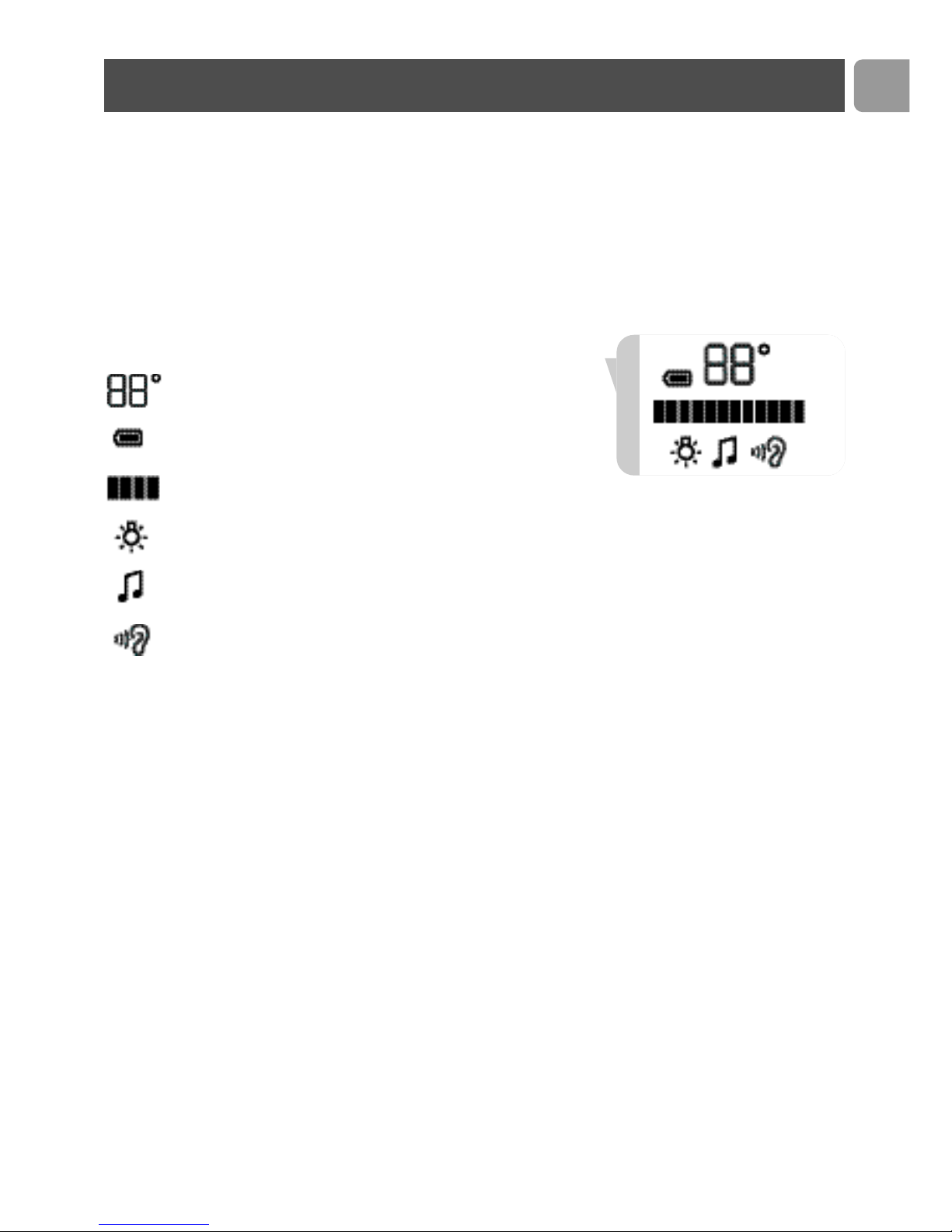

D. Display
Room temperature indicator
Battery indicator
Volume indicators
Night light indicator
Lullaby indicator
Microphone sensitivity indicator
High - Room temperature above temperature set in menu
LoW - Room temperature below temperature set in menu
Not LinKed - No connection between units
VoluMe 999- Volume indication
PauSed - Playback of lullaby interrupted
EN

3 Illustrations
4 Legend of functions
4 Baby unit
4 Parent unit
5 What else you need
5 Display
6 Contents
7 Welcome
7 Safety information
7 Preparing your baby monitor
7 Baby unit
8 Parent unit
9 Using your baby monitor
10 Other features
10 Adjusting loudspeaker volume
11 Talking to your baby
11 Monitoring baby silently
12 Switching night light on / off
12 Paging the parent unit
12 Playing lullabies
13 Connecting / disconnecting belt clip and neck strap
14 Menu options
14 Menu operation - General explanation
15 Switching nightlight on / off
15 Playing lullabies
15 Adjusting microphone sensitivity
16 Switching sound alert on / off
16 Setting room temperature range
16 Setting temperature alert
17 Troubleshooting
19 Frequently asked questions
21 Important information
21 Technical specifications
21 Maintenance
22 Environmental information
22 Factory initialization mode
23 Guarantee and service
6
EN Contents

Philips is dedicated to producing caring, reliable products to give parents the reassurance they
need.You can trust this Philips baby monitor to provide round-the-clock support by ensuring you
can always hear your baby clearly without any disturbing noise.Your SCD489 uses DECT
technology which guarantees zero interference from other wireless appliances and a clear signal
between the parent unit and baby unit.
Philips Baby Care, taking care together
Safety information
Please read this user manual carefully before using your baby monitor and keep it for future
reference.This baby monitor is intended as an aid. It is not a substitute for responsible and
proper adult supervision and should not be used as such.
• Make sure the baby unit and adapter cable are always out of reach of the baby
(at least 1 meter / 3 feet away).
• Never place the baby unit inside the baby’s bed or playpen.
• Never cover the baby monitor (with a towel, blanket, etc.).
• Never use the baby monitor in moist places or close to water.
• Check if the voltage indicated on the type plate of the adapters (A-14, B-14) corresponds to
the local power voltage before connecting to the AC power supply.
• Do not expose the baby monitor to extreme cold, heat or light (e.g. direct sunlight).
• To prevent electric shock, do not open the case of the baby unit and parent unit
(except battery compartment covers).
• Risk of explosion if batteries are replaced by an incorrect type.
For the parent unit, always use rechargeable batteries.
Baby unit
The baby unit can be mains or battery operated.
When batteries are inserted, you will have an automatic back-up
in case of mains failure.
Mains operated use
1Connect the power adapter cord (A-14) to the power supply
jack (DC 9V / 300mA - A-13) of the baby unit.
2Connect the AC power adapter (A-14) to a wall outlet.
➜The baby unit is now ready for mains operated use!
Welcome
Preparing your baby monitor
7
EN

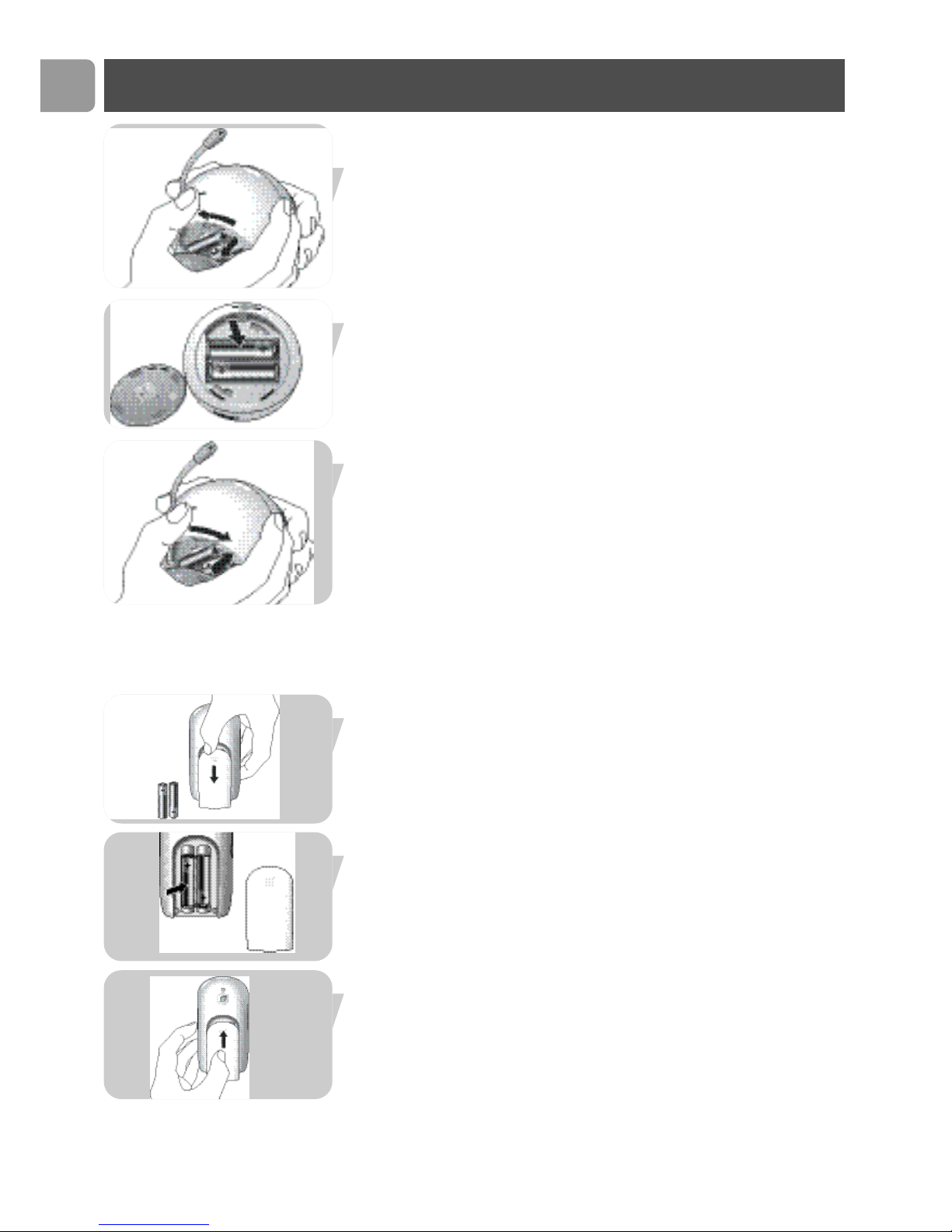

Battery operated use
1Open the battery compartment by turning the cover (A-12)
to the left (1OPEN), using the palm of your hand.
Take the cover off.
2Insert four 1.5V AA batteries, noting the + and –
configuration inside the battery compartment (batteries are
not supplied; we recommend Philips alkaline batteries).
3Put the battery compartment cover (A-12) back in place.
Close the compartment by turning the cover (A-12) to the
right (CLOSE 2), using the palm of your hand.
Note:When the units are switched off, in case of battery
operated use, the batteries will still discharge slowly.
➜The baby unit is now ready for battery operated use!
Parent unit
1Open the battery compartment by sliding the cover (B-12)
downwards.
2Insert the two 1.2V AAA size NiMH rechargeable batteries
(supplied), noting the + and – configuration inside the battery
compartment.
3Put the battery compartment cover (B-12) back in place.
Close the compartment by sliding the cover (B-12) upward
until it clicks into position.
4Connect the AC power adapter (B-14) of the charging base
(B-15) to a wall outlet.
8
EN Preparing your baby monitor

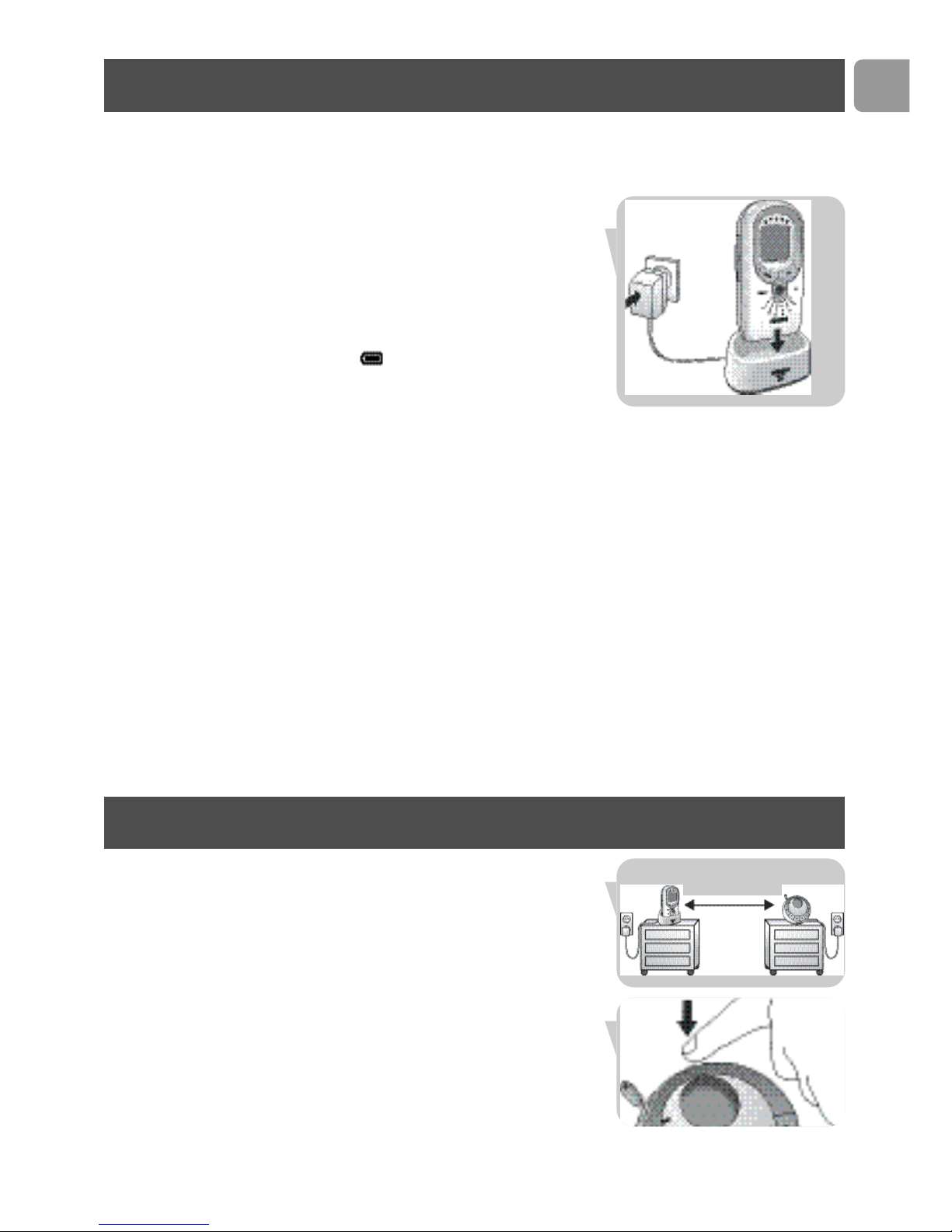

5Place the parent unit in the charging base (B-15).
> The POWER light (B-16) lights up red.
6Leave the parent unit in the charging base until the batteries
are fully charged (at least 16 hours).
> The POWER light (B-16) will stay red, even when batteries
are fully charged.
> When the batteries are fully charged, the parent unit can be
taken out of the charging base and used cordlessly for at
least 8 hours.
> When the battery indicator ( ) in the display (B-8) is
empty and the parent unit beeps, battery power is low.
Place the parent unit in the charging base (B-16) to
recharge the batteries.
Notes:
– Operation time will be 8 hours based on the assumption that
the baby unit will be transmitting 25% of the time and is in
standby mode for the rest of the time (baby does not make
any sound).
– When the parent unit batteries are charged for the first time,
operating time will be less than 8 hours.The batteries will use
their maximum capacity after at least four times charging and
discharging.
– The charging time may be longer if you leave the parent unit
switched on while the batteries are charging.
➜The parent unit is now ready for use!
1Place both units in the same room to test the connection.
Make sure the baby unit is at least 1 meter / 3 feet away from
the parent unit.
2Press and hold the On/Off (y) button (A-1) on the baby unit
for 2 seconds.
> The night light (A-10) lights up briefly.
> The display light (A-11) lights up indicating the current
room temperature.
> Not LinKed lights up on the display and the LINK light
(A-3) starts blinking red as it seeks connection with the
parent unit.
> 1 m / 3 feet
Preparing your baby monitor
Using your baby monitor
9
EN

Adjusting loudspeaker volume
•Briefly press the volume + and – buttons (A-4) on the baby
unit repeatedly until the desired loudspeaker volume for the
baby unit has been reached.
• Briefly press the volume + and – buttons (B-10) on the
parent unit repeatedly until the desired loudspeaker volume
for the parent unit has been reached.
10
EN Using your baby monitor
Other features
3Press and hold the On/Off button (y) (B-6) on the parent
unit for 2 seconds.
> The sound level lights (B-9) briefly light up orange.
> The display (B-8) lights up.The battery indicator ( ) and
the room temperature light up in the display.
> The LINK light (B-3) lights up red briefly then starts
blinking green as it is seeking connection with the baby
unit.
> The LINK light (B-3) on the parent unit blinks green and
the LINK light (A-3) on the baby unit blinks red until
connection has been established.This will take up to
30 seconds. Both LINK lights (A-3, B-3) then light
continously green and the message Not LinKed will
disappear from the baby unit display (A-11).
4Position the baby unit at least 1 meter / 3 feet away from
your baby.
5Position the parent unit at the desired place within the
operating range of the baby unit but at least 1 meter / 3 feet
away from the baby unit.
For more information on the operating range see ‘Technical
specifications’.
➜You can now monitor your baby!

Other features
11
> The displays (A-11, B-8) provide visual feedback on the
volume settings of the units:
- VoluMe OFF: parent unit volume switched off /
monitoring baby silently;
- VoluMe 9: minimum volume
(parent unit and baby unit);
- VoluMe 9 9 9 9 9: maximum volume
(parent unit and baby unit).
Notes:
– If you press theVolume + and – buttons (A-4, B-10) too long,
the volume will not be adjusted.
– You only need to adjust the baby unit volume when using the
talk function (see below).
– If the volume is set to a high level, the units consume more
power.
Talking to your baby (Talk function)

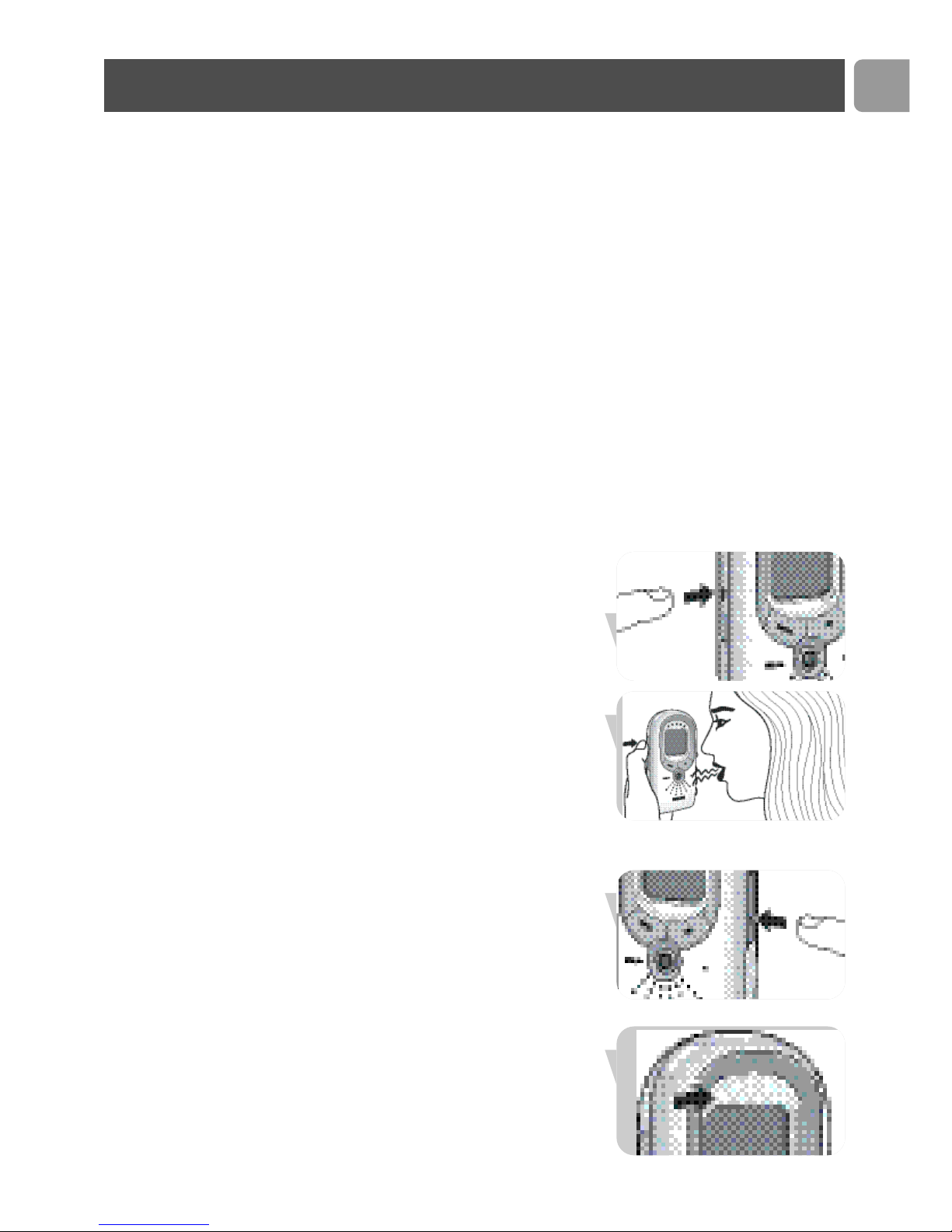

While using the TALK button (B-1) on the parent unit you can
talk to your baby (e.g to comfort your baby).
•Press and hold the TALK button (B-1) and talk clearly into
the microphone (B-5).
•Release the TALK button (B-1) when finished talking.
Note:When the TALK button (B-1) is pressed, you can no
longer hear your baby.
Monitoring baby silently
•Briefly press the Volume – button (B-10) on the parent unit
repeatedly until the volume is switched off completely.
> When no sound is detected all sound-level lights (B-9) will
be off.
EN

> When sound is detected the sound-level lights (B-9) light up
orange.

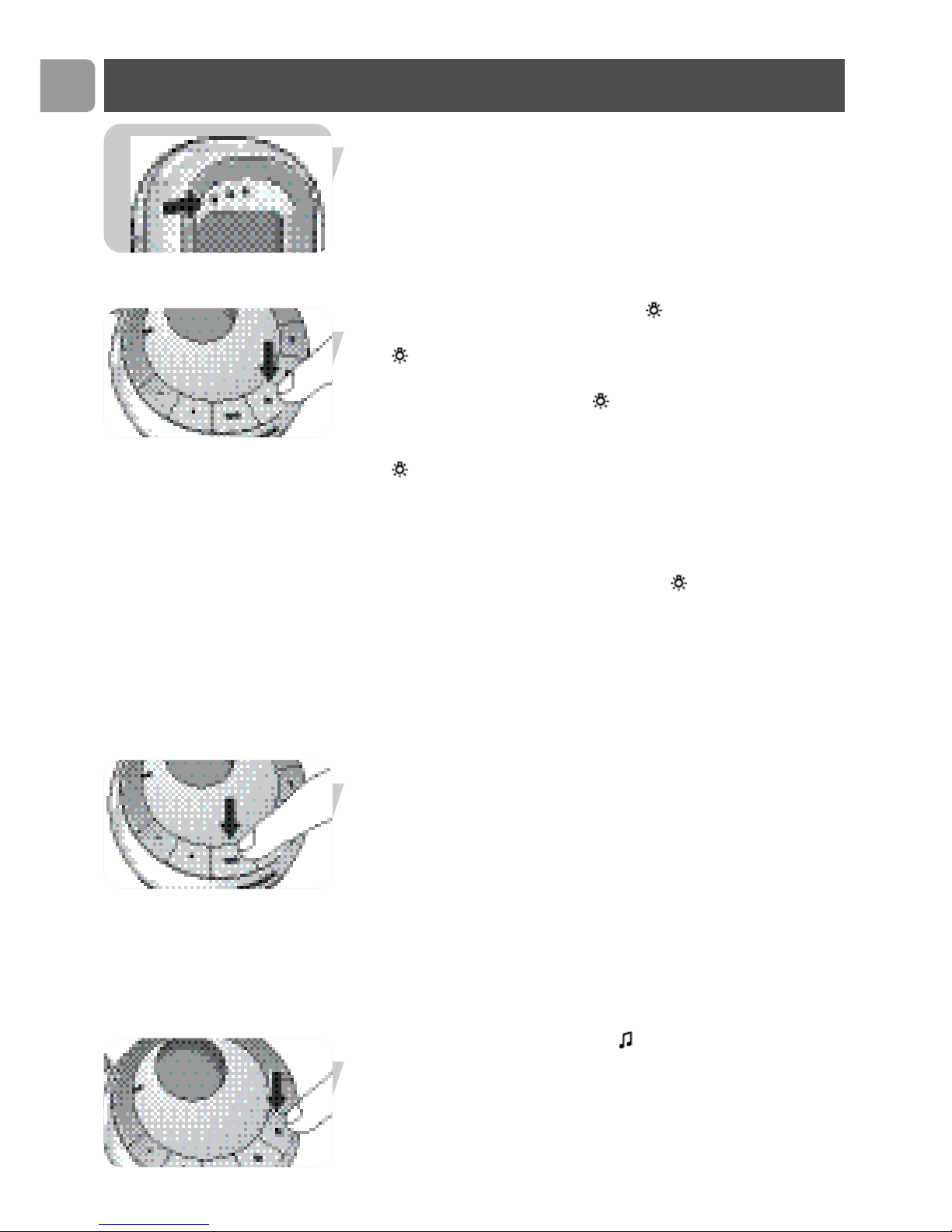

Switching night light on/off
1Briefly press the night light button ( ),A-7) on the baby unit
to switch on the night light (A-10).
> lights up on both displays.
2Press the night light button ( ),A-7) again briefly to switch
off the night light (A-10).
> The night light dims and gradually switches off.
> goes out on both displays.
•Switch off the night light when operating the baby unit with
batteries.This saves power!
Note: If you press the night light button ( ),A-7) too long, the
night light (A-10) will not switch on/off.
Paging the parent unit
When the parent unit is misplaced and the volume is switched
off, you can use the PAGE button (A-5) on the baby unit to
locate the parent unit.
1Briefly press the PAGE button (A-5) on the baby unit
> Paging appears on both displays (A-11, B-8).
> The parent unit will automatically reset to medium volume
level and a paging alert will sound.
2To stop the paging alert, press the PAGE button (A-5) again
briefly or any button on the parent unit
Note: If you press the PAGE button (A-5) too long, the paging
alert will not sound.
Playing lullabies
1Briefly press the lullaby button ( ,A-8) on the baby unit
repeatedly to select one of five available lullabies.
12
EN Other features

Other features
13
2Briefly press the play/stop button (2 9,A-9) to play the
selected lullaby.
•Briefly press the OK button (B-7) on the parent unit to
interrupt playback of the lullaby. Press the OK button (B-7)
on the parent unit again to restart playback of the lullaby.
> If the lullaby is not restarted within 60 seconds, the lullaby
function will switch off automatically.
•Briefly press the play/stop button (2 9,A-9) on the baby unit
again to stop playback of the lullaby.
Note: If you press the lullaby button ( ,A-8) too long, no
lullaby will be selected.
Connecting / disconnecting belt clip and
neck strap
If the parent unit is operated using batteries, you can carry it in
and around your house, allowing you freedom of movement
while still monitoring your baby.
Connecting the belt clip
•Insert the little spindle on the rear of the belt clip into the
recess (B-11) on the rear of the parent unit.
Twist the belt clip to the left until it clicks in position.
Disconnecting the belt clip
•Twist the belt clip to the right (TURN 2) and take it off.
Connecting the neck strap
•Insert the little spindle at the end of the neck strap into the
recess (B-11) on the rear of the parent unit.
Twist the spindle to the left until it clicks in position.
EN

Most functions of your baby monitor can be operated using the
local buttons on the units.The functions described below can
only be operated remotely using the parent unit menu.
The nightlight and lullaby functions can be operated using both
menu and local buttons.
Note:All buttons mentioned are located on the parent unit.
Menu operation - General explanation
1Press the MENU button (B-2) to open the menu.
> The first menu option appears on the display.
2Use the – and + buttons (B-10) to select the desired menu
option.
3Press the OK button (B-7) to confirm your selection.
> SaVed appears on the display.
4Press the MENU button (B-2) again to exit the menu.
Note:Always press the buttons MENU (B-2), – and + (B-10) and
OK (B-7) briefly.
14
EN Other features
Menu options
Disconnecting the neck strap
•Twist the spindle to the right (TURN 2) and remove it.

Menu options
15
Switching night light on/off
•Select Light on? or Light oFF?, using – and +
(B-10). Confirm by pressing OK (B-7).
Playing lullabies
To play or stop a lullaby:
•Select LullabY , using – and + (B-10).
Confirm with OK (B-7).
•Select PlaY? to replay the last played lullaby or StoP
LullabY? to stop playback. Confirm with OK (B-7).
To select a different lullaby:
•Select LullabY , using – and + (B-10).
Confirm with OK (B-7).
•Select Select neW, using – and + (B-10).
Confirm with OK (B-7).
•Select the desired lullaby, using – and + (B-10).
Confirm with OK (B-7).
Adjusting microphone sensitivity
You can set the sound sensitivity of the baby unit to the desired
level.When set to the maximum sensitivity level all sounds
(including your baby’s breathing, when loud enough) can be
heard on the parent unit.You can only change the microphone
sensitivity if the connection between the baby unit and the
parent unit is established (when LINK lights (A-3, B-3) light
continuously green).
•Select SenSitiVitY , using – and + (B-10).
Confirm with OK (B-7).
•Select the desired sensitivity level for the baby unit
microphone, using – and + (B-10). Confirm with OK (B-7).
> Sensitivity 9= minimum level / lowest sensitivity;
Sensitivity 9 9 9 9 9 =
maximum level / highest sensitivity.
Note:When the sensitivity level of the baby unit is set to a high
level, the unit will consume power because it is in
continuous transmission mode.
EN

Switching sound alert on and off
If sound alert is switched on, the parent unit beeps as soon as
the second sound level light (B-9) lights orange while the
volume is switched off.
•Select Sound Alert, using – and + (B-10).
Confirm with OK (B-7).
•Select Alert on? or Alert oFF?.
Confirm with OK (B-7).
Setting room temperature range
You can set the temperature range (minimum and maximum
temperature) for your baby’s room.
•Select TeMPerature – – °, using – and + (B-10).
Confirm with OK (B-7).
> Range appears on the display. Confirm with OK (B-7).
•Set the desired minimum temperature, using – and + (B-10).
Confirm with OK (B-7).
•Set the desired maximum temperature, using – and + (B-10).
Confirm with OK (B-7).
Note:When the set maximum temperature is lower than the
room temperature, the unit consumes more power
because the display is continuously lit.This is also the case
when the set minimum temperature is higher than the
room temperature.
Setting temperature alert
Temperature alert will sound from the parent unit if the actual
room temperature exceeds the set minimum or maximum
temperature or if the room temperature drops below 7°C or
rises above 33°C.
•Select TeMPerature – – °, using – and + (B-10).
Confirm with OK (B-7).
•Select Alert On/OFF, using – and + (B-10).
Confirm with OK (B-7).
•Select Alert On? or Alert OFF?.
Confirm with OK (B-7).
16
EN Menu options

Troubleshooting
17
Problem Possible cause Solution
LINK light (A-3, B-3) Parent unit:
does not light at all. Power adapter (B-14) not Connect power adapter (B-14) to
plugged in. wall outlet.
Unit not turned on. Press and hold On/Off button (y)
(B-6) for two seconds.
Batteries are low. Recharge batteries (B-12).
Batteries are empty. Replace batteries (B-12).
Baby unit:
Power adapter (A-14) not Connect power adapter (A-14) to
plugged in. baby unit.
Connect power adapter (A-14) to
wall outlet.
Unit not turned on. Press and hold On/Off button (y)
(A-1) for two seconds.
Batteries are low. Replace batteries (A-12).
LINK light (A3, B-3) Units out of range. Decrease distance between units
flashing red/alarm (see ‘Technical specifications).
beeping on parent unit.
Baby unit batteries are low. Replace batteries (A-12).
Parent unit batteries are low. Recharge batteries (B-12).
Parent unit batteries are Replace batteries (B-12).
empty.
Units cannot establish Try solving the problem by using
connection,even when close the factory initialization mode.
to each other. See chapter ‘Factory initialization
mode’
No power on one of the units. Press On/Off button (A-1, B-6)
for two seconds.
EN

Problem Possible cause Solution
Charging time of parent Parent unit switched on during Switch off parent unit (B-6).
unit batteries exceeds charging.
16 hours.
High pitched noise. Units are too close to each Move parent unit away from baby
other. unit (at least 1 meter / 3 feet).
Volume on parent unit Decrease volume (B-10) on
set too high. parent unit.
No sound/ Volume on parent unit is Increase volume on parent unit
baby’s crying cannot set too low or switched off. (B-10).
be heard.
Microphone sensitivity level Increase microphone sensitivity
set too low on parent unit. level in parent unit menu.
Units are out of range Move parent unit closer to
baby unit.
Parent unit reacts too Ambient sounds trigger Move baby unit closer to baby
fast to other ambient transmission. (keep minimal distance of 1 meter
sounds. / 3 feet).
Microphone sensitivity level Decrease microphone sensitivity
set too high. level in parent unit menu.
Battery check light ( ) Batteries are low or empty. Replace / recharge batteries
lights up on the (A-12, B-12).
display (A-11, B8).
Parent unit reacts slowly/ Microphone sensitivity is set too Increase microphone sensitivity
late to baby's crying. low. level in parent unit menu and/or
move baby unit closer to baby
(keep minimal distance of 1 meter/
3 feet).
18
EN Troubleshooting

Question
The technical specifications
show an operating range of
300 meters / 900 feet outdoors.
How come my baby monitor
manages much less than that?
The link is lost every now and
then, sound interruptions etc.
What happens during a mains
failure?
Is my DECT baby monitor
secure from eavesdropping and
interference?
Frequently asked questions
19
Answer
The specified range is only valid outdoors in open air. Inside
your house the workable range is limited by the amount and
type of walls and/or ceilings in between. Inside the house the
operating range will be up to 50 meters / 150 feet.
You are probably approaching the outer limits of the practical
range.Try a different location or decrease the distance
between the units slightly. Please note that it takes about 30
seconds each time before a new link between the units is
established.
When batteries are installed in the both units, the units will
automatically switch over to battery use in case of mains
failure.
The 120 channels guarantee no interference from other
equipment.
EN
Troubleshooting
Problem Possible cause Solution
Baby unit battery power Microphone sensitivity is set Set microphone sensitivity to a
diminishes rapidly. too high. lower level.
The selected minimum/ Select a lower/higher minimum/
maximum temperature higher/ maximum temperature.
lower than room temperature.
Volume setting too high. Set volume to a lower level (A-4).

20
EN
Question
Some buttons do not seem to
work when I press them.
What do I do wrong?
I place the parent unit in the
charging base (B-15) but the unit
doesn’t function.
Operating time of the parent
unit batteries is supposed to be
at least 8 hours. How come the
battery operating time of my
parent unit is less?
Frequently asked questions
Answer
Except for the On/Off buttons (A-1, B-6), only press the
buttons briefly.
When the batteries of the parent unit are low, you have to
wait for up to 20 minutes after placing the unit in the charger
before the unit starts functioning.
When the parent unit batteries are charged for the first time,
operating time will be less than 8 hours.The batteries will use
their maximum capacity after at least four times charging and
discharging.
Maybe the volume setting is too high.When the volume is set
to a high level, the unit consumes more power. Set the volume
to a lower level (B-10).
Maybe the microphone sensitivity setting is too high.When
the sensitivity is set to a high level, the unit consumes more
power. Set the sensitivity to a lower level (B-10).
When the set maximum temperature is lower than the room
temperature, the unit consumes more power because the
display is continuously lit.This is also the case when the set
minimum temperature is higher than the room temperature.
