Philips Pocket Memo DPM8500 User manual
DPM8500
Barcode scanner configuration guide
Register your product and get support at
www.philips.com/dictation
3Barcode scanner configuration guide
Table of contents
1 Introduction 5
Operational Parameters 5
Parameter defaults 5
2 Set default parameter 7
3 UPC/EAN 8
Enable/Disable UPC-A 8
Enable/Disable UPC-E 8
Enable/Disable UPC-E1 9
Enable/Disable EAN-8 9
Enable/Disable EAN-13 10
Enable/Disable Bookland EAN 10
Bookland ISBN Format 11
Decode UPC/EAN Supplementals 11
Decode UPC/EAN Supplemental Redundancy 13
UPC/EAN/JAN Supplemental AIM ID Format 13
Transmit UPC-A Check Digit 14
Transmit UPC-E Check Digit 15
Transmit UPC-E1 Check Digit 15
UPC-A Preamble 16
UPC-E Preamble 17
UPC-E1 Preamble 18
Convert UPC-E to UPC-A 18
Convert UPC-E1 to UPC-A 19
EAN Zero Extend 19
UPC/EAN Security Level 20
UCC Coupon Extended Code 21
Coupon Report 22
ISSN EAN 23
4 Code 128 24
Enable/Disable Code 128 24
Set Lengths for Code 128 25
Enable/Disable GS1-128 (formerly UCC/EAN-128) 26
Enable/Disable ISBT 128 26
ISBT Concatenation 27
Check ISBT Table 27
ISBT Concatenation Redundancy 28
5 Code 39 29
Enable/Disable Code 39 29
Enable/Disable Trioptic Code 39 29
Convert Code 39 to Code 32 (Italian Pharma Code) 30
Code 32 Prefix 30
Set Lengths for Code 39 31
Code 39 Check Digit Verification 32
Transmit Code 39 Check Digit 32
Enable/Disable Code 39 Full ASCII 33
6 Code 93 34
Enable/Disable Code 93 34
Set Lengths for Code 93 35
7 Code 11 36
Enable/Disable Code 11 36
Set Lengths for Code 11 37
Code 11 Check Digit Verification 38
Transmit Code 11 Check Digits 38
8 Interleaved 2 of 5 39
Enable/Disable Interleaved 2 of 5 39
Set Lengths for Interleaved 2 of 5 39
I 2 of 5 Check Digit Verification 40
Transmit I 2 of 5 Check Digit 41
Convert I 2 of 5 to EAN-13 41
9 Discrete 2 of 5 42
Enable/Disable Discrete 2 of 5 42
Set Lengths for Discrete 2 of 5 42
10 Chinese 2 of 5 44
Enable/Disable Chinese 2 of 5 44
11 Matrix 2 of 5 45
Enable/Disable Matrix 2 of 5 45
Set Lengths for Matrix 2 of 5 46
Matrix 2 of 5 Redundancy 47
Matrix 2 of 5 Check Digit 47
Transmit Matrix 2 of 5 Check Digit 47
12 Inverse 1D 48
13 Codabar 49
Enable/Disable Codabar 49
Set Lengths for Codabar 49
CLSI Editing 50
NOTIS Editing 50
14 MSI 51
Enable/Disable MSI 51
Set Lengths for MSI 51
MSI Check Digits 52
Transmit MSI Check Digit 52
MSI Check Digit Algorithm 53
15 GS1-DataBar 54
Enable/Disable GS1 DataBar Omnidirectional 54
Enable/Disable GS1 DataBar Limited 54
Enable/Disable GS1 DataBar Expanded 55
Convert GS1 DataBar to UPC/EAN 55
16 Numeric Bar Codes 56
Cancel 57
4Barcode scanner configuration guide
5Barcode scanner configuration guide
1 Introduction
This booklet describes the programmable parameters, and provides bar codes for programming the Pocket Memo dictation recorder with barcode
scanner.
Operational Parameters
The Pocket Memo dictation recorder with barcode scanner is shipped with the factory default settings shown in the table below. These factory default
values are stored in non-volatile memory and are preserved even when the scanner is powered down.
To change the parameter values:
a Scan the appropriate bar codes included in this chapter.
XThe new values replace the existing memory values.
b The factory default values can be recalled by scanning the RESTORE DEFAULTS bar code on page 7.
Parameter defaults
The table lists the factory defaults for all parameters. To change any option, scan the appropriate bar code(s).
Parameter Parameter no (Hex) Factory default
Set Factory Default All Defaults
UPC/EAN
UPC-A 01h Enable
UPC-E 02h Enable
UPC-E1 0Ch Disable
EAN-8 04h Enable
EAN-13 03h Enable
Bookland EAN 53h Disable
Bookland ISBN Format F1h 40h ISBN-10
Decode UPC/EAN Supplementals 10h Ignore
Decode UPC/EAN Supplemental Redundancy 50h 7
UPC/EAN/JAN Supplemental AIM ID Format F1h A0h Combined
Transmit UPC-A Check Digit 28h Enable
Transmit UPC-E Check Digit 29h Enable
Transmit UPC-E1 Check Digit 2Ah Enable
UPC-A Preamble 22h System Character
UPC-E Preamble 23h System Character
UPC-E1 Preamble 24h System Character
Convert UPC-E to A 25h Disable
Convert UPC-E1 to A 26h Disable
EAN-8 Zero Extend 27h Disable
UPC/EAN Security Level 4Dh 1
UCC Coupon Extended Code 55h Disable
Coupon Report F1h DAh Both Coupon Formats
ISSN EAN F1h 69h Disable
Code 128
Code 128 08h Enable
Set Length(s) for Code 128 D1h
D2h
1-55
GS1-128 (formerly UCC/EAN-128) 0Eh Enable
ISBT 128 54h Enable
ISBT Concatenation F1h 41h Disable
Check ISBT Table F1h 42h Enable
ISBT Concatenation Redundancy DFh 10
Code 39
Code 39 00h Enable
Trioptic Code 39 0Dh Disable
Convert Code 39 to Code 32 56h Disable
6Barcode scanner configuration guide
Parameter Parameter no (Hex) Factory default
Code 32 Prefix E7h Disable
Set Length(s) for Code 39 12h
13h
2-55
Code 39 Check Digit Verification 30h Disable
Transmit Code 39 Check Digit 2Bh Disable
Code 39 Full ASCII Conversion 11h Disable
Code 93
Code 93 09h Disable
Set Length(s) for Code 93 1Ah
1Bh
4-55
Code 11
Code 11 0Ah Disable
Set Lengths for Code 11 1Ch
1Dh
4 to 55
Code 11 Check Digit Verification 34h Disable
Transmit Code 11 Check Digit(s) 2Fh Disable
Interleaved 2 of 5
Interleaved 2 of 5 06h Enable
Set Length(s) for I 2 of 5 16h
17h
14
I 2 of 5 Check Digit Verification 31h Disable
Transmit I 2 of 5 Check Digit 2Ch Disable
Convert I 2 of 5 to EAN 13 52h Disable
Discrete 2 of 5
Discrete 2 of 5 05h Disable
Set Length(s) for D 2 of 5 14h
15h
12
Chinese 2 of 5
Chinese 2 of 5 F0h 98h Disable
Matrix 2 of 5
Matrix 2 of 5 F1h 6Ah Disable
Matrix 2 of 5 Lengths F1h 6Bh
F1h 6Ch
14
Matrix 2 of 5 Redundancy F1h 6Dh Disable
Matrix 2 of 5 Check Digit F1h 6Eh Disable
Transmit Matrix 2 of 5 Check Digit F1h 6Fh Disable
Inverse 1D
Inverse 1D F1h 4Ah Regular
Codabar
Codabar 07h Disable
Set Lengths for Codabar 18h
19h
5-55
CLSI Editing 36h Disable
NOTIS Editing 37h Disable
MSI
MSI 0Bh Disable
Set Length(s) for MSI 1Eh
1Fh
6-55
MSI Check Digits 32h One
Transmit MSI Check Digit 2Eh Disable
MSI Check Digit Algorithm 33h Mod 10/Mod 10
GS1 DataBar
GS1 DataBar Omnidirectional F0h 52h Enable
GS1 DataBar Limited F0h 53h Enable
GS1 DataBar Expanded F0h 54h Enable
Convert GS1 DataBar to UPC/EAN F0h
8Dh
Disable
7Barcode scanner configuration guide
2 Set default parameter
Scan Set Factory Defaults to restore the factory default values listed in the table on page 5.
Parameter Menus 4 - 7
Set Default Parameter
Scan Set Factory Defaults to restore the factory default values listed in Table 4-1 on page 4-2.
Set Factory Defaults
LED On Time
Parameter # 88h
This parameter sets the maximum time decode processing continues during a scan attempt. It is programmable in 0.1
second increments from 0.50 to 25.5 seconds.
To set an LED On Time, scan the bar code below. Next scan two numeric bar codes beginning on page 4-73 that
correspond to the desired on time. Single digit numbers must have a leading zero. For example, to set an on time of 0.5
seconds, scan the bar code below, then scan the "0", "5" and "0" bar codes; to set an on time of 10.5 seconds, scan the bar
code below, then scan the "1", "0" and "5" bar codes. To change the selection or cancel an incorrect entry, scan Cancel on
page 4-74.
LED On Time
(Default: 3.0 sec.)
8Barcode scanner configuration guide
3 UPC/EAN
Enable/Disable UPC-A
Parameter # 01h

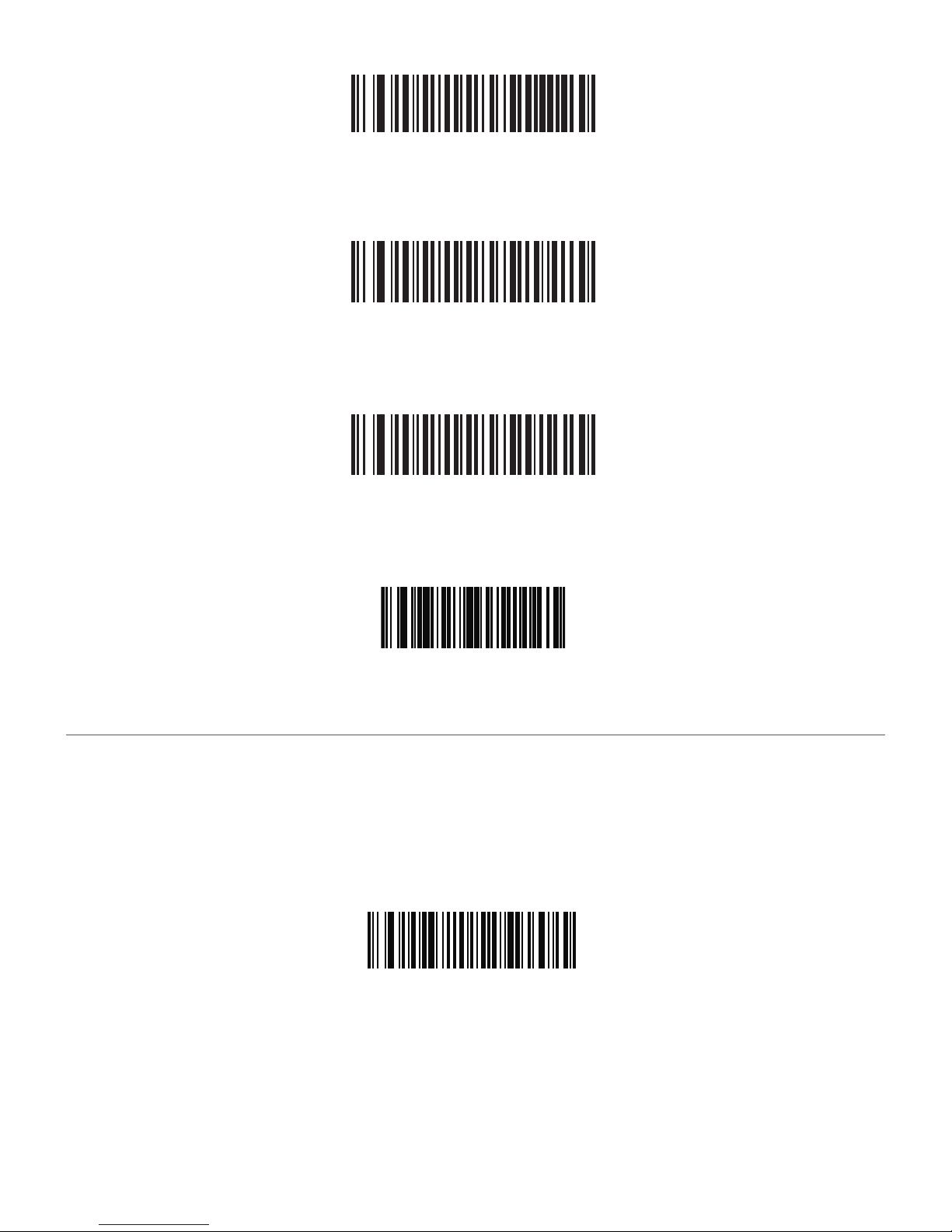

To enable or disable UPC-A, scan the appropriate bar code below.
Parameter Menus 4 - 13
UPC/EAN
Enable/Disable UPC-A
Parameter # 01h
To enable or disable UPC-A, scan the appropriate bar code below.
*Enable UPC-A
(01h)
Disable UPC-A
(00h)
Enable/Disable UPC-E
Parameter # 02h
To enable or disable UPC-E, scan the appropriate bar code below.
*Enable UPC-E
(01h)
Disable UPC-E
(00h)
Enable/Disable UPC-E
Parameter # 02h
To enable or disable UPC-E, scan the appropriate bar code below.
Parameter Menus 4 - 13
UPC/EAN
Enable/Disable UPC-A
Parameter # 01h
To enable or disable UPC-A, scan the appropriate bar code below.
*Enable UPC-A
(01h)
Disable UPC-A
(00h)
Enable/Disable UPC-E
Parameter # 02h
To enable or disable UPC-E, scan the appropriate bar code below.
*Enable UPC-E
(01h)
Disable UPC-E
(00h)
9Barcode scanner configuration guide
Enable/Disable UPC-E1
Parameter # 0Ch
To enable or disable UPC-E1, scan the appropriate bar code below.
NOTE: UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
4 - 14 SE655 Decoded Linear Imaging Engine
Enable/Disable UPC-E1
Parameter # 0Ch
To enable or disable UPC-E1, scan the appropriate bar code below.
Enable UPC-E1
(01h)
*Disable UPC-E1
(00h)
Enable/Disable EAN-8
Parameter # 04h
To enable or disable EAN-8, scan the appropriate bar code below.
*Enable EAN-8
(01h)
Disable EAN-8
(00h)
NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
Enable/Disable EAN-8
Parameter # 04h
To enable or disable EAN-8, scan the appropriate bar code below.
4 - 14 SE655 Decoded Linear Imaging Engine
Enable/Disable UPC-E1
Parameter # 0Ch
To enable or disable UPC-E1, scan the appropriate bar code below.
Enable UPC-E1
(01h)
*Disable UPC-E1
(00h)
Enable/Disable EAN-8
Parameter # 04h
To enable or disable EAN-8, scan the appropriate bar code below.
*Enable EAN-8
(01h)
Disable EAN-8
(00h)
NOTE UPC-E1 is not a UCC (Uniform Code Council) approved symbology.
10 Barcode scanner configuration guide
Enable/Disable EAN-13
Parameter # 03h
To enable or disable EAN-13, scan the appropriate bar code below
Parameter Menus 4 - 15
Enable/Disable EAN-13
Parameter # 03h
To enable or disable EAN-13, scan the appropriate bar code below.
*Enable EAN-13
(01h)
Disable EAN-13
(00h)
Enable/Disable Bookland EAN
Parameter # h53h
To enable or disable EAN Bookland, scan the appropriate bar code below.
Enable Bookland EAN
(01h)
*Disable Bookland EAN
(00h)
NOTE If you enable Bookland EAN, select a Bookland ISBN Format on page 4-16. Also select either Decode
UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental
Mode in Decode UPC/EAN Supplementals on page 4-17.
Enable/Disable Bookland EAN
Parameter # h53h
To enable or disable EAN Bookland, scan the appropriate bar code below.
Parameter Menus 4 - 15
Enable/Disable EAN-13
Parameter # 03h
To enable or disable EAN-13, scan the appropriate bar code below.
*Enable EAN-13
(01h)
Disable EAN-13
(00h)
Enable/Disable Bookland EAN
Parameter # h53h
To enable or disable EAN Bookland, scan the appropriate bar code below.
Enable Bookland EAN
(01h)
*Disable Bookland EAN
(00h)
NOTE If you enable Bookland EAN, select a Bookland ISBN Format on page 4-16. Also select either Decode
UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental
Mode in Decode UPC/EAN Supplementals on page 4-17.
NOTE: If you enable Bookland EAN, select a Bookland ISBN Format. Also select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/
EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals.
11Barcode scanner configuration guide
Bookland ISBN Format
Parameter # F1h 40h
If Bookland EAN is enabled, select one of the following formats for Bookland data:
• Bookland ISBN-10 - The digital scanner reports Bookland data starting with 978 in traditional 10-digit format with the special Bookland check digit
for backward-compatibility. Data starting with 979 is not considered Bookland in this mode.
• Bookland ISBN-13 - The digital scanner reports Bookland data (starting with either 978 or 979) as EAN-13 in 13-digit format to meet the 2007
ISBN-13 protocol.
4 - 16 SE655 Decoded Linear Imaging Engine
Bookland ISBN Format
Parameter # F1h 40h
If Bookland EAN is enabled, select one of the following formats for Bookland data:
•
Bookland ISBN-10 - The digital scanner reports Bookland data starting with 978 in traditional 10-digit format with the
special Bookland check digit for backward-compatibility. Data starting with 979 is not considered Bookland in this
mode.
•
Bookland ISBN-13 - The digital scanner reports Bookland data (starting with either 978 or 979) as EAN-13 in 13-digit
format to meet the 2007 ISBN-13 protocol.
•
*Bookland ISBN-10
(00h)
Bookland ISBN-13
(01h)
NOTE For Bookland EAN to function properly, ensure Bookland EAN is enabled (see Enable/Disable Bookland
EAN on page 4-15), then select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN
Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals on page
4-17.
NOTE: For Bookland EAN to function properly, ensure Bookland EAN is enabled (see Enable/Disable Bookland EAN), then select either Decode
UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals.
Decode UPC/EAN Supplementals
Parameter # 10h
Supplementals are bar codes appended according to specific format conventions (e.g., UPC A+2, UPC E+2, EAN 13+2).
The following options are available:
• If you select Ignore UPC/EAN with Supplementals, and the scanner is presented with a UPC/EAN plus supplemental symbol, the scanner decodes
UPC/EAN and ignores the supplemental characters.
• If you select Decode UPC/EAN with Supplementals, the scanner only decodes UPC/EAN symbols with supplemental characters, and ignores
symbols without supplementals.
• If you select Autodiscriminate UPC/EAN Supplementals, the scanner decodes UPC/EAN symbols with supplemental characters immediately. If
the symbol does not have a supplemental, the scanner must decode the bar code the number of times set via Decode UPC/EAN Supplemental
Redundancy before transmitting its data to confirm that there is no supplemental.
• If you select one of the following Supplemental Mode options, the scanner immediately transmits EAN-13 bar codes starting with that prefix that
have supplemental characters. If the symbol does not have a supplemental, the scanner must decode the bar code the number of times set via
Decode UPC/EAN Supplemental Redundancy before transmitting its data to confirm that there is no supplemental. The scanner transmits UPC/
EAN bar codes that do not have that prefix immediately.
• Enable 378/379 Supplemental Mode.
• Enable 978/979 Supplemental Mode.
» NOTE: If you select 978/979 Supplemental Mode and are scanning Bookland EAN bar codes, see Enable/Disable Bookland EAN to enable
Bookland EAN, and select a format using Bookland ISBN Format.
• Enable 977 Supplemental Mode.
• Enable 414/419/434/439 Supplemental Mode.
• Enable 491 Supplemental Mode.
• Enable Smart Supplemental Mode - applies to EAN-13 bar codes starting with any prefix listed previously.
» NOTE: To minimize the risk of invalid data transmission, select either to decode or ignore supplemental characters.
12 Barcode scanner configuration guide
Select the desired option by scanning one of the following bar codes.
4 - 18 SE655 Decoded Linear Imaging Engine
Decode UPC/EAN Supplementals (continued)
Select the desired option by scanning one of the following bar codes.
Decode UPC/EAN With Supplementals
(01h)
*Ignore UPC/EAN With Supplementals
(00h)
Autodiscriminate UPC/EAN Supplementals
(02h)
Enable 378/379 Supplemental Mode
(04h)
Enable 978/979 Supplemental Mode
(05h)
13Barcode scanner configuration guide
Parameter Menus 4 - 19
Decode UPC/EAN Supplementals (continued)
Enable 977 Supplemental Mode
(07h)
Enable 414/419/434/439 Supplemental Mode
(06h)
Enable 491 Supplemental Mode
(08h)
Enable Smart Supplemental Mode
(03h)
Decode UPC/EAN Supplemental Redundancy
Parameter # 50h
With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts the number of times a symbol without
supplementals are decoded before transmission. The range is from 2 to 20 times. Five or above is recommended when
decoding a mix of UPC/EAN symbols with and without supplementals, and the autodiscriminate option is selected.
Scan the bar code below to select a decode redundancy value. Next scan two numeric bar codes beginning on page 4-73.
Single digit numbers must have a leading zero. To change the selection or cancel an incorrect entry, scan Cancel on page
4-74.
Decode UPC/EAN Supplemental Redundancy
(Default: 7)
Decode UPC/EAN Supplemental Redundancy
Parameter # 50h
With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts the number of times a symbol without supplementals are decoded
before transmission. The range is from 2 to 20 times. Five or above is recommended when decoding a mix of UPC/EAN symbols with and without
supplementals, and the autodiscriminate option is selected. Scan the bar code below to select a decode redundancy value. Next scan two numeric bar
codes beginning on page 56. Single digit numbers must have a leading zero. To change the selection or cancel an incorrect entry, scan Cancel on page
57.
Parameter Menus 4 - 19
Decode UPC/EAN Supplementals (continued)
Enable 977 Supplemental Mode
(07h)
Enable 414/419/434/439 Supplemental Mode
(06h)
Enable 491 Supplemental Mode
(08h)
Enable Smart Supplemental Mode
(03h)
Decode UPC/EAN Supplemental Redundancy
Parameter # 50h
With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts the number of times a symbol without
supplementals are decoded before transmission. The range is from 2 to 20 times. Five or above is recommended when
decoding a mix of UPC/EAN symbols with and without supplementals, and the autodiscriminate option is selected.
Scan the bar code below to select a decode redundancy value. Next scan two numeric bar codes beginning on page 4-73.
Single digit numbers must have a leading zero. To change the selection or cancel an incorrect entry, scan Cancel on page
4-74.
Decode UPC/EAN Supplemental Redundancy
(Default: 7)
14 Barcode scanner configuration guide
UPC/EAN/JAN Supplemental AIM ID Format
Parameter # F1h A0h
Select an output format when reporting UPC/EAN/JAN bar codes with Supplementals with Transmit Code ID Character set to AIM Code ID
Character:
• Separate - transmit UPC/EAN with supplementals with separate AIM IDs but one transmission, i.e.:
]E<0 or 4><data>]E<1 or 2>[supplemental data]
• Combined – transmit UPC/EAN with supplementals with one AIM ID and one transmission, i.e.:
]E3<data+supplemental data>
• Separate Transmissions - transmit UPC/EAN with supplementals with separate AIM IDs and separate transmissions, i.e.:
]E<0 or 4><data>
]E<1 or 2>[supplemental data]
4 - 20 SE655 Decoded Linear Imaging Engine
UPC/EAN/JAN Supplemental AIM ID Format
Parameter # F1h A0h
Select an output format when reporting UPC/EAN/JAN bar codes with Supplementals with Transmit Code ID Character on
page 4-67 set to AIM Code ID Character:
•
Separate - transmit UPC/EAN with supplementals with separate AIM IDs but one transmission, i.e.:
]E<0 or 4><data>]E<1 or 2>[supplemental data]
•
Combined – transmit UPC/EAN with supplementals with one AIM ID and one transmission, i.e.:
]E3<data+supplemental data>
•
Separate Transmissions - transmit UPC/EAN with supplementals with separate AIM IDs and separate transmissions,
i.e.:
]E<0 or 4><data>
]E<1 or 2>[supplemental data]
Separate
(00h)
*Combined
(01h)
Separate Transmissions
NEW END
Transmit UPC-A Check Digit
Parameter # 28h
Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit.
Parameter Menus 4 - 21
Transmit UPC-A Check Digit
Parameter # 28h
Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit.
*Transmit UPC-A Check Digit
(01h)
Do Not Transmit UPC-A Check Digit
(00h)
Transmit UPC-E Check Digit
Parameter # 29h
Scan the appropriate bar code below to transmit the symbol with or without the UPC-E check digit.
*Transmit UPC-E Check Digit
(01h)
Do Not Transmit UPC-E Check Digit
(00h)
15Barcode scanner configuration guide
Transmit UPC-E Check Digit
Parameter # 29h
Scan the appropriate bar code below to transmit the symbol with or without the UPC-E check digit.
Parameter Menus 4 - 21
Transmit UPC-A Check Digit
Parameter # 28h
Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit.
*Transmit UPC-A Check Digit
(01h)
Do Not Transmit UPC-A Check Digit
(00h)
Transmit UPC-E Check Digit
Parameter # 29h
Scan the appropriate bar code below to transmit the symbol with or without the UPC-E check digit.
*Transmit UPC-E Check Digit
(01h)
Do Not Transmit UPC-E Check Digit
(00h)
Transmit UPC-E1 Check Digit
Parameter # 2Ah
Scan the appropriate bar code below to transmit the symbol with or without the UPC-E1 check digit.
4 - 22 SE655 Decoded Linear Imaging Engine
Transmit UPC-E1 Check Digit
Parameter # 2Ah
Scan the appropriate bar code below to transmit the symbol with or without the UPC-E1 check digit.
*Transmit UPC-E1 Check Digit
(01h)
Do Not Transmit UPC-E1 Check Digit
(00h)
UPC-A Preamble
Parameter # 22h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol. Select one of
the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
No Preamble
(<DATA>)
(00h)
*System Character
(<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
16 Barcode scanner configuration guide
UPC-A Preamble
Parameter # 22h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol. Select one of the following options for
transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or
transmit no preamble.
4 - 22 SE655 Decoded Linear Imaging Engine
Transmit UPC-E1 Check Digit
Parameter # 2Ah
Scan the appropriate bar code below to transmit the symbol with or without the UPC-E1 check digit.
*Transmit UPC-E1 Check Digit
(01h)
Do Not Transmit UPC-E1 Check Digit
(00h)
UPC-A Preamble
Parameter # 22h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol. Select one of
the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
No Preamble
(<DATA>)
(00h)
*System Character
(<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
17Barcode scanner configuration guide
UPC-E Preamble
Parameter # 23h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E symbol. Select one of the following options for
transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or
transmit no preamble.
Parameter Menus 4 - 23
UPC-E Preamble
Parameter # 23h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E symbol. Select one of
the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
No Preamble
(<DATA>)
(00h)
*System Character
(<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
18 Barcode scanner configuration guide
UPC-E1 Preamble
Parameter # 24h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E1 symbol. Select one of the following options for
transmitting UPC-E1 preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or
transmit no preamble.
4 - 24 SE655 Decoded Linear Imaging Engine
UPC-E1 Preamble
Parameter # 24h
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E1 symbol. Select one of
the following options for transmitting UPC-E1 preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
No Preamble
(<DATA>)
(00h)
*System Character
(<SYSTEM CHARACTER> <DATA>)
(01h)
System Character & Country Code
(< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>)
(02h)
Convert UPC-E to UPC-A
Parameter # 25h
Enable this parameter to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows
UPC-A format and is aected by UPC-A programming selections (e.g., Preamble, Check Digit).
Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E (zero suppressed) decoded data.
Parameter Menus 4 - 25
Convert UPC-E to UPC-A
Parameter # 25h
Enable this parameter to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E (zero suppressed) decoded data.
Convert UPC-E to UPC-A (Enable)
(01h)
*Do Not Convert UPC-E to UPC-A (Disable)
(00h)
Convert UPC-E1 to UPC-A
Parameter # 26h
Enable this parameter to convert UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E1 (zero suppressed) decoded data.
Convert UPC-E1 to UPC-A (Enable)
(01h)
*Do Not Convert UPC-E1 to UPC-A (Disable)
(00h)
19Barcode scanner configuration guide
Convert UPC-E1 to UPC-A
Parameter # 26h
Enable this parameter to convert UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows
UPC-A format and is aected by UPC-A programming selections (e.g., Preamble, Check Digit).
Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E1 (zero suppressed) decoded data.
Parameter Menus 4 - 25
Convert UPC-E to UPC-A
Parameter # 25h
Enable this parameter to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E (zero suppressed) decoded data.
Convert UPC-E to UPC-A (Enable)
(01h)
*Do Not Convert UPC-E to UPC-A (Disable)
(00h)
Convert UPC-E1 to UPC-A
Parameter # 26h
Enable this parameter to convert UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).
Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E1 (zero suppressed) decoded data.
Convert UPC-E1 to UPC-A (Enable)
(01h)
*Do Not Convert UPC-E1 to UPC-A (Disable)
(00h)
EAN Zero Extend
Parameter # 27h
When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols.
Disable this parameter to transmit EAN-8 symbols as is.
4 - 26 SE655 Decoded Linear Imaging Engine
EAN Zero Extend
Parameter # 27h
When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to
EAN-13 symbols.
Disable this parameter to transmit EAN-8 symbols as is.
Enable EAN Zero Extend
(01h)
*Disable EAN Zero Extend
(00h)
20 Barcode scanner configuration guide
UPC/EAN Security Level
Parameter # 4Dh
The scanner oers four levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for decreasing levels of bar code
quality. Select higher levels of security for decreasing levels of bar code quality. Increasing security decreases the scan engine’s aggressiveness, so choose
only that level of security necessary for the application.
UPC/EAN Security Level 0
This default setting allows the scan engine to operate in its most aggressive state, while providing sucient security in decoding most “in-spec” UPC/
EAN bar codes.
Parameter Menus 4 - 27
UPC/EAN Security Level
Parameter # 4Dh
The SE655 offers four levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for
decreasing levels of bar code quality. Select higher levels of security for decreasing levels of bar code quality. Increasing
security decreases the scan engine’s aggressiveness, so choose only that level of security necessary for the application.
UPC/EAN Security Level 0
This default setting allows the scan engine to operate in its most aggressive state, while providing sufficient security in
decoding most “in-spec” UPC/EAN bar codes.
UPC/EAN Security Level 0
(00h)
UPC/EAN Security Level 1
As bar code quality levels diminish, certain characters become prone to mis-decodes before others (i.e., 1, 2, 7, 8). If
mis-decodes of poorly printed bar codes occur, and the mis-decodes are limited to these characters, select this security
level.
*UPC/EAN Security Level 1
(01h)
UPC/EAN Security Level 2
If mis-decodes of poorly printed bar codes occur, and the mis-decodes are not limited to characters 1, 2, 7, and 8, select
this security level.
UPC/EAN Security Level 2
(02h)
UPC/EAN Security Level 3
If misdecodes still occur after selecting Security Level 2, select this security level. Be advised, selecting this option is an
extreme measure against mis-decoding severely out of spec bar codes. Selection of this level of security significantly
impairs the decoding ability of the scan engine. If this level of security is necessary, try to improve the quality of the bar
codes.
UPC/EAN Security Level 3
(03h)
UPC/EAN Security Level 1
As bar code quality levels diminish, certain characters become prone to mis-decodes before others (i.e., 1, 2, 7, 8). If mis-decodes of poorly printed
bar codes occur, and the mis-decodes are limited to these characters, select this security level.
Parameter Menus 4 - 27
UPC/EAN Security Level
Parameter # 4Dh
The SE655 offers four levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for
decreasing levels of bar code quality. Select higher levels of security for decreasing levels of bar code quality. Increasing
security decreases the scan engine’s aggressiveness, so choose only that level of security necessary for the application.
UPC/EAN Security Level 0
This default setting allows the scan engine to operate in its most aggressive state, while providing sufficient security in
decoding most “in-spec” UPC/EAN bar codes.
UPC/EAN Security Level 0
(00h)
UPC/EAN Security Level 1
As bar code quality levels diminish, certain characters become prone to mis-decodes before others (i.e., 1, 2, 7, 8). If
mis-decodes of poorly printed bar codes occur, and the mis-decodes are limited to these characters, select this security
level.
*UPC/EAN Security Level 1
(01h)
UPC/EAN Security Level 2
If mis-decodes of poorly printed bar codes occur, and the mis-decodes are not limited to characters 1, 2, 7, and 8, select
this security level.
UPC/EAN Security Level 2
(02h)
UPC/EAN Security Level 3
If misdecodes still occur after selecting Security Level 2, select this security level. Be advised, selecting this option is an
extreme measure against mis-decoding severely out of spec bar codes. Selection of this level of security significantly
impairs the decoding ability of the scan engine. If this level of security is necessary, try to improve the quality of the bar
codes.
UPC/EAN Security Level 3
(03h)
UPC/EAN Security Level 2
If mis-decodes of poorly printed bar codes occur, and the mis-decodes are not limited to characters 1, 2, 7, and 8, select this security level.
Parameter Menus 4 - 27
UPC/EAN Security Level
Parameter # 4Dh
The SE655 offers four levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for
decreasing levels of bar code quality. Select higher levels of security for decreasing levels of bar code quality. Increasing
security decreases the scan engine’s aggressiveness, so choose only that level of security necessary for the application.
UPC/EAN Security Level 0
This default setting allows the scan engine to operate in its most aggressive state, while providing sufficient security in
decoding most “in-spec” UPC/EAN bar codes.
UPC/EAN Security Level 0
(00h)
UPC/EAN Security Level 1
As bar code quality levels diminish, certain characters become prone to mis-decodes before others (i.e., 1, 2, 7, 8). If
mis-decodes of poorly printed bar codes occur, and the mis-decodes are limited to these characters, select this security
level.
*UPC/EAN Security Level 1
(01h)
UPC/EAN Security Level 2
If mis-decodes of poorly printed bar codes occur, and the mis-decodes are not limited to characters 1, 2, 7, and 8, select
this security level.
UPC/EAN Security Level 2
(02h)
UPC/EAN Security Level 3
If misdecodes still occur after selecting Security Level 2, select this security level. Be advised, selecting this option is an
extreme measure against mis-decoding severely out of spec bar codes. Selection of this level of security significantly
impairs the decoding ability of the scan engine. If this level of security is necessary, try to improve the quality of the bar
codes.
UPC/EAN Security Level 3
(03h)
UPC/EAN Security Level 3
If misdecodes still occur after selecting Security Level 2, select this security level. Be advised, selecting this option is an extreme measure against mis-
decoding severely out of spec bar codes. Selection of this level of security significantly impairs the decoding ability of the scan engine. If this level of
security is necessary, try to improve the quality of the bar codes.
Parameter Menus 4 - 27
UPC/EAN Security Level
Parameter # 4Dh
The SE655 offers four levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for
decreasing levels of bar code quality. Select higher levels of security for decreasing levels of bar code quality. Increasing
security decreases the scan engine’s aggressiveness, so choose only that level of security necessary for the application.
UPC/EAN Security Level 0
This default setting allows the scan engine to operate in its most aggressive state, while providing sufficient security in
decoding most “in-spec” UPC/EAN bar codes.
UPC/EAN Security Level 0
(00h)
UPC/EAN Security Level 1
As bar code quality levels diminish, certain characters become prone to mis-decodes before others (i.e., 1, 2, 7, 8). If
mis-decodes of poorly printed bar codes occur, and the mis-decodes are limited to these characters, select this security
level.
*UPC/EAN Security Level 1
(01h)
UPC/EAN Security Level 2
If mis-decodes of poorly printed bar codes occur, and the mis-decodes are not limited to characters 1, 2, 7, and 8, select
this security level.
UPC/EAN Security Level 2
(02h)
UPC/EAN Security Level 3
If misdecodes still occur after selecting Security Level 2, select this security level. Be advised, selecting this option is an
extreme measure against mis-decoding severely out of spec bar codes. Selection of this level of security significantly
impairs the decoding ability of the scan engine. If this level of security is necessary, try to improve the quality of the bar
codes.
UPC/EAN Security Level 3
(03h)
Table of contents
Other Philips Barcode Reader manuals
