Philips AZ 1110 User manual

CD Radio Cassette Recorder AZ 1110
DYNAMIC
•CD
•RADIO
•TAPE
POWER OFF
POWER ON
•CD
•RADIO
•TAPE
POWER OFF
DBB
BOOST
POWER ON
SHUFFLE
SEARCH
MODE
STOP
SEARCH
MODE
STOP
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
PLAY•PAUSE
FM
FM -
MW -
FM -
MW -
88
92
96
100
104
108
MHz
FM
88
92
96
100
104
108
MHz
MW
530
650
830
1000
1200
1600
KHz
MW
530
650
830
1000
1200
1600
KHz
OPEN
OPEN

3
AZ1110/15 page 3
DYNAMIC
•CD
•RADIO
•TAPE
POWER OFF
DBB
BOOST
POWER ON
SHUFFLE
SEARCH
MODE
STOP
PLAY•PAUSE
FM
FM -
AM -
88
92
96
100
104
108
MHz
AM
530
650
830
1000
1200
1600
KHz
OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
@
4
3
2
1
!
0
7
9
5
6
8
^#% $
AZ 1110/12 10/4/01 18:03 Page 3

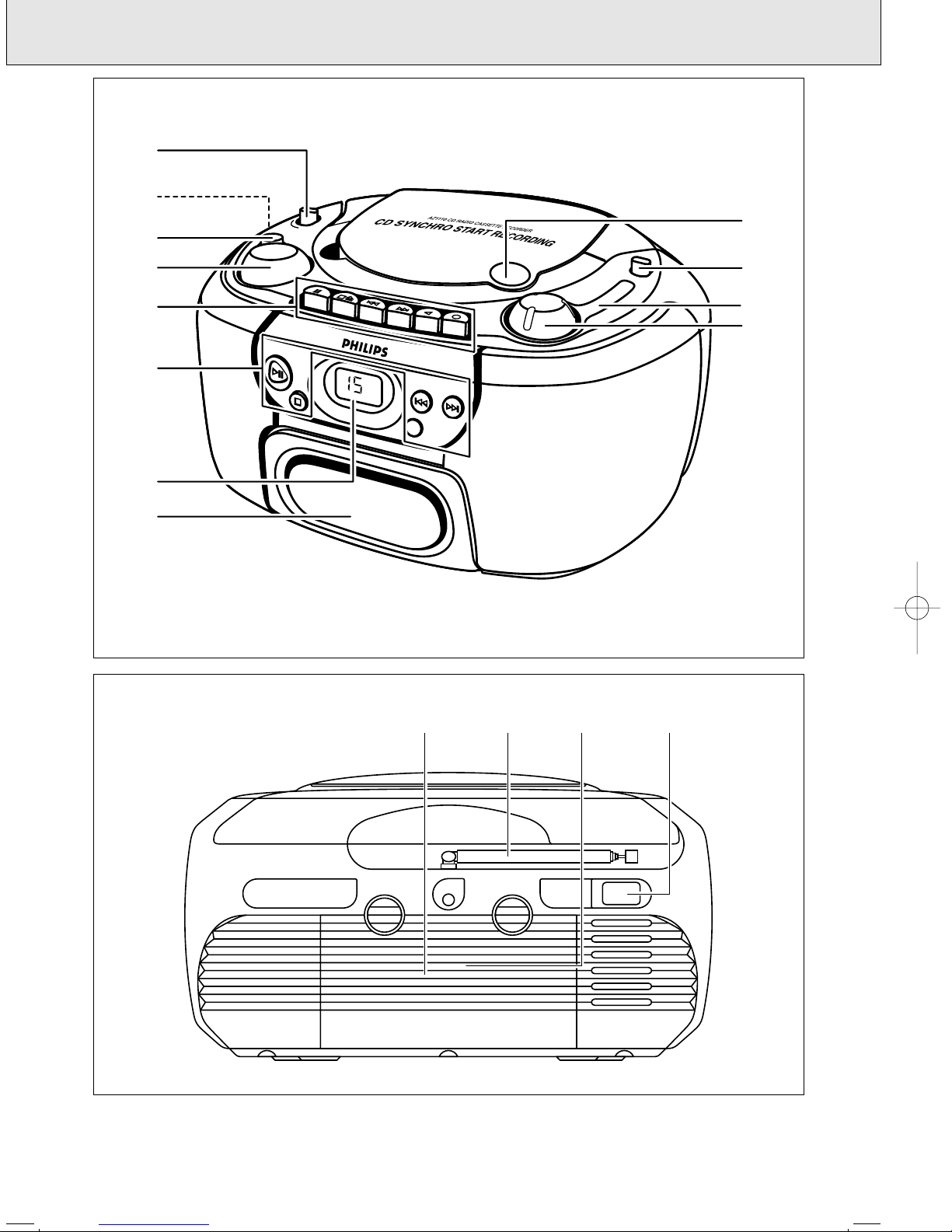

CONTROLS
1DBB (Dynamic Bass Boost) – to increase the bass level
2VOLUME – to adjust the volume level
3Cassette keys
PAUSE ;– to interrupt playback
STOP•OPEN 9/– to stop playback and open the cassette compartment
SEARCH 5– to fast forward the tape
SEARCH 6– to fast rewind the tape
PLAY 1– to start playback
RECORD 0– to start recording
4CD buttons
PLAY•PAUSE 2; – to start or interrupt CD playback
STOP 9– to stop playback
SEARCH ∞§– to skip or search a passage or a track
MODE – to select a different playback mode e.g. to SHUFFLE or REPEAT and to program track
numbers
5CD display – to indicate CD functions
6Cassette compartment
7TUNING – to tune to radio stations
8Tuning dial pointer
9Band selector – to select the wave band (FM-MW)
0OPEN – to open the CD door
!Source selector – POWER ON/OFF switch and to select the sound source: CD - RADIO - TAPE
@p– 3.5 mm headphone socket
Note: Connecting headphones will automatically disconnect the speakers
#Telescopic aerial – To improve FM reception
$MAINS – for mains lead
%Battery door – to open the battery compartment
^Voltage selector – (inside battery compartment)
Both the model and production numbers can be found on the bottom of the set.
BACK PANEL
TOP and FRONT PANEL
4
AZ 1110/01 page 4
English
AZ 1110/12 10/4/01 18:03 Page 4

POWER SUPPLY
Whenever convenient, use the mains supply if you want to conserve
battery life. Make sure you remove the mains plug from the set and wall
socket before inserting batteries.
Batteries (optional)
1. Open the battery compartment and insert as shown six batteries,
type R20, or D-cells.
2. Replace the compartment door, making sure the batteries are firmly
and correctly in place.
3. Remove the batteries if exhausted or if they will not be used again for
a long period.
– The incorrect use of batteries can cause electrolyte leakage and will
corrode the compartment or cause the batteries to burst. Therefore:
– Do not mix battery types, e.g. alkaline with zinc carbonate.
– When inserting new batteries, replace all batteries at the same time.
Batteries contain chemical substances, so they should be
disposed of properly
Note:
The battery supply is switched off when the set is connected to
the mains.
1. Check if the mains voltage as shown on the type plate (on the bottom
of the set) corresponds to your local mains voltage. If it does not, con-
sult your dealer or service organisation.
2. If your set is equipped with a voltage selector, set it to the local mains
voltage.
3. Connect the mains lead to the MAINS socket and the wall socket.
– The set is now ready to use.
4. To switch off the mains supply completely, pull the mains plug out of
the wall socket.
– Disconnect the mains lead when you change over to battery supply, or
to protect the set during heavy thunderstorms.
Environmental information
All redundant packaging material has been omitted. We have done our utmost to make the packaging
easily separable into three mono materials: cardboard (box), expandable polystyrene (buffer) and
polyethylene (bags, protective foam sheet).
Your set consists of materials which can be recycled if dissassembled by a specialized
company. Please observe the local regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.
MAINS
BATTERIES
5
AZ 1110/01 page 5
English
6 x D-cells - R20
MAINS
AZ 1110/12 10/4/01 18:03 Page 5

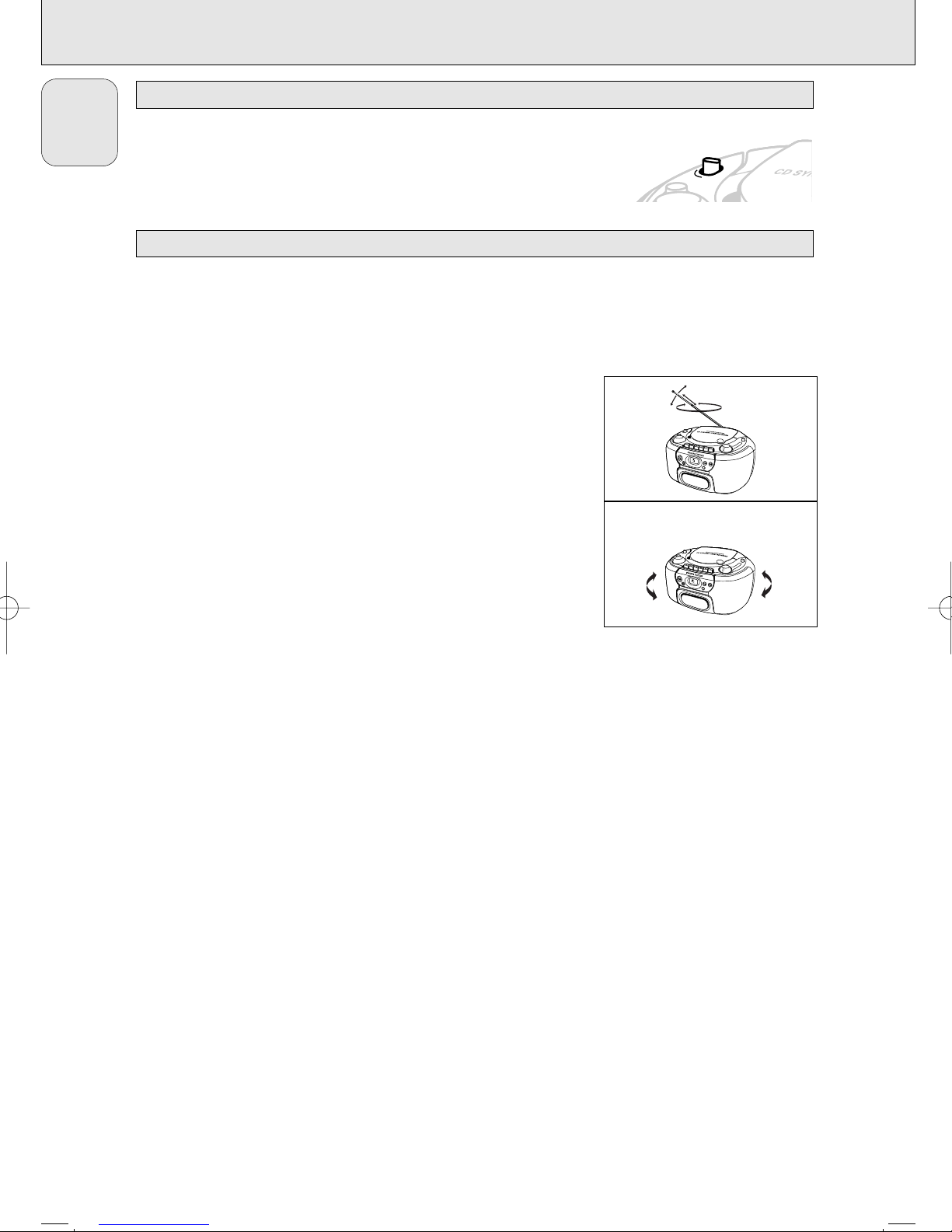

OPERATION RADIO
1. To switch on the set, use the source selector
2. Adjust the sound using the VOLUME control and DBB switch.
3. To switch off the set, set the source selector to TAPE/POWER/OFF
position, with the cassette keys released.
1. Set the source selector to RADIO.
2. Adjust the so u nd using the VOLUME control and the DBB switch.
3. Select the wave band using the FM-MW band selector.
4. Tune to a radio station using the TUNING knob.
– For FM, pull out the telescopic aerial. To improve FM-reception,
incline and turn the aerial. Reduce its length if the FM-signal is
too strong (very close to a transmitter).
– For MW, the set is provided with a built-in aerial, so the
telescopic aerial is not needed. Direct the aerial by turning the
whole set.
5. To switch off the set, set the source selector to TAPE/POWER/OFF
position, with the cassette keys released.
RADIO
GENERAL OPERATION
6
AZ 1110/01 page 6
English
DYNAMIC
•CD
•RADIO
•TAPE
POWER OFF
DBB
BOOST
POWER ON
DYNAMIC
•CD
•RADIO
•TAPE
POWEROFF
DBB
BOOST
POWERON
SHUFFLE
SEARCH
MODE
STOP
PLAY•PAUSE
FM
FM-
AM-
88
92
96
100
104
108
MHz
AM
530
650
830
1000
1200
1600
KHz
OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP• OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP• OPEN
DYNAMIC
•CD
•RADIO
•TAPE
POWEROFF
DBB
BOOST
POWERON
SHUFFLE
SEARCH
MODE
STOP
PLAY•PAUSE
FM
FM-
AM-
88
92
96
100
104
108
MHz
AM
530
650
830
1000
1200
1600
KHz
OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP• OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP• OPEN
FM
MW
AZ 1110/15 10/4/01 18:03 Page 6

CD PLAYER
– Total track number: in stop position.
– Current track number: during CD play.
– Current track number flashes: in PAUSE mode.
–SHUFFLE/REPEAT mode: the respective mode is activated.
–PROGRAM: program function is active. P also appears briefly when
you store a track.
– No display: error in CD operation or with the CD
(see Troubleshooting).
1. Set the source selector to CD.
2. To open the CD compartment, press OPEN on the CD door.
3. Insert the audio CD, printed side facing up.
4. To close the CD compartment, push the door down.
– The CD player scans the contents of the CD and the total number of
tracks is displayed
5. Press PLAY•PAUSE 2; to start playback.
6. Adjust the sound using the VOLUME control and the DBB switch.
7. To interrupt playback, press PLAY•PAUSE 2;.
Press PLAY•PAUSE 2; again to continue playback.
8. Press STOP 9to stop CD playback.
9. Set the source selector to TAPE/POWER/OFF position to switch off the
set.
Note: CD playback will also stop when:
– the CD has reached the end;
– the CD door is opened;
– the source selector is in the RADIO or TAPE/POWER/OFF position.
Selecting a different track during playback
– You can jump to the next track by pressing SEARCH §once. If you
want to skip more than one track, press SEARCH §more than once
until the display shows the desired track number.
– If you want to repeat the running track from the beginning, press
∞SEARCH once. If you want to repeat one of the previous tracks,
press ∞SEARCH more than once until the display shows the
required track number.
Starting with a particular track
1. In the STOP position you can select a desired track using the
∞SEARCH or SEARCH §button.
2. Press PLAY•PAUSE 2; to start playback.
SEARCH ∞ or §
PLAYING A CD
CD DISPLAY INDICATION
7
AZ 1110/01 page 7
English
SHUFFLE
REPEAT
ALL
PROGRAM
SHUFFLE
STOP
PLAY•PAUSE
SEARC
H
OPEN
SEARC
H
OPEN
SHUFFLE
SEARCH
MODE
SEARCH
PLAY
RECORD
STOP • OPEN
SEARCH
PLAY
RECORD
STOP • OPEN
AZ 1110/12 10/4/01 18:03 Page 7

CD PLAYER
Searching for a passage within a track
You can search for a passage within a track. The CD is played at low
volume and at high speed, however, the sound is still recognizable.
1. Keep the ∞SEARCH or SEARCH §button pressed during playback,
and release the button as soon as you recognize the required pas-
sage:
– Normal CD playback will resume from this point.
The MODE button allows you to select four different modes. The
modes can be selected or changed during playback.
1. During playback only, press MODE until the desired function appears
on the display.
REPEAT - Continuous playback of the current track.
SHUFFLE - Tracks are played in random order.
REPEAT ALL, SHUFFLE - Continuous playback of tracks in random
order.
REPEAT ALL - Repeats the entire CD.
– During playback you can use ∞SEARCH or SEARCH §to skip
tracks.
2. To leave the SHUFFLE mode, press the MODE button repeatedly
until the various SHUFFLE/REPEAT modes are no longer shown on
the display. You can also press STOP 9to quit playback.
You may store at most 20 tracks in the memory in the desired sequence.
You may store any track more than once.
Programming track numbers
1. In the stop position select the desired track using ∞SEARCH or
SEARCH §until the display shows the desired track number.
2. Store the desired track by pressing MODE once.
– The display shows P and PROGRAM followed by your selected
track number.
3 Select and store all desired tracks of a CD in this way.
Checking a program
1. To review the set program, in the stop position press and hold
MODE for more than 2 seconds.
– The display will show the track numbers you have selected in
sequence.
2. To start playback of the program, press PLAY•PAUSE 2;.
– Playback starts with the first track of the program. After the last
track, playback stops and the display shows the CD’s total num-
ber of tracks.
PROGRAMMING TRACK NUMBERS
SHUFFLE/REPEAT
8
AZ 1110/01 page 8
English
REPEAT
ALL
REPEAT

x 1
x 2
x 3
x 4
REPEAT
ALL
SHUFFLE

SHUFFLE
SHUFFLE
SEARCH
MODE
P
PLA
Y
RECORD
PLAY
RECORD
AZ 1110/12 10/4/01 18:03 Page 8

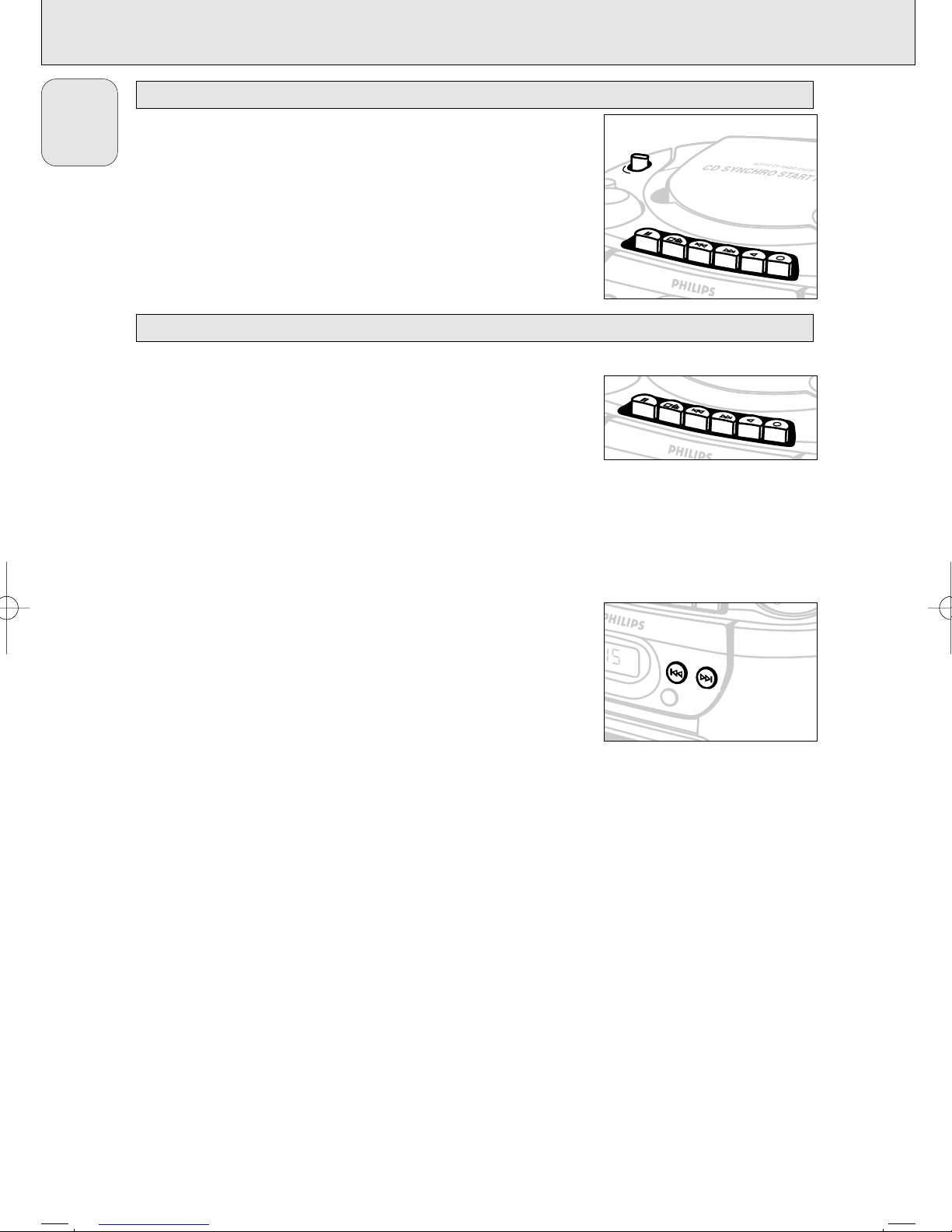

CD PLAYER CASSETTE RECORDER
Erasing a program
You can erase a program by:
– opening the CD door.
– setting the source selector to the TAPE or RADIO position.
– pressing STOP twice during playback/in the stop position.
1. Set the source selector to TAPE.
2. Press STOP•OPEN 9/to open the cassette holder.
3. Insert a recorded cassette.
4. Press PLAY 1and playback will start.
5. Adjust the sound using the VOLUME, and DBB controls.
6. For brief interruptions, press PAUSE ;. Press PAUSE ;again to
resume playback.
7. By pressing 5or 6, fast winding of the tape is possible in both
directions.
8. To stop playback, press STOP•OPEN 9/.
– The keys are automatically released at the end of the tape.
9. Set the source selector to TAPE/POWER/OFF position (with the cas-
sette keys released) to switch off the set.
General information on cassette recording
– Recording is permissible insofar as copyright or other rights of third
parties are not infringed.
– This deck is not suited for recording on CHROME (IEC II) or METAL
(IEC IV) type cassettes. For recording you should use NORMAL type
cassettes (IEC I) on which the tabs have not been broken.
– The recording level is set automatically. Altering the VOLUME con-
trol or, DBB switch will not affect the recording in progress.
– No recording will take place during the first 7 seconds, when the
leader tape passes the recorder heads.

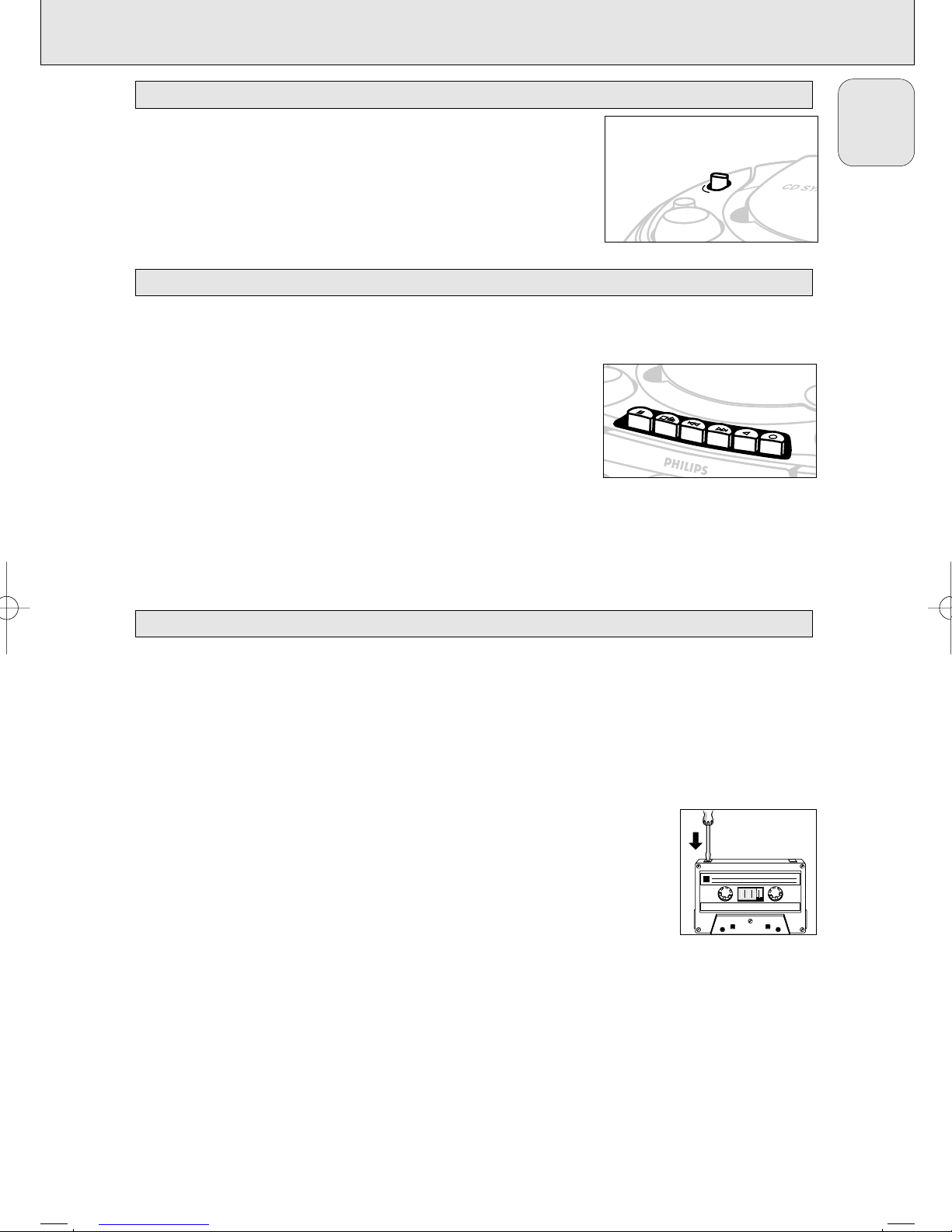

– To prevent the accidental erasure of a recording, keep the cassette
side to be safeguarded in front of you and break out the left tab.
Recording on this side is no longer possible.
CASSETTE RECORDING
CASSETTE PLAYBACK
PROGRAMMING TRACK NUMBERS
9
AZ 1110/01page 9
English
1
DYNAMIC
•CD
•RADIO
•TAPE
POWER OFF
DBB
BOOST
POWER ON
BOO
ST
Y•
PAUSE
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
AZ 1110/12 10/4/01 18:03 Page 9

CASSETTE RECORDER
1. Set the source selector to RADIO.
2. Tune to the desired radio station using the TUNING knob.
3. Press STOP•OPEN 9/to open the cassette holder.
4. Insert a blank cassette.
5. Press RECORD 0to start recording.
6. For brief interruptions, press PAUSE ;. To resume recording, press
PAUSE ;again.
7. To stop, press STOP•OPEN 9/.
1. Set the source selector to CD.
2. Insert a CD and if desired, program track numbers.
3. Press STOP•OPEN 9/to open the cassette holder.
4. Insert a blank cassette.
5. Press RECORD 0to start recording.
– Playing of the CD program starts automatically from the beginning
of the program. It is not necessary to start the CD player sepa-
rately.
6. For brief interruptions, press PAUSE ;. To resume recording, press
PAUSE ;again.
7. To stop recording press STOP•OPEN 9/.
To select and record a particular passage within a track
1. Press ∞SEARCH or SEARCH §to select a passage.
2. Put the CD player in PAUSE ;position at the selected passage.
– Recording will start from this exact point when you press
RECORD 0.
CD SYNCHRO START RECORDING
RECORDING FROM THE RADIO
10
AZ 1110/01 page 10
English
DYNAMIC
•CD
•RADIO
•TAPE
POWER OFF
DBB
BOOST
POWER ON
P
LAY•PAUSE
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
A
Y•PA
USE
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP • OPEN
SHUFFLE
SEARCH
MODE
SEARCH
PLAY
RECORD
EN
SEARCH
PLAY
RECORD
N
AZ 1110/12 10/4/01 18:03 Page 10

MAINTENANCE
– Place the set on a hard, flat surface so that it does not tilt.
– Do not expose the set, CDs, batteries or cassettes to humidity, rain,
sand, direct sunlight or other places where high temperatures can
occur, such as in the vicinity of heating apparatus or in motor cars
parked in the sun.
– Do not cover the set. The amplifier produces heat which must dis-
sipate freely, so make sure that there is sufficient ventilation around
the set. A minimum gap of 15 cm is necessary.
– The mechanical parts of the CD player and the cassette deck contain
self-lubricating bearings and must not be oiled or lubricated.
– A chamois leather slightly moistened with water is sufficient for
cleaning the housing. Do not use cleaning agents containing alco-
hol, spirits, ammonia or abrasives as these may harm the housing.
– The lens of the CD player should never be touched.
– The lens may cloud over if the set is moved from cold to warm sur-
roundings. The CD player will not start. Give the player some time to
acclimatise.
– To take a CD out of its box, press the centre spindle while lifting the
CD. Always pick up the CD by the edge and replace the CD back in
its box after use to avoid scratching and dust.
– To clean the CD, wipe in a straight line from the centre towards the
edge using a soft, lint-free cloth. Do not use cleaning agents as they
may damage the disc.
– Never write on a CD or attach stickers to it.
To ensure a good recording and playback quality, clean the indicated
parts A,Band Cafter every 50 hours of operation or, on average,
once a month. Use a cotton bud slightly moistened with alcohol or a
special head cleaning fluid.
• Press PLAY 1and clean the rubber pressure roller C.
• Then press PAUSE ;and clean the capstan Band the heads A.
• After cleaning, press STOP•OPEN 9/.
Cleaning of the heads Acan also be done by playing a cleaning
cassette through once.
RECORDER MAINTENANCE
CD MAINTENANCE
PRECAUTIONS & GENERAL MAINTENANCE
11
AZ 1110/01 page 11
English
DYNAMIC
•CD
•RADIO
•TAPE
POWEROFF
DBB
BOOST
POWERON
SHUFFLE
SEARCH
MODE
STOP
PLAY•PAUSE
FM
FM-
AM-
88
92
96
100
104
108
MHz
AM
530
650
830
1000
1200
1600
KHz
OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP• OPEN
PAUSE
SEARCH
PLAY
RECORD
STOP• OPEN
AABC
AZ 1110/12 10/4/01 18:03 Page 11

TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.
WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the
guarantee.
12
AZ 1110/01 page 12
English
PROBLEM
Set does not react to opera-
tion of any control.
Display does not function
properly.
No sound.
Bad sound.
Severe radio hum or noise.
Poor radio reception.
Poor cassette sound quality.
Recording does not work.
CD playback does not work.
The CD skips tracks.
POSSIBLE CAUSE
– Electrostatic discharge.
– Electrostatic discharge.
– VOLUME is not adjusted.
– Headphones are connected.
– Batteries are exhausted.
– Batteries are incorrectly
inserted.
– Mains lead is not securely
connected.
– Batteries are exhausted.
– Set too close to TV, VCR or
computer.
– Weak radio signal.
– Dust and dirt on the heads,
capstan or pressure roller.
– Use of incompatible cassette
types (METAL or CHROME).
– Cassette tab(s) may be broken
out.
– CD is badly scratched or dirty.
– No CD inserted.
– CD inserted upside down.
– Laser lens is steamed up.
– MODE pressed but no tracks
selected during programming.
– CD is damaged or dirty.
– PROGRAM/SHUFFLE is active.
REMEDY
• Switch off the set, disconnect
the mains plug and reconnect
after a few seconds.
• Switch off the set, disconnect
the mains plug and reconnect
after a few seconds.
• Adjust the VOLUME.
• Disconnect headphones.
• Insert fresh batteries.
• Insert the batteries correctly.
• Connect the mains lead prop-
erly.
• Replace batteries.
• Increase the distance.
• FM: aim and extend the tele-
scopic aerial for best recep-
tion;
• MW: rotate the entire set.
• Clean the heads etc., see
Maintenance.
– Only use NORMAL (IEC I) for
recording.
• Apply a piece of adhesive tape
over the missing tab space.
• Replace or clean the CD, see
Maintenance.
• Insert CD.
• Insert CD with printed side
facing up.
• Wait until lens has acclima-
tized.
• Select tracks or erase program.
• Replace or clean the CD.
• Switch off the PROGRAM/-
SHUFFLE function.
AZ 1110/12 10/4/01 18:03 Page 12
