CD SOUNDMACHINE AZ1048

EN
1 Important
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
h Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories specified by the
manufacturer.

k Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
lUnplug this apparatus during lightning storms or when
unused for long periods of time.
m Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
n Battery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - as marked on the unit.
•
Do not mix batteries (old and new or carbon and alkaline,
•
etc.).
Remove batteries when the unit is not used for a long time.
•
The batteries shall not be exposed to excessive heat such
•
as sunshine, fire or the like.
o Apparatus shall not be exposed to dripping or splashing.
p Do not place any sources of danger on the apparatus (e.g.
liquid filled objects, lighted candles).

q This product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or•
heat.
Never look into the laser beam inside this apparatus.
•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Caution
Use of controls or adjustments or performance of procedures•
other than herein may result in hazardous radiation exposure or
other unsafe operation.
Notice
Any changes or modifications made to this device that are not
expressly approved by Philips Consumer Electronics may void the
user’s authority to operate the equipment.

This product complies with the radio interference requirements of
the European Community.
This product complies with the requirements of the following
directives and guidelines: 2004/108/EC + 2006/95/EC
The making of unauthorized copies of copy-protected material,
including computer programs, files, broadcasts and sound
recordings, may be an infringement of copyrights and constitute
a criminal offence. This equipment should not be used for such
purposes.
Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958
to 1972.
Recycling
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to
a product, it means the product is covered by the European
Directive 2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products. The correct disposal of your old
product helps prevent potentially negative consequences on the
environment and human health.

Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed of with normal
household waste.
When you see the crossed-out wheel bin symbol with the
chemical symbol ‘Pb’, it means that the batteries comply with the
requirement set by the directive for lead:
Please inform yourself about the local rules on separate collection
of batteries. The correct disposal of batteries helps prevent
potentially negative consequences on the environment and human
health.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can be recycled and
reused if disassembled by a specialized company. Please observe
the local regulations regarding the disposal of packaging materials,
exhausted batteries and old equipment.
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den innebygde
netdelen er derfor ikke frakoplet nettet så lenge apparatet er
tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk støt, skal apparatet
ikke utsettes for regn eller fuktighet.

This apparatus includes this label:
2 Your CD Soundmachine
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from discs, USB devices, or radio
stations.You can also program the play sequence of tracks, and you
can enhance the sound with the Dynamic Bass Boost feature.
What’s in the box
Check and identify the contents of the package:
CD Soundmachine•
AC power cord•
User Manual•
Overview of the main unit
aVOLUME
Adjust volume level.
•

b DBB
Turn the bass enhancement on/off.
•
c
Stop CD play.
•
Erase a CD program.
•
Start or pause CD play.
•
/
Select the previous/next track.
•
Fast search backwards/forwards within the current track.
•
d PROG
Program tracks and browse the program.
•
e MODE
Select a play mode: REPEAT or SHUFFLE.
•
f
USB socket.
•
g ALBUM +/-
Skip to the next/previous album in an MP3-CD.
•
h BAND
Select a wave band.
•
i
Jack for headphone.
•
j TUNING +/-
Tune to radio stations.
•
k LIFT TO OPEN
Open/Close the CD compartment.
•

l Telescopic antenna
Improve FM reception.
•
m AC MAINS~
Socket for the power cord.
•
n Battery compartment
o Source selector: CD, USB, TUNER, OFF
Select CD, USB, radio, or MP3 source.
•
Switch to standby mode.
•
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial
number of your player.The model number and serial number are on
the bottom of your player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
1 Open the battery compartment.

2 Insert 6 x 1.5V R14/UM-2/C-cell batteries with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
Tip
If you want to save battery life, use the supplied power cord.•
Connect AC power
Warning
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the back or the underside of
the product.
Risk of electric shock! When you unplug the AC adaptor, always pull
•
the plug from the socket. Never pull the cord.
6 x 1.5V R-14/UM-2/C-cell

Note
Install the unit near the power supply socket and where the AC•
power plug can be easily reached.

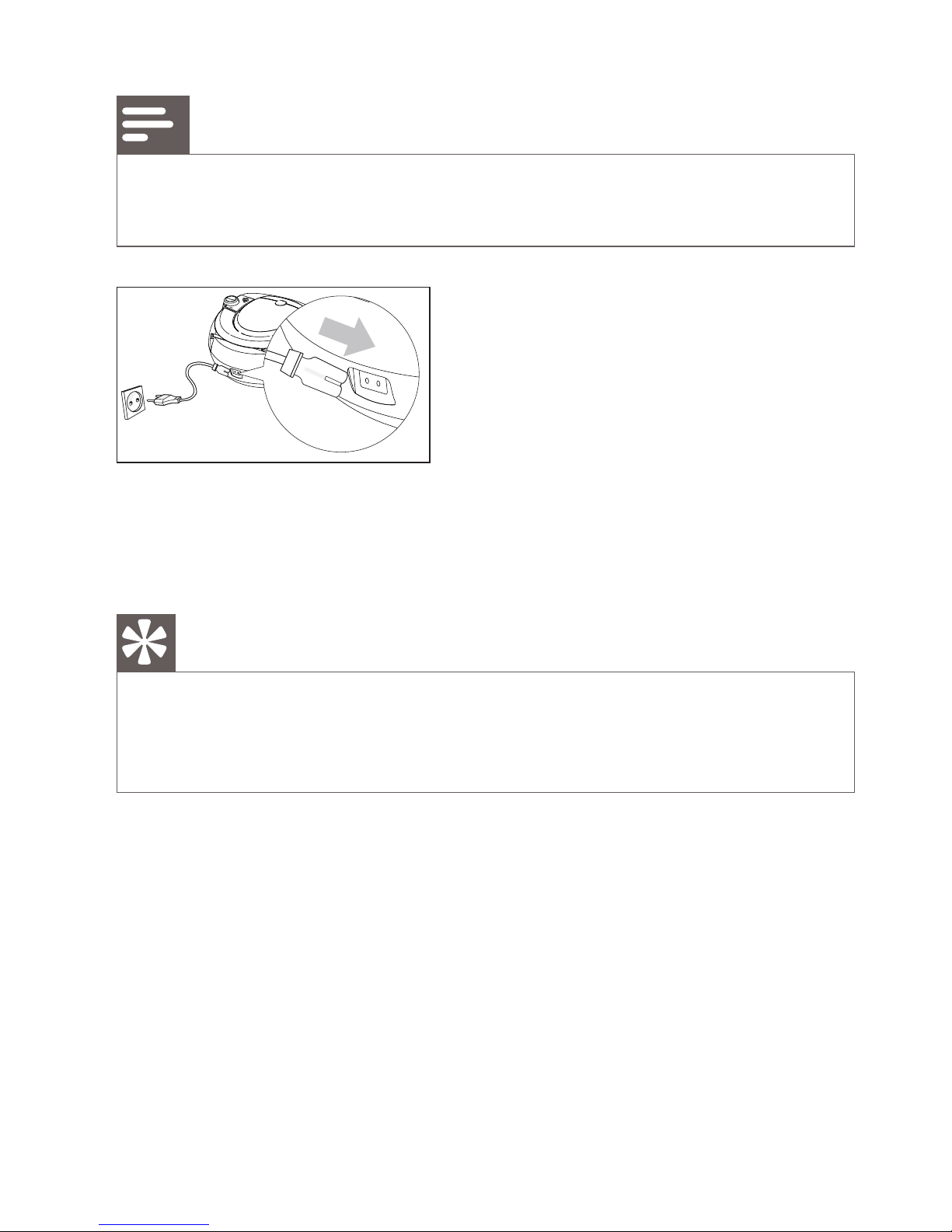

1 Connect the power cord to:
the
• AC MAINS~ socket on the main unit.
the power supply socket.
•
Tip
To save energy: After use, set the source selector to• OFF. To turn off
the CD Soundmachine, disconnect the plug from the power supply
socket.

4 Play
Play a CD
Note
You cannot play CDs encoded with copyright protection•
technologies.
You can play commercially available audio CDs:
CD-Recordables (CD-R)•
CD-Rewritables (CD-RW)•
MP3-CDs•
1Push the source selector to CD.
2 Lift the lid of the CD compartment.
3 Insert a CD with the printed side facing up.
4 Close the CD lid gently.
The total number of tracks is displayed.»
5 Press to start play.
»[] is displayed.
To pause CD play, press• .
To resume CD play, press• again.
To stop• CD play, press .

Play from USB
Note
Ensure that the USB device contains playable audio contents for•
supported formats. (See “USB playability information”)
1 Flip the USB socket cover.
2 Plug the USB device into the socket.
3 Push the source selector to USB.
4 Press to start play.
To pause/resume play, press
• .
To stop play, press
• .
To search within an audio file, press and hold
• / , then
release to resume normal play.
Listen to radio
1 Switch the source selector to TUNER.
2 Switch BAND to FM or MW.
3 Turn TUNING +/- to find a station.
Tip
To improve FM reception, you can extend, incline or turn the•
telescopic antenna for best reception.
To improve MW reception, turn the CD Soundmachine to face a
•
different direction.

5 Play options
Program play sequence
You can store up to 30 tracks in the desired sequence.
1 In stop mode, press PROG to start to program play
sequence.
»[PROG] and [P01] are displayed.
2 Press ALBUM +/- to select an album.
This step is only applicable for MP3 and WMA-CDs.
3 Press /to select a track.
4 Press PROG to store the track.
»[PROG] and [P02] are displayed.
5 Repeat steps 2 to 4 to select and store all tracks.
When all 30 tracks are stored, no more tracks can be»
selected and the display shows [PROG] and [FUL].
6 To play program, press .
In stop mode, press
• PROG repeatedly to browse stored
tracks.
To cancel program, press
• twice.
Tip
When program play stops, the CD Soundmachine returns to normal•
play. To play program again, repeat steps 1 to 6.
PROG

Select play modes
Repeat play
You can repeat a track, an MP3 album, a disc, or a program.
• [ ] – plays the current track continuously
[• ALL] – repeats the entire CD/program
1 During play, press MODE repeatedly until the display shows
the repeat icon.
Repeat o
• ne track.
Repeat a program.
•
To stop repeat play, press• MODE repeatedly until the repeat
icon is no longer displayed.
Shuffle play
You can play all tracks in random order.
1 During play, press MODE repeatedly until the display shows
the shuffle icon.
MP3
PROG
MP3

To stop shuf fle play, press• MODE again.
Select a track
1 During play, press /to select a track.
Select an album
For MP3-CDs only.
1 During play, press ALBUM +/- to select an album.
Find a passage within a track
1 During play, press and hold /.
The CD is played at high speed and with reduced volume.»
2 Release /to resume normal play.
Tip
When search reaches the end of the last track, the CD stops.•
MP3

6 Product information
Note
Product information is subject to change without prior notice.•
Specifications
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R, CD-RW,
MP3-CD, WMA-CD
Audio DAC 24Bits / 44.1kHz
Total Harmonic Distortion <1%
Frequency Response 60Hz -16kHz
S/N Ratio >62dBA
Tuner
Tuning Range FM: 87.5 - 108MHz; MW: 530
- 1600kHz
Total Harmonic Distortion <3%
Signal to Noise Ratio >50 dB

Tape deck
Frequency response
- Normal tape (type I)
125 - 8000 Hz (8 dB)
Signal-to-noise ratio
- Normal tape (type I)
40 dBA
Wow and flutter <0.4% JIS
General
Dimensions (main unit)
(W x H x D)
320 x 275 x 175 mm
Weight (main unit) 1.7 kg
Power supply DC: 9V 1.5A
AC: 230V
Power consumption
- Active
- Standby
<12 W
0.7W
Power output 1W x 2 RMS
Operating temperature range - 10 °C - +50 °C
14 °F - 122 °F

Supported MP3 disc formats
ISO9660, Joliet•
Maximum title number: 512 (depending on file name length)•
Maximum album number: 255•
Supported sampling frequencies: 32 kHz, 44.1kHz, 48 kHz•
Supported Bit-rates: 32~256 (kbps), variable bit rates•
USB playability information
Compatible USB devices:
USB flash memory (USB 2.0 or USB1.1)
•
USB flash players (USB 2.0 or USB1.1)
•
memory cards (requires an additional card reader to work
•
with this apparatus)
Supported formats:
USB or memory file format FAT12, FAT16, FAT32 (sector
•
size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
•
WMA v9 or earlier
•
Directory nesting up to a maximum of 8 levels
•
Number of albums/ folders: maximum 99
•
Number of tracks/titles: maximum 999
•
ID3 tag v2.0 or later
•
File name in Unicode UTF8 (maximum length: 128 bytes)
•
