Philips AJ1003 User manual

Register your product and get support at
AJ1003
EN User manual

1 Important
Safety
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat

that produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j 
manufacturer.
kUnplug this apparatus during lightning storms or when
unused for long periods of time.
l 
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
mBattery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
 Install the battery correctly.
 Remove the battery when the unit is not used for a
long time.
nApparatus shall not be exposed to dripping or splashing.
oDo not place any sources of danger on the apparatus (e.g.

pWhere the MAINS plug or an appliance coupler is used as
the disconnect device, the disconnect device shall remain
readily operable.
qRisk of swallowing batteries! The product may contain a
coin type battery, which can be swallowed. Keep the battery
out of reach of children at all times!
Warning
 Never remove the casing of this apparatus.
 Never lubricate any part of this apparatus.
 Never place this apparatus on other electrical equipment.
 
 Ensure that you always have easy access to the power cord, plug or
adaptor to disconnect this apparatus from the power.

Notice
This product complies with the radio interference
requirements of the European Community.

expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
When this crossed-out wheeled bin symbol is attached
to a product it means that the product is covered by the
European Directive 2002/96/EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of your
old products with your normal household waste. Correct disposal
of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed
with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because
correct disposal helps to prevent negative consequences for the
environmental and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to
make the packaging easy to separate into three materials: cardboard
(box), polystyrene foam (buffer) and polyethylene (bags, protective
foam sheet.)

Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully

www.philips.com/welcome.
Introduction
With this clock radio, you can:
 enjoy the FM radio
 know the time
 wake up to buzz or favorite radio tone
 set two alarms to ring at different time.
What’s in the box
Check and identify the contents of your package:
 Main unit (with a battery embedded)
 AC power adapter
 User manual
 Quick start guide
 MP3 link cable

Overview of the main unit
a
c
d
e
b
n
c
i
h
g
f
m
l
k
j
a+ TUNING -
 Tune to a radio station.

bREPEAT ALARM/BRIGHTNESS CONTROL
 Repeat the alarm.
 Adjust the brightness of display panel.
cAL1, AL2
 Enable/disable the alarm timer.
 Activate the alarm time setup.
d/ SOURCE
 Turn on or off the unit.
 Switch between FM radio play, MP3 link input, and clock
time display.
e- VOLUME +
 Adjust the volume level of radio.
fBattery compartment
gFM ANT
 Attached FM radio antenna.
hDC 5V
 Power supply socket.
iMP3 LINK
 Audio input jack (3.5 mm ) for an external audio device.
jSLEEP
 Set the sleep timer.
kSET TIME/PROG
 Activate the clock time setup.
 Program radio stations.
lPRESET +/PRESET -
 Adjust the date, clock time and alarm time.
 Select time format.
 Select a programmed radio station.

mDATE
 Display the preset time, month, day and year.
nDisplay panel
3 Get started
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of this apparatus.The model number and serial number are on
the bottom of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Activate the battery
Caution
 

 Risk of product damage! When the apparatus is not used for long
periods, remove the battery.
 Batteries contain chemical substances, so they should be disposed
of properly.
1Remove the protective tab to activate the battery.

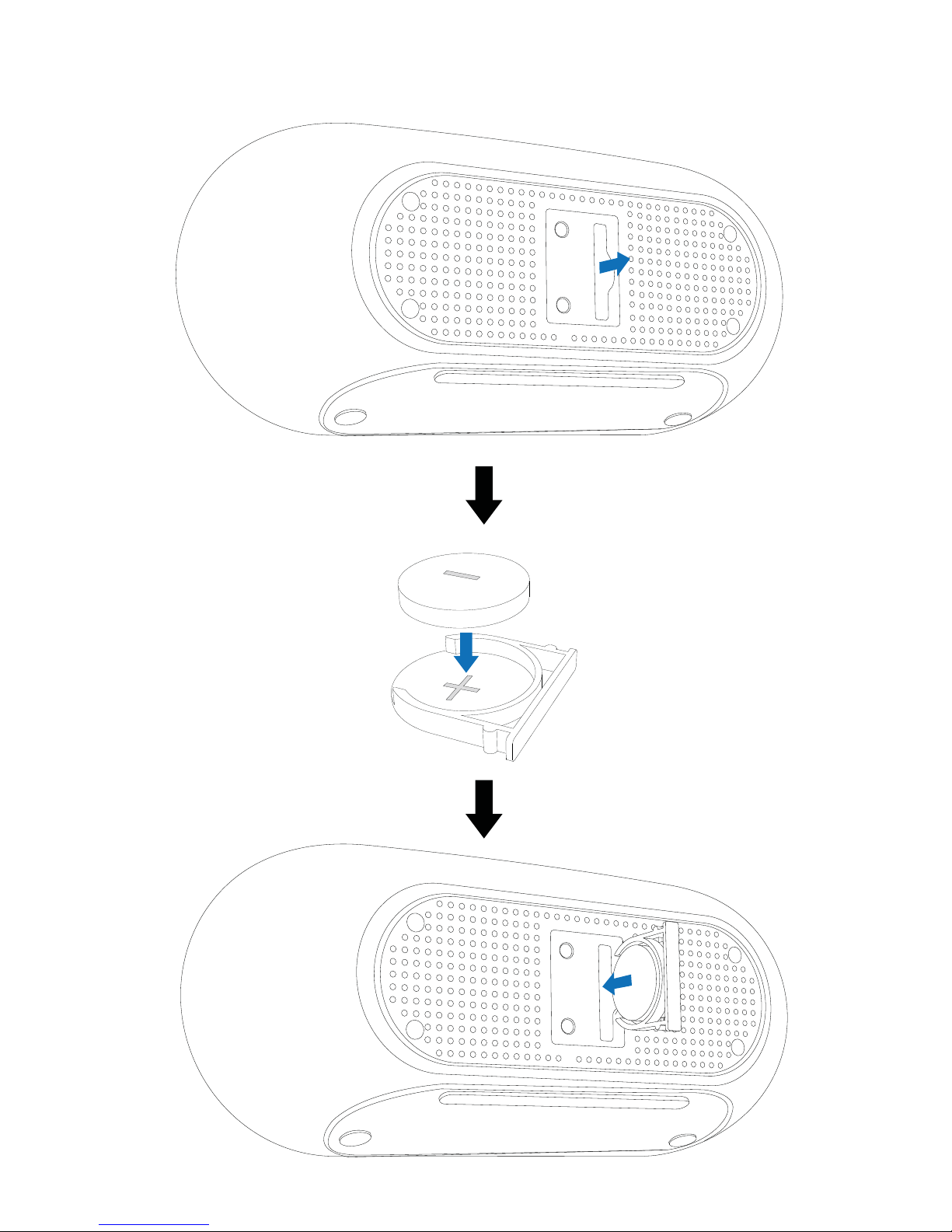

To replace the battery:

1Open the battery compartment.
2Insert one lithium CR2025 battery with correct polarity (+/-)
as indicated.
3Close the battery compartment.
Connect power
Caution
 Risk of product damage! Ensure that the power supply voltage
corresponds to the voltage printed on the back or the underside of
the apparatus.
 Risk of electric shock! When you unplug the AC power adapter,
always pull the plug from the socket. Never pull the cord.
 Before connecting the AC power adapter, ensure you have
completed all other connections.

1Connect the power adapter to
 the DC IN (DC 5V) jack on the back of the main unit.
 the power socket.
5
Set time and date
1In clock mode, press and hold SET TIME/PROG for 2
seconds.
2Press PRESET +/PRESET -.
»12-hour or 24-hour format is selected.
3Press SET TIME/PROG
»The hour digits begin to blink.
4Repeat steps 2-3 to set the hour.

5Repeat steps 2-3 to set the minute.
6Repeat steps 2-3 to set the year.
7Repeat steps 2-3 to set the month.
8Repeat steps 2-3 to set the day.
View the preset date
1Press DATE repeatedly.
»The clock time, month, day and year are displayed
consequently.
4 Listen to radio
Tune to a radio station
1Press SOURCE repeatedly to turn on the radio.
»FM and the current radio frequency appear.
2Press +/- (on + TUNING -) repeatedly to tune to a radio
station.
Adjust the volume
1Press +/- (on - VOLUME +) repeatedly.
Program radio stations automatically
Note
 You can program a maximum of 20 preset radio stations.

1Press SOURCE repeatedly to turn on the radio.
2Press and hold SET TIME/PROG for 2 seconds.
»All available stations are programmed in the order of
waveband reception strength.
»
Program radio stations manually
Note
 You can program a maximum of 20 preset radio stations.
1Press SOURCE repeatedly to turn on the radio.
2Press +/- (on + TUNING -) repeatedly to tune to a radio
station.
3Press SET TIME/PROG.
»The number begins to blink.
4Press PRESET +/PRESET - repeatedly to select a preset
number.
5Press SET TIME/PROG
6Repeat the above steps to program more stations.
Tip
 To overwrite a programmed station, program another station in
its place.

Select a preset radio station
1Press SOURCE repeatedly to turn on radio.
2Press PRESET +/PRESET - to select a radio station.
5 Set the alarm timer
Set the alarm time
You can set two separate alarms.
Note
 Before you start, ensure that the clock time is set correctly.
1Press and hold AL1 (or AL2) for 2 seconds.
2Press PRESET +/PRESET -.
»The alarm tone is selected.
FM: The preset radio station.
: The buzz.
3Press AL1 (or AL2
»The hour digits begin to blink.
4Repeat steps 2-3 to set the hour.
5Repeat steps 2-3 to set the minute.
6Repeat steps 2-3 to set the volume level (32 maximum) of
alarm tone.

Turn on/off the alarm timer
Note
 Ensure that you already set the alarms successfully.
1Press AL1 or AL2 twice.
»If the alarm timer is turned on, or appears.
»If the alarm timer is turned off, or disappears.
View the alarm settings
1Press AL1/AL2.
Repeat alarm
1When the alarm rings, press REPEAT ALARM/BRIGHTNESS
CONTROL.
»The alarm repeats ringing 9 minutes later.
Stop alarm ring
1When the alarm rings, press the corresponding AL1 or AL2.
»The alarm stops but the alarm settings remain.

6 Other features
Set the sleep timer
You can set the radio to turn off automatically after a certain period of
time.
1Press SLEEP repeatedly to select a preset period of time.
»appears.
»The volume decreases gradually in the last 5 minutes.
To turn off the sleep timer:
1Press SLEEP repeatedly until (off) appears.
»disappears.
Adjust display brightness
1Press REPEAT ALARM/BRIGHTNESS CONTROL repeatedly.
Listen to an external device
You can use this unit to play audio from an external device.
1Connect the MP3 link cable (supplied) to
 the MP3 LINK jack on the back of this unit
 the audio output jack of the external device.
2Press SOURCE repeatedly to select the audio input from MP3
LINK jack.
»and appear.
3Press +/- (on - VOLUME +) repeatedly to adjust the volume
level.

7 Product information
Note
 Product information is subject to change without prior notice.


Tuning Range 87.5 - 108MHz
Sensitivity
- Mono, 26dB S/N Ratio
<22 dBf
Search Selectivity >28dBf
Total Harmonic Distortion <3%
Signal to Noise Ratio >50dB
General information
AC Power Input: 220 - 230 V, 50 Hz
Operation Power Consumption 4.0 W
Dimensions
- Main Unit (W x H x D) 185 x 85 x 52 mm
Weight
- With Packing
- Main Unit
0.56 kg
0.46 kg

8 Troubleshooting
Caution
 Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/support).When
you contact Philips, ensure that your apparatus is nearby and the model
number and serial number are available.
No power
 Ensure that the Mains cord is connected securely.
 Ensure that there is power at the AC Mains.
No sound
Adjust the volume.
No response from the unit
Disconnect and reconnect the AC power plug, then turn on
the unit again.
Poor radio reception
Increase the distance between the apparatus and your TV or
VCR.
Fully extend the antenna.
Connect an outdoor antenna instead.
Timer does not work
Set the clock correctly.
Switch on the timer.

Clock/timer setting erased
Replace the battery.
Power has been interrupted or the power plug has been
disconnected.
Reset the clock/timer.

© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
AJ1003_12_UM_V3.
