1 Important
Safety
Read these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not block any ventilation openings. Install in accordance with•
the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
•
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
Protect the power cord from being walked on or pinched,
•
particularly at plugs, convenience receptacles, and the point
where they exit from the clock radio.
Only use attachments/accessories specified by the
•
manufacturer.
Unplug this clock radio during lightning storms or when unused
•
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
•
required when the clock radio has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the clock radio, the clock
radio has been exposed to rain or moisture, does not operate
normally, or has been dropped.
This clock radio shall not be exposed to dripping or splashing.
•
Do not place any sources of danger on the clock radio (e.g.•
liquid filled objects, lighted candles).

Where the MAINS plug or an appliance coupler is used as the•
disconnect device, the disconnect device shall remain readily
operable.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this unit, you can:
listen to FM radio;
•
know the time;•
wake up by buzzer alarm, radio, or melody; and•
view time projected on a wall or ceiling.•
What’s in the box A
Check and identify the contents of your package:

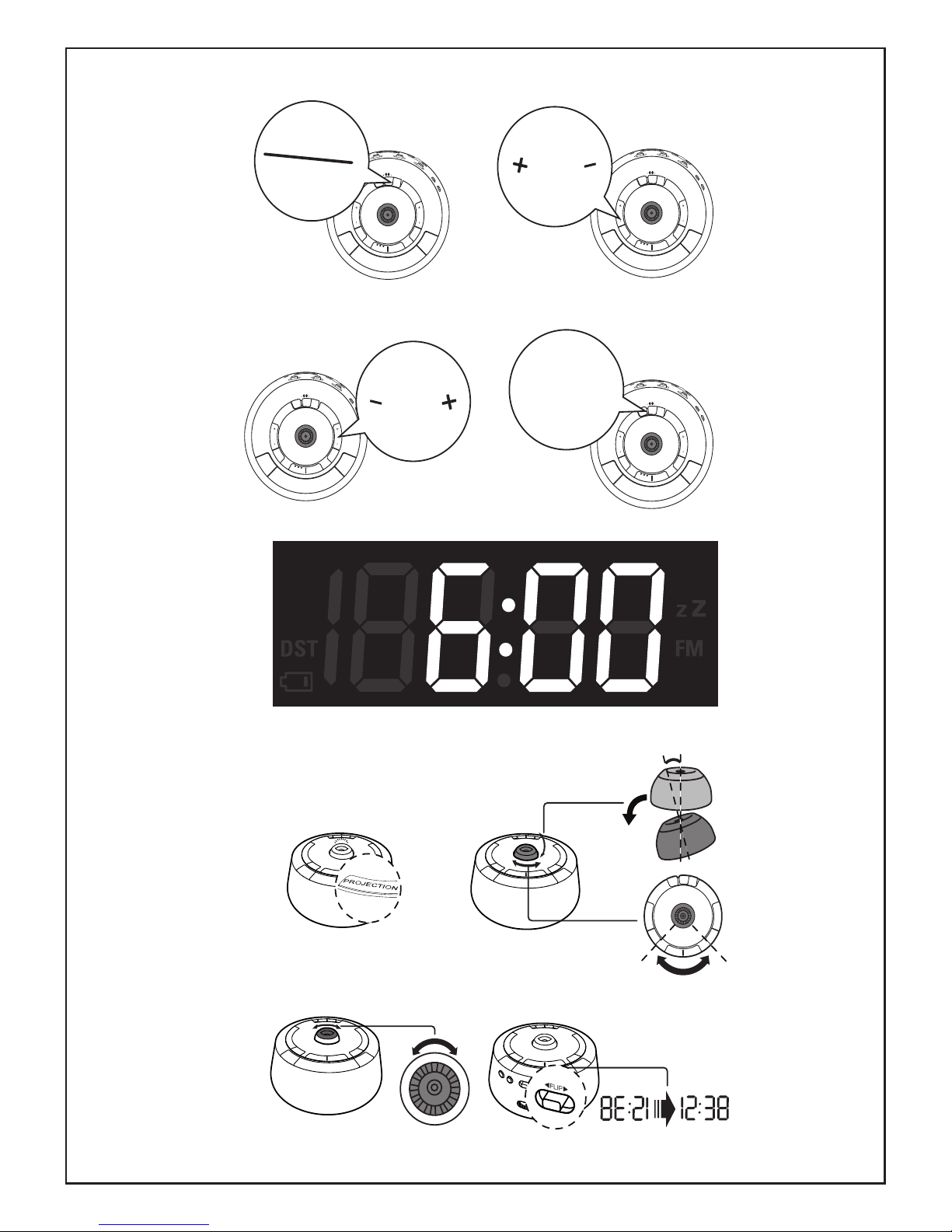

Overview of the main unit B
a Focus ring
Adjust sharpness of projected image.
•
b HR/TUNING +/-
Adjust hour.
•
Tune to radio stations.•

cAL1/AL2
Turn on/off alarm.
•
View alarm settings.•
d PROG/SCAN
Scan/store radio stations.
•
e PROJECTION
Turn on/off projector.
•
f BRIGHTNESS/SNOOZE
Snooze alarm.
•
Adjust display brightness.•
g RADIO
Turn on/off radio stations.
•
turn off the ringing alarm.•
h SLEEP
Set sleep timer.
•
i MIN/PRESET +/-
Adjust minute.
•
Select a preset radio station.•
j CLOCK/SET AL1/SET AL2/SET TIME
Set time/alarm.
•
View time.•
k Projector
Project time onto wall/ceiling.
•
Adjust projected direction.•

l12/24H·DST
Select 12/24 hour format.
•
Select daylight saving time (DST) option.•
m TIME ZONE
Select time zone.
•
n FLIP
• 0°/180°: reverse projected image.
o AL1/RADIO·BUZZ· 1
Select alarm source for Alarm 1.
•
p AL2/RADIO·BUZZ· 2
Select alarm source for Alarm 2.
•
q Power cord & Antenna
r Battery tray
s VOL
Adjust volume.
•

3 Get started
Always follow the instructions in this chapter in sequence.
Install battery C
Warning
Risk of explosion! Keep batteries away from heat, sunshine or fire.•
Never discard batteries in fire.
Danger of explosion if battery is incorrectly replaced. Replace only
•
with the same or equivalent type.
The battery contains chemical substances, so it should be disposed
•
of properly.
Keep children away from the battery.
•
Note
You can only use AC power as power supply. The lithium CR2032•
battery is only for back-up purpose.
When power is disconnected, the display backlight is off.
•
When is displayed, you need replace the battery as indicated.

Connect power D
Caution
Risk of product damage! Ensure that the power voltage corresponds•
to the voltage printed on the back or underside of the clock radio.
Risk of electric shock! When you unplug the AC adapter, always pull
•
the plug from the socket. Never pull the cord.
Plug and set
The clock radio has “plug and set” feature.When power is connected,
the clock is set automatically.
Select time zone
Check if the time of the clock radio is consistent with the local time. If
not, adjust the time zone settings according to your location.
1 In standby mode, press TIME ZONE.
The current time zone number blinks on the display panel.»
2 Press TIME ZONE repeatedly to select time zone
(-1 to +12 adjustable).
For Europe:
Western European Time (WET) +0
Central European Time (CET) +1 (Default)
Eastern European Time (EET) +2
Moscow Standard Time (MST) +3

Set clock E
In standby mode, you can set clock manually.
Select DST (daylight saving time) mode
For countries with daylight saving time (DST), the clock radio offers you
DST option to adjust summer time.
In standby mode, press and hold 12/24H·DST for two seconds.
The clock advances by one hour.»
Tip
To exit DST mode, repeat the above operation.•
To select 12/24 hour format, press• 12/24H·DST repeatedly.
4 Listen to FM radio
Tune to FM radio stations F
Note
Position the antenna as far as possible from TV, VCR, or other•
radiation source.
For optimal reception, fully extend and adjust the position of the
•
antenna.

Note
To turn on/off radio, press• RADIO.
Store FM radio stations automatically
You can store up to 20 FM radio stations.
1 Press RADIO to turn on the radio.
2 Press and hold PROG for two seconds.
The clock radio stores all the available FM radio stations and»
broadcasts the first available station automatically.
Store FM radio stations manually
1 Tune to an FM radio station.
2 Press PROG.
The preset number begins to blink.»
3 Press PRESET +/- or TUNING +/- repeatedly to select a
number.
4 Press PROG again to confirm.
5 Repeat Steps 1 to 4 to store other stations.
Note
To remove a pre-stored station, store another station in its place.•

Select a preset radio station
In tuner mode, press PRESET +/- to select a preset number.
Adjust volume G
5 Set alarm timer
Set alarm time H
In standby mode, you can set two alarms to ring at different time.
Select alarm sound
For the alarm sound, you can select buzzer, your last heard radio, or the
melody stored in the clock radio.
Adjust AL1/RADIO·BUZZ· 1 or AL2/RADIO·BUZZ· 2 to select
alarm sound for Alarm 1/Alarm 2.
Activate/deactivate alarm timer I
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or deactivate the alarm timer.
»AL1 or AL2 appears if alarm timer is on and disappears if it
is off.
To stop alarm, press the corresponding
• AL1/AL2 (or
RADIO).
The alarm repeats ringing for the next day.
•

Note
When alarm sounds, you cannot adjust volume by rotating• VOL.
Snooze alarm
When alarm sounds, press SNOOZE.
The alarm snoozes and repeats ringing five minutes later.»
To adjust alarm interval (in minutes), press SNOOZE repeatedly.
6 Other features
Set sleep timer
This clock radio can switch to standby mode automatically after a preset
period.
Press SLEEP repeatedly to select the sleep timer period (in minutes).
When the sleep timer is activated,»appears.
To deactivate the sleep timer, press SLEEP repeatedly until [OFF] (off)
appears.
5 10 15 20 25 30
15 30 60 90 120
off

Project time onto wall/ceiling J
By projecting time onto a wall or ceiling, this clock radio offers you a
unique way to read time in the dark.
Warning
Risk of damage to eyes! Do not look at the glowing red light constantly.•
Note
Before you start, switch• CLOCK/SET AL1/SET AL2/SET TIME to
CLOCK.
1 Press PROJECTION to turn on the projector.
2 Rotate the projector to adjust the projected direction.
3 Rotate the focus ring to adjust the image sharpness.
4 To reverse the projected image, switch FLIP to left or right.
Tip
To turn off the projector, press• PROJECTION again.
Adjust display brightness
Press BRIGHTNESS repeatedly to select different brightness levels: high,
mid, and low.

7 Product information
Note
Product information is subject to change without prior notice.•
Specifications
Amplifier
Rated Output Power 0.6W RMS
Tuner
Tuning Range FM: 87.5 - 108 MHz
Sensitivity
- Mono, 26dB S/N Ratio FM: <22 dBu
Search Selectivity FM: <28 dBu
Total Harmonic Distortion FM: <3%
Signal to Noise Ratio FM: >45 dB

General information
AC power 100-240 V~, 50/60Hz
Operation Power Consumption <3W
Standby Power Consumption <1W
Dimensions
- Main Unit (W x H x D) 135 x 135 x 60.5 mm
Weight
- With Packing
- Main Unit
0.6 kg
0.3 kg
8 Troubleshooting
Warning
Never remove the casing of this clock radio.•
To keep the warranty valid, never try to repair the clock radio yourself.
If you encounter problems when using this clock radio, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).When
you contact Philips, ensure that the clock radio is nearby and the model
number and serial number are available.
No response from the unit
Disconnect and reconnect the AC power plug, then turn on the•
unit again.
Poor radio reception
Increase the distance between the unit and your TV or VCR.•

Fully extend the FM antenna.•
9 Notice
This product complies with the radio interference requirements of the
European Community.
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
Note
The type plate is located on the bottom of the apparatus.•
This apparatus includes this label:
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it
means that the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your old
products with your normal household waste. Correct disposal of your
old product helps to prevent potential negative consequences for the
environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household
waste.Please inform yourself about the local rules on separate collection
of batteries because correct disposal helps to prevent negative
consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
2011 © Koninklijke Philips Electronics N.V. All rights reserved.
