Philips HD8836/18 User manual

OPERATING INSTRUCTIONS
READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.
English
Register your product and get support at
www.philips.com/welcome
EN
Type HD8836 / HD8837
SUP 037DR

• 2 •
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10.Do not place on or near a hot gas or electric burner, or in a heated oven.
11.Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12.Do not use appliance for other than intended use.
13.Save these instructions.
SAVE THESE INSTRUCTIONS

• 3 •
English
CAUTION
This appliance is for household use only. Any servicing, other than cleaning and
user maintenance, should be performed by an authorized service center. Do not
immerse machine in water. To reduce the risk of fire or electric shock, do not
disassemble the machine. There are no parts inside the machine serviceable by
the user. Repair should be done by authorized service personnel only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.

• 4 •
GENERAL INFORMATION
The coee machine is suitable for preparing espresso coee using either coee beans or ground
coee and is equipped with a device to dispense steam and hot water. The structure of the ma-
chine has been designed for domestic use only and is not suitable for continuous professional-
type operation.
Keeptheseoperatinginstructions in a safe place and makethemavailabletoanyone
who may use the coee machine.
For further information or in case of problems that are not included or not completely explained
in these instructions, please contact an authorized service center.
Warning. No liability is held for damage caused by:
• Incorrect use not in accordance with the intended purposes;
• Repairs not carried out by authorized service centers;
• Tampering with the power cord;
• Tampering with any parts of the machine;
• Storage or use of themachine at a temperature outside the operating temperature
range (+15°C / +45°C);
• The use of non-original spare parts and accessories.
In these cases, the warranty shall be deemed null and void.
SAFETY REGULATIONS
Never allow water to come into contact with any of the electrical parts of the
machine: Danger of short circuit! Steam and hot water may cause scalding!
Do not direct the steam/hot water wand towards body parts. Carefully handle the
steam/hot water wand by its grip: Danger of scalding!
Intended Use
The coee machine is intended for domestic use only. Do not make any technical changes or use
the machine for unauthorized purposes since this would create serious hazards!The appliance is
not to be used by persons (including children) with reduced physical, mental or sensory abilities
or with limited experience and/or expertise, unless they are supervised by a person responsible
for their safety, or they are instructed by this person on how to properly use the machine.
Power Supply - Power Cord
Only connect the coee machine to a suitable socket.
The voltage must correspond to that indicated on the machine label located on the inside of
service door.
Never use the coee machine if the power cord is defective or damaged.
If damaged, the power cord must be replaced by the manufacturer or an authorized service
center. Do not pass the power cord around corners, over sharp edges or over hot objects and
keep it away from oil. Do not use the power cord to carry or pull the coee machine.
Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord
hang freely from tables or shelves.
For the Safety of Others
Keep children under control to prevent them from playing with the product. Children are not
aware of the risks related to electric household appliances. Do not leave the machine packaging
materials within the reach of children.

• 5 •
English
Danger of Burns
Never direct the steam/hot water wand towards yourself or others: Danger of scalding! Always
use the handles or knobs provided.
Machine Location - Suitable Location for Operation and Maintenance
For best use, it is recommended to:
• Choose a safe, level surface, where there will be no danger of overturning it or being inju-
red.
• Choose a location that is suciently well-lit, clean and near an easily reachable socket.

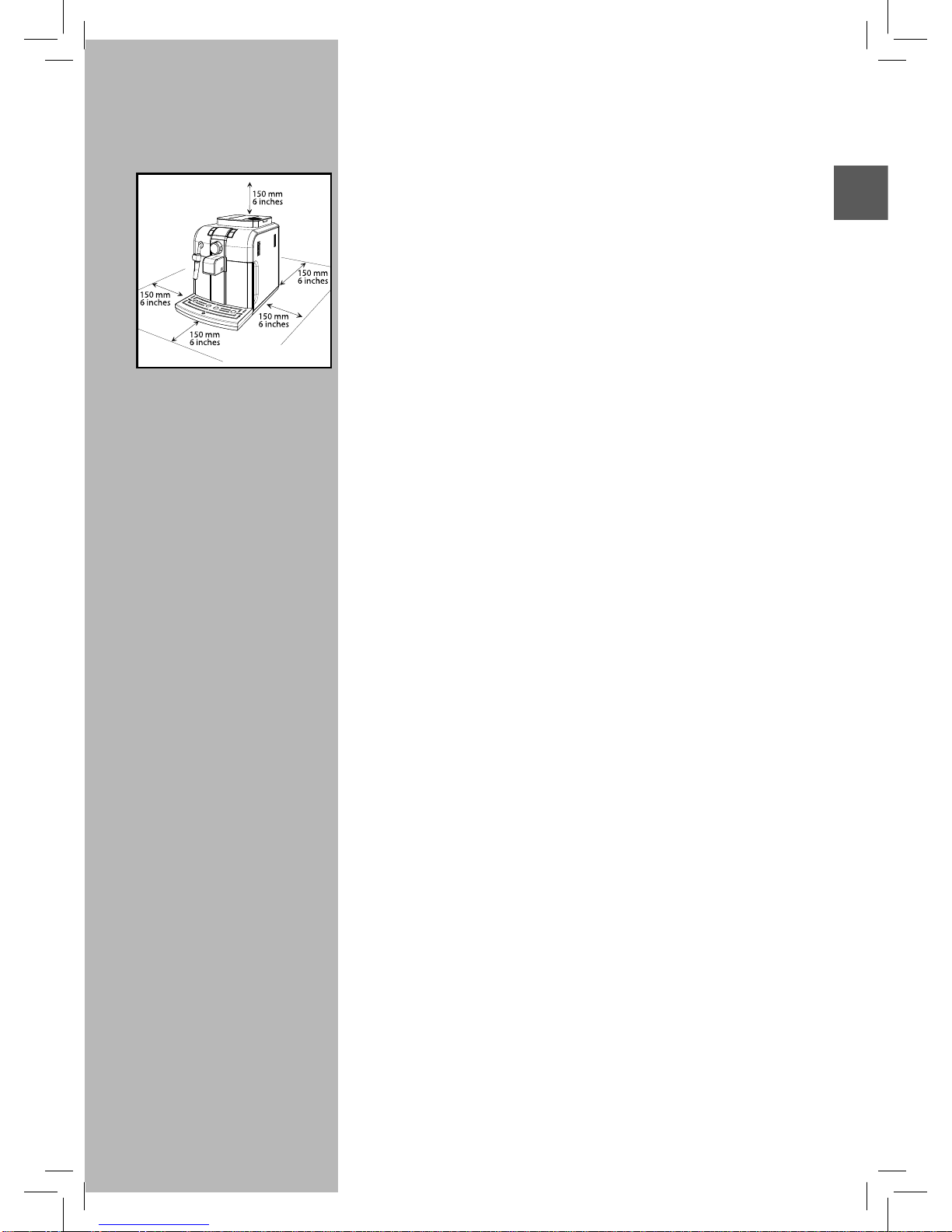

• Provide for a minimum distance from the sides of the machine as shown in the illustration.
• During machine turning on/o, it is recommended to place an empty glass under the dispen-
sing head.
Do not keep the machine at a temperature below 0°C (32°F).
Frost may damage the machine.
Do not use the coee machine outdoors.
In order to prevent its housing from melting or being damaged, do not place the machine on
very hot surfaces and close to open ames.
Storing the Machine - Cleaning
Before cleaning the machine, turn it o by pressing the ON/OFF button, and then switch the
power button to“0”. Remove the plug from the socket.
Wait for the machine to cool down.
Never immerse the machine in water!
It is strictly forbidden to tamper with the internal parts of the machine.
Water left in the tank for several days should not be consumed. Wash the tank and ll it with
fresh drinking water.
If the machine will not be used for a long time, dispense water from the steam wand, and care-
fully clean the Pannarello (if supplied), then turn it o and unplug it.
Store it in a dry place, out of the reach of children.
Keep it protected from dust and dirt.
Servicing / Maintenance
In case of failure, problems or a suspected fault resulting from the falling of the machine, imme-
diately remove the plug from the socket.
Never attempt to operate a faulty machine.
Servicing and repairs may only be carried out by authorized service centers.
All liability for damages resulting from work not carried out by professionals is declined.
Fire Safety Precautions
In case of re, use carbon dioxide (CO2) extinguishers. Do not use water or dry powder extin-
guishers.

• 6 •
Coee bean hopper lid
Power cord
Pre-ground coee scoop
Intenza water lter
Brew group lubricant
LCD Display
“Aroma”- Pre-ground coee
selector button.
Strong coee brew button
Long coee brew button
Coee/hot water/steam dial.
ON/OFF button
Brew group
Dregdrawer
Service door
Grinder adjustment knob
Pre-ground bypass doser
Coee bean hopper
Dispensing head
Drip tray
Power switch
Full drip tray indicator
Drip tray
Water tank
Steam/hot water wand
Wand protective gripper
Control panel
Water hardness test

• 7 •
English

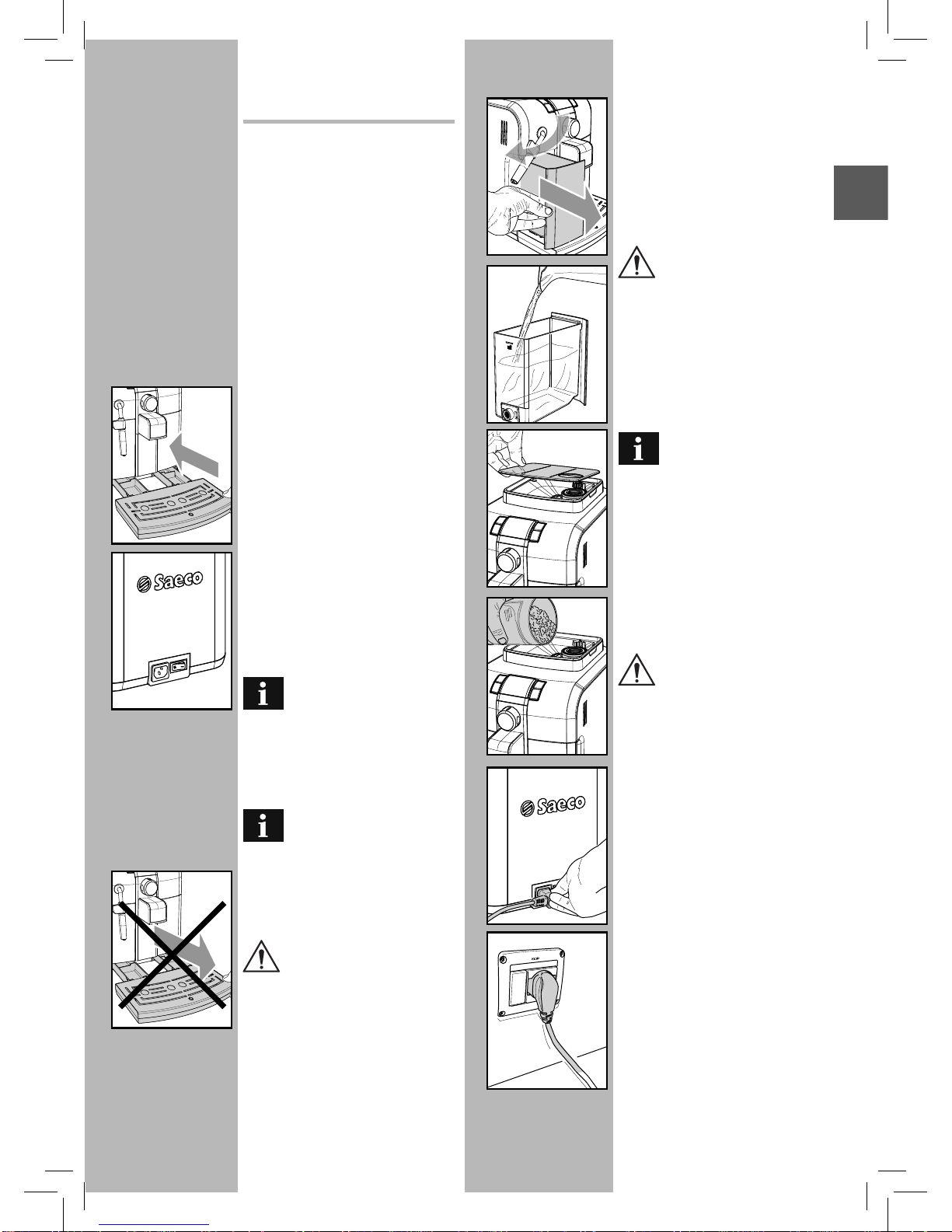

INSTALLATION
For your own and for other people’s
safety, carefully follow the instruc-
tions provided in the“Safety Regula-
tions” section.
Machine Packaging
The original packaging has been designed
and constructed to protect the machine
during transport. We recommend keep-
ing the packaging material for possible
future transport.
Preliminary Operations
• Remove the coffee bean hopper lid
and the drip tray with grill from the
packaging.
• Remove the coee machine from the
packaging and position it in a place
that meets the requirements described
in the safety regulations.
• Place the drip tray with grill into its
appropriate seat on the machine. Make
sure it is fully inserted and clicks into
place.
• Place the coee bean hopper lid on the
bean hopper.
Note: Insert the plug in the
machine and in the wall so-
cket only when indicated and check
that the power button is switched
to “0”.
Important Note: Carefully
read the explanations of all
the warnings displayed on the LCD
control panel (section “LCD Display
Warnings”).
Never remove the drip tray
when the machine is turned
on. Wait a couple of minutes after
turning on/off, since the machine
will be carrying out a rinse/self-
cleaning cycle (see section “Rinse/
Self-cleaning Cycle”).
• Remove the water tank and install the
Intenza water lter as recommended
on page 27.
• Fill the tank with fresh drinking water.
Do not exceed the “max” level indi-
cated on the water tank. Once filled,
place the tank back into the machine.
Fill the tank only with fresh,
non-sparkling water. Hot wa-
ter or any other liquid may damage
the tank and/or the machine. Do not
turn on the machine when the tank
is empty. Make sure there is enough
water in the tank.
• Remove the coee bean hopper lid.
Note:Thehopper maybepro-
vided with different safety
features according to the regula-
tions of the country of use of the
machine.
• Slowly pour the coee beans into the
hopper.
Only coee beans may be put
into the coee bean hopper.
Ground coffee, instant coffee or
any other object may damage the
machine.
• Replace the coee bean hopper lid.
• Insert the plug into the socket on the
back of the machine.
• Insert the plug of the other end of the
cable into a wall socket with suitable
power voltage.

• 8 •• 8 •
Red
Orange
Orange
Green
• Turn the machine ON by pressing the
power switch to“I”. Priming the Water Circuit
• To prime the water circuit, place a
container under the steam/hot water
wand(Pannarello, if supplied).
• The display shows the ON/OFF icon.
• Make sure the ON/OFF button is set to
the “ ”position; if this is not the case,
set it to that position.
• Press the ON/OFF button to turn the
machine on.
• The display indicates that the circuit
must be primed.
Note: Before starting the
machine after long periods
of inactivity, the water circuit must
be primed.
Black
Red
• Turn the selector dial clockwise to set
it to the “ ” position. The machine
starts the automatic priming of the
circuit by letting out a preset quantity
of water through the steam/hot water
wand (Pannarello, if supplied).The bar
under the icon shows the operation
progress.
At the end of the priming process,
the display shows an icon (see fig-
ure) indicating that the selection dial
must be brought back to the central
“ ”position.
• The display then shows the machine
warm-up icon, as shown in the gure.
When warm-up is complete,
themachineperformsarinse
cycle of the internal circuits.
In this phase, this icon will be dis-
played:
• When the operations described above
are complete, this icon will be dis-
played:
The machine is then ready to brew
beverages.
• To brew coee, dispense hot water or
steam, and for a proper use of the ma-
chine, carefully follow the instructions
provided.
If the machine is being used
for the rst time or after a
long period of inactivity, follow the
operations described in the follow-
ing section.

• 9 •
English
Orange
Green
Green
Green
Red

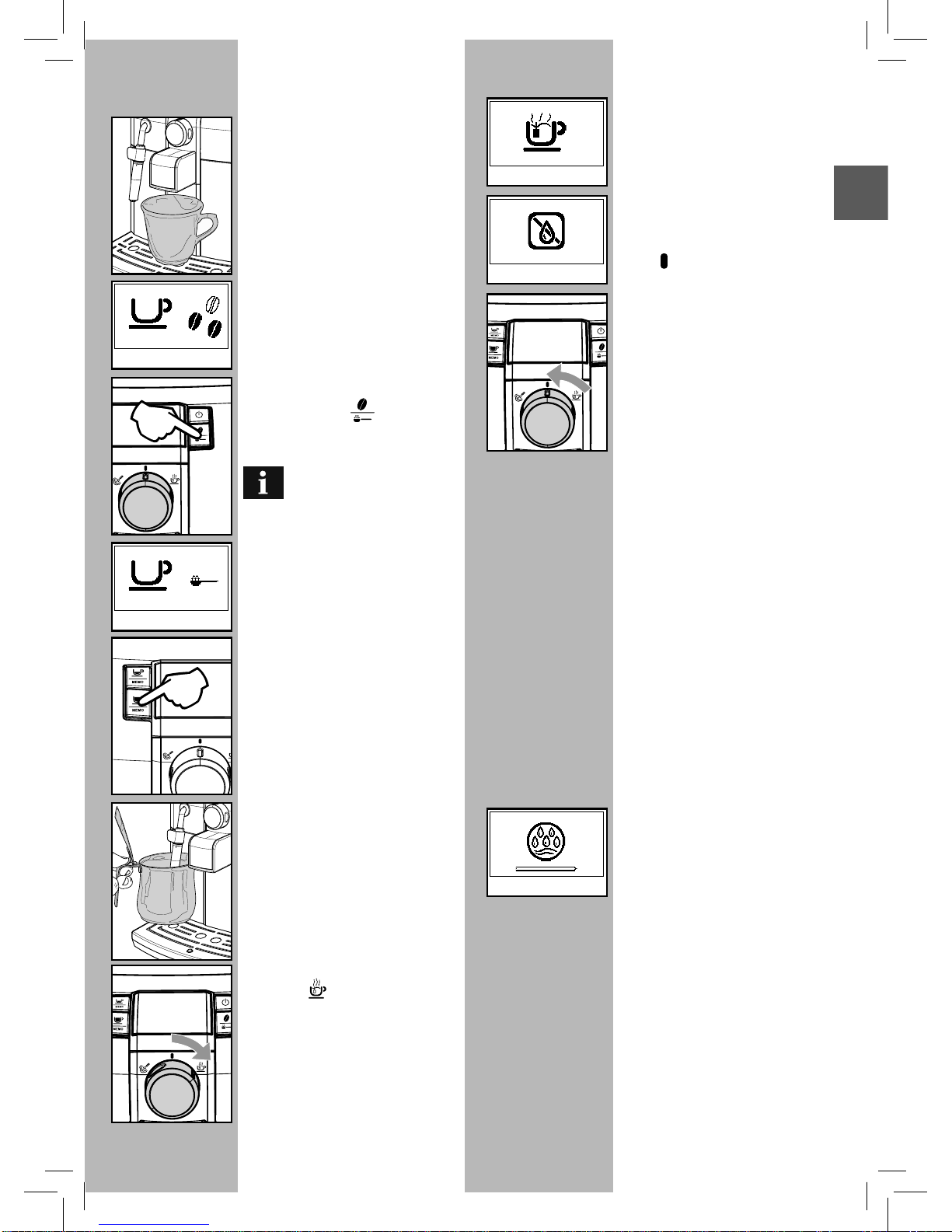

Using the machine for the
first time or after a long
period of inactivity.
These simple operations will make it pos-
sible to always brew excellent coee.
1 Place a large container under the
dispensing spout.
2 Before starting the procedure, check
that the following icon is displayed.
3 Select the pre-ground coee function
by pressing the “ “ button one or
more times.
Do not add the pre-ground
coee to the compartment.
The icon will appear on the display.
4 Press the button to brew a long cof-
fee.
5 Wait until brewing is completed and
empty the water tank.
6 Repeat the operations from step 1 to
step 5 for 3 times; then continue with
step 7.
7 Placeacontainerunderthe steamwand
(Pannarello, if supplied).
8 Turn the selector switch clockwise to set
it to the “ ”position.
The following icon will be displayed.
9 Dispense water until the no water sig-
nal is displayed, then turn the selector
switch counter-clockwise to set it to
the “ ”position.
10 At the end, fill the water tank again.
Then the products can be brewed as
described in the following sections.
Rinse/Self-Cleaning Cycle
This cycle will rinse coffee circuits with
fresh water.
The cycle is carried out:
• At machine start (with cold boiler)
• After priming the water circuit (with
cold boiler)
• During the stand-by mode (if a coee
product has been brewed)
• If the machine is turned o by pressing
the ON/OFF button (if a coee product
has been brewed).
A small amount of water will be dis-
pensed to rinse and heat all the machine
components; in this phase this icon is
displayed:
Wait for the cycle to nish automatically.
You can stop dispensing as well, by
pressing either coee button and/or
the ON/OFF button.

• 10 •• 10 •
Intenza Water Filter
To improve the quality of the used water,
it is recommended that you install the
water lter.
Remove the small white filter from the
tank and store it in a dry place sheltered
from dust.
Remove the water lter from its packag-
ing, immerse it vertically (with the open-
ings positioned upwards) in cold water
and gently press its sides so as to let the
air bubbles out.
Set the Intenza Aroma System as specied
on the box.
A = Soft water
B = Hard water (standard)
C = Very hard water
Water hardness measurement
The water hardness measurement is very
important in order to correctly manage
the“Intenza”lter and the frequency with
which the machine must be descaled.
Immerse the water hardness test strip
provided with the machine in water for
1 second.
Note: The test strip is only
valid for one measurement.
Check how many squares change colour
and refer to the table.
The letters correspond to the references
that are located in the base of the Intenza
lter. The lter must be adjusted based on
this measurement.
The numbers correspond to the settings
that are found for the water hardness ad-
justment that is shown in the program-
ming section.
More precisely:
1 = (very soft water)
2 = (soft water)
3 = (hard water)
4 = (very hard water)
Once this value is known, set the water
hardness value as specified in the pro-
gramming section.
Insert the filter in the empty tank. The
reference mark and the groove must
match. Push rmly until it is completely
inserted.
Fill the tank with fresh drinking water and
re-insert it into the machine.
Dispense the water in the tank by using
the hot water function (see section“Hot
Water Dispensing”).
Fill the water tank again.
Press the ON/OFF button to change the
machine status to stand-by mode.
23 4
ABC
Intenza Aroma System
Machine water hardness setting
1
