Service
Manual
Senseo® Original
HD7806/50 HD7806/52
HD7806/51 HD7806/59

2
Important repair instructions
•Only skilled personnel should carry out the repair.
•After repair the appliance should function properly.
•After repair the appliance has to meet the regulatory- and safety requirements that were applicable at the
time of release of the model.
•After repair the appliance always has to be tested for electrical safety according VDE 0701-0702 and for
medical products IEC 62353.
•Only use genuine Philips spare parts to replace critical components.
•The warranty of your Philips product is void if you do not use genuine Philips spare parts to repair critical
components of your appliance.
•The critical components are indicated with a warning triangle in the service exploded view and/or
service manual.
HD7806/50 /51 /52 /59
Contents
General information 3
Technical information
Consumer Replaceable Parts
Optional (accessories)
Technical information 4
Materials
Production date (or serial number))
General coee specications
Electical diagram
Functional diagram
Disassembly- and Reassembly advice 6
Disassembly information
Functions/features explanation 8
Intensity select
Selecting the right PCBA modus
Volume adjustment procedure
Troubleshooting 11
Service parts 12
Version history 17

3
Technical information
•Voltage : 230 V
•Frequency : 50 Hz
•Power consumption : 1450 W
•Standby power consumption : < 0.5 W
•Stand-by time : 30 min
•Contents reservoir : 750 cc
•Colour setting : Mystic Blue
•Functions :
- SENSEO coee boost technology
- Crema plus technology
- Brew stop
NTC value range
T = 20 °C -> 10 KΩ± 0.4 KΩ
T = 100 °C -> 0.8 KΩ± 0.02 KΩ
Consumer Replaceable Parts
•HD5009/01 Podholder 1-cup Black
•HD5010/01 Podholder 2-cup Black
•HD5011/01 Water container Sepia grey
•CP0216/01 Water container Translucent
(specic models)
•CP0220/01 XL Water container Sepia grey
(only for HD6555)
•CP0217/01 Driptray cover Black
•CRP116/01 Driptray cover Metal
(only for HD6556)
•CRP117/01 Driptray
•CP0602/01 Spout
•CP0603/01 Spout cover Black
Optional (accessories)
•No specic issues
General information

4
HD7806/50 /51 /52 /59
General coee specications
In-cup volume (ml) Coee 1-cup (ml) 1-cup Strength select (ml)
General version 122 60
French, Spanish version 100 60
Temperature indication (°C) 1st cup temperature 2nd and further cup temperature
General version (122 ml) >74 °C >76 °C
French, Spanish version (100 ml) >69 °C >73 °C
Water specication in (ml)
(without coee pod)
1-cup (ml)
(with 1-cup pod holder)
2-cup (ml)
(with 1-cup pod holder)
General version (normal cup 122 ml) 133 ± 10 266 ± 10
French, Spanish version (normal cup 100 ml) 109 ± 20 218 ± 20
All countries (short cup 60 ml) 71 ± 10 142 ± 10
Dierence between left/right volume: <10 ml <10 ml
Measure equipment needed:
•Thermometer with K-sensor 0- 100 °C ± 2 °C
•Plastic cup
•Scale balance 0 – 300 g ± 2 g
Materials
•Housing : PP
•Housing : ABS
(only for HD6556)
•Water container : PP
•Brew chamber : PA
•Spout : POM
•Hoses : Silicon
•Drip tray & Driptray cover : PP
•Drip tray cover : Stainless steel
(only for some HD6556)
•Lever : PC
•Lever (Chrome painted) : ABS
(only for some HD6556)
•Podholder : Metal / stainless steel
: Handle PP
: Stud plate POM
Production date (or serial number))
Technical information

5
Functional diagram
Boiler
Pump
3-way valve
Brew
head
Water
Container
Electical diagram
CONTROL
PCB
L
N
Boiler
Pump M
Push buttons
TCO
Fuse
Fuse
Temp.
Sensor
Water level
Sensor
Technical information

6
HD7806/50 /51 /52 /59
During assembly
•Make sure that the wiring is properly dressed as
in the original situation. When replacing crimp
connections or tie wraps, perform a pull test.
Prevent entrapment of wiring between housing-
or internal parts.
•Make sure that all parts are re-assembled, and
that no parts are forgotten. E.g.: sleeves, internal
protection caps, screws.
•Make sure that the housing parts are properly
assembled. No gaps should be present, yet
make sure screws are not overturned.
After assembly:
•Check all relevant functions of the appliance.
•Check if the consumer complaint has been
resolved.
•Check for abnormalities. E.g.: leaking liquids,
smoke, smell, abnormal noise.
•Check the use safety functions. E.g.: lid-open
detection switch, motor disable switches.
•Check the electrical safety functions:
- leakage current
- high voltage (servicer to perform a test)
- earth continuity (servicer to perform a test)
Disassembly information
To remove the brew chamber lid cover handle as
follows:
•Place the screwdriver on
the positions (see
picture 1) and lift the
cover over the snap
locks on both positions.
•The cover lid can now
be lifted up a little and
to remove the complete
cover including lever
and push rod squeeze
strongly with two ngers
both legs of the push
rod (see picture 2) to
each other, so that the
two pins will get out of the hinge position on the
brew chamber.
•To remove lever from lid cover, take a screwdriver
and bend carefully the two lips/ribs in the lid
cover outwards and push the lever with force out
of the hinge.
•Reassemble follow steps backwards, without
using a screwdriver.
To remove the back cover handle as follows:
•Remove valve outlet.
•Start at the upper side of the back cover
and stick a screwdriver into the 2 snap locks
positions and gently pull the back cover from
the appliance so that a little chink between back
cover and brew chamber becomes visible.
•Put the screwdriver in to the 4 rectangular holes
(snap locks) at the back and gently pull the
screwdriver such away that the lips of the snap
locks are bent outwards.
•If all clicks positions are loose, it is possible to
remove the back cover.
•Reassemble follow steps backwards.
picture 1
picture 2
Disassembly- and Reassembly advice

7
Removing Brew chamber head handle as follows:
•Disassemble back cover!
•Place the appliance such a way that you are
looking at the boiler.
•First remove the boiler from the snap lock
position of the brew chamber.
•To remove the brew
chamber, use your both
thumbs (see picture 3)
and push strongly with a
little distortion (rotation)
until the brew chamber
comes loose.
•Reassemble follow above steps backwards.
To reach the components placed on the base
handle as follows:
•First remove back cover, brew chamber and
3-way valve.
•Remove both Torx T15 screws see exploded
view in the near of position A.
•Bend the 2 click snap locks with a screwdriver
(see base), and the housing can now be
removed.
•To remove the rest of the housing unlock the last
4 snap locks at the base and gently pull of the
front cover.
•To reassemble follow above steps backwards.
picture 3
Disassembly- and Reassembly advice

8
HD7806/50 /51 /52 /59
SENSEO coee boost technology
Get the most out of your coee pad thanks to the
innovative SENSEO® Coee Boost technology that
delivers a fuller, richer avor through:
A new ner distribution of water via 45 aroma
nozzles ensuring the hot water is optimally spread
across the entire SENSEO® coee pad.
Therefore each grain of ground coee will release
all the aromas and avors, delivering a richer, fuller,
taste.
Crema improvement
With Crema plus you will brew, cup after cup,
SENSEO® coee with the nest and most velvety
crema layer.
Intensity select
The new PCBA has an extra feature onboard
“Intensity select”, which need to be enabled for
the following type numbers (HD6554, HD6555 &
HD6556).
Intensity select how does that work:
•Select the strong short coee
recipe by double tap on the
1-cups button for 1 cup of
strong short coee.
•Press the 1-cup button once
for one large mild cup of
coee.
•Select the strong short coee
recipe by double tap on the
2-cups button for a double
cup of strong short coee.
•Press the 2-cup button once
for two large mild cups of
coee.
Selecting the right PCBA modus
Enable/Disable the “Intensity select” feature.
The PCBA is standard delivered with the “Intensity
select” feature disabled, this for easy servicing the
existing SENSEO® Original HD78xx & HD6553
range with OPR Boiler installed.
The “Intensity select” function can be simple
enabled/disabled:
1. Hold the 2-cups button while applying power
to the appliance.
2. Release the 2-cups button.
3. Press the 1-cups button to conrm the action
of changing the “Intensity select” functionality.
4. Release the 1-cup button.
Once changed, please check functionality by
making a coee and double press the 1-cup
coee button, the volume of the coee should be
±60 ml. (water 61 – 81 ml)
To change back the “Intensity select” function
again, simply repeat steps 1 to 4.
2x
2x
Functions/features explanation

9

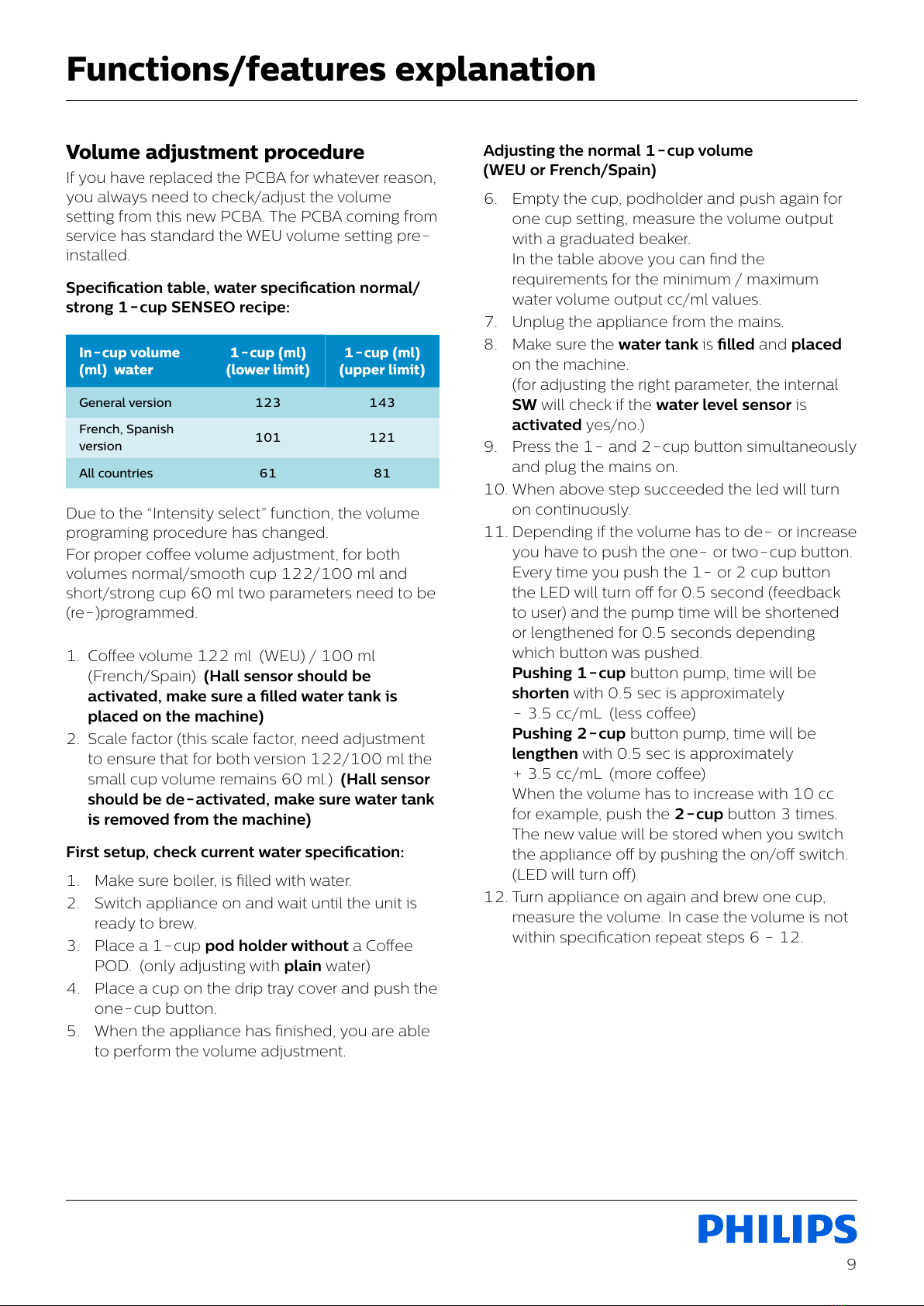

Volume adjustment procedure
If you have replaced the PCBA for whatever reason,
you always need to check/adjust the volume
setting from this new PCBA. The PCBA coming from
service has standard the WEU volume setting pre-
installed.
Specication table, water specication normal/
strong 1-cup SENSEO recipe:
In-cup volume
(ml) water
1-cup (ml)
(lower limit)
1-cup (ml)
(upper limit)
General version 123 143
French, Spanish
version 101 121
All countries 61 81
Due to the “Intensity select” function, the volume
programing procedure has changed.
For proper coee volume adjustment, for both
volumes normal/smooth cup 122/100 ml and
short/strong cup 60 ml two parameters need to be
(re-)programmed.
1. Coee volume 122 ml (WEU) / 100 ml
(French/Spain) (Hall sensor should be
activated, make sure a lled water tank is
placed on the machine)
2. Scale factor (this scale factor, need adjustment
to ensure that for both version 122/100 ml the
small cup volume remains 60 ml.) (Hall sensor
should be de-activated, make sure water tank
is removed from the machine)
First setup, check current water specication:
1. Make sure boiler, is lled with water.
2. Switch appliance on and wait until the unit is
ready to brew.
3. Place a 1-cup pod holder without a Coee
POD. (only adjusting with plain water)
4. Place a cup on the drip tray cover and push the
one-cup button.
5. When the appliance has nished, you are able
to perform the volume adjustment.
Adjusting the normal 1-cup volume
(WEU or French/Spain)
6. Empty the cup, podholder and push again for
one cup setting, measure the volume output
with a graduated beaker.
In the table above you can nd the
requirements for the minimum / maximum
water volume output cc/ml values.
7. Unplug the appliance from the mains.
8. Make sure the water tank is lled and placed
on the machine.
(for adjusting the right parameter, the internal
SW will check if the water level sensor is
activated yes/no.)
9. Press the 1- and 2-cup button simultaneously
and plug the mains on.
10. When above step succeeded the led will turn
on continuously.
11. Depending if the volume has to de- or increase
you have to push the one- or two-cup button.
Every time you push the 1- or 2 cup button
the LED will turn o for 0.5 second (feedback
to user) and the pump time will be shortened
or lengthened for 0.5 seconds depending
which button was pushed.
Pushing 1-cup button pump, time will be
shorten with 0.5 sec is approximately
- 3.5 cc/mL (less coee)
Pushing 2-cup button pump, time will be
lengthen with 0.5 sec is approximately
+ 3.5 cc/mL (more coee)
When the volume has to increase with 10 cc
for example, push the 2-cup button 3 times.
The new value will be stored when you switch
the appliance o by pushing the on/o switch.
(LED will turn o)
12. Turn appliance on again and brew one cup,
measure the volume. In case the volume is not
within specication repeat steps 6 - 12.
Functions/features explanation

10
HD7806/50 /51 /52 /59
Adjusting the scale factor for the strong/short
(60 ml) cup volume.
13. Remove the water tank from the machine. (for
adjusting the right parameter, the internal SW
will check if the water level sensor is activated
yes/no)
14. Press the 1- and 2 cup button simultaneously
and plug the mains on.
15. Release the 1- and 2 cup button, if successful,
the on/o LED will switch on less bright/
intense as normal, indicating the scale factor
reprogramming has entered.
16. Depending if the volume has to de- or increase
you have to push the one- or two-cup button.
Every time you push the 1- or 2-cup button,
the LED will turn o for 0.5 second (feedback
to user) and the scale factor will be shortened
or lengthened depending which button was
pushed.
Pushing 1-cup button, scale factor will be
shorten approximately - 1 cc/ml (less coee)
Pushing 2-cup button, scale factor will be
lengthen approximately + 1 cc/mL (more
coee)
The new value will be stored when you switch
the appliance o by pushing the main switch.
(LED will turn o)
17. Turn appliance on again and brew one strong
coee cup by pressing the 1-cup button twice,
measure the volume. In case the volume is not
within specication repeat steps 13 – 17.
18. End
Example table, switching from WEU to French/
Spain specication or vice versa, you need to
execute below:
Restoring the Boiler_empty ag to production
default:
Sometimes it is needed, that the boiler of the
SENSEO have to be emptied.
This for instance in wintertime were the possibility
exists that the boiler becomes frozen during
transport e.g.
For those occasions, it is handy to restore the
Boiler_empty_ag again to production default.
Bringing the SENSEO back into production status,
has the benet the ush routine will be activated
automatically when installed by the consumer, see
topic Automatic lling procedure.
How to SET the Boiler_empty_ag:
Keep the 1-cup button pressed while plugging
in the power plug of the appliance in the mains
socket.
The main switch LED will blink very rapidly for
approximately 1 second.
To check if the Boiler_empty_ag is really set,
reconnect the power plug to the mains a second
time and push the main switch. The main switch
LED should light continuously.
Change volume setting Adjusting normal/smooth 1-cup volume
step 6- 12
Adjusting short/strong 1-cup volume
step 13 - 17
WEU => French/Spain Push 7x 1-cups with water in tank 16x 2cups without tank
French/Spain => WEU Push 7x 2-cups with water in tank 16x 1cups without tank
Functions/features explanation

11
Problem Possible root cause Solution
Blinking slow, no heating Boiler, PCBA Exchange boiler, PCBA
Cannot open lid Blocked podholder Clean/descale or exchange podholder
Cold coee Boiler full of scale Descale appliance according instruction for use
Boiler, NTC defect Exchange boiler, NTC
Too less coee Podholder blocked Descale podholder or exchange
Boiler full of scale Descale appliance according instructions for use
3 way valve defect Exchange 3 way valve
None of the above Adjust the SW in the PCBA
Too less coee 1st cup Pump backow Exchange pump
Too much coee Bypass podholder Exchange podholder
Troubleshooting

12
A
6
7
2
1
4
3
8
5
9
101
(2x)
HD7806/50 /51 /52 /59
Pos Service code Description Remark Online CRP
1 4222 259 69501 Brew chamber assy (Coee boost) Mystic blue
2 4222 259 62781 Pad holder assy 1-cup Black HD5009/01
3 4222 259 62791 Pad holder assy 2-cup Black HD5010/01
4 4222 247 77141 Spout cover Black CP0603/01
5 4222 247 77132 Spout Black CP0602/01
6 4222 247 66481 Drip tray cover Black CP0217/01
7 4222 247 72531 Drip tray CRP117/01
8 4222 247 77601 Front cover printed Mystic blue
9 4222 247 77621 Housing Mystic blue
101 Torx T15 screw
Service parts

13
15
12
10
14
13
11
16
Service parts
Pos Service code Description Remark
10 Brew chamber lid
11 Lever
12 4222 247 72881 Pushrod
13 4222 240 06911 Slider spring
14 4222 247 35837 Slider
15 4222 247 07461 Brew chamber seal
16 4222 259 67752 Distributor assy Coee boost

14
31
32
30
33
HD7806/50 /51 /52 /59
Service parts
Pos Service code Description Remark Online CRP
30 4222 247 39963 Sensor housing
31 4222 259 48666 Water container Sepia Grey HD5011/01
32 4222 247 40983 Valve outlet Black
33 4222 259 60151 Back cover assy Black

15
17
18
22
19
20
21
29
28
Service parts
Pos Service code Description Remark
17 4222 259 59541 3-way valve
18 4222 259 65482 Boiler assy OPR 230 V
19 4222 247 75271 TCO cap for OPR boiler
20 4222 24743694 Boiler pin cap
21 4222 247 72551 Suspension bracket
22 4222 247 06511 Pressure hose
28 4222 247 05136 O-ring (NTC)
29 4222 259 39373 NTC assy

16
36
35
34
23
26
27
A
24
HD7806/50 /51 /52 /59
Service parts
Pos Service code Description Remark
23 4222 259 68452 PCB assy OPR / Intensity select 230 V
24 4222 259 68401 Button frame printed Black
26 4222 259 63422 On/o button printed
27 3000 016 66541 Base plate Black
34 4222 259 37248 Pump 230 V / 50 Hz
35 4222 247 05191 Pump damper
36 4213 247 05256 Foot
100 4222 244 50684 Tie-wrap Not shown

17
19/03 Version 1.1 : HD7806/50 / HD7806/51 / HD7806/52 initial release.
19/06 Version 1.2 : Added new version: HD7806/59.
Updated Parts List.
Version history

www.philips.com
