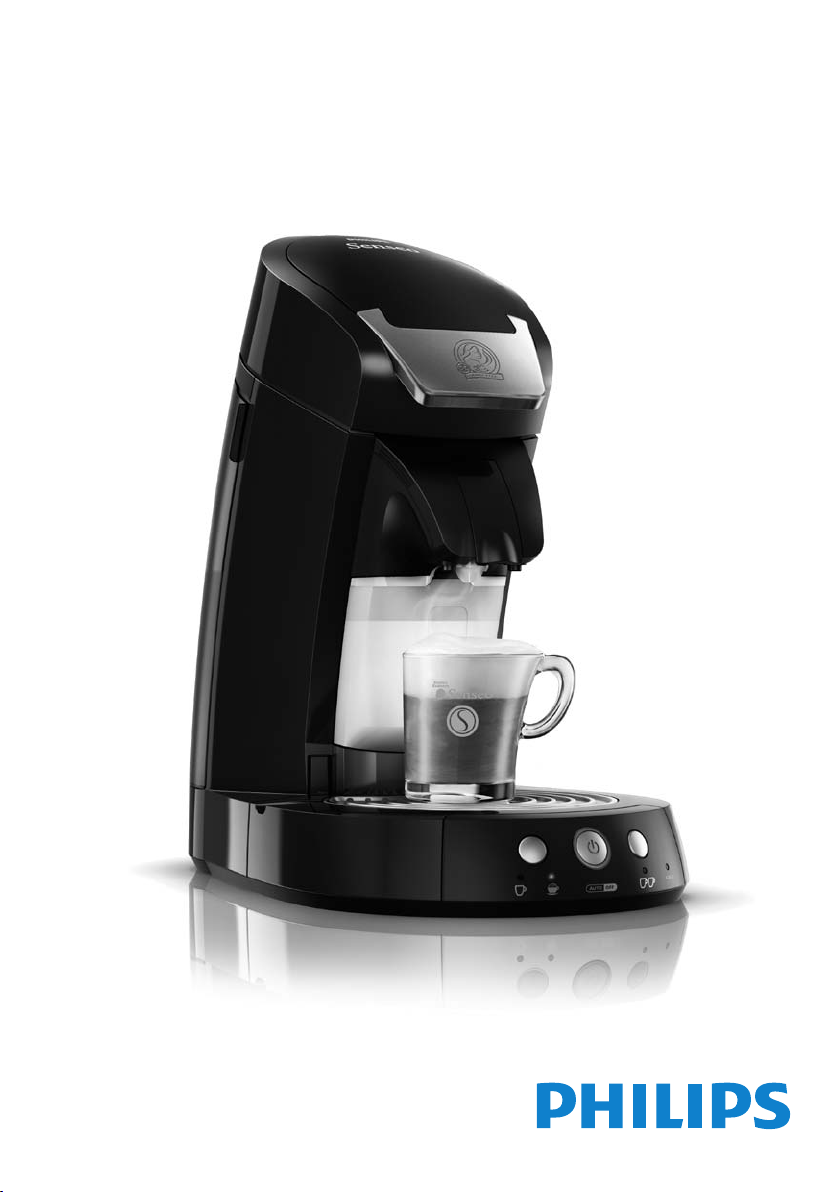

Philips HD7853/61 User manual

Register your product and get support at
www.philips.com/welcome
HD7853

1

HD7853
ENGLISH 6
DANSK 28
DEUTSCH 50
FRANÇAIS (BELGIQUE) 73
MAGYAR 96
NEDERLANDS 118
NORSK 141

6
Table of contents
Introduction 6
General description 6
Important 7
First use 8
Brewing SENSEO®coffee 10
Cleaning the milk container unit 15
Cleaning the machine 17
Descaling 20
Frost-free storage 24
Ordering accessories 24
Environment 24
Guarantee and service 24
Troubleshooting 24
Introduction
Congratulations on your purchase and welcome to Philips!
To fully benet from the support that Philips offers,
register your product at www.philips.com/welcome.
Make your coffee moments truly special with SENSEO®.This unique
system combines the easy-to-use Philips SENSEO®coffee machine with
the specially developed Douwe Egberts SENSEO® coffee pods, giving
you a full, smooth coffee with a delicious foam layer.
The SENSEO®Cappuccino Select offers you delicious cappuccino with
fresh frothed milk.The unique integrated milk frother produces steamed
milk for the creamiest foam layer. Choose a cappuccino or regular black
coffee, all at the touch of a button.
General description (Fig. 1)
1Water reservoir
2Water reservoir cover
3Lid lever
4Sealing ring
5Water distribution disc
6Milk container lever
7Cup tray cover
8Cup tray
9Drip tray
10 CALC light
11 2-cup button qq with LED
12 On/off button with light ring
13 1-cup button q/fwith LEDs
14 Milk container unit
15 Milk container
16 Milk tube
17 Milk container lid release lever
18 Steam inlet
19 Milk container lid, including frothing unit
20 Milk container lid cover
21 Release tab of milk container lid cover
22 Calc-Clean tool
ENGLISH

23 Coffee spout
24 Coffee spout cover
25 1-cup pod holder q
26 2-cup pod holder qq
27 Coffee collector
Important
Read this user manual carefully before you use the machine and save it for
future reference.
Danger
- Never immerse the machine in water or any other liquid.
Warning
- Check if the voltage indicated on the bottom of the machine
corresponds to the local mains voltage before you connect the
machine.
- This machine is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the machine by a person responsible for
their safety.
- Children should be supervised to ensure that they do not play with the
machine.
- Do not use the machine if the plug, the mains cord or the machine
itself is damaged.
- If the mains cord is damaged, you must have it replaced by Philips, a
service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.
Caution
- Correct cleaning of the milk container is very important for reliable
performance of the milk container unit and good frothing results. See
chapter ‘Cleaning the milk container unit’.
- Always return the machine to a service centre authorised by Philips for
examination or repair. Do not attempt to repair the machine yourself,
otherwise your guarantee becomes invalid.
- Never put normal ground coffee or use torn pods in the SENSEO®
machine, as this causes it to become blocked.
- Do not use the machine in combination with a transformer, as this
could cause hazardous situations.
- Always put the machine on a at and stable surface.
- Never let the machine operate unattended.
- Do not use the machine at altitudes higher than 2200 metres above
sea level.
- The machine does not work at temperatures below 10°C.
- Flush the coffee machine with fresh water before you use it for the rst
time (see chapter ‘First use’). This causes the boiler to ll with water,
which is essential for the machine to work properly.
- Do not use the SENSEO®machine in combination with water
softeners based on sodium exchange.
ENGLISH 7

- Philips strongly advises you to descale this SENSEO®machine
when the CALC light goes on to indicate that descaling is required. If
the machine is not descaled in time and according to the procedure
described in chapter ‘Descaling’, this may lead to technical failures.
- Never use a descaling agent based on mineral acids such as sulphuric
acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar).
These descaling agents may damage your SENSEO®coffee machine.
- Never turn your SENSEO® machine on its side, as water may leak from
the boiler. Always keep it in upright position, also during transport.
- This machine is intended for normal household use only. It is not
intended for use in environments such as staff kitchens of shops, ofces,
farms or other work environments. Nor is it intended to be used
by clients in hotels, motels, bed and breakfasts and other residential
environments.
Compliance with standards
- This machine complies with all standards regarding electromagnetic
elds (EMF). If handled properly and according to the instructions in
this user manual, the machine is safe to use based on scientic evidence
available today.
- The energy consumption of this machine in off mode is less than 1
watt.This means that this machine complies with European Directive
2005/32/EC, which sets the ecological design requirements for energy-
using products.
First use
Unpacking
1 Remove the machine from the box.
Note: Make sure you store the loose parts, i.e. the 2-cup pod holder and the
Calc-Clean tool, in a safe place.They are essential parts of the machine.
The Calc-Clean tool is equipped with a magnet.To avoid damage, keep
the Calc-Clean tool away from credit cards, bank cards or other data
carriers that can be damaged by magnetism.
Flushing the machine to ll the boiler
YOU CANNOT BREW COFFEE IFYOU HAVE NOT FLUSHED THE
SENSEO COFFEE MACHINE FIRST!
Flushing causes the boiler to be lled with water. After ushing, the machine
is ready for use.
Flush the machine in the following way:
1 Place a bowl with a capacity of at least 1.5 litres on the cup tray.
Note: Make sure that the cup tray cover is in place.
ENGLISH8

2 Fill the water reservoir with cold water up to the MAX indication
and put it back onto the machine.
3 Make sure the milk container unit is in place.
4 Make sure a pod holder, without pod or pods, is in place.
5 Put the plug in an earthed wall socket.
6 Press the on/off button 3.
,The light ring around on/off button lights up continuously to indicate
that the machine is ready to be ushed.
7 Press the 1-cup button q/fand the 2-cup button qq briey at the
same time to start ushing.
,The light ring around the on/off button ashes slowly to indicate that
the ushing cycle has started.
ENGLISH 9

,During the ushing cycle, the water in the water reservoir is ushed
through the machine and the boiler is lled with water. The ushing
cycle takes some time (approx. 90 to 150 seconds).
Never interrupt the ushing cycle halfway. If you do, the boiler does not
ll itself properly.
Note: During the ushing cycle, the machine produces more noise than during
a regular brewing cycle.
,The machine switches off automatically when the ushing cycle ends.
Now your Philips SENSEO®coffee machine is ready for use.
Note: If the machine does not work, repeat steps 1-7. Do not interrupt the
ushing cycle.
Brewing SENSEO®coffee
Tips for the best SENSEO®quality
- Use fresh water every time.
- Use the SENSEO®coffee pods that have been specially developed by
Douwe Egberts for your SENSEO® coffee machine for a full, round
taste.
- Always use milk at refrigerator temperature (5-8°C) to obtain hot
frothed milk of high quality for your cappuccino.
- You can use any type of milk you like. However, different types of milk
result in different amounts of froth and different froth qualities. For the
best result, we advise you to use semi-skimmed or full-fat milk.
- Remove used coffee pods directly after brewing.
- Clean the milk container unit if you are not going to use it again
straightaway (see chapter ‘Cleaning the milk container unit’).
- If you have not used the coffee machine for more than one day, you
have to ush it with fresh water to refresh the water in the boiler
before you use it again (see section ‘Flushing the coffee machine in
chapter ‘Cleaning the machine’).
Filling the water reservoir
1 Fill the water reservoir with cold water to a level above the MIN
indication and place it back onto the machine.
The MIN indication indicates the minimum amount of water required for
brewing coffee. Always ll the water reservoir beyond the MIN level.
Never pour milk, coffee, hot water or carbonated water into the water
reservoir.
ENGLISH10

Switching on the machine
1 Put the plug in an earthed wall socket.
2 Press the on/off button 3.
,The light ring around the on/off button ashes slowly while the
water is heating up. Heating up takes approx. 90 seconds.
,The coffee machine is ready for use when the light ring around the
on/off button lights up continuously.
,If the light ring around the on/off button ashes rapidly, the water
reservoir does not contain enough water for brewing coffee.
Placing a pod holder
1 Move the lid lever upwards to release the lid.
2 Open the lid.
3 Place the appropriate pod holder in the machine.
Note:You can only brew 2 cups at the same time if you brew black coffee.
- Use the 1-cup pod holder if you want to make cappuccino or one cup
of SENSEO® black coffee,
- Use the 2-cup pod holder if you want to make two cups of SENSEO®
black coffee.
Placing one or two pods
Never put normal ground coffee or use torn pods in the SENSEO®
machine, as this causes it to become blocked.
1 Place the SENSEO®coffee pod or pods properly in the centre of the
pod holder, with the convex side pointing downwards.
ENGLISH 11

- Place 1 SENSEO®coffee pod in the 1-cup pod holder n.
- Place 2 SENSEO®coffee pods in the 2-cup pod holder nn.
Note: Make sure the coffee in the pod or pods is evenly distributed and press
the pod or pods lightly into the pod holder.
2 Close the lid and lock the lid lever.
Make sure you push down the lid lever until it snaps home with a click.
Note: If the lid is not properly closed, the light ring around the on/off button
ashes intermittently for a few seconds when you press the 1-cup button q/f
button or the 2-cup button qq. In that case, the machine does not brew
coffee.
Filling the milk container unit
Note:This section only applies if you want to brew cappuccino. If you want to
brew SENSEO®black coffee, go straight to section ‘Brewing black coffee or
cappuccino’.
1 Pull the milk container lever upwards with your nger to release the
milk container unit.
2 Pull the milk container unit forwards to remove it from the machine.
ENGLISH12

3 Press the milk container lid release lever (1), tilt the milk container
lid slightly (2) and pull the milk container lid upwards to remove it
from the milk container (3).
4 Fill the milk container with cold milk up to the indication for 1 or 2
cups of cappuccino , depending on the number of cups of cappuccino
you want to brew.
Note:The amount of milk added to the coffee may vary due to variations in
milk temperature, type of milk, how clean the milk container unit is, etc.
5 Fasten the milk container lid onto the milk container (‘click’).
Always check if the lid is xed properly onto the milk container to
prevent spillage when you place the milk container unit in the machine.
6 Slide the milk container unit into the coffee machine (1) and push
down the milk container lever (‘click’) (2).
Note: Press down the milk container lever as far as possible (‘click’) to make
sure that the milk container unit is placed properly.You only obtain properly
frothed milk if the milk container unit is placed properly.
Brewing the black coffee or cappuccino
1 Place one cup or two cups under the spout openings.
Note: Make sure the cup tray cover is in place.
Note: Use a cup with a capacity of at least 200ml if you want to brew
cappuccino. Use a cup with a capacity of at least 150ml if you want to brew
black coffee. Do not use cups that are too large. Coffee gets cold more quickly
if the cup is too large.
ENGLISH 13

2 Press the button indicating the number of cups of SENSEO®coffee
you want to brew.
- Press the 1-cup button q/fonce for one cup of black coffee.
- Press the 1-cup button q/ftwice within 2 seconds for a cup of
cappuccino.
Note:Within these 2 seconds you can switch back and forth between one cup
of black coffee and one cup of cappuccino.
- Press the 2-cup button qq for two cups of black coffee.
,The SENSEO®coffee machine starts brewing and automatically
supplies the correct amount of water for black coffee or water and
milk for cappuccino.
Do not remove the water reservoir during a brewing cycle, as this
causes the machine to draw in air.When this happens, the next cup is
only partly lled.
Do not remove the milk container during a brewing cycle.
3 Remove the coffee pod or pods after use by lifting the pod holder
out of the machine and emptying it.
Be careful when you do this, as there may still be some water/coffee on the
coffee pod or pods.
Interrupting the brewing process
1 If you want to interrupt the brewing process, press the on/off button
3.
Note: If you switch the machine back on after having interrupted the brewing
process, the machine does not complete the interrupted brewing cycle.
Switching off
1 After use, press the on/off button 3to switch off the machine.
Note: If you do not switch off the machine, it switches off automatically after
30 minutes.
ENGLISH14

Cleaning the milk container unit
For a reliable performance of the milk container unit and consistently good
frothing results, it is very important that you clean the milk container unit
regularly and thoroughly.
1 If you do not plan to froth milk again straightaway, rinse the milk
container within 30 minutes after use.
2 After the last use of the day, clean all parts of the milk container
unit thoroughly.
For proper cleaning, follow the procedure described below.
Note: If you are unable to obtain high-quality frothed milk, the milk container
unit is probably dirty.
Rinsing after every use
1 Pull the milk container lever upwards with your nger to release the
milk container unit.Then pull the milk container unit forwards to
remove it from the machine.
2 Press the milk container lid release lever (1), tilt the milk container
lid slightly (2) and pull the milk container lid upwards to remove it
from the milk container (3).
3 Pull the release tab at the front of the milk container lid cover
upwards to open the cover.
4 Open the steam inlet by pulling it forward (1) and then move the
steam inlet to the right (2).This part stays attached to the lid by a
hinge.
Note:You can only open the steam inlet if the milk container lid cover is open.
ENGLISH 15

5 Pull the milk tube off the milk container lid.
6 Pour out any milk that is left in the milk container.
7 Clean all parts of the milk container unit.
- If you do not plan to froth milk again straightaway: rinse the
milk container, the milk container lid and the milk tube under a hot tap
within 30 minutes after use.
- After the last use of the day: clean the milk container, the milk
container lid and the milk tube in the dishwasher or with a washing-up
brush in hot water with some washing-up liquid.
Note: Cleaning in the dishwasher is recommended, especially when the milk
container unit is very dirty. Before you put the milk container unit in the
dishwasher, all parts that can be opened should be opened and all detachable
parts should be detached.
8 After cleaning, push back the steam inlet (1), connect the milk tube
(2) and close the milk container lid cover (3).
Note: Push back the steam inlet before you close the lid, otherwise the steam
inlet does not t anymore.
Note: Make sure you push the milk tube far enough onto the connector so that
the holes in the connector are covered. If you do not push the milk tube far
enough onto the connector, you get less milk froth.
ENGLISH16

9 Fasten the milk container lid onto the milk container (‘click’).
10 Slide the milk container unit into the coffee machine (1) and push
down the milk container lever (‘click’) (2).
Cleaning the machine
Danger: Never immerse the machine in water or any other liquid.
Cleaning the coffee machine
1 Always unplug the machine before you clean it.
2 Clean the outside of the machine with a damp cloth.
3 Remove the coffee collector.
4 Remove the coffee spout cover and take the coffee spout out of the
machine.
ENGLISH 17

5 Clean the coffee spout cover, the coffee spout, the coffee collector,
the drip tray and the cup tray cover in hot water, if necessary with
some washing-up liquid, or in the dishwasher.
6 Hold the cup tray in your hand while you clean it with hot water. If
necessary, use some washing-up liquid.
You can also clean the cup tray in the dishwasher.
Always remove the cup tray from the machine to clean it.The cup tray
can be sharp if handled incorrectly.Always handle it carefully.
7 Clean the pod holders in hot water, if necessary with some washing-
up liquid, or in the dishwasher.
If the sieve in the centre of the pod holder is clogged, rinse the pod holder
under a running tap. If necessary, use a washing-up brush.
8 Remove the water reservoir cover and clean the water reservoir
in hot water, if necessary with some washing-up liquid, or in the
dishwasher.
Note: If you use a washing-up brush, be careful not to damage the valve and
oat in the bottom of the water reservoir.
9 Clean the water inlet on the machine with a moist cloth.
Do not use an object with sharp edges to clean the water inlet.
10 Rinse the parts with fresh water after cleaning and put them back
into the machine.
ENGLISH18

11 Clean the water distribution disc with a moist cloth.
Be careful when you do this; make sure that the rubber sealing ring does
not get stuck under the edge of the water distribution disc. If it does, the
coffee machine starts leaking.
Note: Be careful not to damage the metal tab on the water distribution disc.
Flushing the coffee machine
If you have not used the coffee machine for more than one day, you have
to ush it with fresh water to refresh the water in the boiler before you
use it again.
Flush the machine in the following way:
1 Fill the water reservoir with cold water up to the MIN indication
and put it back onto the machine.
2 Put the 1-cup pod holder qor the 2-cup pod holder qq in the
machine without pod or pods.
3 Close the lid and lock the lid lever.
4 Put two cups or a bowl under the coffee spout to collect the water.
ENGLISH 19

5 Press the on/off button 3to switch on the machine.
,The light ring light ashes slowly while the water is heating up.
,The machine is ready when the light in the on/off button lights up
continuously.
6 Press the 2-cup button qq to brew two cups of hot water.
7 Throw away this water. Now the machine is ready for use again.
Descaling
When to descale
- Descale the SENSEO®coffee machine as described below when
the CALC light goes on (after you have brewed approx. 400 cups of
SENSEO®coffee or SENSEO®cappuccino).You can also descale the
SENSEO®coffee machine more often (at least every 3 months) in the
same way.The descaling procedure takes approx. 40 minutes.
Why to descale
Scale builds up inside the machine during use. It is essential to descale the
SENSEO® coffee machine when the CALC light goes on, but at least every
three months.Your reasons to descale:
- It prolongs the life of your SENSEO®coffee machine
- It ensures maximum cup volume
- It ensures maximum coffee temperature
- The machine produces less sound during brewing
- It prevents malfunctioning
If the descaling procedure is not performed correctly, scale residues remain
behind in the machine.This causes scale to build up more quickly and may
cause permanent and irreparable damage to the machine.
Use the correct descaling agent
Only citric acid-based descalers are suitable for descaling the SENSEO®
machine.This type of descaler descales the machine without damaging
it. For the correct amount, see section ‘Descaling procedure’ below. Each
descaling mixture can be used only once. After use, the descaling mixture is
no longer active.
Philips SENSEO® has developed a special descaler (HD7012, HD7011,
HD7006) for SENSEO®machines. For more information about this
descaler, visit our website www.philips.com.
ENGLISH20
