Philips AJ7040D/93 User manual

Register your product and get support at
www.philips.com/welcome
AJ7040D
EN User Manual

A
a
b
c
j
ke
g
h
f
d
n
m
o
p
l
i

B
VOL
POWER SLEEP
AL 1 AL 2
OK
PROG
MP 3 LINK
MENU
FM DOCK
SNOOZE
SET TIME
P
R
E
S
E
T
P
R
E
S
E
T
P
R
E
S
E
T
T
U
N
I
N
G
T
U
N
I
N
G
1
a
b
c
j
k
e
g
h
f
d
m
l
i

a
c
b
C
D

E
F

3
Refer all servicing to qualied service •
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does
not operate normally, or has been
dropped.
Apparatus shall not be exposed to •
dripping or splashing.
Do not place any sources of danger •
on the apparatus (e.g. liquid lled
objects, lighted candles).
Where the plug of the Direct Plug-•
in Adapter is used as the disconnect
device, the disconnect device shall
remain readily operable.
1 Important
Safety
Important Safety Instructions
Read these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not use this apparatus near water.•
Do not block any ventilation •
openings. Install in accordance with
the manufacturer’s instructions.
Do not install near any heat sources •
such as radiators, heat registers,
stoves, or other apparatus (including
ampliers) that produce heat.
Protect the power cord from being •
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
Only use attachments/accessories •
specied by the manufacturer.
Use only with the cart, stand, •
tripod, bracket, or table specied
by the manufacturer or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning •
storms or when unused for long
periods of time.
English
EN
ENGLISH

4
dSLEEP
Set sleep timer.•
eVOLUME +/-
Adjust volume.•
fDisplay panel
Show current information.•
gPRESET
Select a preset radio station.•
Adjust hour and hour format.•
Skip to previous/next album.•
hSET TIME/PROG
Set clock.•
Store radio stations automatically •
and manually.
iSNOOZE/BRIGHTNESS
Snooze alarm.•
Adjust display brightness.•
j
Turn on/off the clock radio.•
Switch the clock radio to standby •
mode.
kSOURCE
Select a source.•
lDock for iPod/iPhone
mAL1/AL2 RADIO·BUZZ·DOCK
Select alarm source.•
nDC IN
Power supply socket.•
oFM ANTENNA
Improve FM reception.•
pMP3 LINK
Connect an external audio device.•
2 Your clock radio
Congratulations on your purchase, and welcome
to Philips! To fully benet from the support that
Philips offers, register your product at www.
philips.com/welcome.
Introduction
With this clock radio, you can:
listen to FM radio;•
enjoy audio from iPod/iPhone or an •
external device;
know the time; and•
wake up by buzzer alarm, radio, or •
audio in iPod/iPhone.
What’s in the box
Check and identify the contents of your
package:
Main unit •
Remote control (with a battery)•
Adapter•
User manual•
Overview of the main unit A
aAL1/AL2
Set alarm.•
View alarm settings.•
Activate/deactivate alarm timer.•
b/ TUNING +/-
Tune to an FM radio station.•
Adjust minute and hour format.•
Skip to previous/next track.•
Search within a track.•
c
Start/pause play.•
EN

5
Overview of the remote
control B
aSLEEP
Set sleep timer.•
bPRESET +/-
Select a preset radio station.•
Adjust hour and hour format.•
Skip to previous/next album.•
cSource selection buttons: FM, MP3
LINK, DOCK
Select a source.•
dPROG
Store radio stations.•
eMENU
Access iPod/iPhone menu.•
fVOL +/-
Adjust volume.•
gAL1/AL2
Set alarm.•
View alarm settings.•
Activate/deactivate alarm timer.•
hSNOOZE
Snooze alarm.•
iPOWER
Turn on/off the clock radio.•
Switch the clock radio to standby •
mode.
j/ TUNING +/-
Tune to an FM radio station.•
Adjust minute and hour format.•
Skip to previous/next track.•
Search within a track.•
kOK/
Start/pause play.•
Conrm a selection.•
lSET TIME
Set clock.•
m
Adjust display brightness.•
English
EN
ENGLISH

6
Set clock
1 In standby mode, press and hold SET
TIME for two seconds to activate clock
setting mode.
The hour and minute digits begin to
»
blink.
2 Press / and / repeatedly to
set the hour and minute.
3 Press SET TIME to conrm.
»[12H] or [24H] begins to blink.
4 Repeat Steps 2-3 to select 12/24 hour
format.
The set time is displayed.
»
Note
Wh en iPod /iP hon e is conn ec te d, t he clock
•
radio synchronizes time from the iPod/iPhone
automatically.
Turn on
Press .
The clock radio switches to the last
»
selected source.
Tip
To select a source, press
•SOURCE repeatedly or
the source selection buttons on the remote control.
Switch to standby mode
Press again to switch the clock radio to
standby mode.
The clock (if set) appears on the
»
display panel.
3 Get started
Always follow the instructions in this chapter in
sequence.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat,
•
sunshine or re. Never discard batteries in re.
Danger of explosion if bat ter y is incor rec tly
•
replaced. Replace only with the same or equivalent
type.
The battery contains chemical substances, so it
•
should be disposed of properly.
Keep children away from the battery.
•
For rst-time use:
Remove the protective tab to activate the
battery.

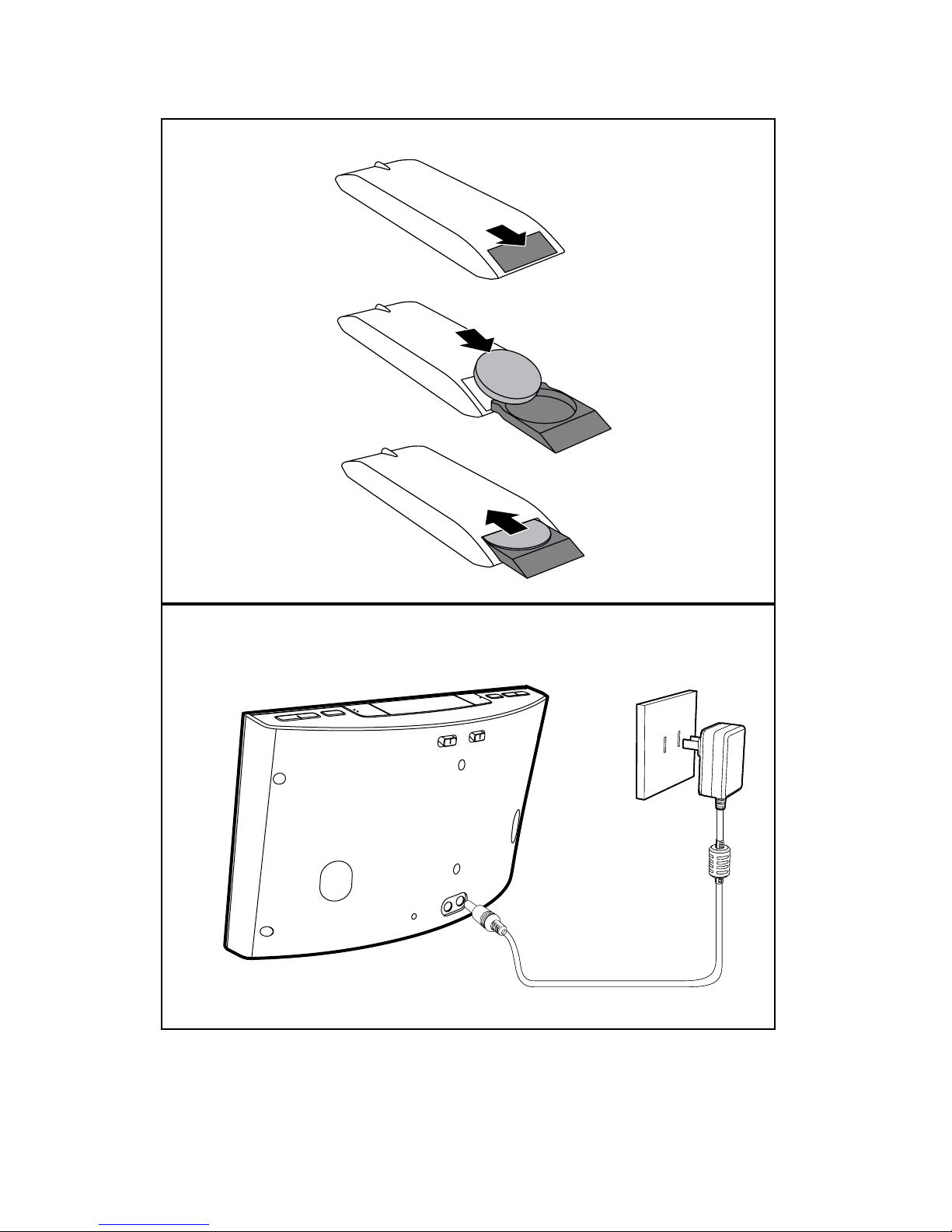

To replace the battery: C
Connect power D
Caution
Risk of product damage! Ensure that the power
•
voltage corresponds to the voltage printed on the
back or underside of the clock radio.
Risk of electric shock! When you unplug the AC
•
adapter, always pull the plug from the socket. Never
pull the cord.
Warning
To reduce the risk of re or electric shock, do not
•
expose this clock radio to rain or moisture.
EN

7
Remove the iPod/iPhone F
Pull the iPod/iPhone out of the dock.
Charge the iPod/iPhone
When the clock radio is connected to power,
the docked iPod/iPhone starts charging.
Adjust volume
You can adjust volume by pressing VOL +/-
repeatedly.
4 Play from iPod/
iPhone
You can enjoy audio from iPod/iPhone through
this clock radio.
Compatible iPod/iPhone
The clock radio supports these iPod and iPhone
models:
Made for.
iPod touch (1st, 2nd, 3rd, and 4th •
generation)
iPod classic•
iPod with video •
iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th •
generation)
iPod with color display•
iPod mini•
iPhone 4•
iPhone 3GS•
iPhone 3G•
iPhone •
Listen to audio from iPod/
iPhone
1 Place the iPod/iPhone in the dock. E
2 Press SOURCE repeatedly or DOCK on the
remote control to select iPod/iPhone
mode.
3 Start to play audio from the iPod/iPhone.
To pause/resume play, press • .
To skip to a track, press • / .
To search during play, press and hold •
/ , then release to resume
normal play.
To navigate the menu: press • MENU,
then press / to select, and press
OK to conrm.
English
EN
ENGLISH

8
The preset number begins to blink.
»
3 Press PRESET +/- or TUNING +/-
repeatedly to select a number.
4 Press PROG again to conrm.
5 Repeat steps 1 to 4 to store other
stations.
Note
To remove a pre-stored station, store another
•
station in its place.
Select a preset radio station
In tuner mode, press PRESET +/- or TUNING
+/- to select a preset number.
5 Listen to FM
radio
Tune to FM radio stations
Tip
Position the antenna as far as possible from TV,
•
VCR, or other radiation source.
For better reception, fully extend and adjust the
•
position of the antenna.
1 Press FM to select FM tuner source.
2 Press and hold TUNING +/- for two
seconds.
The clock radio tunes to a station with
»
strong reception automatically.
3 Repeat step 2 to tune to more radio
stations.
To tune to a station manually:
1 Press TUNING +/- repeatedly until you
nd optimal reception.
Store FM radio stations
automatically
You can store a maximum of 20 FM radio
stations.
In tuner mode, press an hold PROG for two
seconds.
The clock radio stores all the available
»
FM radio stations and broadcasts the
rst available station automatically.
Store FM radio stations
manually
1 Tune to an FM radio station.
2 Press PROG.
EN

9
The alarm repeats ringing for the •
next day.
Snooze alarm
When alarm sounds, press SNOOZE.
The alarm snoozes and repeats ringing
»
nine minutes later.
Set sleep timer
This clock radio can switch to standby mode
automatically after a preset period.
Press SLEEP repeatedly to select the sleep timer
period (in minutes).
When the sleep timer is activated,
»
appears.
To deactivate the sleep timer, press SLEEP
repeatedly until [OFF] (off) appears.
Play audio from an external
device
You can listen to audio from an external device
through this clock radio.
1 Connect the MP3 link cable to:
the • MP3 LINK socket.
the headphone socket of an external •
device.
2 Press MP3 LINK to select MP3 link
source.
3 Start to play the external device (see the
user manual of this device).
Adjust display brightness
Press BRIGHTNESS repeatedly to select
different brightness levels.
15 30 60 90 120
off
6 Other features
Set alarm timer
Set alarm
In standby mode, you can set two alarms to
ring at different time.
Note
Make sure that you have set the clock correctly.
•
1 Press and hold AL1/AL2 for two seconds
to activate alarm setting mode.
The hour and minute digits begin to blink.
»
2 Press / and / repeatedly to
set the hour and minute.
3 Press AL1/AL2 to conrm.
Select alarm source
Note
For alarm sound, you can select buzzer, your
•
last listened radio chanel, or latest played
audio in your iPod/iPhone.
Adjust AL1/AL2 RADIO·BUZZ·DOCK
control to select alarm source for both alarms.
Tip
When alarm time comes, the selected radio,
•
buzzer, or iPod/iPhone turns on.
If iPhone is selected as alarm source, while
•
no iPod/iPhone is connected, the clock radio
switches to buzzer source instead.
Activate/deactivate alarm timer
1 Press AL1/AL2 to view alarm settings.
2 Press AL1/AL2 again to activate or
deactivate the alarm timer.
The alarm icon appears if alarm timer
»
is on and disappears if it is off.
To stop the ringing alarm, press the •
corresponding AL1/AL2.
English
EN
ENGLISH

10
7 Product
information
Note
Produc t information is subject to change
•
without prior notice.
Specications
Amplier
Rated Output Power 2 X 5W RMS
Tuner
Tuning Range FM: 87.5 - 108 MHz
Sensitivity
- Mono, 26dB S/N
Ratio
FM: <22 dBf
Search Selectivity FM: <28 dBf
Total Harmonic
Distortion
FM: <2%
Signal to Noise Ratio FM: >55 dB
General information
AC Power Model: AS180-070-
AB250; Input: 100-
240 V ~; Output:
DC7V 2.5A
Operation Power
Consumption
<12 W
Standby Power
Consumption
<1 W
Dimensions
- Main Unit (W x H
x D)
290 x 158 x 113 mm
Weight
- With Packing
- Main Unit
2.08 kg
1.43 kg
EN

11
8 Troubleshooting
Warning
Never remove the casing of this apparatus.
•
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome). When you contact Philips,
ensure that the apparatus is nearby and the
model number and serial number are available.
No power
Ensure that the AC power plug of the •
clock radio is connected properly.
Ensure that there is power at the AC •
outlet.
No response from the clock radio
Disconnect and reconnect the AC power •
plug, then turn on the clock radio again.
Poor radio reception
Keep the clock radio away from other •
electronic devices to avoid radio
interference.
Fully extend and adjust the position of the •
FM antenna.
Alarm does not work
Set the clock/alarm correctly.•
Clock/alarm setting erased
Power has been interrupted or the power •
plug has been disconnected.
Reset the clock/alarm.•
English
EN
ENGLISH

12
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries because correct
disposal helps to prevent negative consequences
for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Note
The type plate is located on the bottom of the
•
apparatus.
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
9 Notice
Any changes or modications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specically to iPod or
iPhone respectively, and has been certied by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
EN

© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
AJ7040D_93_UM_V1.2
