Philips DS8550/93 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
ZH-CN 用户手册
DS8550
DS8550_93_UM_V1.0.indb 1 2010-10-15 10:41:57

3
English
EN
Contents
1 Important 4
Safety 4
Notice 6
2 Your Docking Speaker 8
Introduction 8
What’s in the box 8
Overview of the main unit 9
Overview of the remote control 10
3 Get started 12
Prepare the remote control 12
Connect power 13
Turn on 14
4 Play 16
Play from iPod/iPhone/iPad 16
Play from Bluetooth device 17
Play from an external device 18
Adjust volume level 18
Mute sound 19
5 Product information 20
Specications 20
6 Troubleshooting 21
About Bluetooth device 21
DS8550_93_UM_V1.0.indb 3 2010-10-15 10:41:57

4
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
j Only use attachments/accessories specied by the manufacturer.
k Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
EN
DS8550_93_UM_V1.0.indb 4 2010-10-15 10:41:58

5
m Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
nBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit,the
batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, re or the like.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
lled objects, lighted candles).
qWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
English
EN
DS8550_93_UM_V1.0.indb 5 2010-10-15 10:41:58

6
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorizedvehicle,cycling,skateboarding,etc.;itmaycreateatrafc
hazard and is illegal in many areas.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect the apparatus from the power.
Notice
Anychangesormodicationsmadetothisdevicethatarenotexpressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
EN
DS8550_93_UM_V1.0.indb 6 2010-10-15 10:41:58

7
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical and
electronic products. The correct disposal of your old product helps prevent
potentially negative consequences on the environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Note
The type plate is located on the bottom of the apparatus.•
English
EN
DS8550_93_UM_V1.0.indb 7 2010-10-15 10:41:59

8
2 Your Docking Speaker
Congratulationsonyourpurchase,andwelcometoPhilips!Tofullybenet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod/iPhone/iPad and other
audio devices.
What’s in the box
Check and identify the contents of your package:
Main unit•
Remote control•
1 x AC adaptor•
1 x AC power cord•
1 x Aux-in cable•
User manual•
Quick Start Guide•
EN
DS8550_93_UM_V1.0.indb 8 2010-10-15 10:41:59

9
Overview of the main unit
a
Turn on/off the unit.•
b
Select Bluetooth mode•
Pair with Bluetooth device.•
a b d e
g f
c
English
EN
DS8550_93_UM_V1.0.indb 9 2010-10-15 10:42:00

10
ciPod/iPhone/iPad dock
d/
Adjust volume.•
eBuilt-in battery LED indicator
fPower supply socket
gAUX IN
Jack for an external audio device.•
Overview of the remote control
1
Mute volume.•
2
Select Bluetooth mode•
Pair with Bluetooth device.•
3
Select Aux-in mode•
4Up/down keys
Navigate through the iPod/iPhone/iPad menu.•
5Fast forward/backward keys
Fast reverse or fast forward within a track or iPhone/iPod/iPad.•
Skip to the previous/next track.•
j
h
g
i
a
f
e
c
b
d
EN
DS8550_93_UM_V1.0.indb 10 2010-10-15 10:42:01

11
6
Start or pause play.•
7VOL +/-
Adjust volume.•
8MENU
Access the iPod/iPhone/iPad menu.•
9OK
Conrmaselection.•
10
Select iPod/iPhone/iPad dock mode•
English
EN
DS8550_93_UM_V1.0.indb 11 2010-10-15 10:42:01

12
3 Get started
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of
this apparatus.The model number and serial number are on the bottom of
the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________

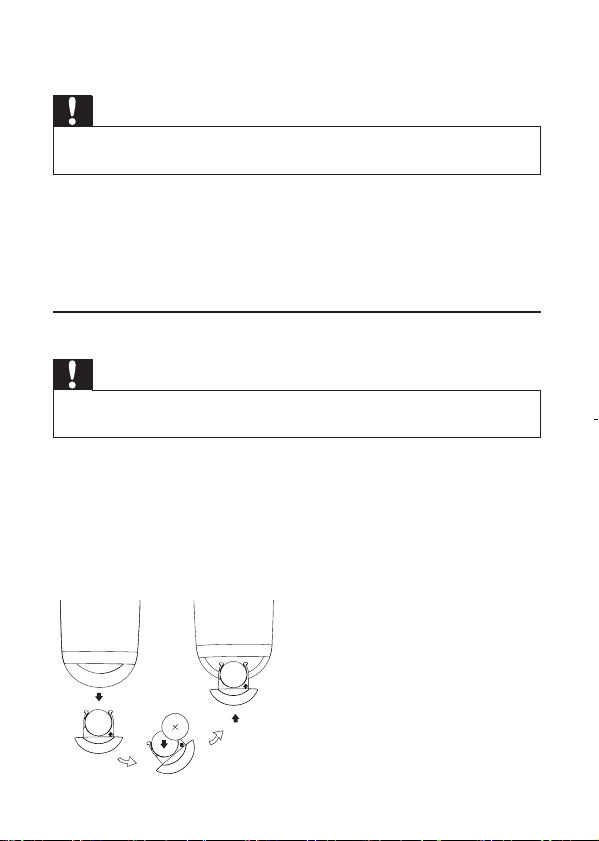

Prepare the remote control
Caution
Riskofexplosion!Keepbatteriesawayfromheat,sunshineorre.Neverdiscard•
batteriesinre.
For rst-time use:
1Remove the protective tab to activate the remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2025 battery with correct polarity (+/-) as indicated.
3Close the battery compartment.
EN
DS8550_93_UM_V1.0.indb 12 2010-10-15 10:42:01

13
Note
Beforepressinganyfunctionbuttonontheremotecontrol,rstselectthecorrect•
source with the remote control instead of the main unit.
If you are not going to use the remote control for a long time, remove the battery.•

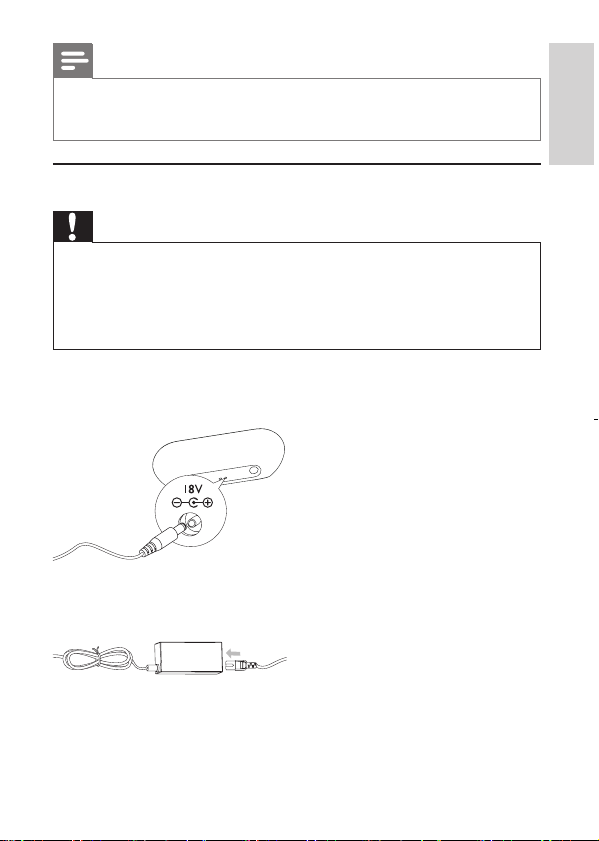

Connect power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the unit.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from•
the socket. Never pull the cord.
Before connecting the AC adaptor, ensure you have completed all other•
connections.
1Insert the plug from the AC adaptor to the DC IN socket on the
back of the main unit.
2Connect one end of the AC power cord to the AC adaptor.
3Connect the other end of the AC power cord to the wall outlet.
English
EN
DS8550_93_UM_V1.0.indb 13 2010-10-15 10:42:02

14
Built-in Battery
Note
Always bring your product to a professional to remove the built-in battery.•
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or•
equivalent type.
The unit can also operate on built-in rechargeable battery.
Battery power LED indicator
Low Red
Medium Yellow
Full Green
Note
Use only the supplied AC adapter to charge the battery.•
To recharge the built-in battery:
Connect the unit to the mains power supply.
Turn on
1Press on the main unit.
EN
DS8550_93_UM_V1.0.indb 14 2010-10-15 10:42:02

15
When user approaches the unit, light LED under volume button on»
the main unit turns on automatically.
Switch to ECO standby
The unit switches to standby mode automatically, when:
In DOCK mode: the iPod/iPhone is disconnected from the unit.•
In Aux-in mode: the device no longer playing music for more than 15•
minutes.
In Bluetooth mode: the Bluetooth device no longer playing music for•
more than 15 minutes.
Tip
Under standby mode, press•, or on the remote control, the unit will switch on
to the corresponding selected source.
English
EN
DS8550_93_UM_V1.0.indb 15 2010-10-15 10:42:02

16
4 Play

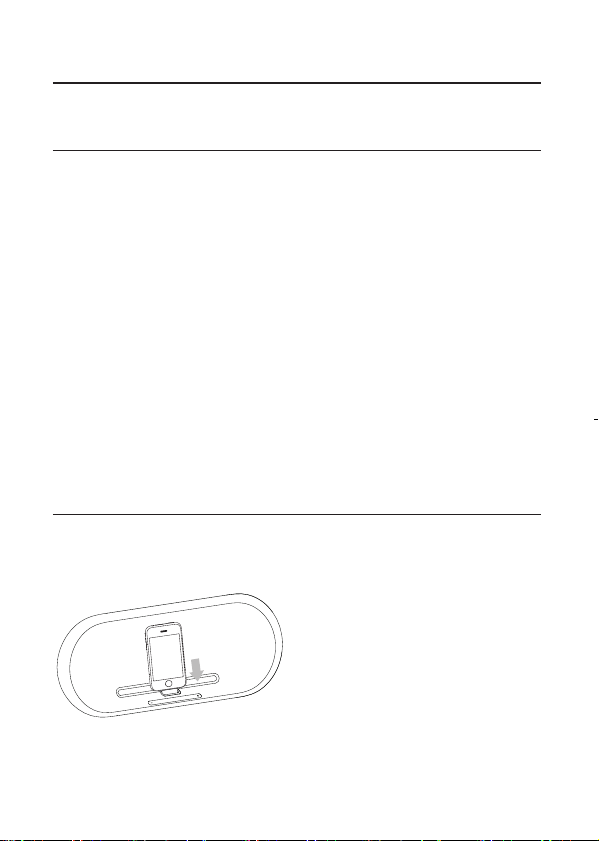

Play from iPod/iPhone/iPad
You can enjoy audio from iPod/iPhone/iPad through this unit.
Compatible iPod/iPhone/iPad
Apple iPod, iPhone and iPad models with a 30-pin dock connector. Made
for :
iPod (5th generation)•
iPod nano (1st generation)•
iPod nano (2nd generation)•
iPod nano (3rd generation)•
iPod nano (4th generation)•
iPod nano (5th generation)•
iPod classic•
iPod touch (1st generation)•
iPod touch (2nd generation)•
iPod touch (3rd generation)•
iPhone•
iPhone4•
iPhone 3G•
iPhone 3GS•
iPad.•
Load the iPod/iPhone/iPad
1Place the iPod/iPhone/iPad in the dock.
EN
DS8550_93_UM_V1.0.indb 16 2010-10-15 10:42:03

17
Remove the iPod/iPhone/iPad
1Pull the iPod/iPhone/iPad out of the dock.
Listen to the iPod/iPhone/iPad
1Ensure that the iPod/iPhone/iPad is loaded correctly.
2Press to select dock mode.
3Press .
The connected iPod/iPhone/iPad starts play.»
To pause/resume play, press• .
To skip to a track, press fast forward/backward keys.•
To search during play, press and hold fast forward/backward•
keys, then release to resume normal play.
To navigate the menu, press• MENU, then press up/down keysto
select, and press OKtoconrm.
Charge the iPod/iPhone/iPad
When the unit is connected to AC power, the docked iPod/iPhone/iPad
begins to charge.
Tip
You can also charge your iPod/iPhone via the built-in battery. Before charging your•
iPod/iPhone via the built-in battery, ensure the Fidelio battery-charging function is
turn on.
You cannot charge your iPad via the built-in battery. To charge your iPad, connect•
the unit to AC power.
Play from Bluetooth device
Pair with Bluetooth deivces
1Press to select Bluetooth source.
2Press and hold for 3 seconds to start pairing.
LED under»buttononthemainunitashesrapidly.
3Turn on Bluetooth function on your device.
4Search for Bluetooth devices that can pair with your device.
5When “PHILIPS DC8550” displays, select it to start connection.
English
EN
DS8550_93_UM_V1.0.indb 17 2010-10-15 10:42:03

18
6When prompted for a password, enter “0000”.
Doublebeeptoneconrmationisheardandthe»LED turns on
stably if connection is successful.
If the pairing cannot be completed within one minute,»LED turns
off.
Tip
IfyourBluetoothdeviceisalreadypairedwithDS8550before,youjustneedtond•
outthe“PHILIPSDS8550”onyourBluetoothmenu,thenconrmtheconnection.
To disconnect Bluetooth
1Turn off the connected device or move it beyond the communication
range.
»LED turns off.
Play audio les from bluetooth devices
Note
Make sure the Bluetooth connection between the unit and the device is active.•
To start play, press• on the remote control.
To pause/resume play, press• again.
To track up/down, press forward/backward keys.•
Play from an external device
You can also listen to an external audio device through this unit.
1Press to select Aux-in mode.
2Connect the supplied Aux-in link cable to:
the• AUX IN jack (3.5mm) on the back of the unit.
the headphone jack on an external device.•
3Start to play the device (see the device user manual).
EN
DS8550_93_UM_V1.0.indb 18 2010-10-15 10:42:03

19
Adjust volume level
1During play, press VOL +/- to increase/decrease the volume level.
Mute sound
1During play, press MUTE to mute/unmute sound.
English
EN
DS8550_93_UM_V1.0.indb 19 2010-10-15 10:42:03

20
5 Product information
Note
Product information is subject to change without prior notice.•
Specications
Amplier
Rated Output Power 2X15 W RMS
Signal to Noise Ratio 85 dB
Aux-in Link 0.6 V RMS 10 kohm
General information
AC power (power adaptor) OH-1065A1803500U
Input: 100-240V, 50/60Hz, 1.5A;
Output: 18V 3.5A;
Operation Power Consumption <40W
ECO Standby Power Consumption <1W
Dimensions
- Main Unit (W x H x D) 169 x 420 x 108mm
Weight
- Main Unit 2.22 kg
Bluetooth
Output power 0 dBm (Class 2)
Frequency band 2.4000 GHz - 2.4835 GHz ISM Band
Range 3 meters(free space)
Standard Bluetooth2.0specication
EN
DS8550_93_UM_V1.0.indb 20 2010-10-15 10:42:03

21
6 Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the following
points before requesting service. If the problem remains unsolved, go to
the Philips web site (www.philips.com/welcome).When you contact Philips,
ensure that the apparatus is nearby and the model number and serial number
are available.
No power
Ensure that the AC power plug of the unit is connected properly.•
Ensure that there is power at the AC outlet.•
No sound
Adjust the volume.•
No response from the unit
Disconnect and reconnect the AC power plug, then turn on the unit•
again.
About Bluetooth device
Music playback is unavailable on the system even after successful Bluetooth
connection.
The device cannot be used with the system to play music.•
The audio quality is poor after connection with a Bluetooth-enabled
device.
The Bluetooth reception is poor. Move the device closer to the•
system or remove any obstacle between the device and the system.
Cannot connect with the system.
Thedevicedoesnotsupporttheprolesrequiredforthesystem.•
The Bluetooth function of the device is not enabled. Refer to the•
user manual of the device for how to enable the function.
English
EN
DS8550_93_UM_V1.0.indb 21 2010-10-15 10:42:03
