Contents
1 Important 4
Safety 4
Notice 7
2 Your Docking Entertainment System 9
Introduction 9
What’s in the box 9
Overview of the main unit 10
Overview of the remote control 11
3 Get started 13
Prepare the remote control 13
Connect power 14
Turn on 15
4 Play 16
Play from iPod/iPhone/iPad 16
Play from an external device 17
Adjust volume level 18
Mute sound 18
5 Product information 19
Specifications 19
6 Troubleshooting 20

4
1 Important
Safety

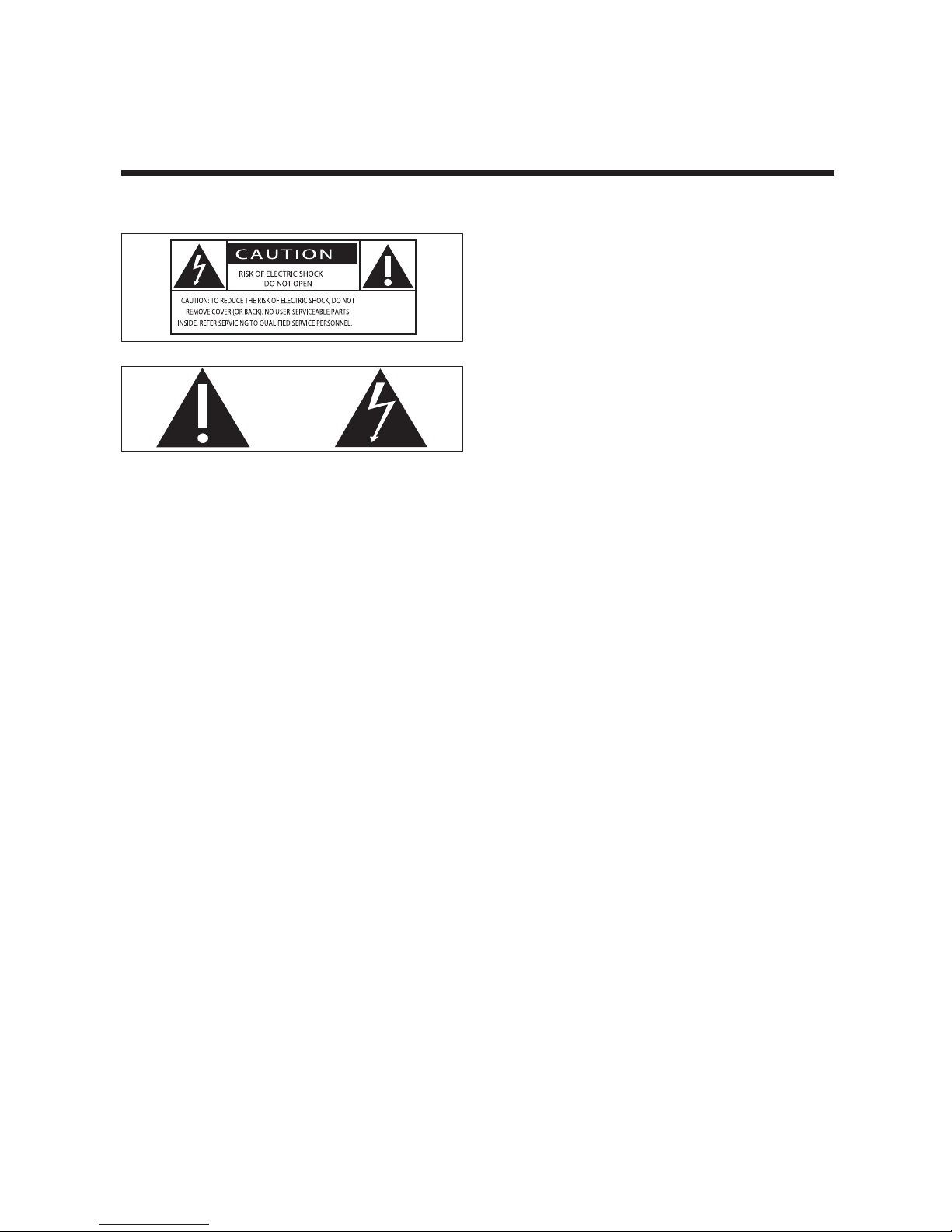

This ‘bolt of lightning’ indicates uninsulated material within your
unit may cause an electrical shock. For the safety of everyone in
your household, please do not remove product covering.
The ‘exclamation point’ calls attention to features for which you
should read the enclosed literature closely to prevent operating
and maintenance problems.
WARNING: To reduce the risk of fire or electric shock, this
apparatus should not be exposed to rain or moisture and objects
filled with liquids, such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match wide blade of plug to
wide slot, fully insert.
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
EN

5
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
iFor countries with a polarized mains, do not defeat the
safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of
the obsolete outlet.
Caution: To prevent electric shock, match the wide blade of
the plug to the wide slot, fully insert.
jProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
kOnly use attachments/accessories specified by the
manufacturer.
lUse only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
English
EN

6
mUnplug this apparatus during lightning storms or when
unused for long periods of time.
nRefer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
oBattery usage CAUTION – To prevent battery leakage
which may result in bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - as marked on the unit.•
Remove batteries when the unit is not used for a long time.•
The batteries shall not be exposed to excessive heat such•
as sunshine,fire or the like.
pApparatus shall not be exposed to dripping or splashing.
qDo not place any sources of danger on the apparatus (e.g.
liquid filled objects, lighted candles).
Warning
Where the MAINS plug or an appliance coupler is used as the•
disconnect device, the disconnect device shall remain readily
operable.
EN

7
Warnings
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect the apparatus from the power.
Notice
Any changes or modifications made to this device that are not
expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted. We have tried
to make the packaging easy to separate into three materials:
cardboard (box), polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can be recycled and
reused if disassembled by a specialized company. Please observe
the local regulations regarding the disposal of packaging materials,
exhausted batteries and old equipment.
“Made for iPod, iPhone and iPad” means that an electronic
accessory has been designed to connect specifically to iPod,
iPhone and iPad and has been certified by the developer to meet
Apple performance standards.
English
EN

8
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone or iPad
may affect wireless performance.
iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
Note
The type plate is located on the bottom of the apparatus.•
EN

9
2 Your Docking
Entertainment System
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this unit, you can enjoy audio from the iPod/iPhone/iPad and
other audio devices.
What’s in the box
Check and identify the contents of your package:
Main unit•
Remote control•
1 x AC power cord•
1 x MP3 link cable•
User manual•
English
EN

10
Overview of the main unit
Front View
a- VOL +
Adjust volume.•
biPod/iPhone/iPad dock
Back View
a b
dc
EN

11
cAUX IN
Jack for an external audio device.•
dPower supply socket
Overview of the remote control
1
Mute or restore volume.•
2
Select the MP3 link mode.•
3Up/down keys
Navigate through the iPod/iPhone/iPad menu.•
i
g
f
h
a
e
b
c
d
English
EN

12
4Fast forward/backward keys
Fast reverse or fast forward within a track.•
Skip to the previous/next track.•
5
Start or pause play.•
6VOL +/-
Adjust volume.•
7MENU
Access the iPod/iPhone/iPad menu.•
8OK
Confirm a selection.•
9
Select the iPod/iPhone/iPad dock mode•
EN

13
3 Get started
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial
number of this apparatus.The model number and serial number are
on the bottom of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare the remote control
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire.•
Never discard batteries in fire.
For first-time use:
1Remove the protective tab to activate the remote control
battery.

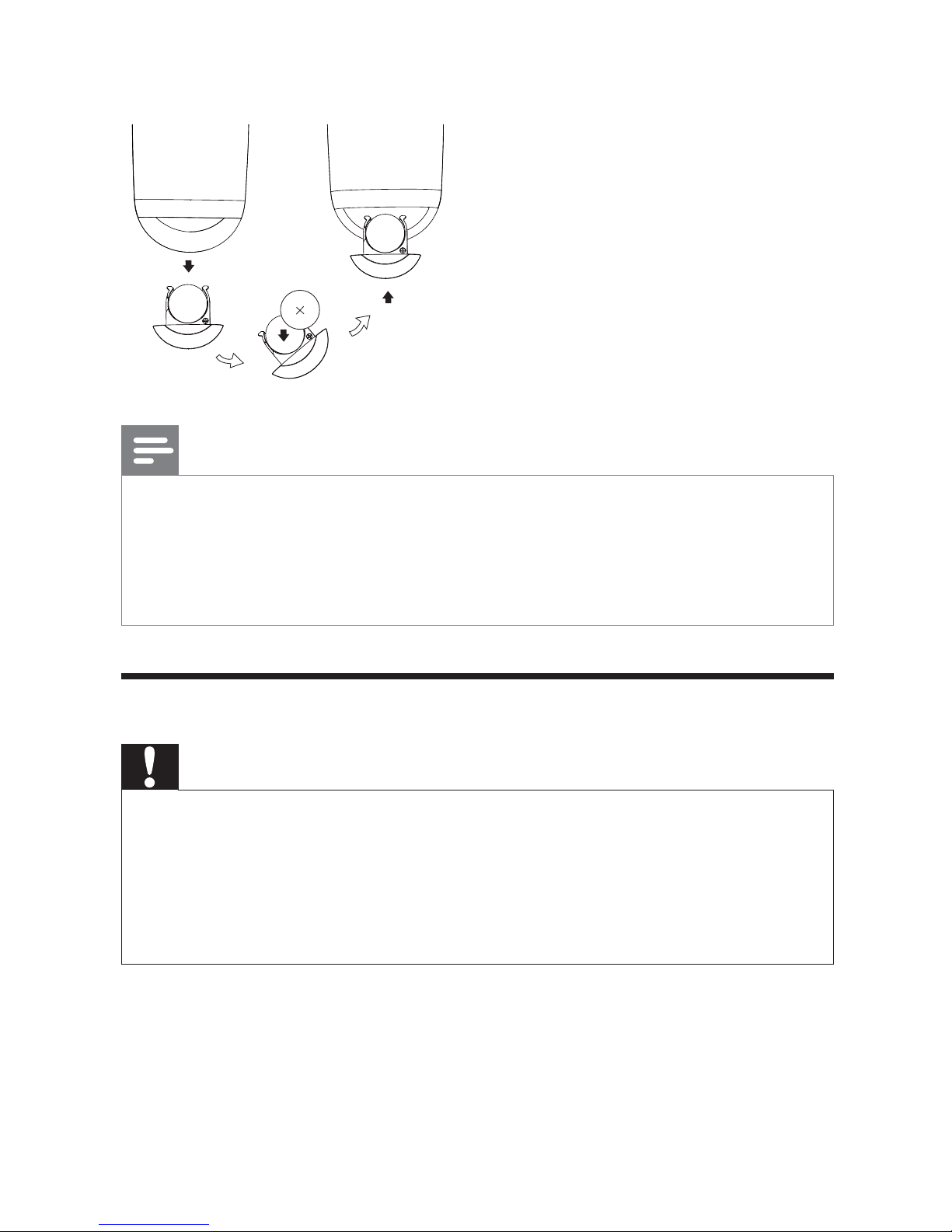

To replace the remote control battery:
1Open the battery compartment.
2Insert one CR2032 battery with correct polarity (+/-) as
indicated.
English
EN

14
3Close the battery compartment.
Notes
Before pressing any function button on the remote control, first•
select the correct source with the remote control instead of the main
unit.
If you are not going to use the remote control for a long time,
•
remove the battery.
Connect power
Cautions
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the bottom of the unit.
Risk of electric shock! When you unplug the AC power cord, always
•
pull the plug from the socket. Never pull the cord.
Before connecting the AC power cord, ensure you have completed
•
all other connections.
EN

15

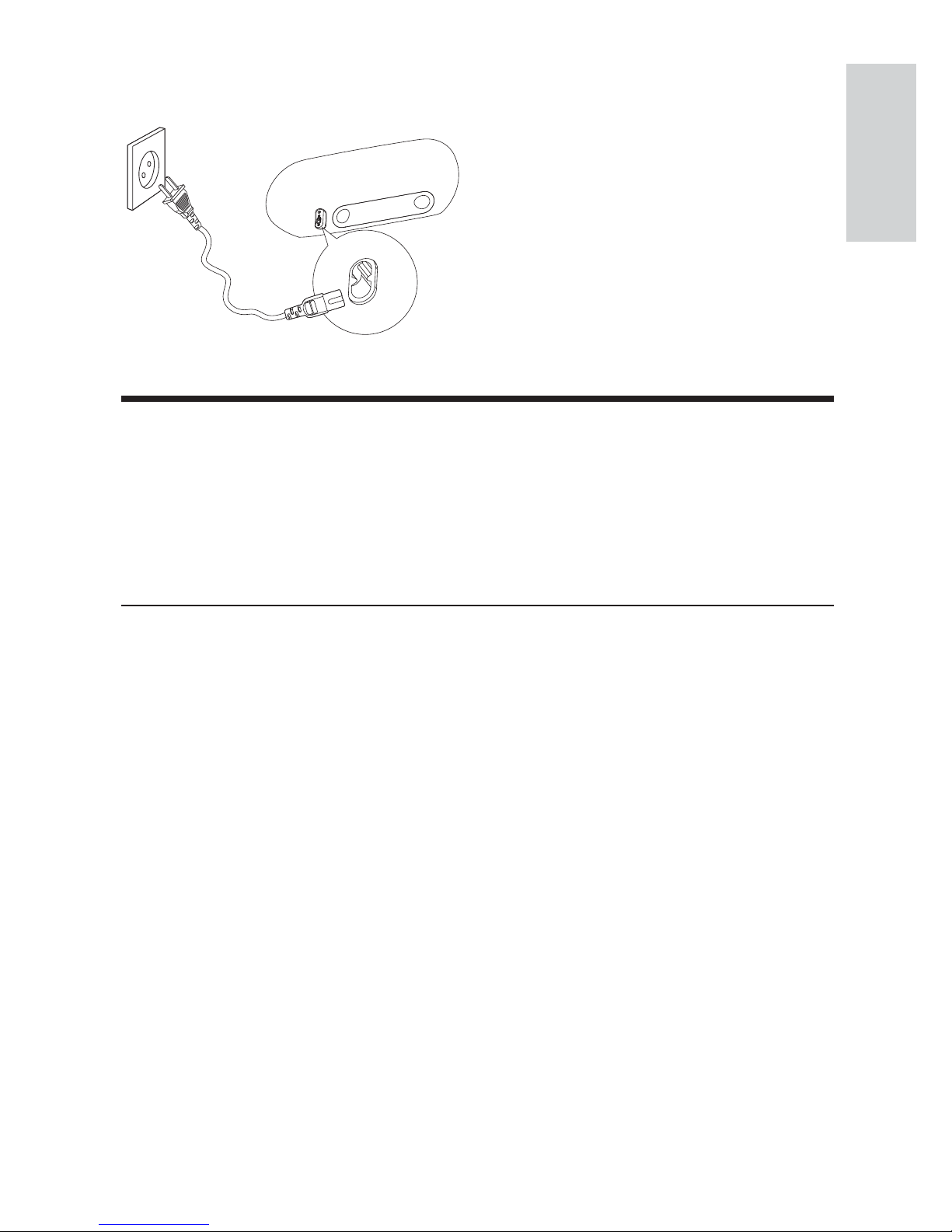

1Connect the AC power cord to the wall outlet.
Turn on
1The unit turns on automatically after power connection.
When the user approaches the unit, the LED light under»
the volume button on the main unit turns on automatically.
Switch to Eco Power Standby
The unit switches to the Eco Power Standby mode automatically
when:
the iPod/iPhone/iPad is disconnected from the unit in the•
dock mode.
the connected device stops music play for more than 15•
minutes in the MP3 link mode.
English
EN

16
4 Play
Play from iPod/iPhone/iPad
You can enjoy audio from iPod/iPhone/iPad through this unit.
Compatible iPod/iPhone/iPad
Apple iPod,iPhone and iPad models with a 30-pin dock connector:
Made for:
iPod nano (2nd generation)•
iPod nano (3rd generation)•
iPod nano (4th generation)•
iPod classic•
iPod touch (1st generation)•
iPod touch (2nd generation)•
Works with
iPhone•
iPhone 3G•
iPhone 3GS•
iPad•
iPhone4•
Load the iPod/iPhone/iPad
1Place the iPod/iPhone/iPad in the dock.
EN

17
To remove the iPod/iPhone/iPad
1Pull the iPod/iPhone/iPad out of the dock.
Listen to the iPod/iPhone/iPad
1Ensure that the iPod/iPhone/iPad has been loaded correctly.
2Press to select the dock mode.
3Press .
The connected iPod/iPhone/iPad starts to play.»
To pause/resume play, press• .
To skip to a track, press the fast forward/backward keys.•
To search during play, press and hold the fast forward/•
backward keys, then release to resume normal play.
To navigate through the menu, press• MENU, then press
the up/down keysto select, and press OK to confirm.
Charge the iPod/iPhone/iPad
The docked iPod/iPhone/iPad begins to charge as soon as the unit
is connected to AC power.
Play from an external device
You can also listen to an external audio device through this unit.
1Press to select the MP3 link mode.
2Connect the supplied MP3 link cable to:
the• AUX IN jack (3.5mm) on the back of the unit.
the headphone jack on an external device.•
3Start to play the device (see the device user manual).
English
EN

18
Adjust volume level
1During play, press VOL +/- to increase/decrease the volume
level.
Mute sound
1During play, press MUTE to mute/unmute sound.
EN

19
5 Product information
Note
Product information is subject to change without prior notice.•
Specifications
Amplifier
Rated Output Power 2X50 W RMS
Signal to Noise Ratio 85 dB
MP3 Link 0.6 V RMS 10 kohm
General information
AC power 100-240V~, 50/60Hz
Operation Power Consumption <35W
Eco Standby Power Consumption <1W
Dimensions
- Main Unit (W x H x D) 562 x 219 x 180 mm
Weight
- Main Unit 6.4 kg
English
EN

20
6 Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).
When you contact Philips, ensure that the apparatus is nearby and
the model number and serial number are available.
No power
Ensure that the AC power plug of the unit is connected•
properly.
Ensure that there is power at the AC outlet.•
No sound
Adjust the volume.•
No response from the unit
Disconnect and reconnect the AC power plug, then turn on•
the unit again.
EN

© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
DS9000_97_UM_V1.0
