1 Important
Safety
Know these safety symbols
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING:Toreducetheriskofreorelectric
shock, this apparatus should not be exposed to
rainormoistureandobjectslledwithliquids,
such as vases, should not be placed on this
apparatus.
CAUTION:To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories
specied by the manufacturer.
k Use only with the cart, stand, tripod,
bracket, or table specied by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
n Apparatus shall not be exposed to
dripping or splashing.
o Do not place any sources of danger on
the apparatus (e.g. liquid lled objects,
lighted candles).
p This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling

4EN
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
q Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•Keepthebatteryawayfromheat,sunshineorre.
Neverdiscardbatteryinre.
•Replacethebatterywiththesameorequivalenttype
only.
•The battery contains chemical substances, so it should
be disposed of properly.
•The USB socket is for data transmission only.
•Never remove the casing of this apparatus.
•Make sure that you always have easy access to the
power cord, plug or adaptor to disconnect the
apparatus from the power.
Risk of swallowing batteries
• The product/remote control may contain a
button cell battery, which is possible to be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
2 Your Docking
Speaker
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus.The
model number and serial number are on the
bottom of the apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this docking speaker, you can
• enjoy audio from the iPod/iPhone/iPad,
Bluetooth devices and other external
audio devices; and
• synchronize the iPod/iPhone/iPad with your
computer through USB socket.
What's in the box
Check and identify the contents of your
package:
• Main unit
• Remote control (with battery)
• AC power adaptor
• Quick start guide

5EN
Overview of the main unit
a Dock for the iPod/iPhone/iPad
b /
• Adjust volume.
• As LED indicators, show system status.
c
• Select Bluetooth mode.
• Turn the docking speaker on.
• Switch to standby mode.
c
a
b
d
e
f
d Power supply socket
• Connect AC power.
e
• Sync with PC through a USB cable.
f MP3-LINK
• Connect an external audio device.

6EN
Overview of the remote
control
a
• Select iPod/iPhone/iPad dock mode.
b /
• Skip to a track.
• Search within play.
c
• Mute volume.
d
• Start or pause play.
e /
• Adjust volume.
f
• Select MP3 link mode.
a
b
f
e
d
c
3 Get started
Always follow the instructions in this chapter in
sequence.
Prepare the remote control
For rst-time use:
Remove the protective tab to activate the
remote control battery.
To replace the exhausted battery:
1 Open the battery tray.
2 Insert one CR2025 battery with correct
polarity (+/-) as indicated.
3 Close the battery tray.
Connect power
Caution
•Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
•Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socket. Never
pull the cord.
•Before connecting the AC adaptor, ensure you have
completed all other connections.
Note
•The type plate is located at the back of the main unit.
Connect the AC power adaptor to:
• the power supply socket on the back of
the docking speaker.
• the wall outlet.
CR2025

7EN
Turn on
Press and hold on the main unit for 2 seconds.
» The / LED indicators light up.
Switch to standby mode
In the following situation, the docking speaker
switches to standby mode:
• Press and hold for 2 seconds again; or
• The system is idle for 15 minutes.
» In standby mode, the LED indicators light
off.
Note
•In standby mode, if you press on the main unit or /
on the remote control, the docking speaker switches
to the corresponding selected source.
4 Play
Play from iPod/iPhone/iPad
You can enjoy audio from iPod/iPhone/iPad
through this docking speaker.
Compatible iPod/iPhone/iPad
The docking speaker supports the following
iPod/iPhone/iPad models:
Made for.
• iPod touch (1st, 2nd, 3rd, and 4th
generation)
• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
generation)
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
• iPad 2
• iPad
Listen to the iPod/iPhone/iPad
Philips DockStudio app brings a suite of new
features to your docking speaker.To enjoy more
features, you are recommended to install this
free application.

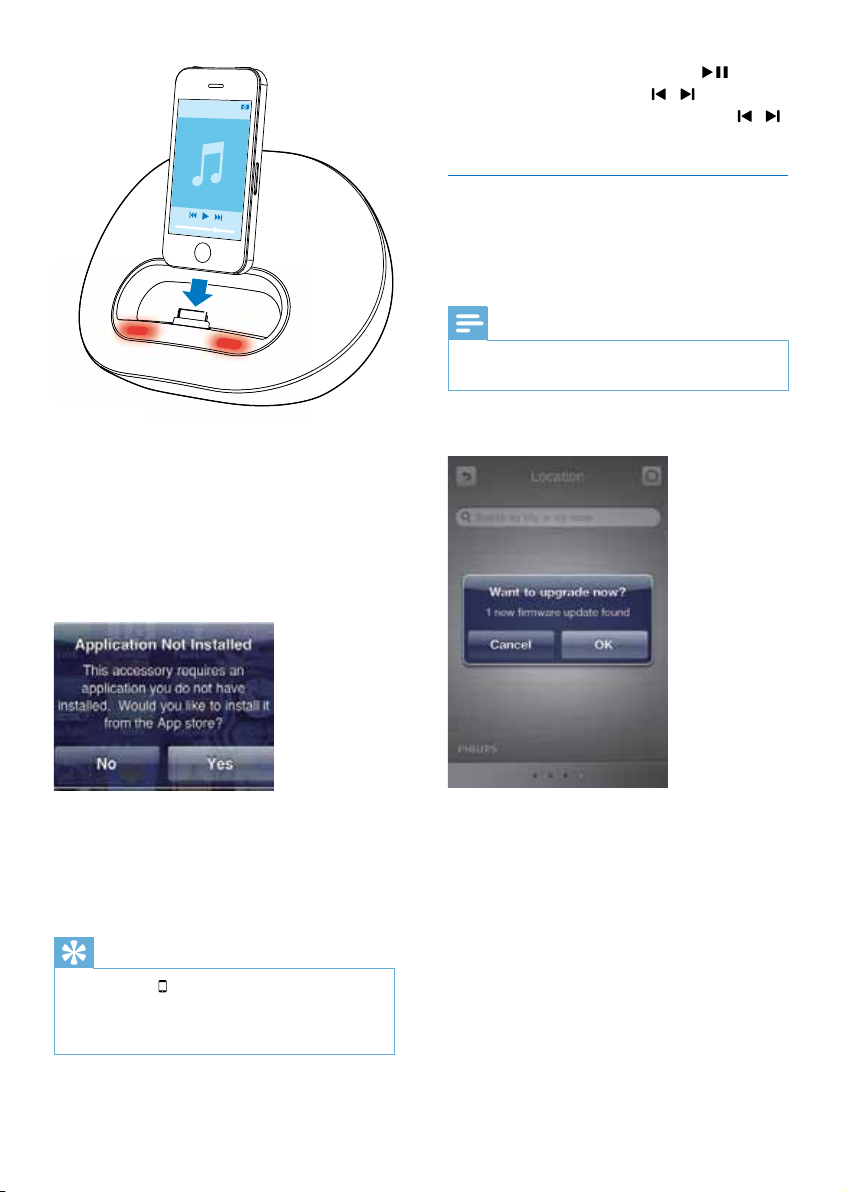

1 Insert your iPod/iPhone/iPad into the dock.
» The docking system switches to Dock
source automatically.
» The orange LED indicators light up.

8EN
2 Forrst-timeuse,youwillbeaskedto
install DockStudio app on your iPod/
iPhone/iPad.
3 Tap [Yes] (yes) to accept the installation
request.
4 Follow the on-screen instructions to
complete the installation.
5 Launch the app after the installation.
6 Play audio on your iPod/iPhone/iPad.
» Audio comes out through this docking
speaker.
Tip
•You can press to select Dock source.
•With the DockStudio app, you can enjoy music, set
clockandalarm,adjustsoundsettings,updatermware,
and so on.
• To pause or resume play, press .
• To skip to a track, press / .
• To search during play, press and hold / ,
then release to resume normal play.
Update rmware
Ifrmwareupdateisavailable,theDockStudio
app will search for it automatically and ask you
to download it.
Note
•Make sure that your iPod/iPhone/iPad is inserted in the
docking speaker and connected to the Internet.
1 Ifanewrmwareupdateisfound,tapOK.

9EN
2 Follow the on-screen instructions to
completethermwareupdate.
Note
•Do not disconnect power or undock the iPod/iPhone/
iPad during the updating process.
Charge the iPod/iPhone/iPad
When the docking speaker is connected to
power, the docked iPod/iPhone/iPad begins to
charge automatically.
Sync iPod/iPhone/iPad with PC
Note
•MakesurethatiTuneshasbeenconguredproperlyin
your PC.
1 Insert the iPod/iPhone/iPad in the dock.
2 Press and hold for 2 seconds to switch
the docking speaker to standby mode.
» The LED indicators light off.
3 Connect your docking speaker and PC
with a USB cable.
4 Launch iTunes to synchronize your docking
speaker with PC.
» The docked iPod/iPhone/iPad is
synchronized with PC successfully
through the iTunes.
Note
•Duetodifferentmaterialsandproducttechniques,
some USB cables may not work with this device.
Play from Bluetooth devices
Note
•Before you connect a Bluetooth device to this docking
speaker, familiarize yourself with the Bluetooth
capabilities of the device.
•Keep this docking speaker away from other electronic
devices that may cause interference.
•Any obstacle between the speaker and the device can
reduce the operational range.
1 Press to select Bluetooth source.
» TheblueBluetoothindicatorashes
slowly.

10EN

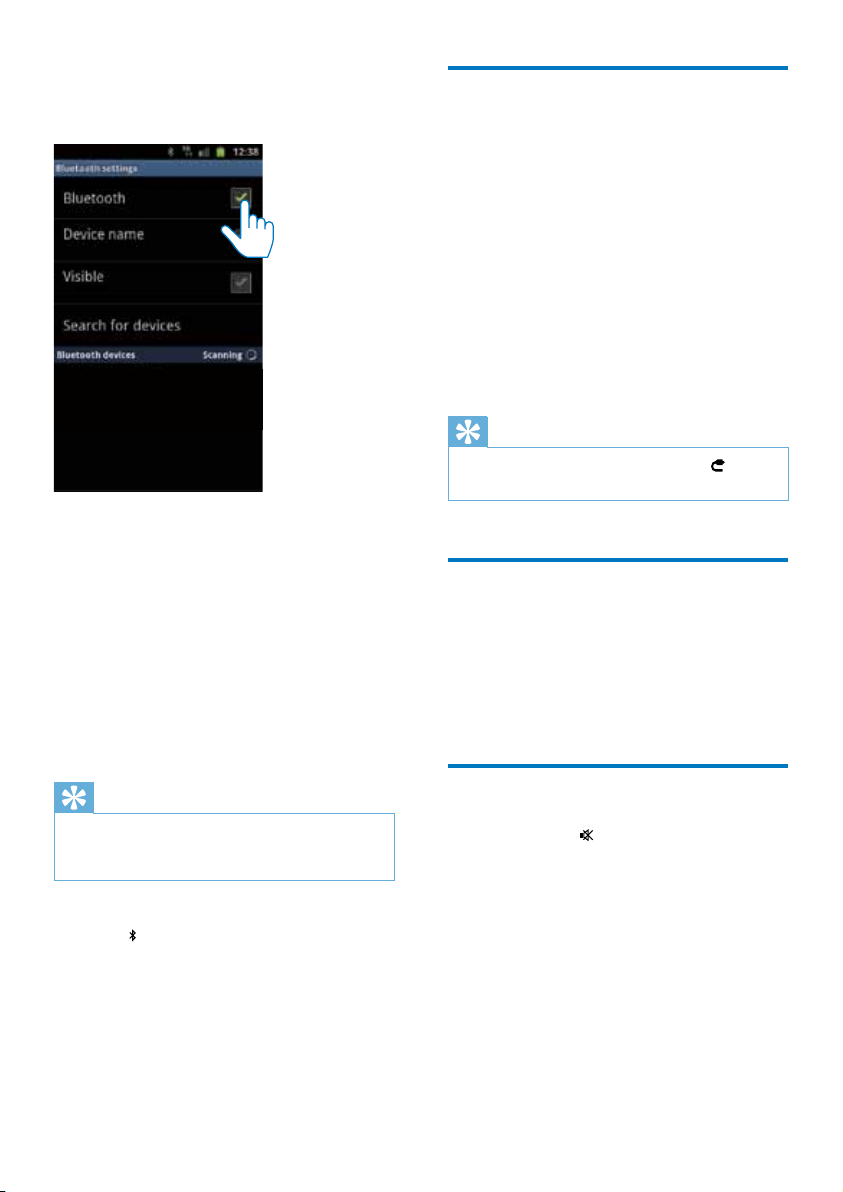

2 Turn on Bluetooth function on your device.
• Different devices may have different
way to activate Bluetooth.
3 Scan Bluetooth devices that can pair with
your device.
4 When “PHILIPS DS3600” is displayed on
your device, select it to start connection.
» Doublebeeptoneconrmationcanbe
heard and the Bluetooth indicator light
up stably if connection is successful.
5 Play music in your device.
» Music comes through the docking
speaker.
Tip
•If your Bluetooth device has been paired with DS3600
before,youjustneedtondout“PHILIPSDS3600”on
yourBluetoothmenu,thenconrmtheconnection.
To disconnect Bluetooth:
• Press on the docking speaker again, or
• Deactivate Bluetooth function on
your device or move it beyond the
communication range.
Play from an external audio
device
1 If no iPod/iPhone/iPad is docked, connect
an MP3 link cable (3.5mm, not supplied) to:
• the MP3-LINK socket at the back of
the docking speaker.
• the headphone socket on an external
device.
» The docking speaker switches to MP3
link mode automatically.
2 Play music on the device (see the device's
user manual).
Tip
•You can select MP3 link source by pressing on the
remote control.
Adjust volume
To adjust volume:
• Press +/- on your docking speaker; or
• Adjust the volume control of your iPod/
iPhone/iPad, Bluetooth device, or other
external device.
Mute sound
During play, press to mute or unmute sound.

11 EN
5 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
Amplier
Rated Output Power 2 X 10 W RMS
Signal to Noise Ratio > 57 dBA
Aux-in Link 500mV RMS
Bluetooth
Standard Bluetooth Standard
Version 2.1+EDR
Output power 0 dBm (Class 2)
Frequencyband 2.402~2.480GHzISM
Band
Range 10m (free space)
General information
AC Power Model: AS300-120-
AA250 (Philips);
Input: 100-240 V ~,
50/60Hz,1.1A;
Output: 12 V 2.5 A
Operation Power
Consumption 15 W
Standby Power
Consumption <0.5 W
Max. load for iPod/
iPhone/iPad 5 V 2.1 A
Dimensions
- Main Unit
(WxHxD) 285 x 136 x 143 mm
Weight
- Main Unit
- With Packing
1.2 kg
2.0 kg
6 Troubleshooting
Warning
•Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requestingservice.Iftheproblemremains
unsolved, go to the Philips Web page
(www.philips.com/support).When you contact
Philips, make sure that the device is nearby
and the model number and serial number are
available.
No power
•Ensure that the AC power adaptor of the
unit is connected properly.
•Ensure that there is power at the AC
outlet.
No sound or poor sound
•Adjust the volume of your docking speaker.
•Adjust the volume of your iPod/iPhone/
iPad, Bluetooth devices or other external
devices.
No response from the unit
•Disconnect and reconnect the AC power
adaptor, then turn on the unit again.
Cannot sync with PC
•Switch the docking speaker to standby
mode.
•Try another USB cable.
•Install iTunes in PC properly.

12EN
About Bluetooth device
Music playback is unavailable on the system
even after successful Bluetooth connection.
•The device cannot be used with the
system to play music.
The audio quality is poor after connection
with a Bluetooth-enabled device.
•The Bluetooth reception is poor. Move
the device closer to the system or remove
any obstacle between the device and the
system.
Cannot connect with the system.
•Thedevicedoesnotsupporttheproles
requiredforthesystem.
•The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•The system is not in the pairing mode.
•The system is already connected with
another Bluetooth-enabled device.
Disconnect that device or all other
connected devices and then try again.
The paired device connects and disconnects
constantly.
•The Bluetooth reception is poor. Move
the device closer to the system or remove
any obstacle between the device and the
system.
•For some devices, the Bluetooth
connection may be deactivated
automatically as a power-saving feature.
This does not indicate any malfunction of
the system.
7 Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authoritytooperatetheequipment.
“MadeforiPod,”“MadeforiPhone,”and“Made
foriPad”meanthatanelectronicaccessory
hasbeendesignedtoconnectspecicallyto
iPod, iPhone, or iPad, respectively, and has
beencertiedbythedevelopertomeet
Apple performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regulatory
standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect
wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries. iPad
is a trademark of Apple Inc.
Disposal of your old product
and batteries
Your product is designed and manufactured
withhighqualitymaterialsandcomponents,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
preventpotentiallynegativeconsequenceson
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially

13 EN
negativeconsequencesontheenvironmentand
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.

Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
DS3600_85_UM_V1.0
