Philips 8000 Series User manual

8000 series
S8860
www.philips.com/support/ifu

1
2
3
4
7
6
5
8
9
HQ8508
HQ87
12
14
16
17
10 11
15
13

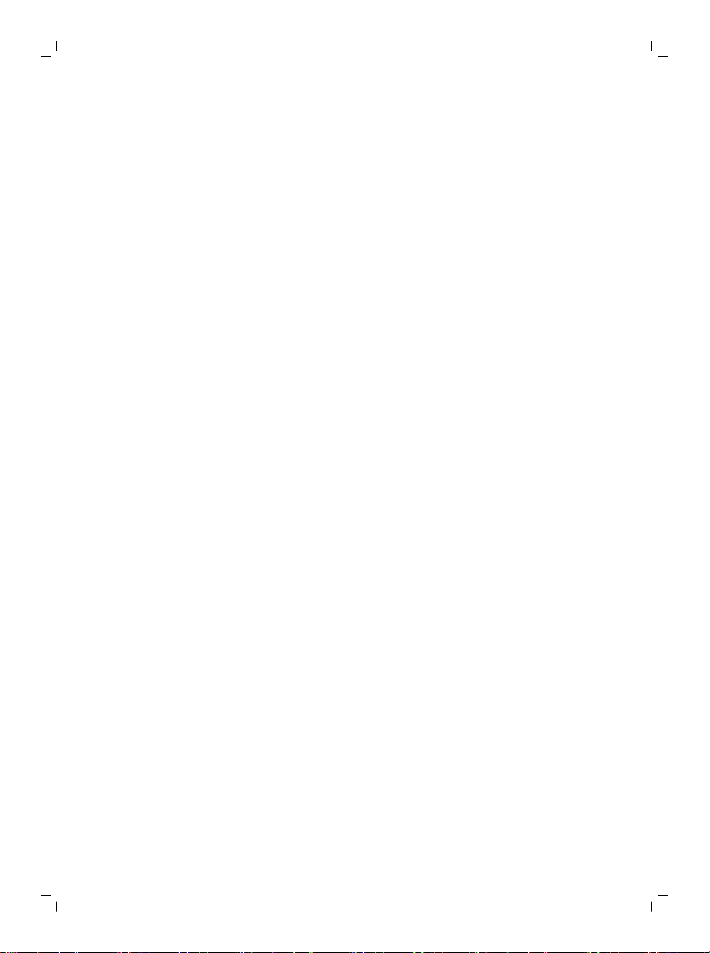

empty page before TOC

English 6
简体中文 30

English
General description (Fig.1)
1 Protection cap for cleansing brush attachment
2 Click-on cleansing brush attachment
3 Protection cap for shaving unit
4 Click-on shaving unit
5 On/off ring
6 On/off indications
7 Handle
8 Battery low indicator
9 Charging pad
10 Charging platform
11 Charging indicator
12 USB plug
13 Socket for USB plug
14 Supply unit
15 Cleaning brush
16 Click-on beard styler attachment
17 Comb for beard styler attachment
Important safety information
Read this important information carefully before
you use the appliance and its accessories and save
it for future reference. The accessories supplied
may vary for different products.
Danger
- Keep the supply unit dry.
6English

Warning
- The appliance is a Class III
construction.
- To charge the battery, only use
the detachable supply unit
(supply unit, type HQ87.
Charging pad, type HQ8508)
provided with the appliance.
- This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
7
English

- Always check the appliance
before you use it. Do not use
the appliance if it is damaged,
as this may cause injury. Always
replace a damaged part with
one of the original type.
- Do not open the appliance to
replace the rechargeable
battery.
Caution
- Never immerse the charging pad in water.
- Always make sure the charging pad is
completely dry before you connect it to the
wall socket.
- Never use water hotter than 60°C to rinse
the shaver.
- Only use this appliance for its intended
purpose as shown in the user manual.
- The charging pad is not intended for use in
a car. It may interfere with the automotive
electronic systems.
- For safety reasons, do not use the shaver
while you drive a car.
- For hygienic reasons, the appliance should
only be used by one person.
8English

- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean
the appliance.
- Water may trickle out of the shaver after
your rinse it. This is normal and not
dangerous because all electronics are
enclosed in a sealed power unit inside the
shaver.
- Do not use the supply unit in or near wall
sockets that contain an electric air freshener
to prevent irreparable damage to the supply
unit.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
General
- This shaver is waterproof. It is suitable for use in
the bath or shower and for cleaning under the
tap.
- The supply unit is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
9
English

Charging
Charge the appliance before you use it for the first
time and when the battery low indicator indicates
that the battery is almost empty.
Note: The shaver is Qi compliant.
Charging takes approx. 2 hours. A fully charged
appliance has a operating time of up to 30
minutes.
Tip: If your smartphone is compliant with Qi
charging,you can also use the charging pad to
charge your smartphone.

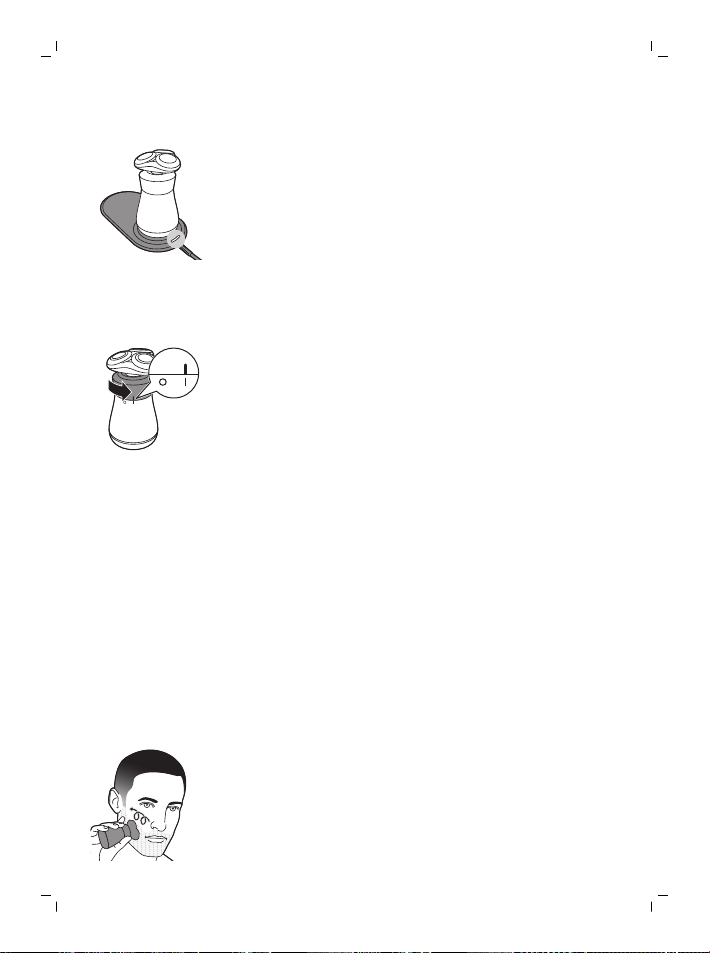

1Put the supply unit in the wall socket and place
the appliance onto the charging platform of the
charging pad.
-The charging pad bleeps when the appliance
is correctly placed onto the charging
platform.
2After charging, remove the supply unit from the
wall socket.
Battery charging
When the shaver is charging, the charging indicator
flashes white.
Battery low
When the battery is almost empty, the battery low
indicator flashes orange.
10 English

Battery fully charged
When the battery is fully charged, the charging
indicator lights up white continuously.
Using the appliance
Switching the appliance on and off
1To switch on the appliance, turn the on/off ring
anticlockwise to the 'on' indication (I).
2To switch off the appliance, turn the on/off ring
clockwise to the 'off' indication (0).
Shaving
Skin adaptation period
Your first shaves may not bring you the result you
expect and your skin may even become slightly
irritated. This is normal. Your skin and beard need
time to adapt to any new shaving system. To allow
your skin to adapt to this new appliance, we advise
you to shave regularly (at least 3 times a week) and
exclusively with this appliance for a period of 3
weeks.
Dry shaving
1Switch on the appliance.
2Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
11
English

Note: Do not press too hard, this can cause skin
irritation.
3Switch off the appliance.
4Clean the appliance after every use.
Wet shaving
For a more comfortable shave, you can also use
this appliance on a wet face with shaving foam or
shaving gel.To shave with shaving foam or shaving
gel, follow the steps below:
1Apply some water to your skin.
2Apply shaving foam or shaving gel to your skin.
3Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4Switch on the appliance.
5Move the shaving heads over your skin in
circular movements to catch all hairs growing in
different directions. Make sure each shaving
head is fully in contact with the skin. Exert
gentle pressure for a close, comfortable shave.
Note: Rinse the shaving unit regularly to ensure
that it continues to glide smoothly over your
skin.
6After use, rinse and dry your face gently and
clean the appliance (see 'Cleaning and
maintenance').
Note: Make sure you rinse all foam or shaving
gel off the appliance.
12 English

Using click-on attachments
Removing or attaching the click-on attachment
1Make sure the appliance is switched off.
2Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you
pull it off the appliance.
3Insert the lug of the click-on attachment into
the slot in the top of the appliance. Then press
down the attachment to attach it to the
appliance (' click').
Using the click-on beard styler attachment with comb
You can use the beard styler attachment with the
comb attached to style your beard at one fixed
setting, but also at different length settings. You
can also use it to pre-trim any long hairs before
shaving for a more comfortable shave.
The length settings on the beard styler attachment
correspond to the remaining hair length after
cutting and range from 1 to 5mm (3/64 - 3/16in).
1Attach the attachment to the appliance ('click').
Slide the comb straight into the guiding grooves
on both sides of the beard styler attachment
(‘click’).
13
English

1
2
2Press the length selector and then push it to
the left or right to select the desired hair length
setting.
3Switch on the appliance.
4Move the appliance upwards while you exert
gentle pressure. Make sure the front of the
comb is in full contact with the skin.
5Clean the attachment after use.
Using the click-on beard styler attachment without
comb
You can use the beard styler attachment without
the comb to contour your beard, moustache,
sideburns or neckline to a length of 0.5mm (1/32
in).
1Pull the comb off the beard styler attachment.
Note: Grab the comb in the center to pull it off
the beard styler attachment. Do not pull at the
sides of the comb.
2Switch on the appliance.
3Hold the beard styler attachment perpendicular
to the skin and move the appliance downwards
while you exert gentle pressure.
4Clean the attachment after use.
Using the click-on cleansing brush attachment
Use the rotating cleansing brush with your daily
cleansing cream. The cleansing brush removes oil
14 English

and dirt, contributing to a healthy and oil-free skin.
We advise you to use it no more than twice a day.
Do not use the appliance on damaged or irritated
skin or on wounds.
1Make sure the appliance is switched off.
2Remove the shaving unit from the appliance
and attach the click-on cleansing brush.
3Moisten the cleansing brush with water.
Caution: Do not use the appliance with a dry
brush, as this can irritate the skin.
4Moisten your face with water and apply a
cleanser to your face.
5Switch on the appliance.
20 sec.
6Gently move the brush across your skin from
the nose towards the ear. Do not push the
attachment to hard onto the skin to make sure
the treatment remains comfortable.
20 sec.
7After approx. 20 seconds, move the appliance
to your other cheek and start cleansing this part
of your face.
Do not cleanse the sensitive area around your
eyes.
15
English

20 sec.
8After approx. 20 seconds, move the appliance
to your forehead and start cleansing this part of
your face. Gently move the brush head from left
to right.
Note: We advise you to not overdo the
cleansing and to not cleanse any zone longer
than 20 seconds.
9After the treatment, rinse and dry your
face.Your face is now ready for the next step of
your daily skincare routine.
10 Clean the cleansing brush after use (see
'Cleaning the click-on attachment').
Cleaning and maintenance
Cleaning the appliance
Clean the shaver after every shave for optimal
performance.
1Switch off the appliance.
2Rinse the shaving unit under a warm tap.
Be careful with hot water. Always check if the
water is not too hot, to prevent burning your
hands.
3Pull the shaving head holder off the bottom
part of the shaving unit.
16 English

4Rinse the shaving head holder under a warm
tap.
5Carefully shake off excess water and let the
shaving head holder air-dry completely.
Never dry the shaving unit with a towel or
tissue, as this may damage the shaving heads.
6Reattach the shaving head holder to the
bottom part of the shaving unit ('click').
Cleaning the charging pad
1Wipe the surface of the charging pad with a
slightly damp cloth to remove any dirt.
2Dry the surface with a dry cloth after cleaning.
Caution: Always make sure the charging pad is
completely dry before connecting to a power
outlet.
Thorough cleaning
We advise you to clean the shaving heads
thoroughly once a month or when the shaver does
not shave as well as it used to.
Note: The shaving heads are locked by a blue or an
orange retaining ring.
17
English

Follow the correct instructions.
1Switch off the shaver.
2Pull the shaving head holder off the bottom
part of the shaving unit.
3Rinse the hair chamber and shaving head
holder under the tap.
1
2
4Turn the retaining ring anticlockwise and lift it
off the shaving head.
1
2
Repeat this process for the other retaining rings.
Place them aside in a safe place.
18 English

5Remove the shaving heads from the shaving
head holder. Each shaving head consists of a
cutter and guard.
Note: Do not clean more than one cutter and
guard at a time, since they are all matching sets.
If you accidentally put a cutter in the wrong
shaving guard, it may take several weeks before
optimal shaving performance is restored.
6Clean the cutter and guard under the tap.
7Shake off excess water.
8Put the cutter back into the guard.
9Place the shaving heads in the shaving head
holder.
Note: Make sure the notches on both sides of
the shaving heads fit exactly onto the
projections in the shaving head holder.
1
2
10 Blue retaining ring: Place the retaining ring on
the shaving head and turn it clockwise to
reattach the retaining ring.
Place the arrows on the ring in line with the
projections in the shaving head holder. Turn the
ring clockwise until it clicks to indicate that the
ring is fixed.
19
English

1
2
-Orange retaining ring: Place the retaining ring
on the shaving head and turn it clockwise to
reattach the retaining ring. Repeat this process
for the other retaining rings.
Each retaining ring has two recesses that fit
exactly into the projections of the shaving head
holder. Turn the ring clockwise until your hear a
click to indicate that the ring is fixed.
Hold the shaving head holder in your hand
when you reinsert the shaving heads and
reattach the retaining rings. Do not place the
shaving head holder on a surface when you do
this, as this may cause damage.
11 Attach the shaving head holder to the bottom
part of the shaving unit (‘click’).
Cleaning the click-on attachment
Cleaning the click-on cleansing brush
1Make sure the appliance is switched off.
2Detach the brush head from the attachment
holder.
Note: Do not twist the brush head while you
pull it off the brush base.
3Clean both parts thoroughly with warm water
and mild soap.
4Dry the cleansing brush with a towel.
Cleaning the beard styler attachment
Clean the beard styler attachment after each use.
20 English
