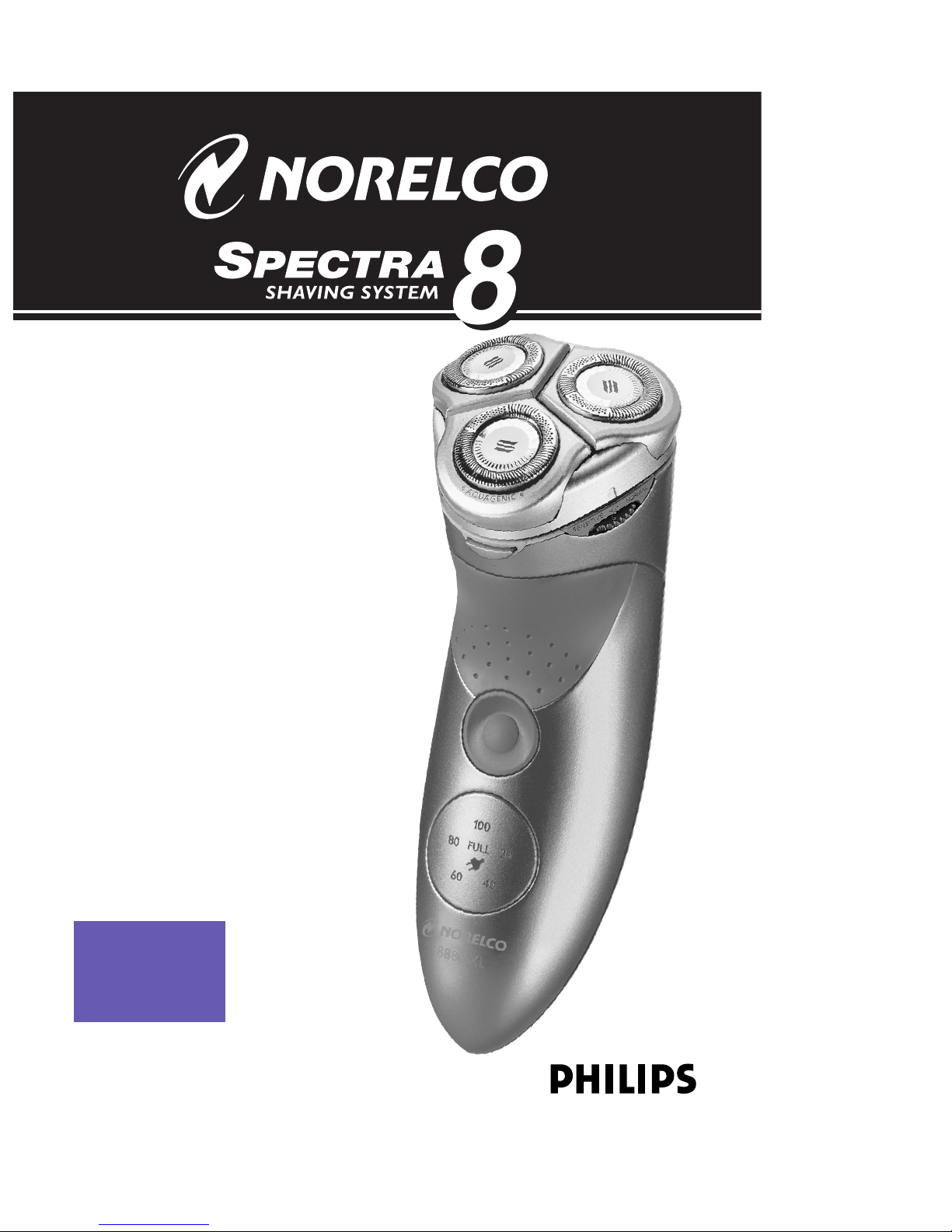

Philips 8880XL User manual

8883XL
8881XL
8880XL
Rechargeable
Cordless/Cord Razor

ENGLISH 4
ESPAÑOL 22
8883, 8881, 8880XL
3

IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER
To r educe the risk of electric shock:
1. Do not reach for a razor that has fallen into water.
Unplug immediately.
2. Do not use razor corded while bathing or in a shower.
3. Do not place or store razor while plugged in where it can
fall or be pulled into a tub or sink. Do not place or drop into
water or other liquid while plugged in.
4. Always unplug this razor from the electrical outlet immediately
after use, except when razor is (re)charging.
5. Unplug this razor before cleaning.
WARNING
To r educe the risk of burns, fire, electric shock, or injury to
persons:
1. Close supervision is necessary when this razor is used by, on,
or near children or invalids.
2. Use this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor if it has a damaged cord or charging
plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water while plugged in. Return the
4ENGLISH

razor to an Authorized Norelco Service Location for
examination and repair.
4. Keep the cord and charging plug away from heated surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor outdoors or operate where
aerosol (spray) products are being used or where oxygen is
being administered.
7. Do not use this razor with a damaged or broken comb, as
facial injury may occur.
8. Always attach plug to razor first, then to outlet. Be certain that
plug is inserted firmly into razor, up to mark indicated on
plug.To disconnect, turn razor off then remove charging plug
from outlet.
9. Never put the razor in direct sunlight or store in a pouch at a
temperature above 140°F.
10. Razor can be rinsed under running tap water. Do not submerge
razor in water.
11. To prevent possible damage to the cord, do not wrap cord
around the razor.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
5ENGLISH

60 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Norelco Men’s
Razor, the razor should be used exclusively for 3 weeks.This allows your hair
and skin enough time to adapt to the Norelco Shaving System. If, after that
period of time, you are not fully satisfied with your Norelco Men’s Razor, send
the product back and we’ll refund you the full purchase price.
The razor must be shipped prepaid by insured mail, insurance prepaid,
and have the sales slip, indicating purchase price and the date of
purchase, enclosed. The razor must be postmarked no later than 60 days
after the date of purchase. Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
Send dated sales slip, your complete name and address as indicated
below, and the razor, prepaid to:
Norelco Consumer Products Company
A Division of Philips Electronics North America Corporation
450 North Medinah Rd, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check. (Please Print)
Name_________________________________________________________
Address________________________________________________________
City___________________________________________________________
State_____Zip__________________________________________________
Daytime Telephone No. (____)_____________________________________
E-mail Address__________________________________________________
REASON FOR RETURNING:______________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
Area Code
6ENGLISH

Table of Contents
Features.........................................................8-9
LED Battery Charge Meter.......................10
Charging ...................................................11-12
Quick Charge................................................12
Put It To The Test & Shaving Tips ........12-13
Personal Comfort Control........................13
How To Shave With An
Electric Razor................................................14
Trimming...................................................14-15
Cleaning....................................................15-18
Assistance.......................................................18
Accessories....................................................19
Warranty.........................................................20
Spanish ............................................................22
ENGLISH 7

Features
Spectra Shaving System
Protective Razor
Head Cap
Razor Head Assembly
Personal Comfort
Control Dial
Individually Floating
Heads
Razor Head
Release Button
• Hair Chamber
captures shaven hair
Electronic ON/OFF
Button
7 LED Battery Charge
Meter
• Indicates the amount
of charge remaining
in batteries
8ENGLISH

Pop-Up Trimmer
Automatic
Worldwide Voltage
100V to 240V AC
Cleaning Brush
Pouch
Rechargeable - Initial 4 hour
Full Charge for up to
70 minutes of cordless
shave time
1-Hour Quick Charge
Cordless/Cord - To shave
with or without a cord
Full 2-Year Warranty
60-Day Money-Back
Guarantee
How the Unique Norelco Lift and Cut®
Shaving System Makes Close Comfortable:
Groove channels beard
closer to cutting system Lifter raises hair Slots to cut long hairs Holes to cut short hairs even closer
9ENGLISH

LED Battery Charge Meter
◗The Meter provides the following infor-
mation:
C◗LED Battery Charge Meter
The number (percentage) on the display indi-
cates approximately how much power is left
in the batteries.
C◗Low Battery Indicator
If the batteries run low, the plug symbol on
the display lights up red.When you turn the
razor OFF, the plug symbol will blink for
approximately 4 seconds.
C◗Charging Indicator
When you charge razor, the plug symbol on
the display lights up green.After approxi-
mately 3 minutes, and as charging continues,
more and more sections of the display meter
will briefly blink green and light up to indi-
cate what level (percentage) of the batteries
have been charged.
C◗Full Charge Indicator
When the batteries have been fully charged,
all the “sections” on the display will light up
green and the “FULL” indication and plug
symbol will start blinking.
10 ENGLISH

Charging
◗Battery performance is best if you recharge
only when the batteries are (almost)
completely empty.
◗Charging or recharging at temperatures
below 40cF or higher than 95cF adversely
affects lifetime of batteries.
◗Continuously recharging or continuously using
as a corded razor will reduce life of batteries.
◗You may also shave using the charging plug
provided.This razor will not recharge while
being used corded.
◗Recharge only when plug symbol lights up red.
◗Do not charge razor in pouch.
◗The charging plug transforms 100-240 volts to
a voltage lower than 24 volts.
C1Connect cord to razor. Connect the
charging plug into any 100V to 240V AC
outlet. Use only the charging plug
provided.
As you charge razor, the “20” section on the
display turns red. After approximately 3 minutes,
it will then turn green and blink along with the
number sections. As charging continues, more
and more sections of the display meter will briefly
blink green and light up to indicate what level
(percentage) of the batteries have been charged.
◗An adaptor plug may be necessary for
charging plug usage in some foreign countries.
Use an attachment plug adaptor of the proper
configuration for the power outlet.
The charging plug will automatically convert to
work on 100V to 240V AC Systems.
11ENGLISH

2First time charging and recharging after
non-use for 1 month or more requires a
full 4 hours. A fully charged razor has a
cordless shaving time of up to 70 minutes.
When batteries are fully charged, all the “sections”
on the display will light up green. “FULL”
indication as well as plug symbol will start blinking.
◗Recharging
1First time charging requires 4 hours. After
initial charge, recharging requires
approximately 1 hour.
2When razor is fully charged, disconnect
the charging plug from outlet. Do not keep
razor permanently plugged into outlet.
Quick Charge
When batteries are totally depleted, recharging
the razor for approximately 6 minutes gives
enough energy for a 3 minute cordless shave.
Put ItToTheTest & ShavingTips
◗21 Day Trial and Conversion Process. It is a
fact that your skin and beard need time to
adjust to a new shaving system.
◗Use your new razor exclusively for 3 weeks
to fully enjoy the closeness of a Norelco
shave.
◗At first you may not get as close a shave as
you expect, or your face may even become
slightly irritated.This is normal since your
12 ENGLISH

beard and skin will need time to adjust. Invest
3 weeks and you'll soon experience the full
joy of your new razor.
◗Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Norelco shaving
system.
◗If you are still not convinced after 21 days,
Norelco will refund you the full purchase
price, guaranteed.
Personal Comfort Control
C◗Your Spectra razor has 9 adjustable settings
that allow you to personalize your shave for
your specific skin type from sensitive to
normal skin.You can select your personal
comfort control setting by turning the dial.
Choose a comfort setting:
C◗For Sensitive Skin:
Choose a comfort control setting between
Neutral “ “ and Sensitive "S" to relax the spring
and pressure of floating heads against your skin
for a gentler, more comfortable shave.
C◗For Normal Skin:
Choose a comfort control setting between
Neutral “ ” and Normal "N" to tighten the
spring and pressure of the floating heads against
your skin for a faster, more comfortable shave.
13ENGLISH
SENSITIVE
NORMAL
E
R
S
O
N
A
L
C
O
M
F
O
R
T
C
O
N
T
R
O
L
SENSITIVE
NORMAL
P
E
R
S
O
N
A
L
C
O
M
F
O
R
T
C
O
N
T
R

HowTo Shave With an Electric Razor
◗Use this razor for its intended household use
asdescribed in this manual.
◗Shaving with a clean, dry face gives the best
results.
C1Turn razor ON. Shave against the direction
of beard growth using both straight and
circular movements.
2Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin, so the floating heads
can follow the contours of your face. DO
NOT press too hard.Too much pressure
can pinch the skin into the combs.
3Turn razor OFF.
C4Put the protective razor head cap on the
razor to protect razor heads.
Replace Spectra razor heads (model # HQ8)
once a year for optimal shaving results.
Trimming
To groom sideburns and moustache:
1Turn razor ON.
C2Push up Trimmer Slide Switch.
14 ENGLISH

15ENGLISH
TheTrimmer can be activated while the razor is
running.
C3Hold Trimmer as shown and move in
downward strokes with gentle pressure.
4Close Trimmer by sliding Trimmer switch
down.
5Turn razor OFF.
Cleaning
Every Week: Razor Heads
C◗The easiest and most hygienic way to clean
the razor heads is to rinse them every week
with hot water.Water from the tap should be
on a hot setting.
BE CAREFULTO TEST WATER FIRST SO AS
NOT TO BURN OR SCALD HANDS.
◗Regular cleaning guarantees better shaving
results.
◗You may also quickly rinse your razor heads
after each use.
1Always turn razor OFF, unplug from outlet
and remove cord from razor before
cleaning.
C2Press the Razor Head Release Button, flip
open the Razor Head Assembly.

C3Clean razor heads and hair chamber by
running under hot tap water.
4Close the Razor Head Assembly and shake
off excess water.
C5Open Razor Head Assembly again and
leave open to air dry.
6You may also clean the hair chamber
without water by using the supplied brush.
Once A Month: Razor Heads
Do not mix up the cutters and combs as the
shaving performance may be adversely affected
for several weeks before optimal shaving
performance is restored.
1Turn razor OFF, remove the charging plug
from the outlet and cord from the razor.
C2Press the razor head release button, open
and lift off the razor head assembly.
C3Turn the wheel counterclockwise and
remove the retaining frame.
4Remove and clean one set of cutters and
combs at a time.
16 ENGLISH

C5Separate the cutter from the comb and
rinse clean under hot water.
Do not clean more than one cutter and comb at
a time, since they are all matching sets. If you
accidentally interchange the cutters and combs, it
could take several weeks before optimal shaving
performance is restored.
C6Replace the set back into the Razor Head
Assembly so that the ‘wings’ on the comb
fit within the brackets located towards the
center of the assembly.
◗The set will only fit into the Razor Head
Assembly if the ‘wings’ are between the
brackets. Make sure that the two pointy edges
of the head fit exactly into the recesses.
7Repeat the process for the other two sets
of cutters and combs.
8Replace the retaining frame.
C9Press down and turn wheel clockwise until
it locks into place.
10 Place the Razor Head Assembly back on
razor.
For optimum performance, razor cutters and
combs should be cleaned in a degreasing liquid
(e.g. Norelco Razor Cleaner, model RC1776, or
rubbing alcohol) and then lubricated with
Norelco Razor Lubricant, model AL80, or one
17ENGLISH

drop of mineral oil (in the center of the head).
This helps prevent wear of the shaving heads.
After Each Use:Trimmer
1Turn razor OFF.
2Push Trimmer Slide Switch up to pop up
Trimmer.
C3Clean Trimmer with the brush every time
you use it.
C4Lubricate the Trimmer teeth with Norelco
Razor Lubricant (model AL80) or with one
drop of mineral oil every 6 months.
5Close Trimmer by sliding Trimmer switch
down.
This razor has no other user-serviceable parts.
Any other service should be performed by an
Authorized Norelco Service Location.
Assistance
◗For assistance or the Authorized Norelco
Service Location nearest you, call toll free:
1-800-243-3050
or visit our website: www.norelco.com
◗Authorized Norelco Service Location
information is available 24 hours a day, 7 days
a week.
18 ENGLISH

19
Accessories
◗Replacement Heads
Model HQ8 - For maximum razor
performance, replace your Norelco Spectra
razor heads once a year.
◗Razor Cleaner
RC1776 - Norelco Razor Cleaner.
◗Razor Lubricant
AL80 - Norelco Razor Lubricant.
◗Car Cord Adaptor Cable
HQ8010 - Charges razor from a 12V battery
in your car, truck, van, boat or camper.
◗Norelco Razor Accessories may be purchased
at a store near you, an Authorized Norelco
Service Location, on our website
www.norelco.com or by using the order
form enclosed.
ENGLISH

20
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new Norelco Product, Model 8883XL, 8881XL,
8880XL (except cutters and combs) against defects in materials or workmanship for a period of two years from
the date of purchase, and agrees to repair or replace any defective product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of
reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the
product to any but the specified voltage.* Use of unauthorized replacement parts will void this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT PAY FOR
WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE AND WILL
NOT REIMBURSE THE CONSUMER FOR DAMAGE RESULTING FROM WARRANTY
SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE. NO RESPONSIBILITY IS
ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply take or ship the product postage prepaid to the nearest Authorized
Norelco Service Center Location. It is suggested that for your protection you return shipments of product by
insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclu-
sion and limitations may not apply to you.
* Read enclosed instructions carefully.
Manufactured for:
Norelco Consumer Products Company
A Division of Philips Electronics North America Corporation
1010 Washington Blvd., Stamford, CT 06912-0015
MADE IN HOLLAND.
This symbol on the product’s nameplate means it is
listed by Underwriters’ Laboratories, Inc.
Norelco, Lift and Cut, and are Registered Trademarks of Philips
Electronics North America Corporation.
Spectra, Personal Comfort Control, and areTrademarks of Philips Electronics North America Corporation.
PHILIPS is a Registered Trademark of Koninklijke Philips Electronics N.V.
© 2003 Philips Electronics North America Corporation. All Rights Reserved.
Rev.2 - 6/03
ULTRA CLOSE, ULTRA COMFORTABLE ... GUARANTEED!
®
LISTED
TM
ENGLISH
