Important
•Please read these instructions carefully in
conjunction with the illustrations (pages 3, 48, 49
and 50) before using the appliance.
•If using the Philishave system for the first time,
please bear in mind that your skin may need about
two weeks to become fully accustomed to the new
shaving method.
•Regular cleaning and maintenance ensures
optimal performance and prolongs the shaver's
working life.
•Do not allow the shaver to come into contact with
water.
•Do not leave the appliance in a very warm place or
in direct sunlight.
•Before using the appliance for the first time, or if
it has not been used for a considerable time, it
should be charged once for at least 8 hours.
•If the battery is completely empty, it may take
some time (3-5 minutes) before the green pilot
light comes on.
4
To protect the environment, this
rechargeable Philishave appliance is equipped with a
nickel-hydride battery. This contains less than 0.01%
cadmium.
Yet we advise you to ensure that the battery is separated
from the normal household refuse and that it is disposed of
at an officially assigned place when discarding your
appliance in due course. Please refer to section
“Environment".
English

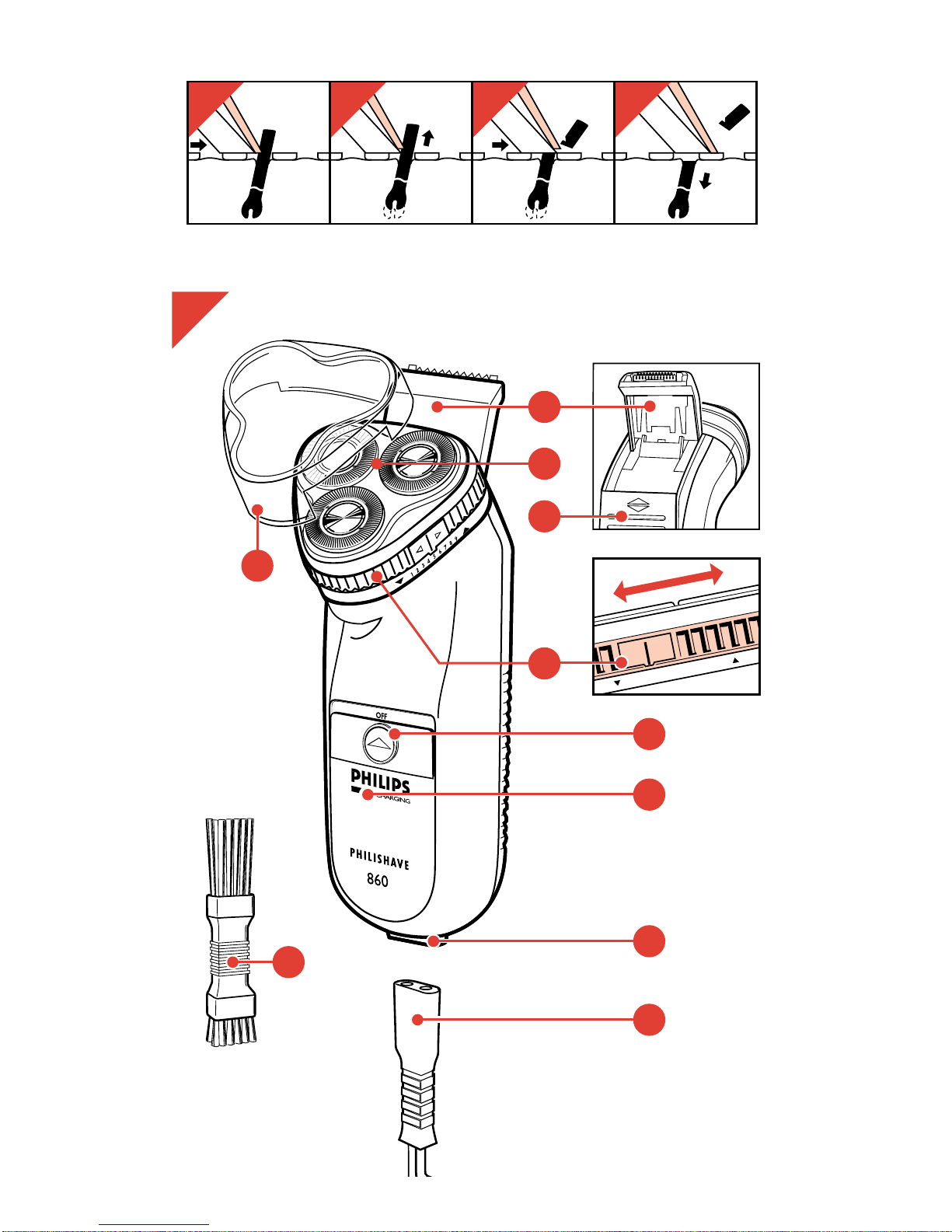

"Double Action" shaving system (fig. 1-4, page 3)
You now own an excellent Philishave shaver featuring
the unique "Double Action" shaving system:
Each cutter blade has a "lifter blade".... (fig. 1)
...which lifts the hair... (fig. 2)
...before the cutter blade removes it. (fig. 3)
The result: a very close shave indeed! (fig. 4)
General description (fig. 5)
AShaving unit with three shaving heads. Each shaving
head consists of a guard and a cutter.
BGreen pilot light. The light comes on when connecting
the shaver to the mains supply (for charging or shaving
directly from the mains).
The light starts blinking as soon as the shaver is fully
charged.
COn/Off switch. The shaver is prevented from being
switched on accidentally by the locking device
incorporated in the switch.
On: keep the locking knob pressed-in and slide the
switch upwards.
Off: slide the switch downwards.
DMains cord. Using the mains cord you can operate the
shaver on any mains voltage between 100 and
240 Volts AC (charging and shaving).
EConnector. When using the mains cord insert the small
plug firmly into the connector up to the indication mark.
F(Type HS 860 only:) Comfort control for adjustment to
skin sensitivity.
Start with the position for the most sensitive skin (arrow
at the lowest figure) and then try successive positions to
find the one that suits you best.
GTrimmer. The trimmer can be switched on whilst the
motor is running.
- Switch on by pushing the slide (g) upwards.
- Switch off by moving the slide downwards.
5

- Brush the trimmer clean after use.
HBrush. Refer to section "Maintenance and cleaning" for
correct usage.
IProtective cap. Keep the protective cap on the shaver
when not in use.
Shaving tips
for a close, quick and comfortable shave
• The best results are obtained if the skin is dry. So
preferably shave before washing or some time afterwards.
• If required, apply a preshave lotion. This can be
particularly helpful if the climate is warm and humid.
• The Philishave system gives you a quick, close and
comfortable shave. Just move the shaving unit quickly
over the skin.
• For the best results stretch the skin to bring the hairs into
an upright position.
Then move the shaving unit against the direction of the
growth of the hairs.
• The trimmer has been especially designed for grooming
sideburns, moustache and beard.
The trimmer is not required for long hairs in the neck area;
these hairs can easily be shaved off with the shaving unit.
Charging
•(Type HS 860 only:) Keep the cassette open if you
charge the appliance in it.
- Slide the on/off switch (C) downwards. ("OFF" visible.)
- Insert the small plug firmly into the connector (E) up to the
indication mark.
- Then connect to the wall socket.
When charging begins, the green pilot light (B) will come on.
After one hour the shaver will be fully charged. The green
pilot light will then start blinking.
The pilot light will go out when you remove the mains plug
6

from the wall socket.
The number of shaves per charge is dependent upon your
beard type and shaving time.
Prolonged mains connection will not harm the shaver.
However, it is not advisable to charge the shaver
permanently as this will shorten the life of the rechargeable
battery.
Shaving directly from the mains
- Slide the on/off switch (C) downwards. ("OFF" visible.)
- Connect the appliance to a wall socket.
- Then switch the appliance on.
Rechargeable battery lifetime
The lifetime of the rechargeable battery is favourably
influenced by:
• charging at temperatures between 5° and 35° C (41° and
95° F);
• cordless usage until the rechargeable battery noticeably
needs recharging;
• regular shaving head cleaning.
Maintenance and cleaning (fig. 6-21, pages 48 and 49)
• Always switch off the shaver before carrying out
maintenance or cleaning.
• The rotating cutter blades of the Philishave system retain
the shaved stubble neatly inside the shaving unit. In
general, the shaving unit needs cleaning only once a
week.
Every week
Fig. 6: Clean the guard slots using the short bristled end of
the brush.
Fig. 7: Pull the shaving unit from the shaver.
Figs. 8 Clean the inside using the long bristled end of the
& 9: brush. 7

Every three months
• If your skin is of an oily type or if you have been using a
pre-shave lotion, the following procedure should be carried
out once a month.
Fig. 10: Pull the shaving unit from the shaver.
Fig. 11: Press the wheel downward and turn it anti-clock-
wise (see the arrow). Then lift the cluster frame
holding the shaving heads from the shaving unit.
Fig. 12: Slide one shaving head (guard and cutter) out of the
frame. Keep your finger under the shaving head to
prevent the cutter from falling out of the guard.
Fig. 13: Keep the guard and cutter together because
each pair has been especially ground to match
each other. If the guards and cutters are mixed, it
may take a couple of weeks before optimal shaving
performance is restored.
Fig. 14: Hold the cutter as shown...
Fig. 15: ...and brush it carefully clean as illustrated.
Brush only in the direction of the arrow. The
lifter blades could be damaged if brushed in any
other way.
Use only the short bristled end of the brush.
Fig. 16: Clean the inside of the guard, using the long bristled
end of the brush.
Fig. 17: Slide the shaving head back into place. Then clean
the other two shaving heads one by one in the same
way.
Fig. 18: Replace the cluster frame with the shaving heads.
Do not forget to secure the cluster frame by
pressing the wheel downward and turning it
clockwise.
Fig. 19: Do not apply any pressure to the guards when
replacing the shaving unit on to the shaver.
Fig. 20: If you have used a degreasing liquid (e.g. alcohol) to
clean the shaving heads, or if your skin is very dry,
lubricate the guards with one drop of light machine
oil.
8

Every six months
Fig. 21: Apply two drops of light machine oil to the teeth of
the trimmer.
Replacement shaving heads
Worn or damaged shaving heads must be replaced only with
original Philishave replacement heads type HP 1915L.
Environment
How to remove the built-in rechargeable battery
when discarding the appliance (fig. 22-26, page 50)
• Please note: You can also take the appliance to a Philips
Service Centre. The staff will be happy to help you.
- Remove the plug from the wall socket.
- Before removing the battery should be completely
empty. Let the appliance run until the motor stops.
- Push the trimmer slide (g) upwards (fig. 22).
- Unscrew the four countersunk screws at the back side of
the shaver. For this purpose you can use a small
screwdriver (width approx. 3 mm) or a Torx T-8 type
screwdriver (fig. 23).
- Remove the back plate of the appliance (fig. 24).
- Cut the two connector strips (fig. 25).
You will recongise the battery by the print NiMH.
Do not connect the appliance to the mains power after
the battery has been removed.
For Australian consumers
The rechargeable battey used in your Philishave appliance
is recyclable.
When discarding the shaver or when the battery requires
replacement, take the shaver to a Philips Service Centre or
authorised agent.
For the address of your nearest service centre or agent
please contact our Customer Information Centre on
telephone [phone].
9

Important
•Lisez attentivement ce mode d'emploi et regardez
tous les dessins des pages 3, 48, 49 et 50 avant
d'utiliser l'appareil.
•Lorsque le Philishave "Double action" est utilisé
pour la première fois, il est important de savoir
qu'une période d'adaptation de la barbe d'environ
2 semaines est nécessaire pour obtenir l'efficacité
optimale du rasage.
•Un nettoyage et un entretien réguliers vous
garantissent de bonnes performances et une
longue durée de vie de l'appareil.
•Evitez tout contact de l'appareil avec l'eau.
•Ne laissez pas l'appareil exposéàde fortes
chaleurs ou aux rayons directs du soleil.
•Avant d'utiliser votre rasoir pour la première fois,
ou après une longue période de non-utilisation,
rechargez l'appareil pendant au moins 8 heures.
•Si l' accumulateur est complètement vide, le
témoin lumineux vert ne s'allume peut-être pas
instantanément (attendre dans ce cas 3 à5
minutes après la mise sous tension).
10
Pour la protection de l'environnement,
votre rasoir rechargeable Philishave
est muni d'un accumulateur au nickel-hydride qui
contient moins de 0.01% de cadmium.
Nous vous conseillons toutefois lorsque vous vous
débarrassez de l'appareil en fin d'utilisation, de ne pas jeter
l'accumulateur dans les ordures ménagères ordinaires,
mais de le déposer dans un endroit désigné à cet effet par
les pouvoirs publics. Veuillez vous référer au chapitre
"Protection de l'environnement".
Français
