Philips NORELCO S9733 User manual

S9733
BC
www.philips.com/support/ifu

1
2
3
4
5
6
7
8
9
10
12
11
13
14
15 16

empty page before TOC

English 6
Español 33

English
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric product, basic
precautions should always be followed,
including the following:
Read all instructions before using this
product.
DANGER
To reduce the risk of electric shock:
-Do not reach for a corded product that has
fallen into water. Unplug immediately.
-The power plug and the accessories
connected to it are not for immersion or for
use in shower.
-Do not use an extension cord with this
product.
-Always unplug this product from the
electrical outlet immediately after
(re)charging.
-Unplug and remove power cord from the
product before cleaning.
-The batteries used in this product may
present a fire or chemical burn hazard if
mistreated. Do not disassemble, heat above
100°C (212°F) or incinerate.
6English

WARNING
To reduce the risk of burns, fire, electric
shock, or injury to persons:
-Close supervision is required when this
product is used by, on, or near children, or
persons with limited physical, sensory, or
mental capabilities or invalids.
-Use this product for its intended household
use as described in this manual. Do not use
attachments not recommended by Philips
North America LLC.
-Never operate this product if it has a
damaged power cord or charging plug, if it
is not working properly, if it has been
dropped or damaged, or dropped into
water while plugged in. For assistance call
1-800-243-3050.
-Keep the product, cord and charging plug
and any attachments away from heated
surfaces.
-Never drop or insert any object into any
opening.
-Do not use the adapter in or near a power
outlet that contains an electric air freshener
to prevent damage to the adapter.
-Do not charge, clean or plug in product
outdoors or operate where aerosol (spray)
products are being used or where oxygen is
being administered.
7
English

-Always check cutters and combs before
using the product. Do not use the product if
cutters or combs are damaged, as injury
may occur.
-Always attach plug to product first, then to
outlet. Be certain plug is inserted firmly into
shaver up to mark indicated on plug. To
disconnect, turn shaver off then remove
power cord from outlet.
-Keep the power cord dry at all times. Do not
handle with wet hands.
-Never put the product in direct sunlight or
store at a temperature above 140°F (60°C).
-To prevent possible damage to the power
cord, do not wrap power cord around the
product.
-Do not attempt to open the product to
remove or replace the built-in rechargeable
battery.
-Only use the power cord and other
accessories supplied with the product.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a
transformer. Do not cut off the power plug to
replace it with another plug as this will cause a
hazardous condition.
Contents
IMPORTANT SAFETY INSTRUCTIONS___ 6
8English

SAVE THESE INSTRUCTIONS____________ 8
General description (Fig. 1)_______________ 9
Introduction______________________________ 10
The display_______________________________ 10
Charging__________________________________ 13
Using the product________________________ 15
Travel lock________________________________ 20
Cleaning and maintenance______________ 21
Replacement_____________________________ 27
Storage___________________________________ 28
Accessories_______________________________ 29
Assistance________________________________ 29
Disposal__________________________________ 29
Full Two-Year Warranty__________________ 30
45-DAY MONEY-BACK GUARANTEE____ 31
General description (Fig. 1)
1 Shaving unit with hair chamber
2 On/off button
3 Socket for small plug
4 SmartClick beard styler attachment
5 Comb for SmartClick beard styler
attachment
6 + and - buttons for personal comfort
settings
7 Personal comfort settings bar
8 Battery charge percentage
9 Battery symbol
10 Cleaning reminder
11 Travel lock symbol
12 Replacement reminder
13 Notification symbol
14 Power plug
9
English

15 Small plug
16 Travel pouch
Introduction
Congratulations on your purchase and
welcome to Philips Norelco!
To fully benefit from the support that Philips
Norelco offers, register your product at
www.norelco.com/register.
The display
Note: Before you use the shaver for the first
time, remove the protective foil from the
display.
Personal comfort settings
The shaver has a feature that allows you to
personalize your settings. Depending on your
personal shaving needs, choose between
three settings, from low to high: slow: for an
even more skin-friendly shave, medium: for a
standard thorough shave, and fast: for a high-
powered shave. When you press the button on
the left or right of the display, the segment of
the personal comfort settings bar that lights up
shows the currently selected setting. To select
a lower or higher setting, press the button on
the left or right of the display.
10 English

Charging
When the shaver is charging, the battery
charge percentage and the battery symbol
flash white.
The battery charge is indicated by the battery
charge percentage shown on the display.
Quick charge: When the battery symbol starts
to flash quickly, the shaver contains enough
charge for one shave.
Battery fully charged
When the battery is fully charged, the battery
charge percentage lights up white
continuously.
Note: This product can only be used without
cord. When you press the on/off button during
or after charging, you hear a sound to indicate
that the shaver is still connected to the wall
socket.
Note: When the battery is full, the display
switches off automatically after 30 minutes.
Battery low
When the battery is almost empty, the battery
charge indicator flashes orange and the shaver
beeps.
11
English

Remaining battery charge
The remaining battery charge is indicated by
the battery charge percentage shown on the
display.
Cleaning reminder
Clean the shaver after every use for optimal
performance (see 'Cleaning and maintenance').
When you switch off the shaver, the cleaning
reminder flashes to remind you to clean the
shaver.
Travel lock
You can lock the shaver when you are going to
travel. The travel lock prevents the shaver from
being switched on by accident.
Replacement reminder
For maximum shaving performance, we advise
you to replace the shaving heads every year
(see 'Replacement'). The shaver is equipped
with a replacement reminder which reminds
you to replace the shaving heads. The shaving
unit symbol lights up white continuously, the
arrows flash white and the shaver beeps to
indicate that you have to replace the shaving
heads.
Note: After replacing the shaving heads, you
can reset the replacement reminder by
pressing the on/off button for 7 seconds. If you
12 English

do not reset the replacement reminder, the
shaver resets automatically after 9 shaves.
Notification symbol
Overheating
If the shaver overheats during charging, the
notification symbol flashes orange. When this
happens, the shaver switches off
automatically. Charging continues once the
temperature of the shaver has decreased to
the normal level.
Blocked shaving heads
If the shaving heads are blocked, the
notification symbol lights up orange
continuously. The replacement reminder and
the cleaning reminder flash white alternately
and you hear a sound. In this case, the motor
cannot run because the shaving heads are
soiled or damaged.
If the shaving heads are soiled, you have to
clean them. If the shaving heads are damaged,
you have to replace them.
Charging
-Charging, recharging, or using the product
at temperatures below 40°F (4.5°C) or
higher than 95°F (35°C) adversely affects
the lifespan of the battery.
-Do not charge the shaver in a pouch or
travel case.
-The power plug transforms 100-240V AC to
less than 24V DC.
13
English

Charge the shaver before you use it for the first
time and when the display indicates that the
battery is almost empty. The battery charge is
indicated by the lights of the battery charge
indicator on the display.
When you connect the shaver to the wall
socket, you hear a sound.
Charging takes approx. 1 hour. A fully charged
shaver has a shaving timeof up to 60 minutes.
Note: You cannot use the product while it is
charging.
Charging with the power cord
1Make sure the shaver is switched off.
1
2
2Put the small plug in the shaver and
connect the power plug to any 100V to
240V AC outlet. Use only the power cord
provided.
The display of the shaver indicates that the
shaver is charging.
3After charging, remove the power plug from
the wall outlet and pull the small plug out of
the shaver.
Note: An adapter plug may be necessary for
cord usage in some foreign countries. Use an
attachment plug adapter of the proper
configuration for power outlet.
14 English

Using the product
Always check the shaver and all accessories
before use. Do not use the shaver or any
accessory if it is damaged, as this may cause
injury. Always replace a damaged part with
one of the original type.
This symbol indicates that the shaver can be
used in the bath or shower.
-Use this shaver for its intended household
use as described in this manual.
-For hygienic reasons, the shaver should
only be used by one person.
-Trimming is easier when the skin and hair
are dry.
Note: This shaver is waterproof. It is suitable
for use in the bath or shower and for cleaning
under the tap. For safety reasons, the shaver
can therefore only be used without charging
cord.
Put it to the test
-21 Day Trial and Conversion Process. It is a
fact that your skin and beard need time to
adjust to a new grooming system.
-Use your new shaver exclusively for 3 weeks
to fully enjoy the closeness of a Philips
Norelco shave.
15
English

-At first you may not get as close a shave as
you expect, or your face may even become
slightly irritated. This is normal since your
beard and skin will need time to adjust.
Invest 3 weeks and you'll soon experience
the full joy of your new shaver.
-Stick with it! If you alternate shaving
methods during the adjustment period, it
may make it more difficult to adapt to the
Philips Norelco shaving system.
-If you are still not convinced after 21 days,
Philips Norelco will refund you the full
purchase price as long as the request is
received within 45 days of purchase.

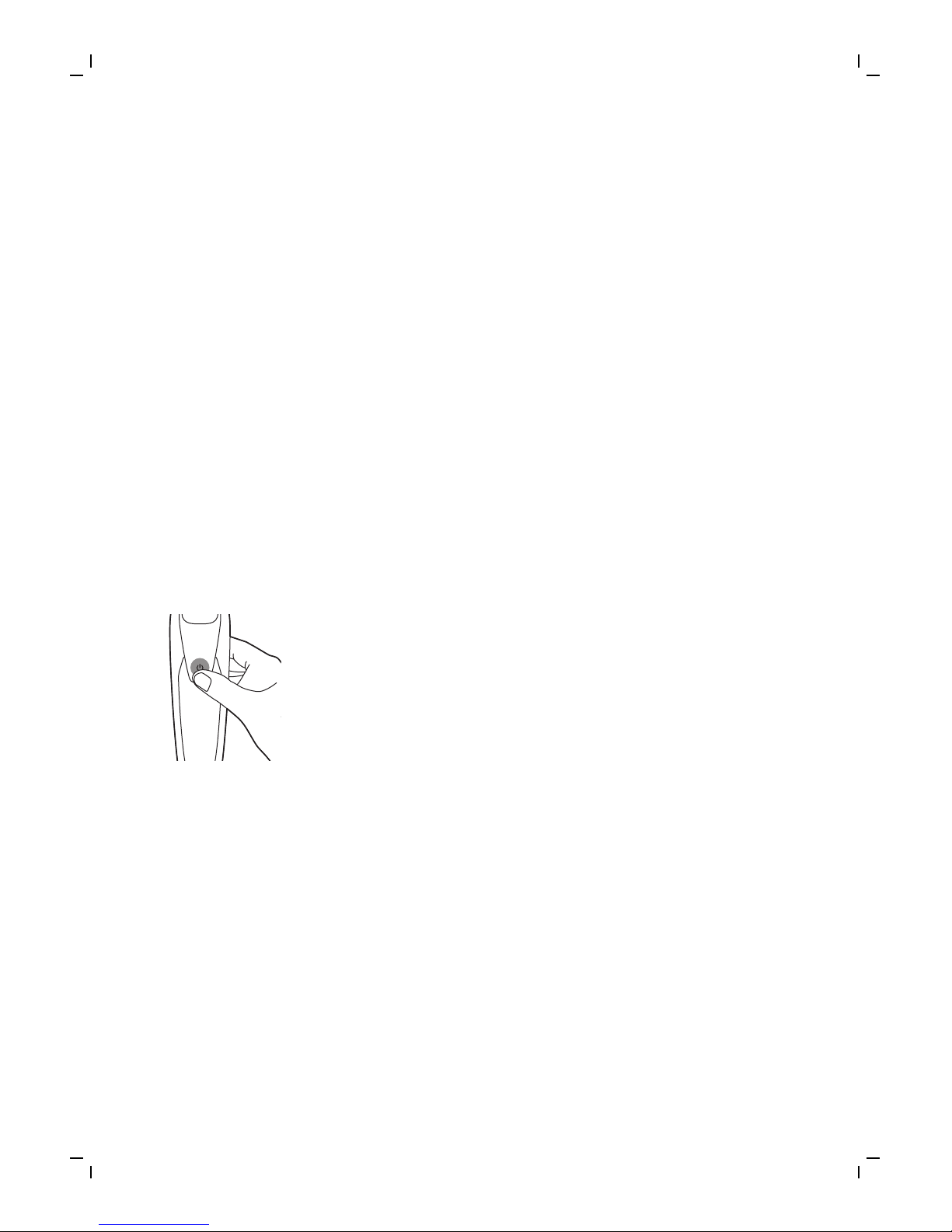

Switching the product on and off
1To switch on the shaver, press the on/off
button once.
The display lights up for a few seconds.
2To switch off the shaver, press the on/off
button once.
The display lights up for a few seconds and
shows the remaining battery charge.
Shaving
Shaving tips
-Selectyour personal comfort settings (see
‘The display’).
-For the best results on skin comfort, pre-
trim your beard if you have not shaved for 3
days or longer.
Dry shaving
1Switch the shaver on.
16 English

2Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press shaver to skin so the floating heads
can follow the contours of your face.
Note: Do not press too hard. Too much
pressure can pinch the skin into the combs.
3Switch off and clean the shaver after each
use.
The display lights up for a few seconds to
show the battery status.
Wet shaving
For a more comfortable shave, you can also
use this shaver on a wet face with shaving
foam or shaving gel.
1Apply some water to your skin.
2Apply shaving foam or shaving gel to your
skin.
3Rinse the shaving unit under the tap to
ensure that the shaving unit glides smoothly
over your skin.
4Switch the shaver on.
17
English

5Move the shaving heads over your skin in
circular movements to catch all hairs
growing in different directions. Make sure
each shaving head is fully in contact with
the skin. Exert gentle pressure for a close,
comfortable shave.
Note: Do not press too hard, this can cause
skin irritation.
Note: Rinse the shaving unit regularly to
ensure that it continues to glide smoothly
over your skin.
6Dry your face.
7Switch off the shaver and clean it after each
use.
Note: Make sure that you rinse all foam or
shaving gel off the shaver.
Using click-on attachments
Using the beard styler attachment with
comb
You can use the beard styler attachment with
the comb attached to style your beard at one
fixed setting, but also at different length
settings. You can also use it to pre-trim any
long hairs before shaving for a more
comfortable shave.
The length settings on the beard styler
attachment correspond to the remaining hair
length after cutting and range from 1 to 5mm
(3/64 - 3/16in).
18 English

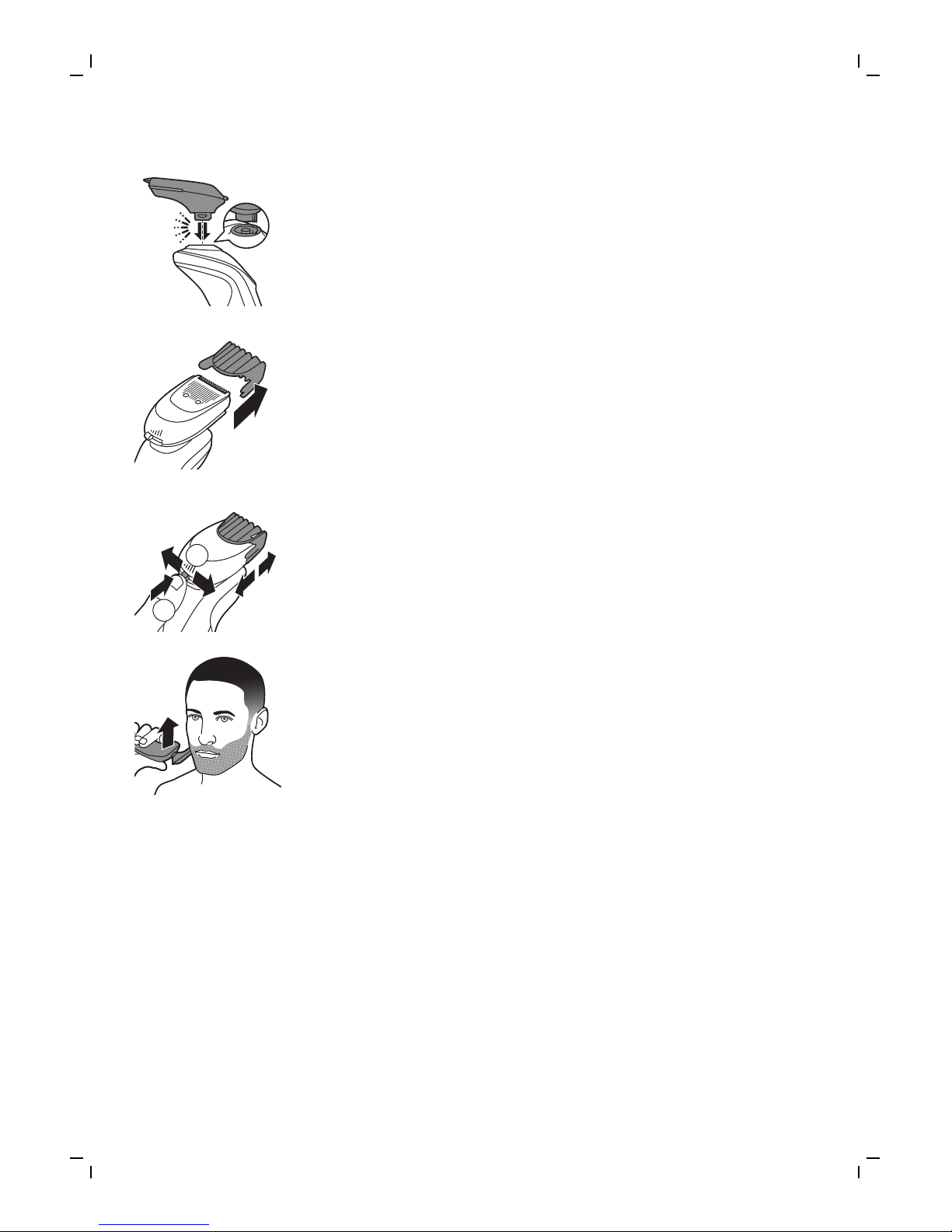

1Attach the attachment to the product
('click').
2Slide the comb straight into the guiding
grooves on both sides of the beard styler
attachment (‘click’).
2
1
3Press the length selector and then push it
to the left or right to select the desired hair
length setting.
4Switch on the product.
5Move the product upwards while you exert
gentle pressure. Make sure the front of the
comb is in full contact with the skin.
6Clean the attachment after use.
Using the beard styler attachment without
comb
You can use the beard styler attachment
without the comb to contour your beard,
moustache, sideburns or neckline to a length
of 0.5mm (1/32 in).
1Pull the comb off the beard styler
attachment.
19
English

Note: Grab the comb in the center to pull it
off the beard styler attachment. Do not pull
at the sides of the comb.
2Switch on the product.
3Hold the beard styler attachment
perpendicular to the skin and move the
product downwards while you exert gentle
pressure.
4Clean the attachment after use.
Travel lock
You can lock the shaver when you are going to
travel to prevent it from turning on
accidentally.
Activating the travel lock
1Press the on/off button for 3 seconds to
enter the travel lock mode.
While you activate the travel lock, the travel
lock symbol lights up white continuously.
When the travel lock is activated, the
appliance produces a sound and the travel
lock symbol flashes.
Deactivating the travel lock
1Press the on/off button for 3 seconds.
20 English
