Philips OneBlade QP2531 User manual

QP2531, QP2530, QP2522, QP2521, QP2520

11
12
13
3
1
4
56
7
8
9
10
2

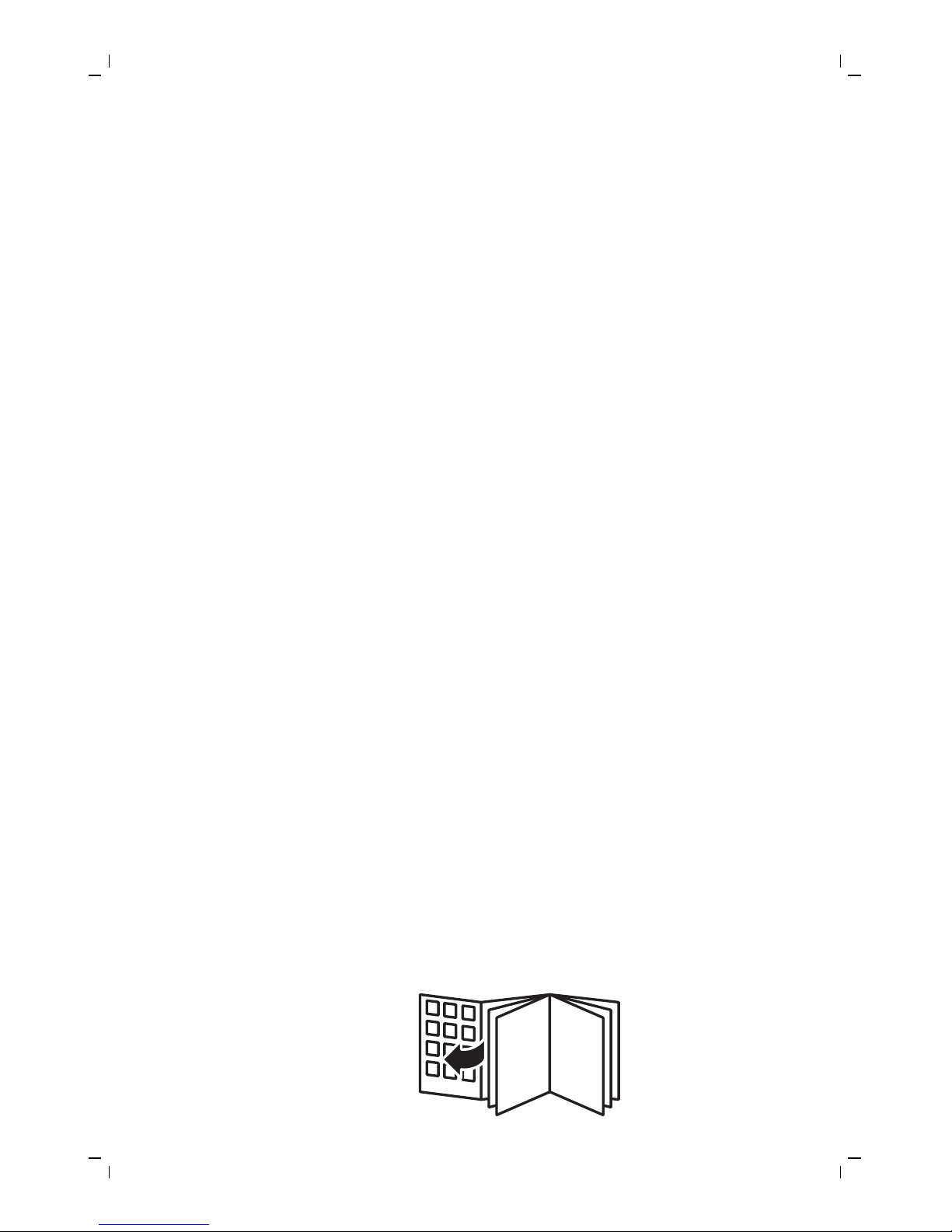

empty page before TOC

English 6
Bahasa Indonesia 21
Bahasa Melayu 37
Português do Brasil 54
Tiếng Việt 70
ภาษาไทย 85
简体中文 99
繁體中文 112
한국의 125
ﺔﻴﺑﺮﻌﻟﺍ 140
یﺳﺭﺎﻓ 154
תירבע 169

English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
General description (Fig. 1)
1 Protection cap
2 Blade
3 Blade release slide
4 On/off button
5 Battery status indicator (QP2531, QP2530 only)
6 Small plug
7 Battery charge indicator (QP2522, QP2521,
QP2520 only)
8 Supply unit (QP2531, QP2530: adapter type
HQ850. QP2522, QP2521, QP2520: adapter type
A00390.)
9 Replacement blade (QP2531, QP2522 only)
10 Click-on stubble comb 5mm
11 Click-on stubble comb 3mm (QP2531, QP2530,
QP2520 only)
12 Click-on stubble comb 2mm (QP2531, QP2530
only)
13 Click- on stubble comb 1mm
Important safety information
Read this important information carefully before
you use the appliance and its accessories and
save it for future reference. The accessories
supplied may vary for different products.
6English

Danger
- Keep the supply unit dry.
Warning
- The supply unit contains a transformer. Do not
cut off the supply unit to replace it with another
plug, as this causes a hazardous situation.
- Only charge the appliance with the supply unit
provided.
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that
they do not play with the appliance.
- Always unplug the appliance before you clean
it under the tap.
- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as
this may cause injury. Always replace a
damaged part with one of the original type.
- Do not open the appliance to replace the
rechargeable battery.
7
English

Caution
- Never immerse the charging stand in water and
do not rinse it under the tap.
- Never use water hotter than 80°C to rinse the
appliance.
- Only use this appliance for its intended purpose
as shown in the user manual.
- For hygienic reasons, the appliance should only
be used by one person.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the
appliance.
- Do not use the supply unit in or near wall
sockets that contain or have contained an
electric air freshener to prevent irreparable
damage to the supply unit.
Electromagnetic fields (EMF)
- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic fields.
General
- This appliance is waterproof. It is suitable for
use in the bath or shower and for cleaning
under the tap. For safety reasons, the appliance
can therefore only be used without cord.
- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
Charging
Note: This appliance can only be used without
cord.
8English

QP2531, QP2530: Charging normally takes approx.
4 hours.
QP2522, QP2521, QP2520: Charging normally takes
approx. 8 hours.
A fully charged appliance has an operating time of
up to 60 minutes (QP2531, QP2530) or 45 minutes
(QP2522, QP2521, QP2520).
Charge the appliance before you use it for the first
time and when the battery charge indicator
indicates that the battery is almost empty.
Battery status indicator QP2531, QP2530:
When the battery status indicator light flashes
orange, the battery is almost empty.
To indicate that the appliance is charging, the
battery status indicator light flashes green.
When the battery is fully charged, the battery
status light lights up green continuously.
Approx. 30 minutes after the battery is fully
charged or when you disconnect the appliance
from the mains, the light of the battery status
indicator switches off automatically.
Battery charge indicator QP2522, QP2521, QP2520:
The battery status is indicated by the performance
of the appliance. When the appliance starts
working more slowly, the battery is almost empty
and needs to be charged for optimal performance.
9
English

Charging with the adapter
1Insert the small plug into the appliance and put
the adapter in the wall socket.
2QP2522, QP2521, QP2520 only: The battery
charge indicator on the adapter lights up
continuously, when the appliance is connected
to the mains.
3After charging, remove the adapter from the
wall socket and pull the small plug out of the
appliance.
Using the appliance
You can use the appliance to trim, edge or shave
facial hair (beard, moustache and sideburns).
Shave for a smooth result, trim to obtain a certain
length and edge to create perfect edges and sharp
lines. This appliance is not intended for shaving,
edging or trimming hairs on lower body parts or
scalp hair. Take your time when you first start to
use the appliance. You have to acquire practice
with the appliance.
Note: This appliance can only be used without
cord.
Switching the appliance on and off
1To switch on the appliance, press the on/off
button once.
2To switch off the appliance, press the on/off
button once.
10 English

Shaving
Warning: Before you use the appliance,
always check the blade for damage or
wear. If the blade is damaged or worn, do
not use the appliance, as injury may occur.
Replace a damaged blade before you use
the appliance (see chapter ‘Replacement’).
Shaving tips and tricks
- Make sure that the blade is in full contact with
the skin by placing it flat on the skin.
- For the best result, move the appliance against
the grain.
- Make long strokes while you press lightly.
- You can use the appliance dry or wet with gel
or foam, even in the shower.
- Shaving a clean beard and face gives the best
results.
1Switch on the appliance.
2Place the blade on the skin and move the
appliance up or against the grain in long strokes
while you press it lightly.
Note: Make sure you hold the surface of the
blade flat against your skin.
3Switch off and clean the appliance after every
use (see ‘Cleaning and maintenance’).
Edging
You can also use both edges of the blade to create
sharp lines and perfect edges. Hold the appliance
in such a way that the blade is perpendicular to
11
English

the skin and one of its edges touches the skin. This
allows more precise detailing of sideburns and the
area around the mouth and nose.
1To use the blade for creating sharp edges and
lines, use either edge of the blade.
2Switch on the appliance.
3Place the edge of the blade perpendicular onto
the skin.
-Make straight strokes while applying gentle
pressure.
4Switch off and clean the appliance after every
use (see ‘Cleaning and maintenance’).
Trimming with comb
The click-on stubble combs allow you to trim hair
to different lengths.
QP2531, QP2530 come with 4 click-on stubble
combs: 5mm, 3mm, 2mm, 1mm.
QP2520 comes with 3 click-on stubble combs:
5mm, 3mm, 1mm.
QP2522, QP2521 come with 2 click-on stubble
combs: 5mm, 1mm.
Start with the 5mm comb to acquire practice with
this appliance.
The indication on each comb corresponds to the
hair length in millimeters.
12 English

Tips
-Always make sure that the tips of the click-
on stubble comb point in the direction in
which you move the appliance.
-Make sure that the flat part of the comb is
always in full contact with the skin to obtain
an even trimming result.
-Since hair grows in different directions, you
need to move the appliance in different
directions as well (upward, downward or
across).
-Trimming is easier when the skin and hair are
dry.
1Place the comb onto the blade, with the teeth
of the comb pointing upwards.
Note: Always trim in the direction of the teeth of
the comb. This will give you the best results.
2Switch on the appliance.
3Place the comb onto the skin and move the
appliance in the direction of the teeth of the
comb.
Note: For the best result, move it against the
grain.
4Switch off and clean the appliance after every
use (see ‘Cleaning and maintenance’).
5To remove the comb, hold it on both sides and
pull it off the blade.
13
English

Cleaning and maintenance
Clean the appliance after every use.
Caution: Never use compressed air, scouring
pads, abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean the
appliance.
Caution: Do not tap the appliance against a
surface to remove water from it, as this may
cause damage. Replace the blade if it is
damaged.
Cleaning the appliance
1Remove the comb from the blade. Always turn
the appliance off before putting on or taking off
combs.
2If a lot of hairs have accumulated on the comb,
first blow them off.
3If a lot of hairs have accumulated on the
appliance, first blow them off.
14 English

4Then switch on the appliance and rinse the
blade with lukewarm water.
Caution: Do not dry the blade with a towel or
a tissue as this may cause damage.
5Then rinse the comb with lukewarm water.
6Let the appliance and comb dry.
Note: The blade is fragile. Handle it carefully.
Replace the blade if it is damaged.
Storage
Always attach the protection cap on the blade to
protect the blade from damage during travelling or
storage.
We advise you to let the appliance and its
attachments dry before you store them for the
next use.
1Place the protection cap onto the edge of the
blade.
2Close the protection cap.
15
English

Replacement
Replacing the blade
For optimal cutting and gliding performance of the
blade, we advise you to replace the blade every 4
months or when it no longer provides the shaving
or trimming results you expect. The advice of
replacing every 4 months is based on two full
shaves a week. Depending on your usage behavior
the exact lifetime of the blade could be longer or
shorter. Similar to what you would experience with
a manual blade, the blade becomes blunt over
time, which results in increased hair pulling and
reduced cutting performance.
1
2
1Push the blade release slide upwards carefully,
and hold the blade on its sides to remove the
blade and prevent it from flying away.
2Hold the new blade on its sides and press it
onto the handle (‘click’).
Note: When you hear a click the new blade is
placed correctly and ready for use.
Ordering accessories
To buy accessories or spare parts, visit
www.shop.philips.com/service or go to your
Philips dealer. You can also contact the Philips
Consumer Care Center in your country (see the
international warranty leaflet for contact details).
The following parts are available:
- QP210 Blade 1-pack
16 English

- QP220 Blade 2-pack
Recycling
- Do not throw away the product with the normal
household waste at the end of its life, but hand
it in at an official collection point for recycling.
By doing this, you help to preserve the
environment.
Removing the rechargeable battery
Caution: Only remove the rechargeable battery
when you discard the appliance. Make sure the
battery is completely empty when you remove it.
Note: We strongly advise you to have a
professional remove the rechargeable battery.
1Disconnect the appliance from the mains and
let the appliance run until the motor stops.
2Remove the blade from the appliance.
3Remove the bottom of the appliance by
bending it downwards and pull it off.
4Take out the battery compartment by
separating the bottom part from the top part.
5Separate the battery section from the bottom
part.
17
English

6Lift the battery out of the inner body with the
screwdriver. The battery is connected with
double-sided tape.
Warning: Be careful, the battery strips are
very sharp.
Warranty and support
If you need information or support, please visit
www.philips.com/support or read the
international warranty leaflet.
Guarantee restrictions
The blade is not covered by the terms of the
international guarantee because it is subject to
wear.
Troubleshooting
This chapter summarizes the most common
problems you could encounter with the appliance.
If you are unable to solve the problem with the
information below, visit www.philips.com/support
for a list of frequently asked questions or contact
the Consumer Care Center in your country.
Problem Possible cause Solution
The appliance
does not charge
when it is
connected to the
mains.
The appliance has
to be switched off
when you charge it.
Switch off the appliance.
I cannot switch
on the appliance
when it is
connected to the
mains.
You cannot use the
appliance when it
is charging. You
can only use the
appliance without
cord.
Disconnect the appliance
from the mains before use.
18 English

Problem Possible cause Solution
The appliance
does not work
anymore.
The rechargeable
battery is empty. Charge the appliance (see chapter ‘Charging’).
QP2530: During charging,
the battery charge
indicator flashes. QP2520:
During charging, the
charge indicator on the
adapter lights up. If the
battery charge indicator
does not flash or light up,
check whether there is a
power failure or if the wall
socket is live. If there is no
power failure and the wall
socket is live but the
battery charge indicator
still does not flash or light
up, take the appliance to
your dealer or a Philips
service center.
The blade is
blocked by dirt. Switch on the appliance and rinse the blade under
the tap with warm water.
Hold the blade in a cup
with warm water (60°C and
no hotter) for approx.30
seconds.
The appliance
doesn’t cut hairs
anymore.
The blade is placed
on the handle
incorrectly.
Push the blade onto the
appliance until you hear a
click.
The blade is
damaged or worn. Replace the blade with a new one. See chapter
‘Replacement’.
The appliance
makes a strange
noise.
The blade is
damaged or worn. Replace the blade with a new one. See chapter
‘Replacement’.
19
English

Problem Possible cause Solution
The blade is placed
onto the handle
incorrectly.
Remove and reattach the
blade. Push it onto the
appliance until you hear a
click.
The blade is
blocked by dirt. Remove the blade and clean it thoroughly.
The appliance
doesn’t function
optimally
anymore.
The blade is
blocked by dirt. Remove the blade and clean it thoroughly.
The blade is
subject to wear and
therefore its
performance
decreases over
time.
Replace the blade with a
new one. See chapter
‘Replacement’.
The blade is a
delicate part of the
appliance and can
easily be damaged.
If the blade is
damaged, it may
not function
optimally anymore.
Replace the blade with a
new one. See chapter
‘Replacement’.
20 English
