Philips S1510 User manual

S1520, S1510, S1320, S1310

S1520
S1510
1
8
9
2
3
4
5
10
7
6

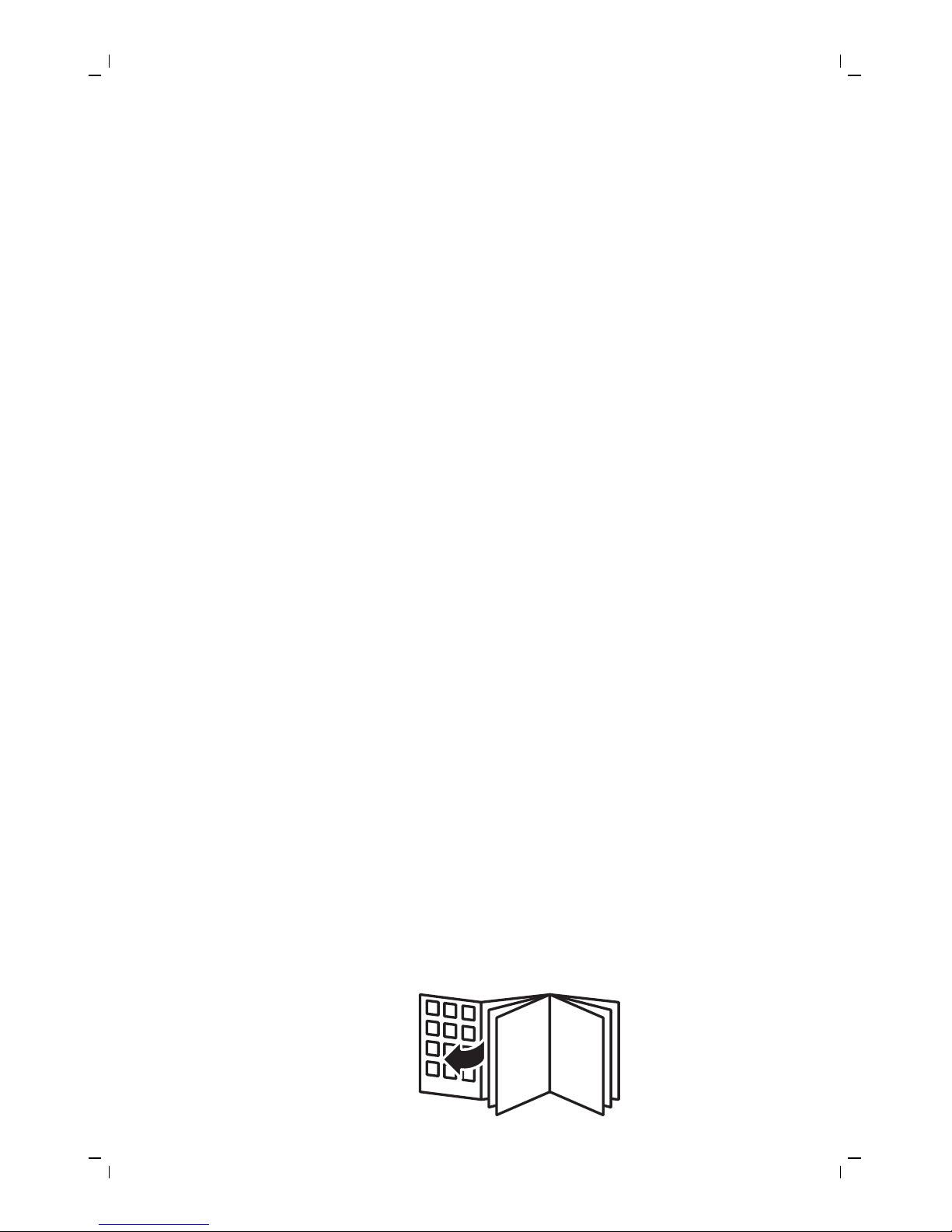

empty page before TOC

English 6
Bahasa Indonesia 20
Bahasa Melayu 33
Tiếng Việt 46
ภาษาไทย 58
简体中文 69
繁體中文 80
한국의 91
ﺔﻴﺑﺮﻌﻟﺍ 103
یسرﺍف 114
תירבע 127

English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
General description (Fig. 1)
1 Protection cap
2 Shaving unit
3 Shaving unit release button
4 On/off button
5 Charging light
6 Trimmer (S1520, S1510 only)
7 Trimmer release slide (S1520, S1510 only)
8 Cleaning brush
9 Supply unit (adapter, type HQ850)
10 Small plug
Important safety information
Read this important information carefully before
you use the appliance and its accessories and
save it for future reference. The accessories
supplied may vary for different products.
Danger
- Keep the supply unit dry.
6English

Warning
- The appliance is a Class III
construction.
- To charge the battery, only use
the detachable supply unit
(type HQ850) provided with the
appliance.
- The supply unit contains a
transformer. Do not cut off the
supply unit to replace it with
another plug, as this causes a
hazardous situation.
7
English

- This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. Children shall not play
with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
- Always check the appliance
before you use it. Do not use
the appliance if it is damaged,
as this may cause injury. Always
replace a damaged part with
one of the original type.
- Do not open the appliance to
replace the rechargeable
battery.
8English

Caution
- This appliance is not
washable. Never immerse the
appliance or the charging stand
in water and do not rinse it
under the tap.
- Only use this appliance for its
intended purpose as shown in
the user manual.
- For hygienic reasons, the
appliance should only be used
by one person.
- Never use compressed air,
scouring pads, abrasive
cleaning agents or aggressive
liquids such as petrol or
acetone to clean the appliance.
- Do not use the supply unit in or
near wall sockets that contain
an electric air freshener to
prevent irreparable damage to
the supply unit.
Electromagnetic fields (EMF)
- This Philips appliance complies with all
applicable standards and regulations regarding
exposure to electromagnetic fields.
9
English

General
- The appliance is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
Charging
It takes approx. 8 hours to fully charge the
appliance. When you charge the appliance for the
first time or after a long period of disuse, let it
charge until the charging light lights up
continuously. A fully charged appliance provides
up to 45 (S1520), 40 (S1510) or 35 (S1320, S1310)
minutes of shaving time.The shaving time may be
less than 45, 40 or 35 minutes as a result of your
shaving behavior, your cleaning habits or your
beard type.
Charging with the adapter
2
1
1Put the small plug in the appliance.
2Put the adapter in the wall socket.
- The charging light shows the charging status of
the appliance (see section ‘Charge indications’
in this chapter).
3After charging, remove the adapter from the
wall socket and pull the small plug out of the
appliance.
Charge indications
Battery low
- When the battery is almost empty (when there
are only 5 or fewer shaving minutes left), the
charging light starts to flash orange.
- When the battery is completely empty, the
charging light starts to flash orange quickly.
10 English

- When you switch off the appliance, the
charging light continues to flash orange for a
few seconds.
Charging
- When the appliance is charging, the charging
light flashes green.
Battery fully charged
- When the battery is fully charged, the charging
light lights up green continuously.
Note: After approx. 30 minutes, the charging light
goes out to save energy.
Note: When you press the on/off button while the
appliance is connected to the wall socket, the
charging light lights up to remind you to unplug the
appliance before use.
Using the appliance
Note: This appliance can only be used without
cord.
Shaving tips & tricks
- Make circular movements during use. Circular
movements provide better shaving results than
straight movements.
- Your skin may need 2 or 3 weeks to get
accustomed to the Philips shaving system.
11
English

Switching the appliance on and off
1To switch on the appliance, press the on/off
button once.
2To switch off the appliance, press the on/off
button once.
Shaving
1Switch on the appliance.
2Move the shaving heads in circular movements
over your skin.
3After shaving, switch off the appliance.
4Clean the appliance (see chapter 'Cleaning and
maintenance').
Trimming (S1520, S1510 only)
You can use the trimmer to groom your sideburns
and moustache.
1Push the trimmer slide downwards to open the
trimmer.
2Switch on the appliance.
- You can now start trimming.
3After trimming, switch off the appliance.
4Clean the trimmer (see chapter ‘Cleaning and
maintenance’).
12 English

5Close the trimmer (‘click’).
Cleaning and maintenance
Danger: This appliance is not washable.
Never immerse the appliance in water,
nor rinse it under the tap.
Caution: Never use compressed air, scouring
pads, abrasive cleaning agents or aggressive
liquids such as petrol or acetone to clean the
appliance.
- Clean the appliance after every shave for
optimal shaving performance.
- Regular cleaning guarantees better shaving
performance.
- For the best cleaning results, we advise you to
use the Philips Cleaning spray (HQ110).
- Never clean the shaving unit and the hair
chamber with a towel or tissue, as this may
damage the shaving heads and the coupling
spindles.
Cleaning the shaving unit with the cleaning brush
1Switch off the appliance and make sure it is
disconnected from the wall socket.
2Clean the outside of the shaving unit with the
brush supplied.
13
English

3Press the release button to open the shaving
unit.
4Clean the inside of the shaving unit and hair
chamber with the brush supplied.
5Close the shaving unit.
Thorough cleaning
Clean the shaving heads thoroughly once a month
for optimal performance.
1Switch off the appliance and make sure it is
disconnected from the wall socket.
2Press the release button to open the shaving
unit. Pull the shaving unit off the appliance.
2
1
3Turn the lock anticlockwise and remove the
retaining frame.
4Remove and clean one shaving head at a time.
Each shaving head consists of a cutter and a
guard.
Note: Do not clean more than one cutter and
guard at a time, since they are all matching sets.
If you accidentally put a cutter in the wrong
14 English

shaving guard, it may take several weeks before
optimal shaving performance is restored.
- Remove the cutter from the shaving guard and
clean it with the brush.
- Clean the inside and outside of the shaving
guard with the brush.
5Put the cutter back into the guard.
6Put the shaving heads back into the shaving
unit.
Note: Make sure the notches on both sides of
the shaving heads fit exactly onto the
projections in the shaving head holder.
1
2
7Put the retaining frame back into the shaving
unit and turn the lock clockwise.
8Insert the lug of the shaving unit into the slot in
the top of the appliance. Then close the shaving
unit ('click').
Note: If the shaving unit does not close
smoothly, check if you have inserted the
shaving heads properly and if the retaining
frame is locked.
15
English

Cleaning the trimmer with the cleaning brush (S1520,
S1510 only)
Clean the trimmer every time you have used it.
1Switch off the appliance and make sure it is
disconnected from the wall socket.
2Push the trimmer slide downwards to open the
trimmer.
3Clean the trimmer with the cleaning brush.
Brush up and down along the trimmer teeth.
4Close the trimmer (‘click’).
Tip: For optimal trimming performance, lubricate
the trimmer teeth with a drop of sewing machine
oil every six months.
Storage
Put the protection cap on the shaver to prevent
damage.
16 English

Replacement
2yrs
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
Replace damaged shaving heads immediately.
Always replace the shaving heads with original
Philips shaving heads (see 'Ordering accessories').
1Switch off the appliance and make sure it is
disconnected from the wall socket.
2Press the release button to open the shaving
unit. Pull the shaving unit off the appliance.
2
1
3Turn the lock anticlockwise and remove the
retaining frame.
4Remove the shaving heads from the shaving
unit and throw them away.
5Place new shaving heads in the shaving unit.
Note: Make sure the notches on both sides of
the shaving heads fit exactly onto the
projections in the shaving head holder.
1
2
6Put the retaining frame back into the shaving
unit and turn the lock clockwise.
17
English

7Insert the lug of the shaving unit into the slot in
the top of the appliance. Then close the shaving
unit ('click').
Note:If the shaving unit does not close
smoothly, check if you have inserted the
shaving heads properly and if the retaining
frame is locked.
Ordering accessories
To buy accessories or spare parts, visit
www.shop.philips.com/service or go to your
Philips dealer. You can also contact the Philips
Consumer Care Center in your country (see the
worldwide guarantee leaflet for contact details).
The following accessories and spare parts are
available:
- SH30 Philips Shaving Heads.
- HQ110 Philips shaving head cleaning spray
Recycling
- Do not throw away the product with the normal
household waste at the end of its life, but hand
it in at an official collection point for recycling.
By doing this, you help to preserve the
environment.
Guarantee and support
If you need information or support, please visit
www.philips.com/support or read the separate
worldwide guarantee leaflet.
Guarantee restrictions
The shaving heads (cutters and guards) are not
covered by the terms of the international
guarantee because they are subject to wear.
18 English

Troubleshooting
This chapter summarizes the most common
problems you could encounter with the appliance.
If you are unable to solve the problem with the
information below, visit www.philips.com/support for
a list of frequently asked questions or contact the
Consumer Care Center in your country.
Problem Possible cause Solution
The appliance
does not shave as
well as it used to.
The shaving heads
are damaged or
worn.
Replace the shaving heads.
See chapter
'Replacement'.
Long hairs obstruct
the shaving heads.
Clean the shaving heads
one by one (see chapter
'Cleaning and
maintenance').
You have not
inserted the
shaving heads
properly.
Make sure the notches on
both sides of the shaving
heads fit exactly onto the
projections in the shaving-
head holder (see chapter
'Cleaning and
maintenance').
The appliance
does not work
when I press the
on/off button.
The appliance is
connected to the
wall socket.
This appliance can only be
used without cord.
The rechargeable
battery is empty.
Recharge the battery (see
chapter 'Charging').
The temperature of
the appliance is too
high. In this case,
the appliance does
not work.
As soon as the
temperature of the
appliance has dropped
sufficiently, you can switch
on the appliance again.
19
English

Bahasa Indonesia
Pendahuluan
Selamat atas pembelian Anda dan selamat datang
di Philips! Untuk memanfaatkan sepenuhnya
dukungan yang ditawarkan Philips, daftarkan
produk Anda di www.philips.com/welcome.
Keterangan umum (Gbr. 1)
1 Tutup pelindung
2 Unit pencukur
3 Tombol pelepas unit pencukur
4 Tombol daya
5 Lampu pengisian daya
6 Pemangkas (hanya S1520, S1510)
7 Geseran pelepas pemangkas (hanya S1520,
S1510)
8 Sikat pembersih
9 Unit catu daya (adaptor, jenis HQ850)
10 Steker kecil
Informasi keselamatan penting
Baca informasi penting ini dengan saksama
sebelum menggunakan alat dan aksesorinya,
simpanlah untuk referensi di kemudian hari.
Aksesori yang disertakan dapat berbeda-beda,
tergantung pada produk.
Bahaya
- Usahakan unit catu daya tetap kering.
20 Bahasa Indonesia
