Philips S99 series User manual

S99xx/S97xx

1

1 2 3

1
12
3
2
1 2 3
4 5

1
2
2
2
3
3
3
4
4
4
5
1 2
34

4
3
8
12
1
4
2
5
67
3

456
2 31
7
8 9 10

S99XX, S97XX
ENGLISH 12
INDONESIA 38
BAHASA MELAYU 65
ภาษาไทย 92
TIẾNG VIỆT 115
繁體中文 140

12
Introduction
Congratulations on your purchase and welcome to Philips!
To fully benet from the support that Philips offers,
register your product at www.philips.com/welcome.
Please read this user manual, as it contains information
about the features of this shaver as well as some tips to
make shaving easier and more enjoyable.

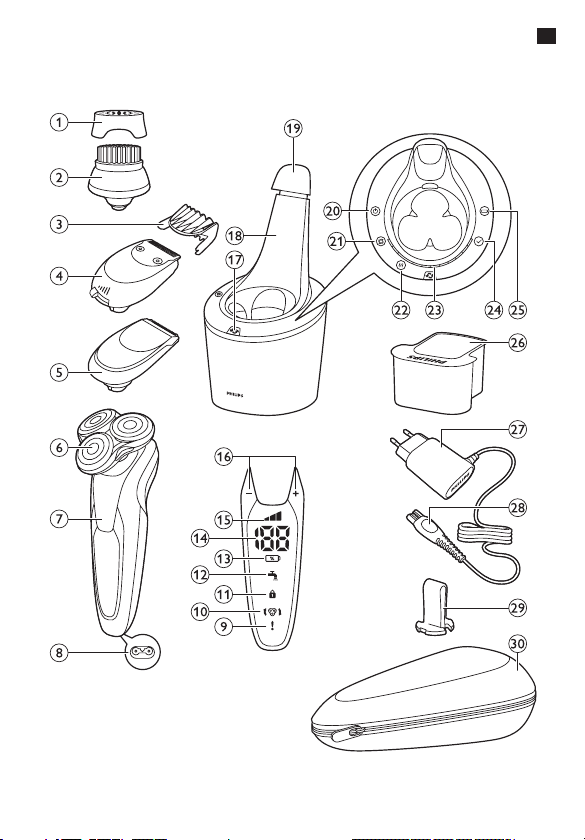

General description (Fig. 1)
1 Protection cap for cleansing brush attachment
2 Click-on cleansing brush attachment
3 Comb for beard styler attachment
4 Click-on beard styler attachment
5 Click-on trimmer attachment
6 Click-on shaving unit
7 On/off button
8 Socket for small plug
9 Exclamation mark
10 Replacement reminder
11 Travel lock symbol
12 Cleaning reminder
13 Charge symbol
14 Battery charge percentage
15 Personal settings
16 + and - buttons for personal settings
17 Replacement symbol
18 SmartClean system
19 Cap of SmartClean system
20 On/off button
21 Cleaning symbol
22 Drying symbol
23 Progress bar
24 Ready symbol
25 Charge symbol
26 Cleaning cartridge for SmartClean system
27 Adapter
28 Small plug
29 Retaining ring holder
30 Pouch
ENGLISH

Important
Read this user manual carefully before you use the shaver
and the SmartClean system. Save this user manual for
future reference.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer. Do not cut off the
adapter to replace it with another plug, as this causes a
hazardous situation.
- The shaver and the SmartClean system are not
intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been
given supervision or instruction concerning use of these
appliances by a person responsible for their safety.
- Children should be supervised to ensure that they do
not play with the shaver and the SmartClean system.
- Always unplug the shaver before you clean it under
the tap.
Caution
- Never immerse the SmartClean system in water nor
rinse it under the tap.
- Never use water hotter than 80°C to rinse the shaver.
- Do not use the shaver, SmartClean system, adapter or
any other part if it is damaged, as this may cause injury.
Always replace a damaged adapter or part with one of
the original type.
- Only use the SmartClean system with the original
cleaning cartridge.
- Always place the SmartClean system on a stable, level
and horizontal surface to prevent leakage.
- Always make sure that the cartridge compartment is
closed before you use the SmartClean system to clean
or charge the shaver.
- When the SmartClean system is ready for use, do not
move it to prevent leakage of cleaning uid.
ENGLISH 13

- The SmartClean system thoroughly cleans but does not
disinfect your shaver, therefore do not share the shaver
with others.
- Never use compressed air, scouring pads, abrasive
cleaning agents or aggressive liquids such as petrol or
acetone to clean the appliance.
- Water may leak from the socket at the bottom of
the shaver when you rinse it.This is normal and not
dangerous because all electronics are enclosed in a
sealed power unit inside the shaver.
Compliance with standards
- This shaver is waterproof and complies with the
internationally approved safety regulations. It is suitable
for use in the bath or shower and for cleaning under the
tap. For safety reasons, the shaver can therefore only be
used cordlessly.
- The shaver and the SmartClean system comply with all
applicable standards and regulations regarding exposure
to electromagnetic elds.
General
- The adapter is equipped with an automatic voltage
selector and is suitable for mains voltages ranging from
100 to 240 volts.
- The adapter transforms 100-240 volts to a safe low
voltage of less than 24 volts.
- Maximum noise level: Lc = 69dB(A)
The display
Note: Before you use the shaver for the rst time, remove the
protective foil from the display.
- S99XX/S97XX
ENGLISH14

Personal settings
The appliance has a feature that allows you to personalise
your settings.You can choose between three settings
depending on your personal shaving needs: comfort,
dynamic or efciency.
- When you press the - or + buttons, the bar lights up
white continuously.
Charging
- Charging takes approx. 1 hour.
Note: This appliance can only be used cordlessly.
- When the shaver is charging, the battery charge
percentage and the battery symbol ash white. You hear
a sound when you connect the shaver to the mains.
- The remaining battery capacity is indicated by the
battery charge percentage shown on the display.
- Quick charge: When the battery symbol ashes white
more quickly than normal, the shaver contains enough
charge for one shave.
Battery fully charged
Note: This appliance can only be used cordlessly.
Note: When the battery is full, the display switches off
automatically after 30 minutes. When you press the on/off
button during or after charging, you hear a sound to indicate
that the shaver is still connected to the mains.
- When the battery is fully charged, the battery charge
percentage lights up white continuously.
Battery low
- When the battery is almost empty, the battery symbol
starts to ash orange and you hear a sound.
ENGLISH 15

Remaining battery capacity
- The remaining battery capacity is indicated by the
battery charge percentage shown on the display.
Cleaning reminder
For optimal shaving performance, we advise you to clean
the shaver after every use.
- When you switch off the shaver, the cleaning reminder
ashes to remind you to clean the shaver.
Travel lock
You can lock the shaver when you are going to travel.
The travel lock prevents the shaver from being switched
on by accident.
Activating the travel lock
1 Press the on/off button for 3 seconds to enter the
travel lock mode.
,While you activate the travel lock, the travel lock
symbol lights up white continuously.When the travel
lock is activated, the shaver produces a sound and the
travel lock symbol ashes.
Deactivating the travel lock
1 Press the on/off button for 3 seconds.
,The travel lock symbol ashes and then lights up
continuously.
The shaver is now ready for use again.
Note: You can also deactivate the travel lock by connecting the
appliance to the mains.
ENGLISH16

Replacing shaving heads
For maximum shaving performance, we advise you to
replace the shaving heads every two years.
- The appliance is equipped with a replacement reminder
which reminds you to replace the shaving heads.
The replacement reminder lights up white continuously
and the arrows ash white. You hear a beep to indicate
you have to replace the shaving heads.
Note: After replacing the shaving heads, you need to reset the
shaver by pressing the on/off button for 7 seconds.
Exclamation mark
Blocked shaving heads
- If the shaving heads are blocked, the exclamation mark
lights up orange continuously.The replacement reminder
and the cleaning reminder ash white alternately and
you hear a sound. In this case, the motor cannot run
because the shaving heads are soiled or damaged.
- When this happens, you have to clean the shaving heads
or replace them.
Overheating
- If the appliance overheats during charging, the
exclamation mark ashes orange.
- When this happens, the shaver automatically switches
off. Charging continues once the appliance is back to the
normal temperature.
Charging
Charging takes approx. 1 hour.
A fully charged shaver has a shaving time of up to
50 minutes.
Note: You cannot use the appliance while charging.
Note: When the battery is fully charged, the display shows the
actual remaining battery charge percentage.
Charge the shaver before you use it for the rst time and
when the display indicates that the battery is almost empty.
ENGLISH 17

Charging with the adapter
1 Make sure the appliance is switched off.
2 Insert the small plug into the appliance (1) and put
the adapter in the wall socket (2).
Charging in the SmartClean system
1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.
3 Hold the shaver upside down above the holder.
Make sure the front of the shaver points towards
the SmartClean system.
4 Place the shaver in the holder (1), tilt the shaver
backwards (2) and press down the top cap to
connect the shaver (‘click’) (3).
Note: The battery symbol lights up to indicate the appliance
is charging.
Using the shaver
Shaving
Skin adaptation period
Your rst shaves may not bring you the result you expect
and your skin may even become slightly irritated.This is
normal.Your skin and beard need time to adapt to any new
shaving system.
We advise you to shave regularly (at least 3 times a week)
with this shaver for a period of 3 weeks to allow your skin
to adapt to the new shaver.
ENGLISH18

Tip: To ensure the best result, we advise you to pre-trim your
beard if you have not shaved for 3 days or longer.
Note: This appliance can only be used cordlessly.
1 Press the on/off button once to switch on the shaver.
Tip: Select your personal settings (see chapter ‘The display’).
,The display lights up for a few seconds.
2 Move the shaving heads over your skin in circular
movements.
- Do not make straight movements.
3 Press the on/off button once to switch off the shaver.
,The display lights up for a few seconds and then shows
the remaining battery charge.
Wet shaving
You can also use this shaver on a wet face with shaving
foam or shaving gel.
To shave with shaving foam or shaving gel, follow the steps
below:
1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure that
the shaving unit glides smoothly over your skin.
4 Press the on/off button once to switch on the shaver.
ENGLISH 19

5 Move the shaving heads over your skin in circular
movements.
Note: Rinse the shaver under the tap regularly to ensure that
it continues to glide smoothly over your skin.
6 Dry your face and thoroughly clean the shaver after
use (see chapter ‘Cleaning and maintenance’).
Note: Make sure you rinse all foam or shaving gel off the
shaver.
Using the click-on attachments
Using the trimmer attachment
You can use the trimmer attachment to groom
your sideburns and moustache.
1 Pull the shaving unit straight off the appliance.
Note: Do not twist the shaving unit while you pull it off the
appliance.
2 Insert the lug of the trimmer attachment into the
slot in the top of the shaver.Then press down the
trimmer attachment to attach it to the appliance
(‘click’).
3 Press the on/off button once to switch on the
appliance.
,The display lights up for a few seconds.
4 You can now start trimming.
5 Press the on/off button once to switch off the
appliance.
,The display lights up for a few seconds to show the
remaining battery charge.
ENGLISH20
