HP6319/01

Introduction
With your new Philips ladyshave Body Contour you can quickly, easily
and comfortably remove unwanted hair from dry or wet skin.
The Philips ladyshave Body Contour is equipped with a floating shaving
head, which optimally adapts to the skin in order to ensure a perfectly
smooth shave.
This ladyshave is designed for cordless use only and can be charged by
means of the charging unit supplied.
◗You can use the ladyshave either dry or wet. If you shave while
taking a bath or shower, we advise you to use soap or shaving
foam for the most comfortable shave.After use you can simply
rinse the ladyshave in the shower or under the tap.

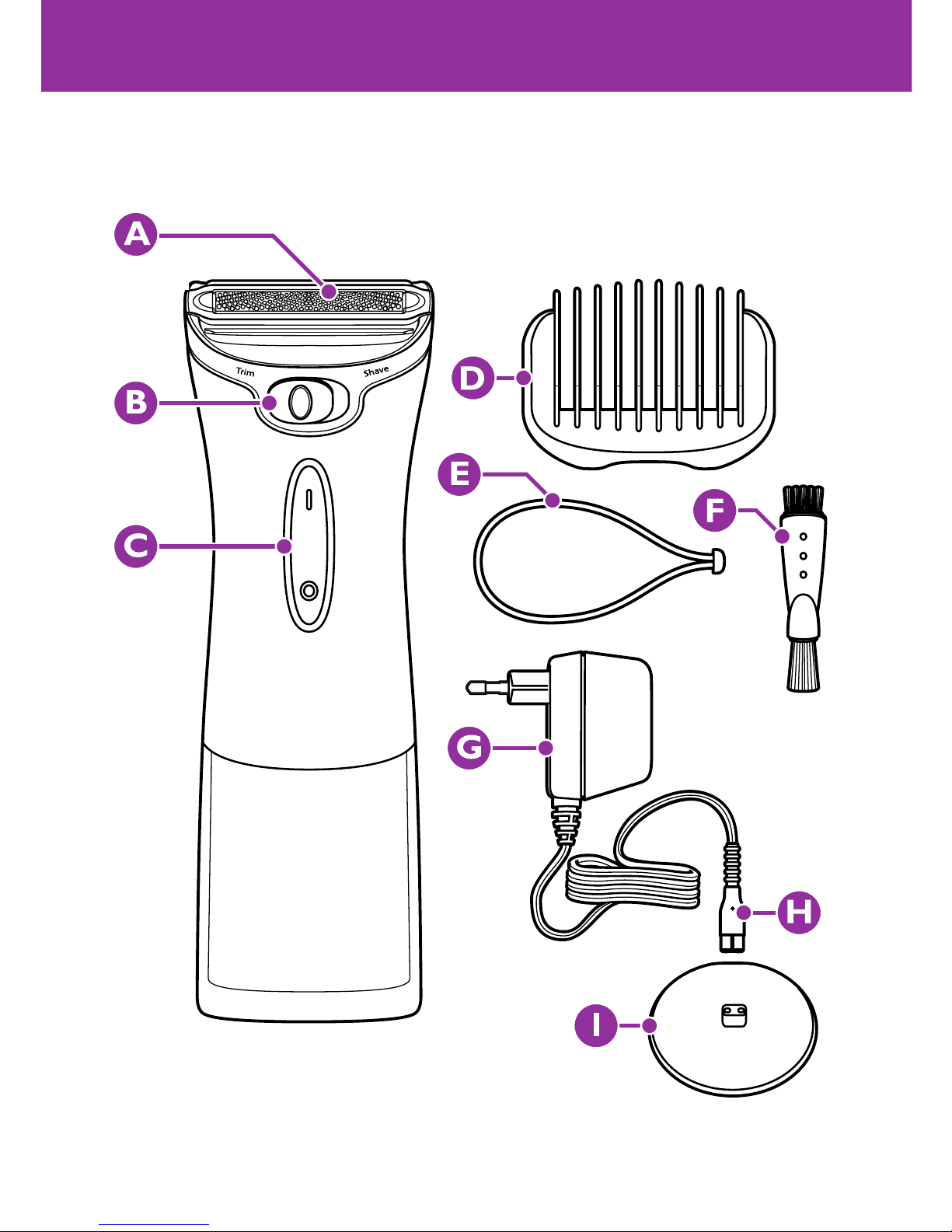

General description (fig. 1)
AShaving unit
BTrim/shave slide
COn/off switch
DComb attachement
EShower loop
FCleaning brush
GAdapter
HSmall plug
ICharging unit
Important
Read these instructions for use carefully before using the appliance and
save them for future reference.
◗Check if the voltage indicated on the adapter corresponds to the
local mains voltage before you connect the appliance.
◗Charge and store the appliance at a temperature between 15cC
and 35cC.
◗The appliance complies with the internationally approved IEC
safety regulations and can be safely used in the bath or shower
(fig. 2).
ENGLISH6

◗If the adapter or charging unit is damaged, always have it replaced
by one of the original type in order to avoid a hazard.
◗Only use the appliance in combination with the adapter supplied.
◗The adapter contains a transformer. Do not cut off the adapter to
replace it with another plug, as this will cause a hazardous
situation.
◗Do not immerse the adapter or charging unit in water or any
other liquid.
Charging
When you charge the ladyshave for the first time or after a long period
of disuse, let it charge for at least 16 hours.
Make sure your hands and the ladyshave are dry when you prepare
the ladyshave for charging.
1Make sure the ladyshave is switched off (fig. 3).
2Put the adapter in the wall socket.
3Insert the small plug into the charging unit (fig. 4).
4Put the ladyshave on the charging unit (fig. 5).
◗Always put the ladyshave back onto the charging unit after use
and leave the charging unit connected to the mains continuously,
even when you are not using it.
◗A fully charged appliance has a cordless shaving time of up to 20
minutes.
Using the appliance
Shaving
1Set the trim/shave slide to the 'shave' position (fig. 6).
2Put the desired shaving foil on the shaving head.
◗Use the golden shaving foil to shave the underarms (fig. 7).
◗Use the golden shaving foil to shave the bikini line (fig. 8).
ENGLISH 7

◗Use the silver shaving foil to shave the legs (fig. 9).
Do not use the silver shaving foil to shave the underarms and the
bikini line in order to reduce the risk of injuries.
3Switch the ladyshave on (fig. 10).
4Place the shaving unit gently on the skin and move the ladyshave
slowly against the direction of hair growth while pressing it lightly.
◗The angle between the skin and the ladyshave should be 70cto
get the best results (fig. 9).
Trimming
◗Put the comb attachment onto the shaving head to trim the hairs
to an even length (about 5 mm), e.g. in the bikini zone (fig. 11).
The comb attachment can be put onto the shaving head in different
directions, depending on the area to be trimmed.
1Set the trim/shave slide to the 'trim' position (fig. 12).
2To trim the bikini zone, place the comb attachment on the
shaving head with the recess of the attachment on the front of
the appliance (fig. 13).
3To trim the underarms, place the comb attachment on the
shaving head with the recess of the attachment on the back of
the appliance (fig. 14).
4Switch the ladyshave on.
5Move the appliance against the direction of hair growth.
◗Make sure the surface of the comb always stays in contact with
the skin (fig. 15).
ENGLISH8

Shaping
1Remove the comb attachment to shape precise lines and
contours, e.g. in the bikini zone (fig. 16).
2Lock the long hair trimmer by setting the trim/shave slide to the
'trim' position (fig. 12).
Cleaning and maintenance
After every use
Clean the ladyshave every time you have used it.
Do not use any corrosive detergents, scouring pads or cloths, petrol,
acetone etc. to clean the appliance.
1Switch the ladyshave off.
2Remove the shaving foil (fig. 17).
Do not exert any pressure on the shaving foil to avoid damage.
3Gently shake the shaving foil to remove hairs or clean it with the
brush supplied.
4Remove the cutter block (fig. 18).
5Clean the hair chamber with the brush supplied (fig. 19).
6Reassemble the ladyshave and put the comb attachment onto the
appliance before storing it, to protect the shaving foil (fig. 11).
Twice a year
◗Lubricate the shaving foils with a drop of sewing machine oil
twice a year (fig. 20).
Storage
When you are not using the ladyshave you can store it in the shower
by hanging it upside down from the shower loop.
◗Attach the shower loop to the appliance as shown in the picture
(fig. 21).
ENGLISH 9

Replacement
If you use the ladyshave two or more times a week, we advise you to
replace the shaving foil and cutter block every one to two years.
- The silver shaving foil may only be replaced with an original Philips
shaving foil (type HP6119/01).
- The golden shaving foil may only be replaced with an original Philips
shaving foil (type HP6121).
- The cutter block may only be replaced with an original Philips
cutter block (type HP6111).
Environment
◗Do not throw the appliance away with the normal household
waste at the end of its life, but hand it in at an official collection
point for recycling. By doing this you will help to preserve the
environment (fig. 22).
The built-in rechargeable battery contains substances that may pollute
the environment. Always remove the battery before discarding the
appliance or handing it in at an official collection point. Dispose of the
battery at an official collection point for batteries. If you have trouble
removing the battery, you can also take the appliance to a Philips
service centre, which will remove the battery for you and will dispose
of it in an environmentally safe way.
Disposal of the battery
1Take the ladyshave off the charging unit.
2Let the motor run until the battery is completely empty.
3Pull the upper part of the ladyshave off the lower part with some
force (fig. 23).
4Remove the battery by means of a screwdriver (fig. 24).
ENGLISH10
